Gigabyte Mainboard|GIGABYTE|AMD X870|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|Wi-Fi Yes|Bluetooth Yes|4x
Price:
€345.82
Tax included
Share on

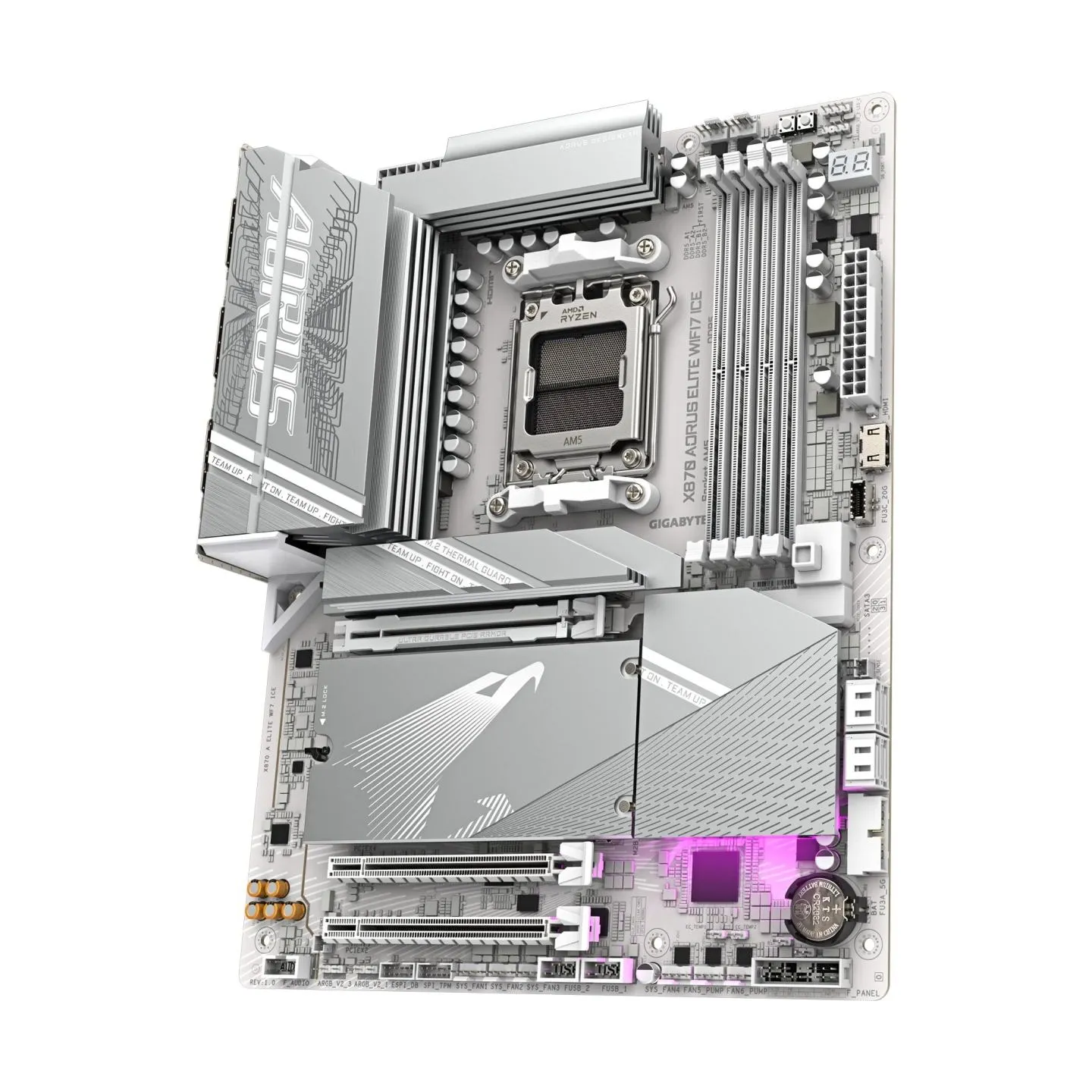

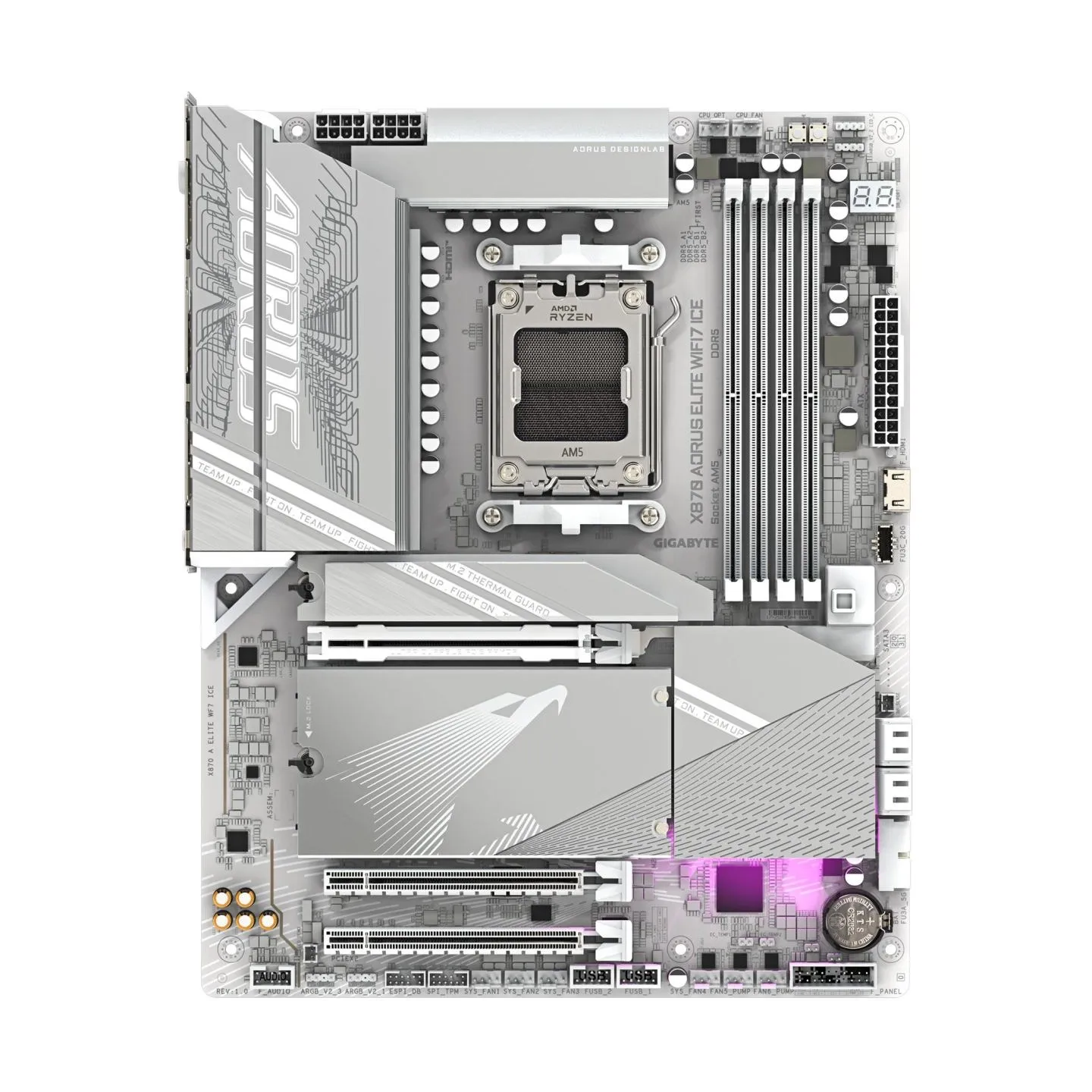

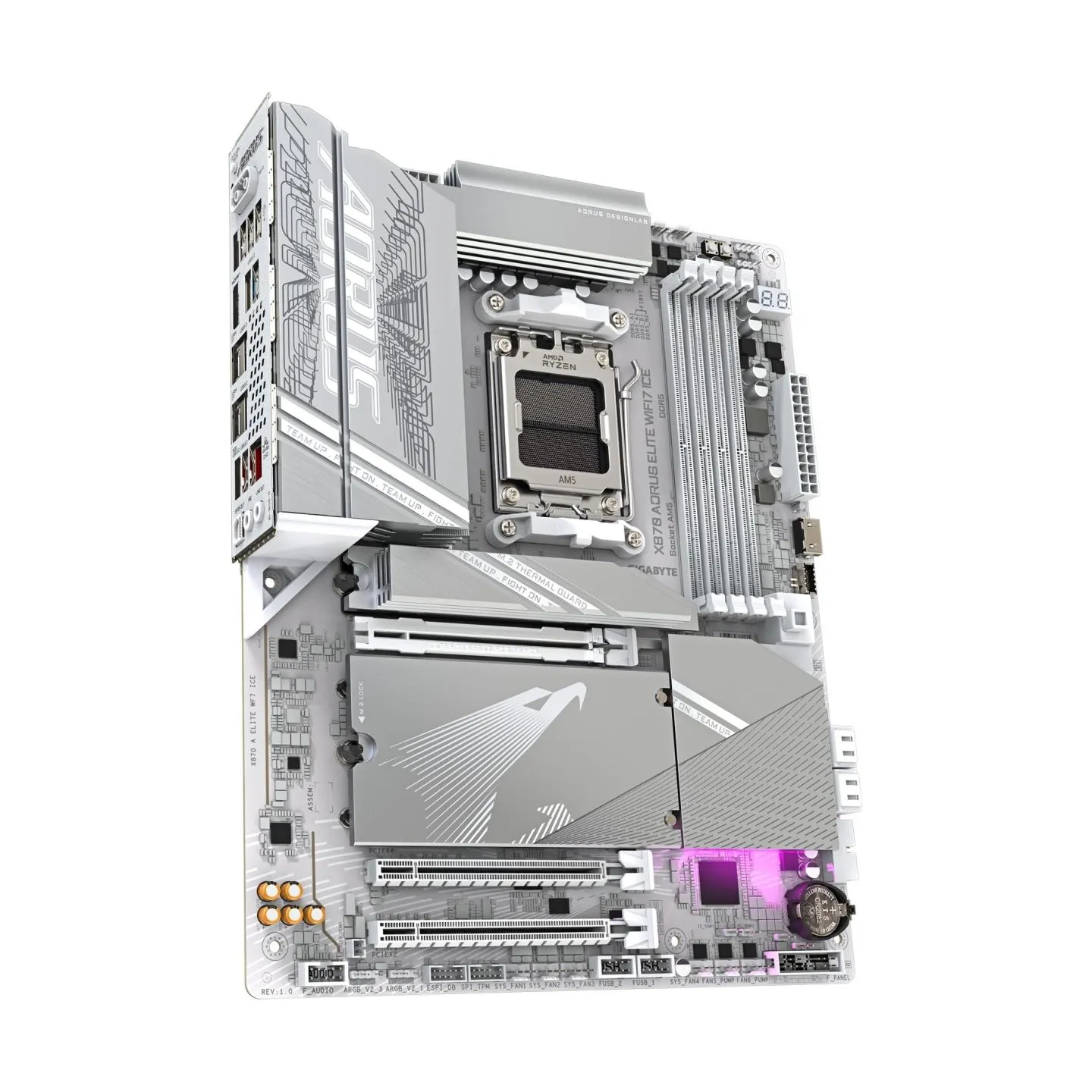

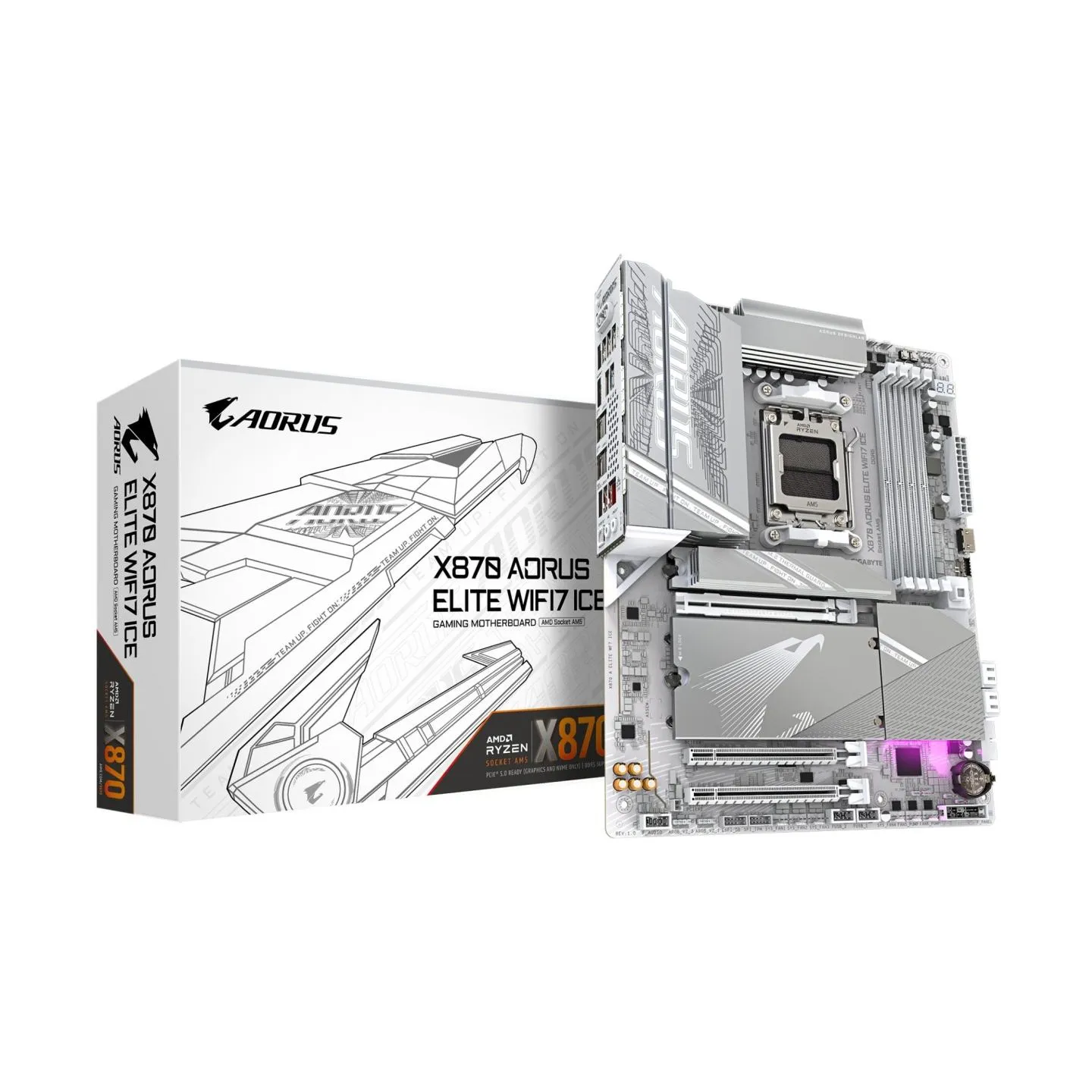

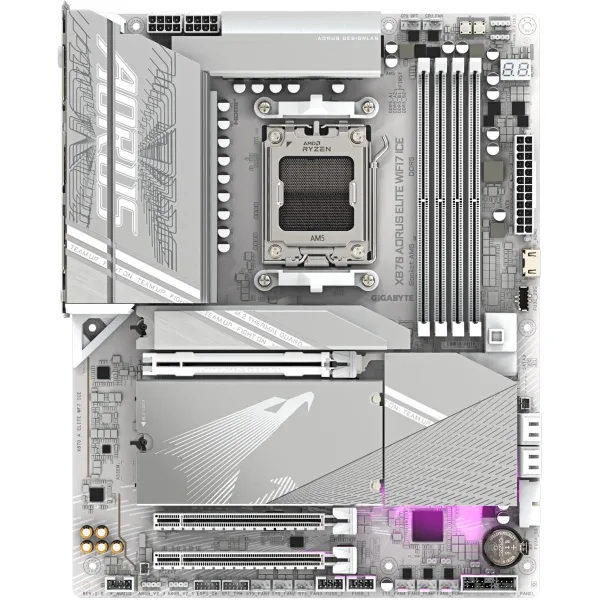

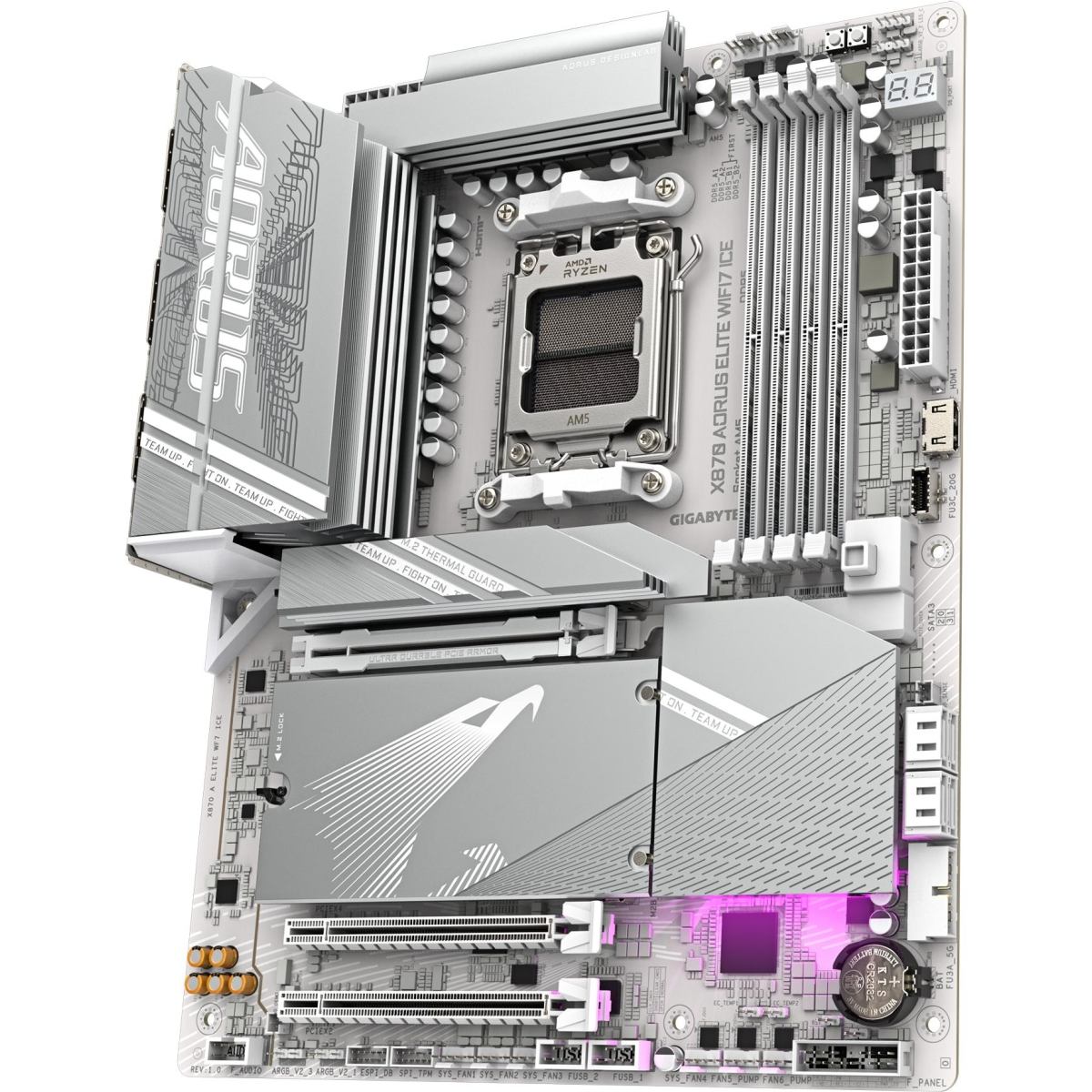

GIGABYTE X870 AORUS ELITE WIFI7 ICE
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

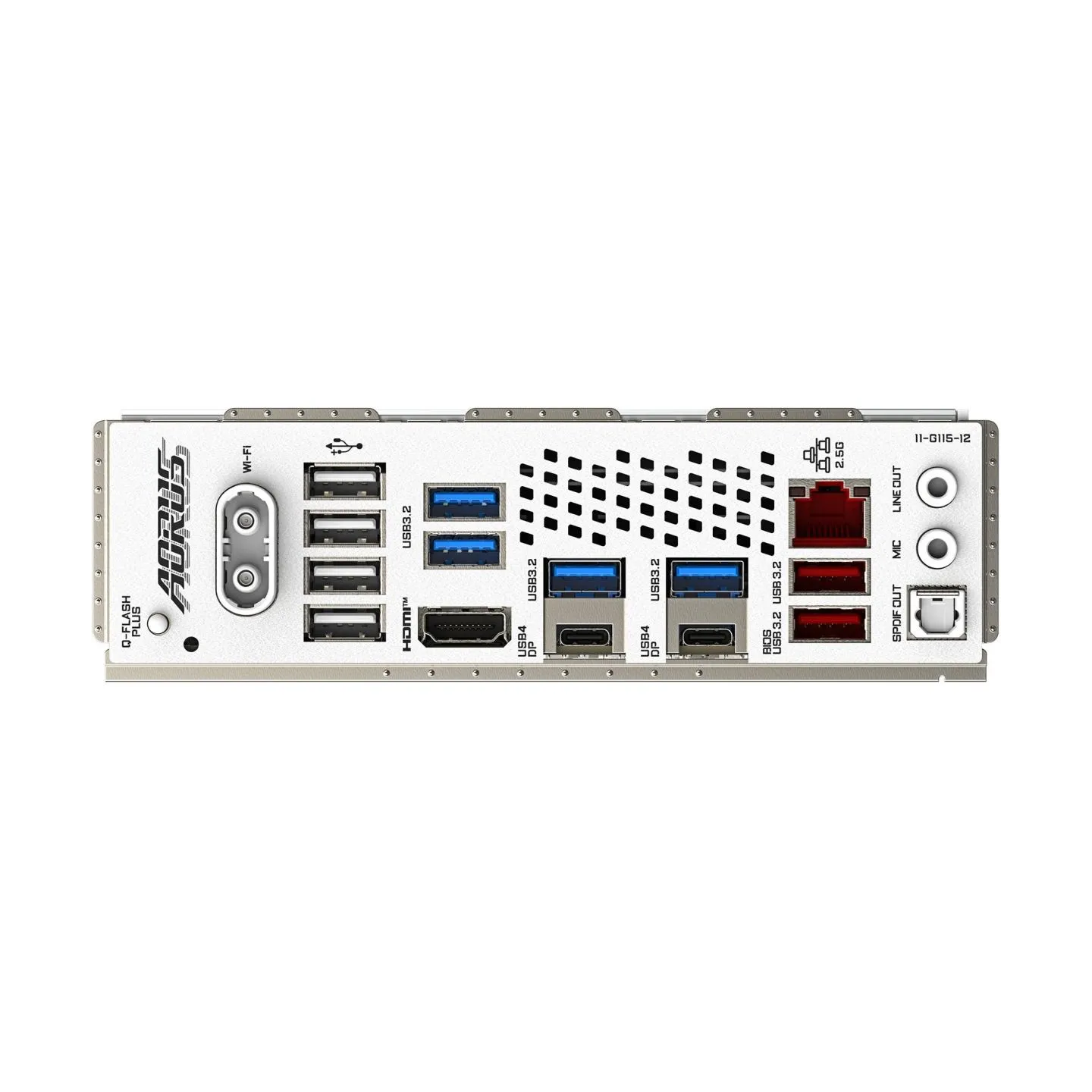

- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Manufacturer Website:
https://www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.08
- Unit Box Length
- 0.34
- Unit Box Width
- 0.275
- Audio chip
- Realtek ALC1220
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Noise/Temperature/Voltage/Water cooling
- Product colour
- White
- Windows operating systems supported
- Windows 11 x64
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Maximum internal memory supported by processor
- 256 GB
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8200 MHz
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- Discrete graphics support
- Yes
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Number of displays supported
- 4
- On-board graphics card
- Yes
- On-board graphics card model
- AMD Radeon Graphics
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 6
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- Number of RGB LED pin headers
- 4
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 3
- RGB LED pin header
- Yes
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB4 Gen 3x2 ports quantity
- 2
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- WLAN controller model
- MediaTek MT7925
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2740 g
- Package width
- 335 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 2400 g
- Model
- X870 AORUS ELITE WIFI7 ICE
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.01065 cubm
- Unit Calculated Weight
- 2.6 kg
