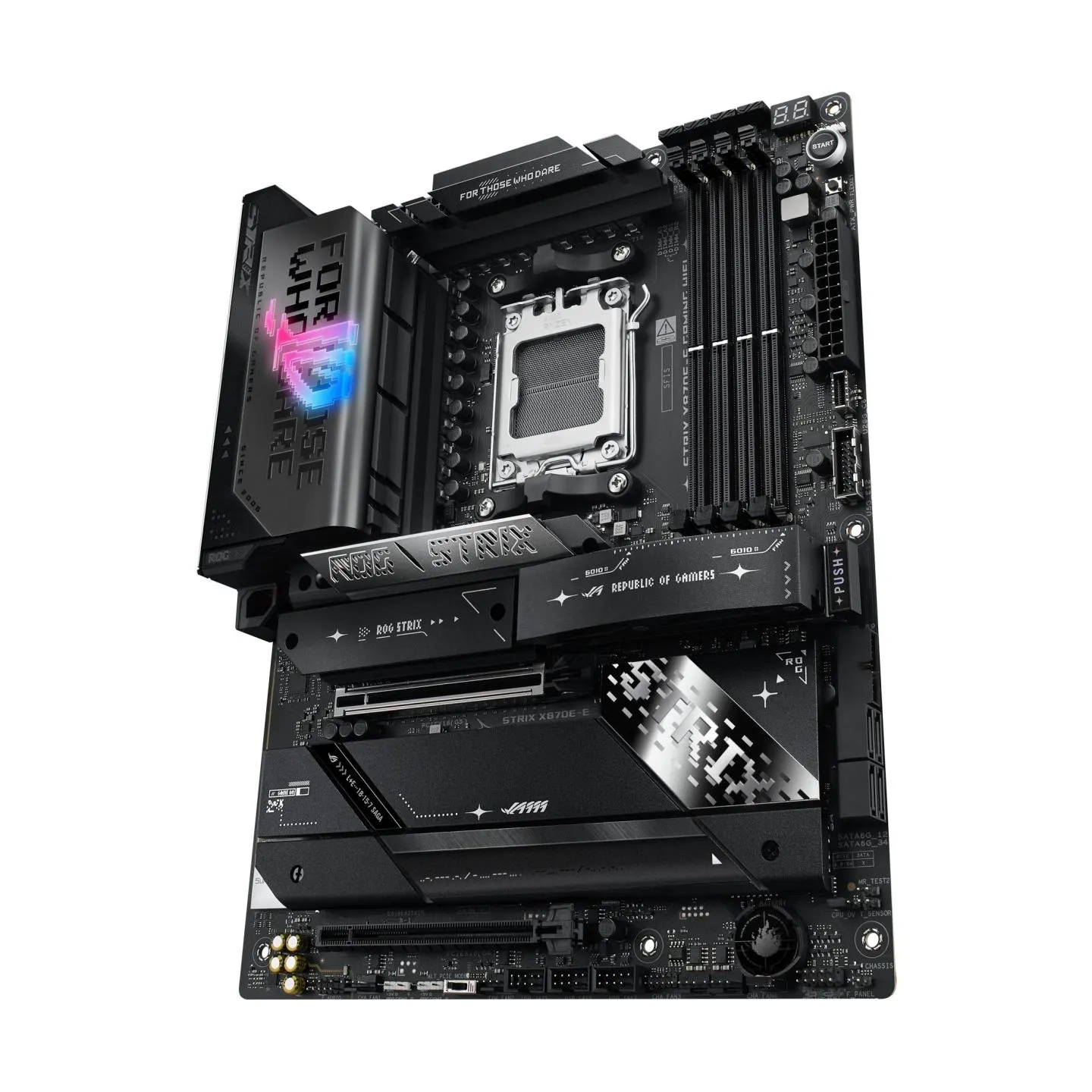

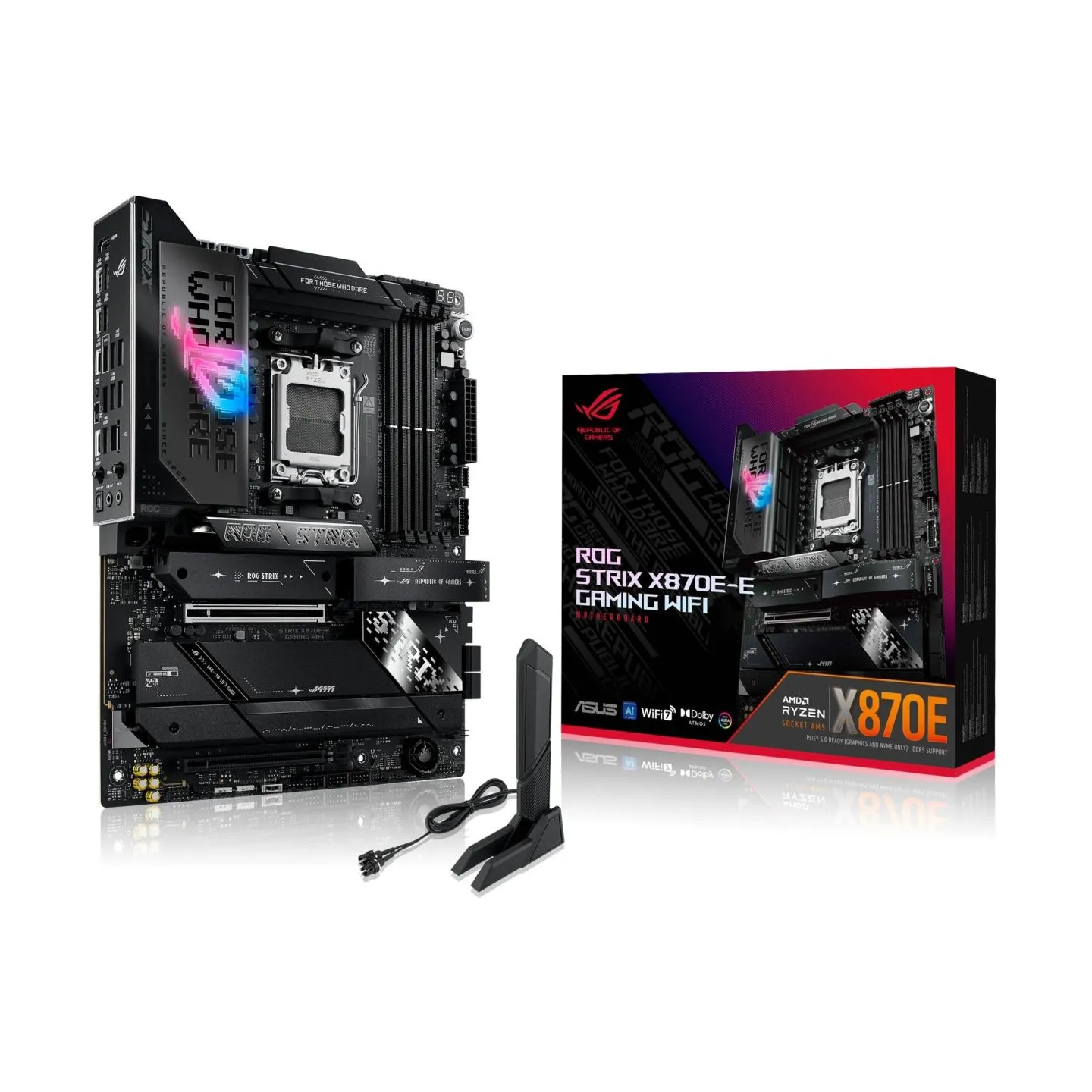

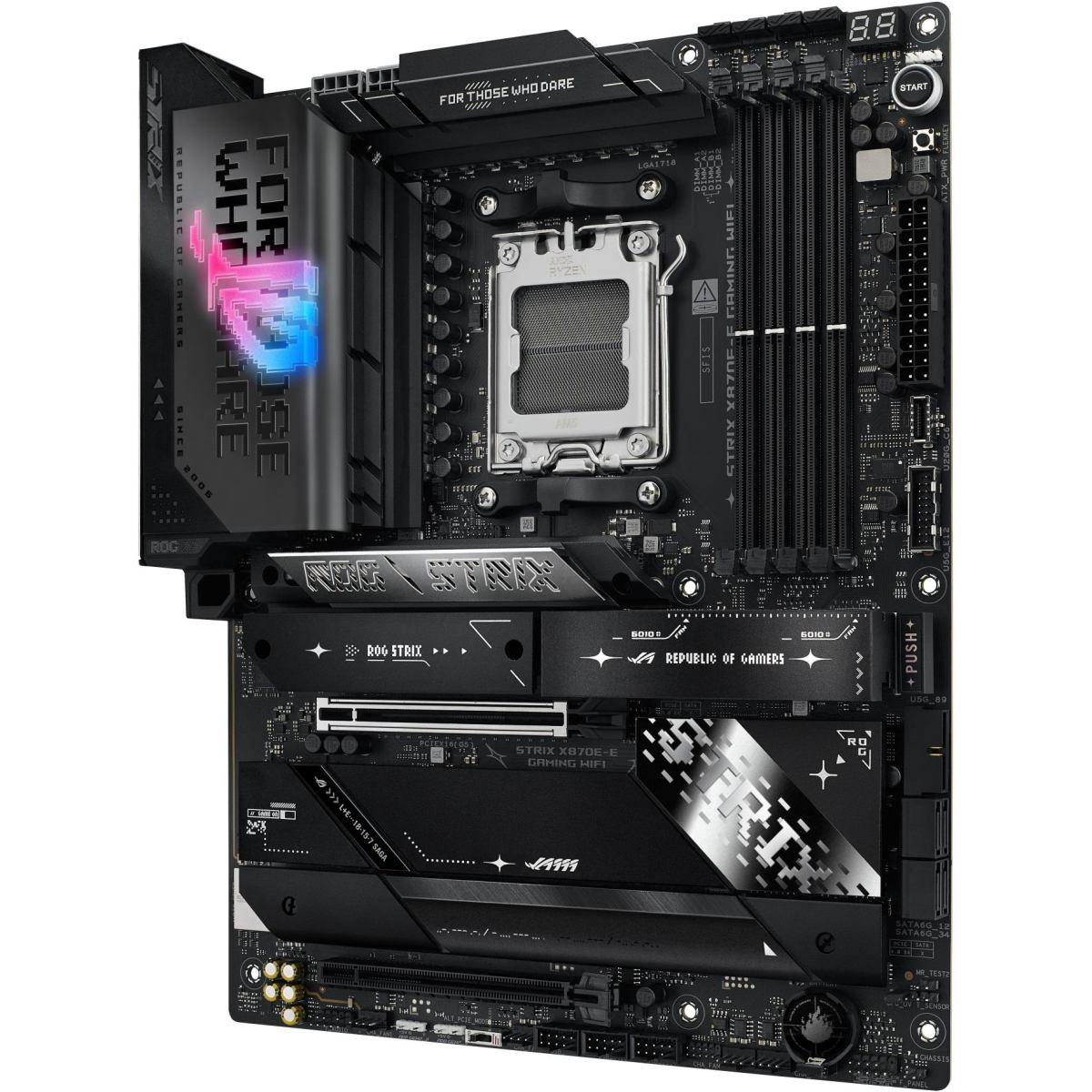

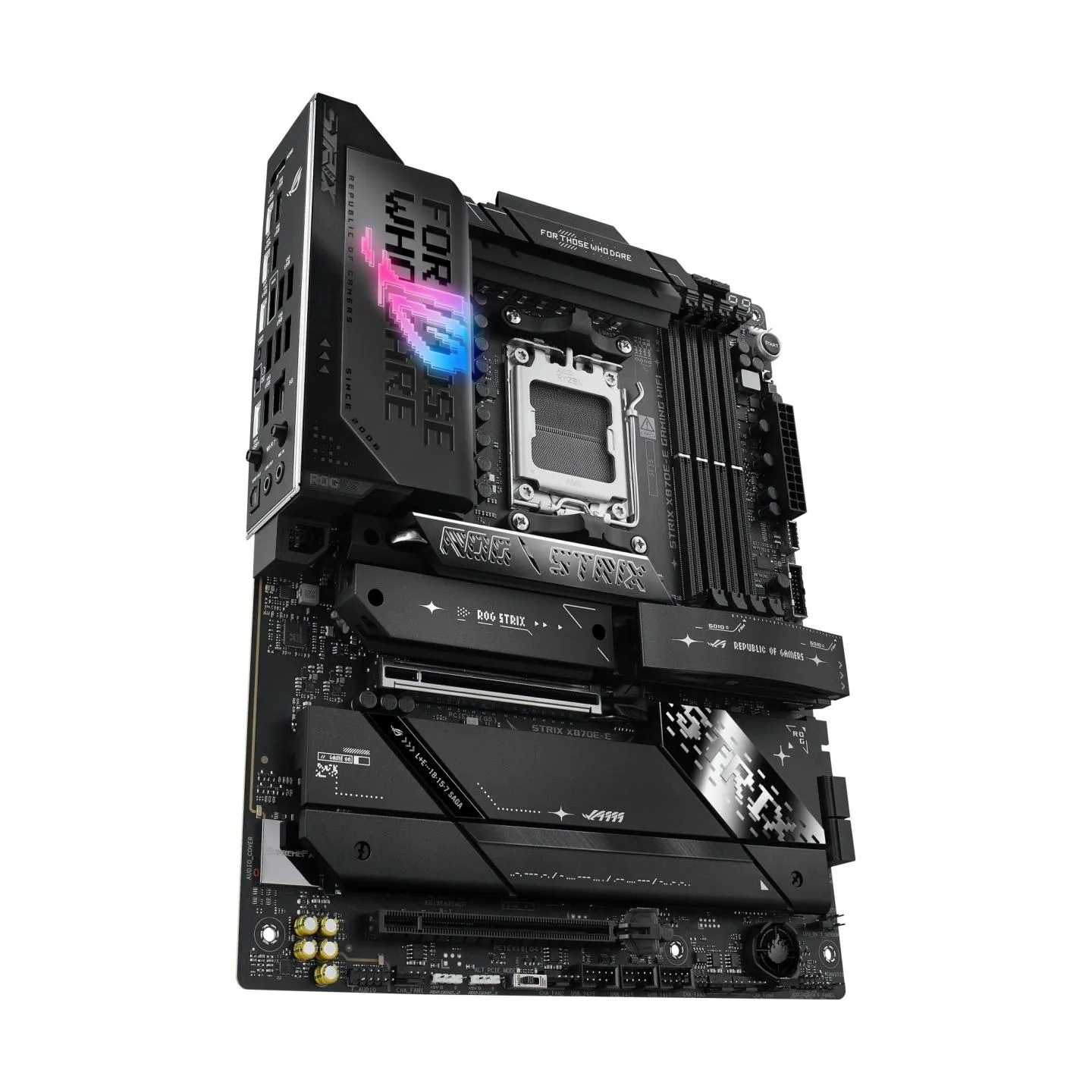

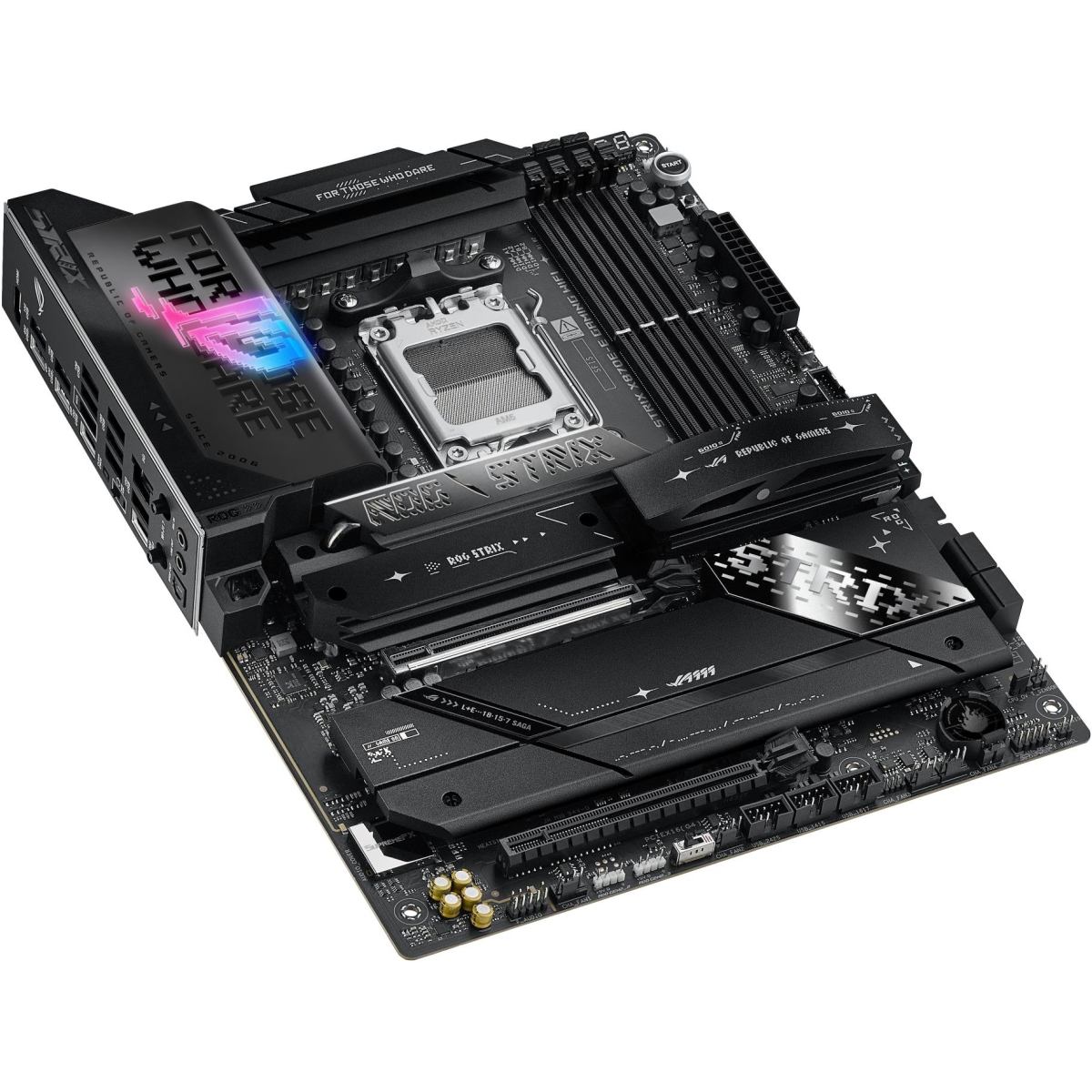

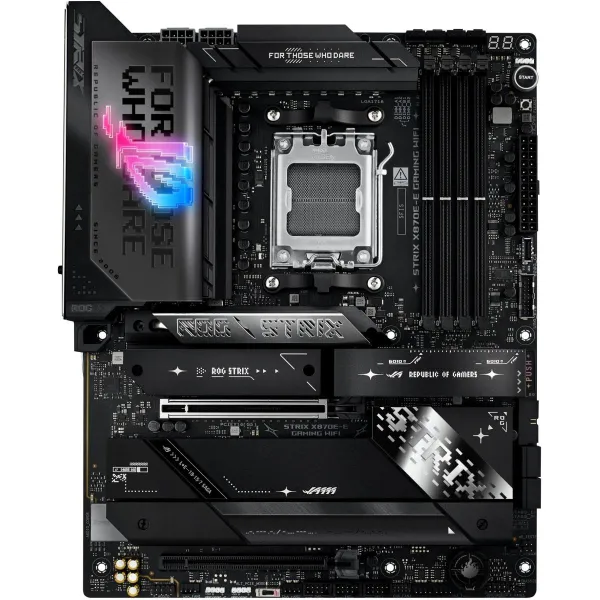

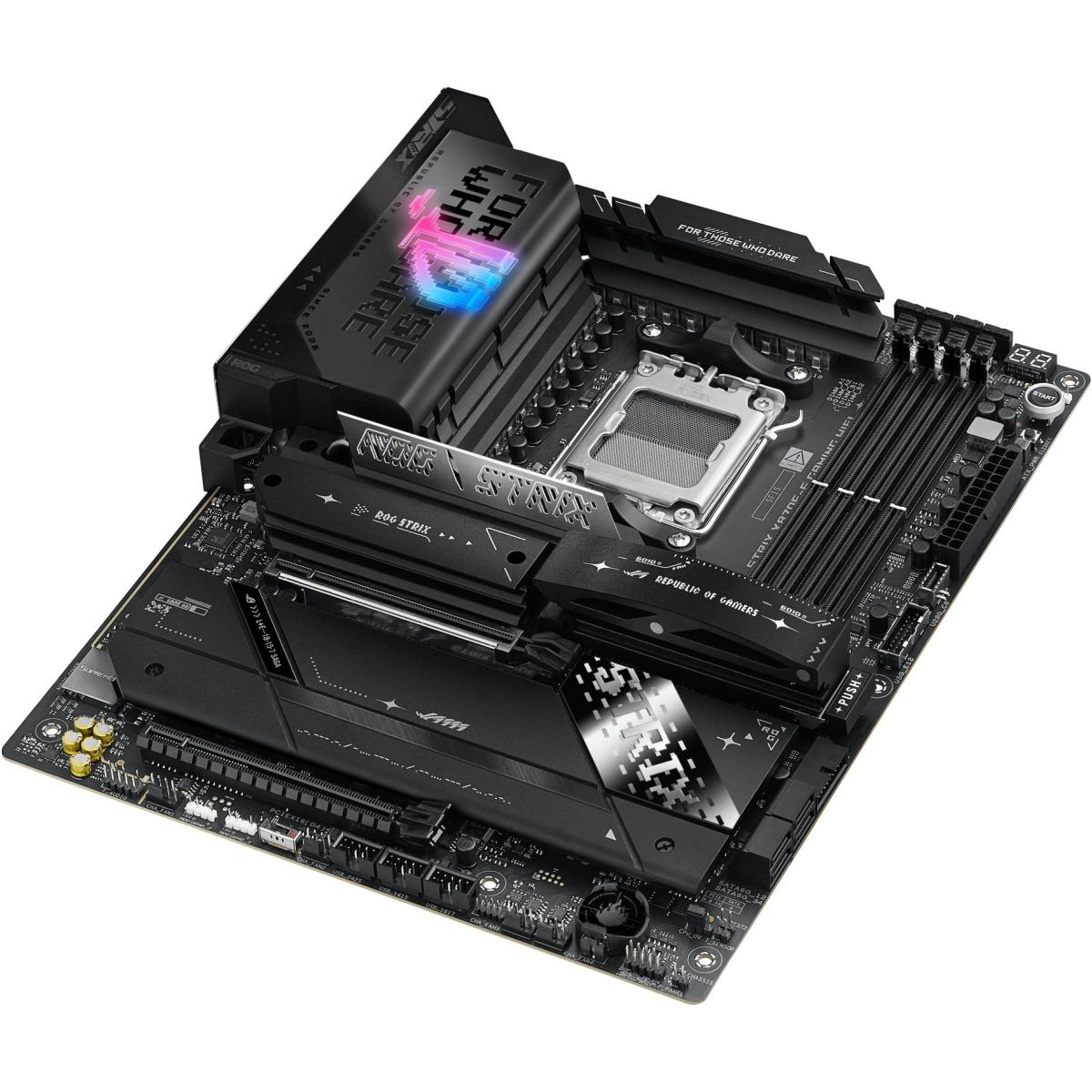

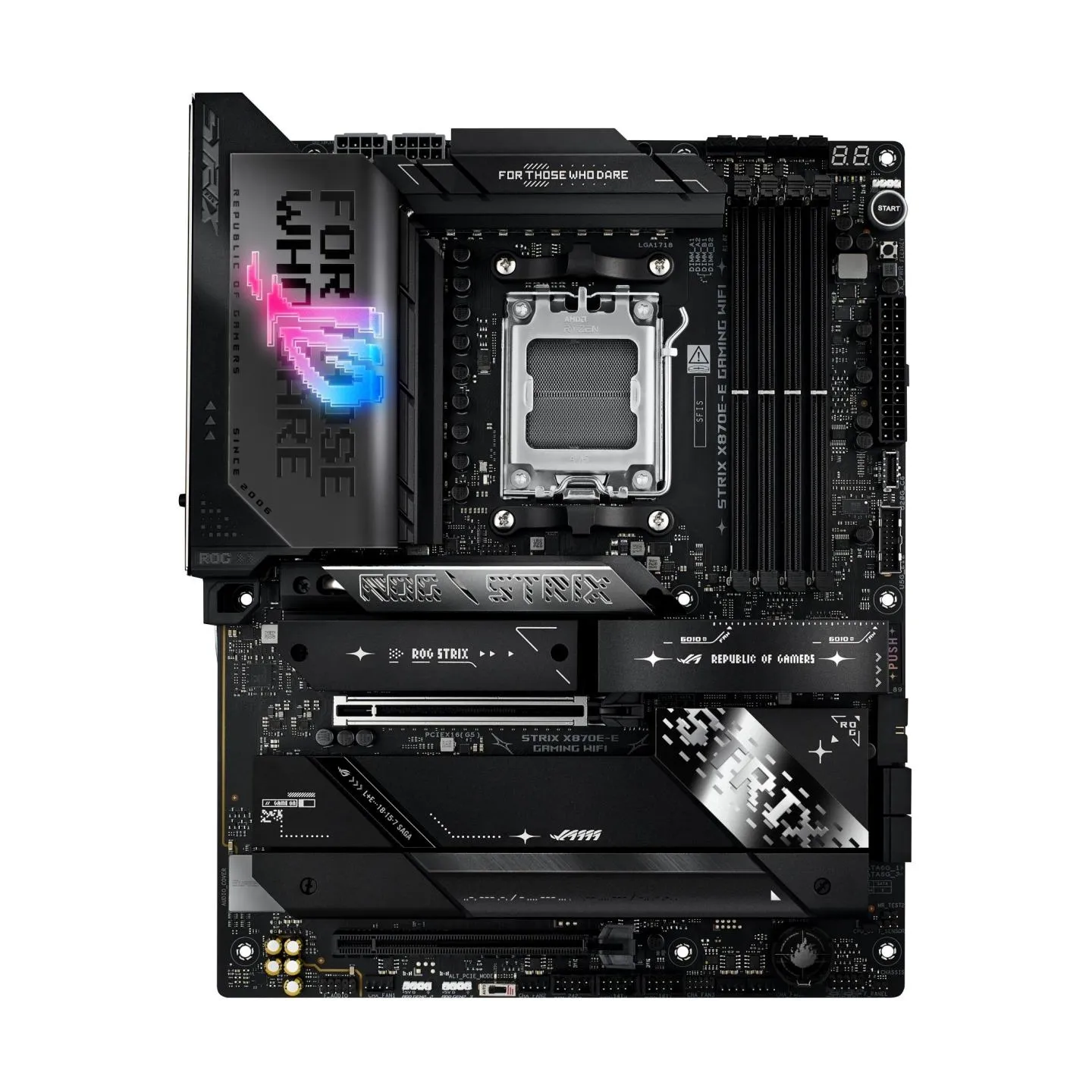

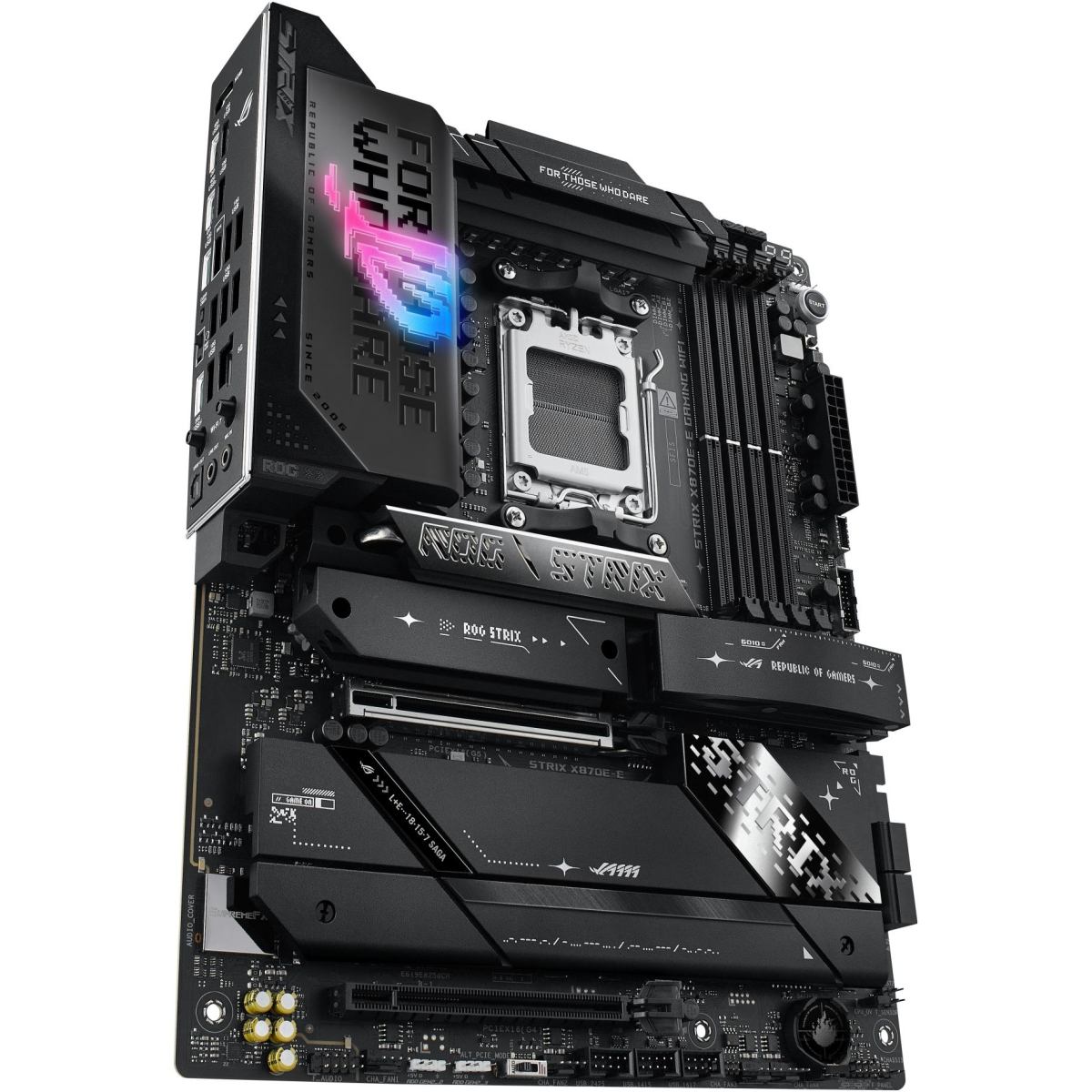

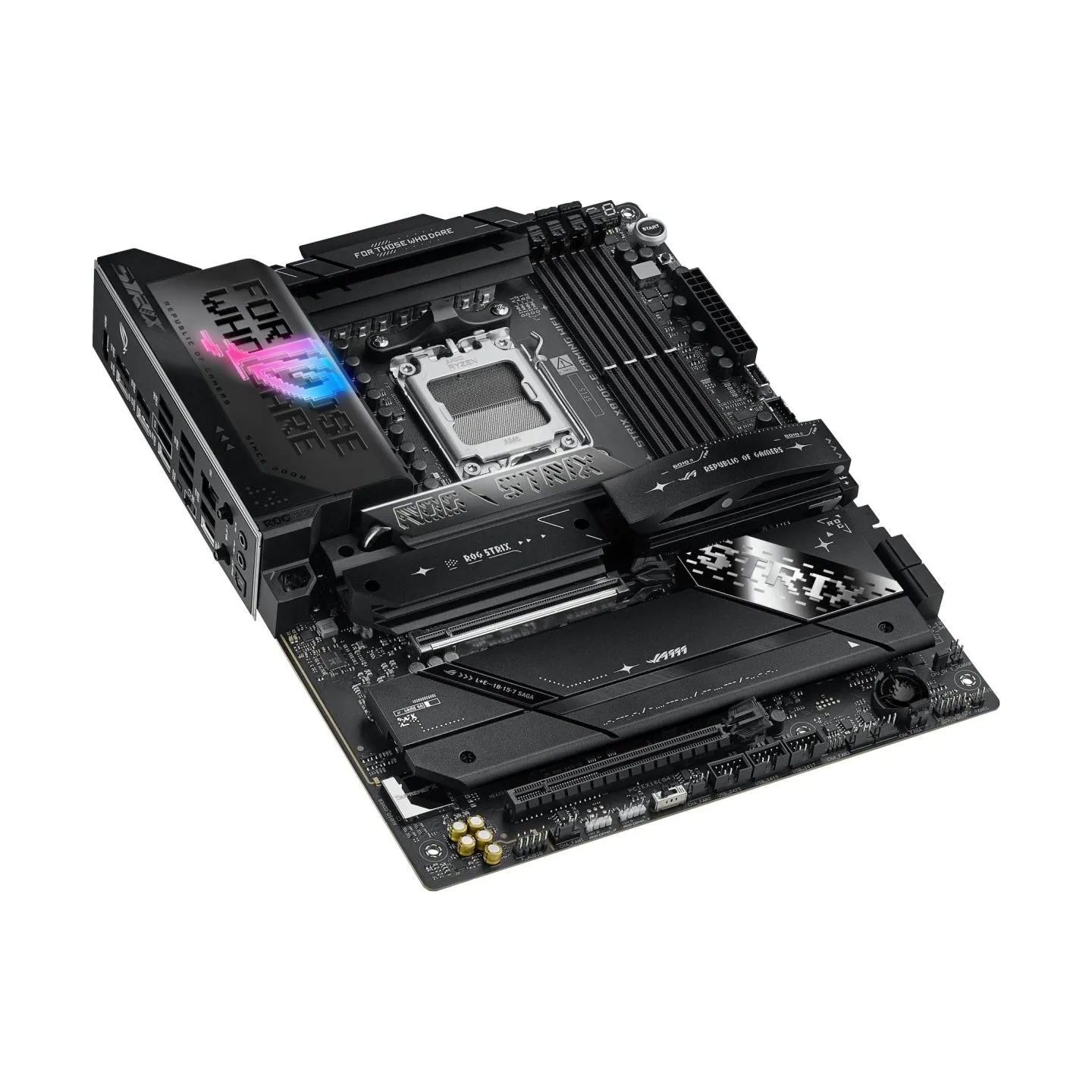

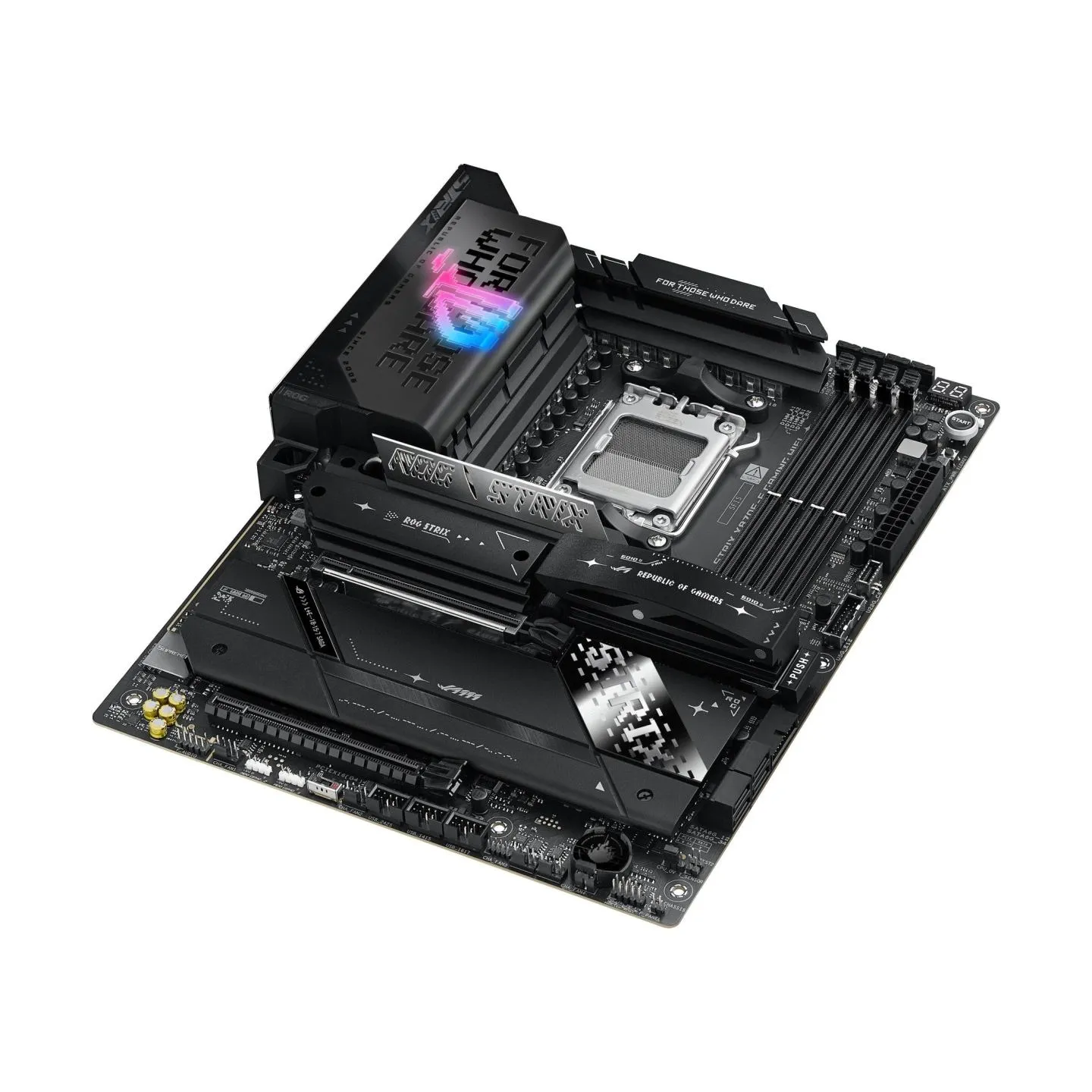

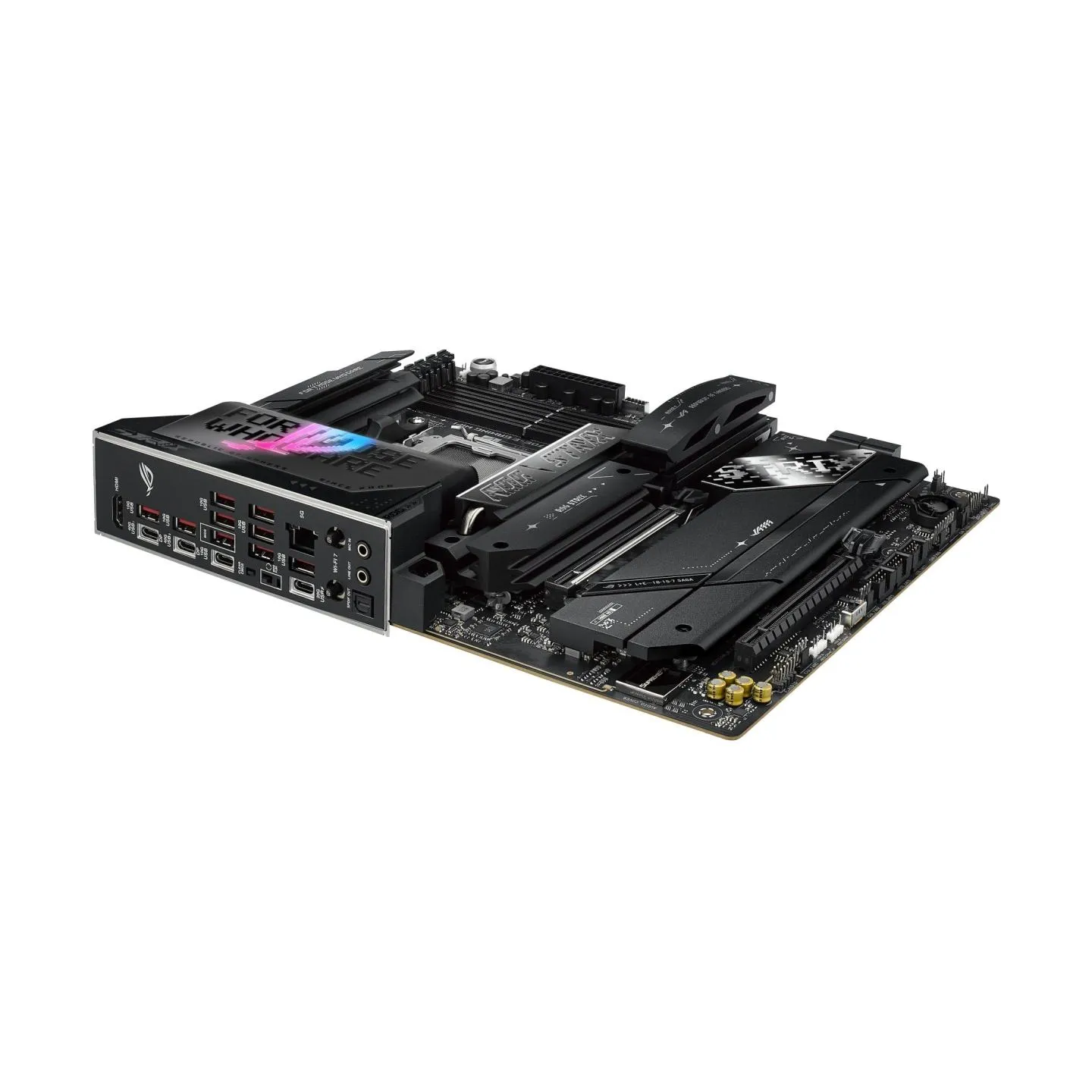

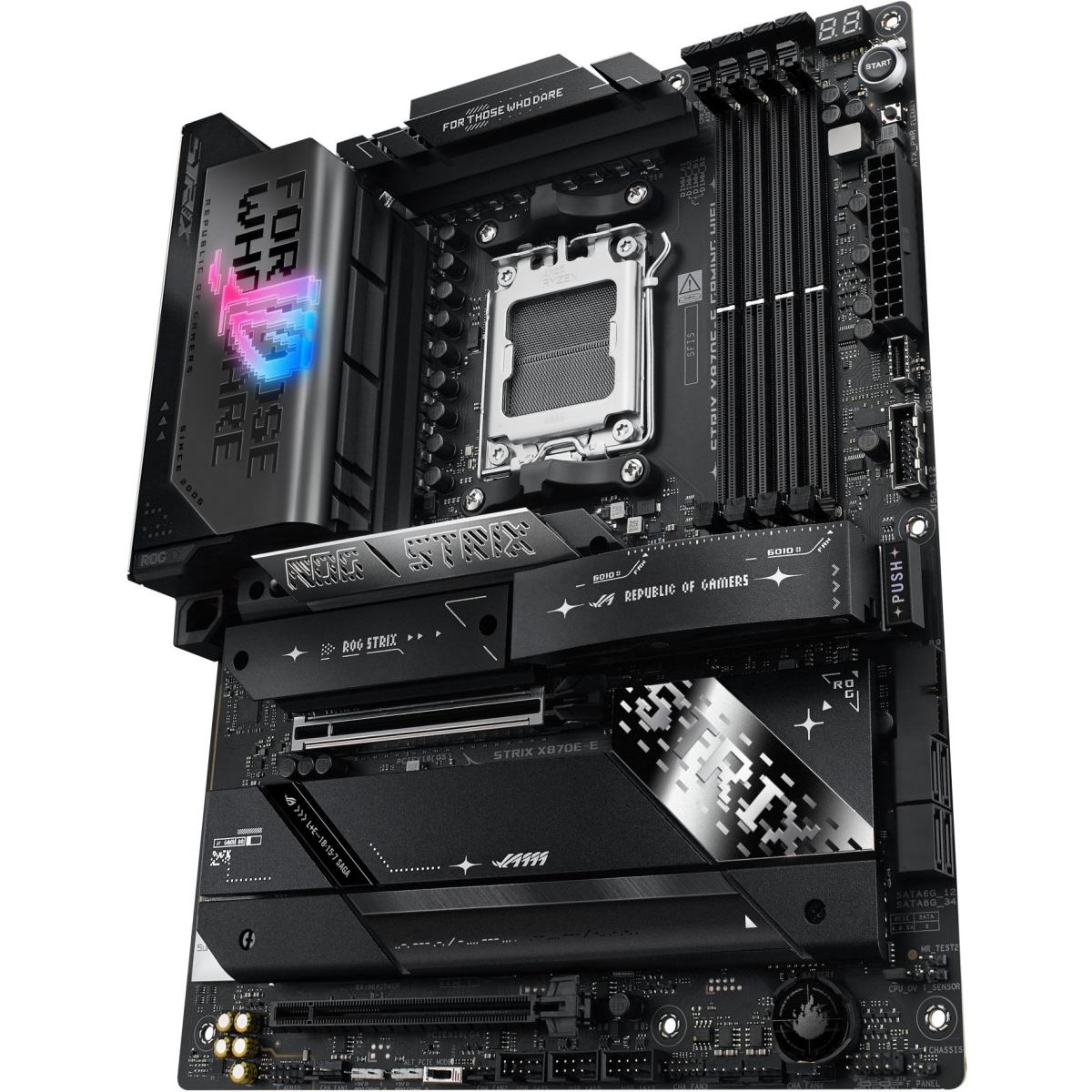

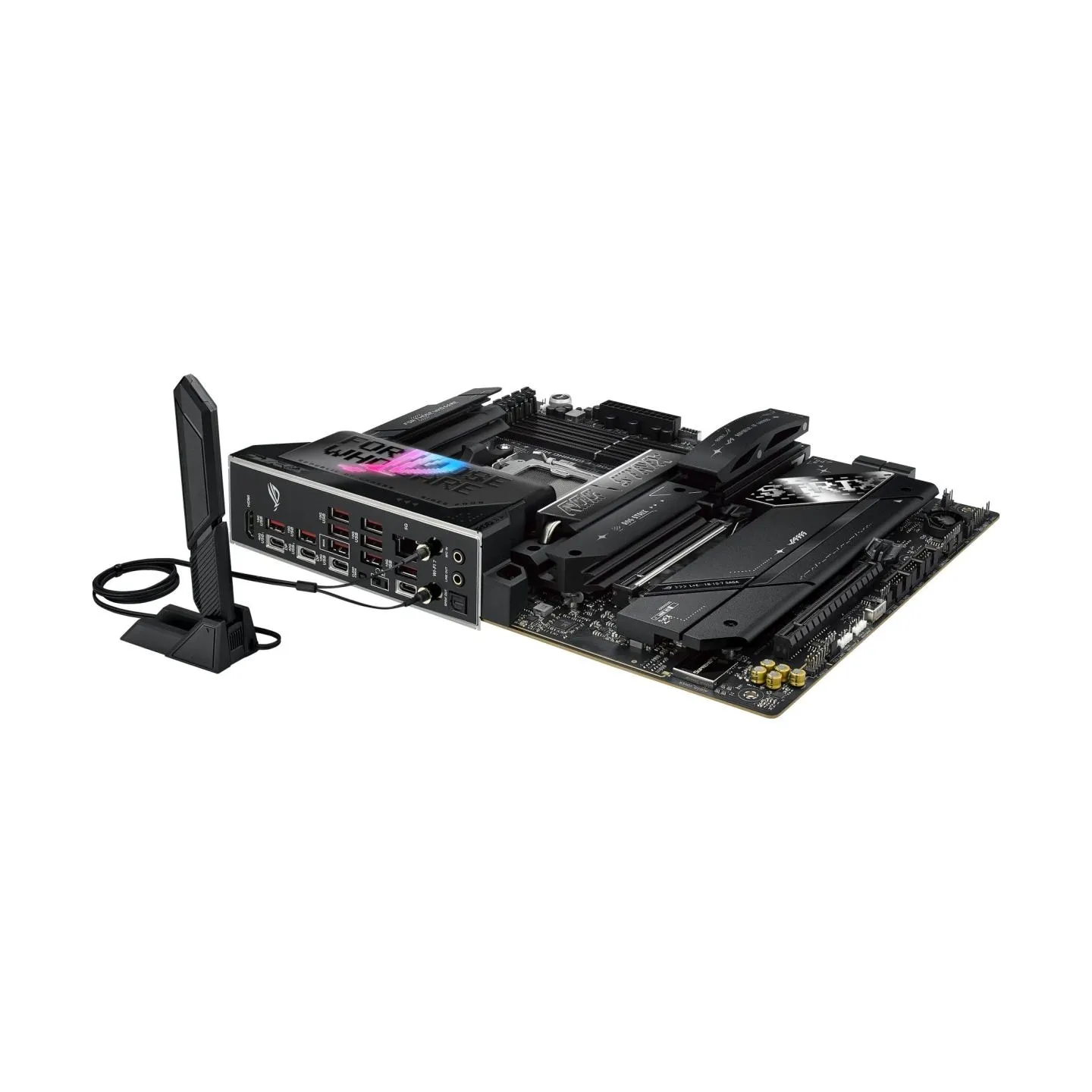

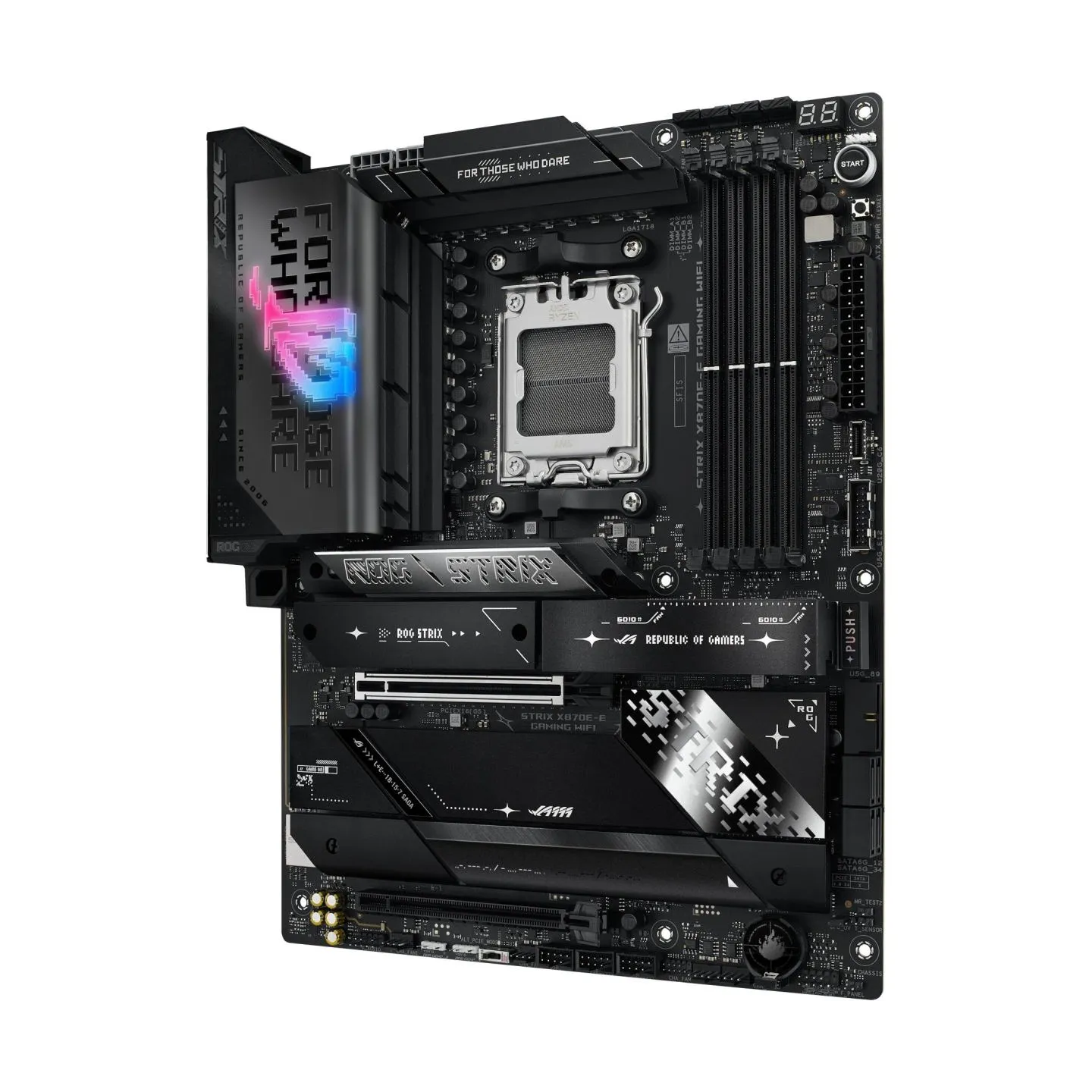

Asus Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB
ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI Overclocking
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Manufacturer Website:
https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.09
- Unit Box Length
- 0.36
- Unit Box Width
- 0.282
- Audio chip
- Realtek ALC4080
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870E
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 11 x64
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 192 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 9
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 5
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2x2 connectors
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 9
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 2
- WiFi-AP antenna jack
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Number of M.2 (M) slots
- 5
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Package depth
- 281 mm
- Package height
- 87 mm
- Package weight
- 3025 g
- Package width
- 365 mm
- Depth
- 244 mm
- Height
- 50 mm
- Width
- 305 mm
- Cables included
- SATA
- Weight
- 2060 g
- Model
- ROG STRIX X870E-E GAMING WIFI
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.01096 cubm
- Unit Calculated Weight
- 3.06 kg
