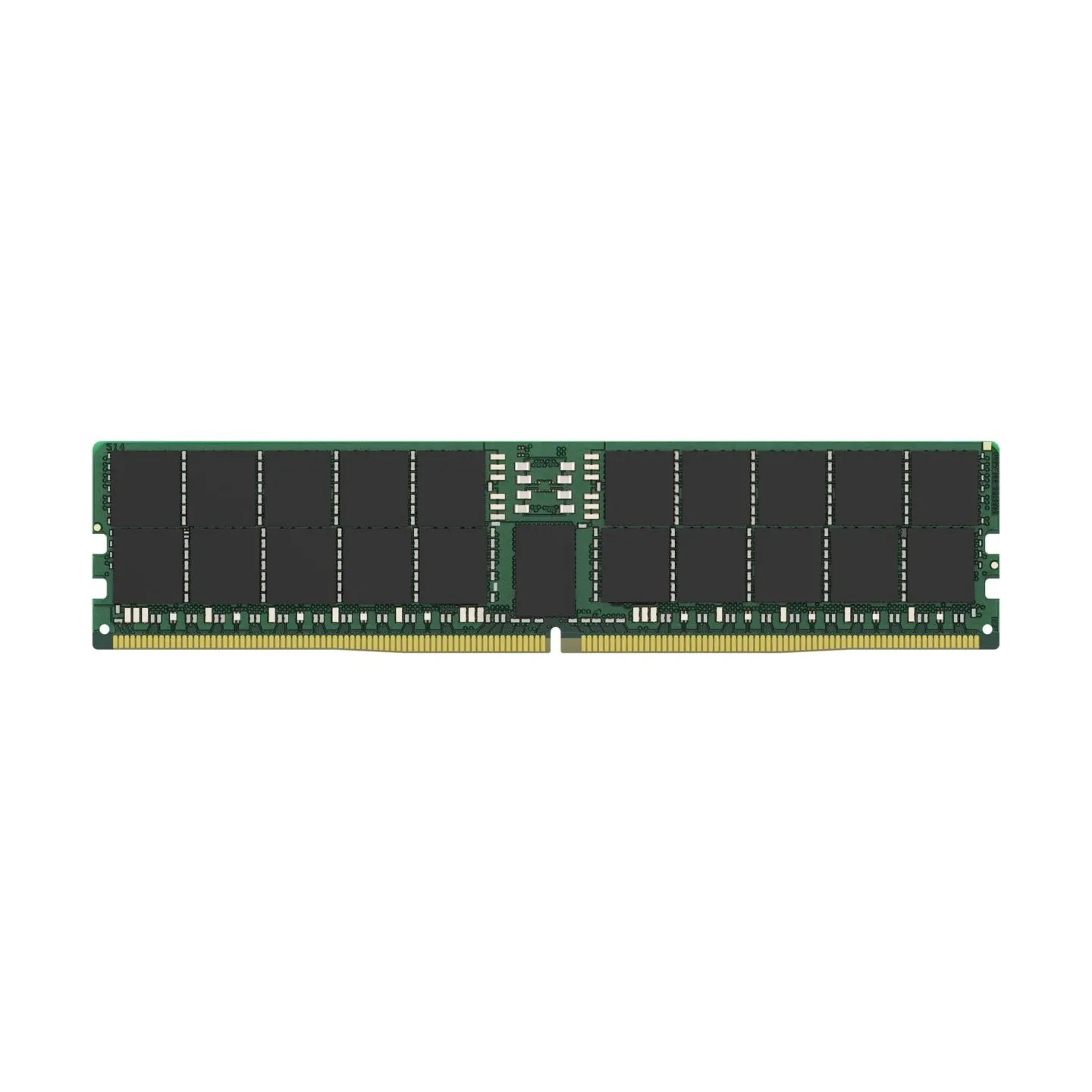

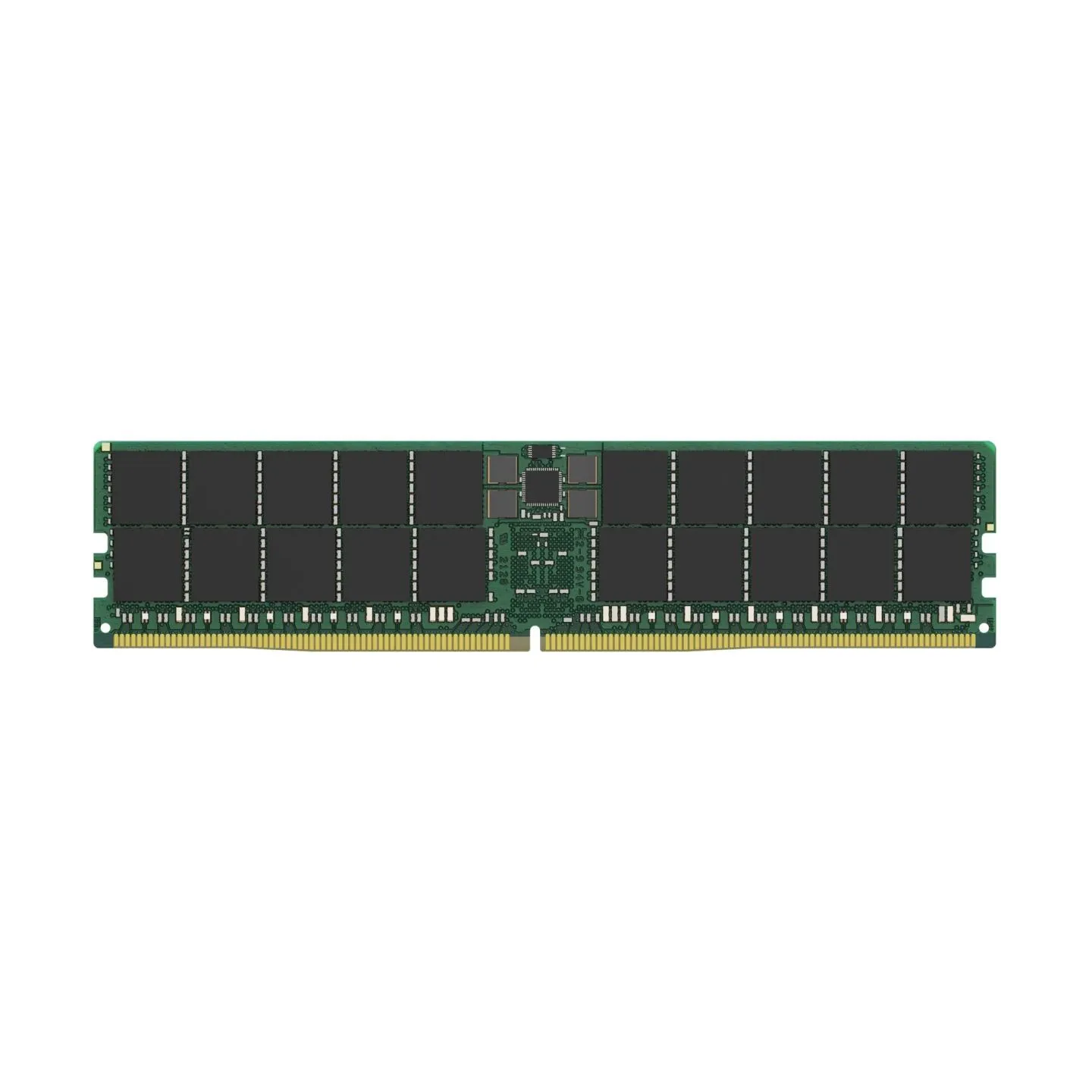

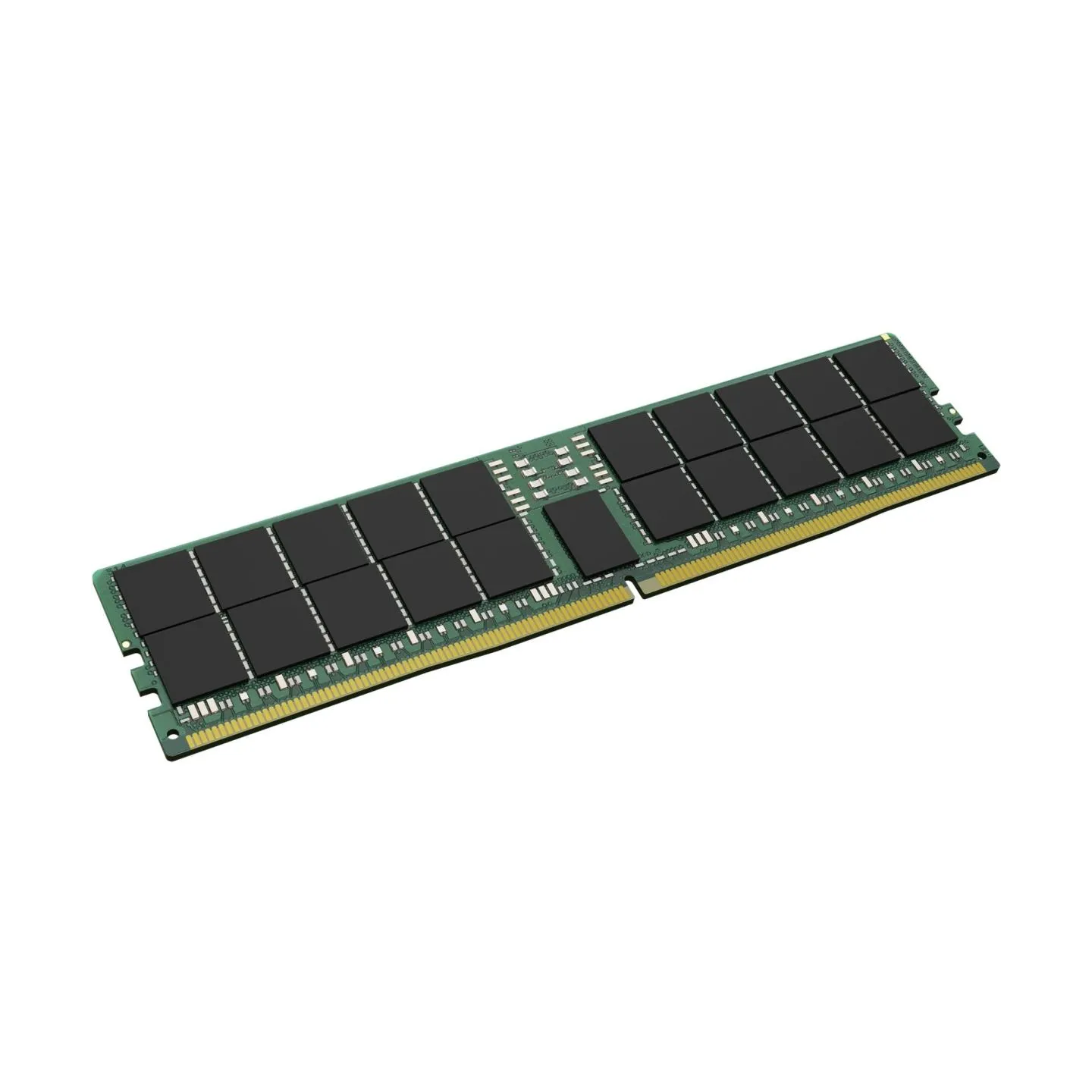

Kingston Server memory DDR4 64GB/5600(1*64) ECC Reg CL52 2Rx4 Micron
New
Price:
€2,473.11
Tax included
Share on
Kingston Technology KSM64R52BD4-64MD

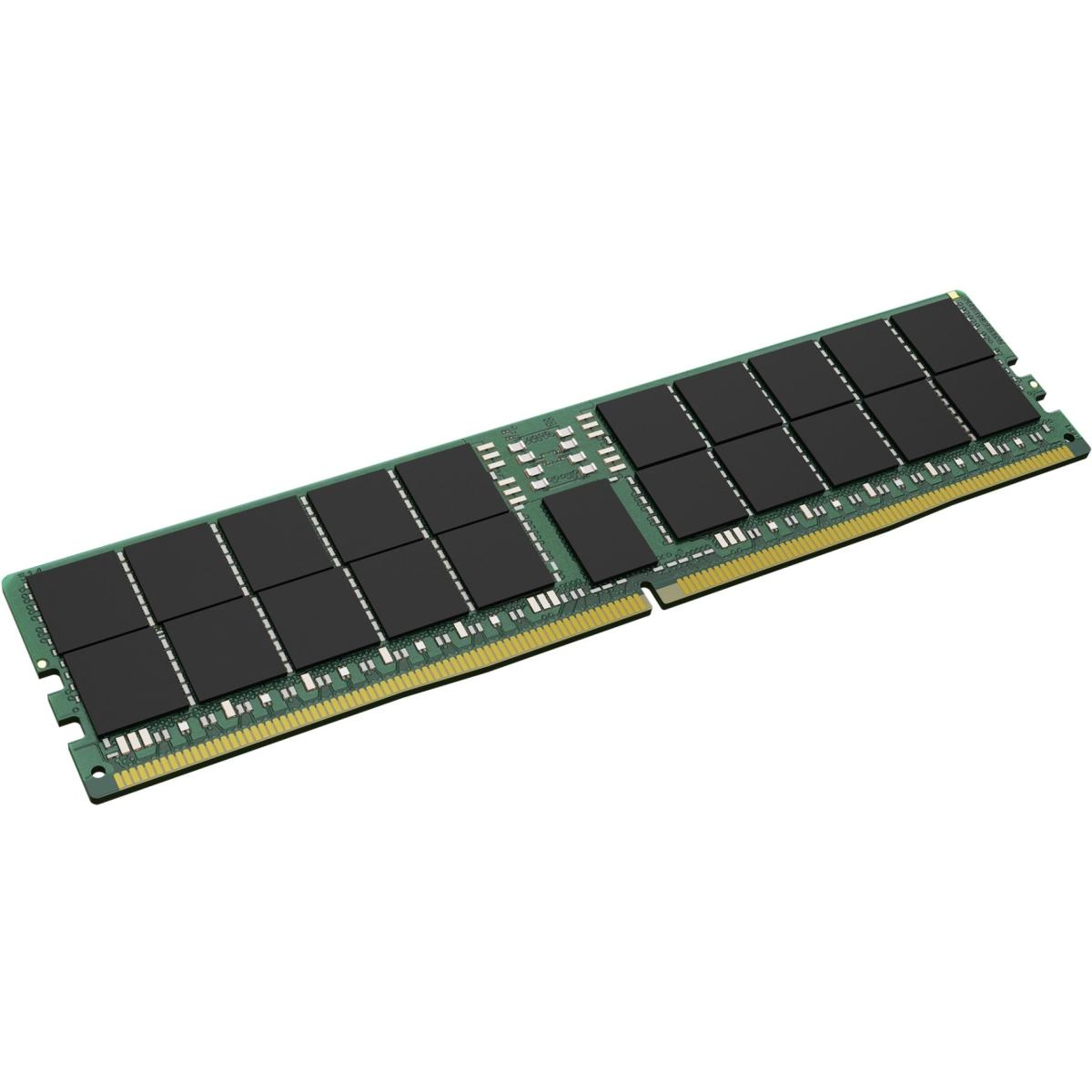

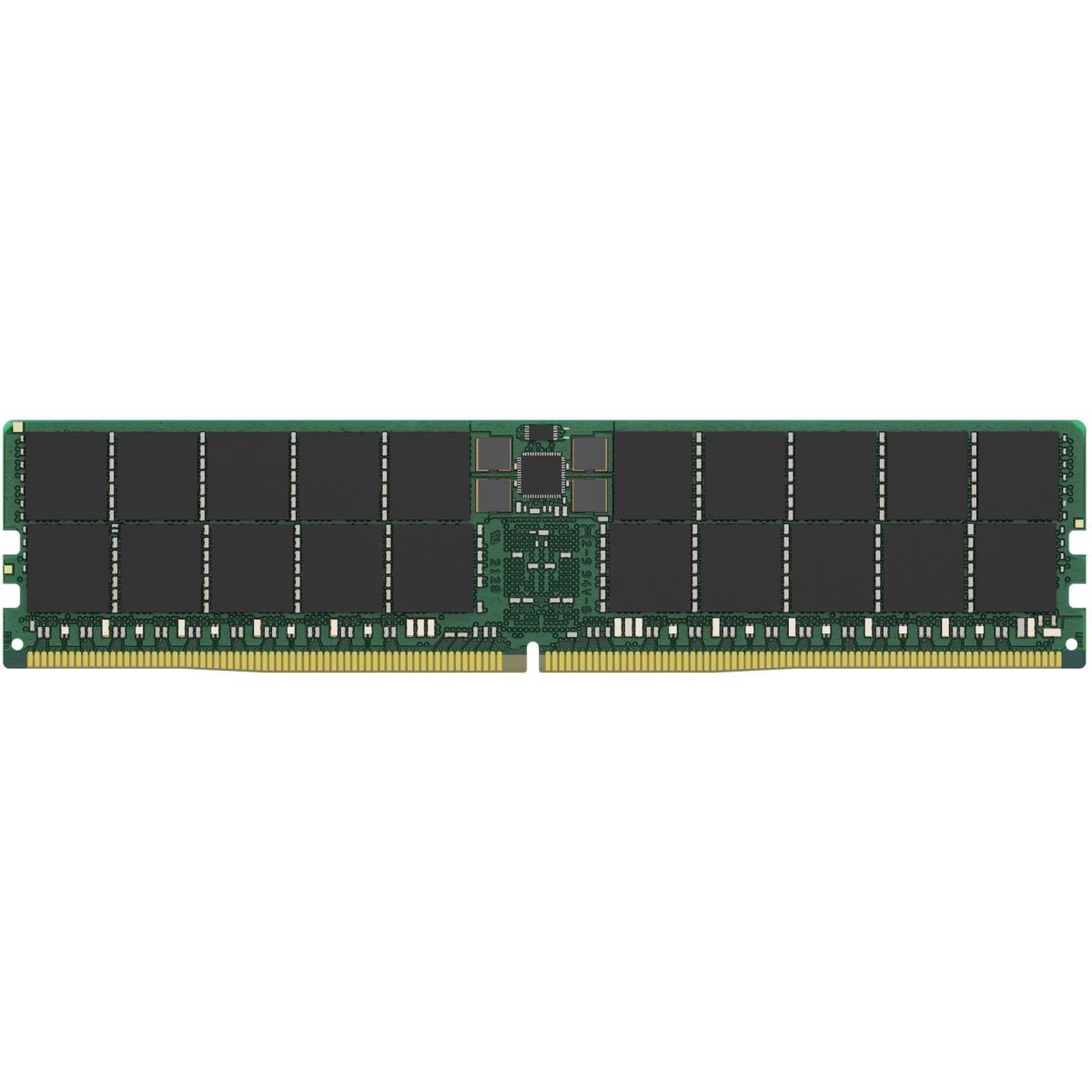

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- RoHS Compliant and Halogen-Free
Manufacturer Website:
https://www.kingston.com/en/memory/search?partid=KSM64R52BD4-64MD
- Category Code
- MES
- CnCode
- 84733020
- Unit Box Height
- 0.008
- Unit Box Length
- 0.16
- Unit Box Width
- 0.045
- Buffered memory type
- Registered (buffered)
- CAS latency
- 52
- Component for
- PC/Server
- ECC
- No
- Internal memory
- 64 GB
- Internal memory type
- DDR5
- JEDEC standard
- Yes
- Lead plating
- Gold
- Memory data transfer rate
- 6400 MT/s
- Memory form factor
- 288-pin DIMM
- Memory layout (modules x size)
- 1 x 64 GB
- Memory ranking
- 2
- Memory voltage
- 1.1 V
- Module configuration
- 8192M x 80
- On-Die ECC
- Yes
- Programming power voltage (VPP)
- 1.8 V
- Refresh row cycle time
- 295 ns
- Row active time
- 32 ns
- Row cycle time
- 48 ns
- SPD profile
- Yes
- Operating temperature (T-T)
- 0 - 95 °C
- Storage temperature (T-T)
- -55 - 100 °C
- Compliance certificates
- RoHS
- Doesn't contain
- Halogen
- Height
- 31.25 mm
- Width
- 133.35 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 5.76E-05 cubm
- Unit Calculated Weight
- 0.033 kg
