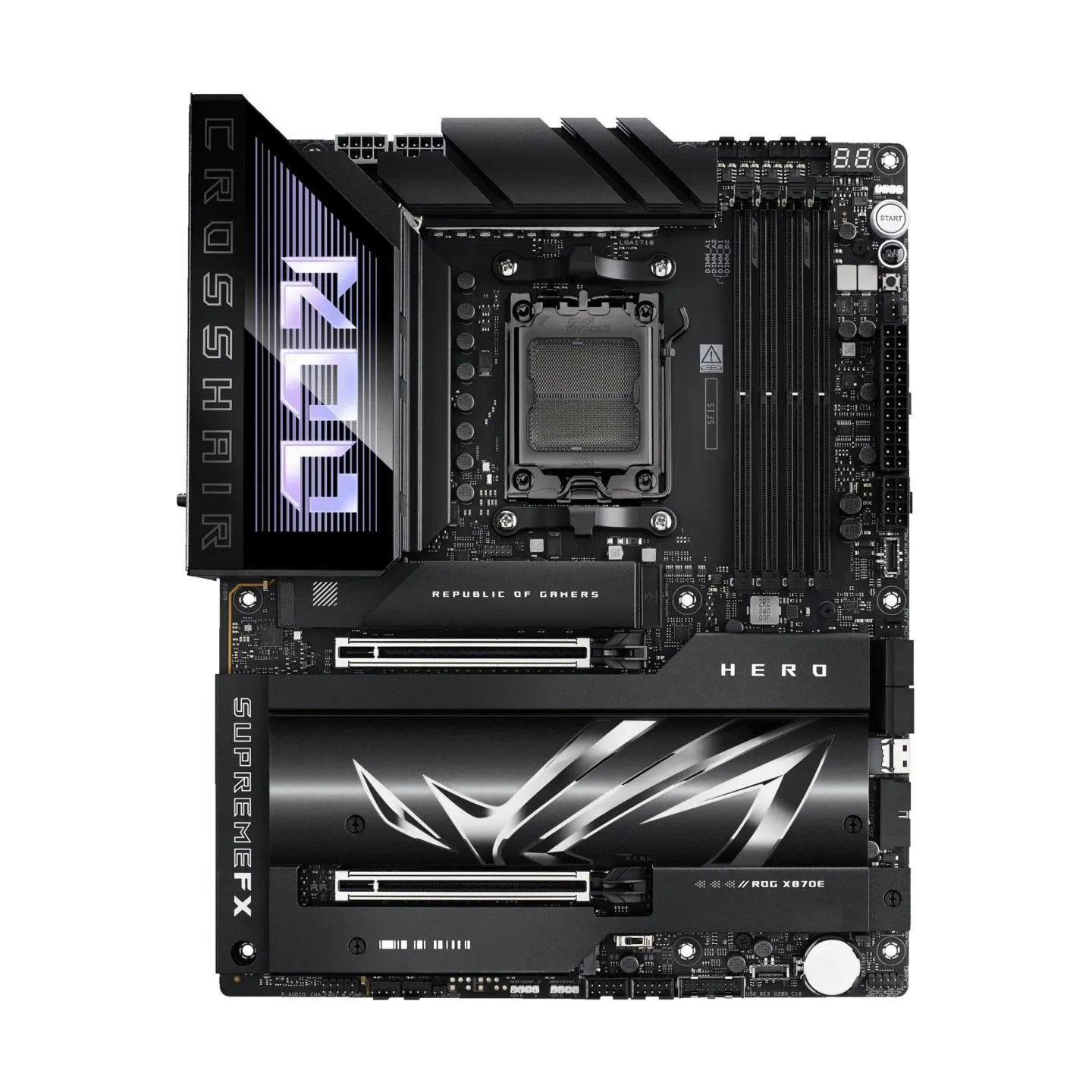

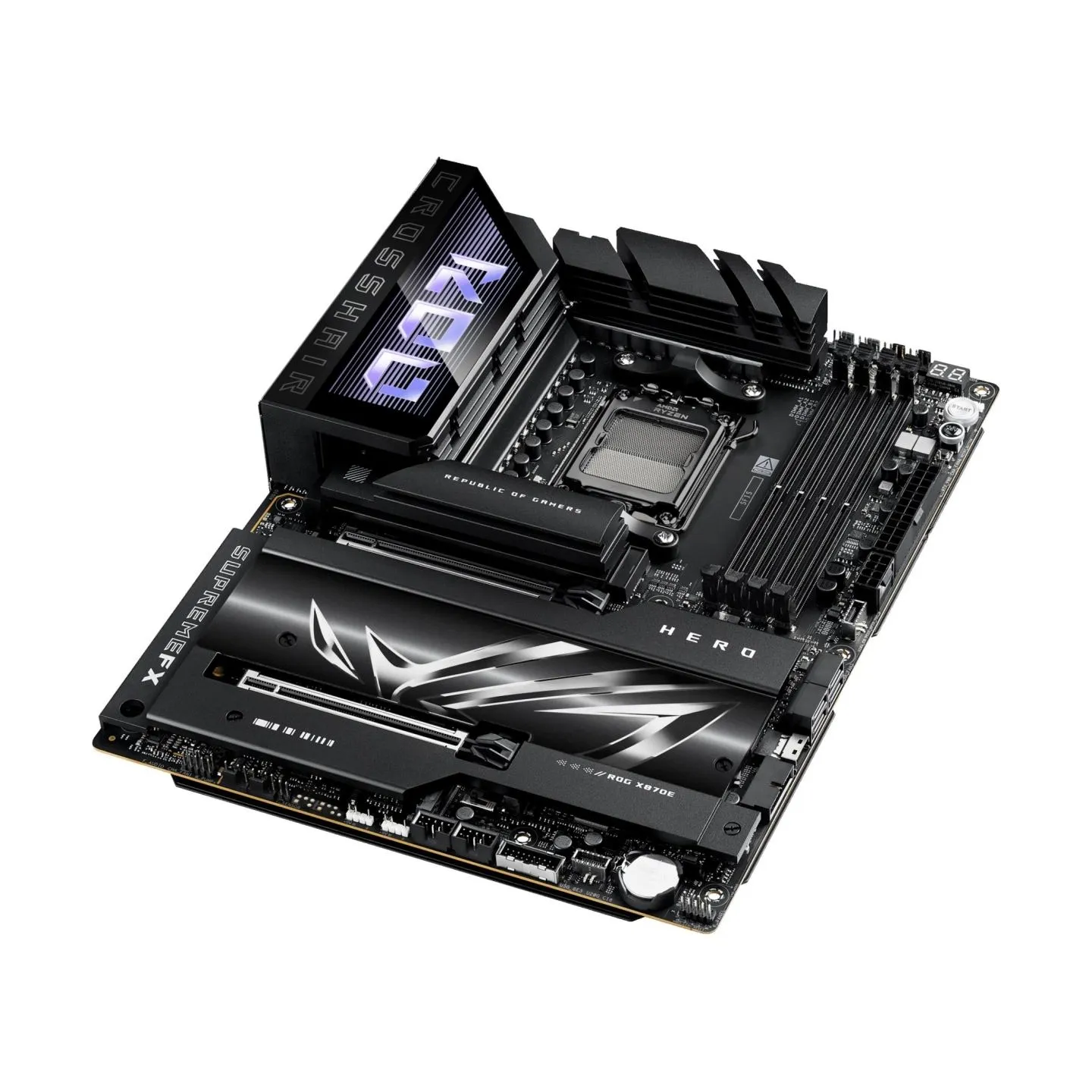

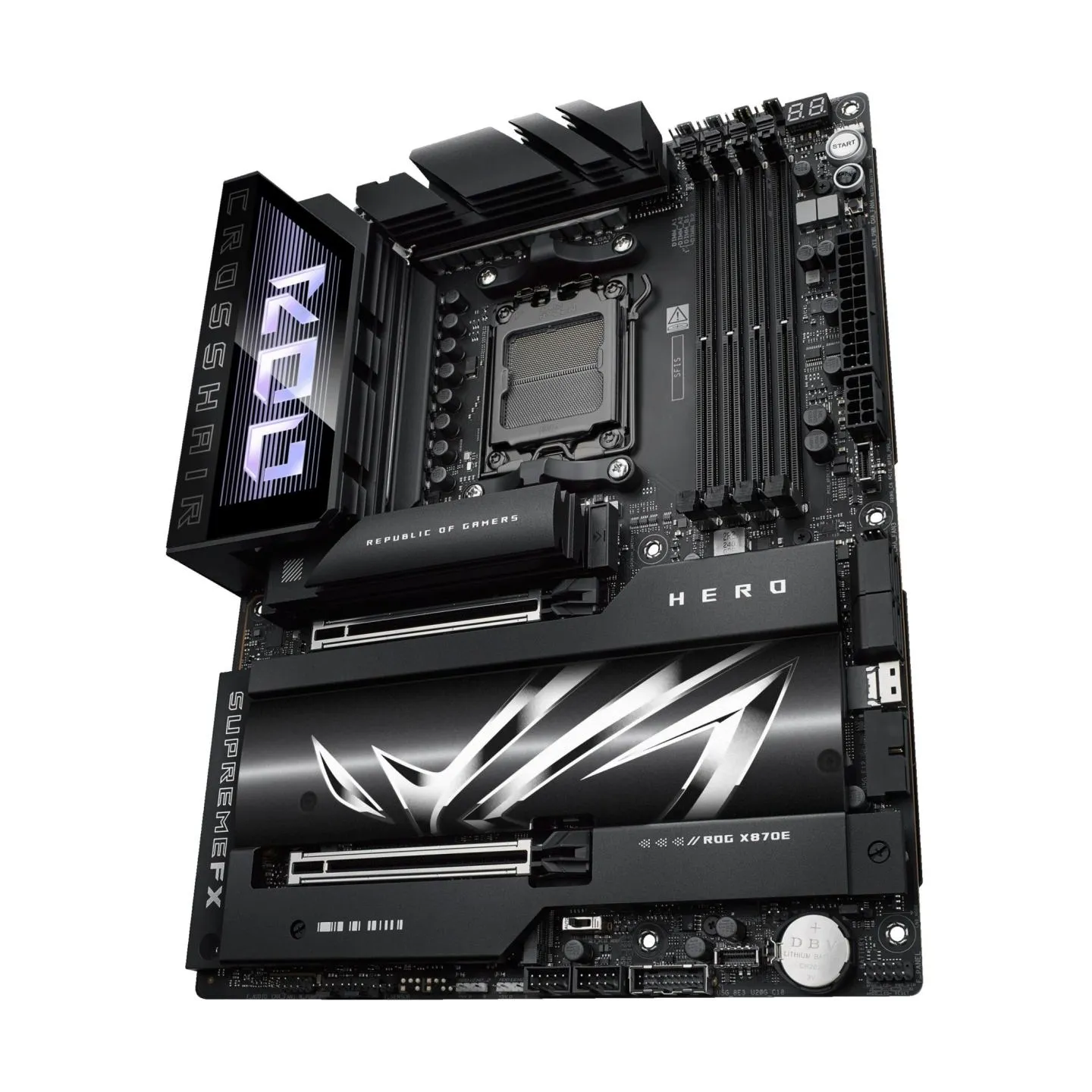

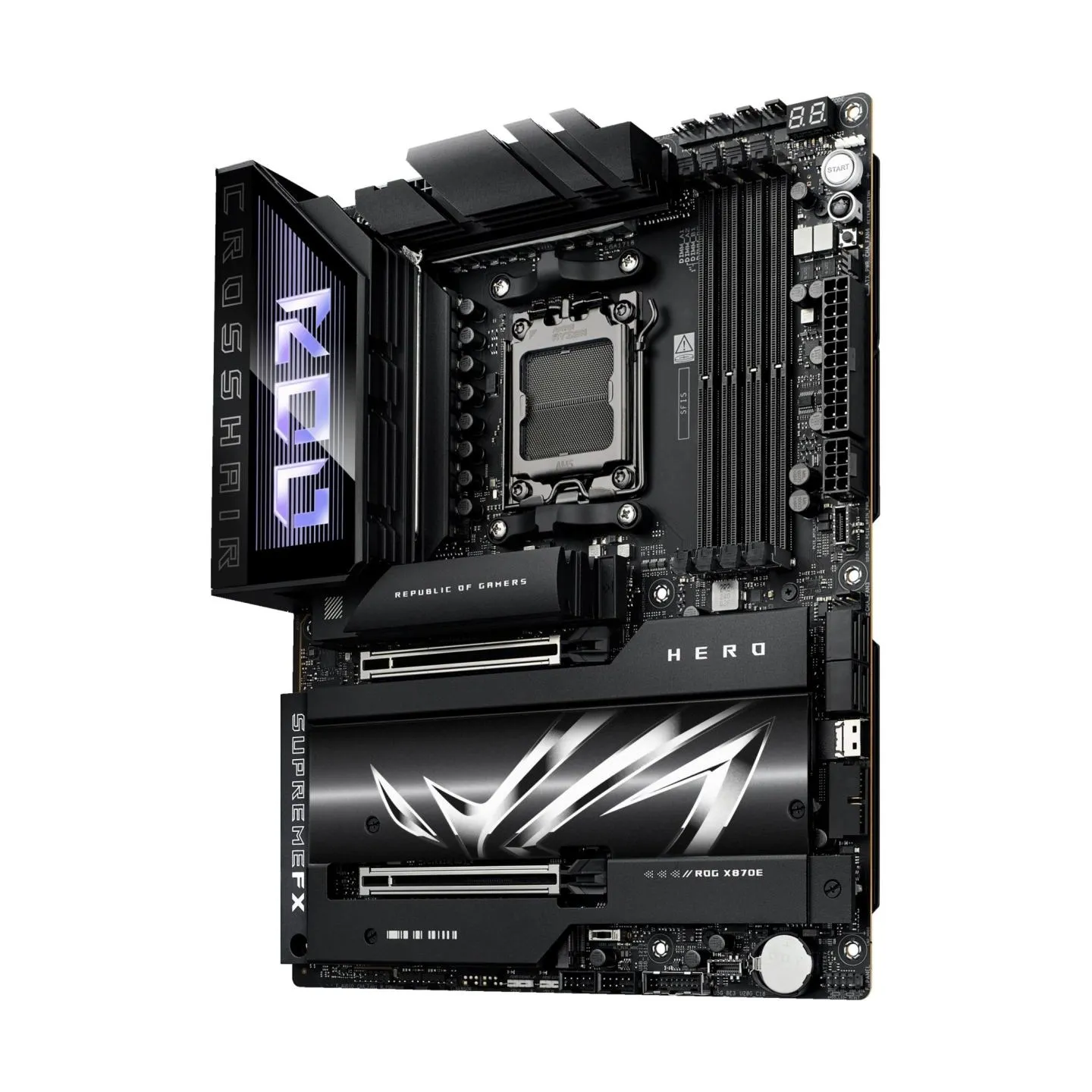

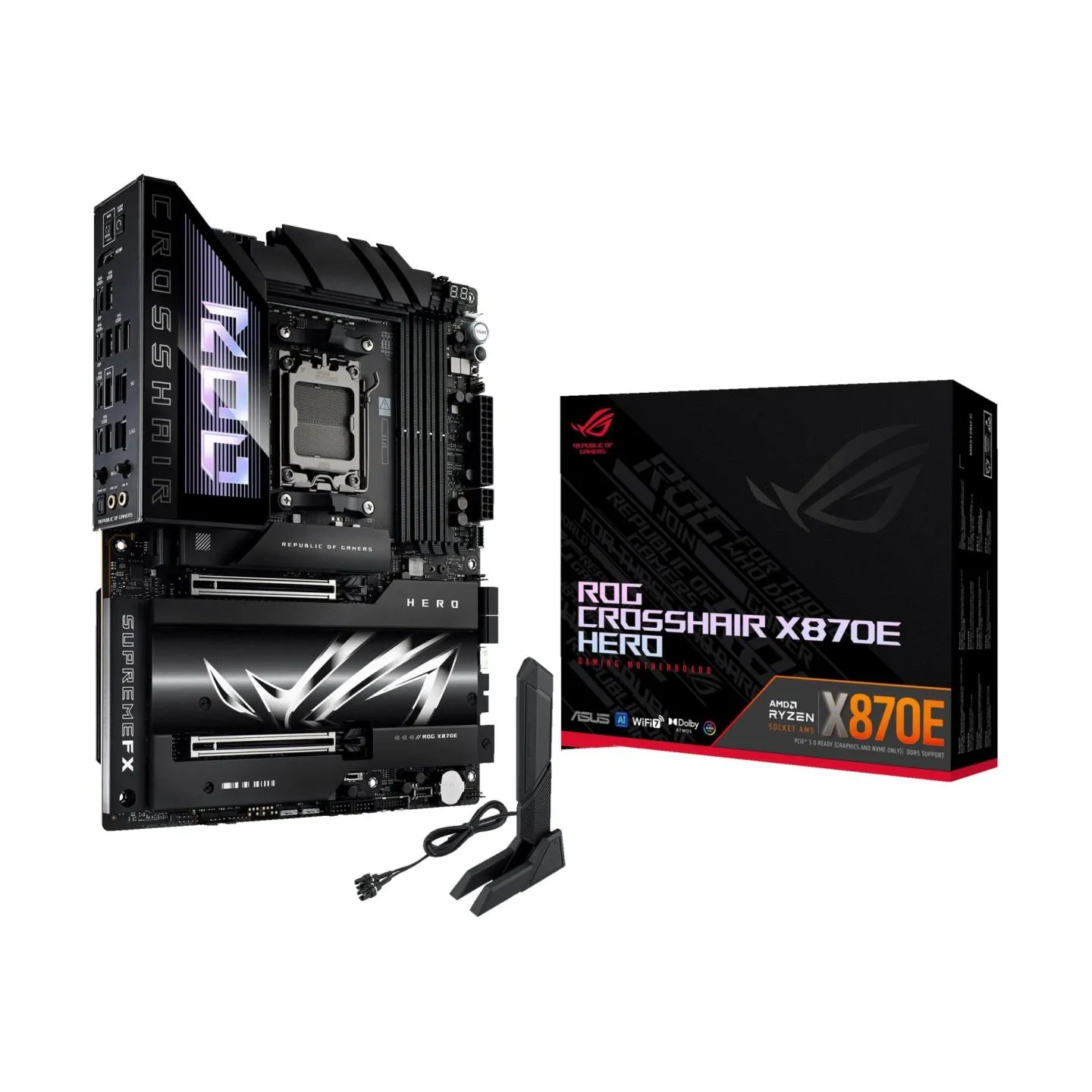

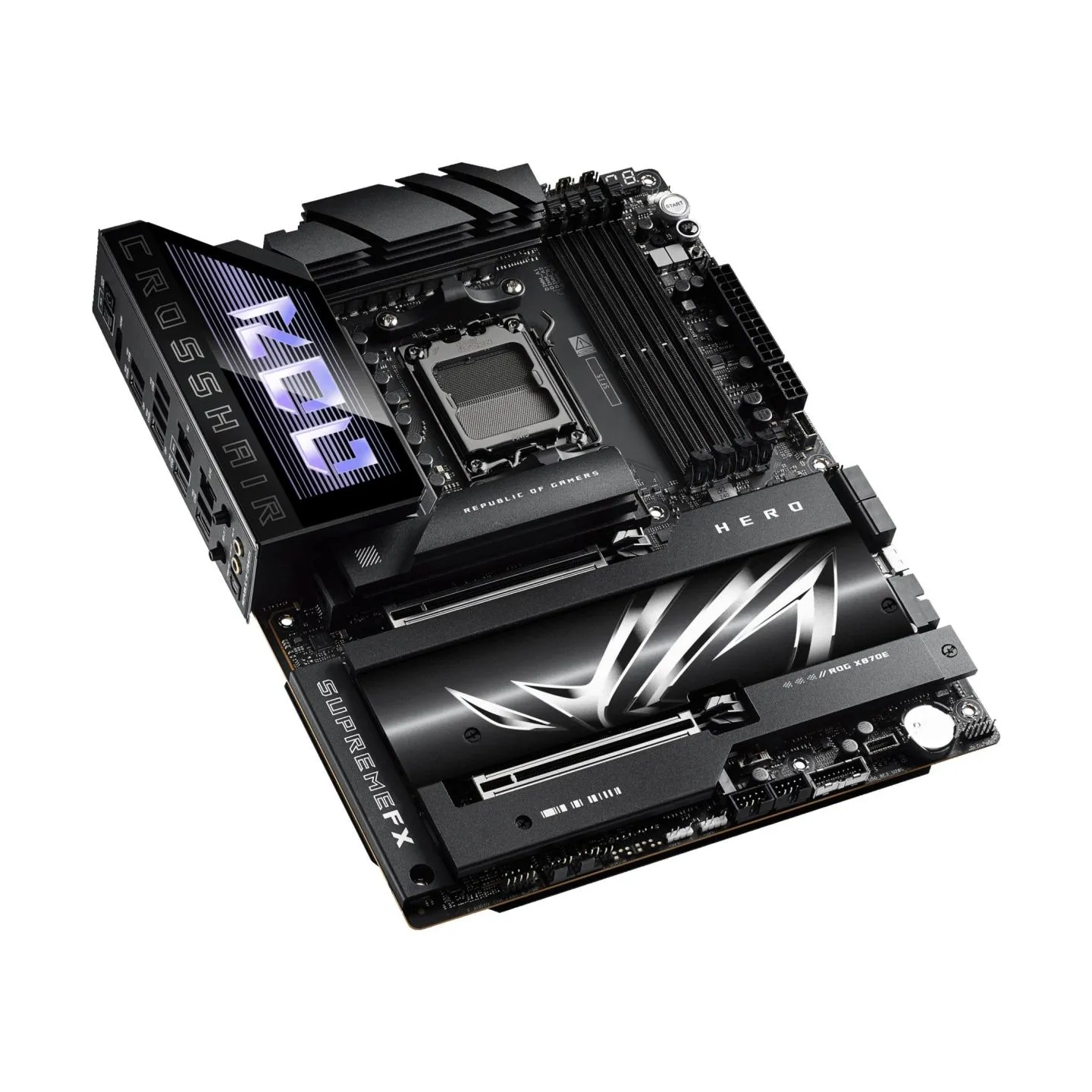

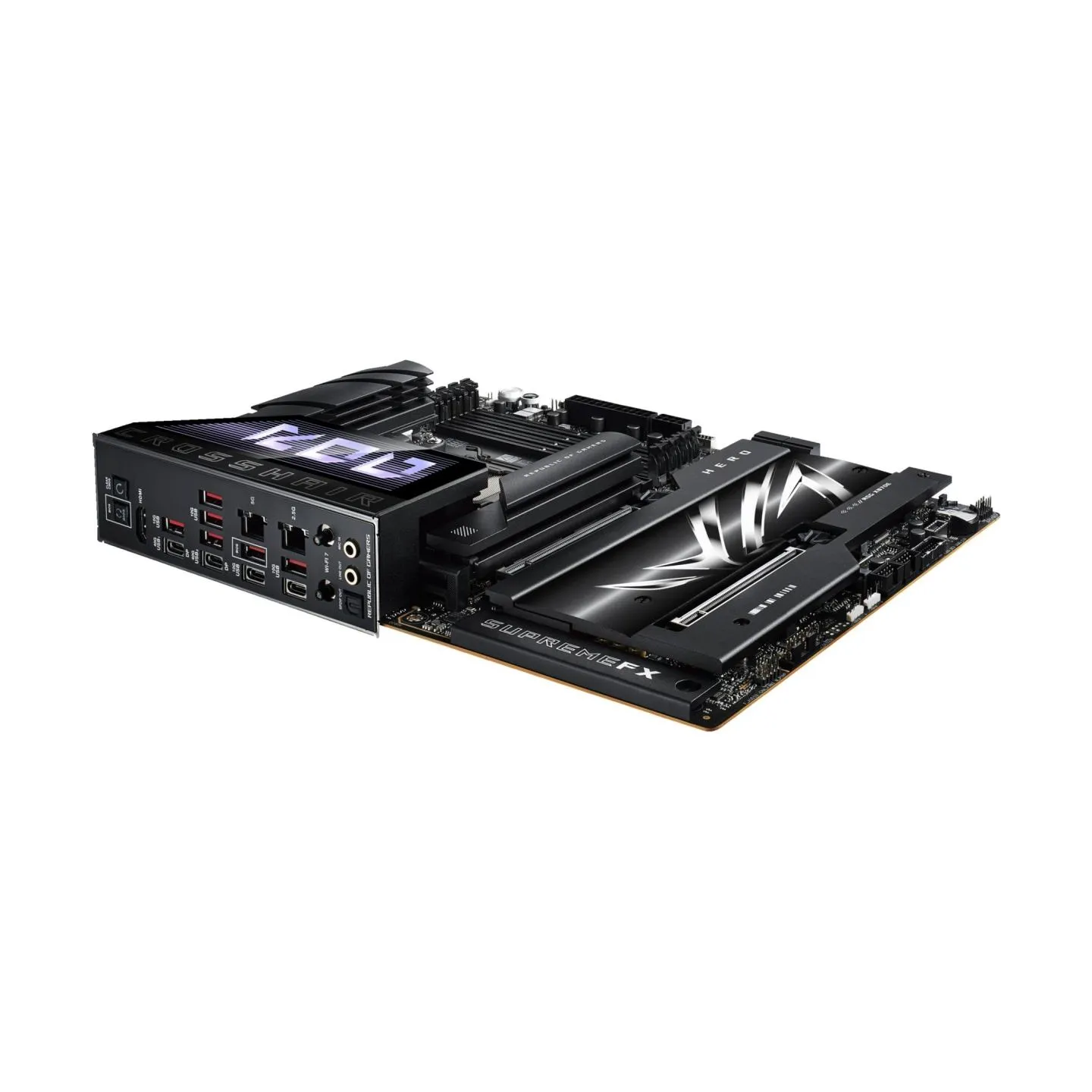

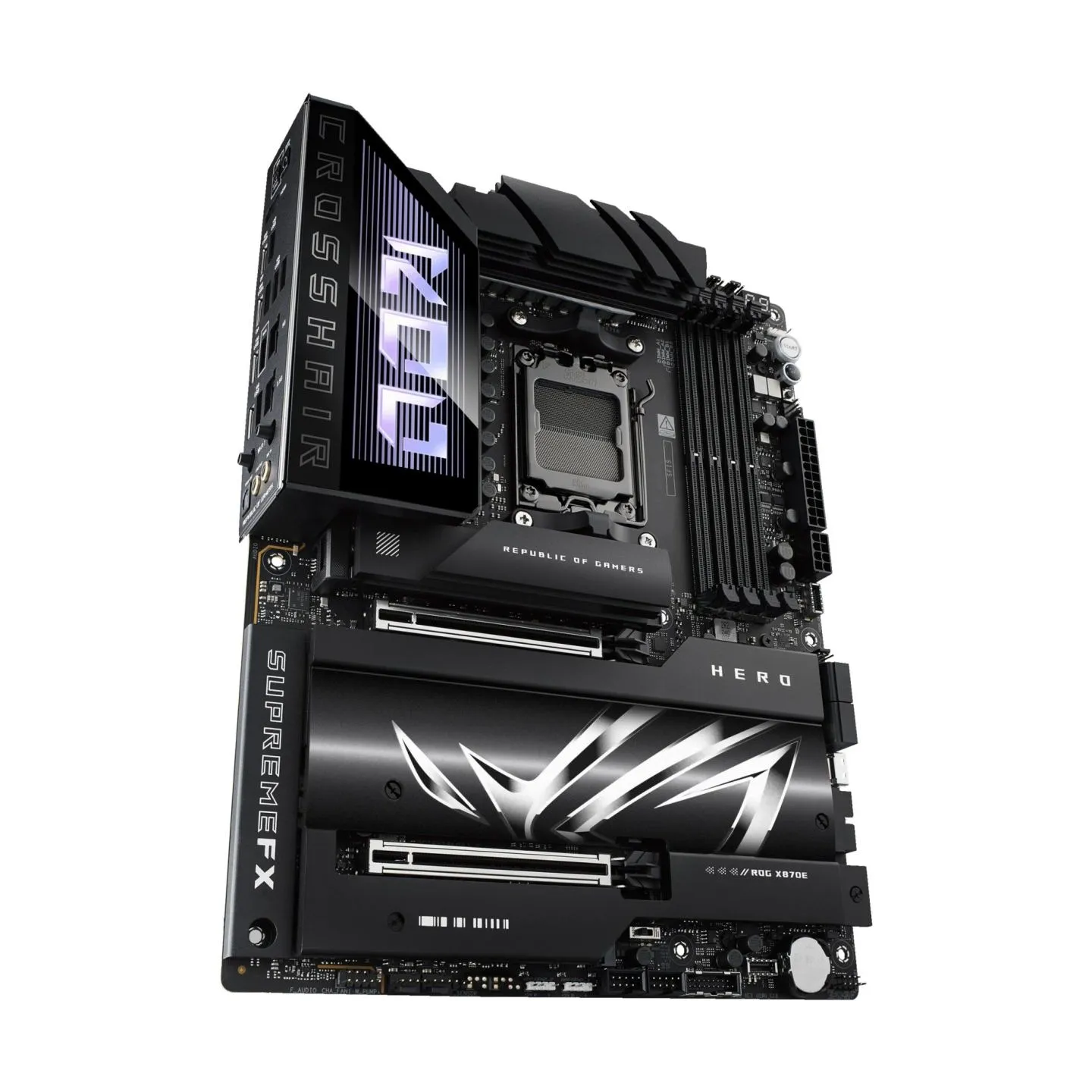

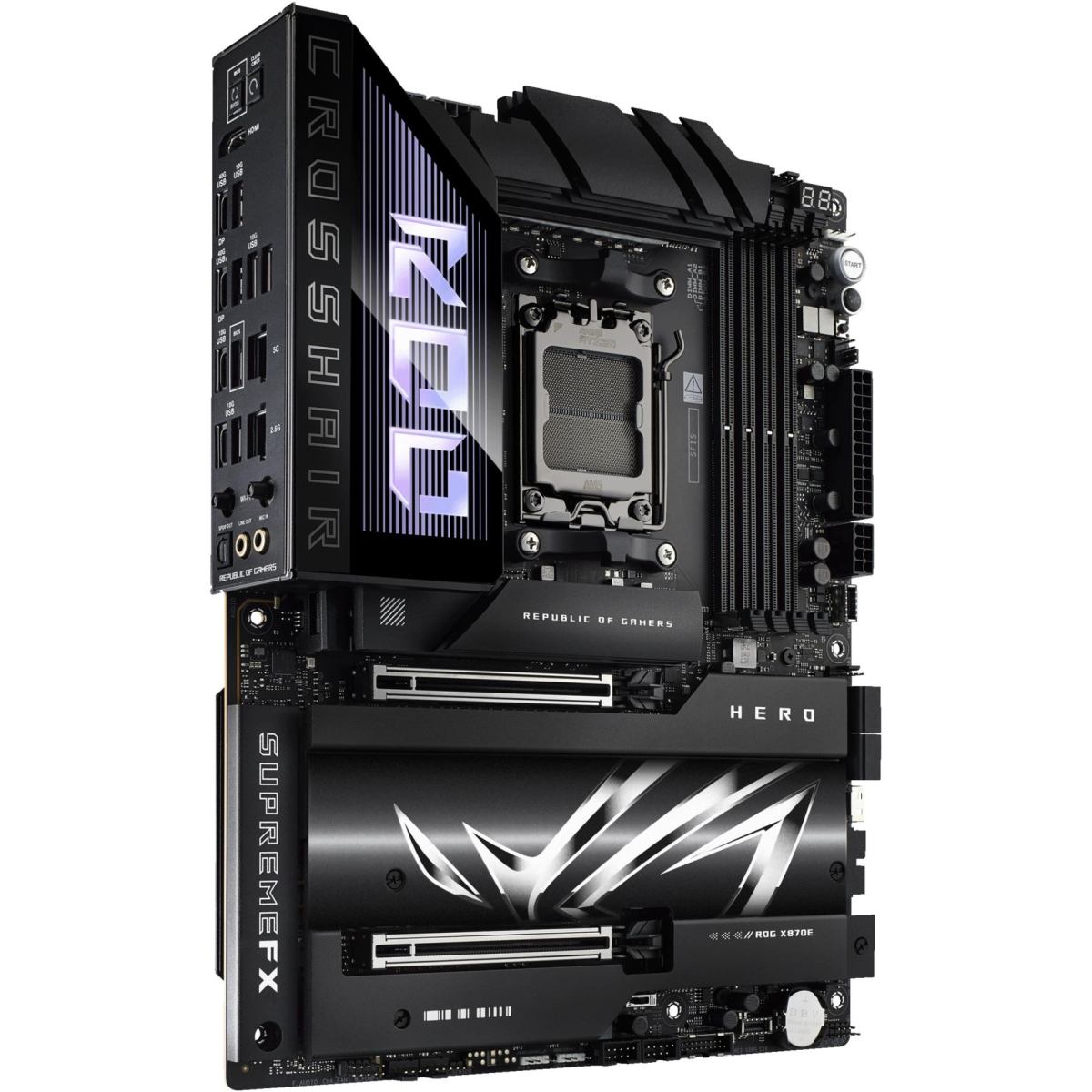

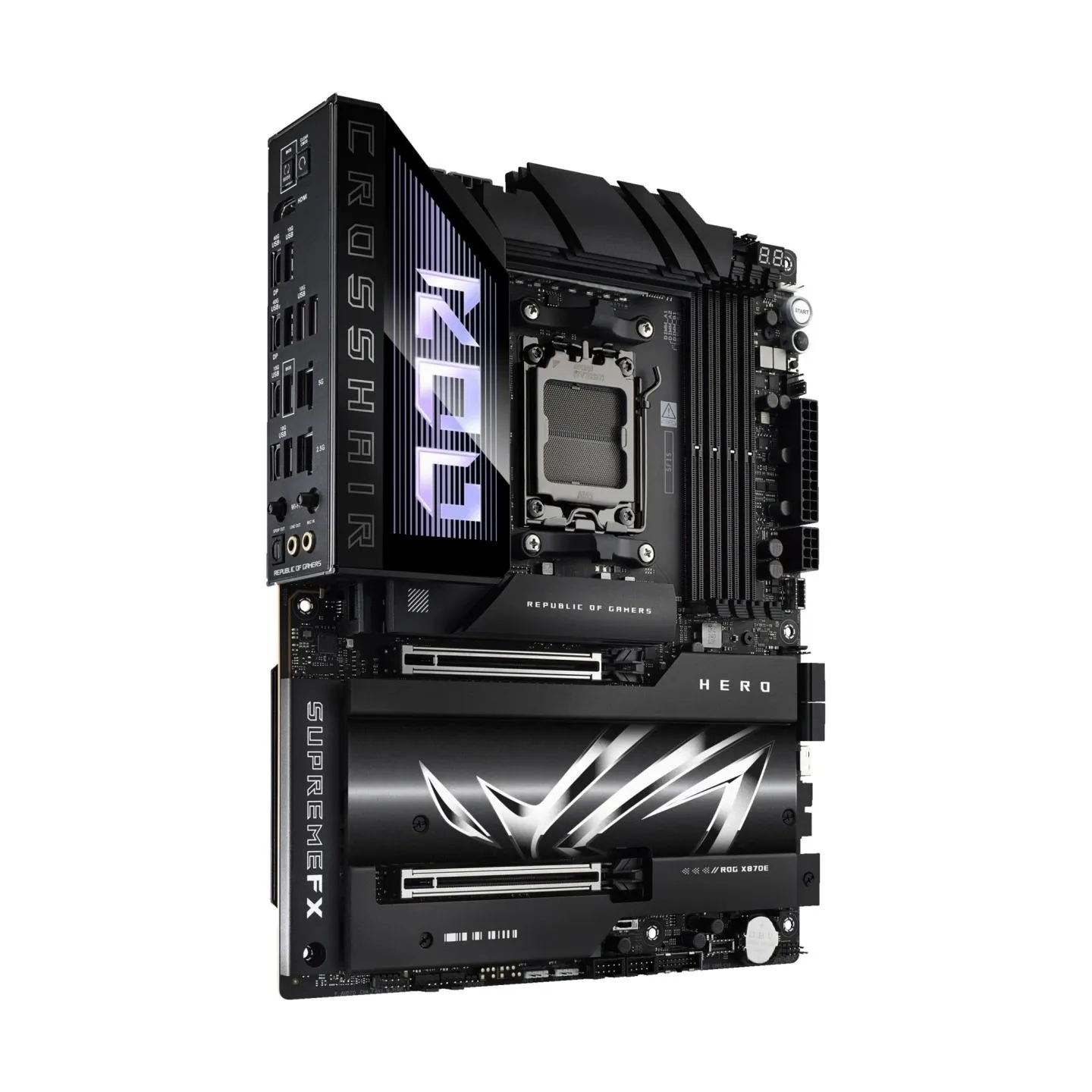

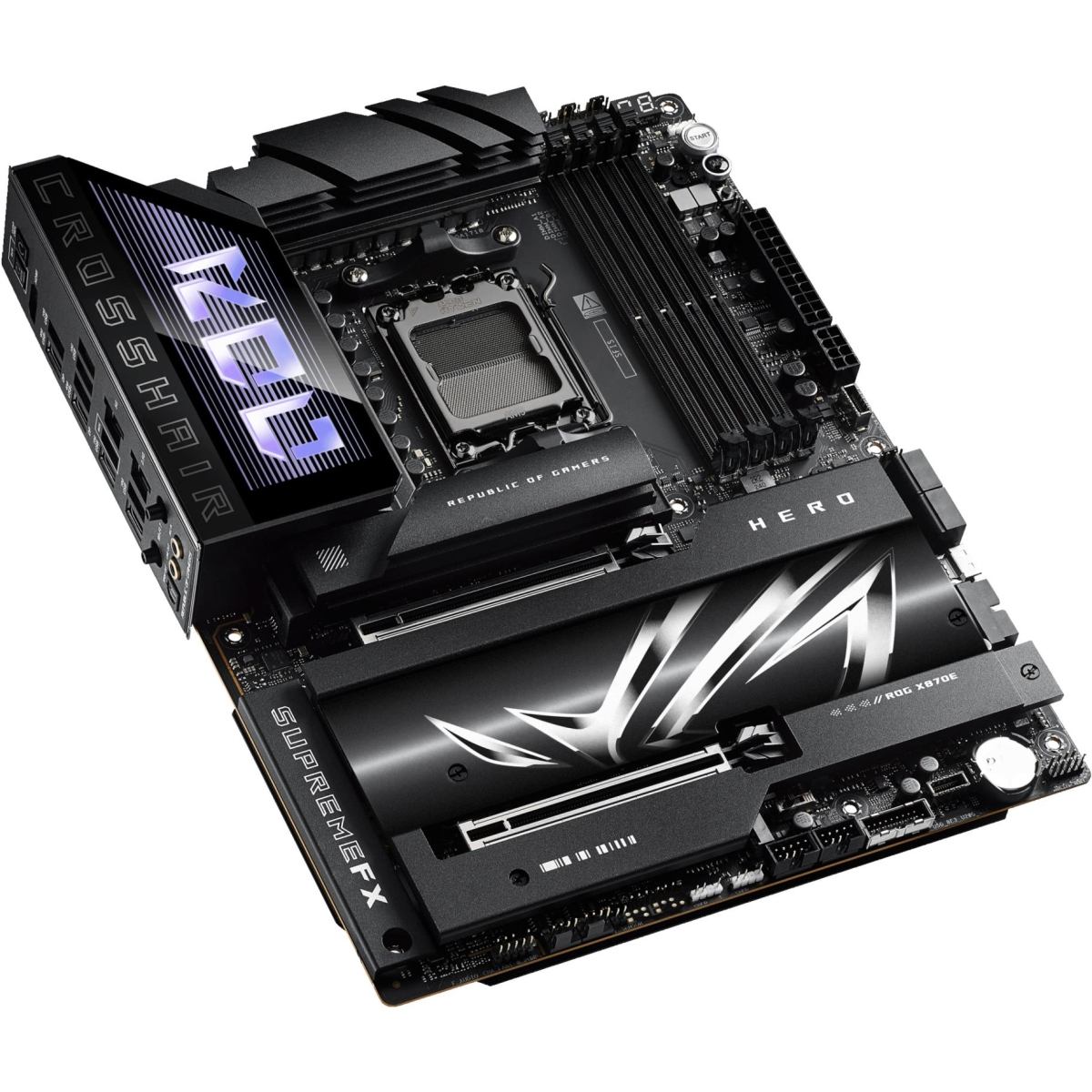

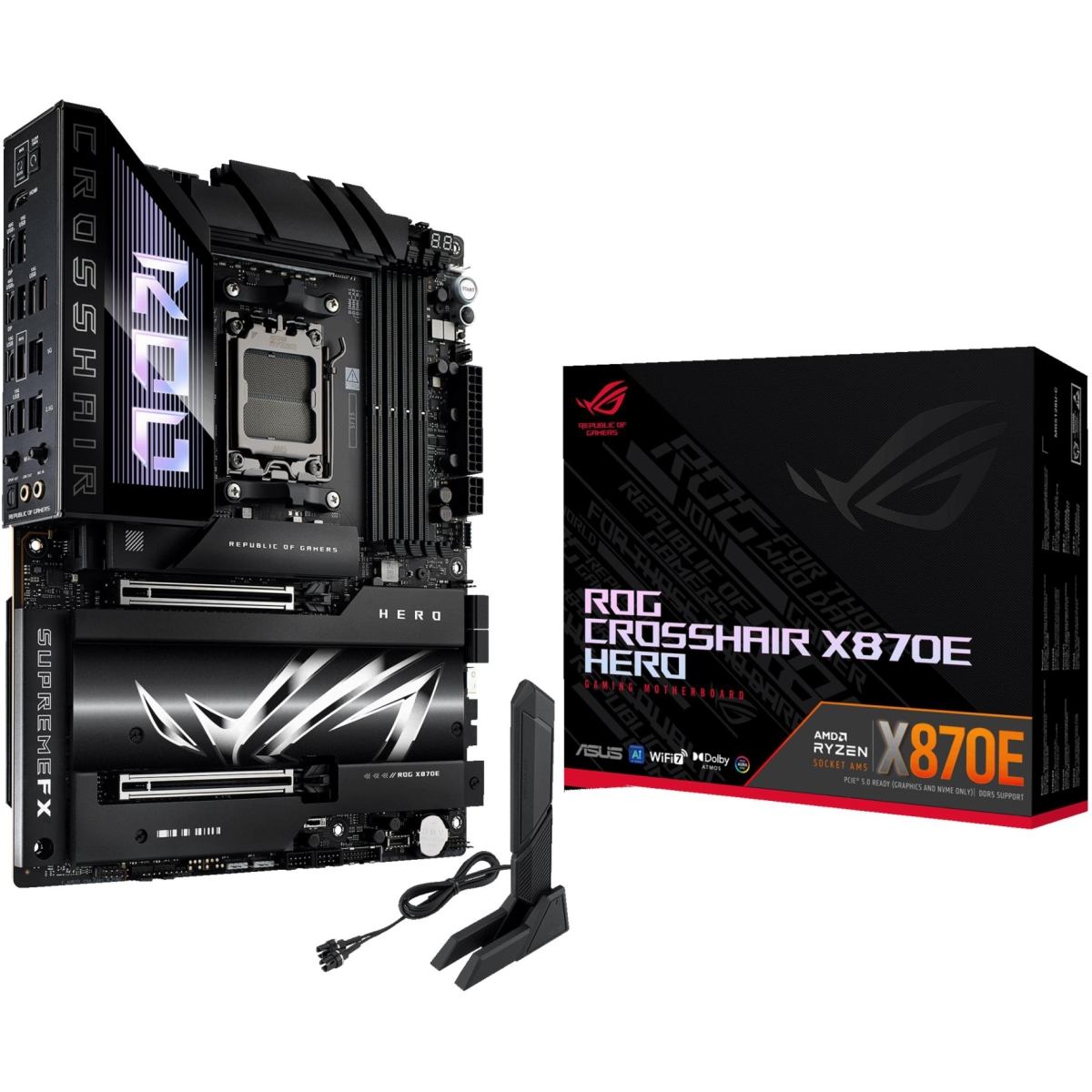

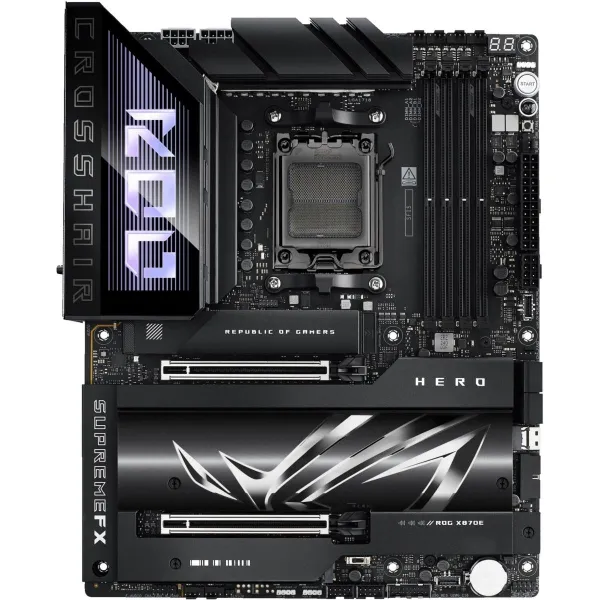

Asus Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xAud
ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Manufacturer Website:
https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.115
- Unit Box Length
- 0.375
- Unit Box Width
- 0.315
- Audio chip
- Realtek ALC4082
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870E
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Windows operating systems supported
- Windows 11
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 192 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 5
- Number of storage drives supported
- 10
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III,SlimSAS
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 4
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2x2 connectors
- 2
- Ethernet LAN (RJ-45) ports
- 2
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB4 Gen 2x2 ports quantity
- 2
- WiFi-AP antenna jack
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 2.5 Gigabit Ethernet/5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Number of M.2 (M) slots
- 5
- PCI Express x16 (Gen 4.x) slots
- 4
- PCI Express x16 (Gen 5.x) slots
- 2
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Package depth
- 312 mm
- Package height
- 108 mm
- Package weight
- 4265 g
- Package width
- 370 mm
- Depth
- 244 mm
- Height
- 50 mm
- Width
- 305 mm
- Cables included
- SATA
- Drivers included
- Yes
- Weight
- 2546 g
- Model
- ROG CROSSHAIR X870E HERO
- Units per Shipping Box
- 4
- Unit Calculated Volume
- 0.01483 cubm
- Unit Calculated Weight
- 4.31 kg
