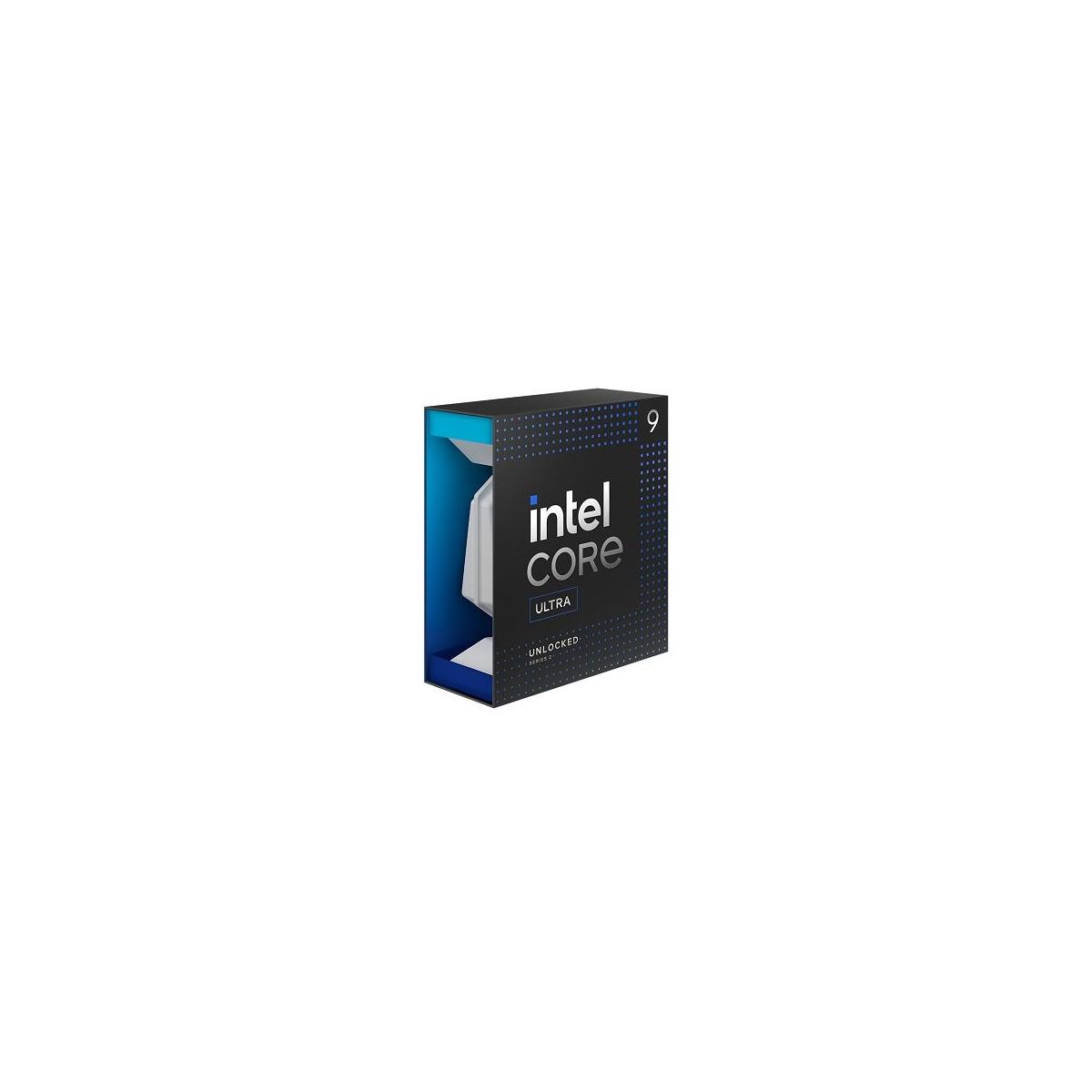

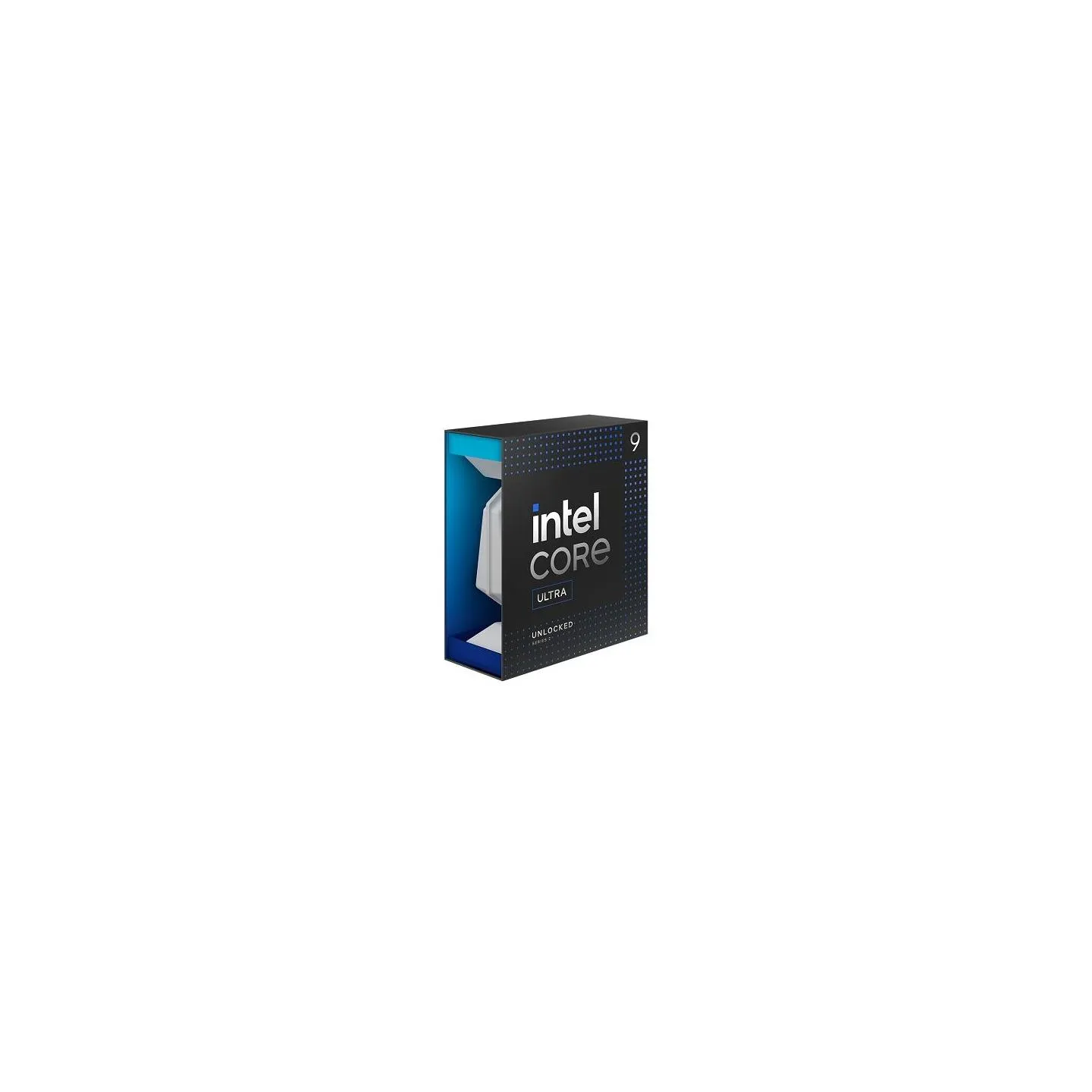

Intel CPU|INTEL|Desktop|Intel Core Ultra|285|Arrow Lake|2500 MHz|Cores 24|36MB|Socket LGA1851|65 Watts|BOX 1U|BX80768285SRQD4
Price:
€738.56
Tax included
Product Comments module (productcomments) must be installed!
Share on
The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.
Manufacturer Website:
https://www.intel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/ordering.html
- Category Code
- CPU
- CnCode
- 85423190
- Unit Box Height
- 0.13
- Unit Box Length
- 0.145
- Unit Box Width
- 0.125
- AI software frameworks supported by CPU
- DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
- Efficient cores
- 16
- Efficient-core base frequency
- 1.9 GHz
- Efficient-core boost frequency
- 4.6 GHz
- Maximum number of DMI lanes
- 8
- Maximum turbo power
- 182 W
- Package type
- Box
- Performance cores
- 8
- Performance-core base frequency
- 2.5 GHz
- Performance-core boost frequency
- 5.4 GHz
- Processor ARK ID
- 241061
- Processor base power
- 65 W
- Processor boost frequency
- 5.6 GHz
- Processor cache
- 36 MB
- Processor cache type
- Smart Cache
- Processor codename
- Arrow Lake
- Processor cores
- 24
- Processor family
- Intel Core Ultra 9
- Processor generation
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
- Processor model
- 285
- Processor operating modes
- 64-bit
- Processor socket
- LGA 1851 (Socket V1)
- Processor threads
- 24
- AI software frameworks supported by NPU
- DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
- GPU performance up to
- 8 TOPs
- Neural processor unit (NPU)
- Intel AI Boost
- NPU performance up to
- 13 TOPs
- Sparsity support
- Yes
- Total processor performance up to
- 36 TOPs
- Windows Studio effects support
- Yes
- ECC
- Yes
- Maximum internal memory supported by processor
- 192 GB
- Memory channels
- Dual-channel
- Memory clock speeds supported by processor
- 6400 MHz
- Memory types supported by processor
- DDR5-SDRAM
- Discrete graphics card
- No
- Discrete graphics card model
- Not available
- Number of displays supported (on-board graphics)
- 4
- On-board graphics card
- Yes
- On-board graphics card base frequency
- 300 MHz
- On-board graphics card DirectX version
- 12.0
- On-board graphics card dynamic frequency (max)
- 2000 MHz
- On-board graphics card ID
- 0x7D67
- On-board graphics card model
- Intel® Graphics
- On-board graphics card OpenGL version
- 4.5
- On-board graphics card outputs supported
- DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
- On-board graphics card refresh rate at maximum resolution (DisplayPort)
- 60 Hz
- On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
- 60 Hz
- On-board graphics card refresh rate at maximum resolution (HDMI)
- 60 Hz
- Xe-cores
- 4
- Direct Media Interface (DMI) Revision
- 4.0
- Embedded options available
- Yes
- Execute Disable Bit
- Yes
- Idle States
- Yes
- Market segment
- Desktop
- Maximum number of PCI Express lanes
- 24
- PCI Express slots version
- 4.0/5.0
- Scalability
- 1S
- Supported instruction sets
- AVX 2.0/SSE4.1/SSE4.2
- Thermal Monitoring Technologies
- Yes
- Use conditions
- PC/Client/Tablet/Workstation
- Enhanced Intel SpeedStep Technology
- Yes
- Intel 64
- Yes
- Intel Trusted Execution Technology
- Yes
- Intel Turbo Boost Max Technology 3.0
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel vPro® Enterprise Platform Eligibility
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel® Active Management Technology (Intel® AMT)
- Yes
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel® Boot Guard
- Yes
- Intel® Control-flow Enforcement Technology (CET)
- Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU
- Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on GPU
- Yes
- Intel® Hardware Shield Eligibility
- Yes
- Intel® One-Click Recovery
- Yes
- Intel® OS Guard
- Yes
- Intel® Quick Sync Video Technology
- Yes
- Intel® Remote Platform Erase (RPE)
- Yes
- Intel® Secure Key
- Yes
- Intel® Speed Shift Technology
- Yes
- Intel® Stable IT Platform Program (SIPP)
- Yes
- Intel® Standard Manageability (ISM)
- Yes
- Intel® Thermal Velocity Boost
- Yes
- Intel® Thermal Velocity Boost Frequency
- 5.6 GHz
- Intel® Thread Director
- Yes
- Intel® Threat Detection Technology (TDT)
- Yes
- Intel® Thunderbolt 4
- Yes
- Intel® Total Memory Encryption - Multi Key
- Yes
- Intel® Turbo Boost Max Technology 3.0 frequency
- 5.5 GHz
- Intel® Turbo Boost Technology
- 2.0
- Intel® Virtualization Technology with Redirect Protection (VT-rp)
- Yes
- Intel® Volume Management Device (VMD)
- Yes
- Mode-based Execute Control (MBE)
- Yes
- Maximum operating temperature
- 105 °C
- Launch date
- Q1'25
- OpenCL version
- 3.0
- Status
- Launched
- Graphics output
- DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
- L2 cache
- 40960 KB
- Maximum internal memory
- 192 GB
- Model
- Ultra 9 Processor 285 (BX80768285)
- CPU Family name
- Intel Core Ultra
- Model number
- 285
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.002784 cubm
- Unit Calculated Weight
- 0.735 kg
