- SKU
- KBGBAAA7B550M01
- Barcode
- 4719331809508
- Model

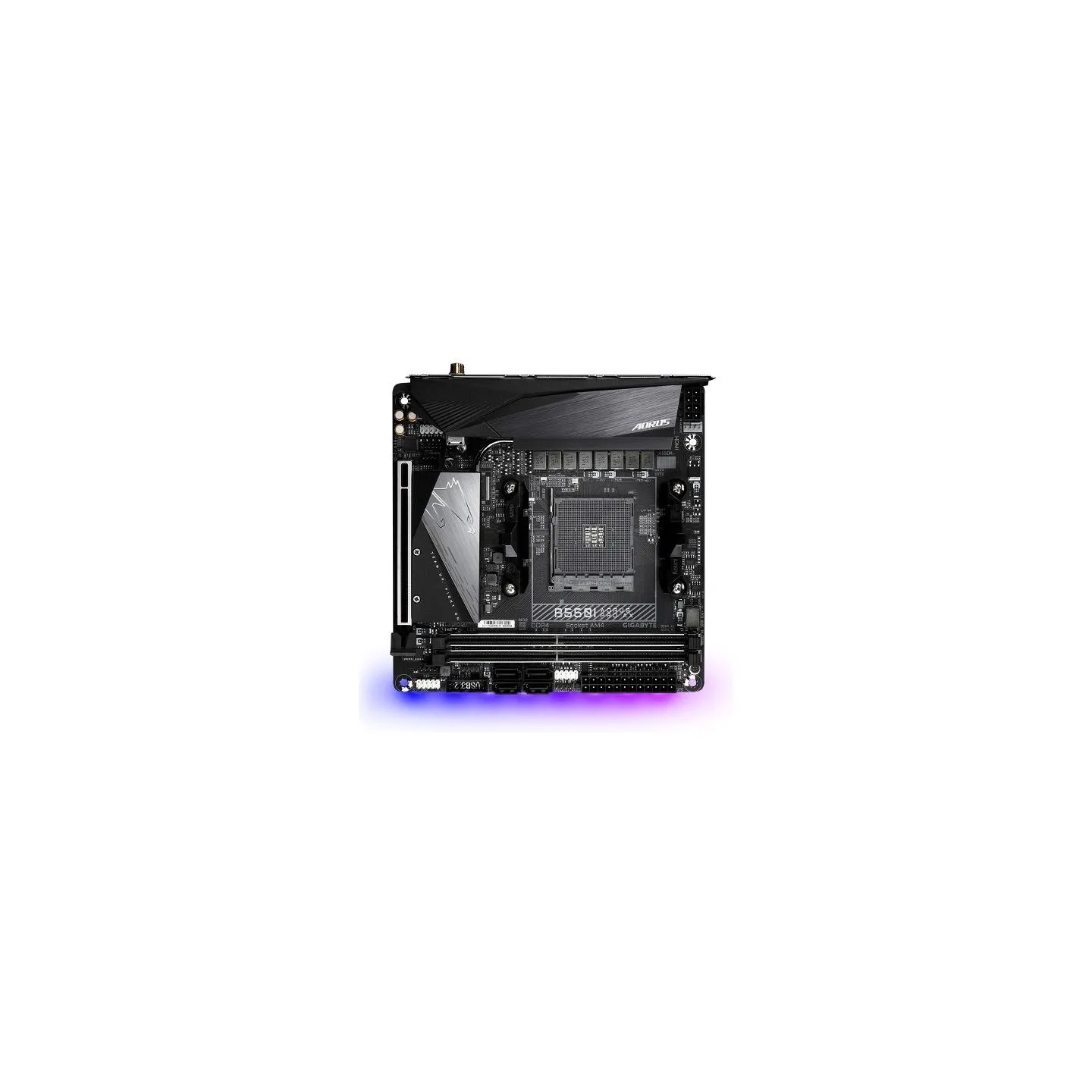

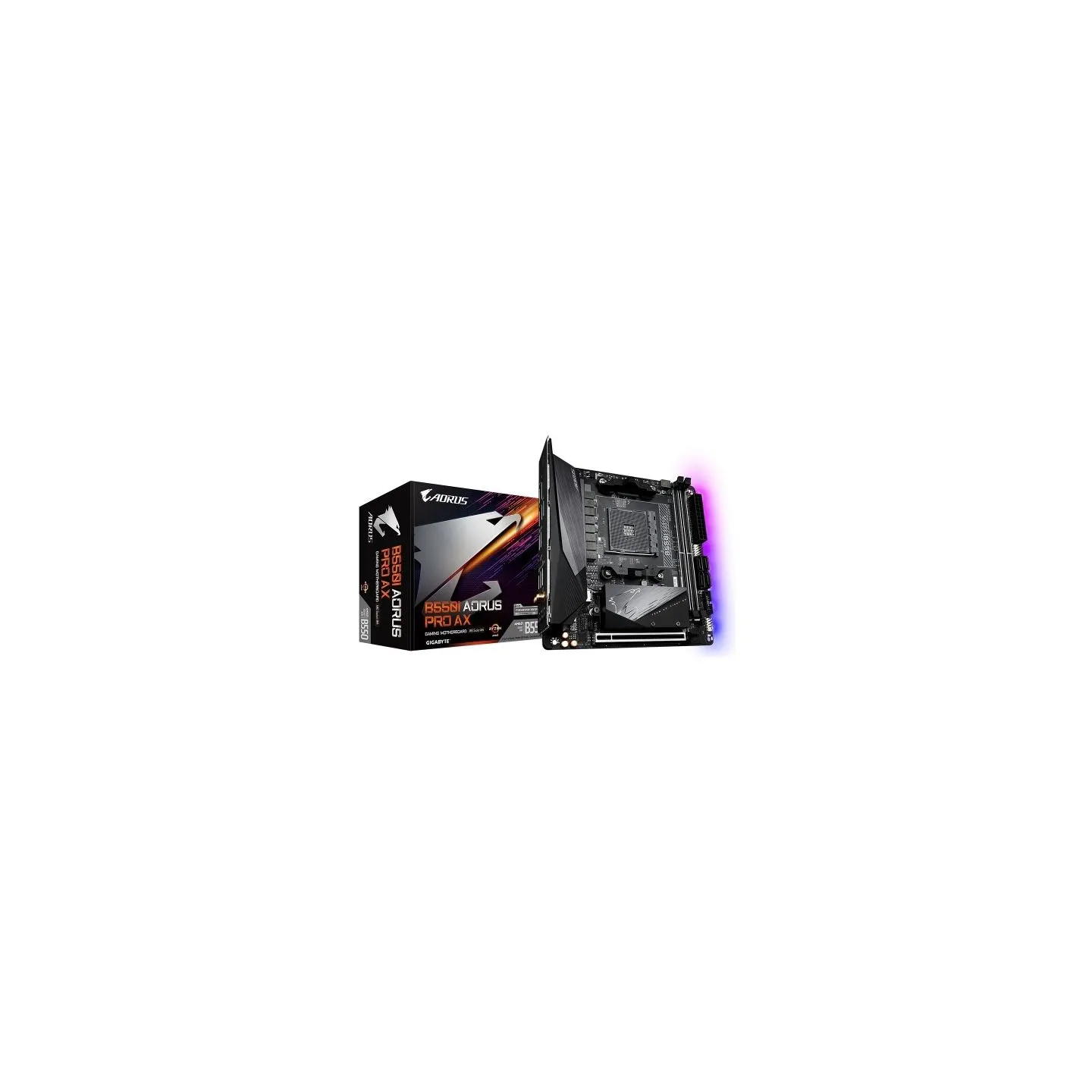

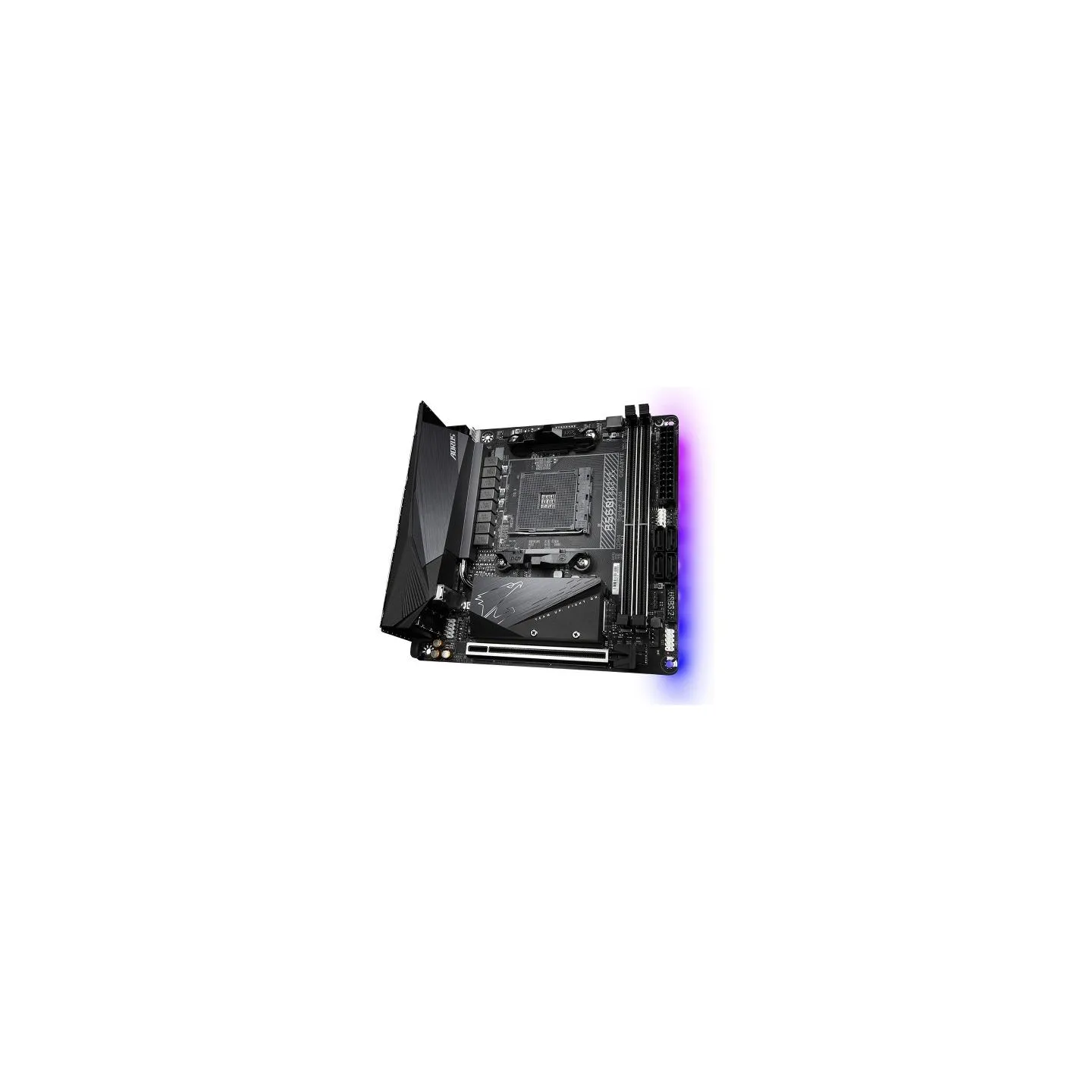

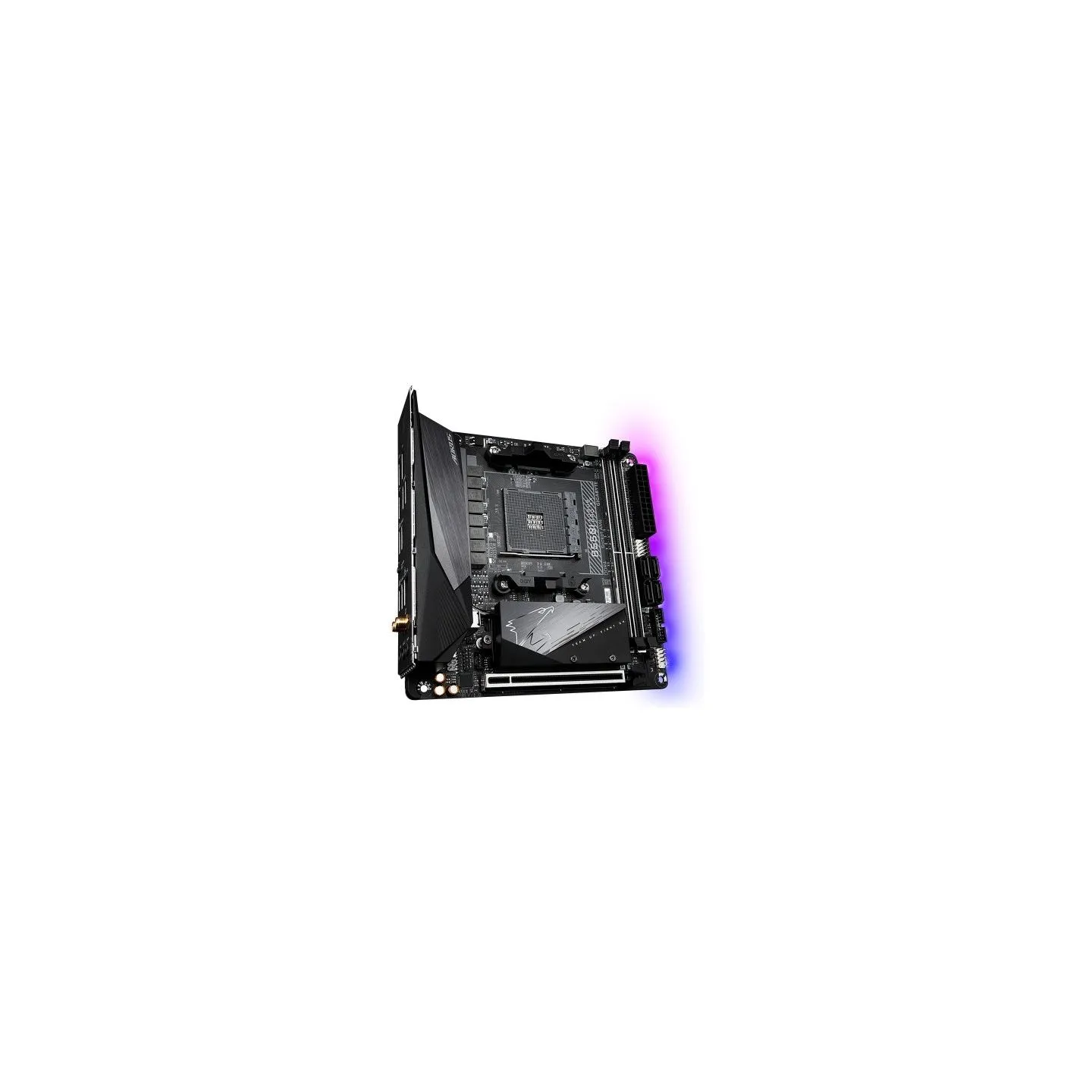

- B550I AORUS PRO AX
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Athlon
- Processor family
- AMD Ryzen 3
- Processor family
- Non-CPU
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 2
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 5100 MHz
- Memory bus frequency
- 5200 MHz
- Max memory size
- 64
- Expansion slots
- 1 x PCIe x 16
- Expansion slots
- 2 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x PCI Express x16 slot, integrated in the CPU AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
- Graphics
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for up to 3 displays simultaneously Maximum shared memory 16 GB
- Sound card
- Realtek ALC1220-VB codec * The rear panel line out jack supports DSD audio. High resolution audio support 2/4/5.1/7.1 - channel sound card (to configure 7.1 audio channels, use the front panel audio connector and set the quality in the sound manager)
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6 AX200. WIFI a, b, g, n, ac with wave 2, ax functions, dual-band 2.4/5 GHz support BLUETOOTH 5 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rate may vary depending on environment and hardware.
- USB ports at back panel
- 6
- USB ports on motherboard
- 4
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 2 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- mini ITX
- Dimensions
- 17 x 17 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility
- Other information
- Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
- Designation
- CE+WEEE
