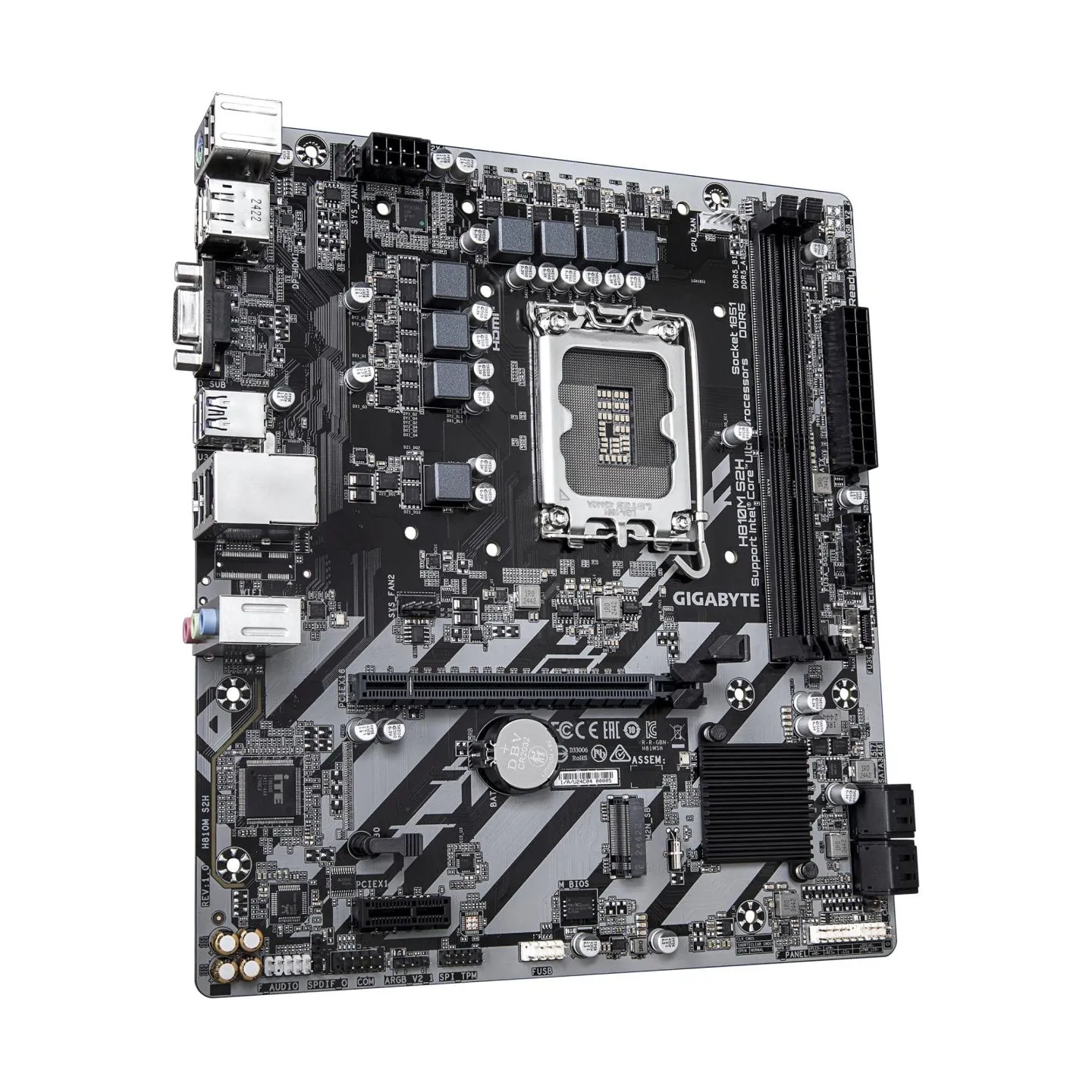

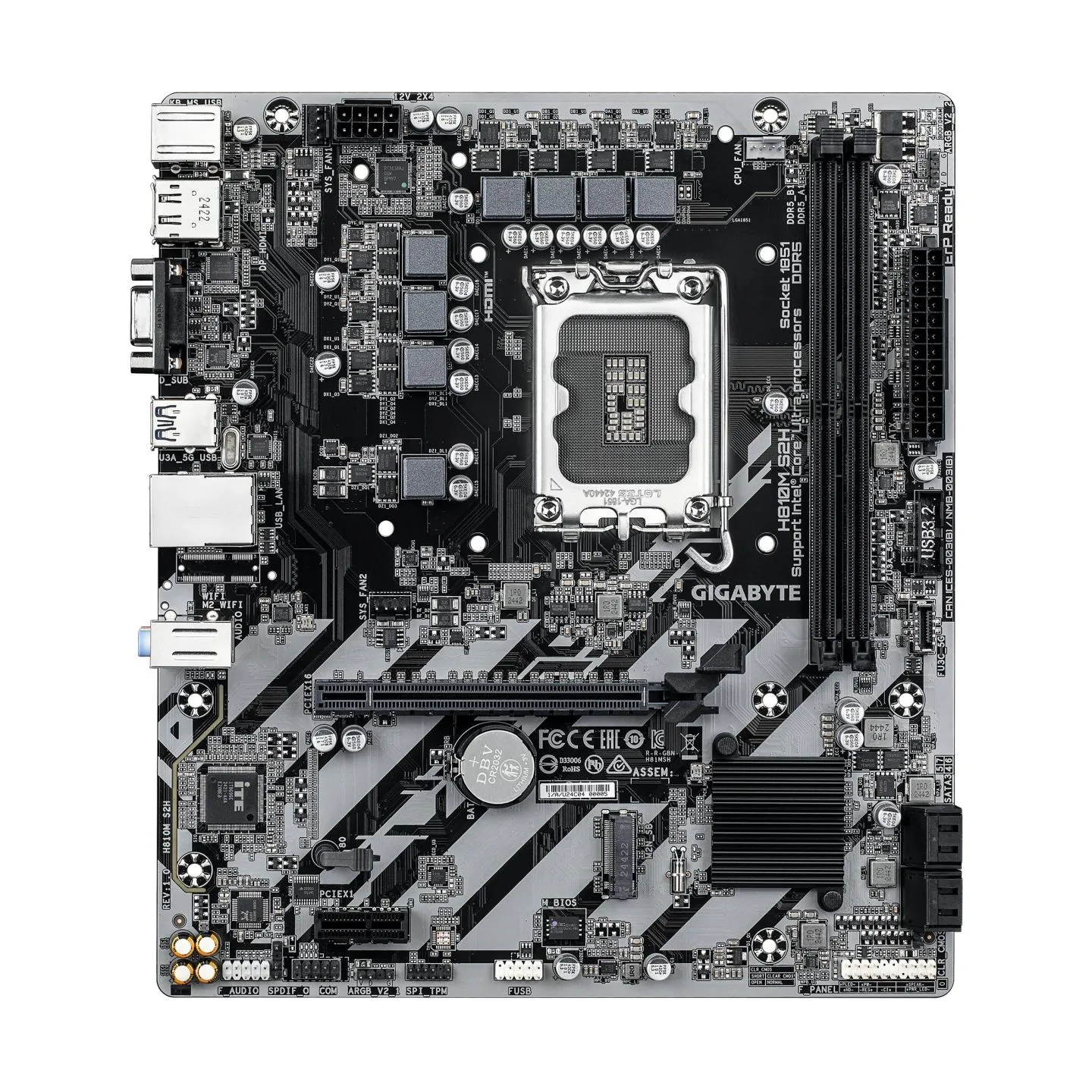

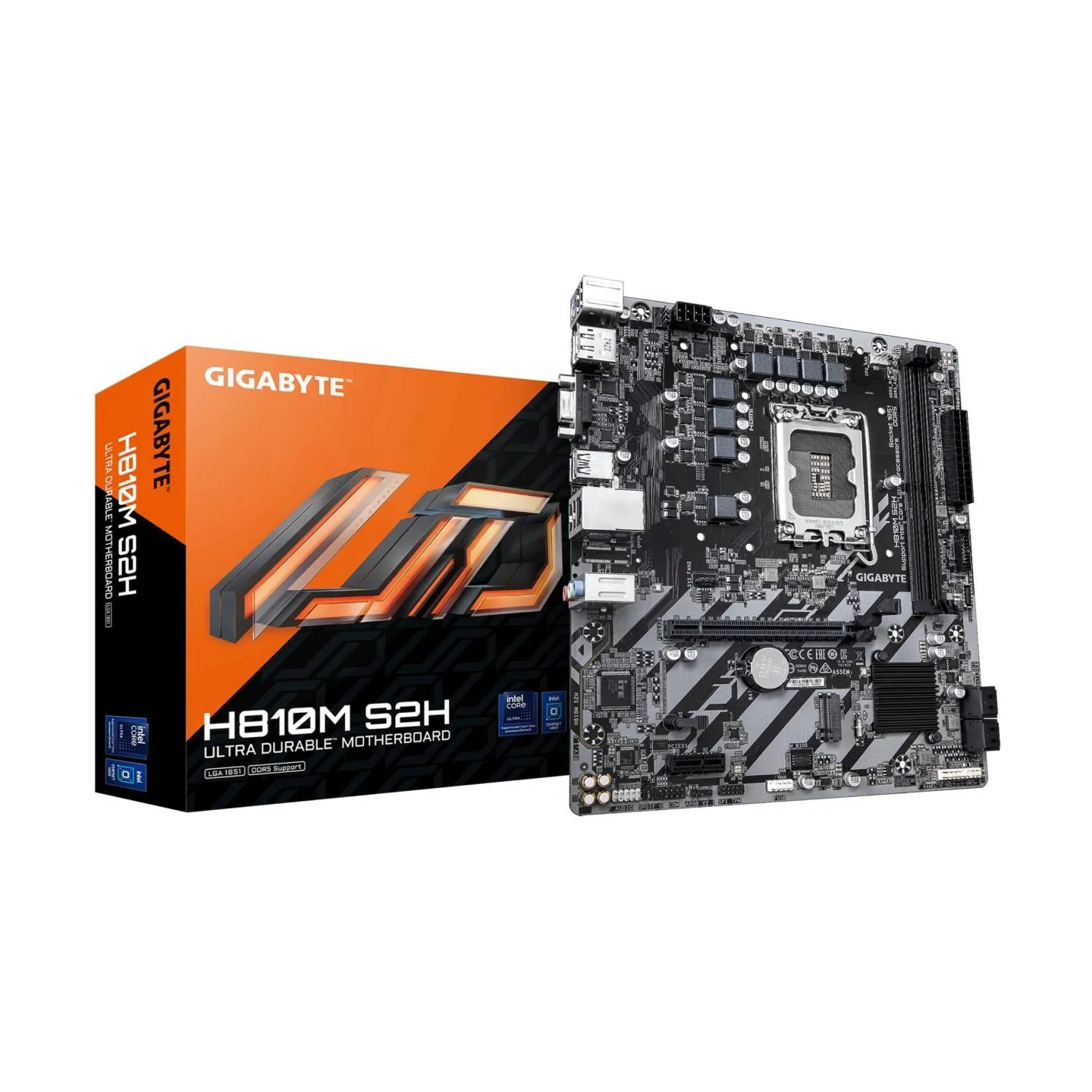

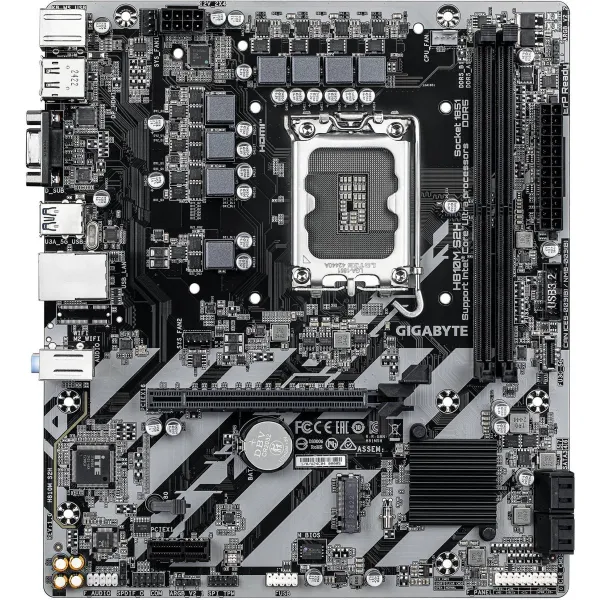

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.265
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- Intel H810
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- Dark brown
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Supported processor sockets
- LGA 1851
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory clock speed (max)
- 6400 MHz
- Supported memory clock speeds
- 5600/6400 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 5
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,PCI Express 4.0,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 2
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- Serial port headers
- 1
- TPM connector
- Yes
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2

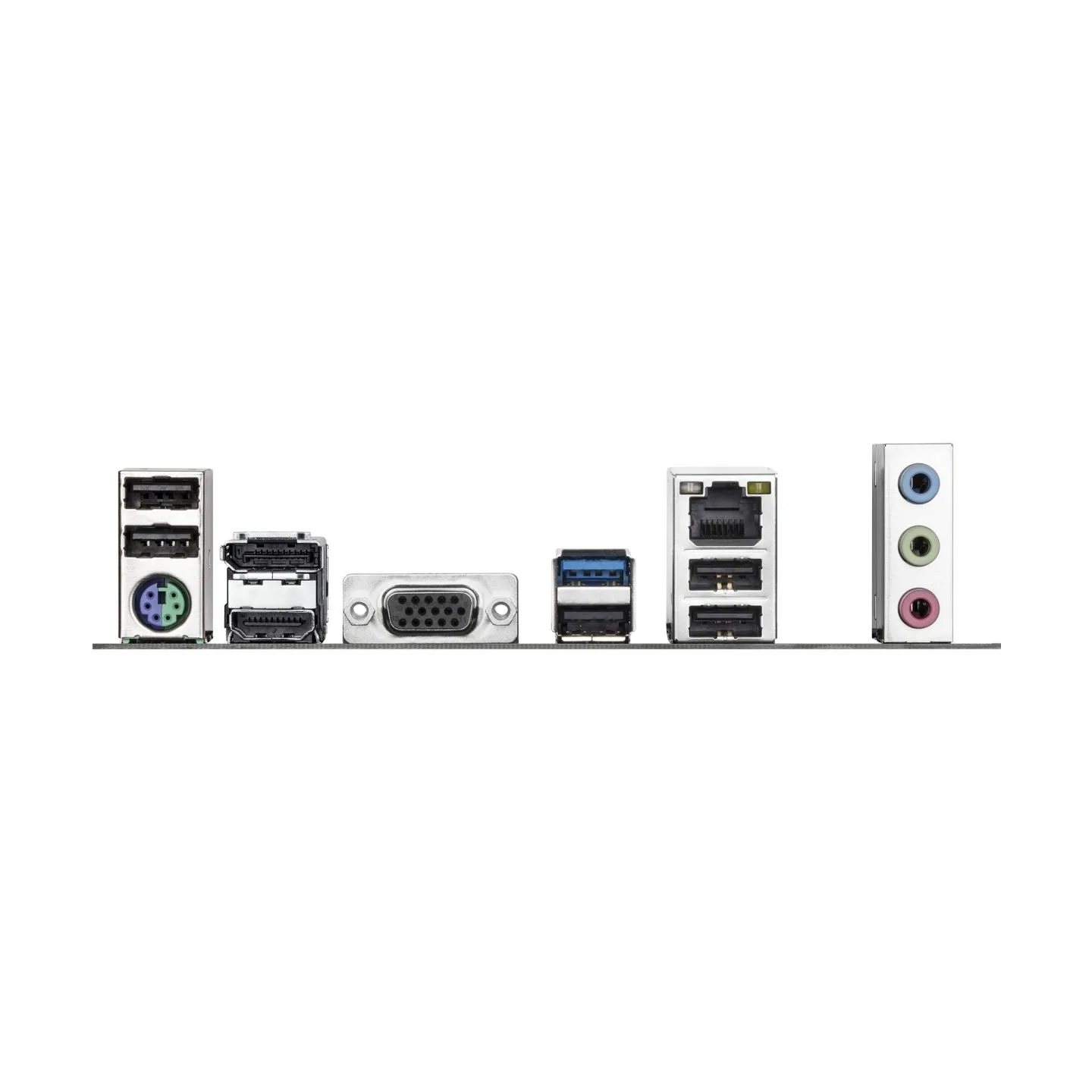

- DisplayPort version
- 2.1
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wi-Fi
- No
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 872 g
- Package width
- 265 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 215 mm
- Height
- 35 mm
- Width
- 244 mm
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 790 g

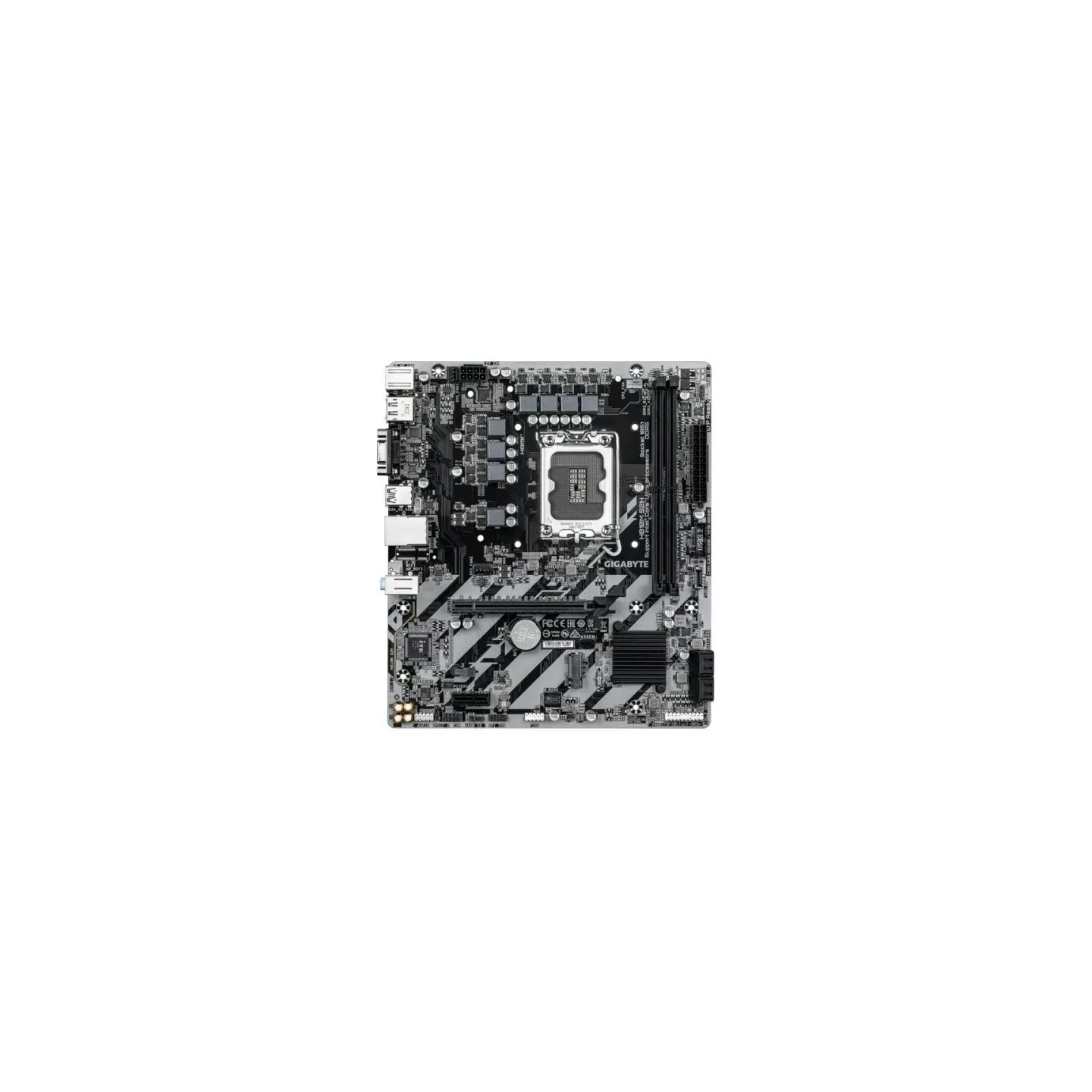

- Model
- H810M S2H
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.00471 cubm
- Unit Calculated Weight
- 0.875 kg
