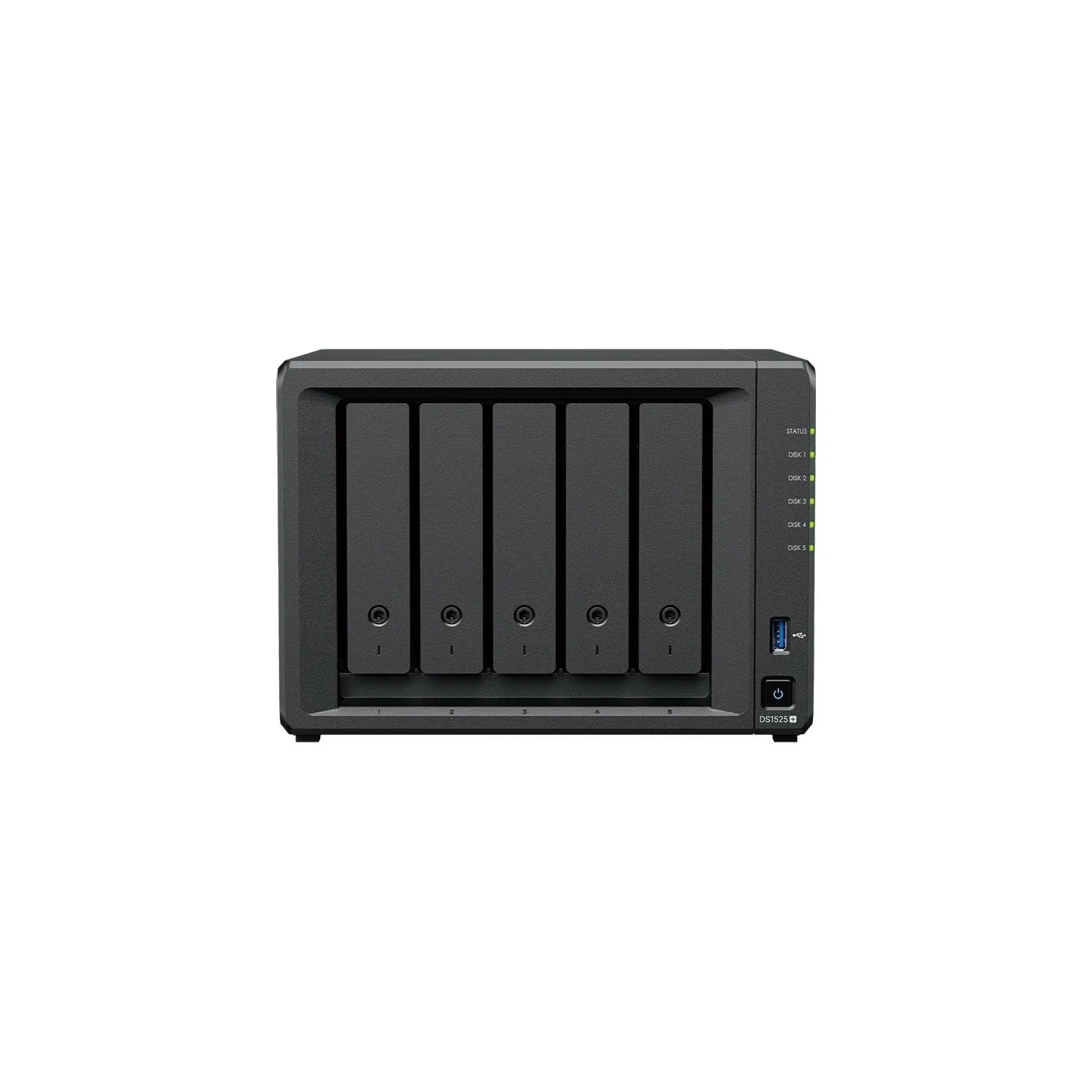

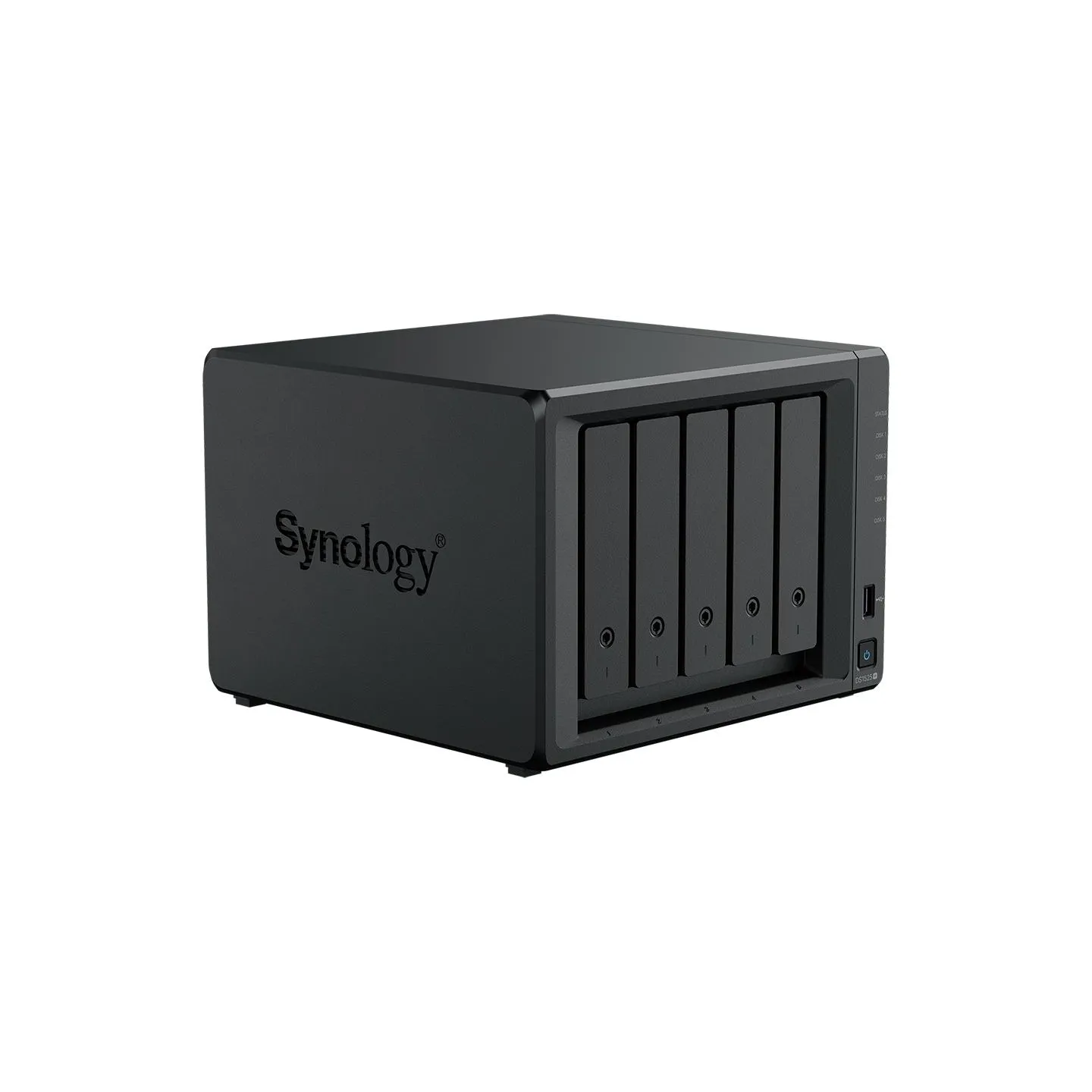

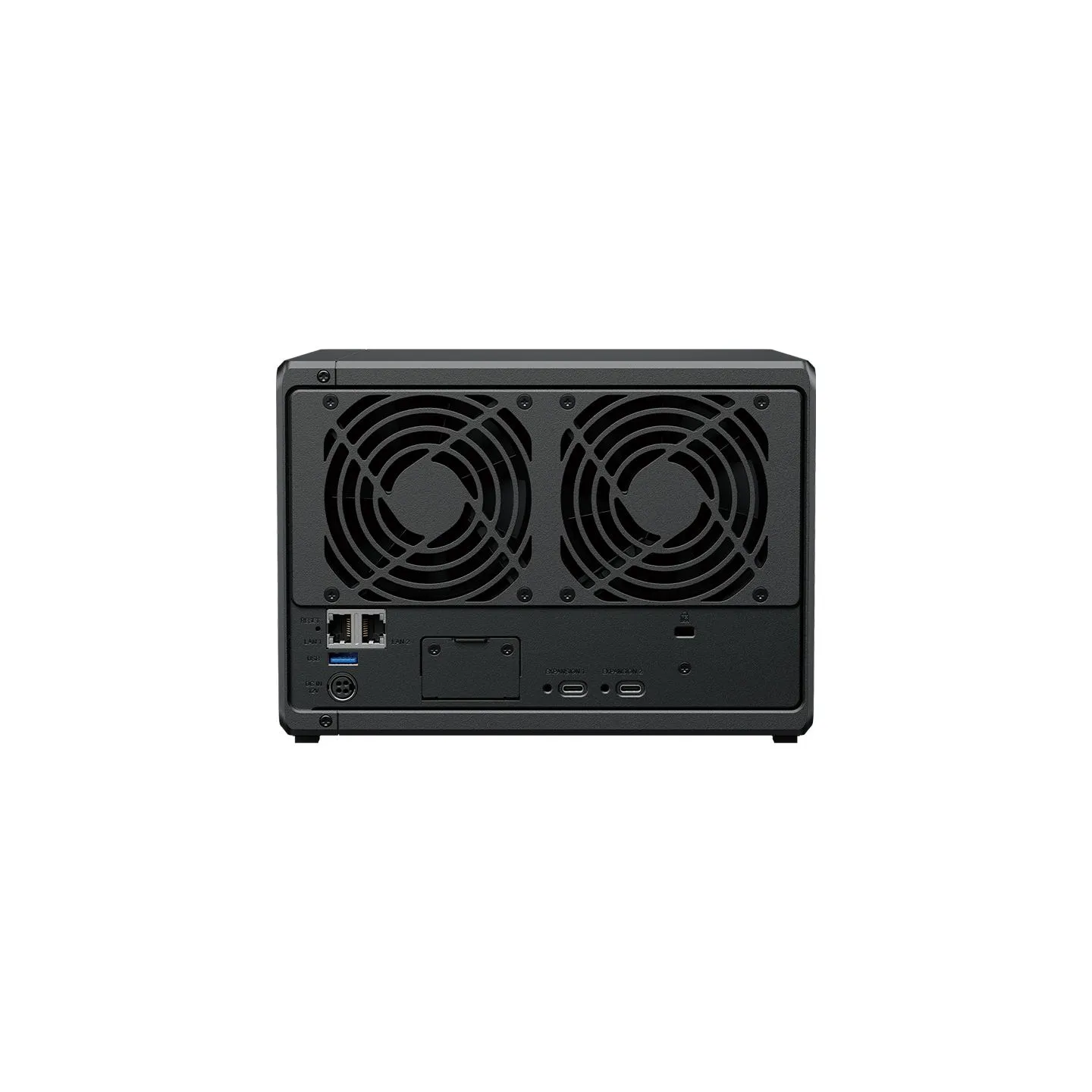

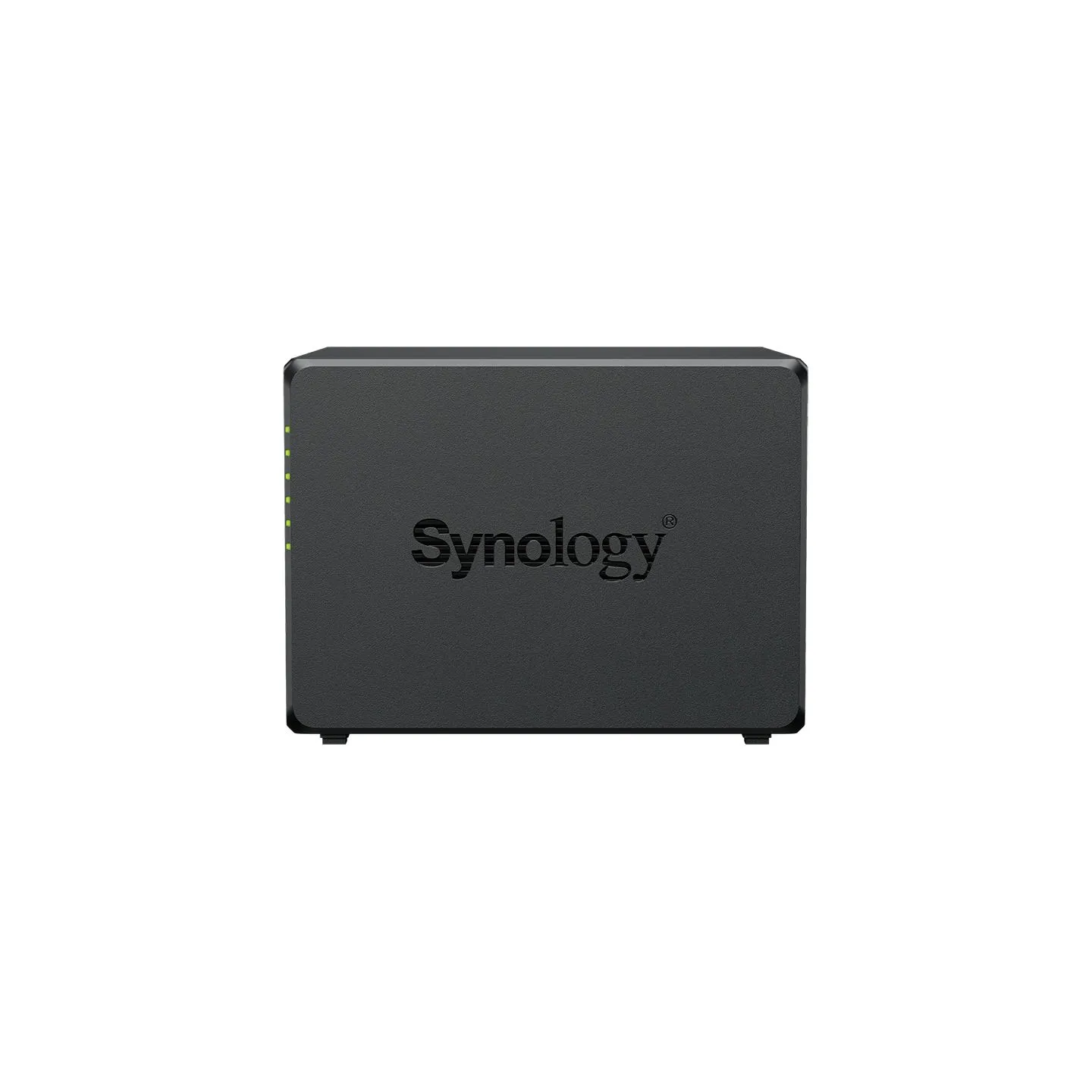

Synology DS1525+ Desktop 5-BAY R1600
SKU DS1525+ Category NAS devices
New
Price:
€1,264.40
Tax included
Last items in stock
Share on
A storage solution that can adapt with your evolving needs
5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2
High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4
Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites
- Up to 1,181 MB/s sequential read and 1,180 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple users
- Two 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilities
- Support for 10GbE networking via 10GbE RJ-45 Network Upgrade Module provides versatility and futureproofing
- Supports 5 2.5" SATA SSD and 3.5" SATA HDD.8 Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability
- Expandable to 15 drives for up to 300 TB of raw storage with two
- Synology DX525 expansion units
- Two built-in M.2 slots provide SSD caching capability without occupying drive bays
Manufacturer Website:
https://www.synology.com/en-sg/products/DS1525+#specs
- Category Code
- STS
- CnCode
- 84717098
- Unit Box Height
- 0.3
- Unit Box Length
- 0.32
- Unit Box Width
- 0.29
- Hot-swap drive bays
- Yes
- Installed storage drive type
- No
- Maximum supported storage capacity
- 300 TB
- Number of M.2 (M & B) slots
- 2
- Number of storage drives supported
- 15
- RAID levels
- 0/1/10/5/6/JBOD
- RAID support
- Yes
- Storage drive capacity
- 0 GB
- Storage drive sizes supported
- 2.5/3.5/M.2 "
- Storage drives installed
- No
- Supported file systems
- BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS
- Supported storage drive interfaces
- M.2,Serial ATA
- Supported storage drive types
- HDD & SSD
- Total installed storage capacity
- 0 TB
- Processor cores
- 4
- Processor family
- Ryzen Embedded
- Processor frequency
- 2.2 GHz
- Processor generation
- AMD Ryzen Embedded V1000 Series
- Processor manufacturer
- AMD
- Processor model
- V1500B
- Processor threads
- 8
- ECC
- Yes
- Internal memory
- 8 GB
- Internal memory type
- DDR4
- Maximum RAM supported
- 32 GB
- Memory form factor
- SO-DIMM
- Memory slots
- 2
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- Wake-on-LAN ready
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB port
- Yes
- Cooling type
- Active
- Drive bay locking
- Yes
- Fan diameter
- 92 mm
- Fan diameter 2
- 92 mm
- LED indicators
- Yes
- Number of fans
- 2 fan(s)
- Product colour
- Black
- Access Control List (ACL)
- Yes
- Backup features
- Cloud/iSCSI LUN
- Backup function
- Yes
- Browser supported
- Chrome,Firefox,Edge,Safari
- Device class
- Home & Home Office
- Multilingual support
- Yes
- Noise level
- 22.6 dB
- Number of users
- 1024 user(s)
- On/off switch
- Yes
- Snapshot
- Yes
- System log
- Yes
- Type
- NAS
- Web-based management
- Yes
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (HDD standby)
- 13.63 W
- Power consumption (typical)
- 44.56 W
- Power supply location
- External
- Power supply unit (PSU) capacity
- 120 W
- Depth
- 223 mm
- Height
- 166 mm
- Weight
- 2670 g
- Width
- 230 mm
- Cables included
- AC/LAN (RJ-45)
- External power adapter
- Yes
- Power cables quantity
- 1
- Operating altitude
- 0 - 5000 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -20 - 60 °C
- Compliance certificates
- RoHS
- Warranty period
- 3 year(s)
- Model
- DS1525+
- Model name
- DS1525+
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.02784 cubm
- Unit Calculated Weight
- 4.8 kg
