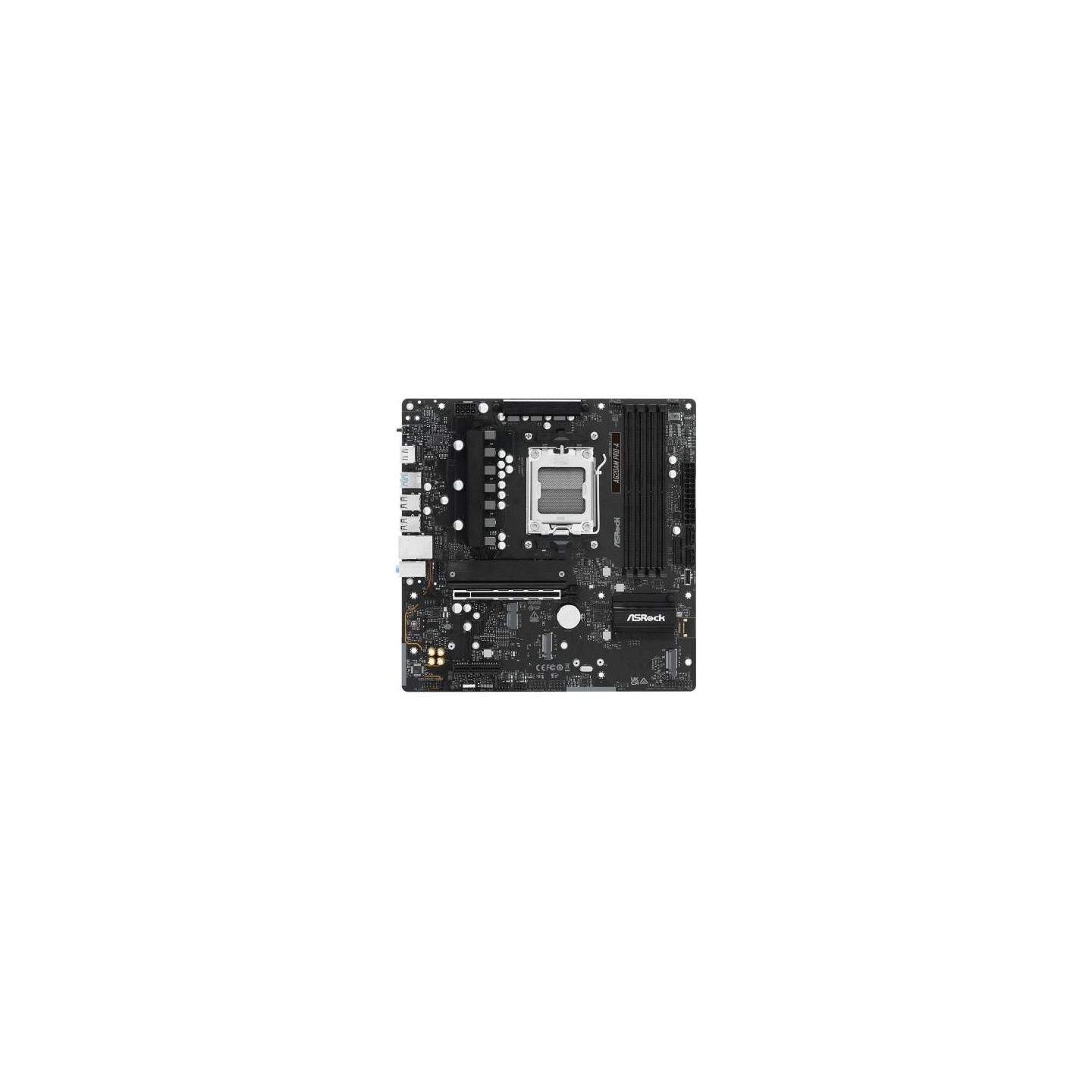

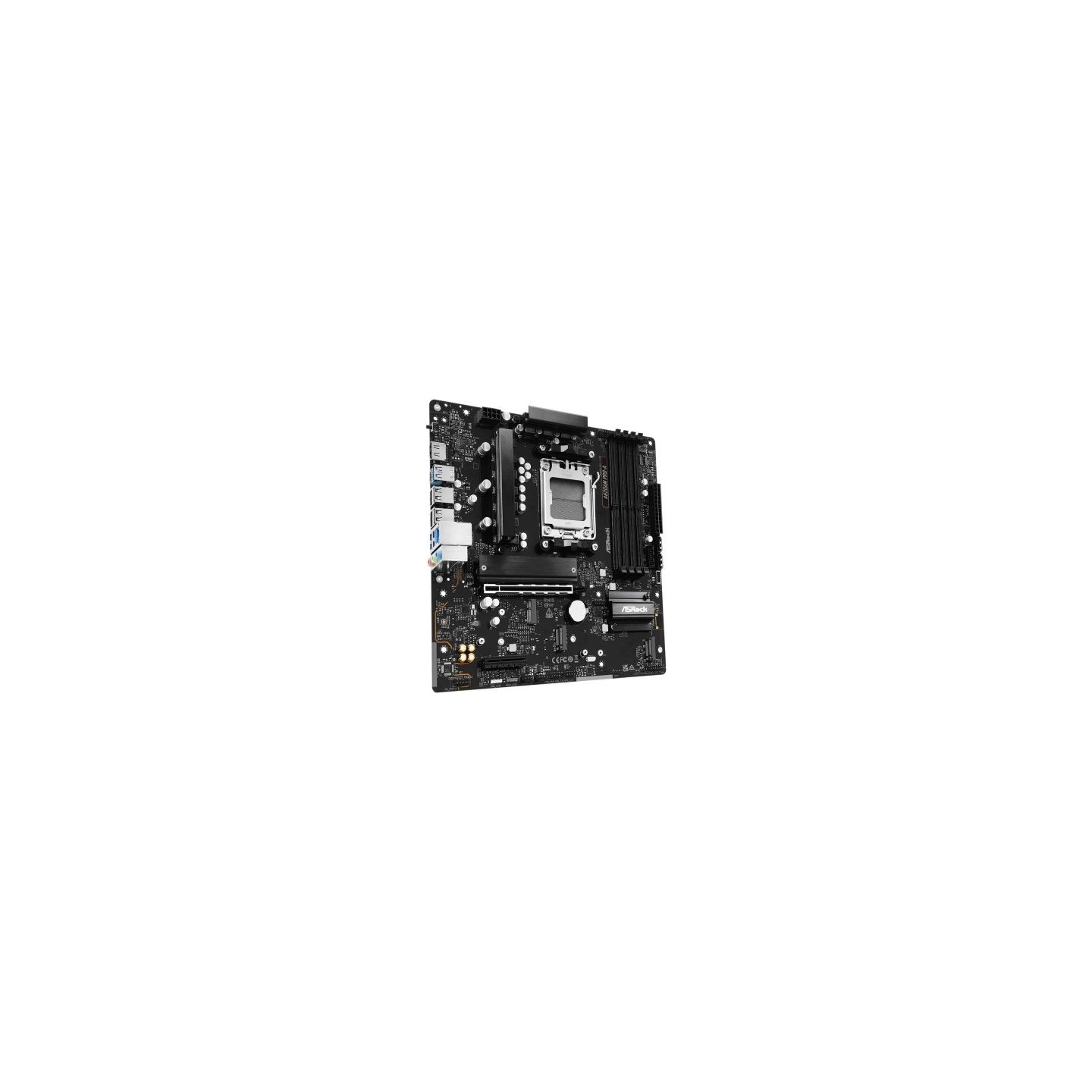

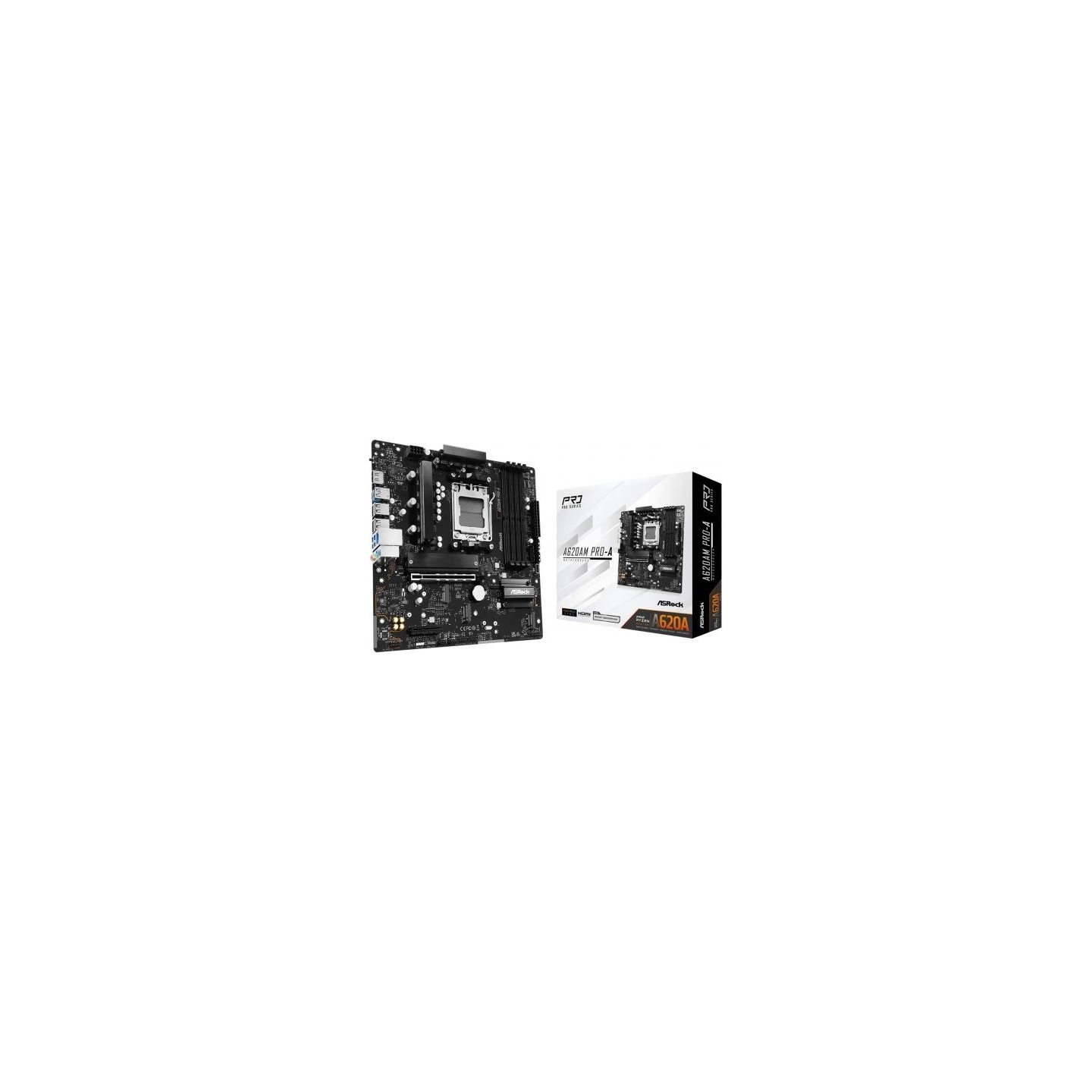

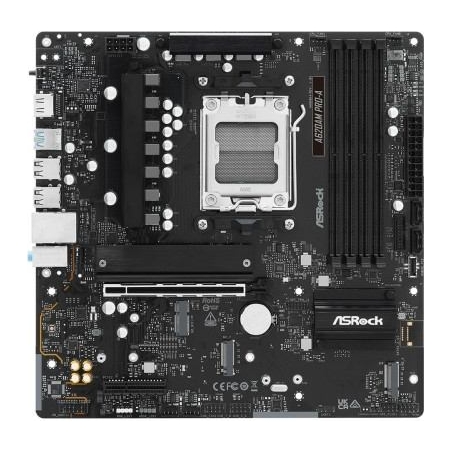

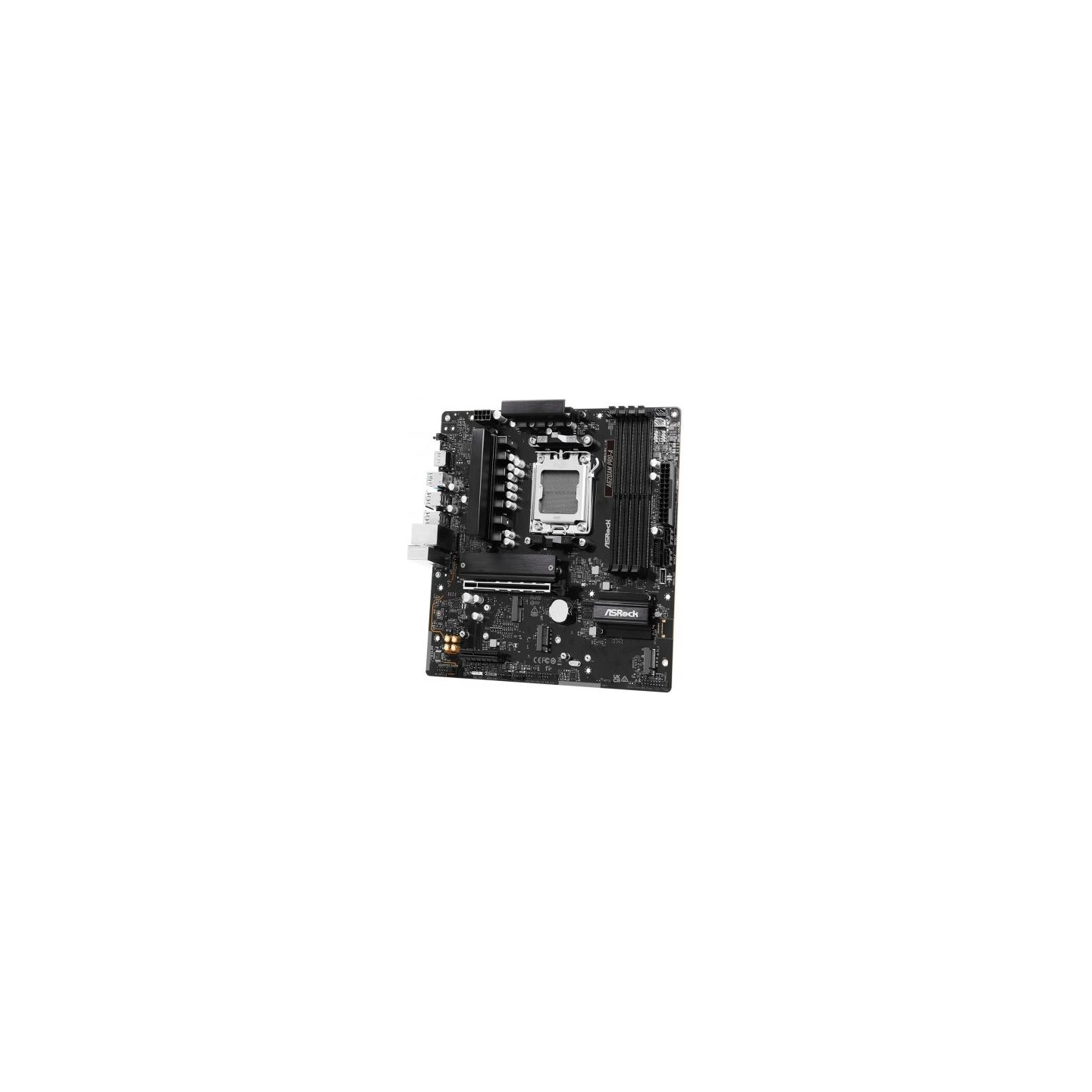

Asrock A620AM PRO-A AM5 4DDR5 HDMI M.2 mATX
Price:
€96.52
Tax included
Last items in stock
Share on
- SKU
- KBASRAA8A620U06
- Barcode
- 4711581490963
- Model
- A620AM PRO-A
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD A620A
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 4
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 2
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode 2 x SATA3 6.0 Gb/s Connectors
- Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- USB ports at back panel
- 8
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

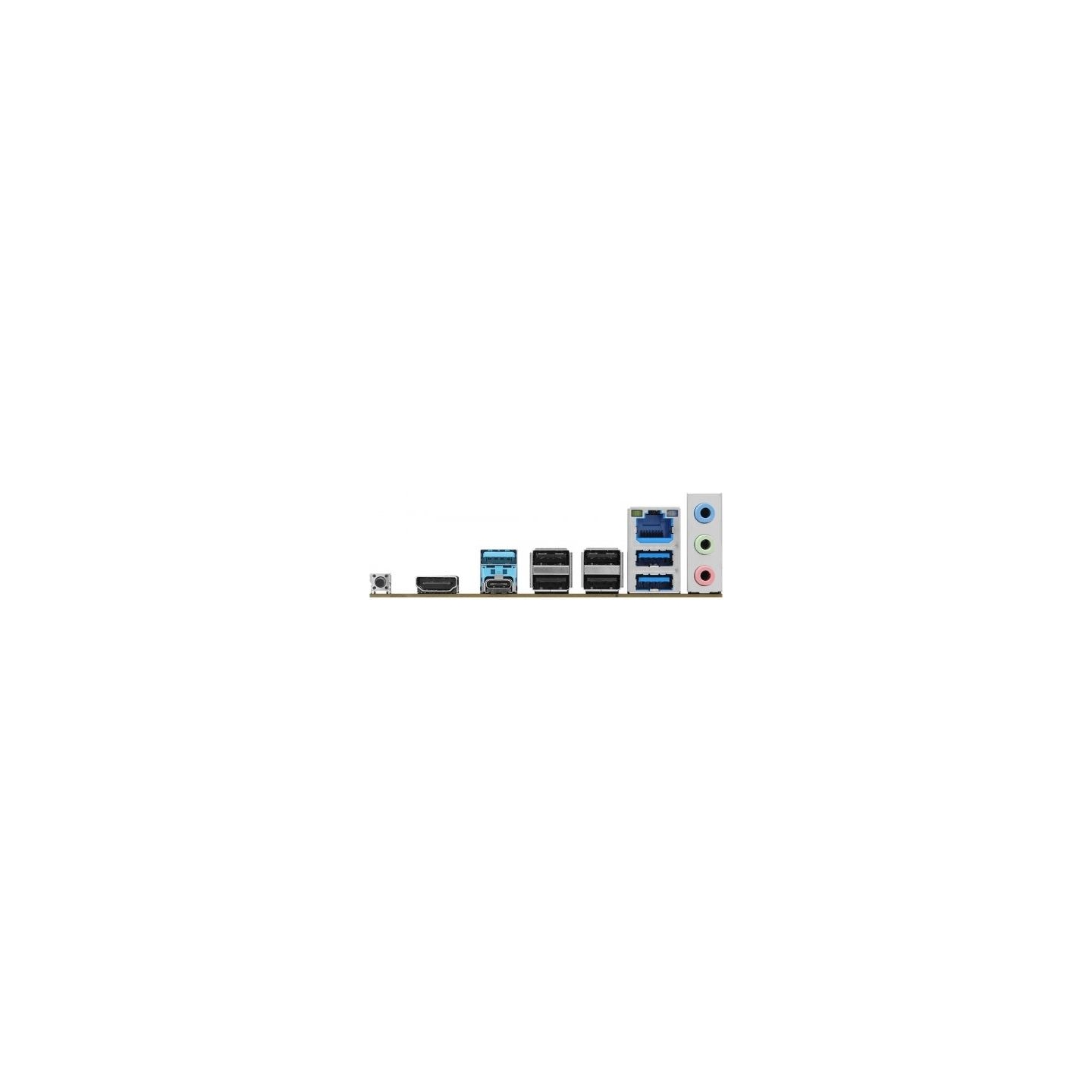

- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x USB 3.0 Type-C
- External connectors
- 3 x USB 3.0
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x 4pin wentylator CPU
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Accessories included
- I/O Shield 2 x SATA Data Cables 4 x Screws for M.2 Sockets Standoff for M.2 Socket
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Designation
- CE+WEEE
