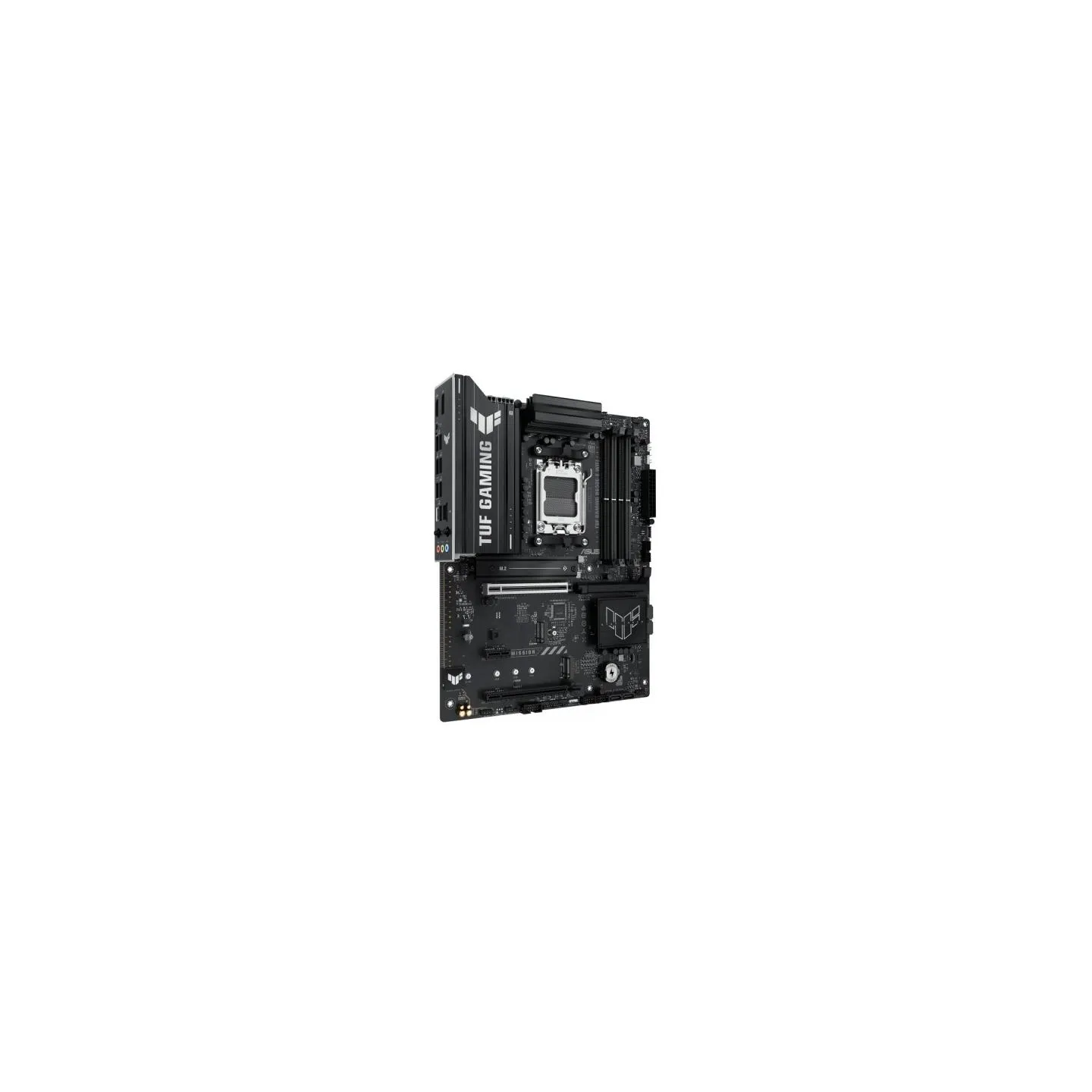

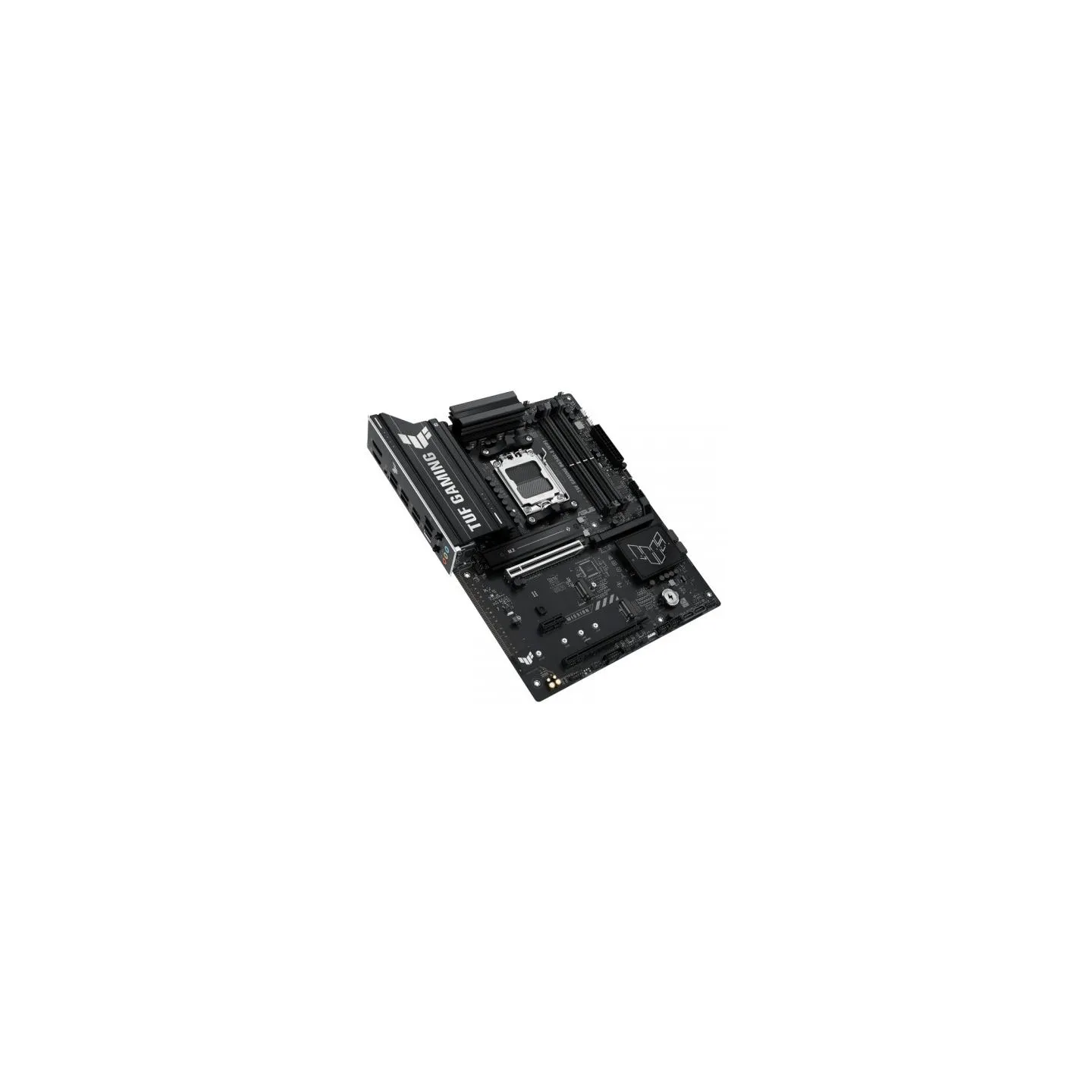

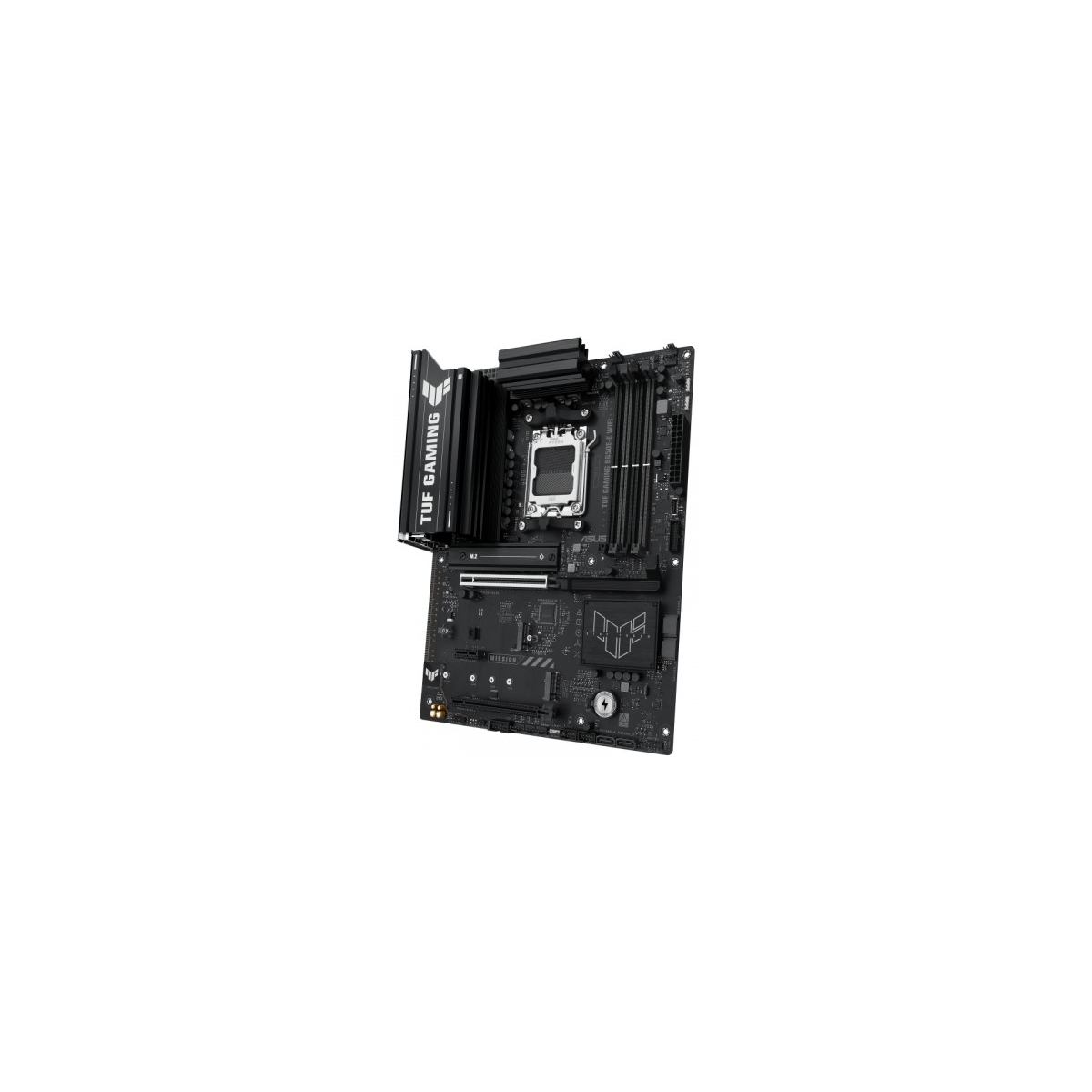

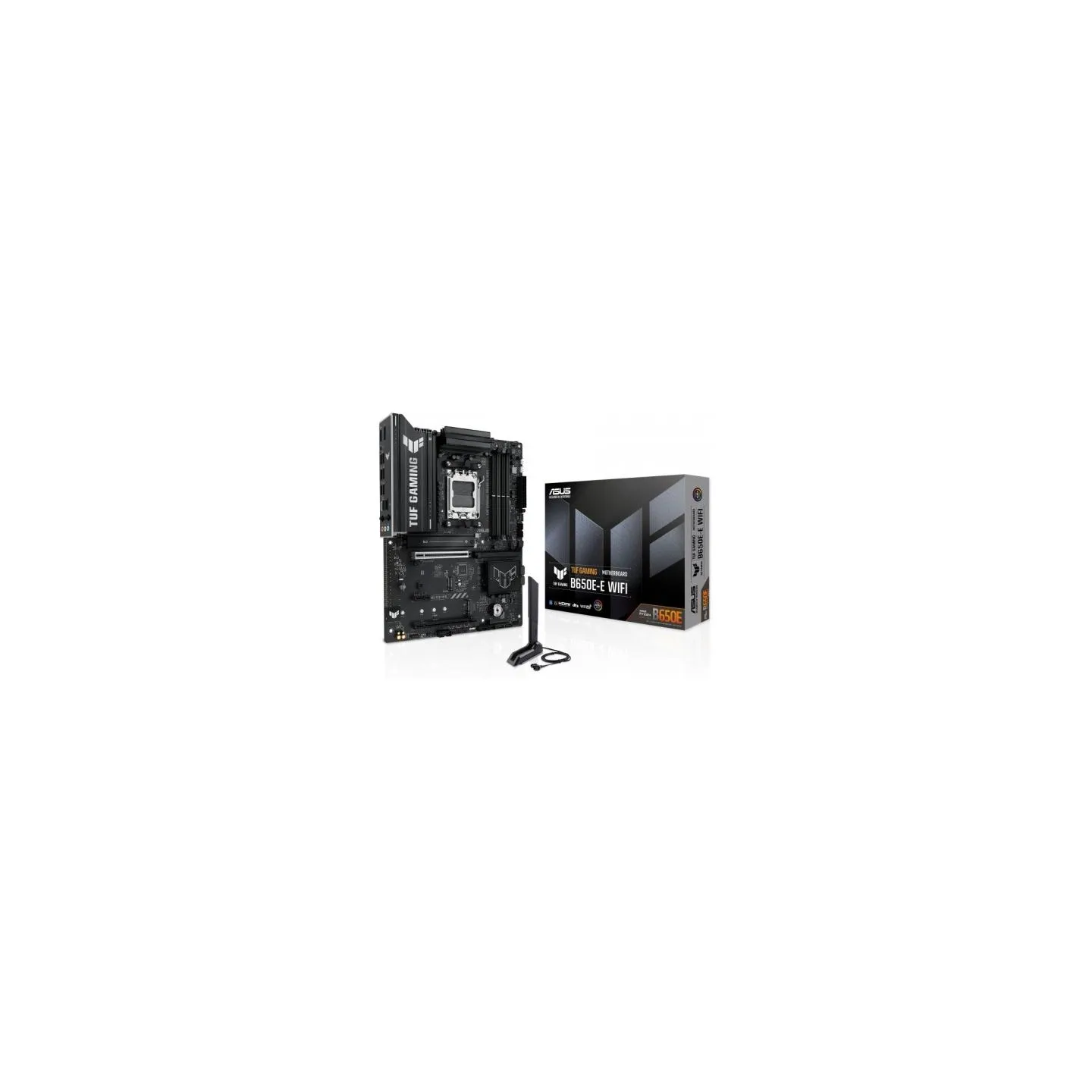

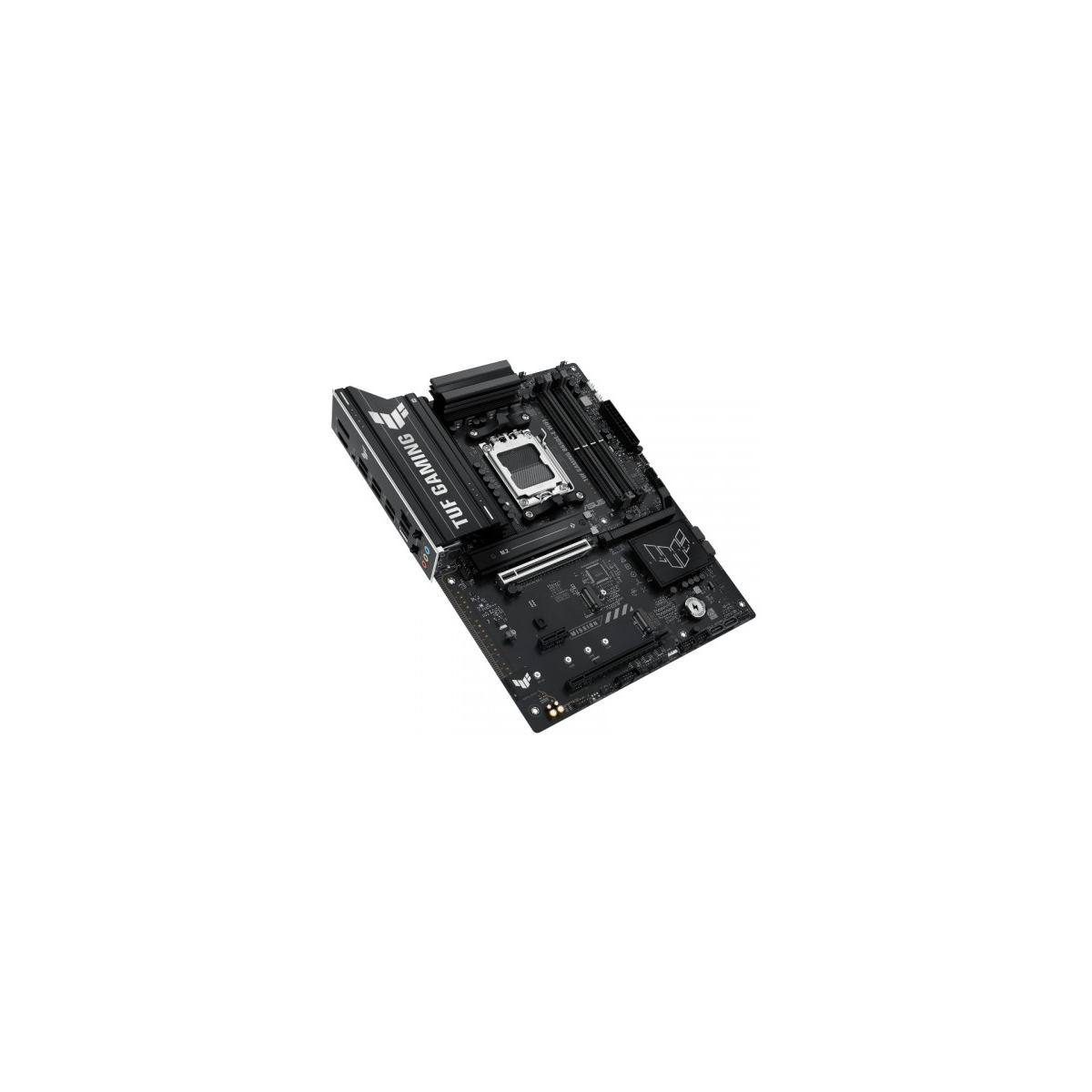

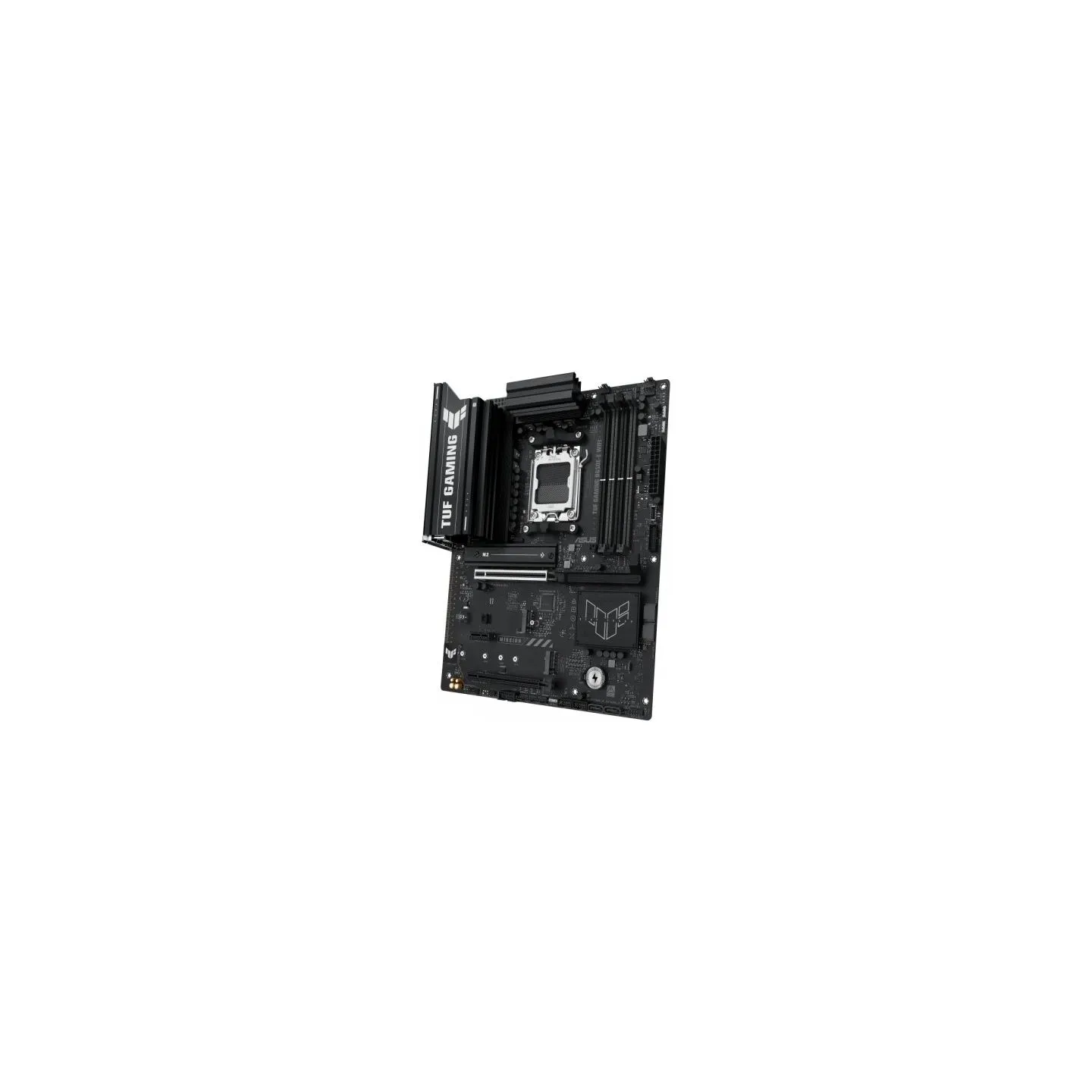

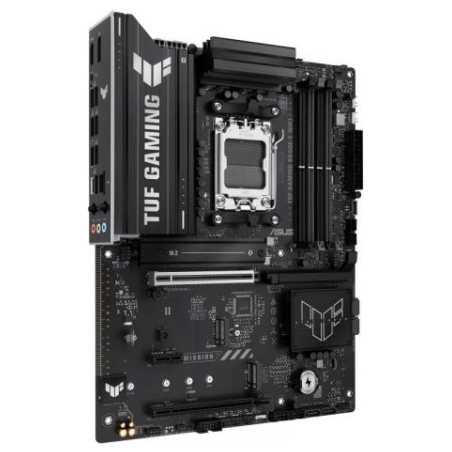

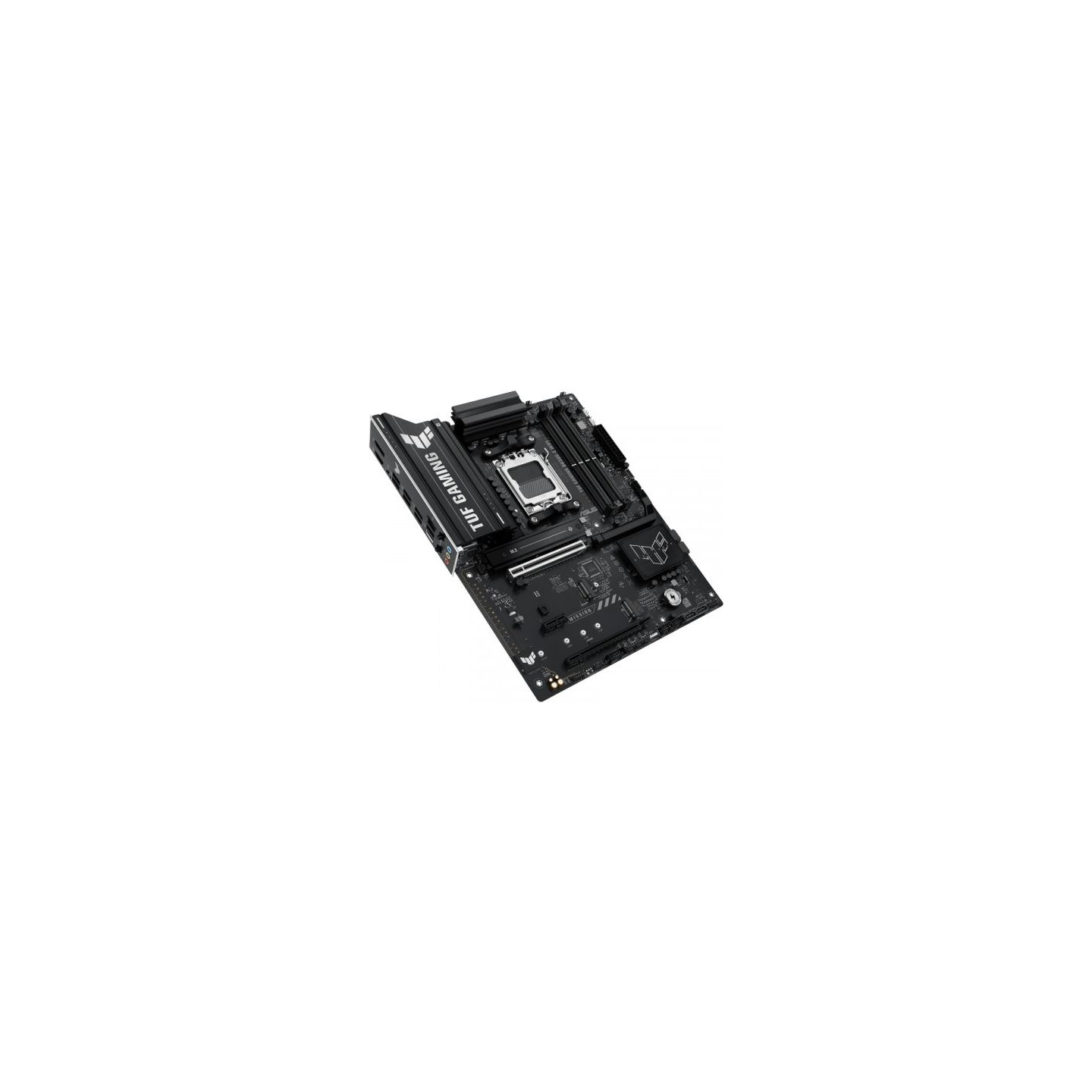

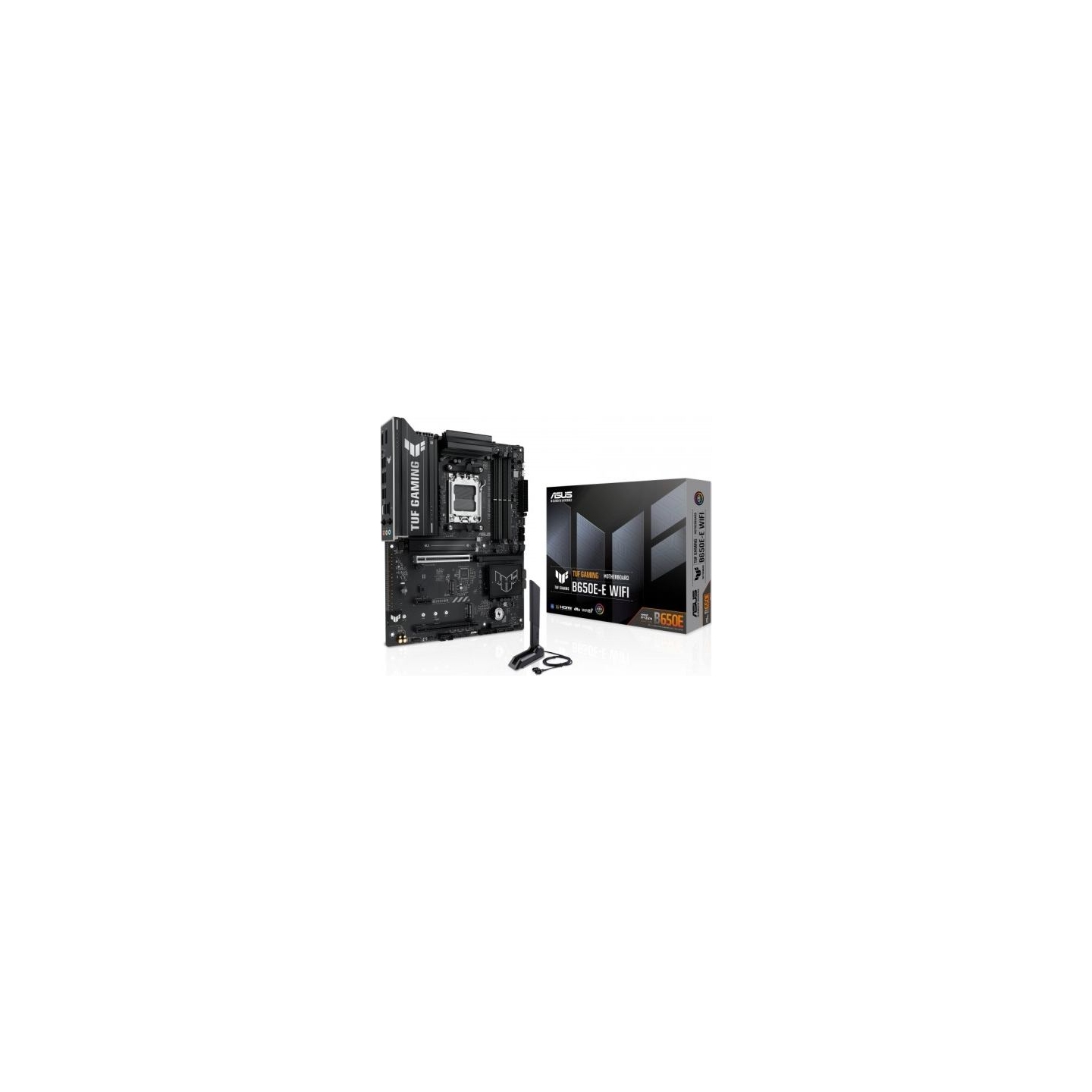

Asus Motherboard TUF GAMING B650E-E WIFI AM5 4DDR5 HDMI/DP ATX
New
Price:
€208.13
Tax included
Last items in stock
Share on
- SKU
- KBASUAA8B650A06
- Barcode
- 4711387992494
- Model
- TUF GAMING B650E-E WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B650
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 2 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
- Graphics
- DisplayPort HDMI port
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

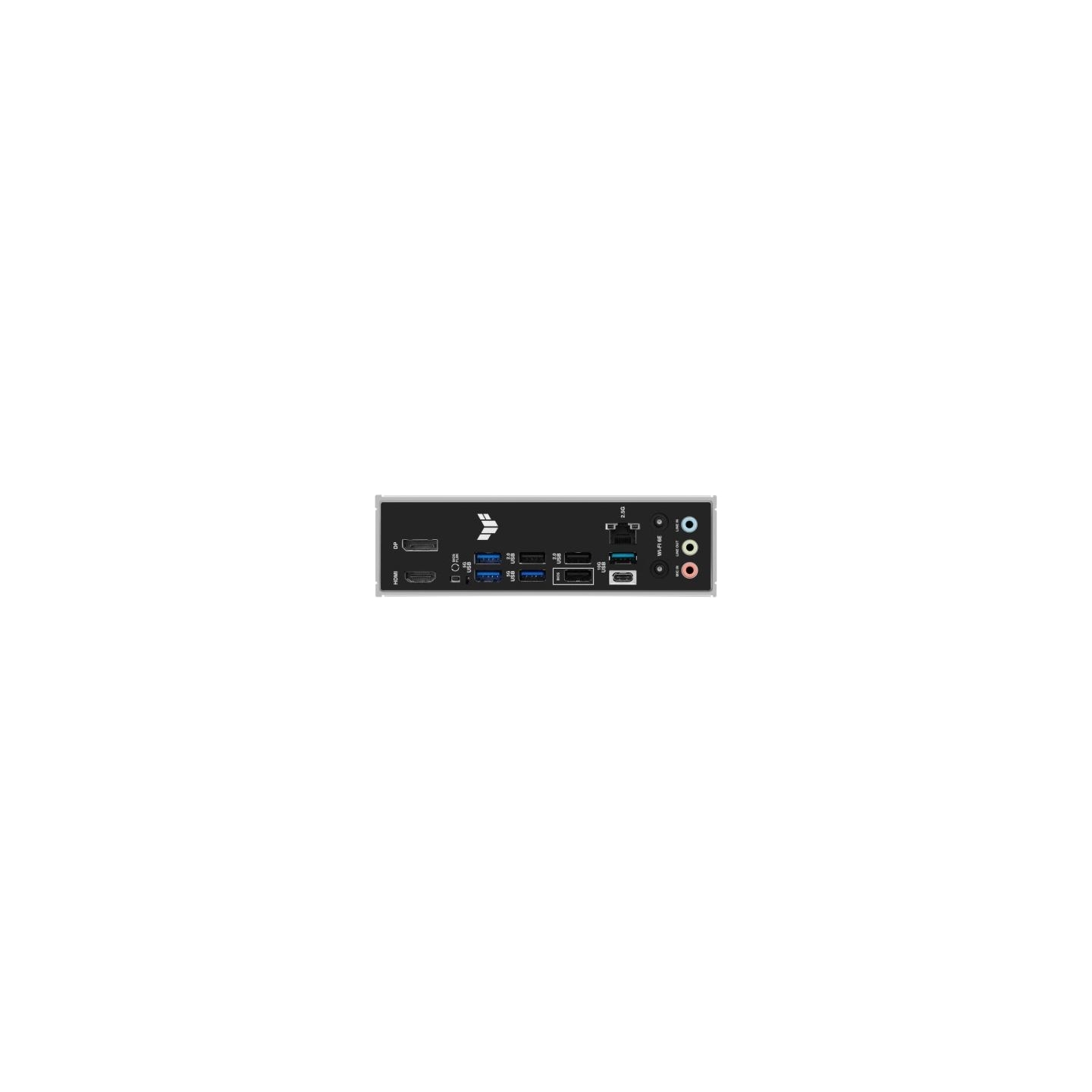

- External connectors
- 1 x MIC
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Line Out
- External connectors
- 3 x USB 2.0
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x Line In
- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x Wi-Fi Module
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Clear CMOS button
- Onboard connectors
- 1 x Chassis intrusion header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna TUF Gaming sticker M.2 rubber package 2 x Screw package for M.2 SSD Quick start guide
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Power Saving Two-Way Al Noise cancelation Al Suite 3 TurboV EVO DIGI+ VRM PC Cleaner ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
- Designation
- CE+WEEE
