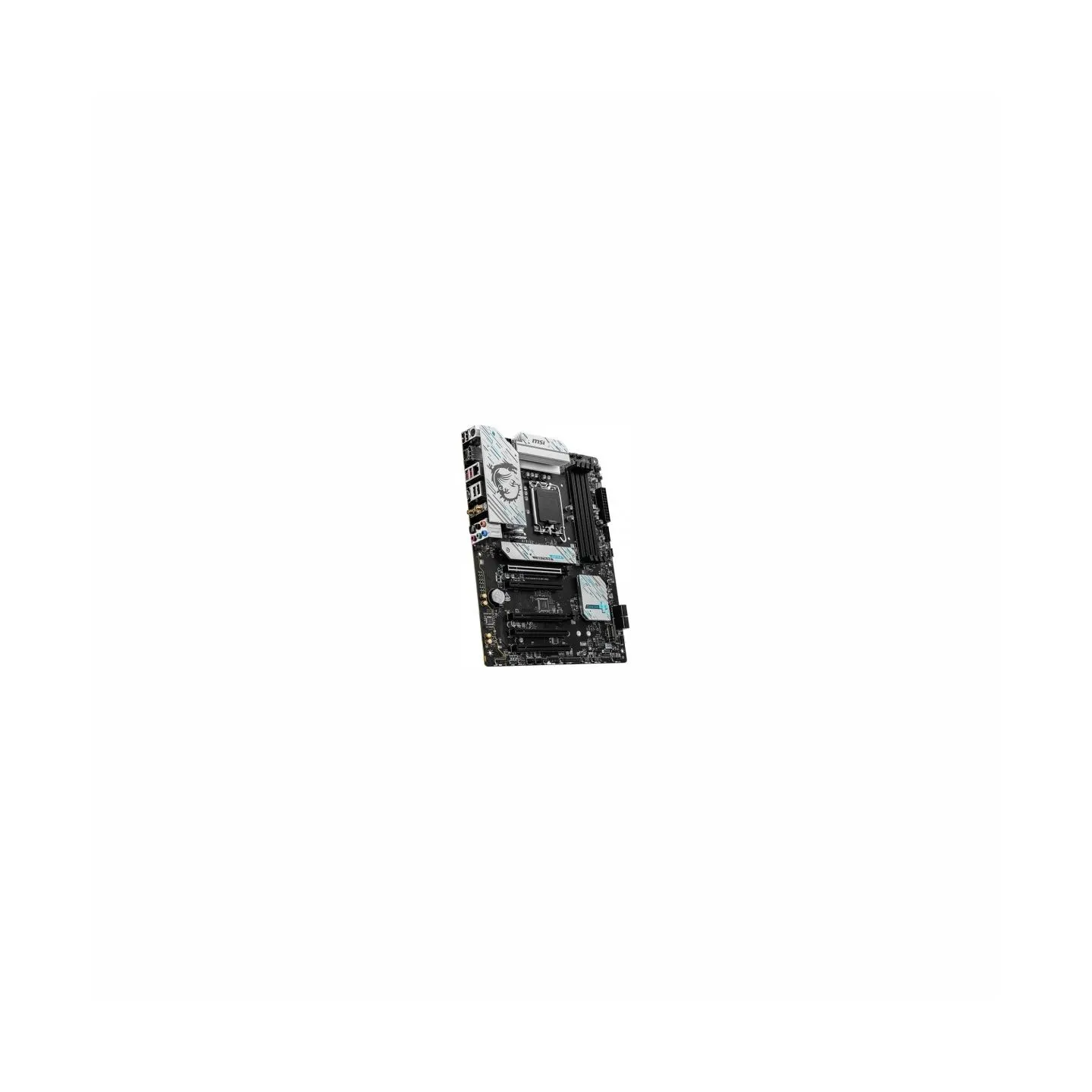

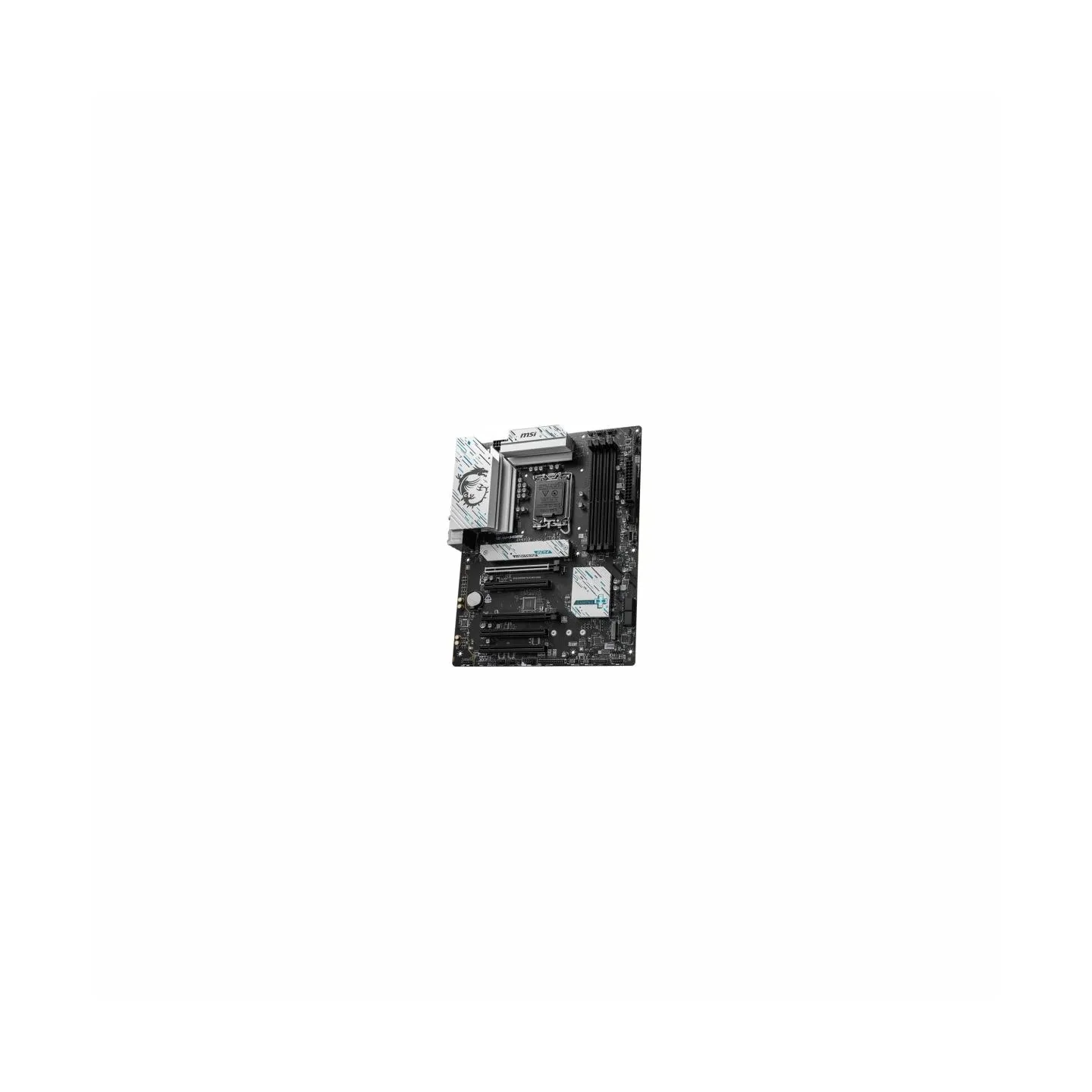

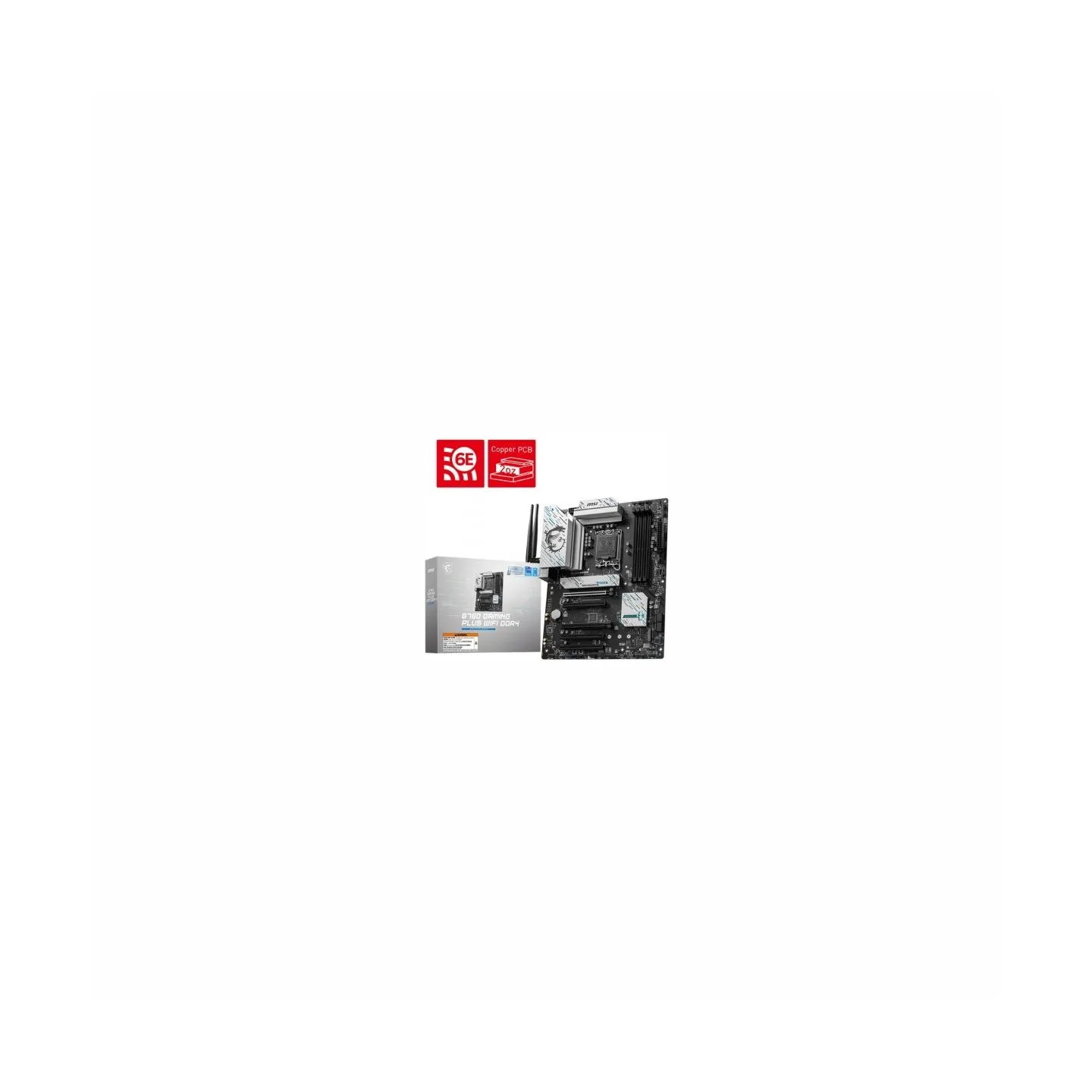

MSI Motherboard B760 GAMING PLUS WIFI s1700 4DDR4 DP/HDMI ATX
Price:
€167.83
Tax included
Share on
- SKU
- KBMSIIIEB760A09
- Barcode
- 4711377247900
- Model
- B760 GAMING PLUS WIFI DDR4
- CPU socket
- LGA1700
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- INTEL B760
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3800 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4200 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 5066 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5333 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 3 x PCIe 3.0 x 1
- Expansion slots
- 2 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- USB ports at back panel
- 7
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x HDMI
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 5 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Printer Port (JLPT)
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 2 x Addressable LED
- Form factor
- ATX
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
