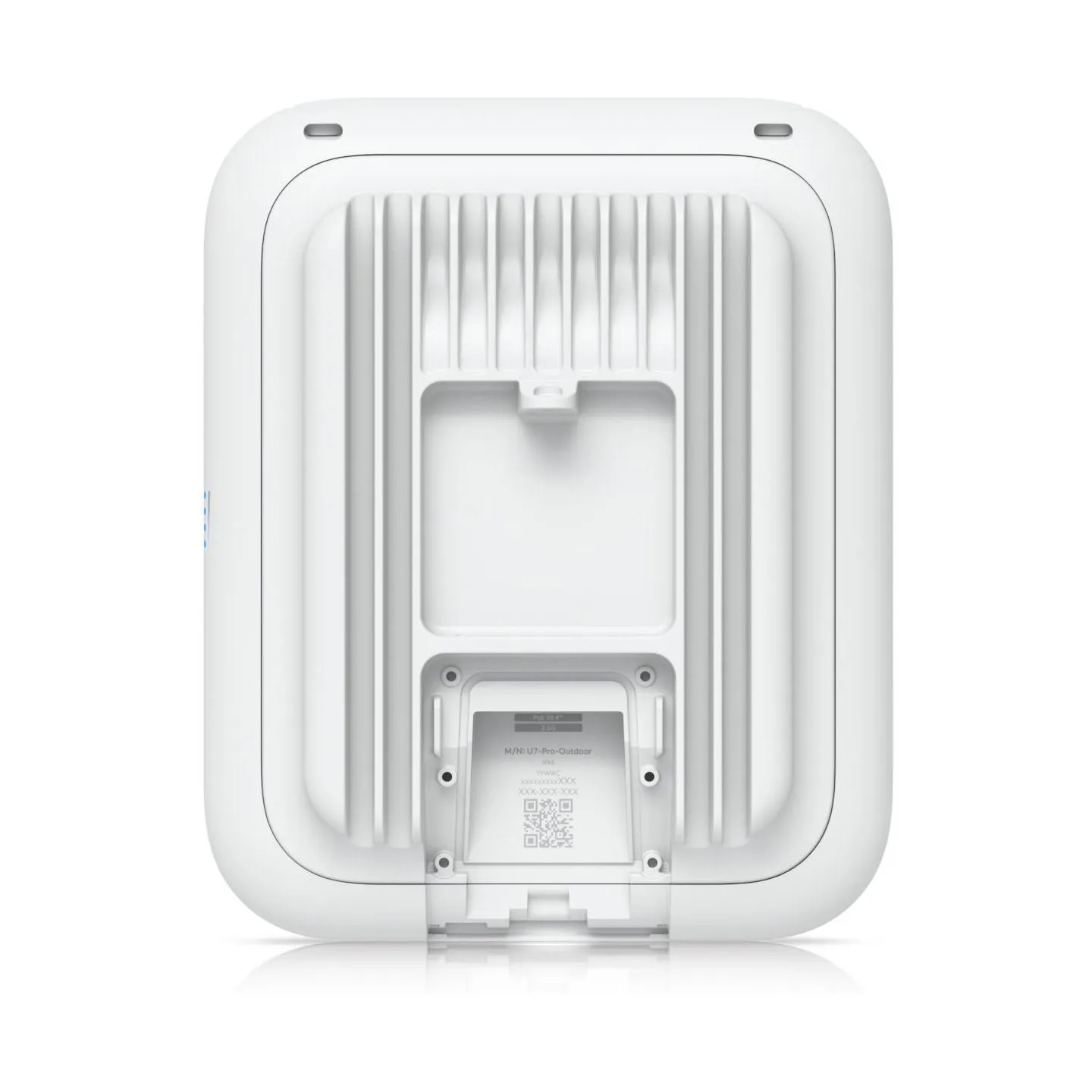

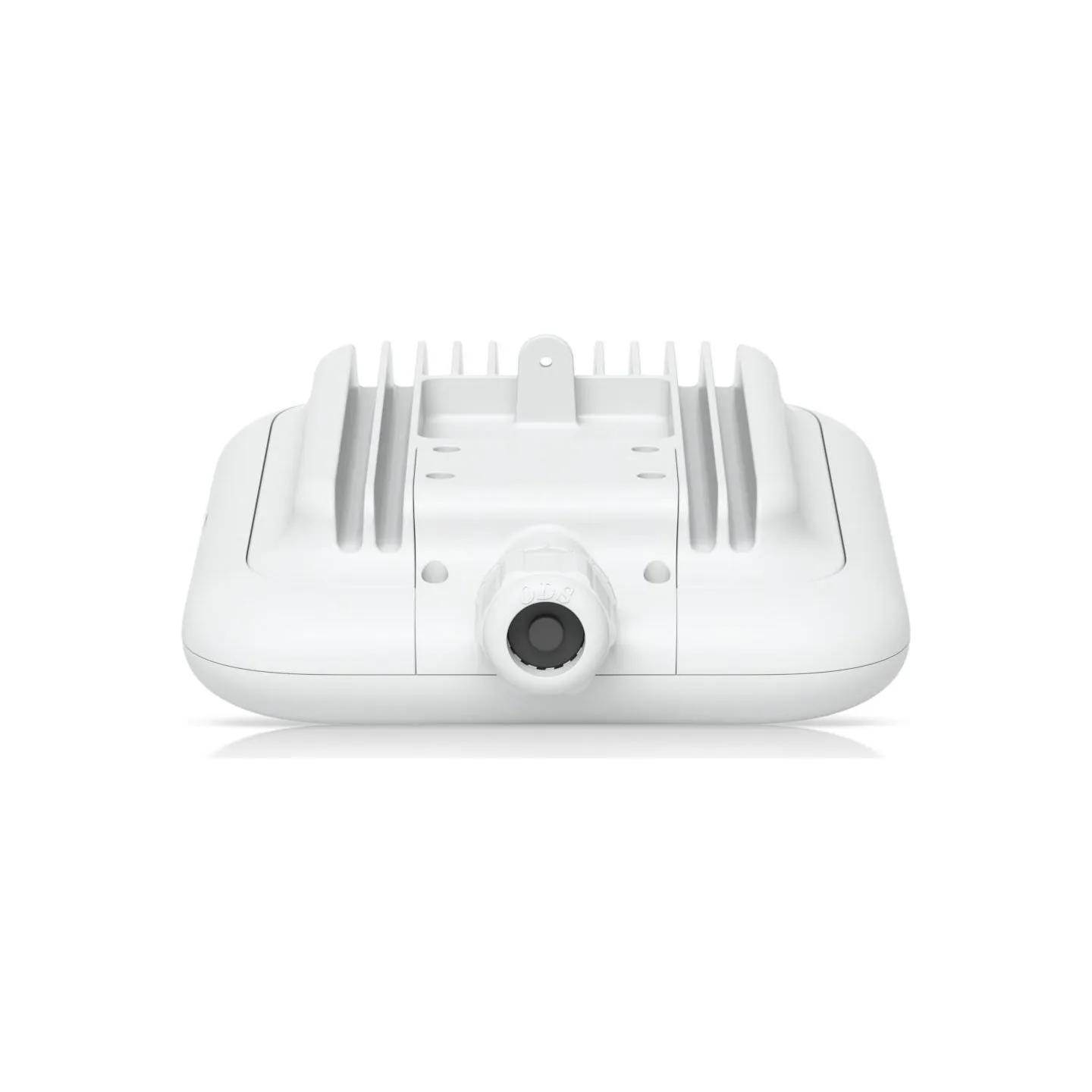

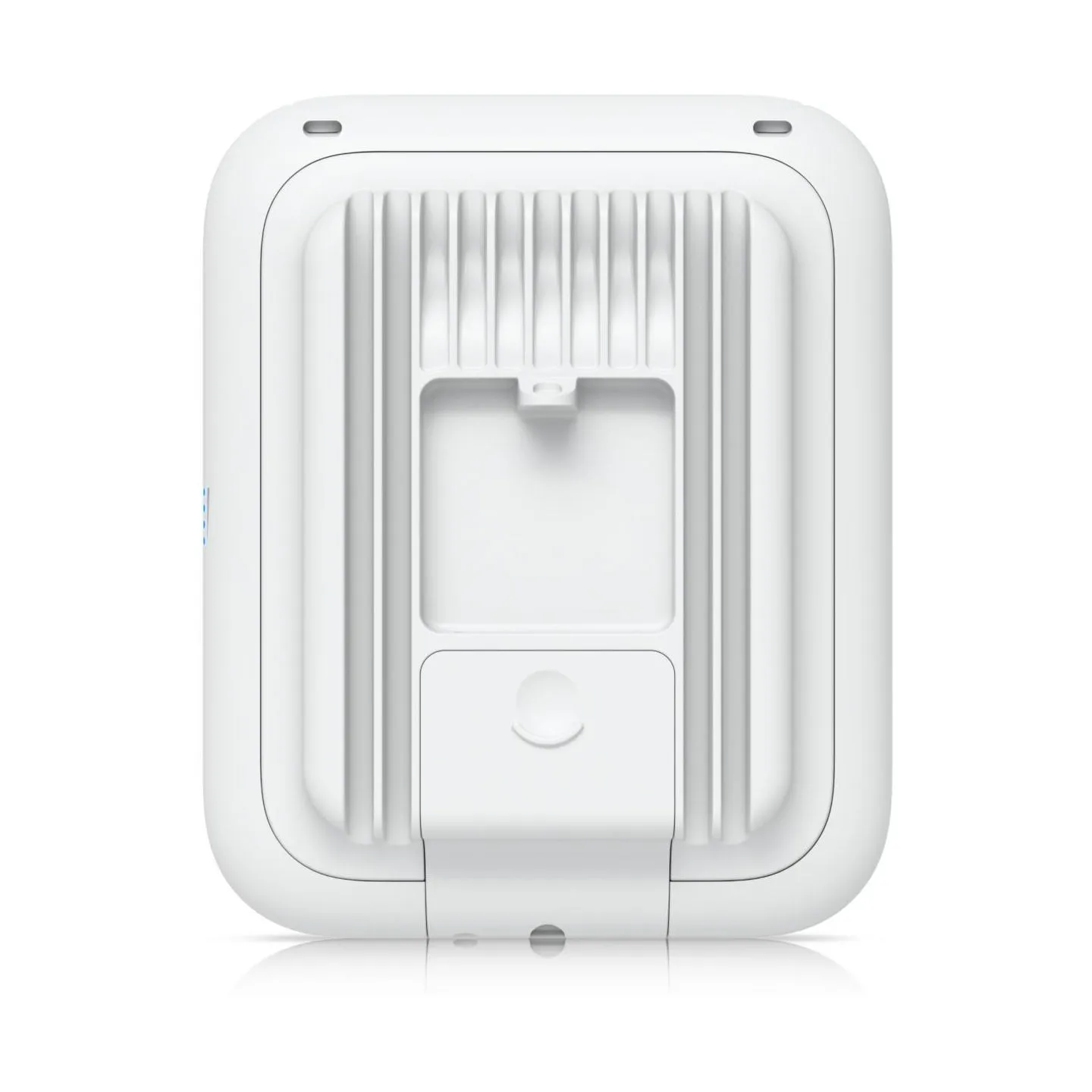

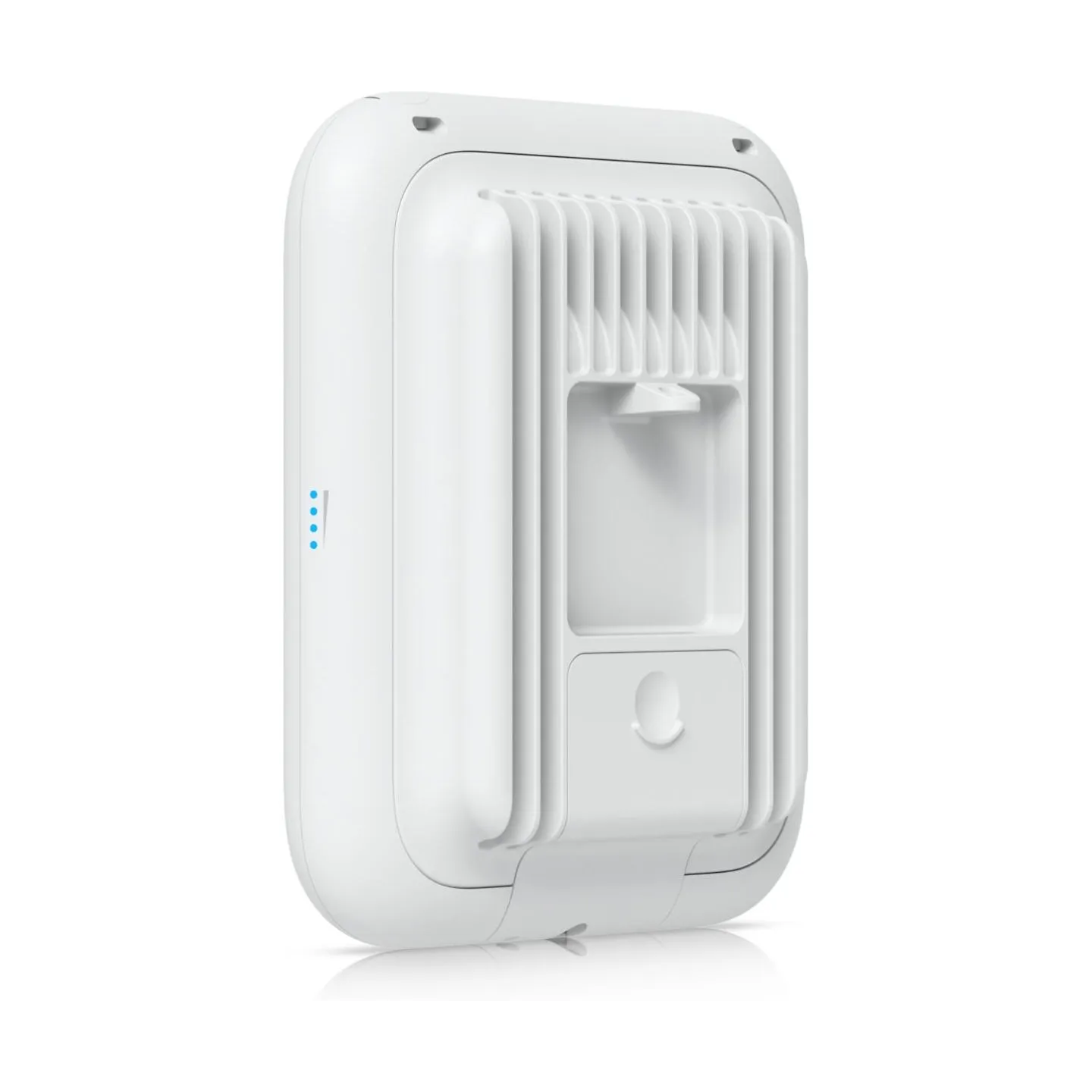

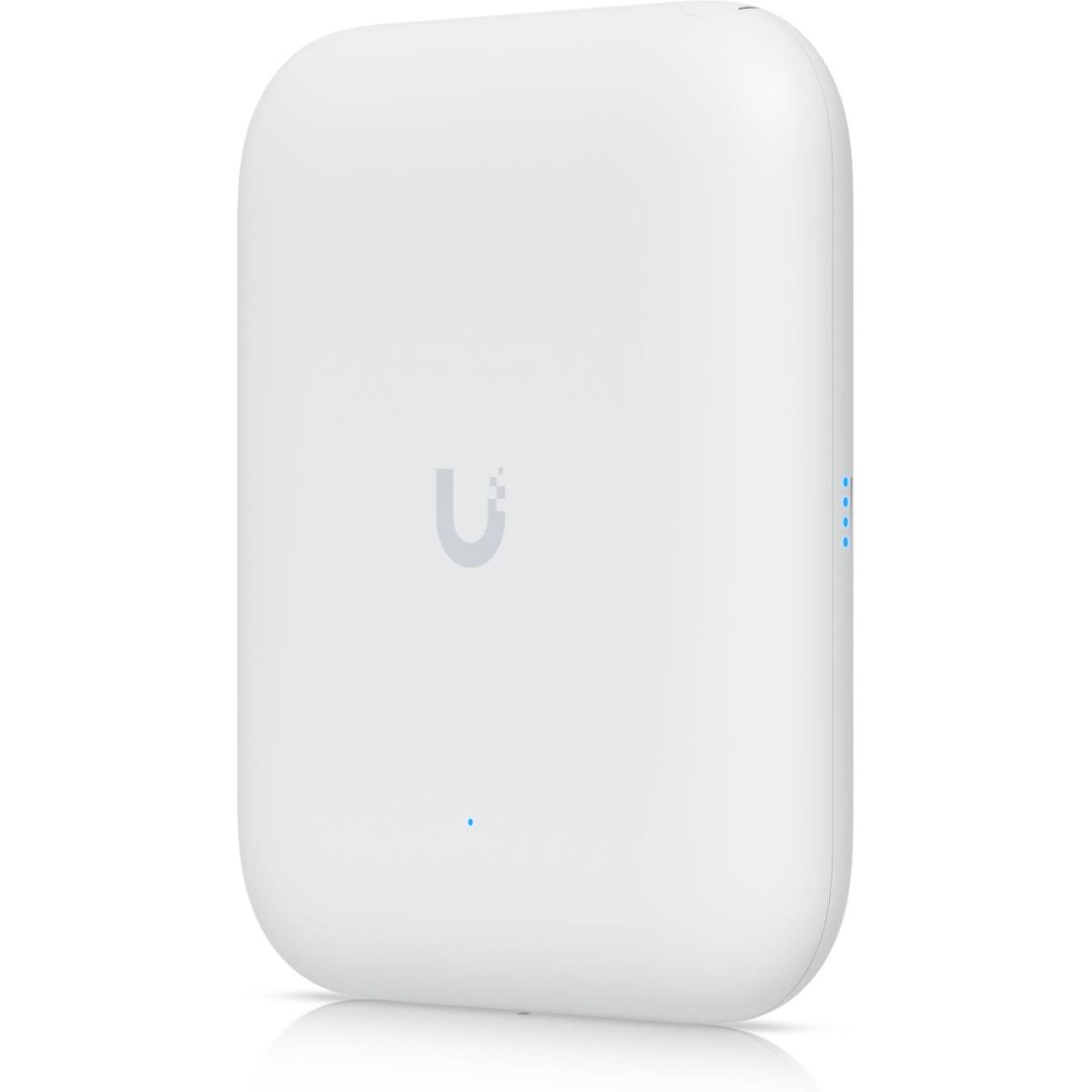

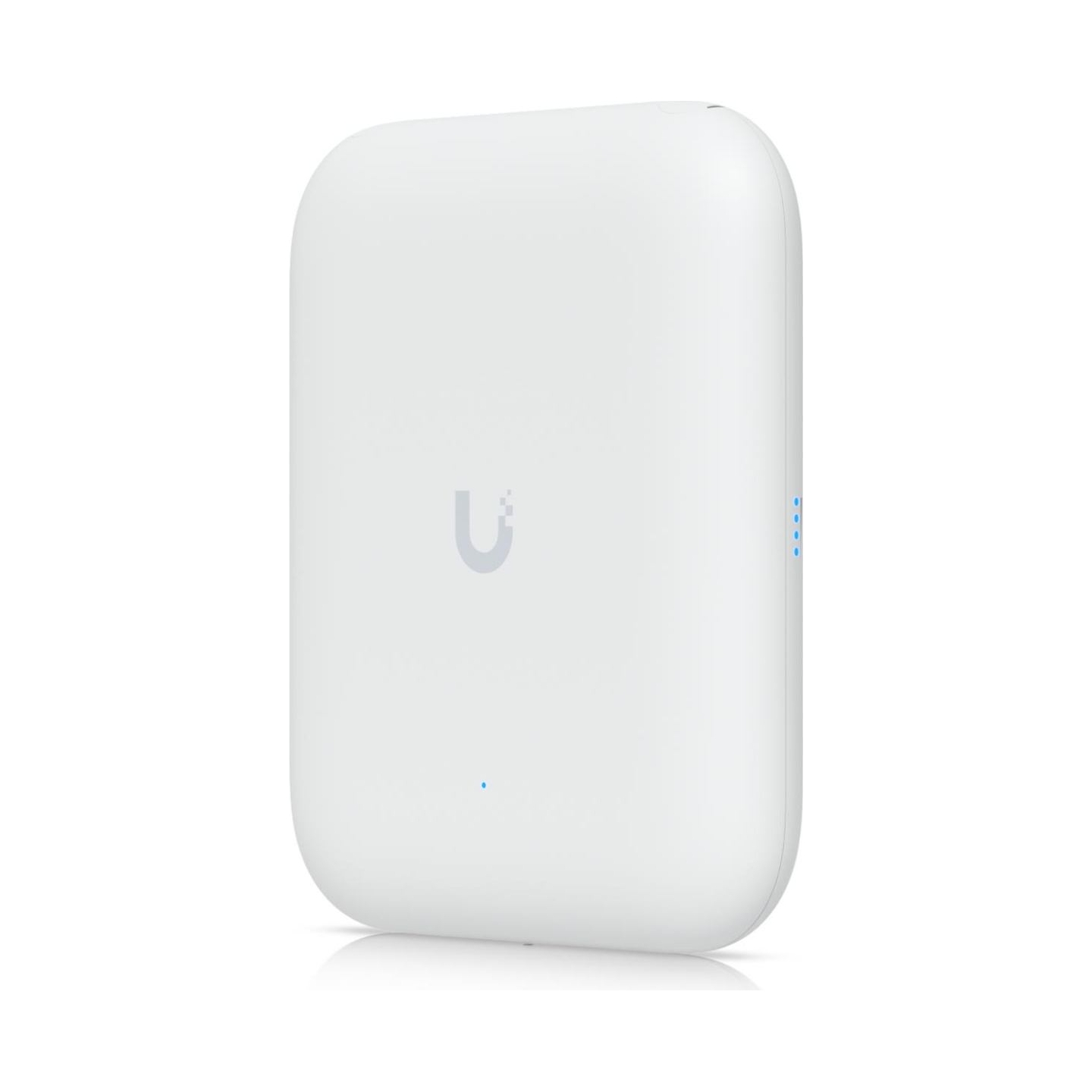

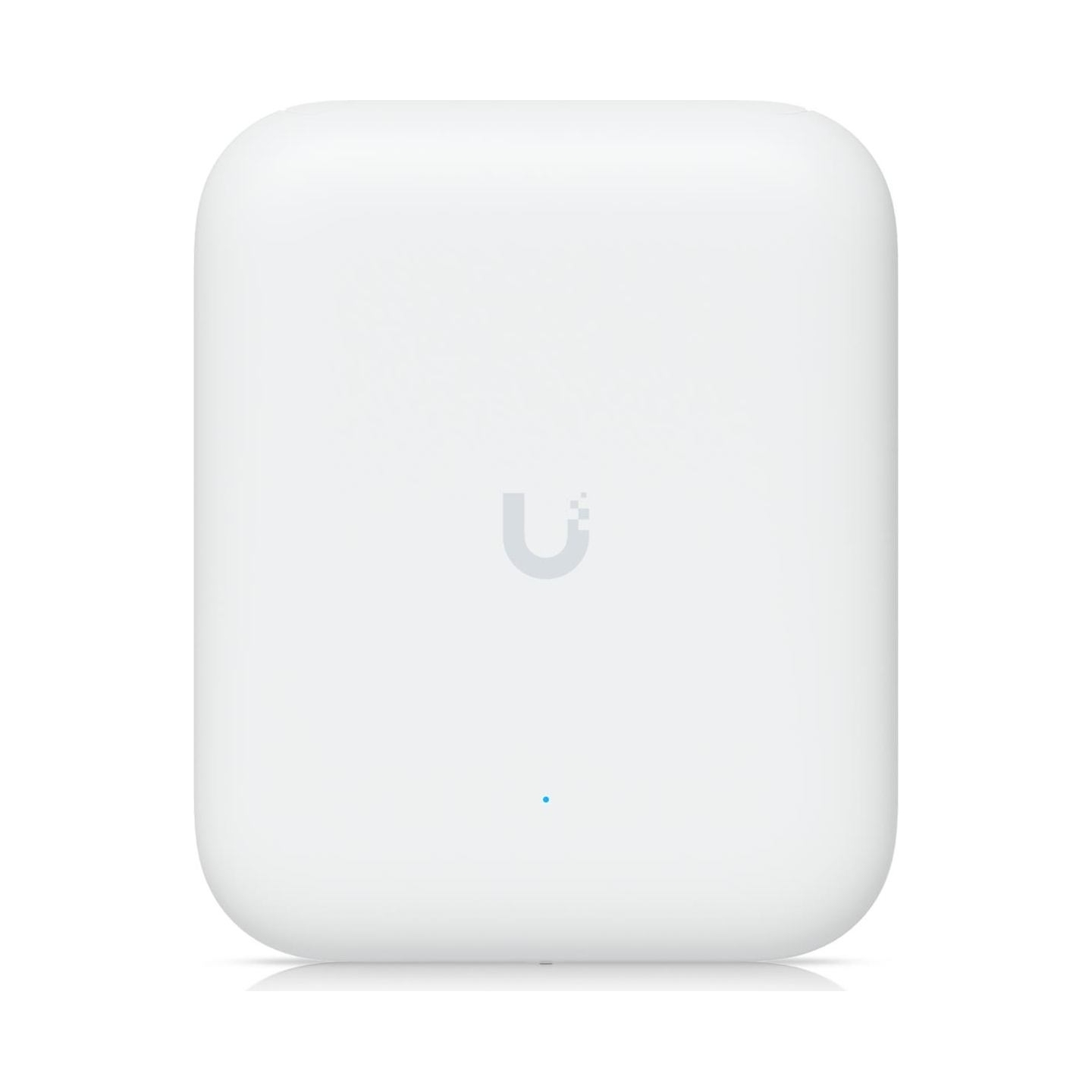

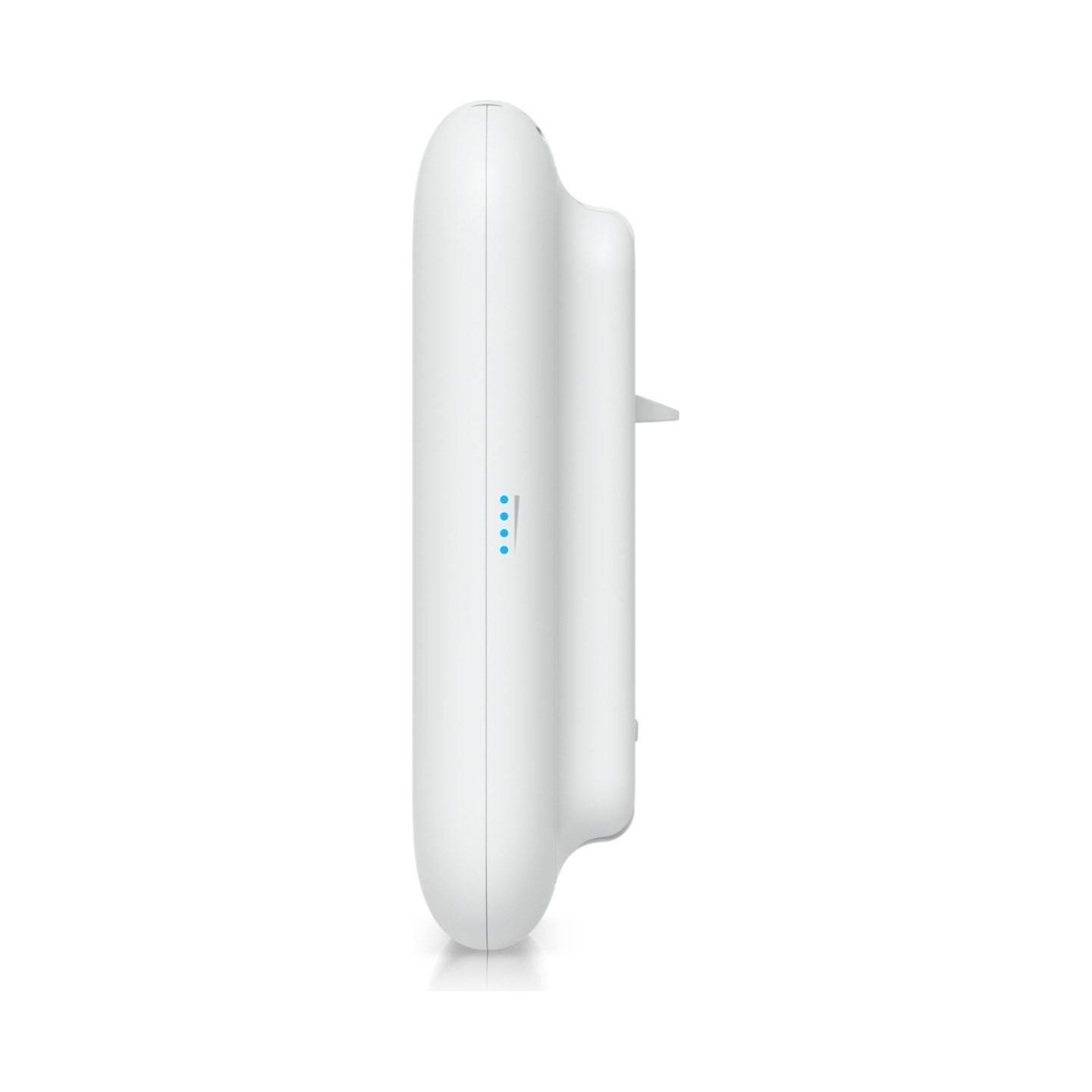

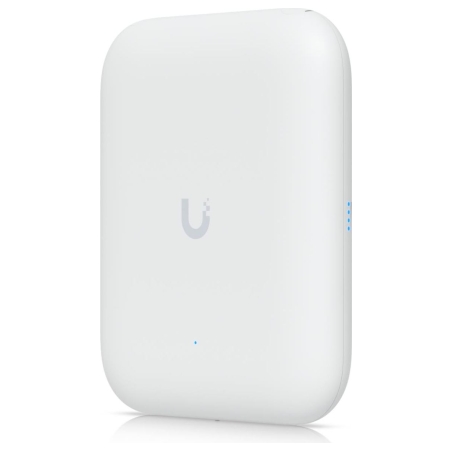

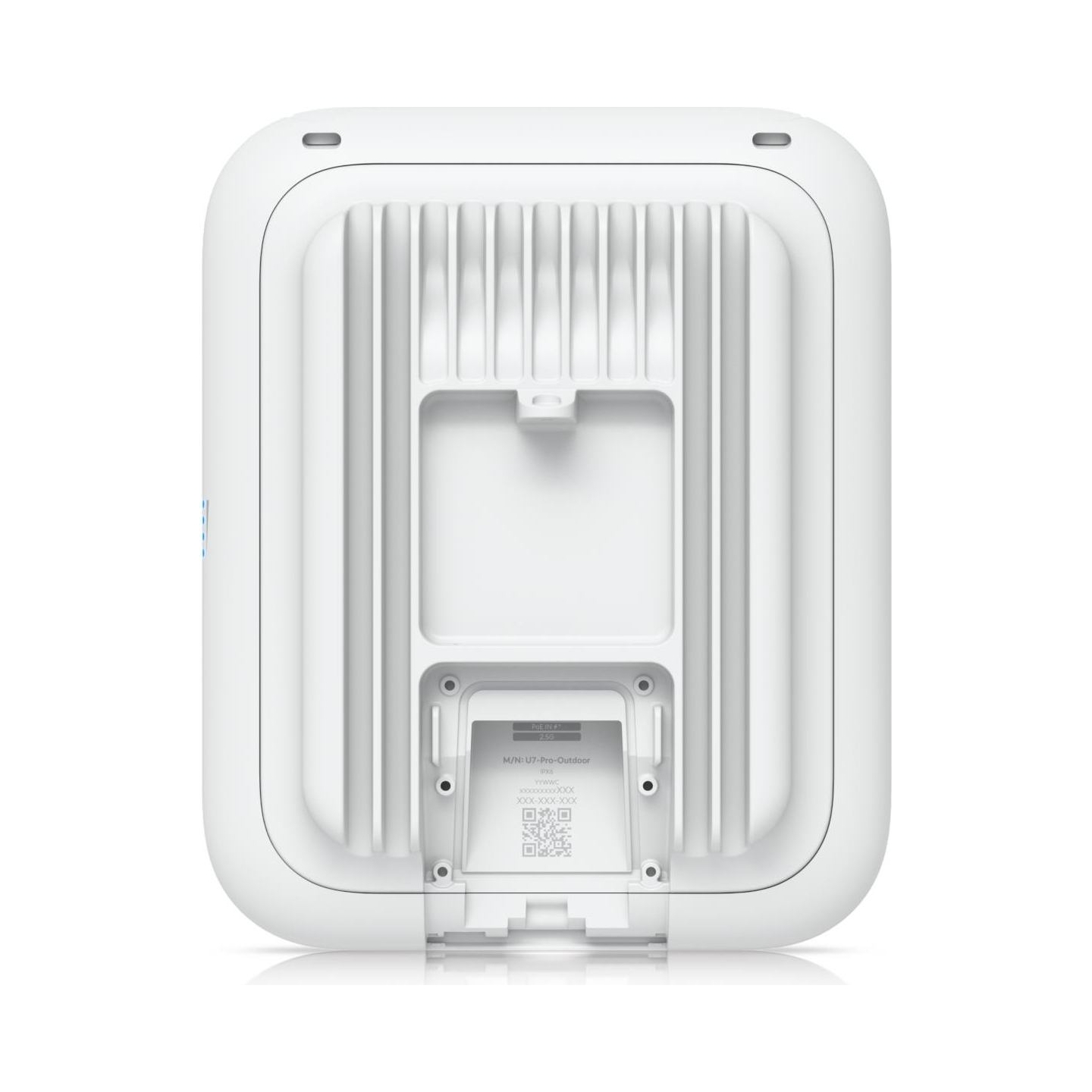

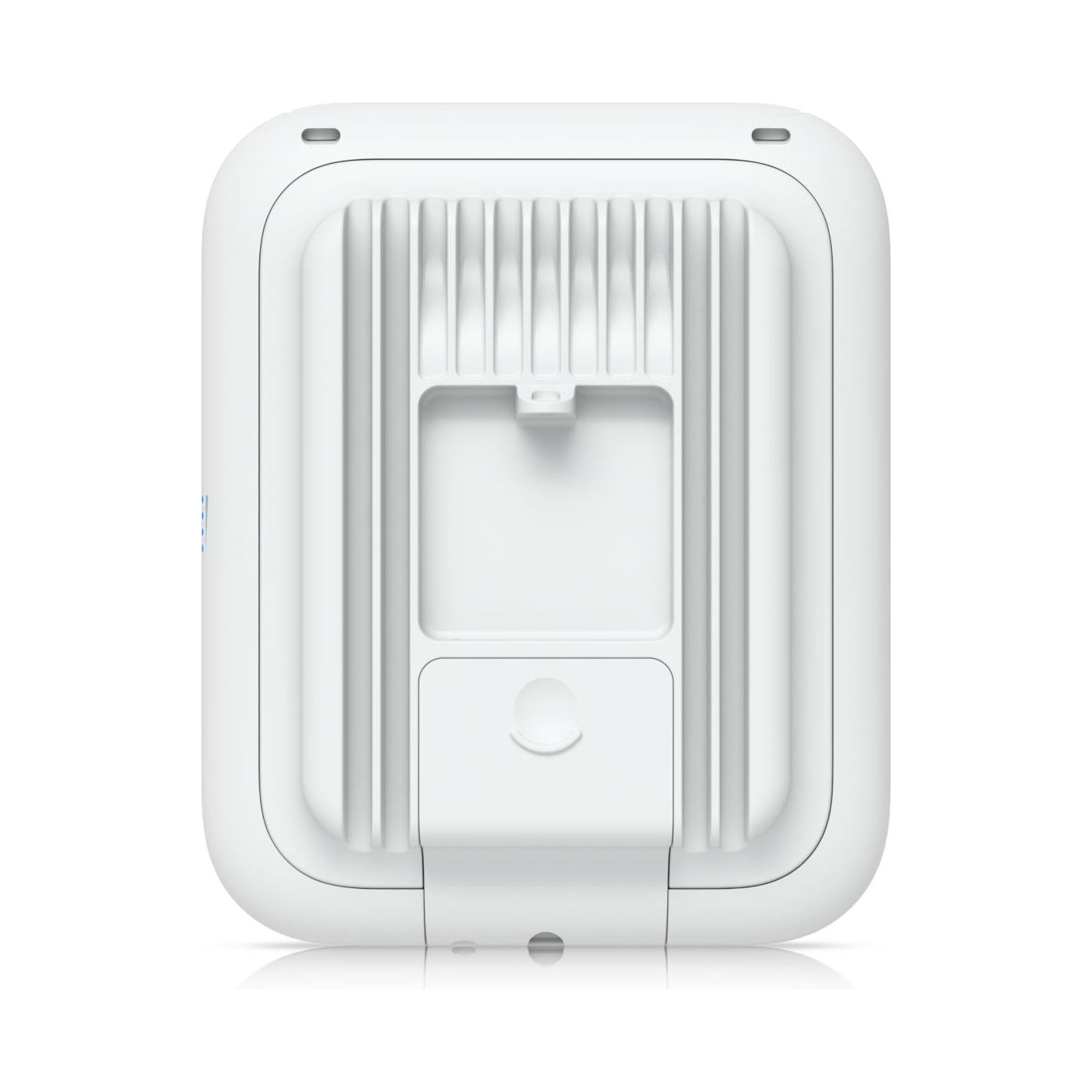

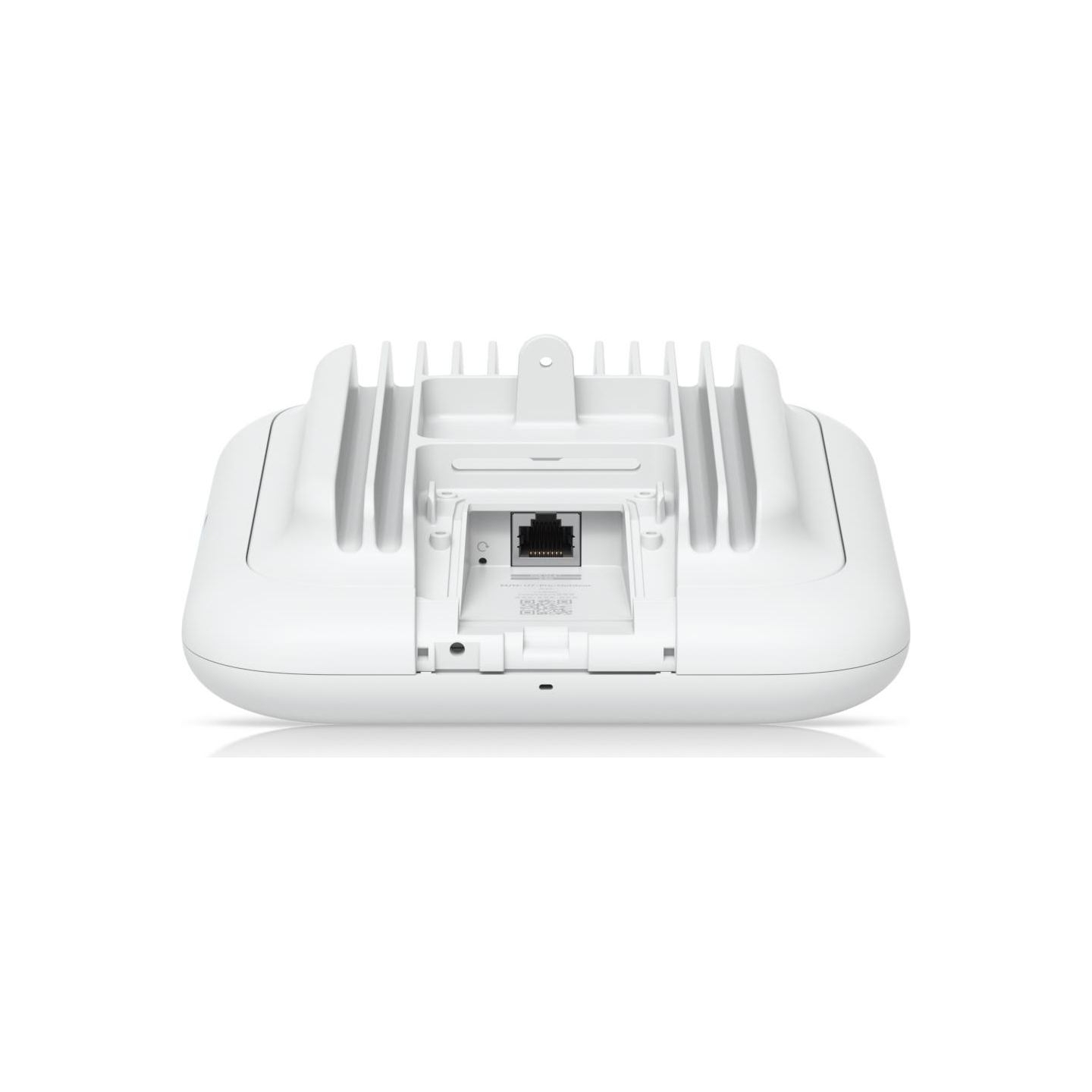

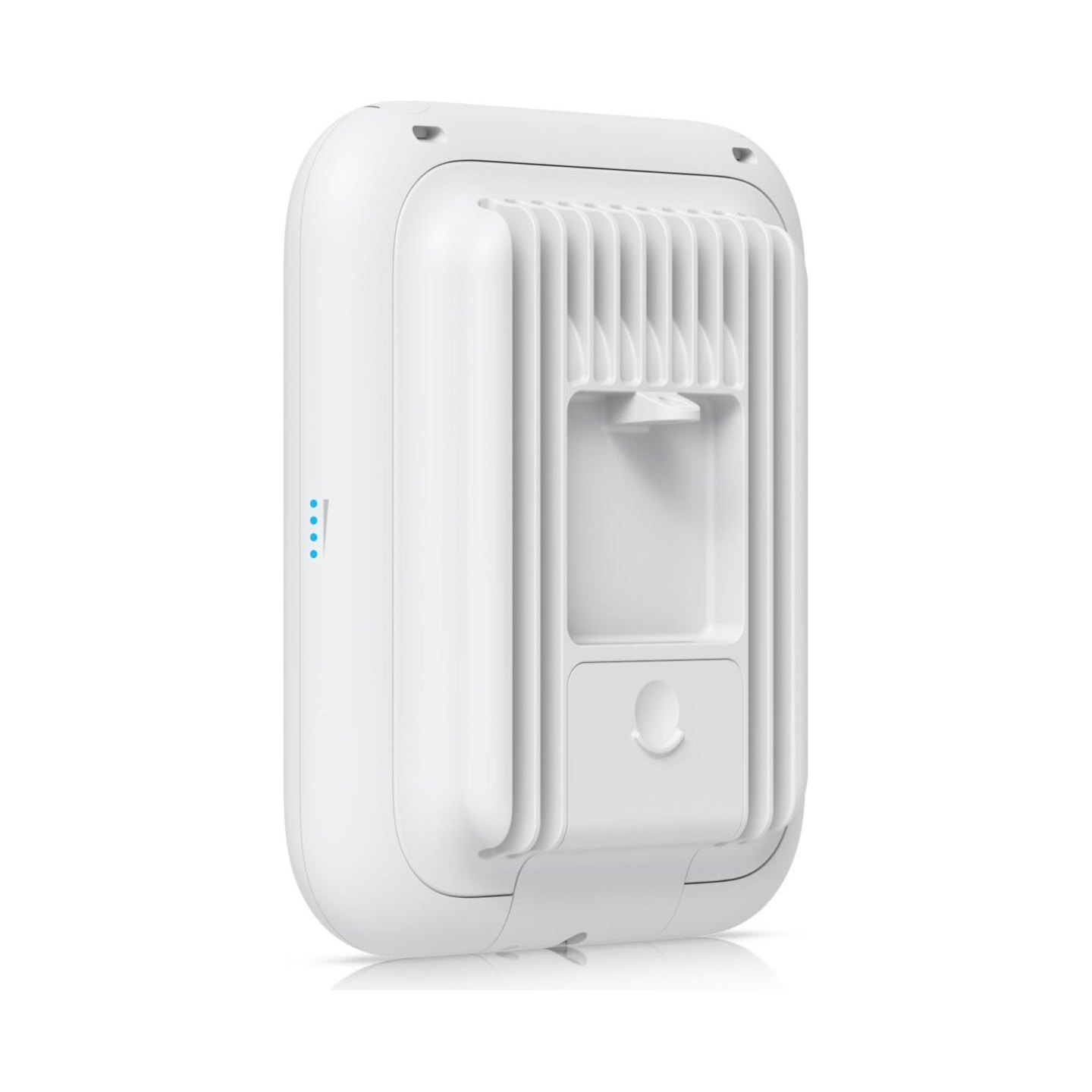

Ubiquiti U7-Pro-Outdoor Access Point

Name: Ubiquiti U7-Pro-Outdoor Access Point
Brand: UBIQUITI
SKU: U7-PRO-OUTDOOR
Price: 323.22 EUR
Availability: InStock

SKU U7-PRO-OUTDOOR Category Access points

€323.22

Tax included

Share on

All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mounting bracket.

WiFi 7
6 spatial streams
465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
Software-switchable from internal directional to included external omni antennas
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Manufacturer Website:
https://eu.store.ui.com/eu/en/products/u7-pro-outdoor

Category Code: WAP
CnCode: 85176200
Unit Box Height: 0.099
Unit Box Length: 0.289
Unit Box Width: 0.259
2.4 GHz: Yes
5 GHz: Yes
Ethernet LAN data rates: 1000/2500 Mbit/s
Frequency band: 2.4 - 5 GHz
Maximum data transfer rate: 8600 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 8600 Mbit/s
MIMO: Yes
MIMO type: Multi User MIMO
Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Spatial streams: 6
Throughput data rate: 5765 Mbit/s
VLAN support: Yes
Security algorithms: PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

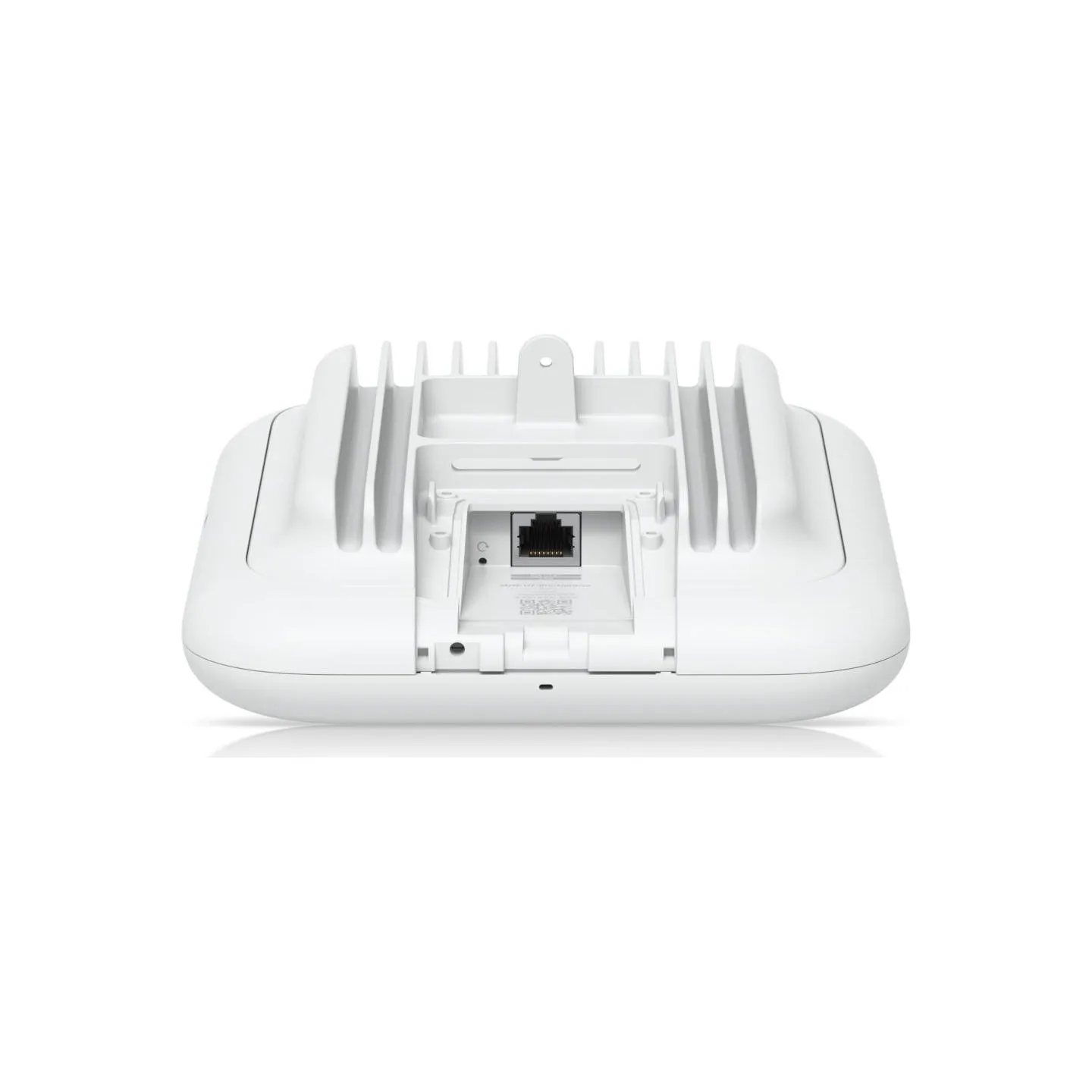

Ethernet LAN (RJ-45) ports: 1
DC voltage range: 44 - 57 V
Power consumption (max): 21 W
Power over Ethernet (PoE): Yes
Housing material: Aluminium,Polycarbonate (PC)
International Protection (IP) code: IP67
LED indicators: Yes
Placement: Ceiling,Pole,Wall
Product colour: White
Reset button: Yes

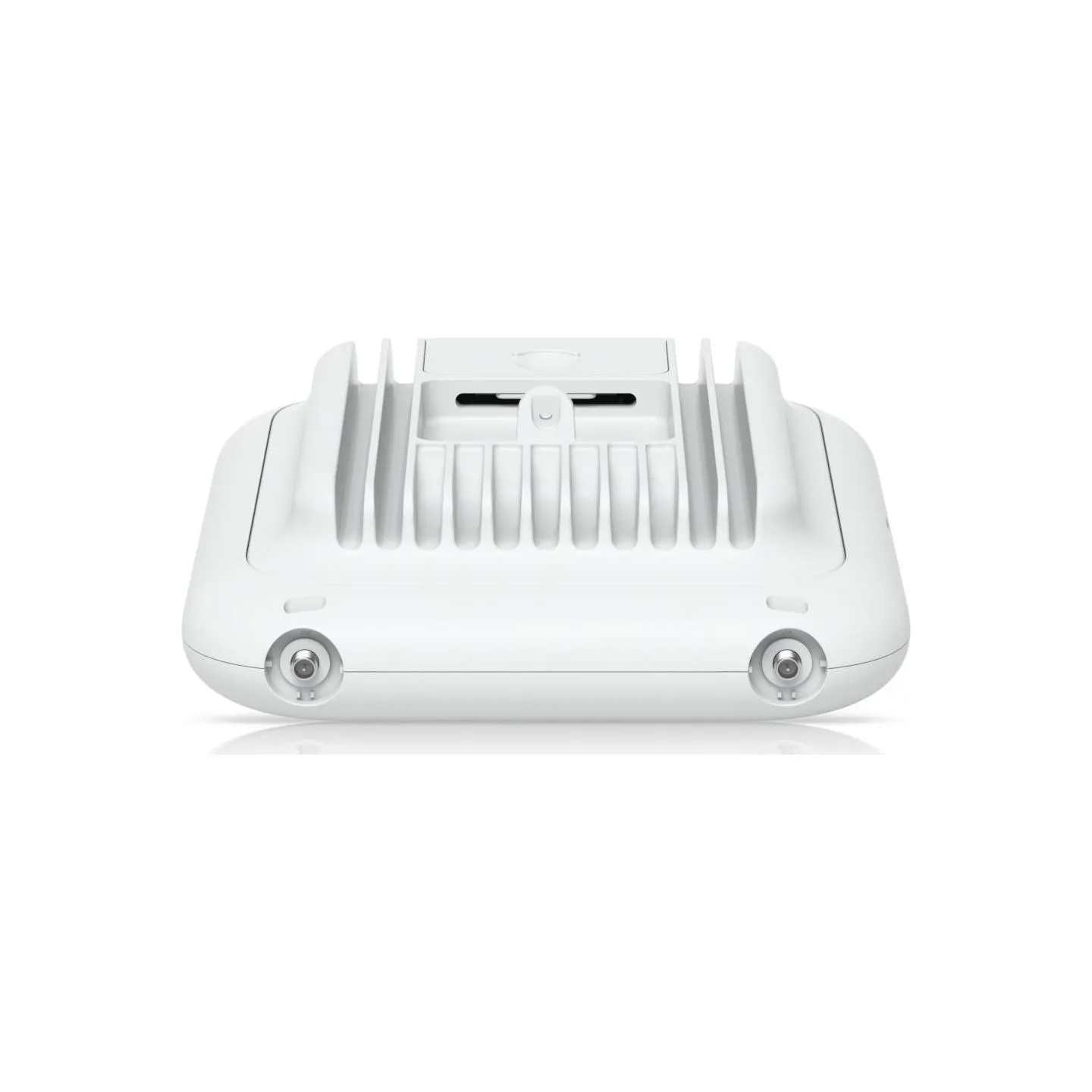

Antenna connector type: RP-SMA
Antenna direction type: Omni-directional
Antenna features: Detachable antenna
Antenna gain level (max): 11 dBi
Antenna type: Internal & external
Antennas quantity: 3
Number of connectors: 2
Compliance certificates: CE
Depth: 66.5 mm
Height: 208 mm
Weight: 1200 g
Width: 170 mm
Mounting kit: Yes
Quantity per pack: 1 pc(s)
Operating relative humidity (H-H): 5 - 95 %
Operating temperature (T-T): -30 - 60 °C
Model: U7-PRO-OUTDOOR
Model name: U7 Pro Outdoor
Units per Shipping Box: 6
Unit Calculated Volume: 0.01046 cubm
Unit Calculated Weight: 2.18 kg
