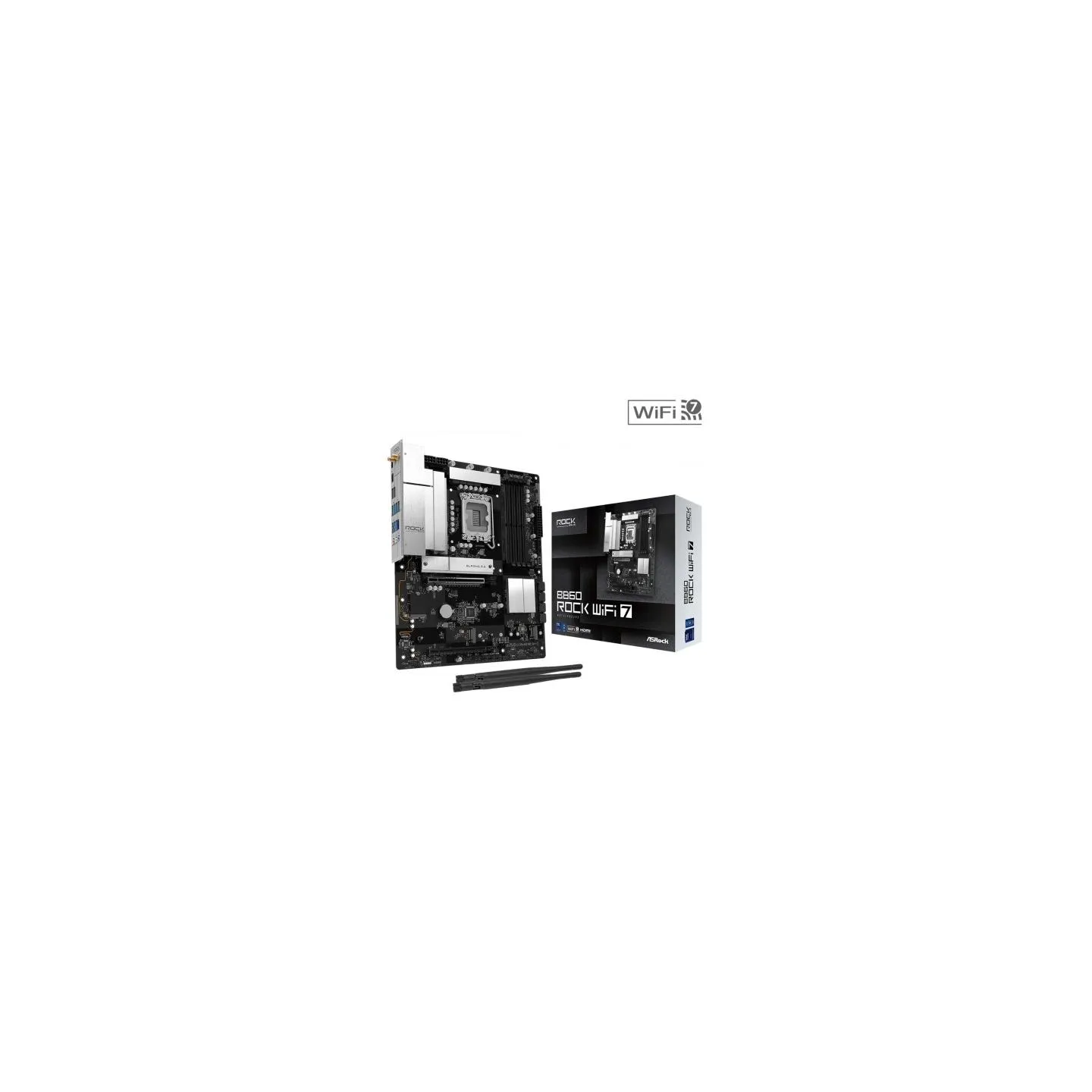

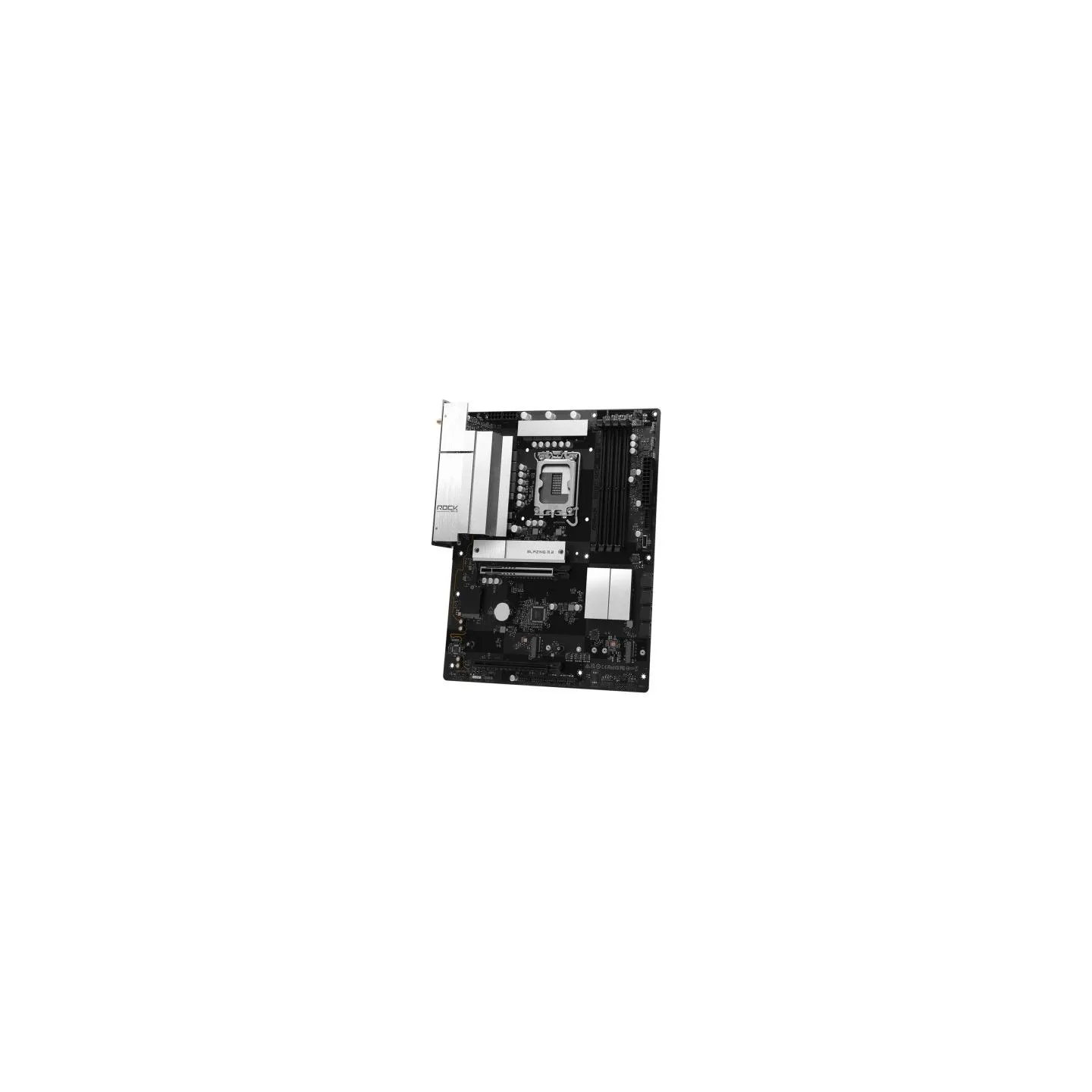

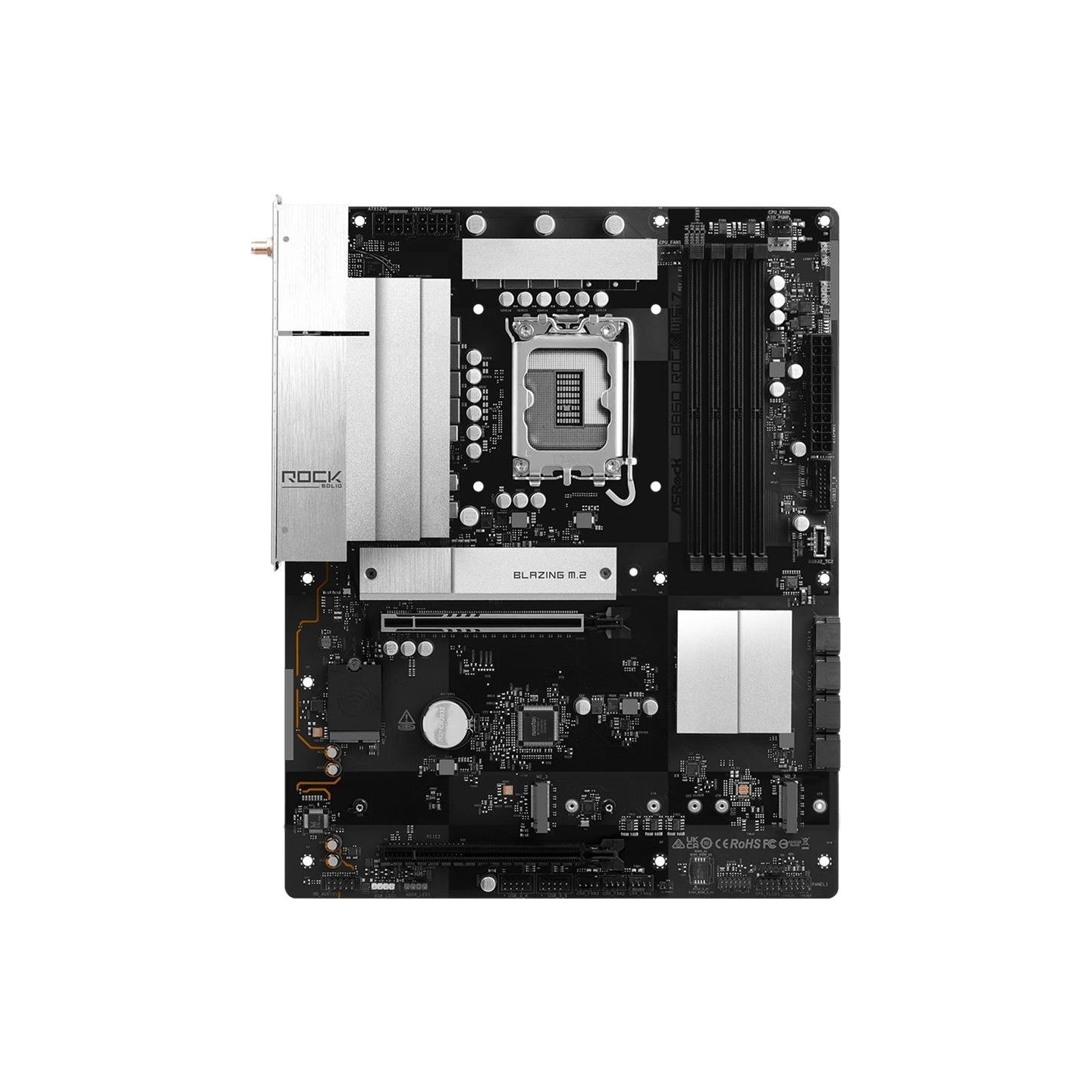

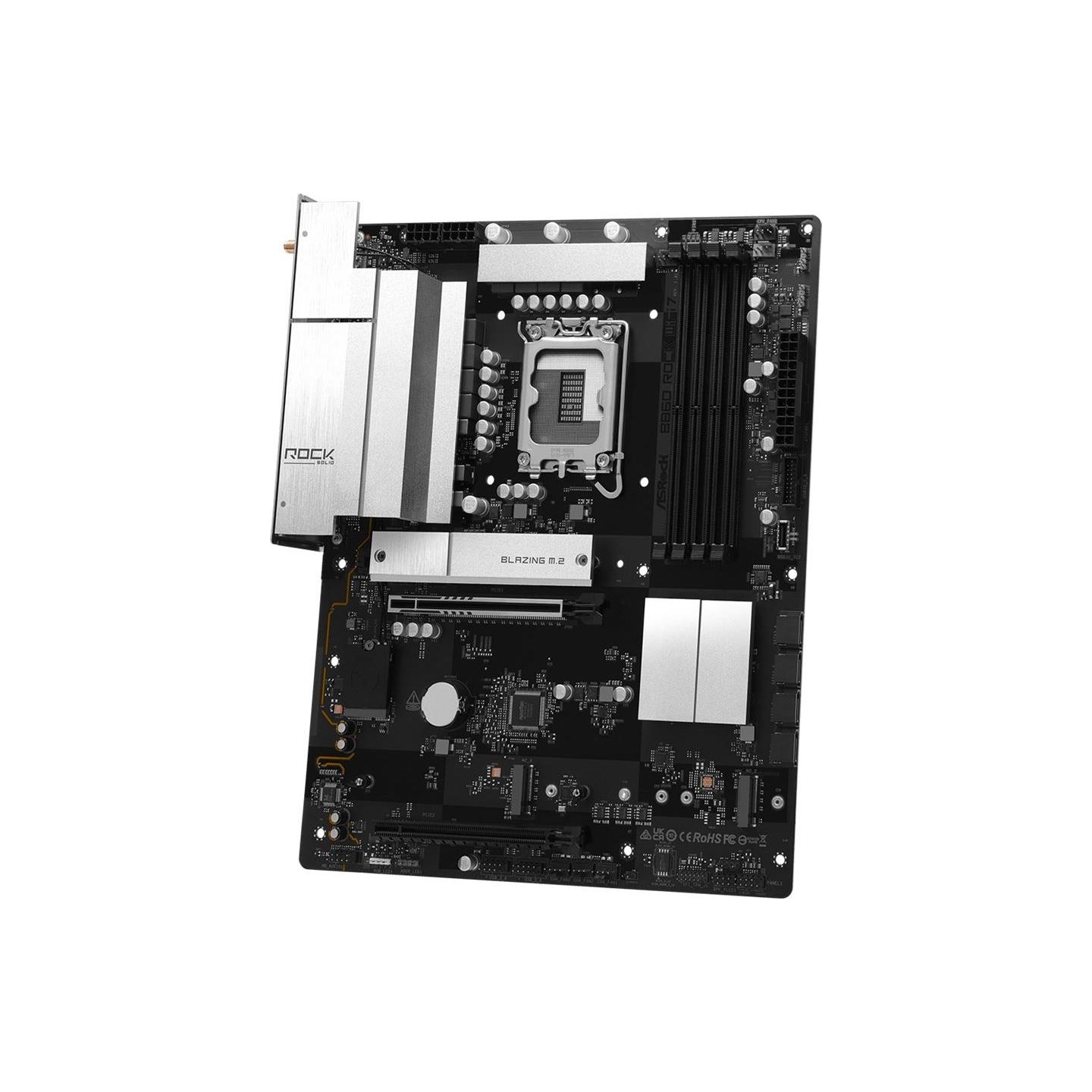

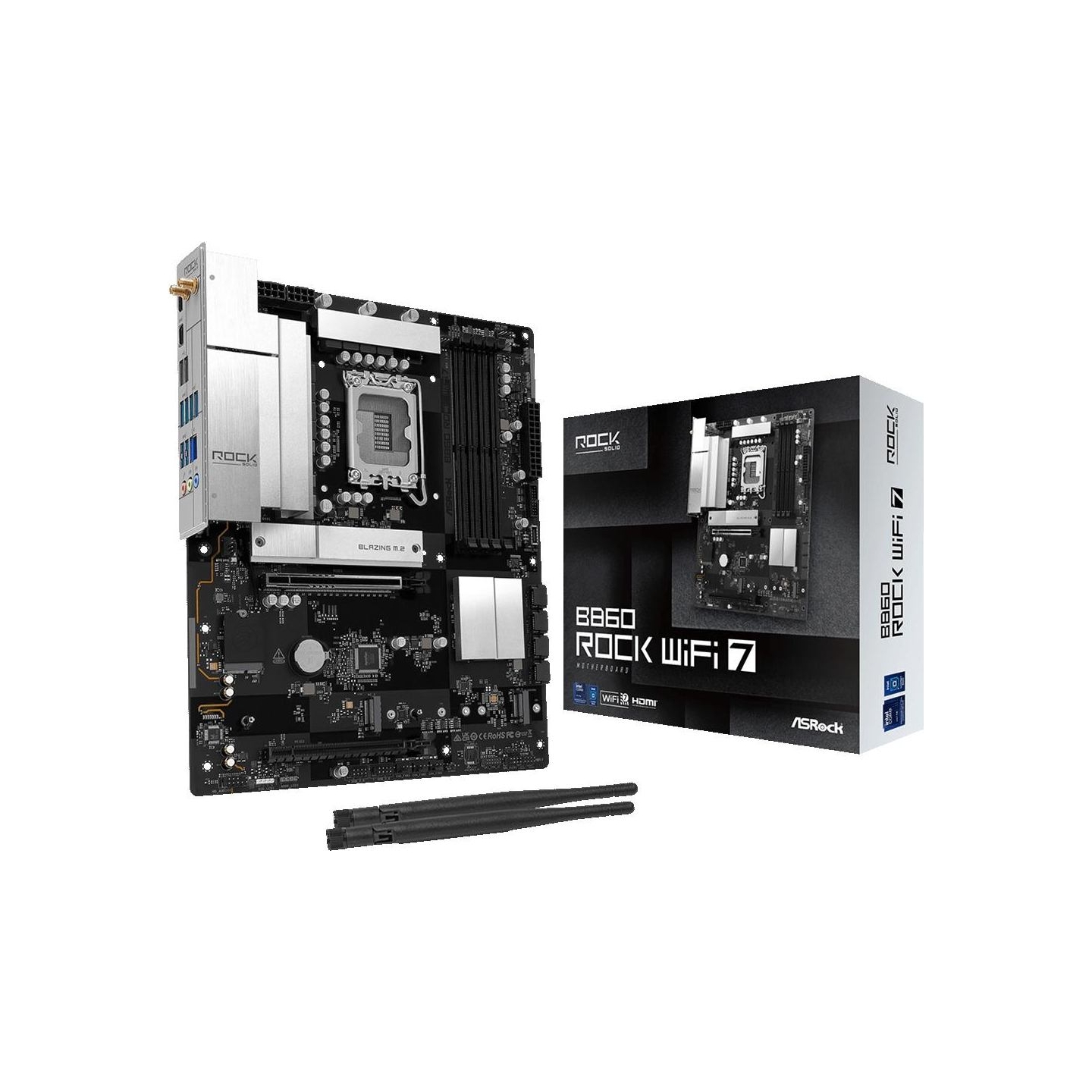

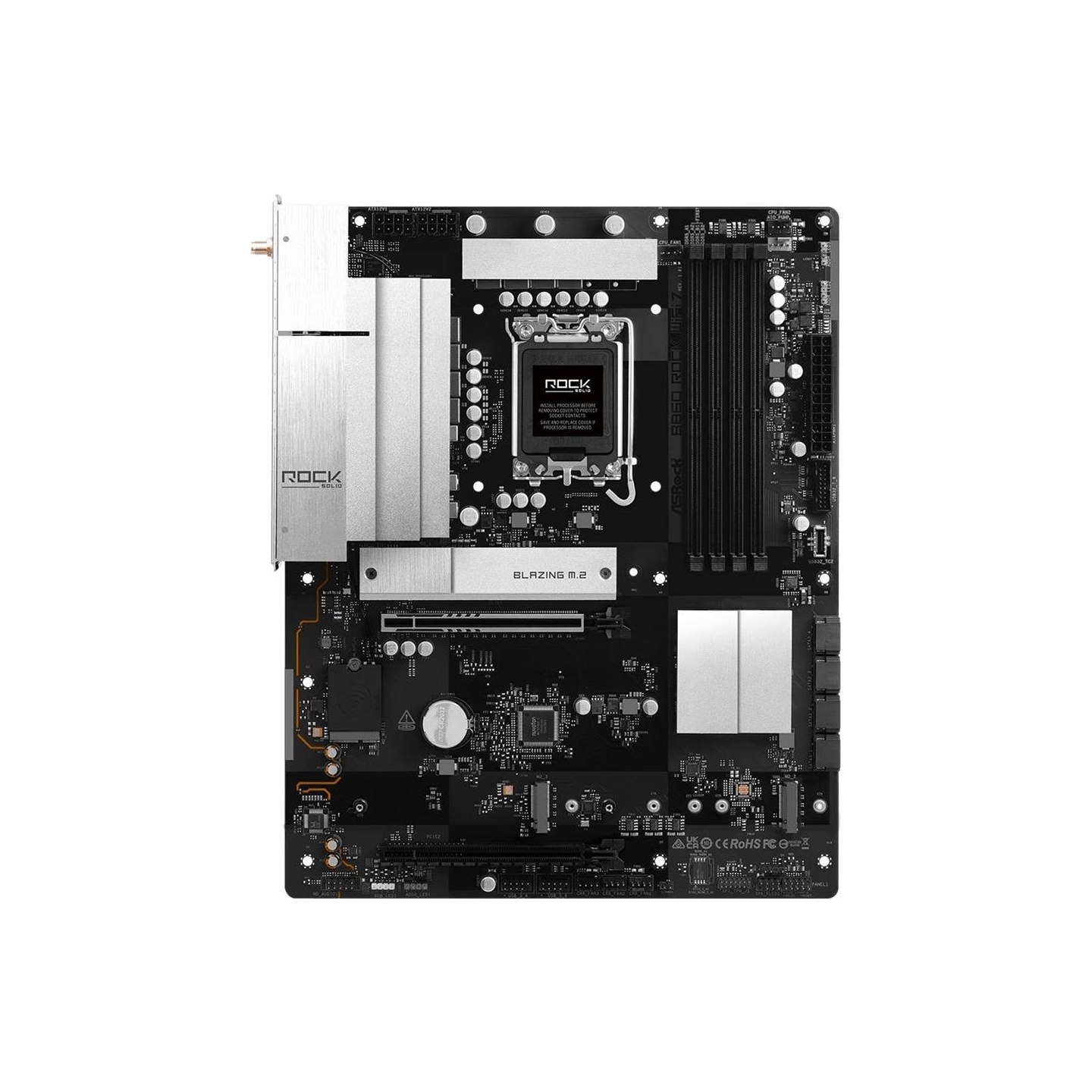

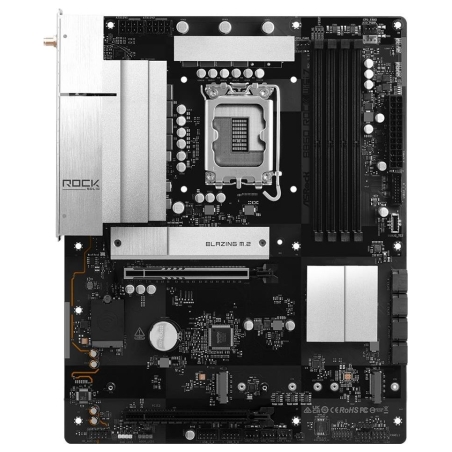

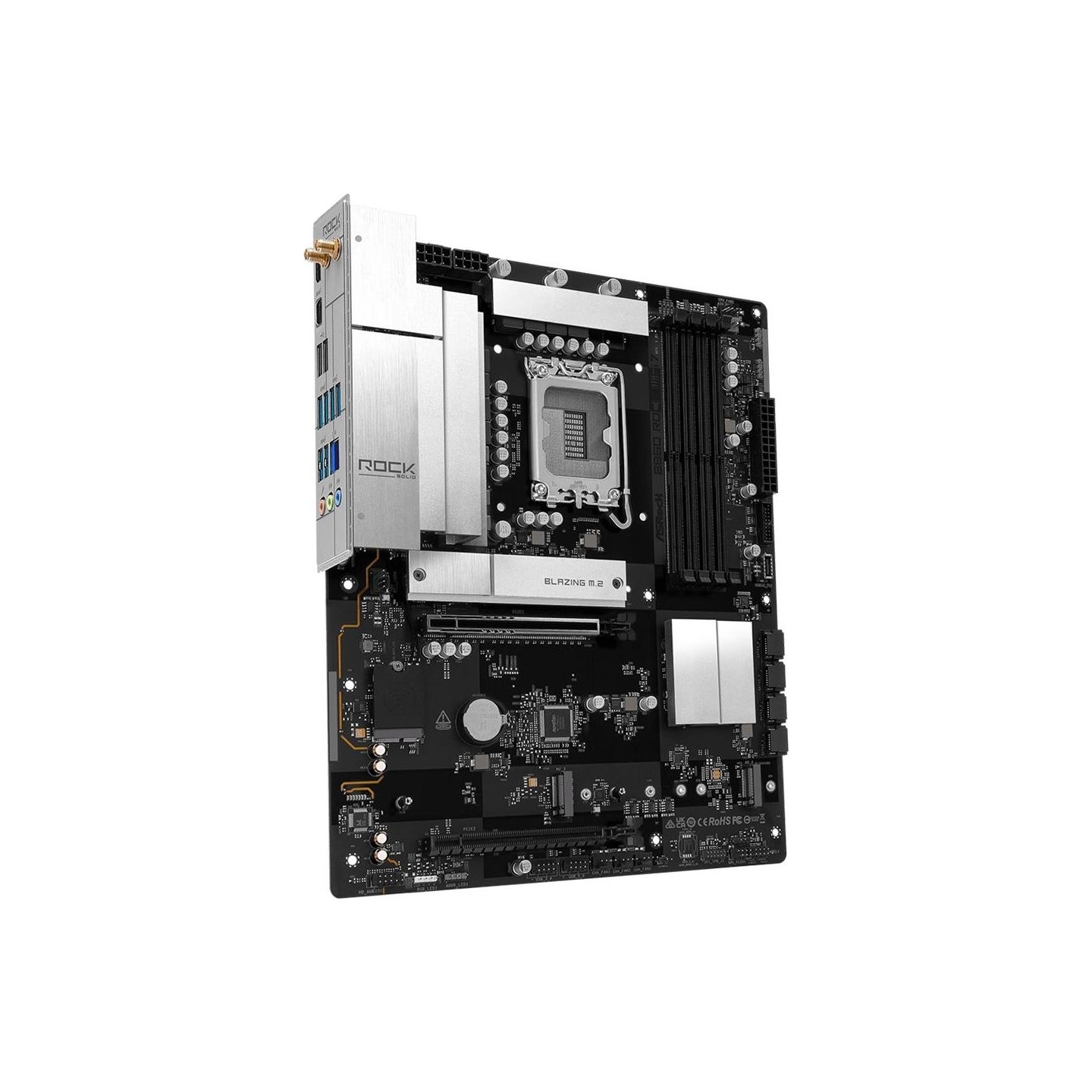

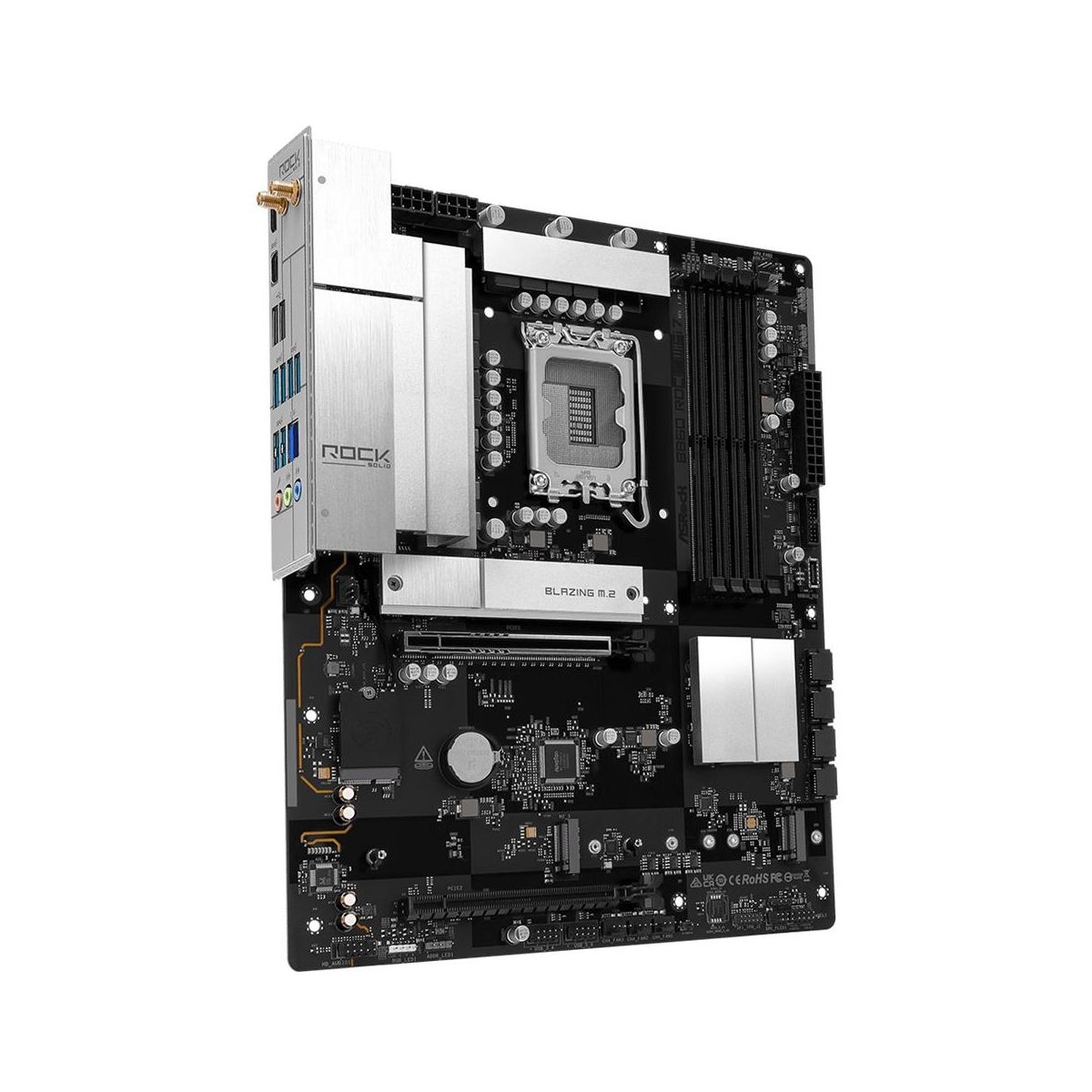

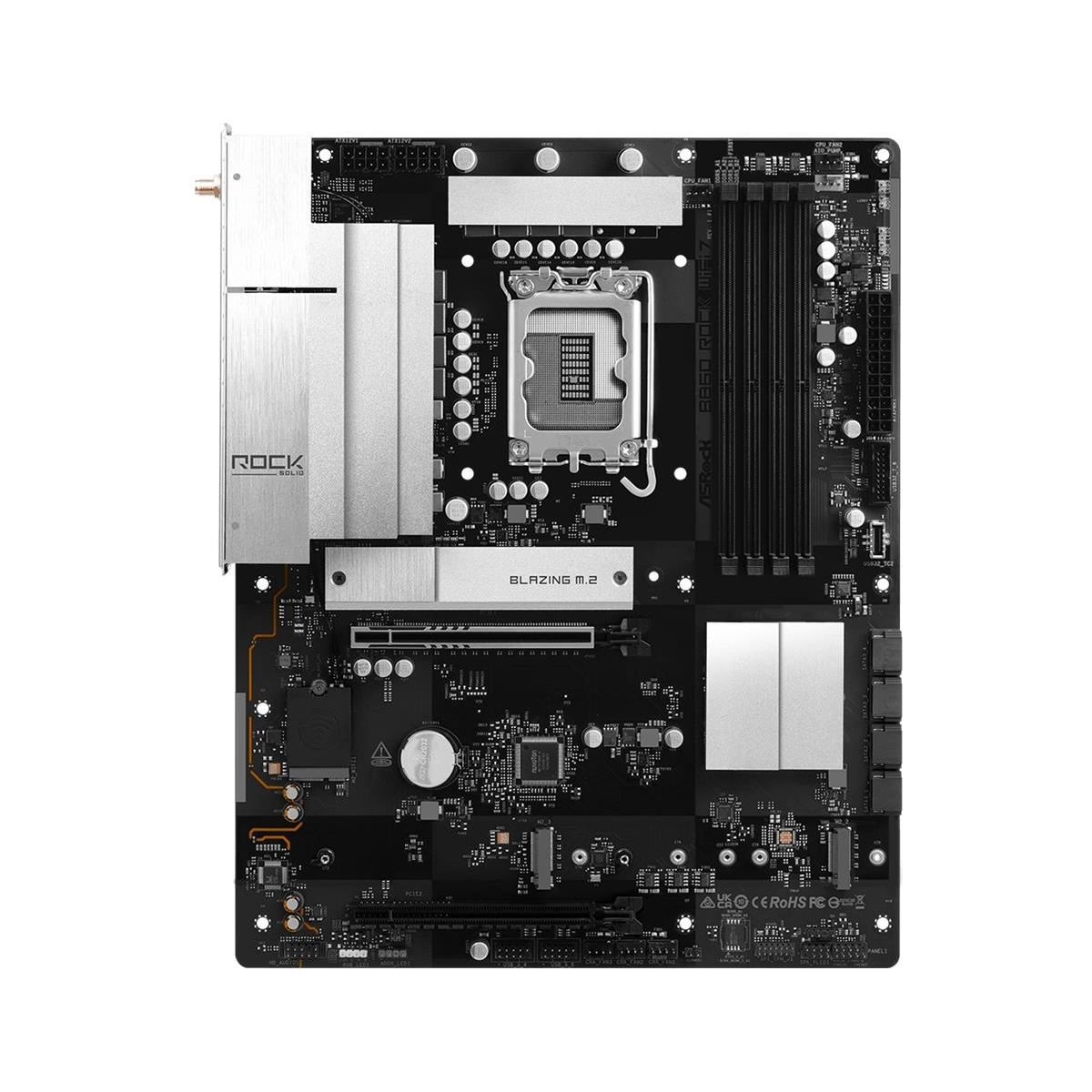

Asrock Motherboard B860 ROCK WIFI 7 s1851 4DDR5 ATX
New
Out-of-Stock
Price:
€151.95
Tax included
Out-of-Stock
Share on
- SKU
- KBASRIIFB860A05
- Barcode
- 4711581494176
- Model
- B860 ROCK WIFI 7
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8666 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 6533 MHz
- Memory bus frequency
- 6800 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 3 x M.2
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 4.0 x16 slot (PCIE2), supports x4 mode 1 x M.2 socket (Key E), supports type 2230 WiFi/BT PCIe module and Intel CNVio/CNVio2 (integrated WiFi/BT) Storage CPU: 1 x Blazing M.2 socket (M2_1, Key M), supports type 2280 PCIe Gen5 x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 socket (M2_2, Key M), supports types 2230/2242/2260/2280 PCIe Gen4 x4 (64 Gb/s) mode* 1 x Hyper M.2 socket (M2_3, Key M), supports type 2280 PCIe Gen4 x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA drives
- Graphics
- Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and a maximum resolution of up to 4K at 120 Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/be Supports 2.4GHz/5GHz/6GHz frequency band* Supports 160MHz channel bandwidth with 6GHz frequency band* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 9
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 10
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

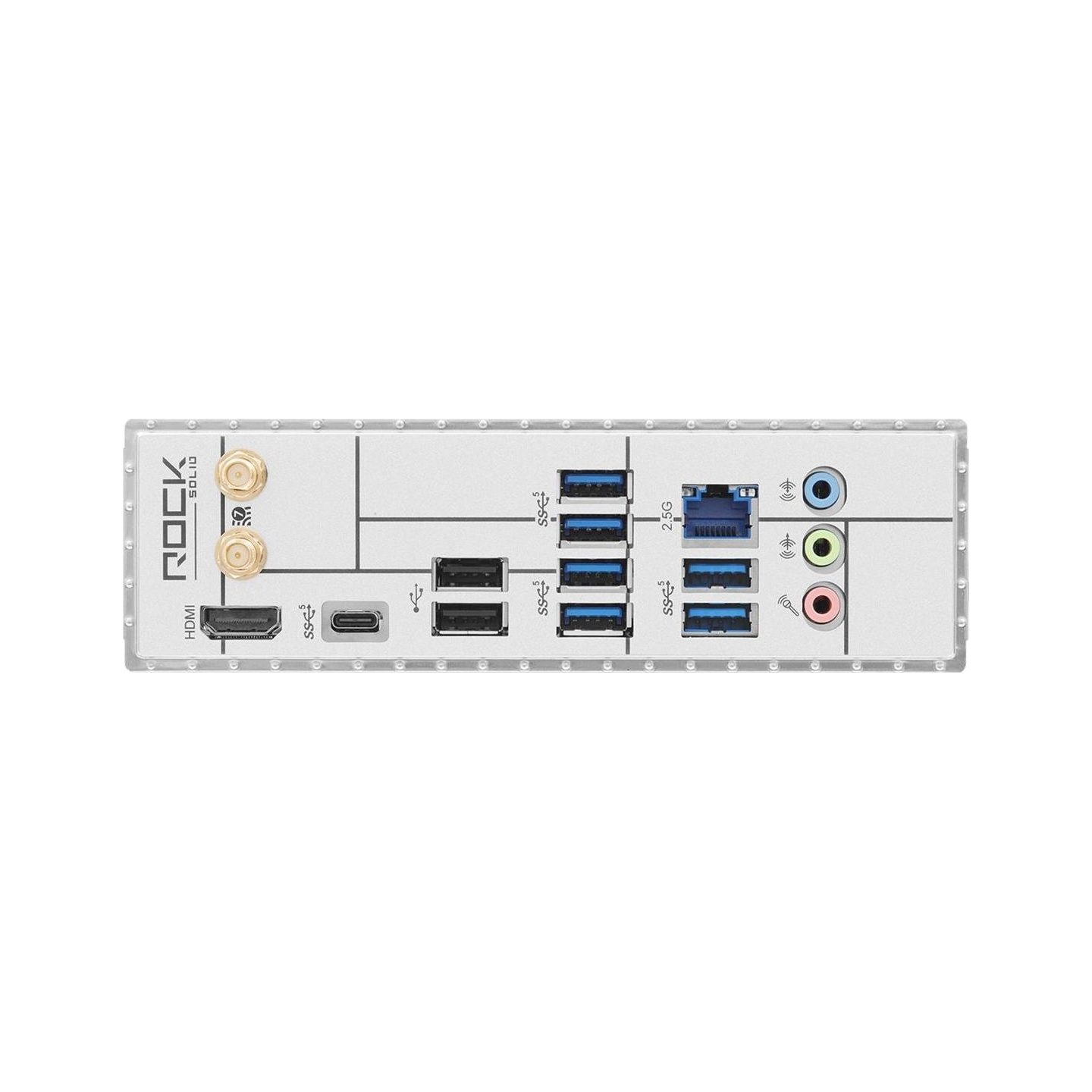

- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 2 x USB 2.0
- External connectors
- 2 x SMA
- External connectors
- 1 x Line In
- External connectors
- 1 x MIC
- External connectors
- 1 x Line Out
- External connectors
- 6 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Power LED and Speaker Header
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Supported operating systems
- Windows 11
- Software
- ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC
- Designation
- CE+WEEE
