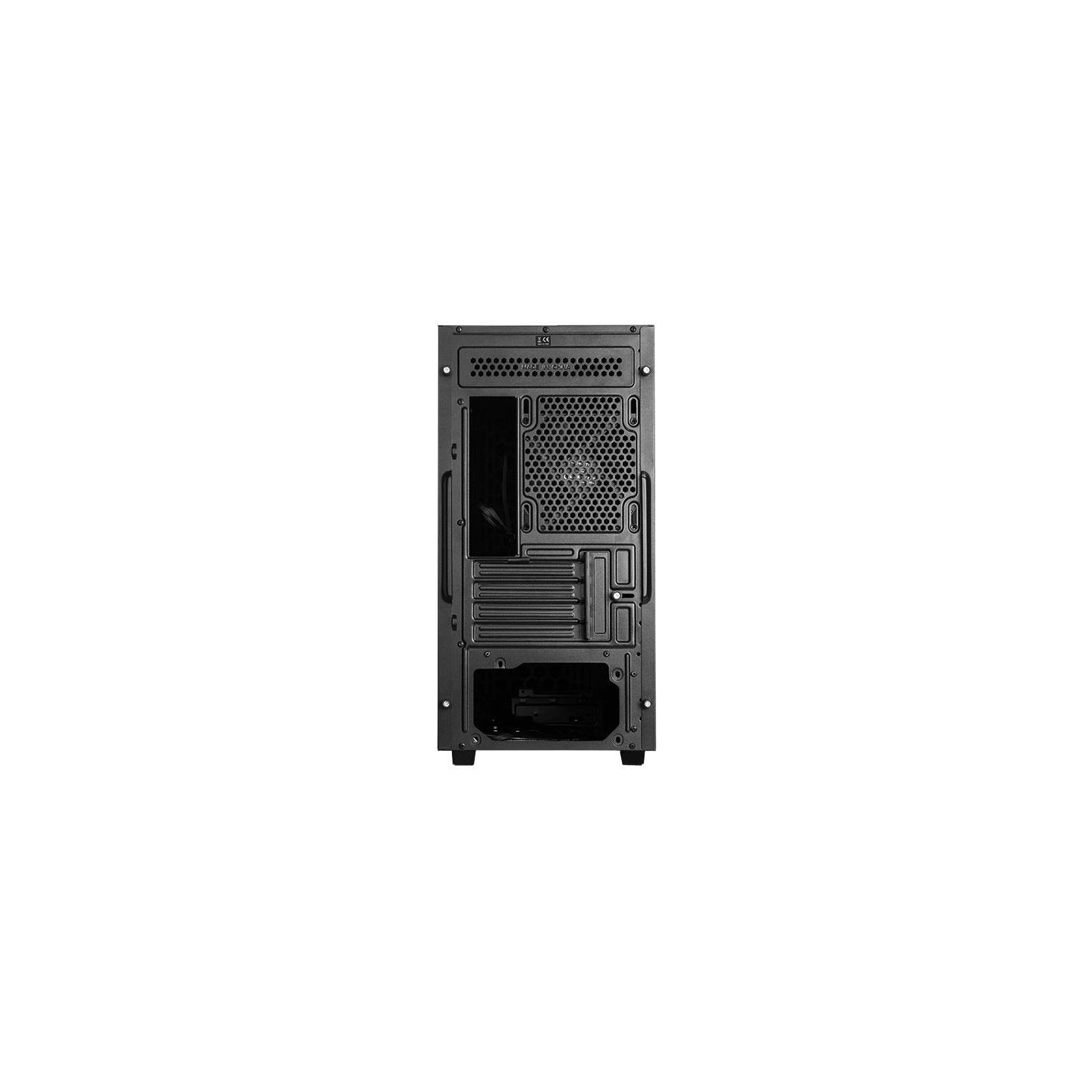

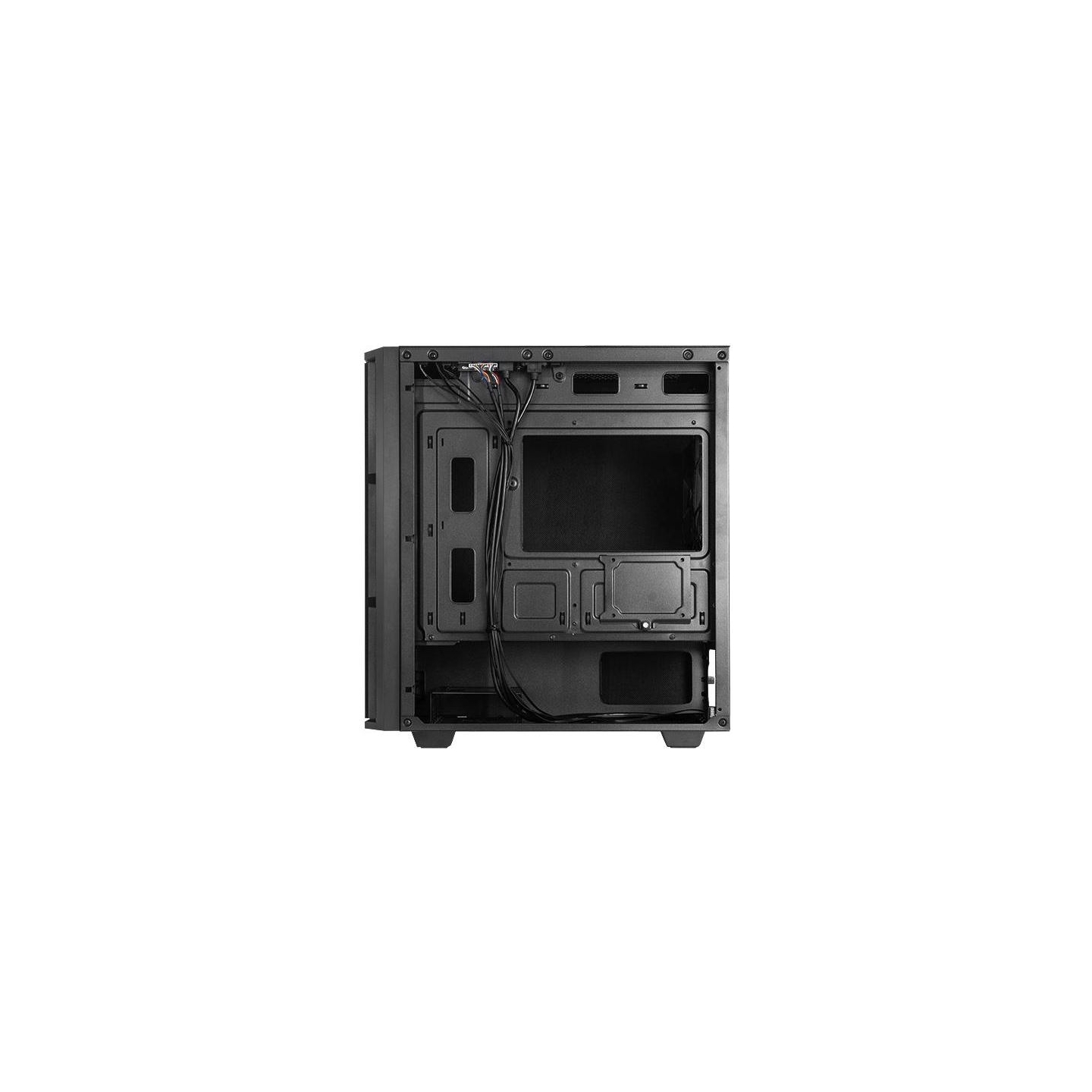

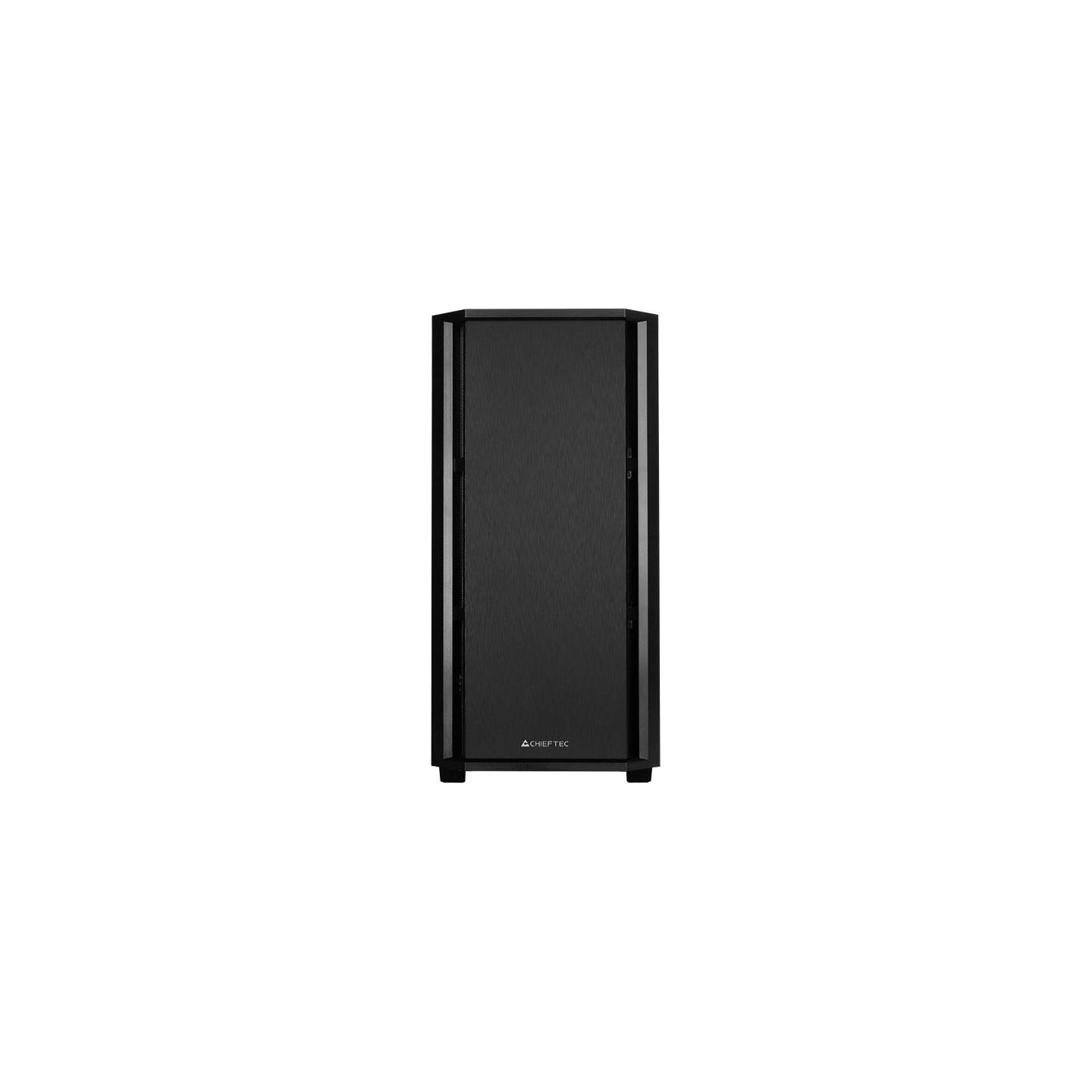

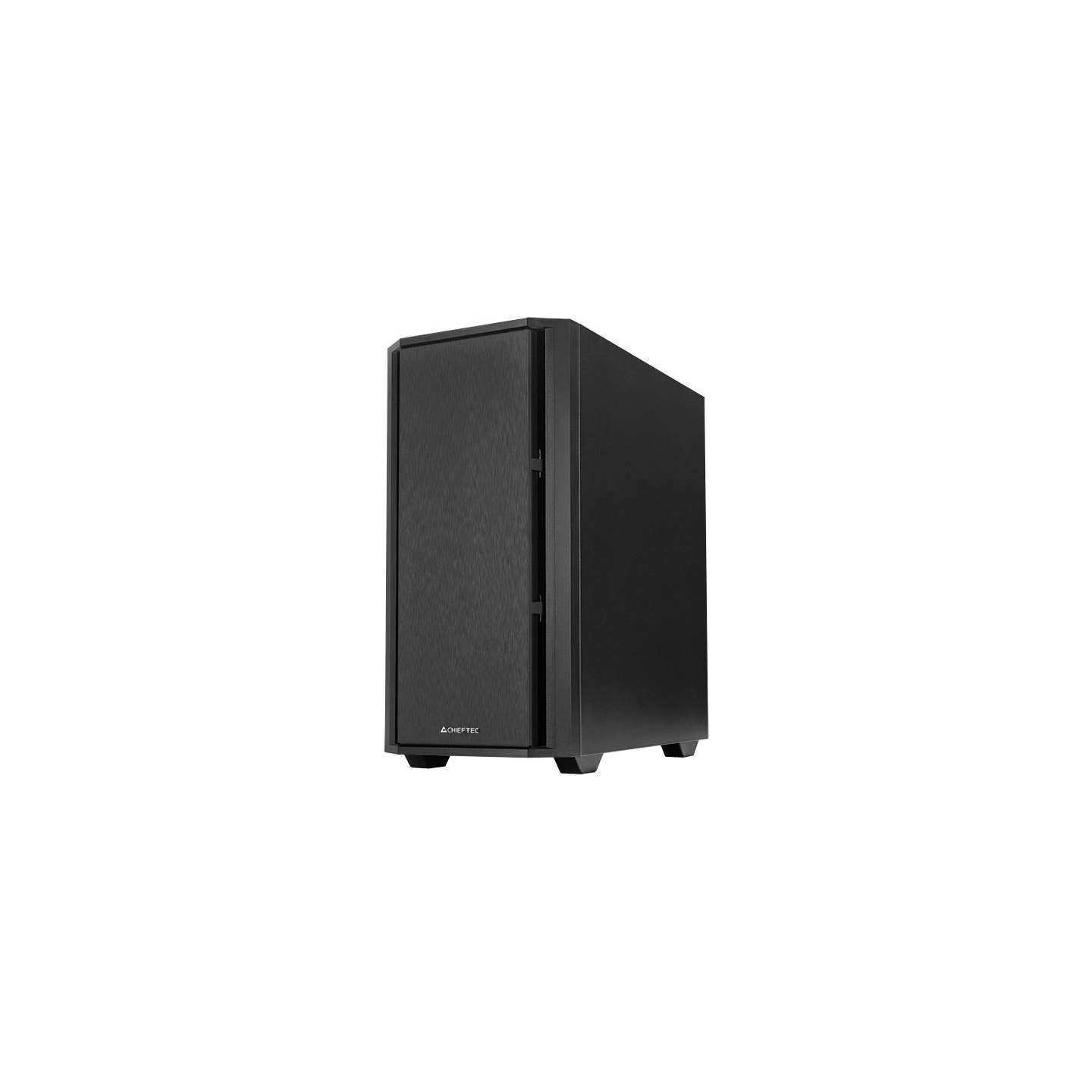

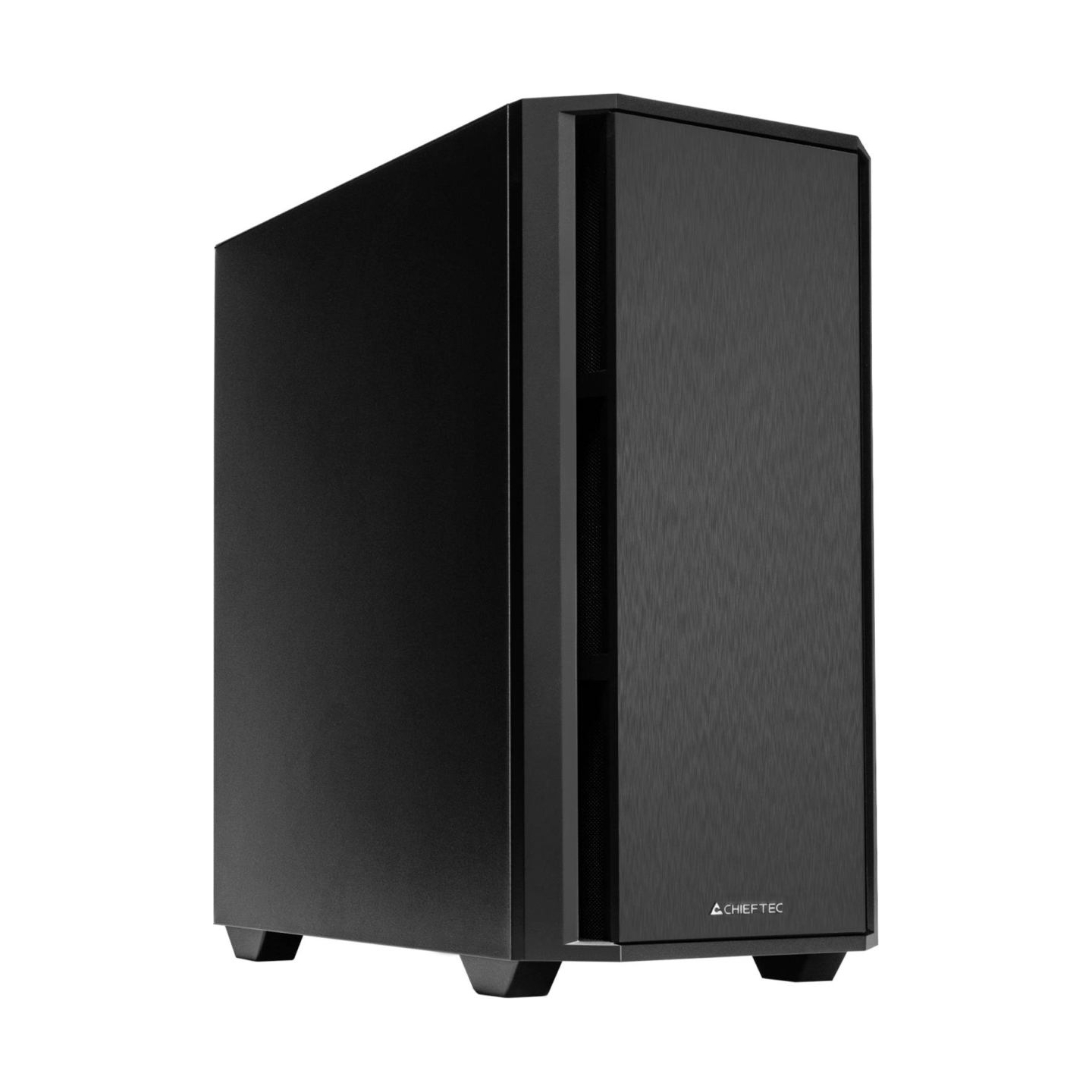

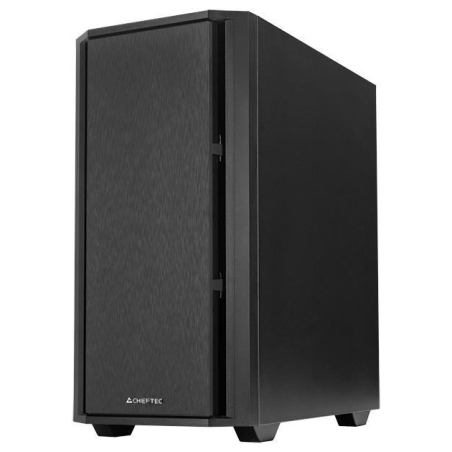

Chieftec Case|CHIEFTEC|Pro mini|MidiTower|MicroATX|MiniITX|Colour Black|AZ-01B-OP
Price:
€31.17
Tax included
Share on

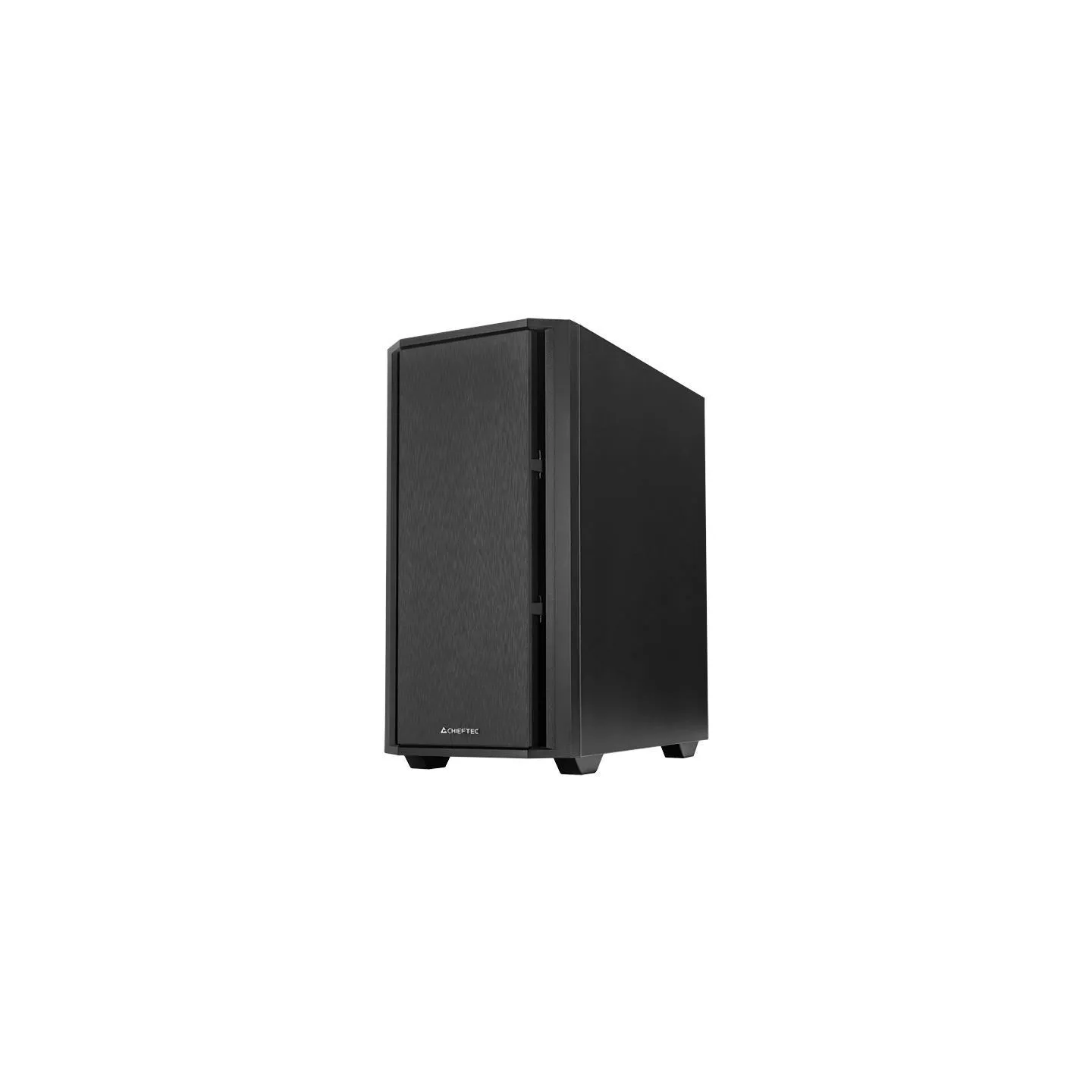

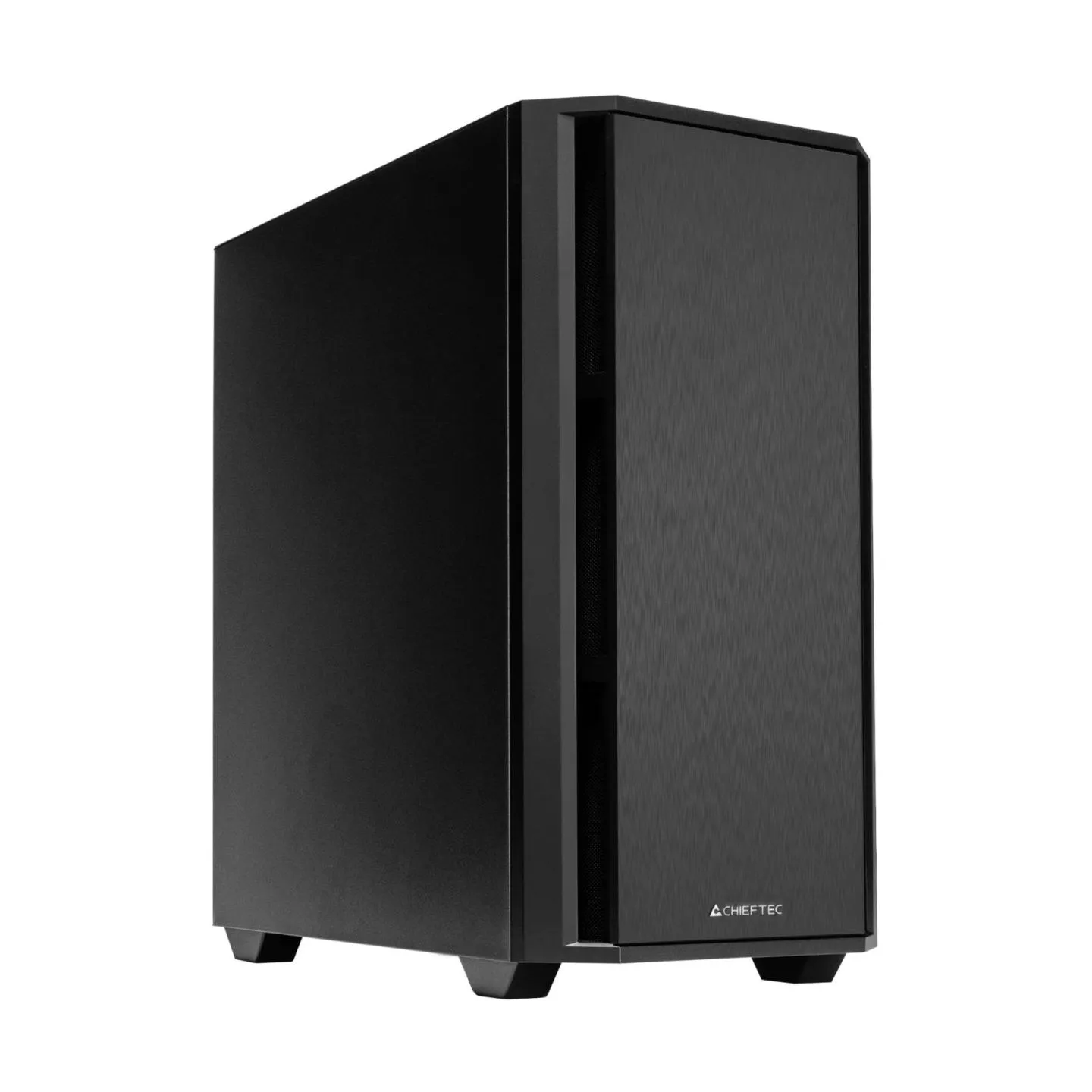

The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
- Elegant & modern design
- Sound-absorbing material
- 1x 120mm PWM fan pre-installed
Manufacturer Website:
https://www.chieftec.eu/products-detail/587/AZ-01B-OP
- Category Code
- CAS
- CnCode
- 84733080
- Unit Box Height
- 0.48
- Unit Box Length
- 0.48
- Unit Box Width
- 0.275
- Anti-dust filter
- Yes
- Form factor
- Mini Tower
- Full-Height expansion slots
- 4
- Illumination
- No
- Maximum CPU cooler height
- 165 mm
- Maximum graphics card length
- 330 mm
- Maximum PSU length
- 180 mm
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 1
- Number of expansion slots
- 4
- Number of internal 3.5" bays
- 1
- Number of storage drives supported
- 3
- On/off button
- Yes
- Product colour
- Black
- Reset button
- Yes
- Side window
- No

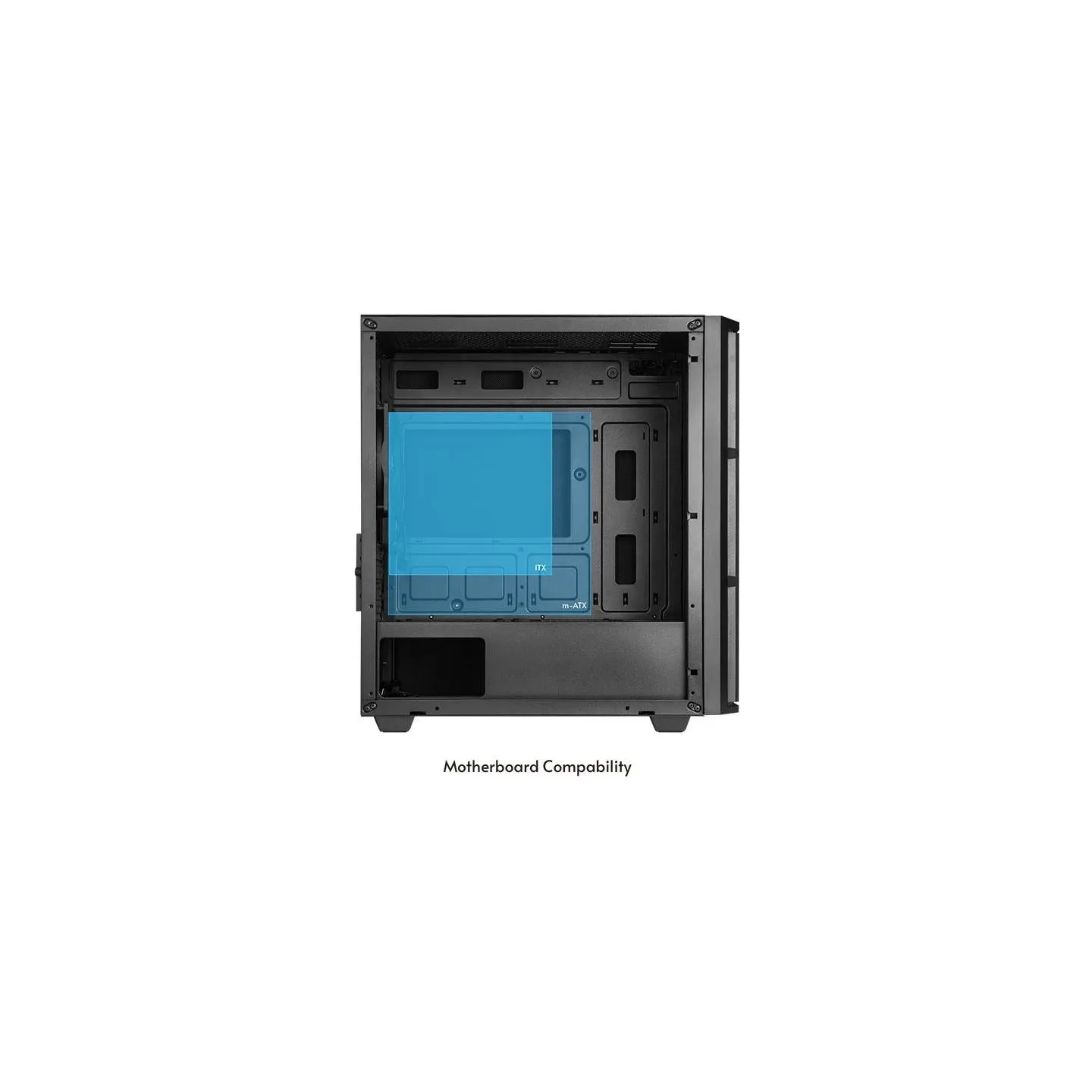

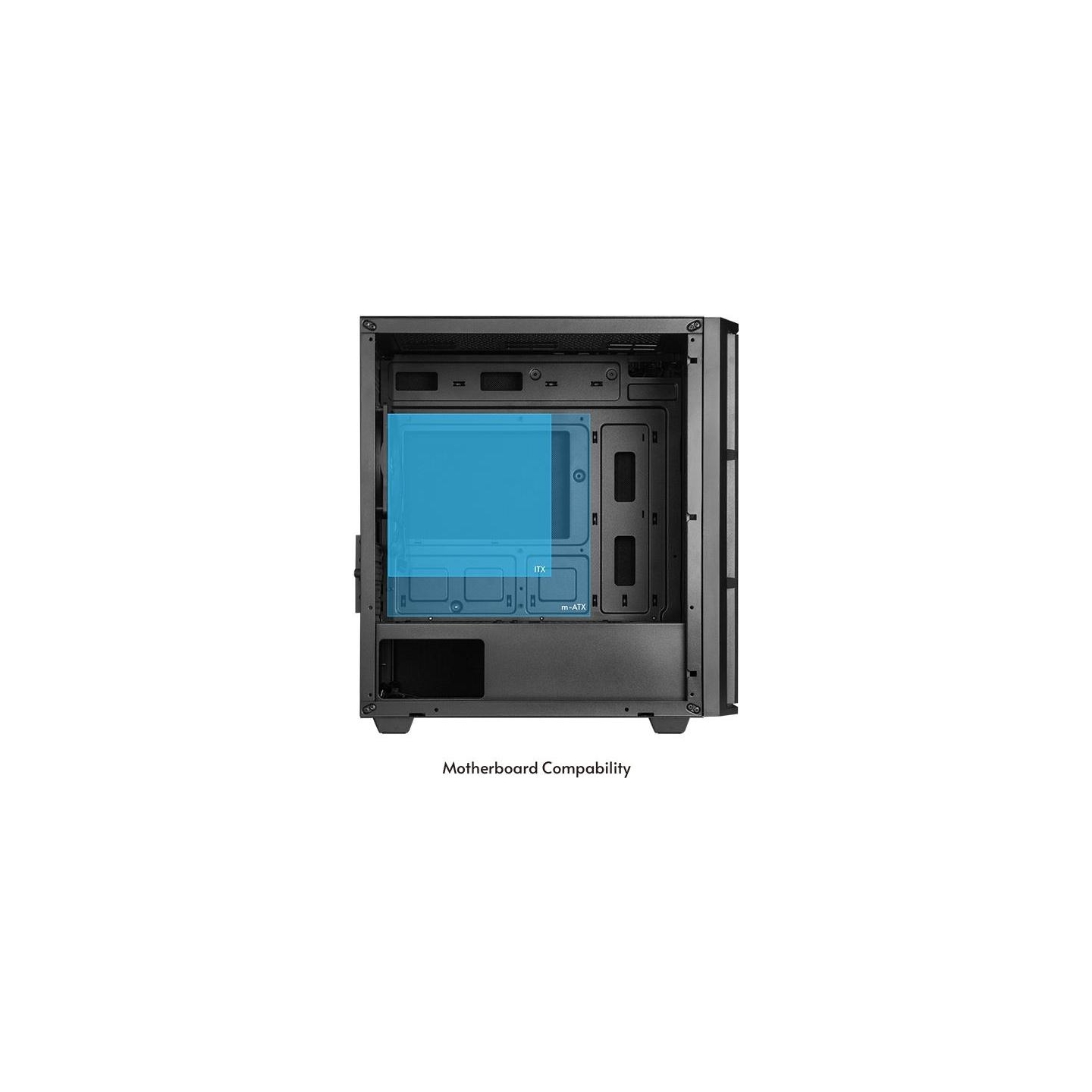

- Supported motherboard form factors
- micro ATX/Mini-ITX/uATX
- Tempered glass panel(s)
- No
- Type
- PC
- Power supply included
- No

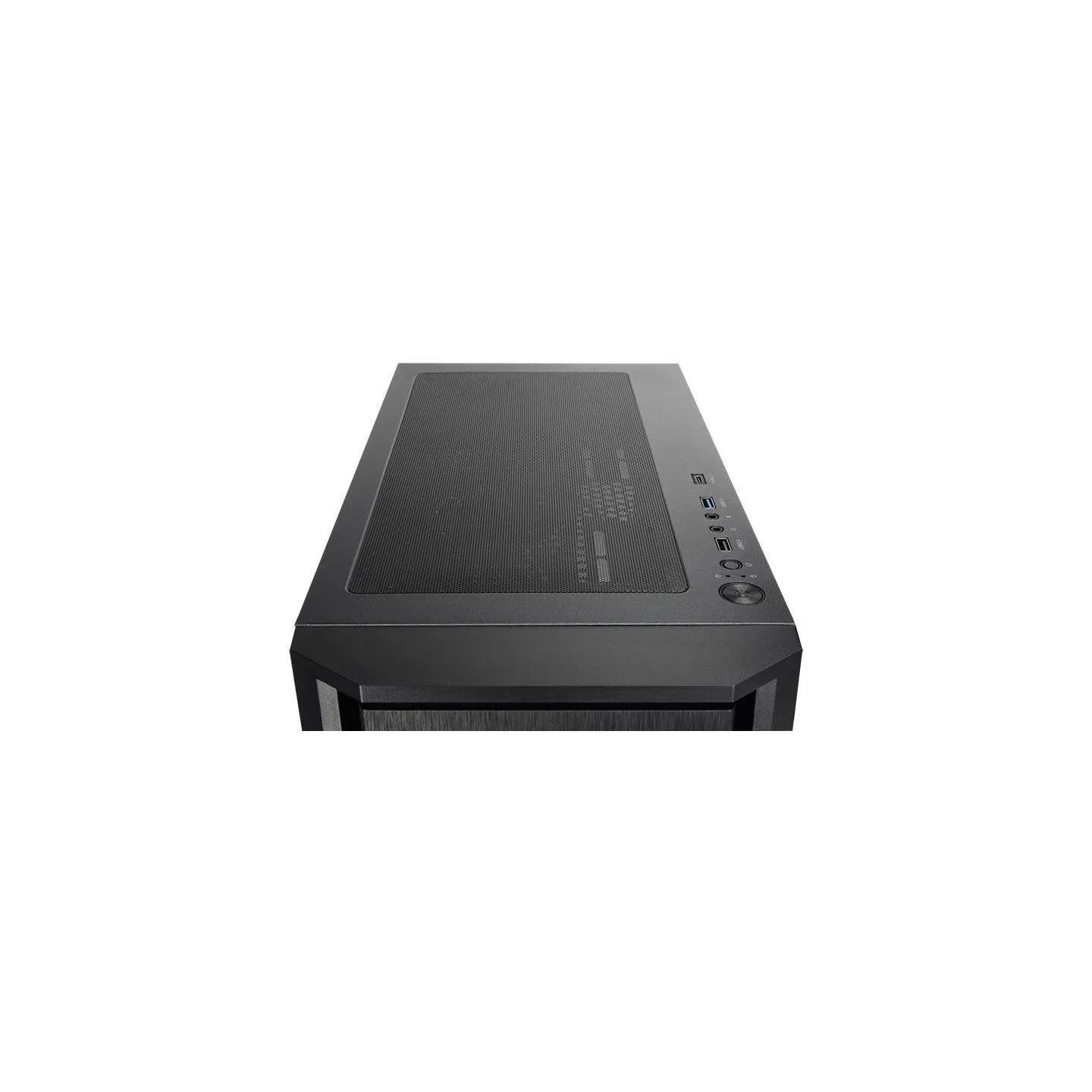

- Audio input
- Yes
- Audio output
- Yes
- USB 2.0 ports quantity
- 1
- USB 3.0
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB Type-C ports quantity
- 1

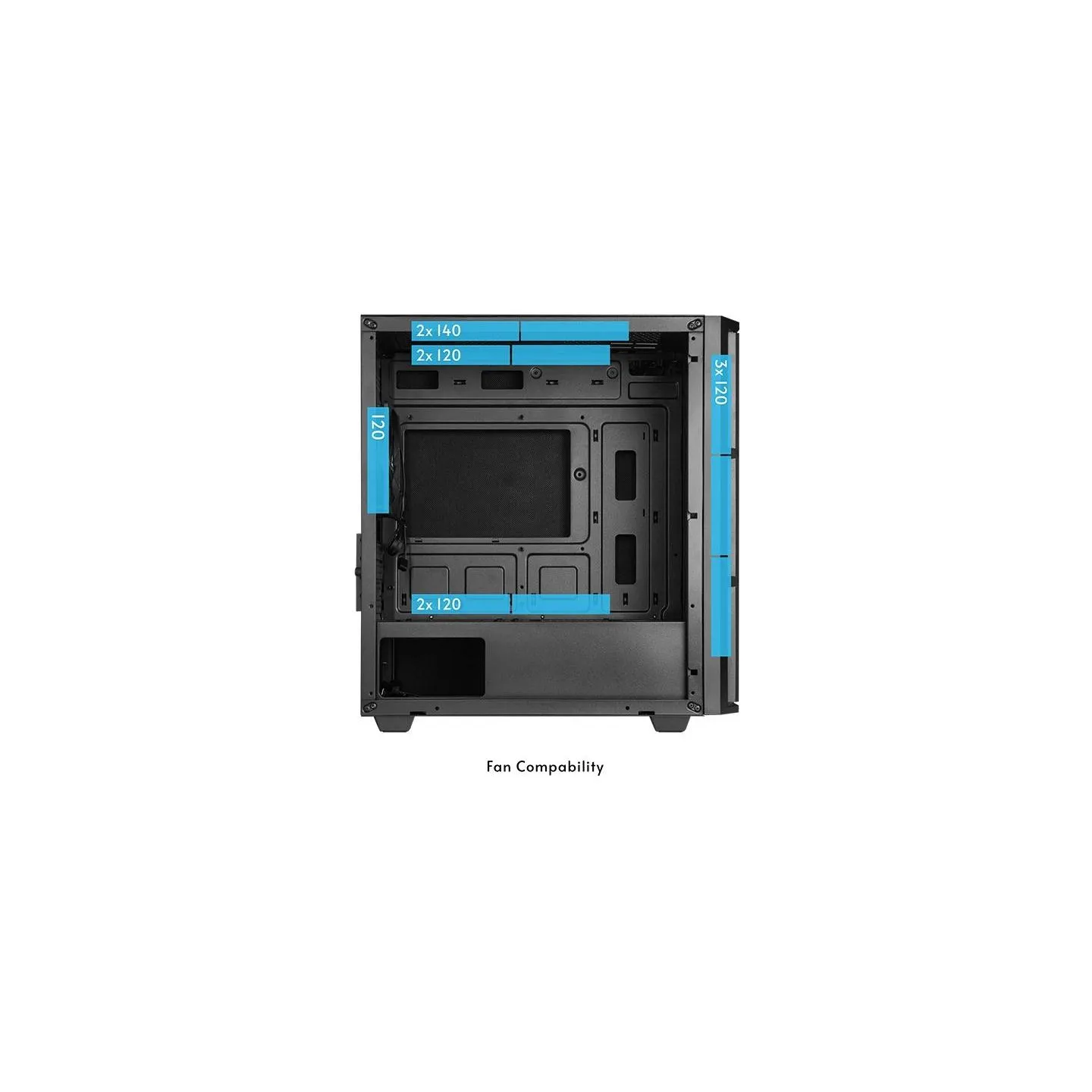

- Front fans diameters supported
- 120/140 mm
- Front radiator sizes supported
- 240/280/360 mm
- Liquid cooling capability
- Yes
- Number of front fans supported (max)
- 3
- Number of rear fans supported (max)
- 1
- Number of top fans supported (max)
- 2
- Rear fans diameters supported
- 120 mm
- Rear fans installed
- 1x 120 mm
- Top fans diameters supported
- 120/140 mm
- Top radiator sizes supported
- 240/280 mm
- Supported HDD sizes
- 2.5/3.5 "
- Depth
- 360 mm
- Height
- 420 mm
- Material thickness
- 0.6 mm
- Weight
- 5150 g
- Width
- 212 mm
- Package weight
- 6000 g
- Model name
- AZ-01B-OP
- Model
- AZ-01B-OP
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.06336 cubm
- Unit Calculated Weight
- 5.9 kg
