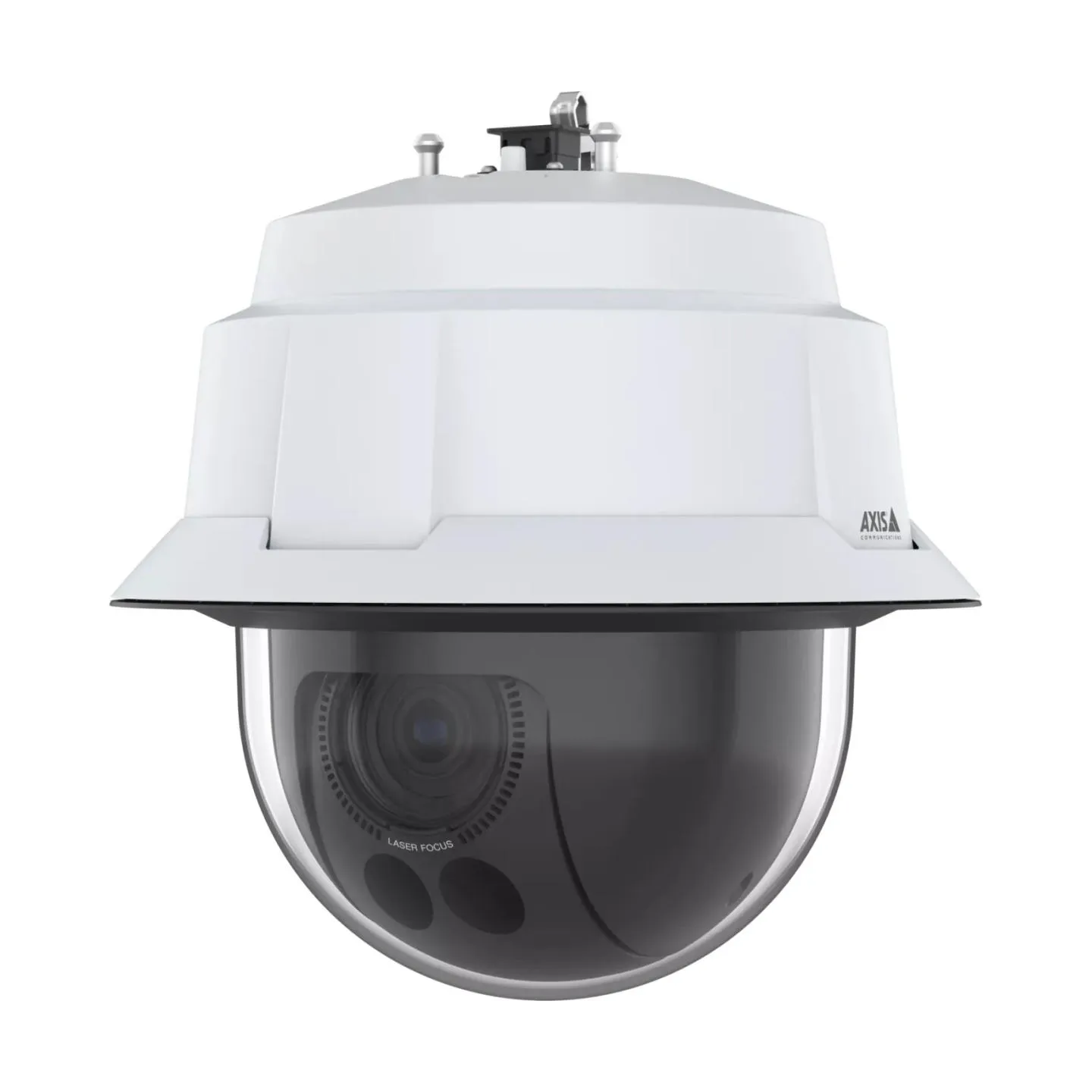

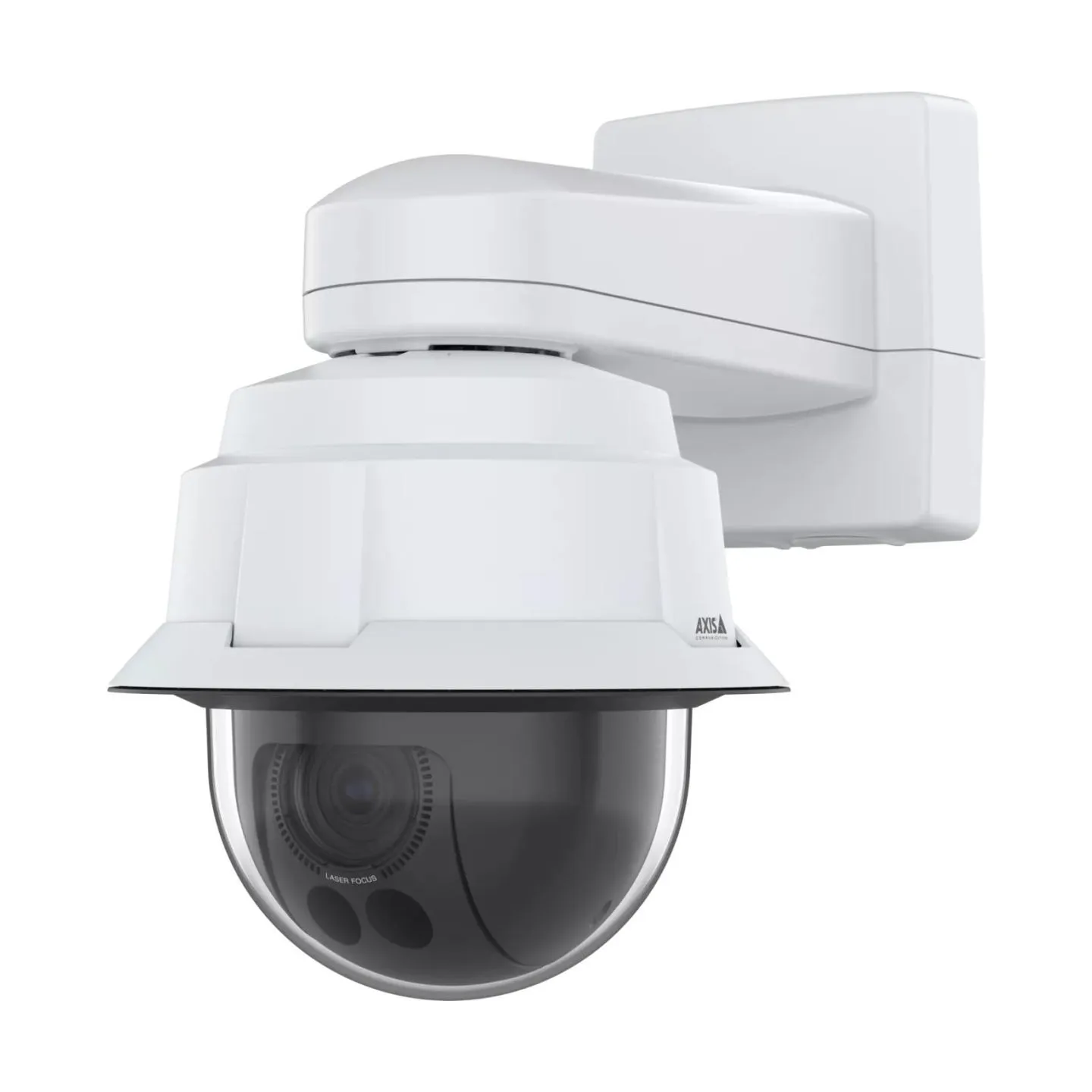

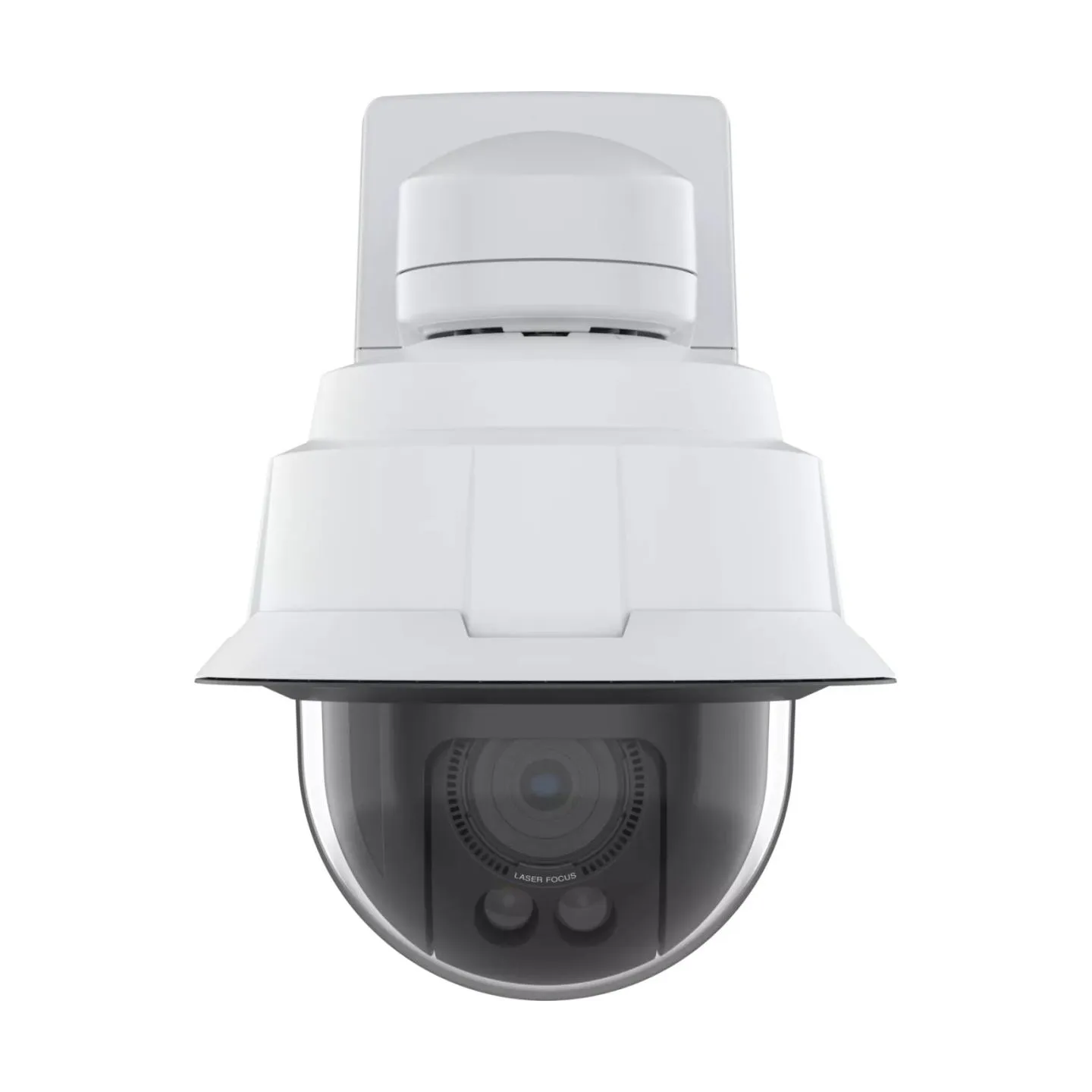

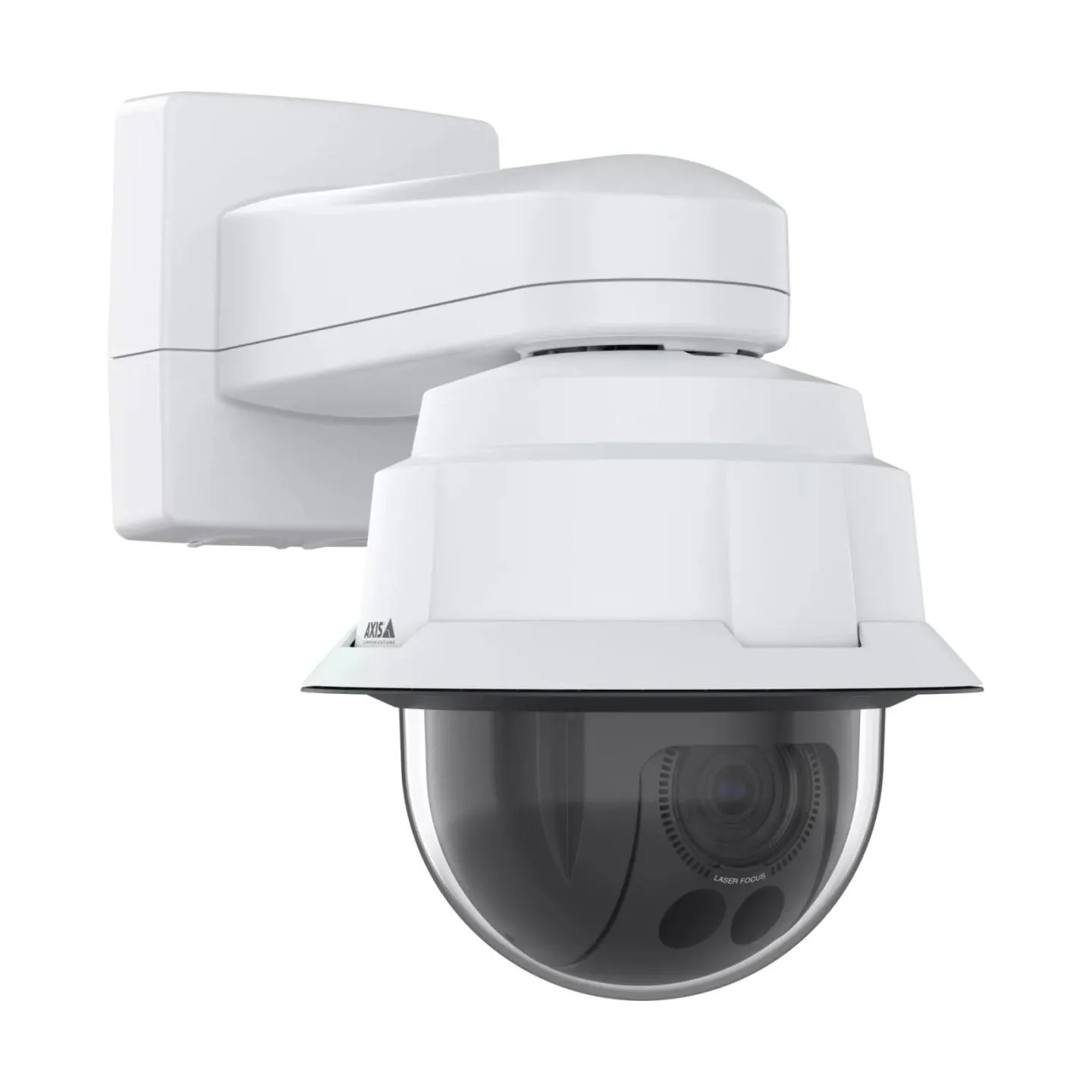

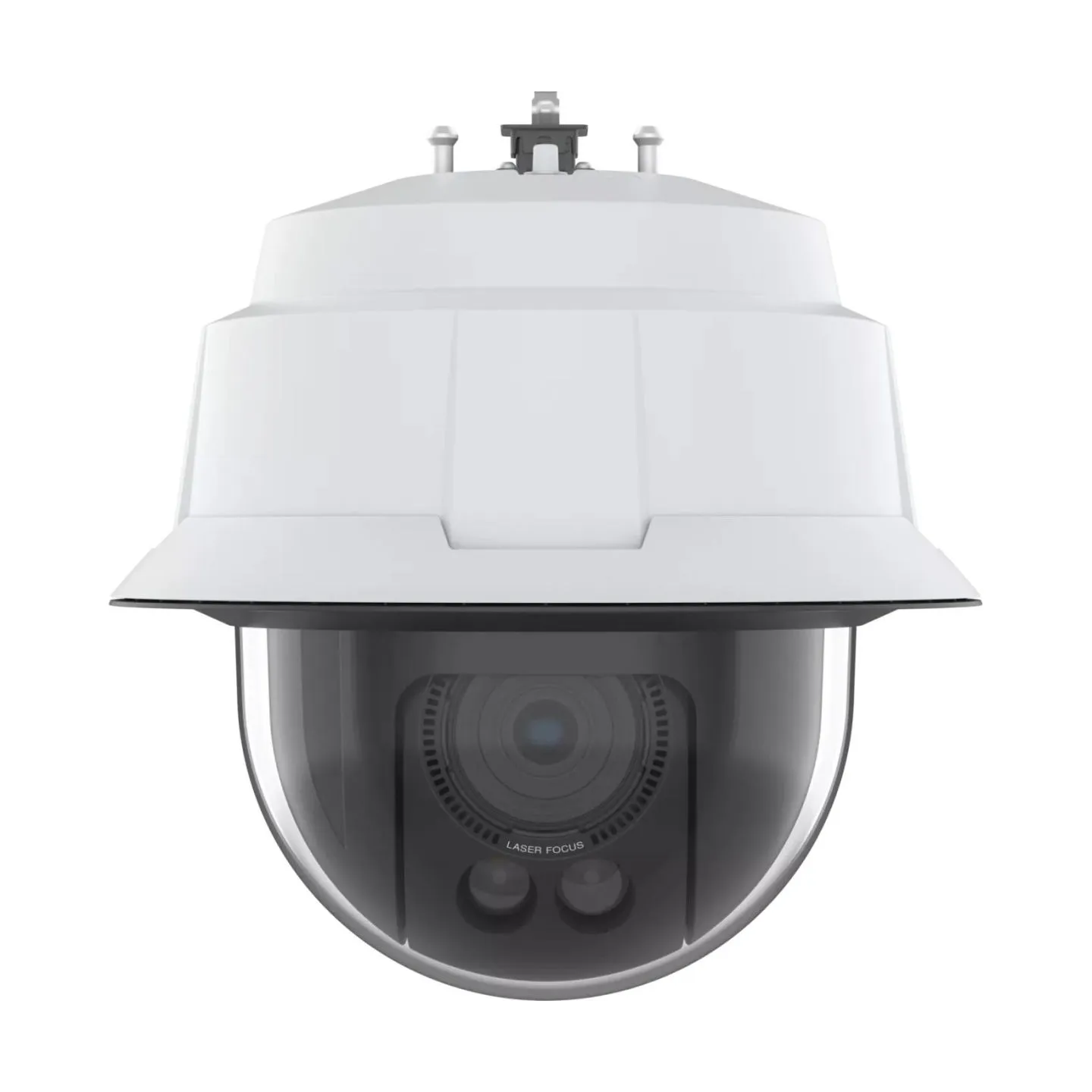

Axis NET CAMERA Q6086-E PTZ/DOME 03188-002 AXIS
AXIS Q6086-E PTZ Camera
This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.
Superior details and light sensitivity
Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.
Powerful, next-generation analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.
Robust with strong cybersecurity
Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.
Manufacturer Website:
https://www.axis.com/products/axis-q6086-e
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.31
- Unit Box Length
- 0.37
- Unit Box Width
- 0.3
- Fog proof
- Yes
- Form factor
- Dome
- Housing material
- Aluminium/Polycarbonate (PC)
- IK code
- IK10
- International Protection (IP) code
- IP66
- Mounting type
- Ceiling
- Product colour
- Black/White
- Protection features
- Wear resistant
- Auto-tracking
- Yes
- Certification
- CE, FCC, ICES, KC, VCCI
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Placement supported
- Outdoor
- Preset points
- Yes
- PTZ control
- Yes
- PTZ modes
- Preset point
- Tour recording
- Yes
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Camera pan control
- Yes
- Camera pixel size
- 2.9 µm
- Camera shutter speed
- 1/49500 - 2 s
- Camera tilt control
- Yes
- Lens viewing angle, horizontal
- 61.5 °
- Lens viewing angle, vertical
- 37.3 °
- Minimum illumination
- 0.009 lx
- Pan range
- 0 - 360 °
- Pan speed
- 500 °/sec
- Tilt angle range
- -90 - 0 °
- Tilt speed
- 500 °/sec
- Number of sensors
- 1
- Optical sensor size
- 1/2 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Auto focus
- Yes
- Closest focusing distance
- 3 m
- Detect distance (tele)
- 3118.4 m
- Detect distance (wide)
- 92.6 m
- Digital zoom
- 12 x
- Focal length range
- 6.64 - 225.5 mm
- Identify distance (tele)
- 311.8 m
- Identify distance (wide)
- 9.3 m
- Maximum aperture number
- 5.1
- Minimum aperture number
- 1.7
- Number of lenses
- 1
- Observe distance (tele)
- 1237.5 m
- Observe distance (wide)
- 36.7 m
- Optical zoom
- 32 x
- Recognize distance (tele)
- 623.6 m
- Recognize distance (wide)
- 18.5 m
- Zoom capability
- Yes
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate
- 60 fps
- Image quality adjustment
- Brightness/Contrast/Saturation/Sharpness
- Maximum resolution
- 2688 x 1512 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Supported graphics resolutions
- 2688 x 1512/640 x 360
- Text caption overlay
- Yes
- Total megapixels
- 4 MP
- Video compression formats
- H.262/H.264/H.265/M-JPEG/MPEG4
- Video streaming
- Yes
- Ethernet interface type
- Fast Ethernet/Gigabit Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
- Streaming method
- Multicast
- Supported network protocols
- IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
- Card reader integrated
- Yes
- Compatible memory cards
- SD/SDHC/SDXC
- Flash memory
- 8192 MB
- RAM capacity
- 4096 MB
- Ethernet LAN (RJ-45) ports
- 1
- Alert notification type
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Crossing line
- Password protection
- Yes
- Pixel counter
- Yes
- Security algorithms
- HTTPS/TLS
- Power consumption (max)
- 51 W
- Power consumption (typical)
- 10 W
- Power source type
- PoE
- Operating relative humidity (H-H)
- 10 - 100 %
- Operating temperature (T-T)
- -50 - 55 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 65 °C
- Depth
- 264 mm
- Height
- 279 mm
- Weight
- 4100 g
- Width
- 264 mm
- Compliance certificates
- REACH/RoHS/Trade Agreements Act (TAA)
- Number of cameras
- 1
- Doesn't contain
- CFR/PVC/BFR
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.03441 cubm
- Unit Calculated Weight
- 6.1 kg
