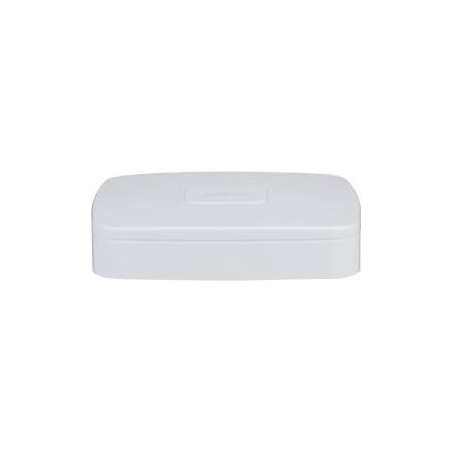

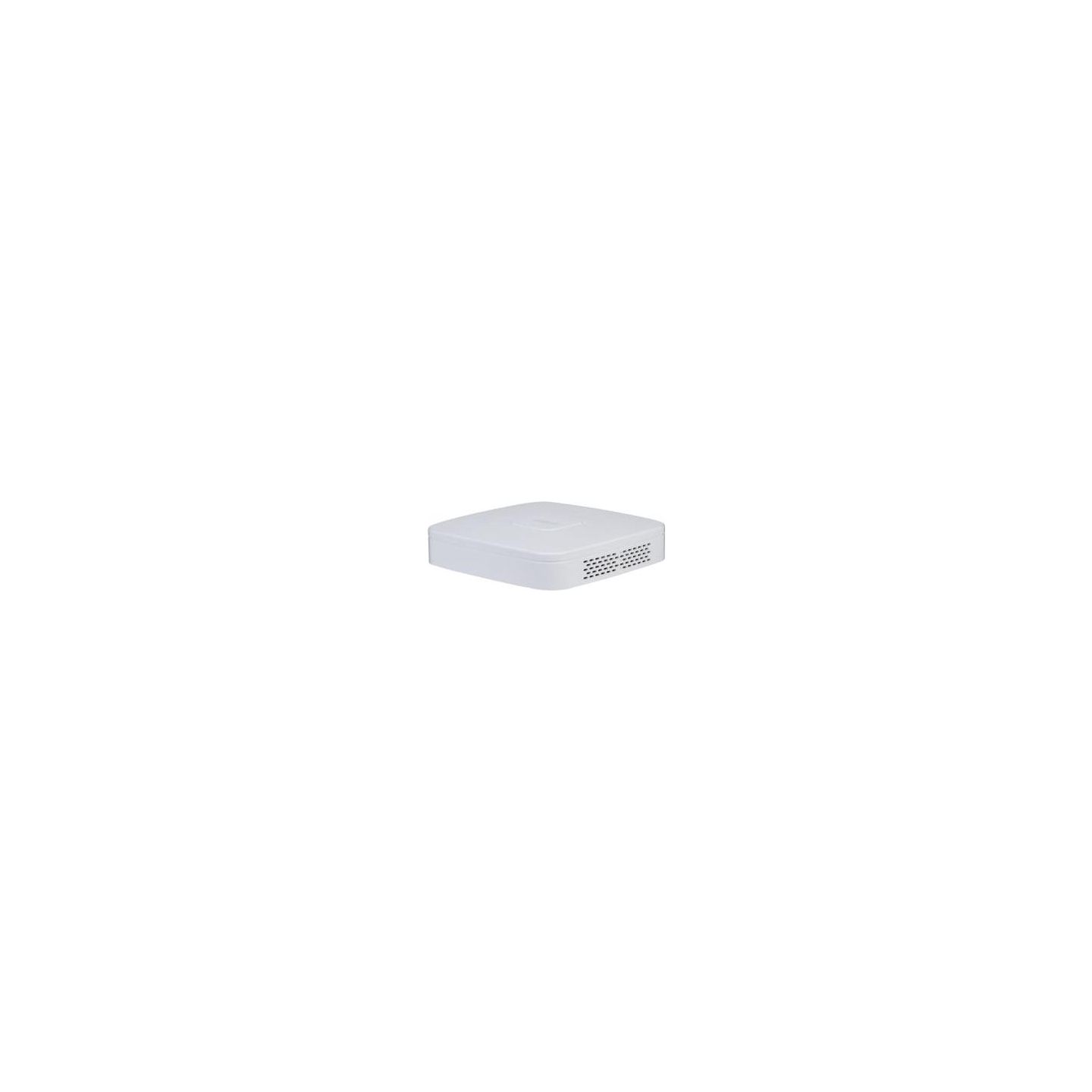

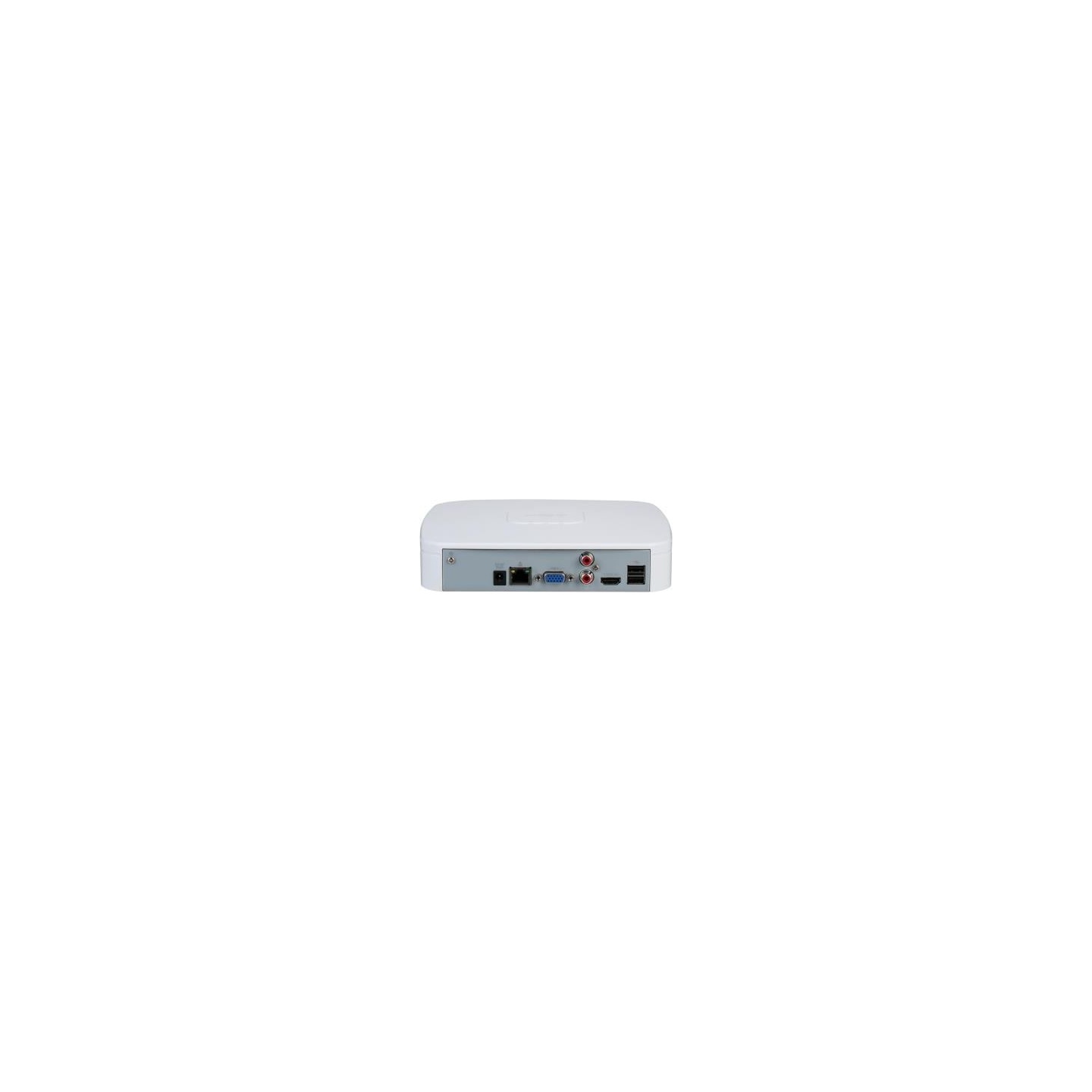

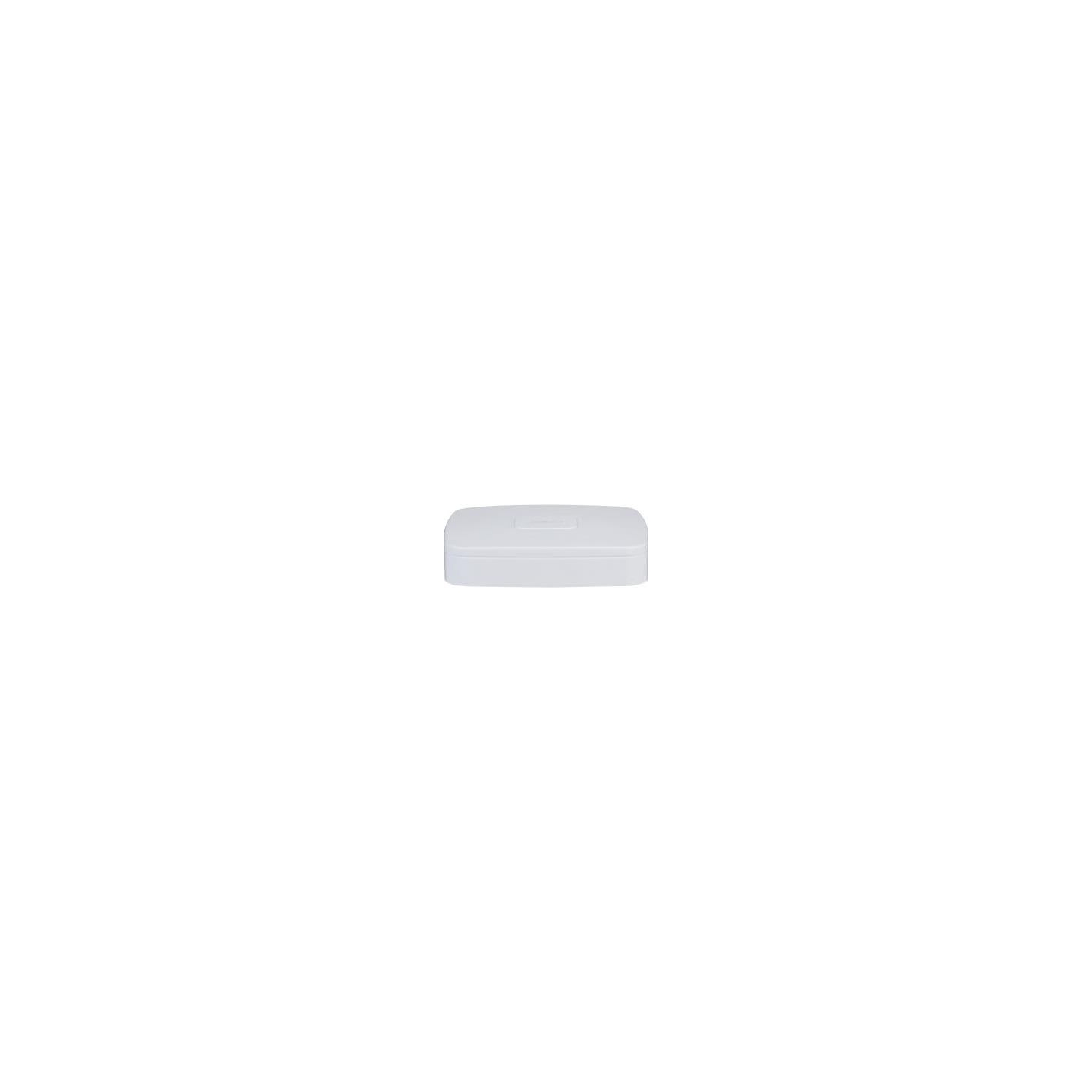

Dahua NET VIDEO RECORDER 8CH/NVR2108-4KS3 DAHUA
The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 6 × 1080p@30 fps
- Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 12 MP
- AI by Recorder supports 4-channel SMD
- AI by Camera supports perimeter protection and SMD
- Supports one-click arming and disarming
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2108-4KS3
- Category Code
- NVR
- CnCode
- 85219000
- Unit Box Height
- 0.31
- Unit Box Length
- 0.335
- Unit Box Width
- 0.085
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.726/PCM
- Image formats supported
- MJPEG
- Input bandwidth
- 80 Mbit/s
- Maximum resolution
- 3840 x 2160 pixels
- Operating system installed
- Embedded LINUX
- Output bandwidth
- 60 Mbit/s
- Supported resolutions
- HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video formats supported
- H.264/H.264+/H.265/H.265+
- Video input channels
- 4 channels
- Video motion detection
- Yes
- Video recording modes
- 1080p/720p/960p
- Wi-Fi
- No
- HDD interface
- SATA
- Maximum storage capacity
- 20 TB
- Audio RCA inputs
- 1
- Audio RCA outputs
- 1
- eSATA ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10/100 Mbit/s
- HDMI ports quantity
- 1
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
- USB 2.0 ports quantity
- 2
- VGA (D-Sub) output ports
- 1
- Certification
- CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
- Product colour
- Black
- Rack capacity
- 1U
- Rack mounting
- Yes
- Built-in processor
- Yes
- Output current
- 1.22 A
- Output voltage
- 53 V
- Power consumption (max)
- 25.5 W
- Power consumption (typical)
- 10 W
- Total Power over Ethernet (PoE) budget
- 72 W
- Browser supported
- Chrome; IE; Safari; Edge; Firefox
- Mobile operating systems supported
- Android/iOS
- Operating relative humidity (H-H)
- 10 - 93 %
- Operating temperature (T-T)
- -10 - 55 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Depth
- 232.5 mm
- Height
- 47.6 mm
- Package depth
- 119 mm
- Package height
- 311 mm
- Package weight
- 2050 g
- Package width
- 374 mm
- Weight
- 890 g
- Width
- 260 mm
- Model
- NVR2108-4KS3
- Model name
- NVR2108-4KS3
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.01085 cubm
- Unit Calculated Weight
- 1.14 kg
