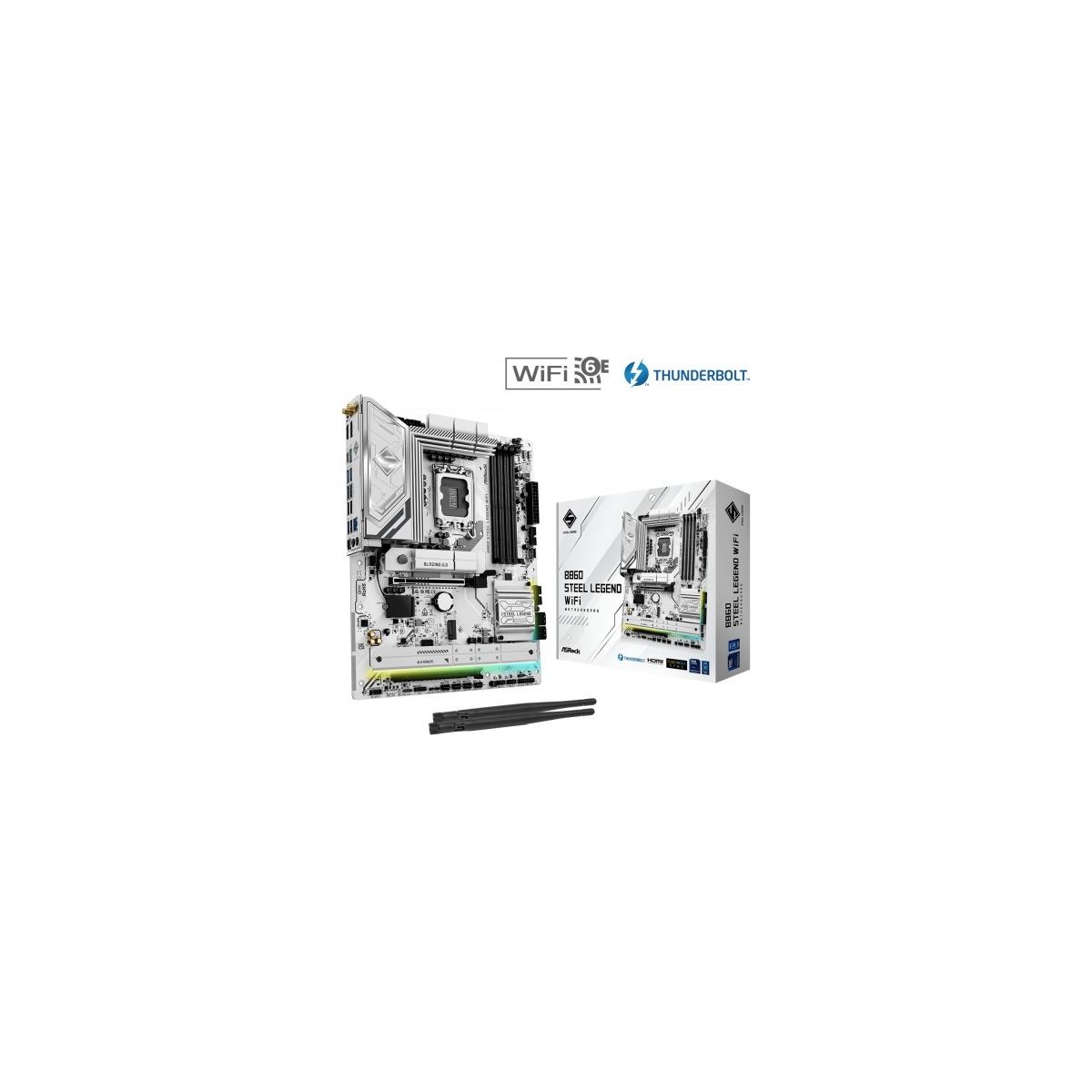

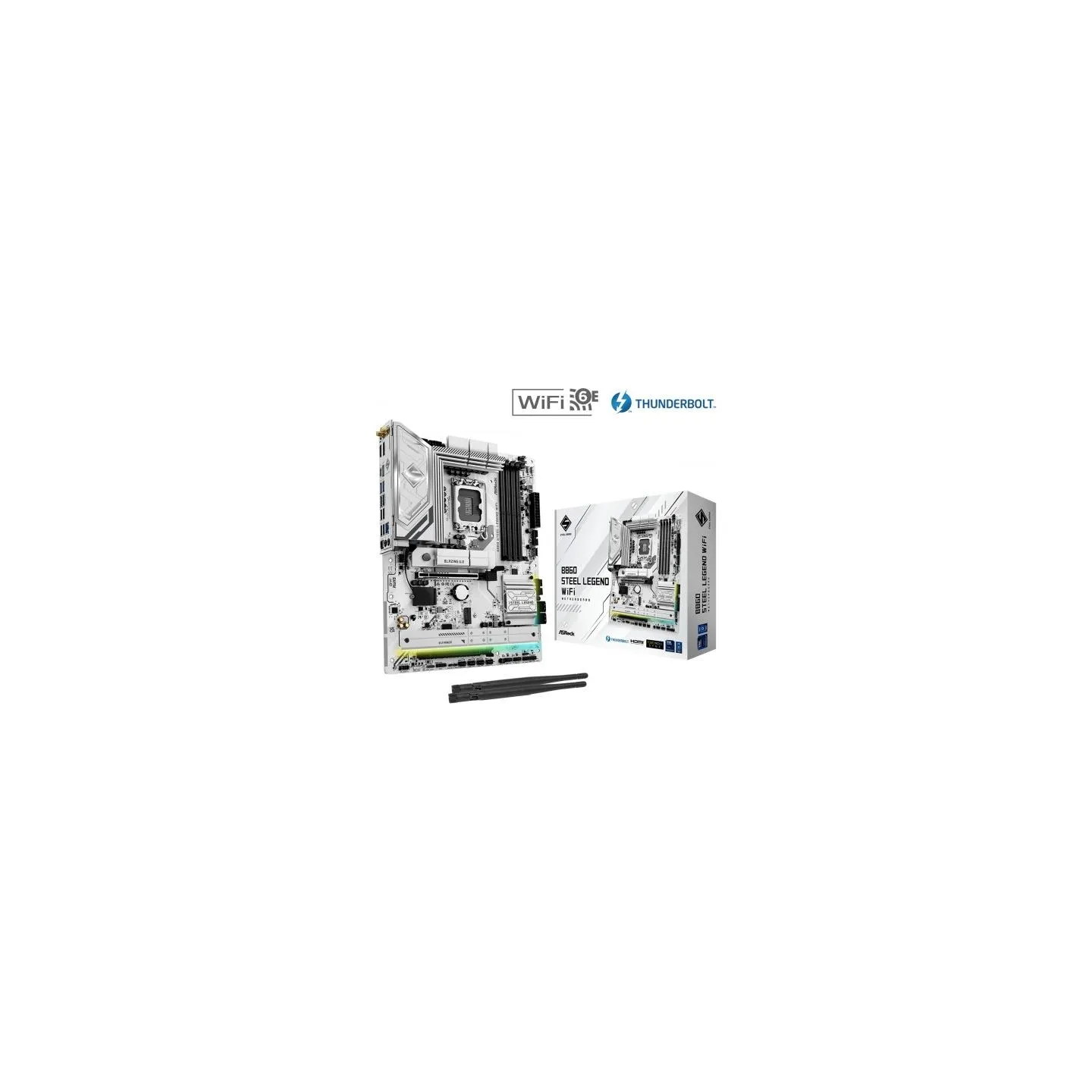

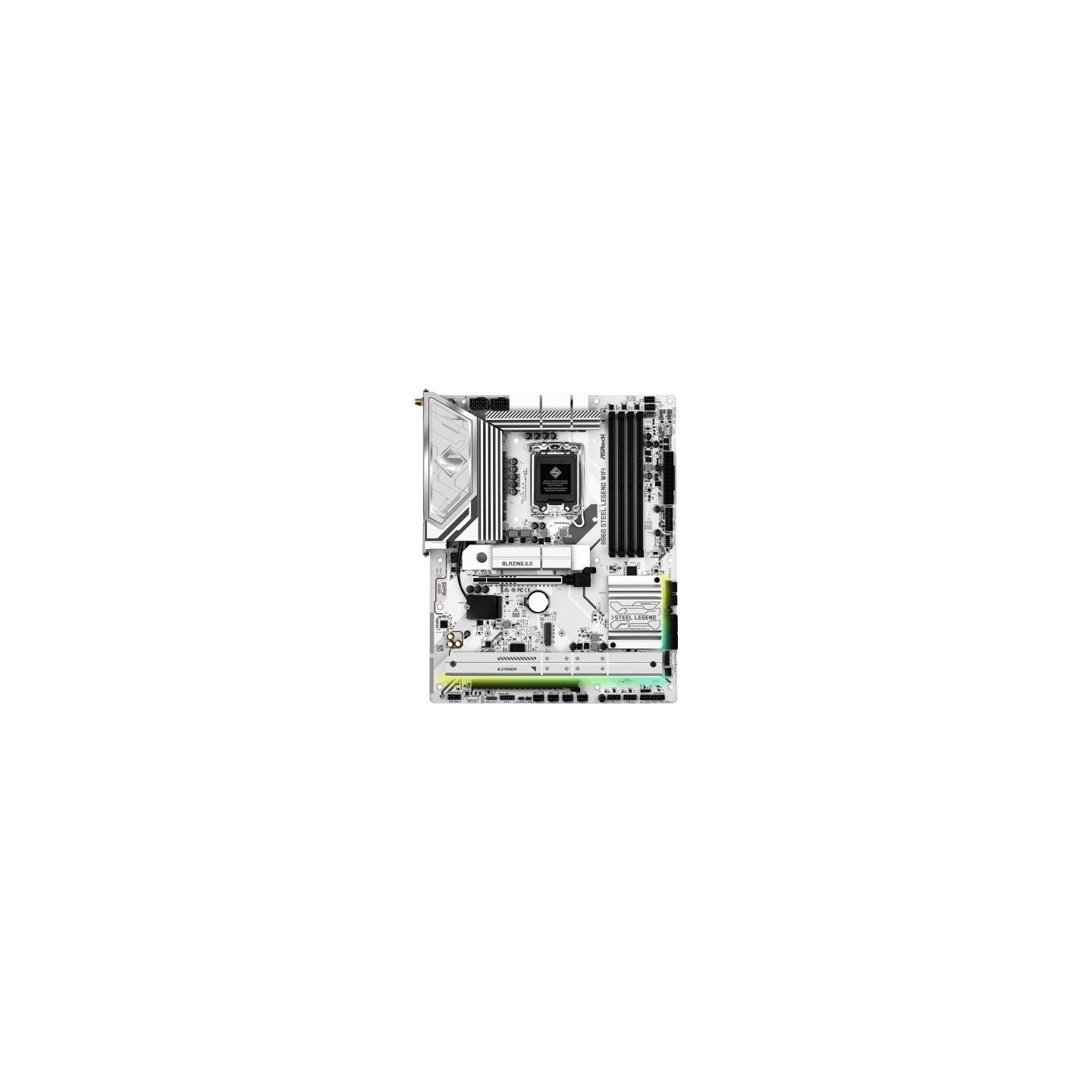

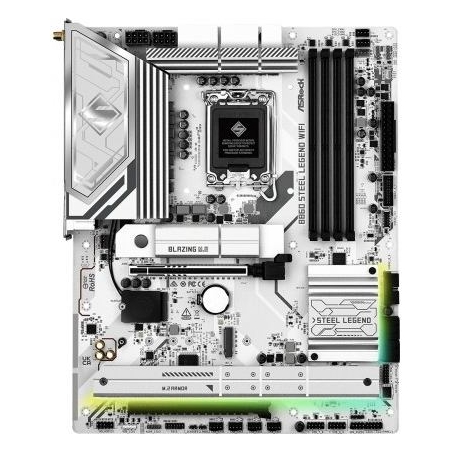

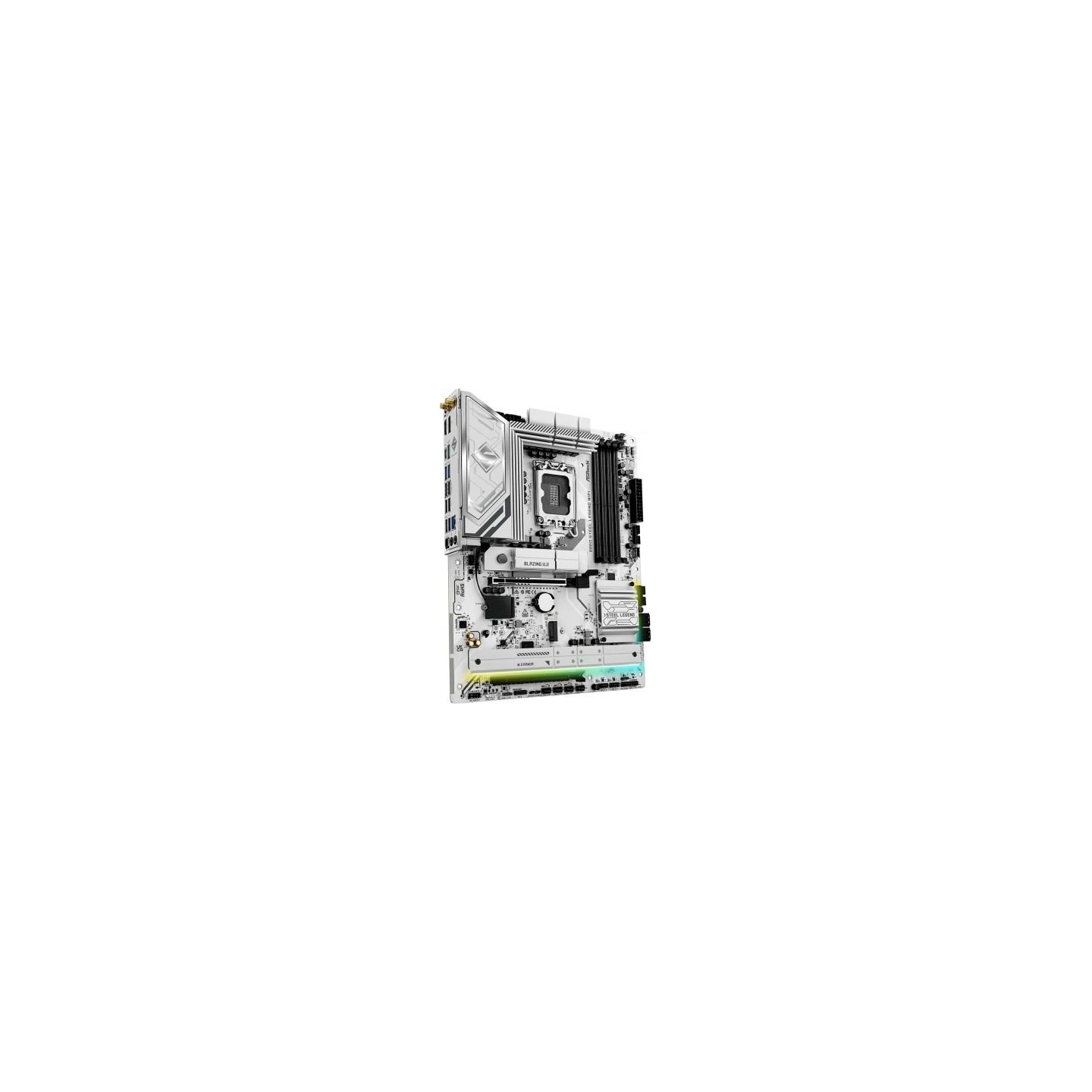

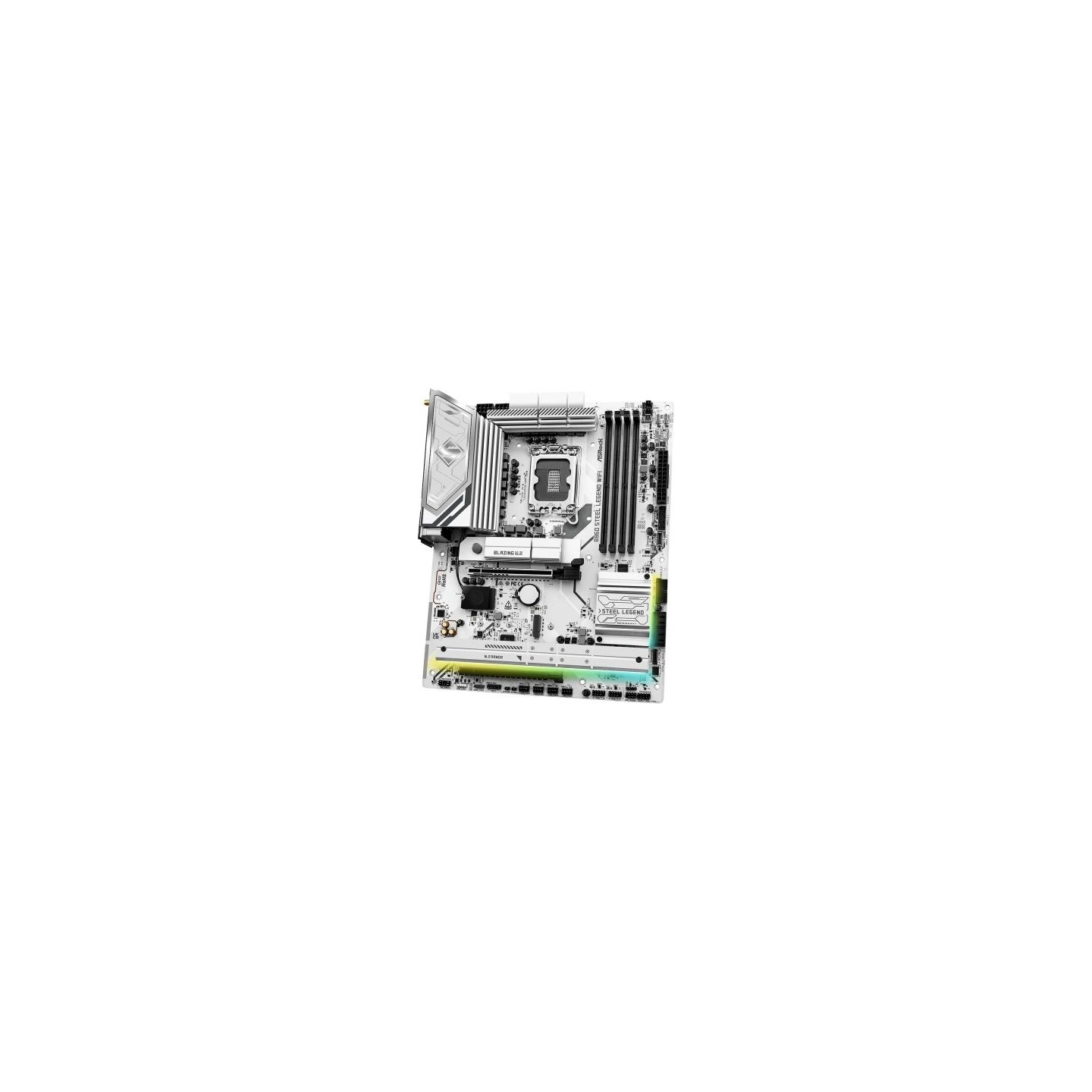

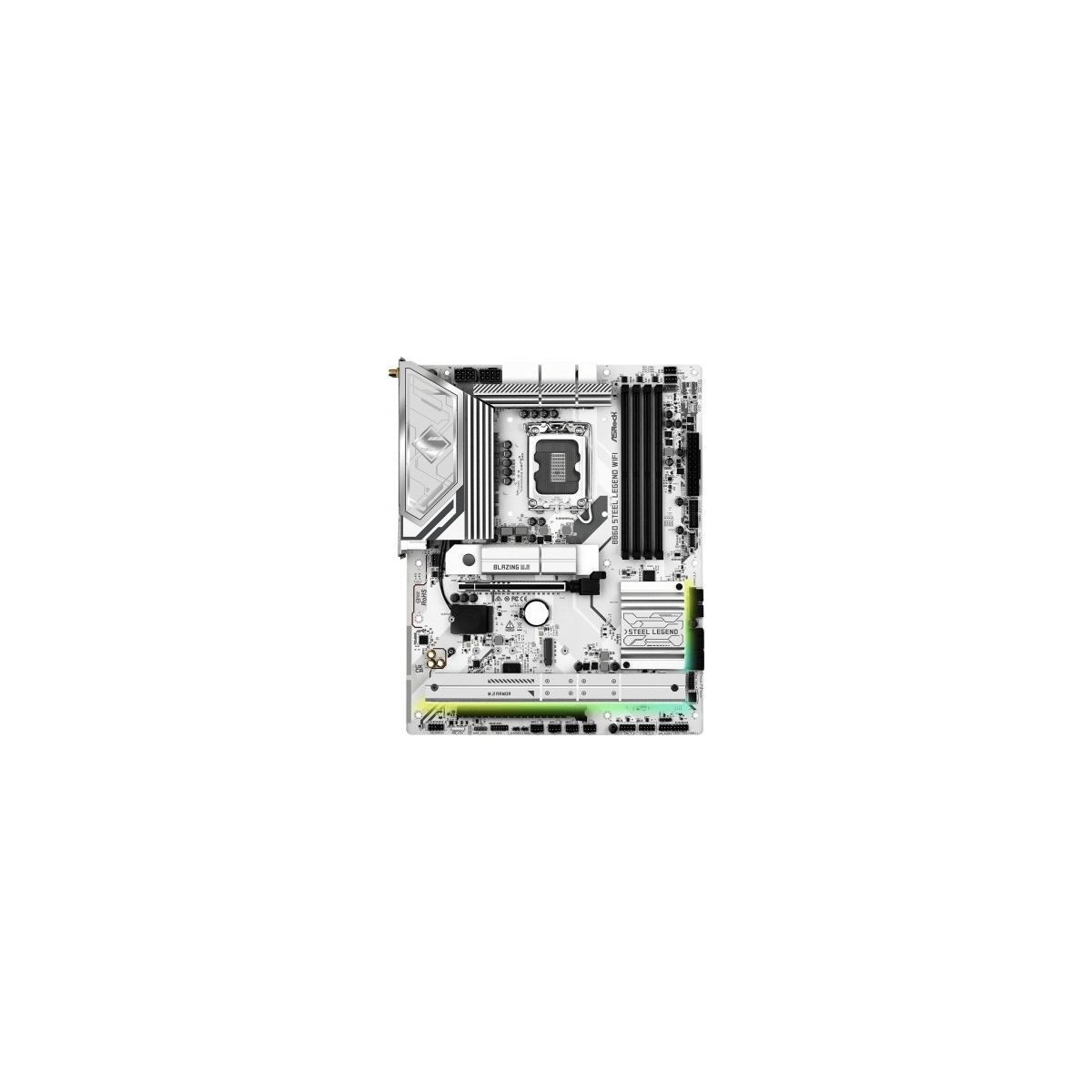

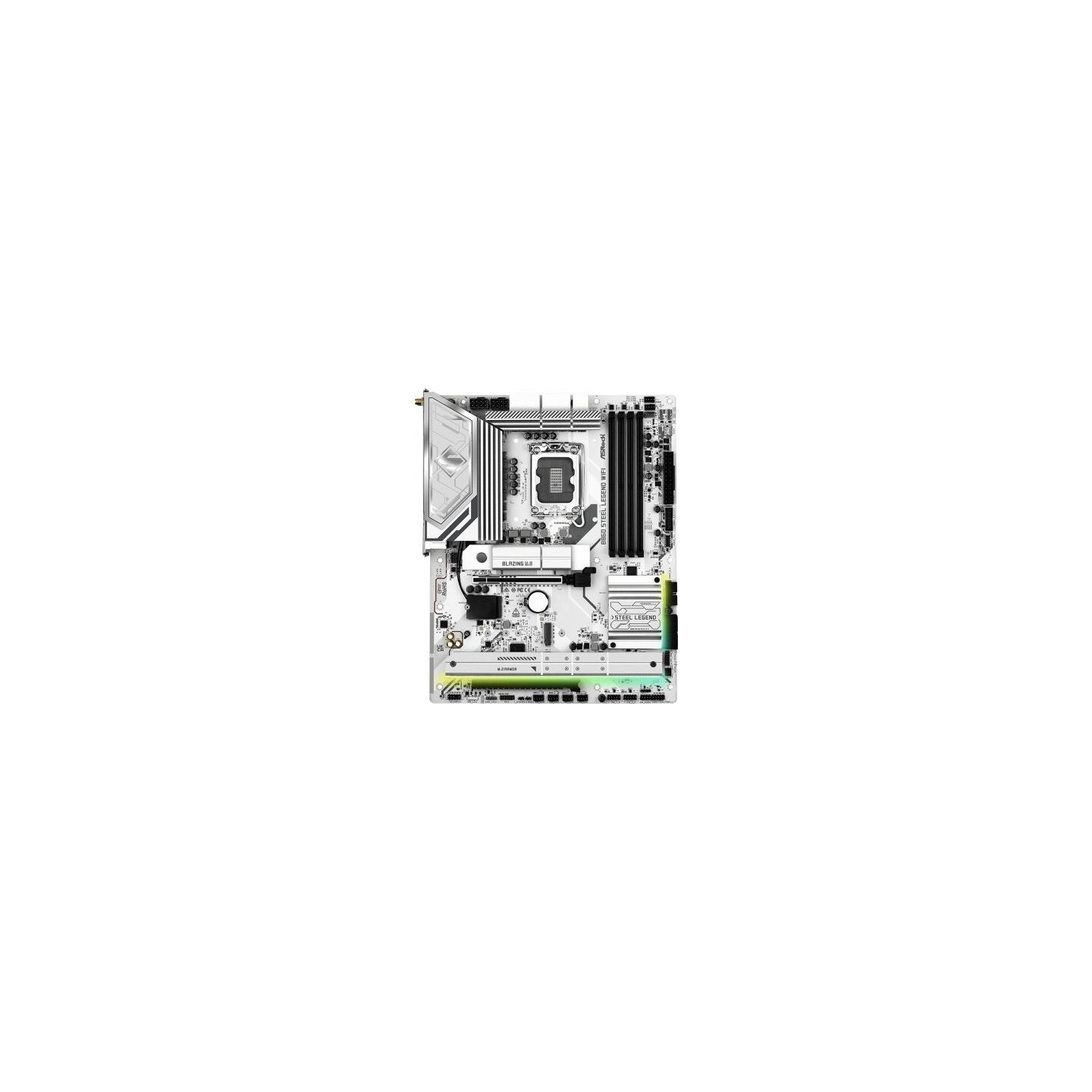

Asrock Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX
Asrock Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX

Asrock Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX

SKU B860 STEEL LEGEND WIFI Category Mainboards
New
Price: €203.71
Tax included
Add to Cart
Share on
SKU
KBASRIIFB860A01
Barcode
4711581490123
Model
B860 STEEL LEGEND WIFI
CPU socket
LGA1851
Processor family
Intel Core Ultra
Integrated CPU
No
Chipset manufacturer
Intel
Chipset type
Intel B860
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
8666 MHz
Max memory size
256
Expansion slots
1 x M.2
Expansion slots
1 x PCIe 4.0 x 16
Expansion slots
1 x PCIe 5.0 x 16
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
USB ports at back panel
10
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x Flash BIOS Button
External connectors
3 x USB 2.0
External connectors
1 x HDMI
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x Thunderbolt 4
External connectors
1 x RJ-45
External connectors
2 x SMA
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x DisplayPort
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x S/PDIF
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x SPI
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
5 x 4pin Chassis fan
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
2 x 8pin 12V
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
1 x Front panel audio header
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included
2 x SATA data cables 2 x ASRock 2.4/5/6 GHz WiFi antennas Thermistor cable
Supported operating systems
Windows 11
Software
Software  ASRock Motherboard Utility (A-Tuning)  ASRock Dragon 2.5G LAN Software  ASRock Polychrome SYNC* UEFI  ASRock EZ Mode  ASRock Full HD UEFI  ASRock My Favorites in UEFI  ASRock Auto Driver Installer  ASRock Instant Flash
Designation
CE+WEEE
Category Mainboards Brand ASROCK In stock 5 Items
