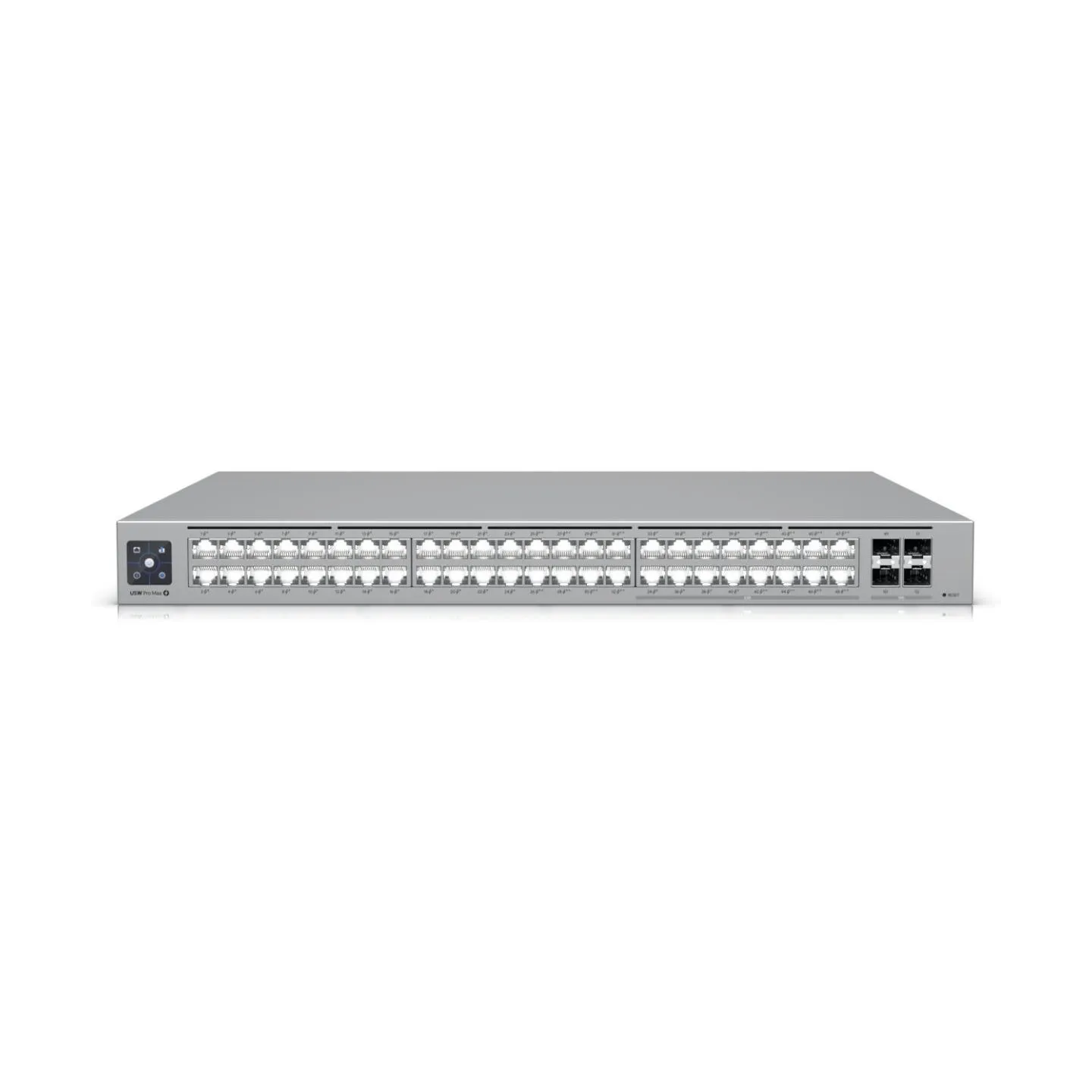

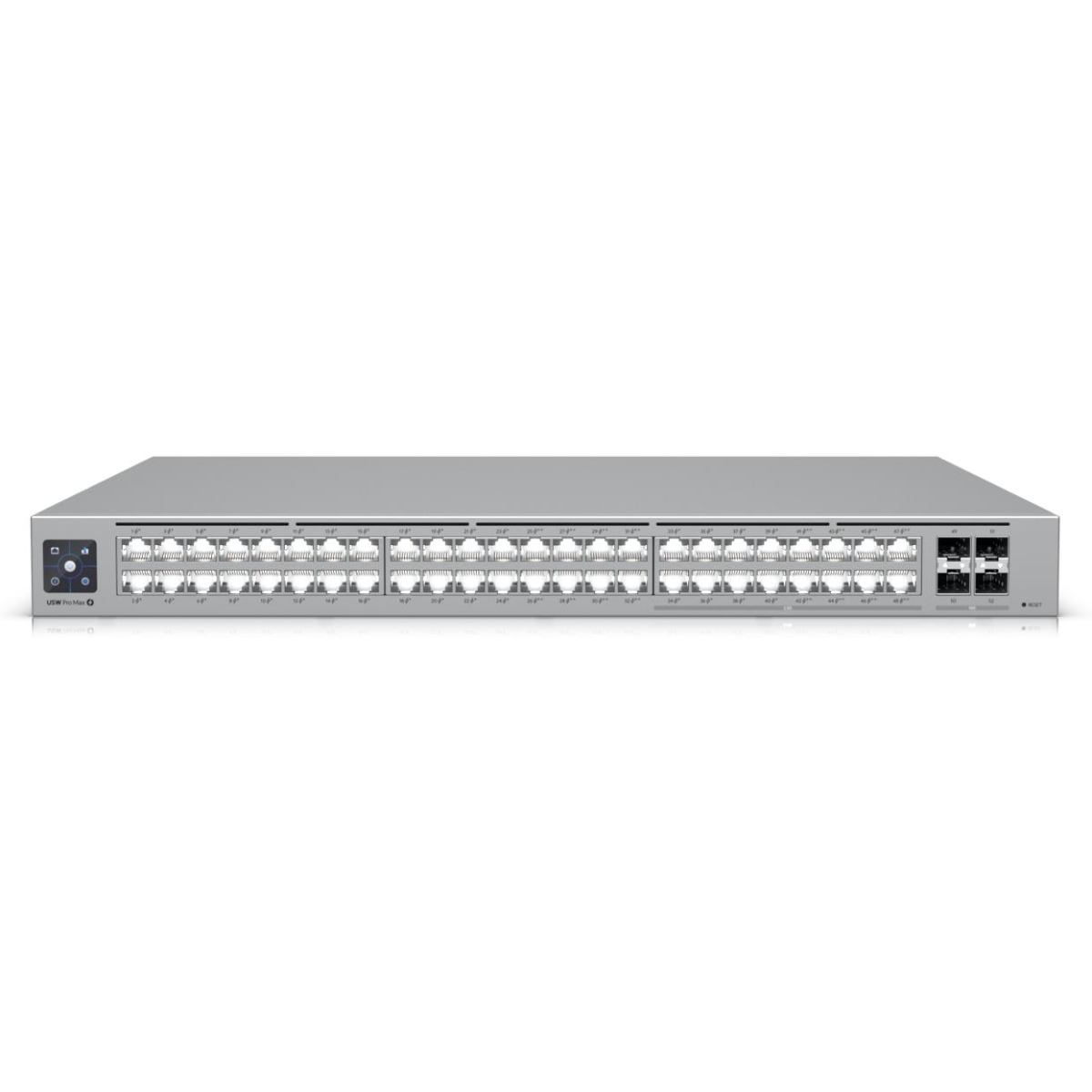

Ubiquiti Switch|UBIQUITI|Pro Max 48 PoE|Type L3|720 Watts|USW-PRO-MAX-48-POE

SKU USW-PRO-MAX-48-POE Category Switches

New

€1,401.05

Tax included

Share on

Pro Max 48 PoE
Type Managed
Switch layer L3
Quality of Service (QoS) support Yes
48xBasic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
4xSFP+ module slots quantity
Port mirroring Yes
Switching capacity 224 Gbit/s
Throughput 112 Gbit/s
Forwarding rate 167 Mpps
Rack mounting Yes
Form factor 1U
Product colour Grey
Power source AC
Power supply included Yes
Power over Ethernet (PoE) Yes
32xPower over Ethernet plus (PoE+) ports quantity
16xPower over Ethernet 4PPoE (PoE++) ports quantity
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 720 W
Width 442.4 mm
Depth 399.6 mm
Height 43.7 mm
Weight 6200 g

Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/collections/unifi-switching-pro-max/products/usw-pro-max-48-poe?variant=usw-pro-max-48-poe-eu

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.52
Unit Box Length: 0.538
Unit Box Width: 0.12
Quality of Service (QoS) support: Yes
Switch layer: L3
Switch type: Managed
2.5G Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 32
Power connector: AC-in jack
SFP+ module slots quantity: 4
10G support: No
Broadcast storm control: Yes
Flow control support: Yes
IPv4 routes: 12000
Networking standards: IEEE 802.1x
Number of VLANs: 1000
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN
VLAN support: Yes
Forwarding rate: 167 Mpps
Jumbo frames support: Yes
MAC address table: 32000 entries
Packet buffer memory: 2 MB
Static route: Yes
Switching capacity: 224 Gbit/s
Throughput: 112 Gbit/s
DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
IGMP snooping: Yes
Loop protection: Yes
Backlight display: Yes
Display type: LCM
Form factor: 1U
Housing material: SGCC
LED indicators: System
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 820 W
Power source: AC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) type supported: PoE+/PoE++ (4PPoE)
Power over Ethernet (PoE) voltage: 57 V
Power over Ethernet 4PPoE (PoE++) ports quantity: 16
Power over Ethernet plus (PoE+) ports quantity: 32
Total Power over Ethernet (PoE) budget: 720 W
Heat dissipation: 341.2 BTU/h
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 40 °C
Depth: 399.6 mm
Height: 43.7 mm
Weight: 6200 g
Width: 442.4 mm
Cables included: Power
Manual: Yes
Rack mount kit: Yes
Sustainability compliance: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
Model: USW-PRO-MAX-48-POE
Model name: Pro Max 48 PoE
Units per Shipping Box: 2
Unit Calculated Volume: 0.04008 cubm
Unit Calculated Weight: 8.68 kg

Category Switches Brand UBIQUITI In stock 14 Items
