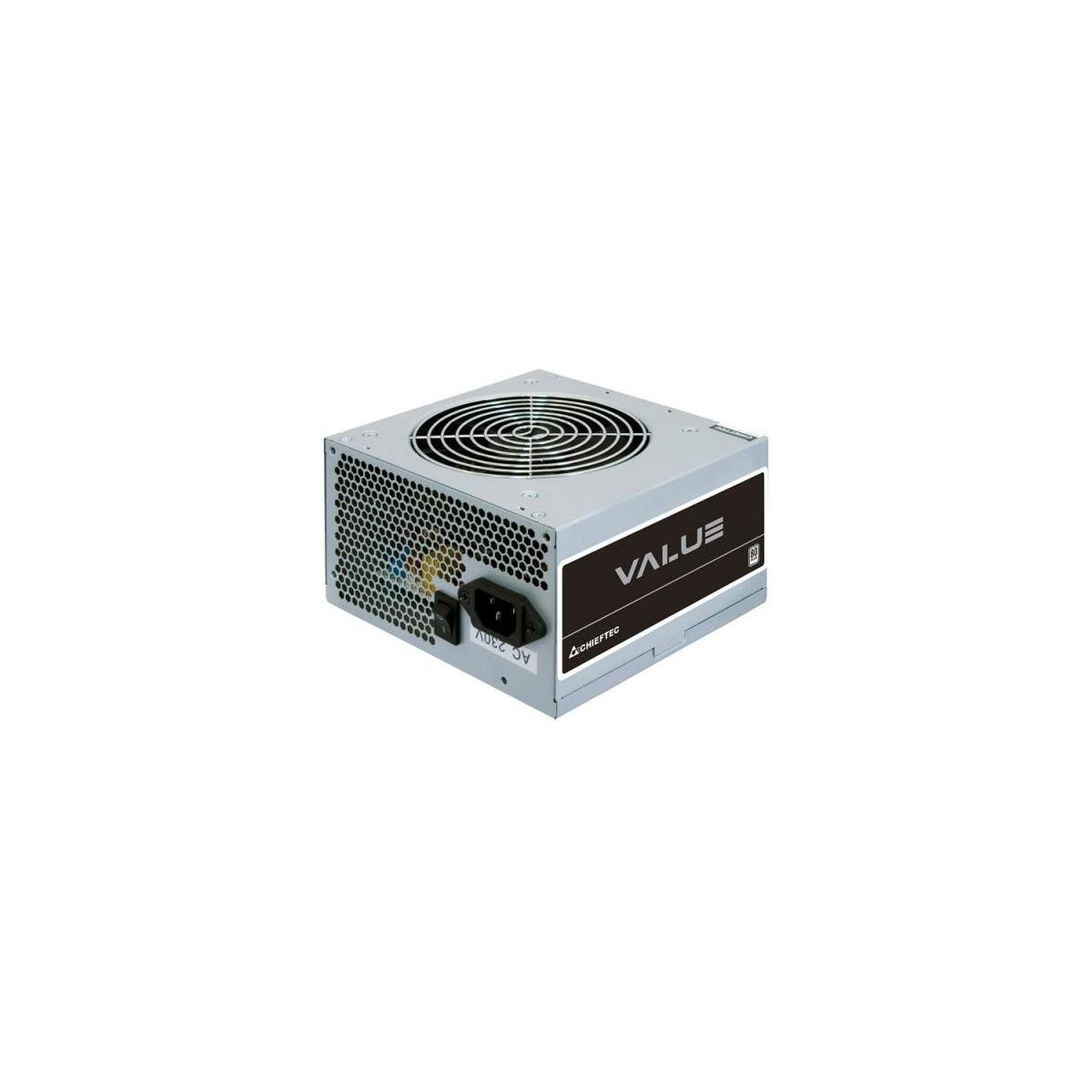

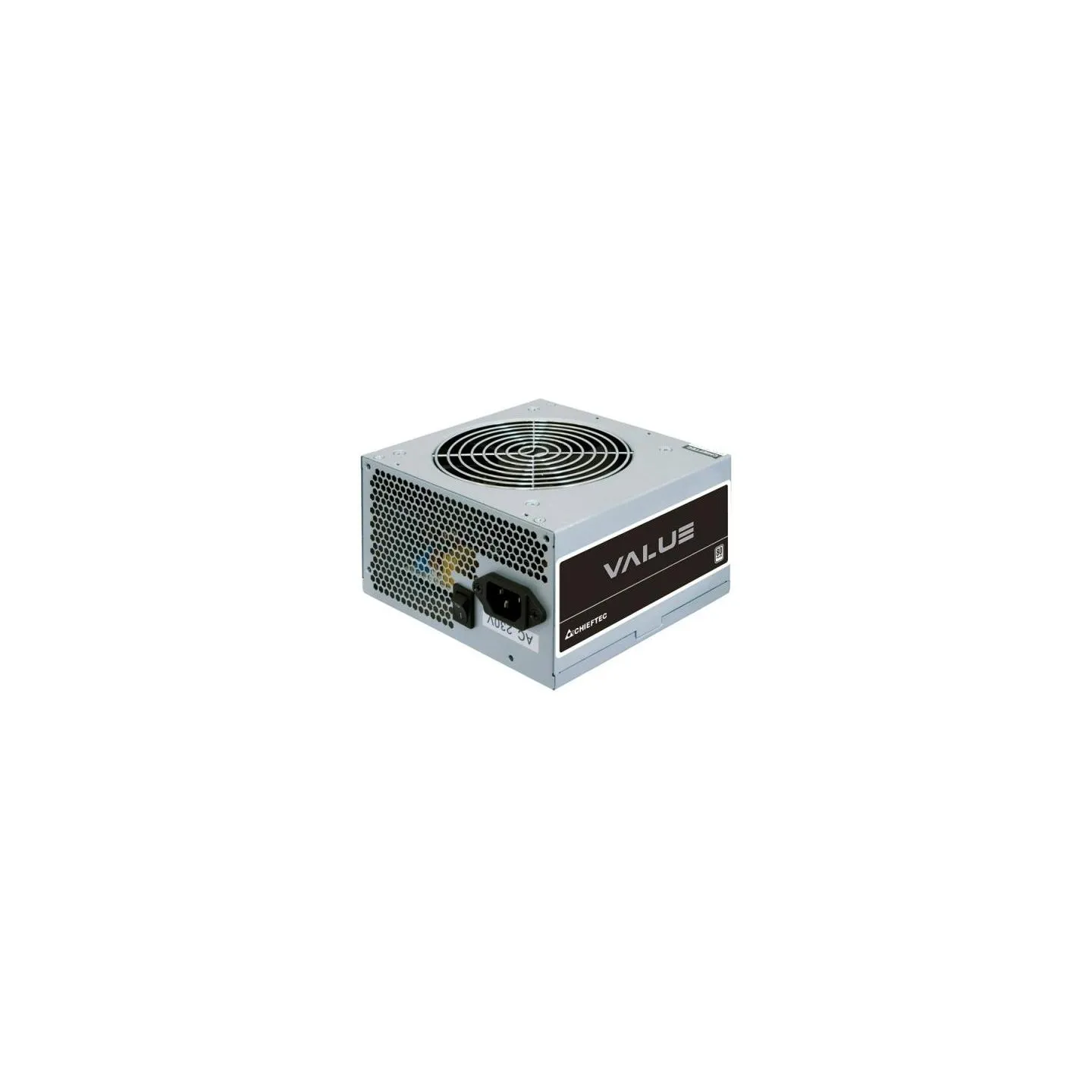

Chieftec Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|APB-700B8
Chieftec Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|APB-700B8

Chieftec Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|APB-700B8

SKU APB-700B8 Category Power Supplies
New
Out-of-Stock
Price: €44.04
Tax included
Out-of-Stock
Add to Cart
Share on

The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!



Manufacturer Website:
https://www.chieftec.eu/products-detail/181/VALUE_SERIES/527/APB-700B8

Category Code
PSU
CnCode
85044095
Unit Box Height
0.09
Unit Box Length
0.22
Unit Box Width
0.155
AC input frequency
47 - 63 Hz
AC input voltage
200 - 240 V
Combined power (+12V)
648 W
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Input current
5 A
Max output current (+12V1)
54 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage
Total power
700 W
Cabling type
Non-Modular
CPU power cable length
500 mm
CPU power connector (4+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
550 mm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power cable length
500 mm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150/500 mm
Peripheral (Molex) power connectors (4-pin)
2
SATA power cable length
150/550 mm
80 PLUS certification
80 PLUS
ATX version
2.3
Power supply unit (PSU) form factor
ATX
Purpose
PC/Server
Cooling type
Active
Fan diameter
120 mm
Number of fans
1 fan(s)
Product colour
Silver
Certification
CE, CB, EAC, TÜV
Compliance certificates
CE
Depth
140 mm
Height
87 mm
Weight
1420 g
Width
150 mm
Package weight
1570 g
Sustainability compliance
Yes
Harmonized System (HS) code
84733020
Units per Shipping Box
10
Unit Calculated Volume
0.004682 cubm
Unit Calculated Weight
1.55 kg
Category Power Supplies Brand CHIEFTEC EAN13 753263077820
