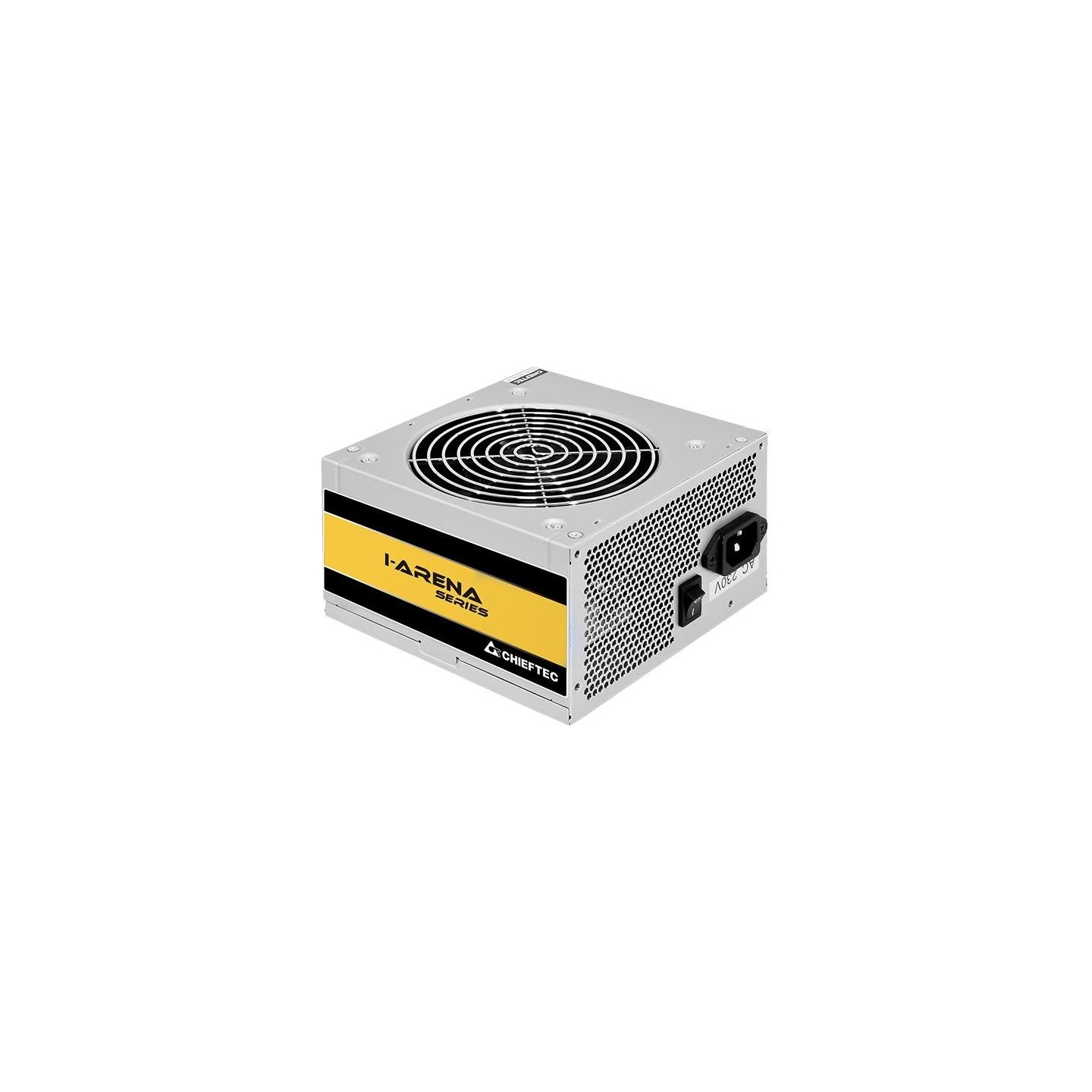

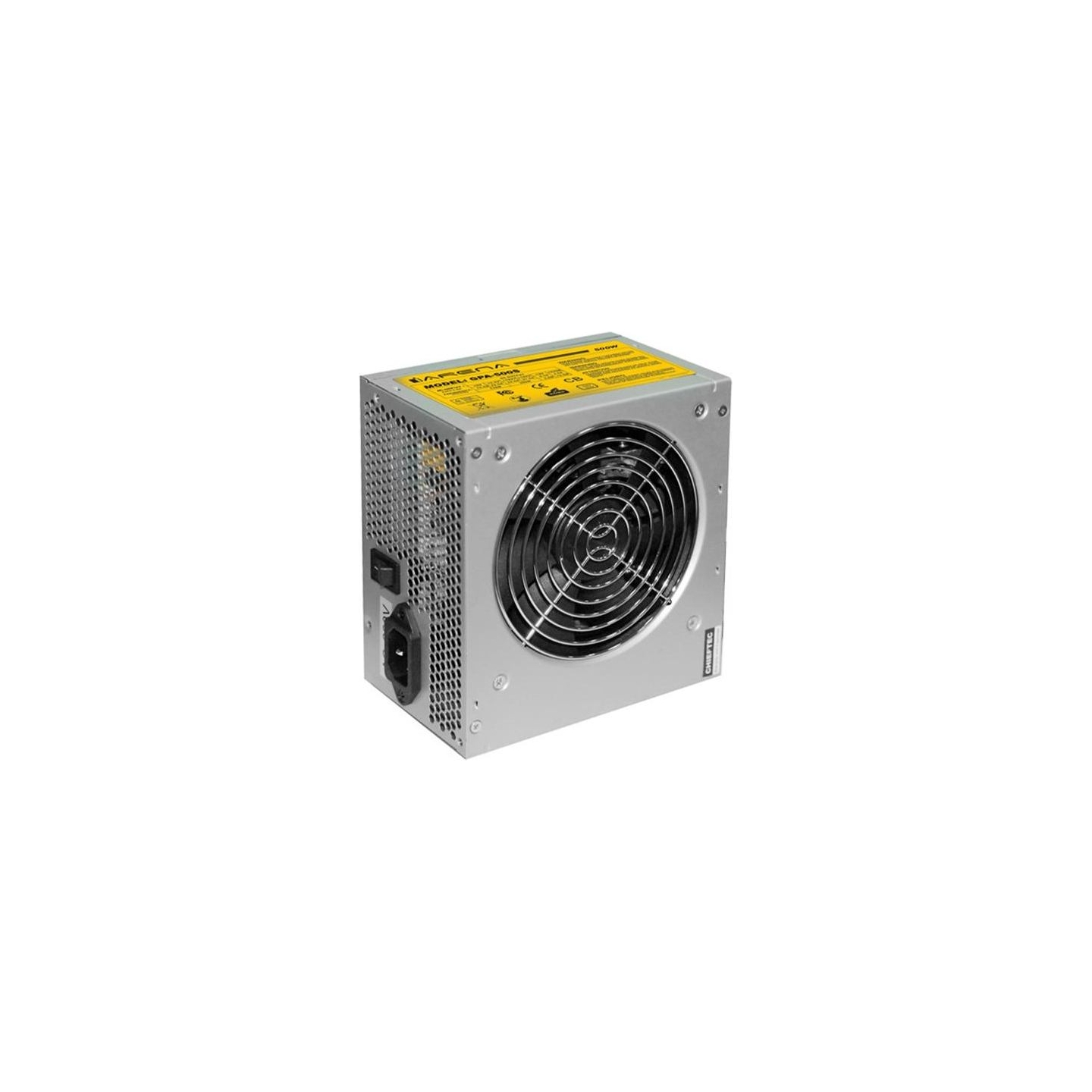

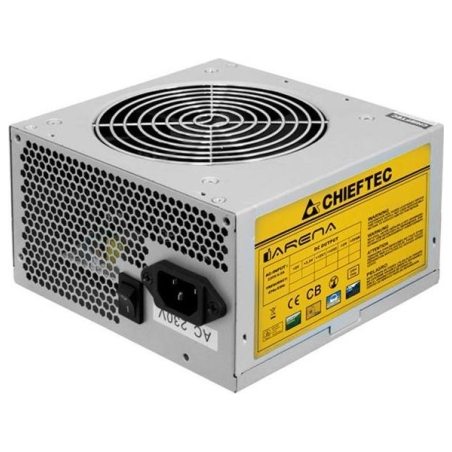

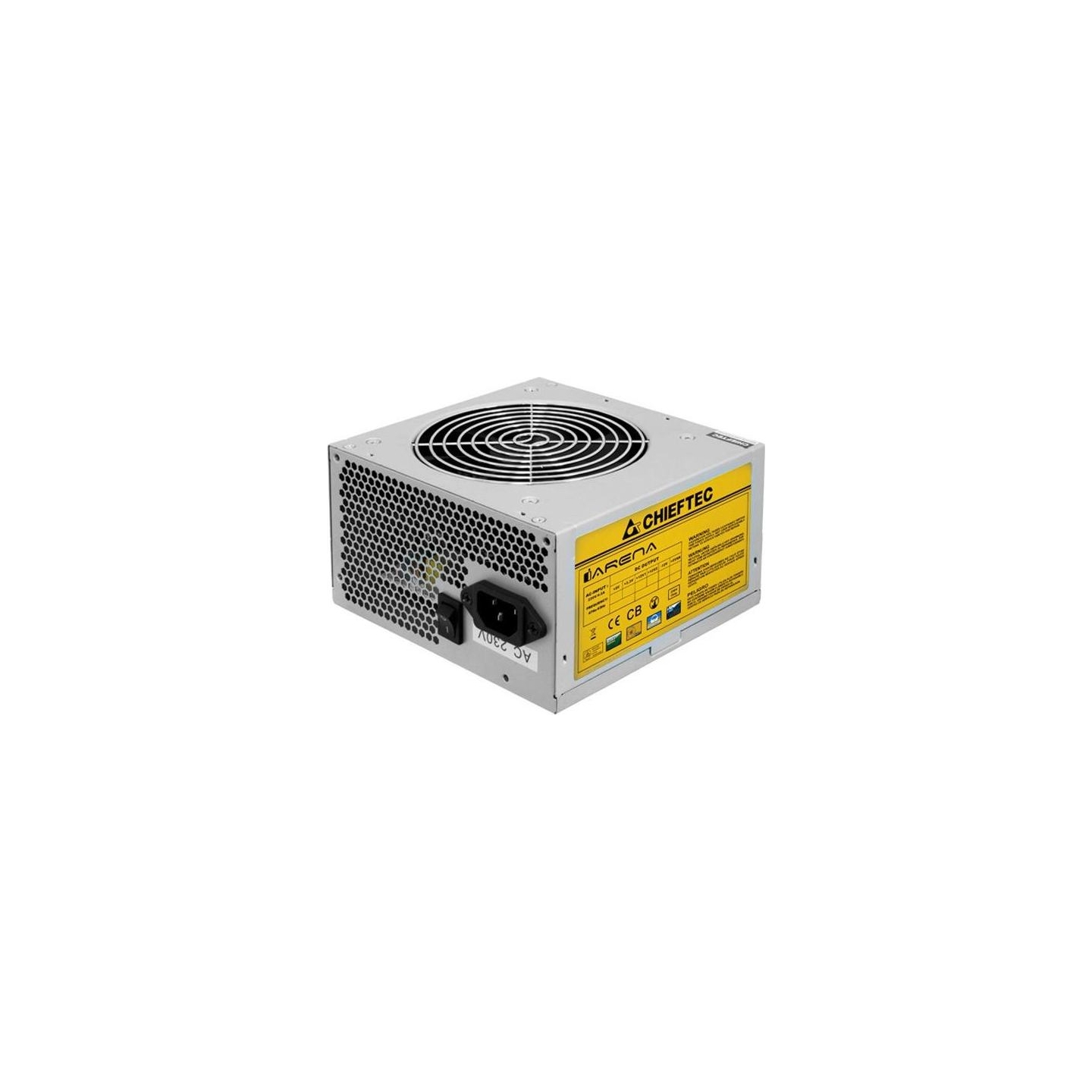

Chieftec CASE PSU ATX 700W/GPA-700S CHIEFTEC

Chieftec CASE PSU ATX 700W/GPA-700S CHIEFTEC

Name: Chieftec CASE PSU ATX 700W/GPA-700S CHIEFTEC
Brand: CHIEFTEC
SKU: GPA-700S
Price: 49.38 EUR
Availability: InStock

SKU GPA-700S Category Power Supplies

€49.38

Tax included

Share on

The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.

Manufacturer Website:
https://www.chieftec.eu/products-detail/140/IARENA_SERIES/146/GPA-700S

Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.09
Unit Box Length: 0.22
Unit Box Width: 0.155
AC input frequency: 47 - 63 Hz
AC input voltage: 200 - 240 V
Combined power (+12V): 648 W
Combined power (+3.3V): 130 W
Combined power (+5V): 130 W
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 3.6 W
Efficiency: 80 %
Input current: 5 A
Max output current (+12V): 50 A
Max output current (+3.3V): 22 A
Max output current (+5V): 22 A
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power protection features: Over voltage/Overload/Short circuit/Under voltage
Total power: 700 W
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
CPU power cable length: 550 mm
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Floppy drive power connector: 1
Motherboard power cable length: 500 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power cable length: 500/650/800 mm
Peripheral (Molex) power connectors (4-pin): 2
ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
Purpose: PC/Server
Cooling type: Active
Fan diameter: 120 mm
Fan location: Top
Number of fans: 1 fan(s)
Product colour: Silver
Compliance certificates: CB/CE/EAC
Depth: 150 mm
Height: 87 mm
Weight: 1440 g
Width: 140 mm
Package type: Box
Package weight: 1570 g
Units per Shipping Box: 10
Unit Calculated Volume: 0.004725 cubm
Unit Calculated Weight: 1.61 kg
