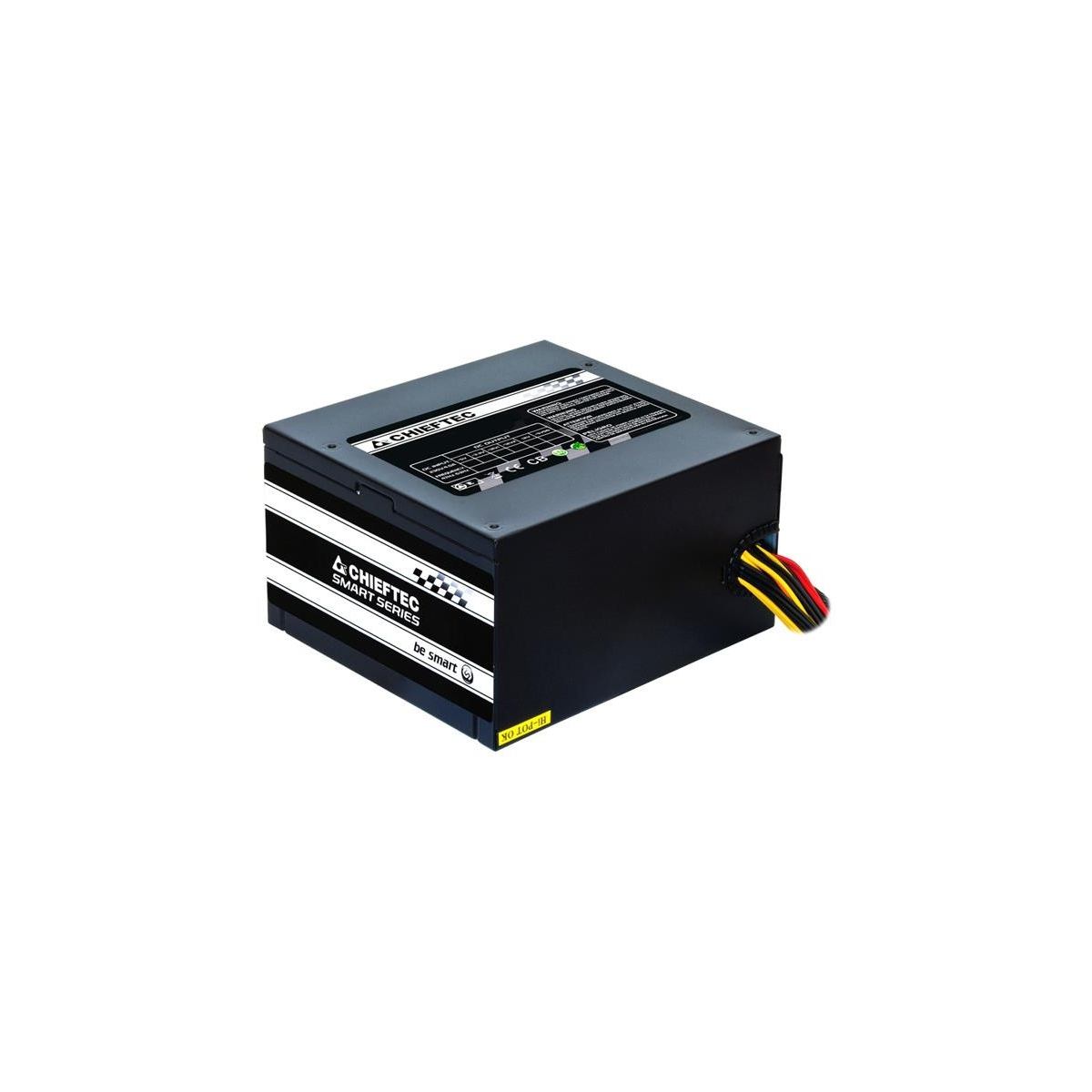

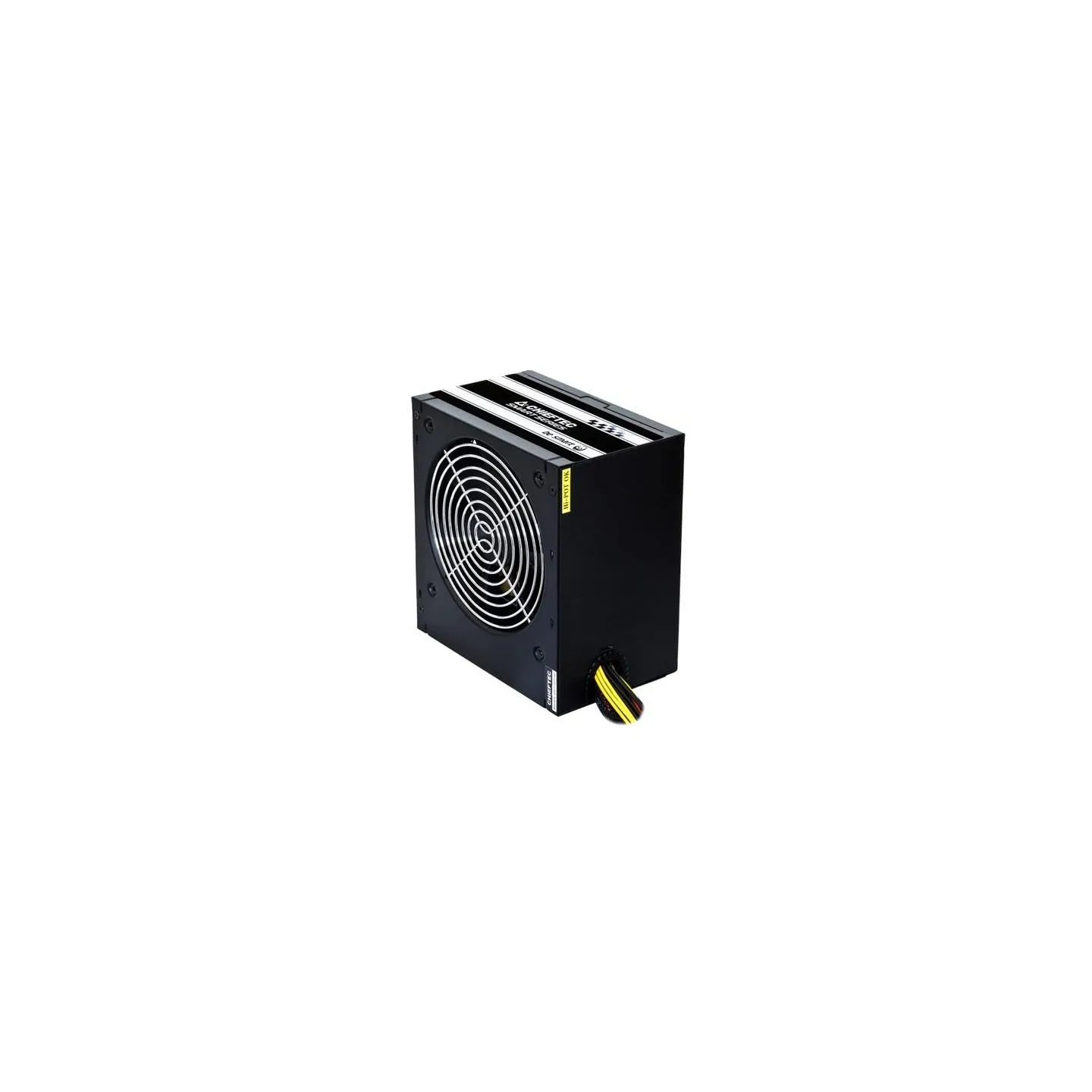

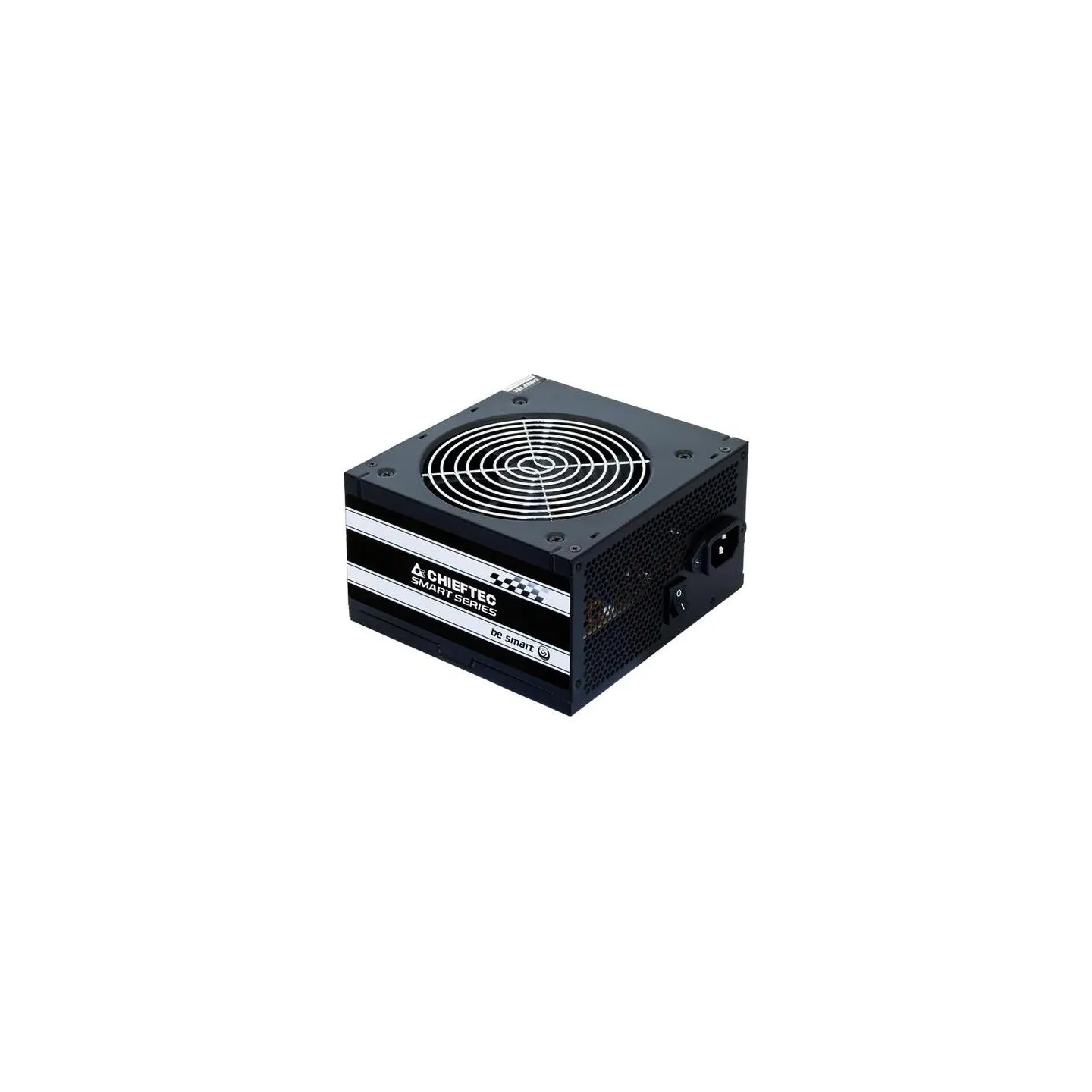

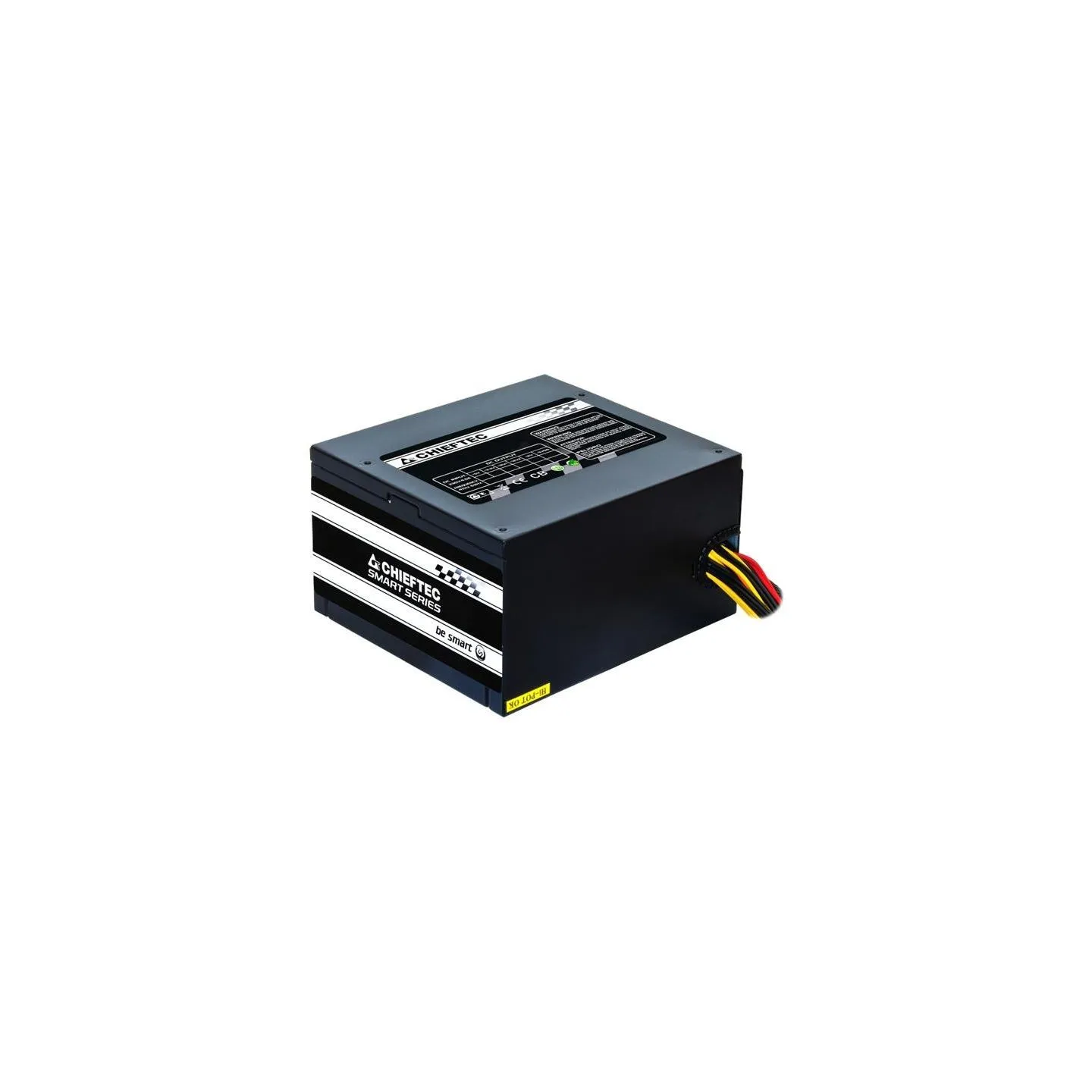

This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 85%, the GPS-650A8 fulfills the requirement of green power at an attractive price.
Manufacturer Website:
https://www.chieftec.eu/products-detail/178/SMART_SERIES/242/GPS-650A8
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.095
- Unit Box Length
- 0.235
- Unit Box Width
- 0.17
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 220 - 240 V
- Combined power (+12V)
- 600 W
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 85 %
- Input current
- 5 A
- Max output current (+12V1)
- 50 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over power/Over voltage/Short circuit/Under voltage
- Total power
- 650 W
- Cabling type
- Non-Modular
- EPS power connector (8-pin)
- Yes
- Floppy disk drive connector
- Yes
- Floppy drive power connector
- 1
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express connector
- Yes
- PCI Express power cable length
- 500 mm
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 2
- SATA power cable length
- 150/500 mm
- 80 PLUS certification
- 80 PLUS Bronze
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
- Supported motherboard form factors
- ATX
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
- Cables included
- AC,PCIe,Peripheral (Molex),SATA
- Certification
- CE, CB, EAC, ErP, RoHS, interseroh, TÜV
- Depth
- 150 mm
- Height
- 87 mm
- Width
- 140 mm
- Package type
- Box
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.005105 cubm
- Unit Calculated Weight
- 1.81 kg
