APC SRT8KRMXLI Smart-UPS SRT 8000VA Rack 230V
APC SMART-UPS SRT 8000VA RM 230V
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
- UPS devices and accessories
- Yes
- Weight, kg
- 111.82
- Form factor
- Rack
- Height, mm
- 263
- Width, mm
- 432
- Depth, mm
- 715
- Connections
- Contact Closure
- Connections
- RJ-45 10/100 Base-T
- Connections
- RJ-45 Serial
- Connections
- Smart-Slot
- Connections
- USB
- Certification
- CE, CE Mark
- Input connection
- Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Surge energy rating, J
- 480
- Noise level, dB
- 55
- Rack height (units)
- 6
- Output power, W
- 8000
- Nominal input voltage, V
- 230 (220, 240)
- Frequency range, Hz
- 50/60 +/- 3
- Output power capacity (VA)
- 8000
- Operating temperature range (T-T), °C
- 0 - 40
- Nominal output voltage, V
- 230 (220, 240)
- Operating relative humidity range, %
- 0 - 95
- Input frequency, Hz
- 45 - 65
- Output interface

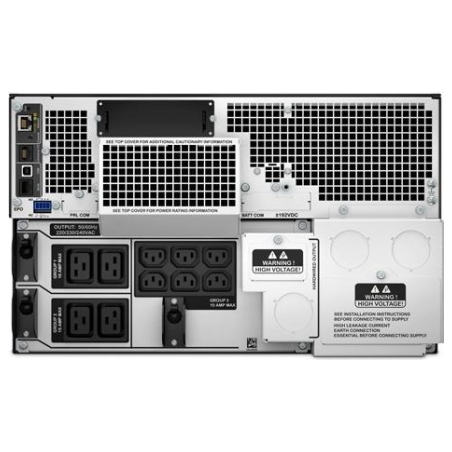

- 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers
- Storage temperature range (T-T), °C
- -15 - 45
- Battery recharge time, h
- 1.5
- Maximum power, W
- 8000
- Runtime
- 5 min (full load) / 16 min (half load)
