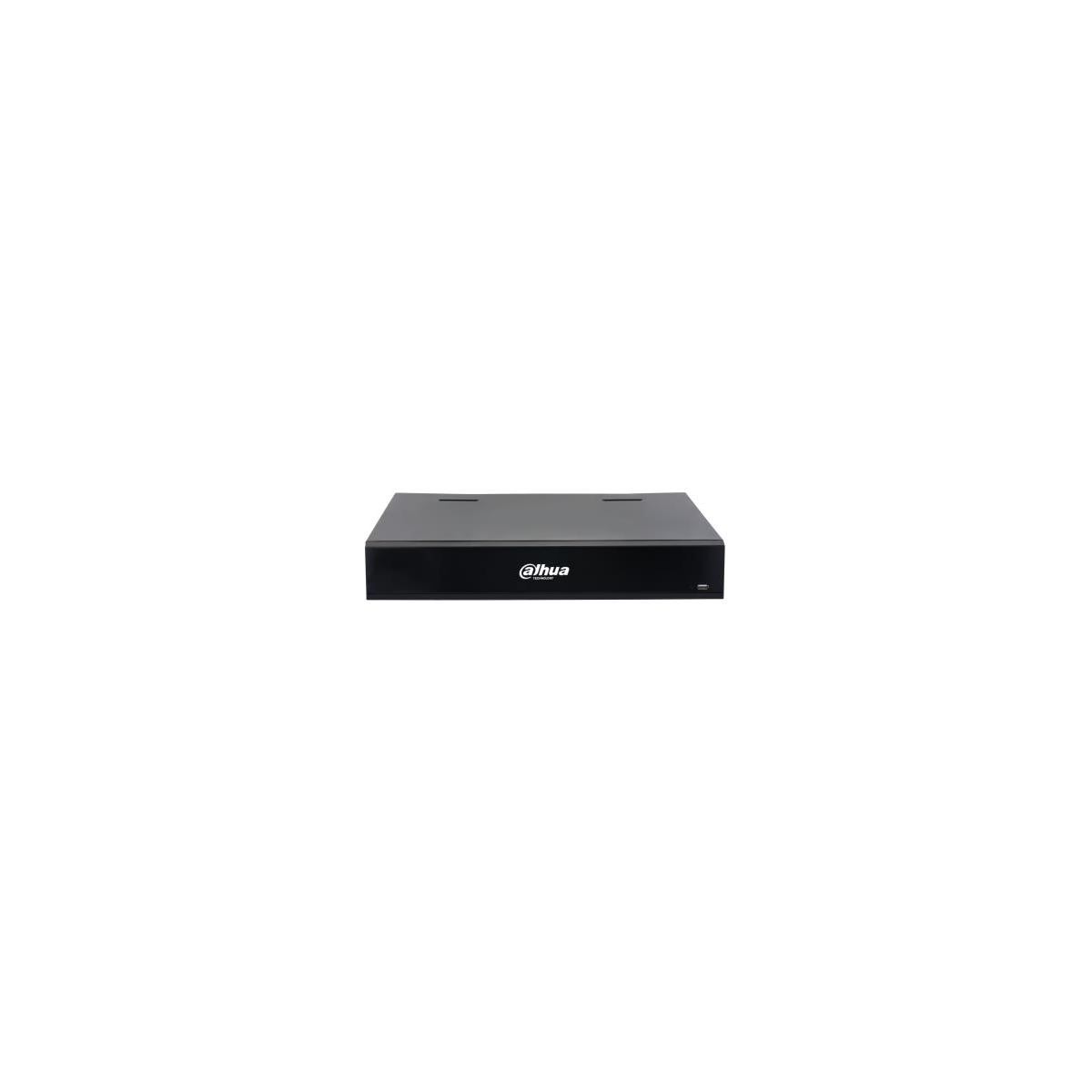

Dahua NET VIDEO RECORDER 32CH/NVR5432-XI/PRO DAHUA
32CH 1.5U 4HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 40 × 1080p@30 fps or 20 × 4 MP@30 fps.
> Max. 512/512/384 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports 8K HDMI output.
> Intelligent analytics based on Xinghan Large-Scale AI Models
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 8-channel AcuPick; 16-channel perimeter protection;
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, people counting and AcuPick
> Supports N+M cluster, ISCSI.
> Supports EPTZ, and one-click arming and disarming.
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizMind-Series/NVR5-XIPro/4HDD/NVR5432-XI/Pro
- Category Code
- NVR
- CnCode
- 85219000
- Unit Box Height
- 0.21
- Unit Box Length
- 0.53
- Unit Box Width
- 0.495
- Alarm input channels
- 4
- Alarm output channels
- 2
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.726
- Face detection
- Yes
- Maximum resolution
- 7680 x 4320 pixels
- Number of simultaneously playbacked channels
- 16 channels
- Operating system installed
- Embedded LINUX
- Supported resolutions
- 1920x1080, 1280x1024, 1280x720, 7680x4320, 3840x2160, 1920x1080
- Throughput data rate
- 512 Mbit/s
- Video formats supported
- H.264/H.264+/H.265/H.265+/M-JPEG
- Video input channels
- 32 channels
- Video motion detection
- Yes
- Video recording modes
- 1080p
- HDD interface
- SATA
- Maximum storage capacity
- 80 TB
- Number of HDDs supported
- 4
- Audio RCA inputs
- 1
- Audio RCA outputs
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- HDMI output
- Yes
- HDMI ports quantity
- 2
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Power over Ethernet (PoE) ports quantity
- 16
- RS-232 interface
- Yes
- RS-232 ports
- 1
- RS-485 ports
- 1
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- VGA (D-Sub) output ports
- 2
- Certification
- Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CELVD: EN 62368-1:2014
- Product colour
- Black
- Rack capacity
- 1.5U
- Rack mounting
- Yes
- Built-in processor
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Power consumption (max)
- 18 W
- Mobile operating systems supported
- Android/iOS
- Operating relative humidity (H-H)
- 10 - 93 %
- Operating temperature (T-T)
- -10 - 55 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Depth
- 411.4 mm
- Height
- 76 mm
- Package depth
- 500 mm
- Package height
- 211 mm
- Package weight
- 6500 g
- Package width
- 529 mm
- Weight
- 4370 g
- Width
- 440 mm
- Model
- NVR5432-XI/Pro
- Model name
- NVR5432-XI/PRO
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.05509 cubm
- Unit Calculated Weight
- 6.5 kg
