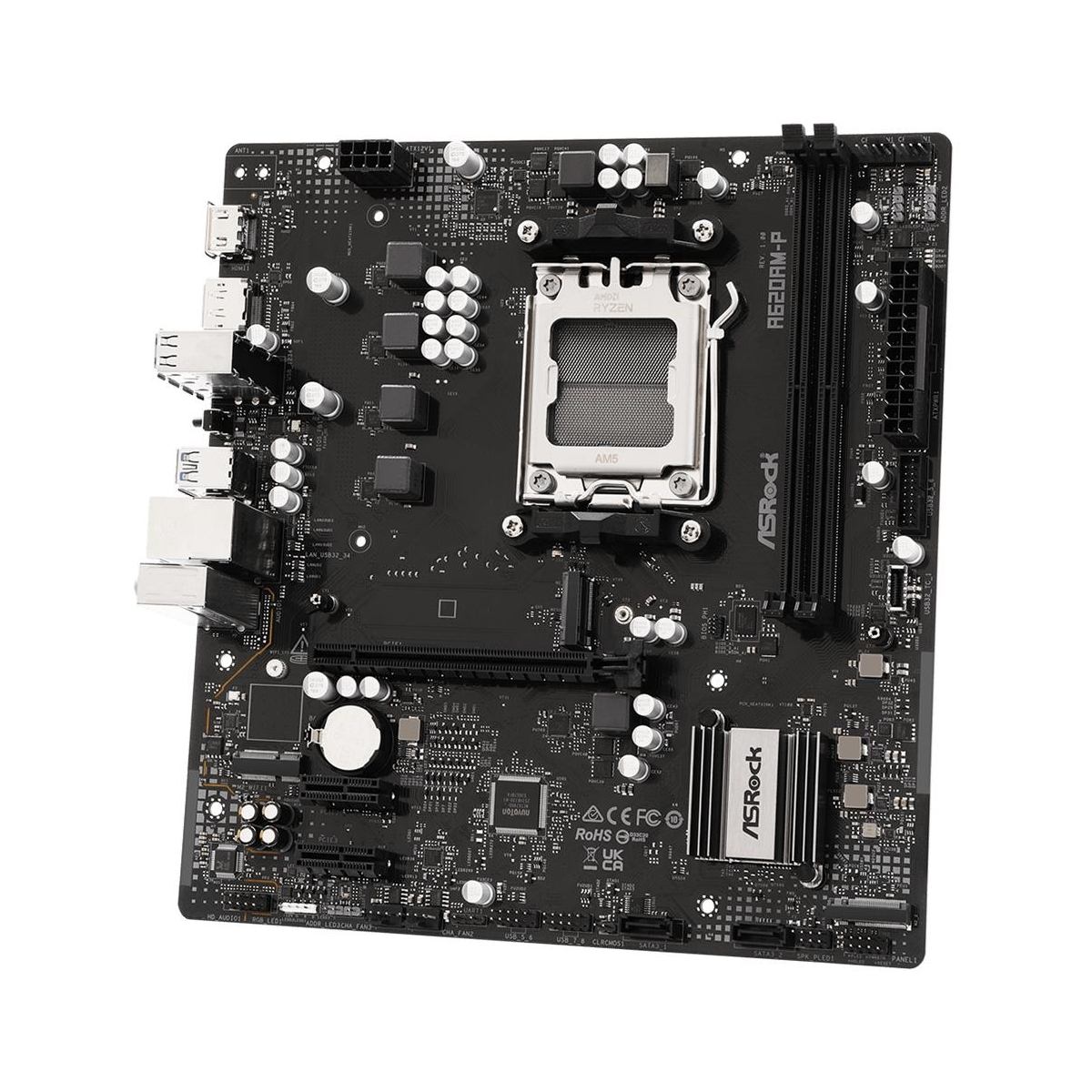

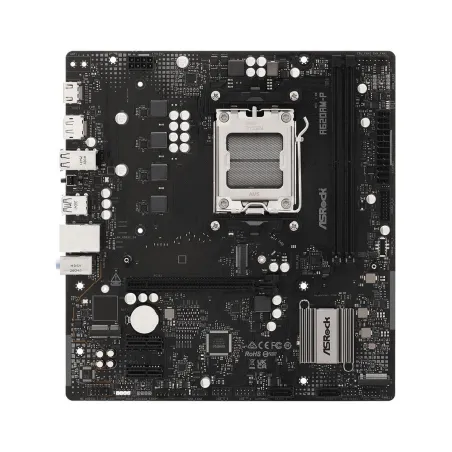

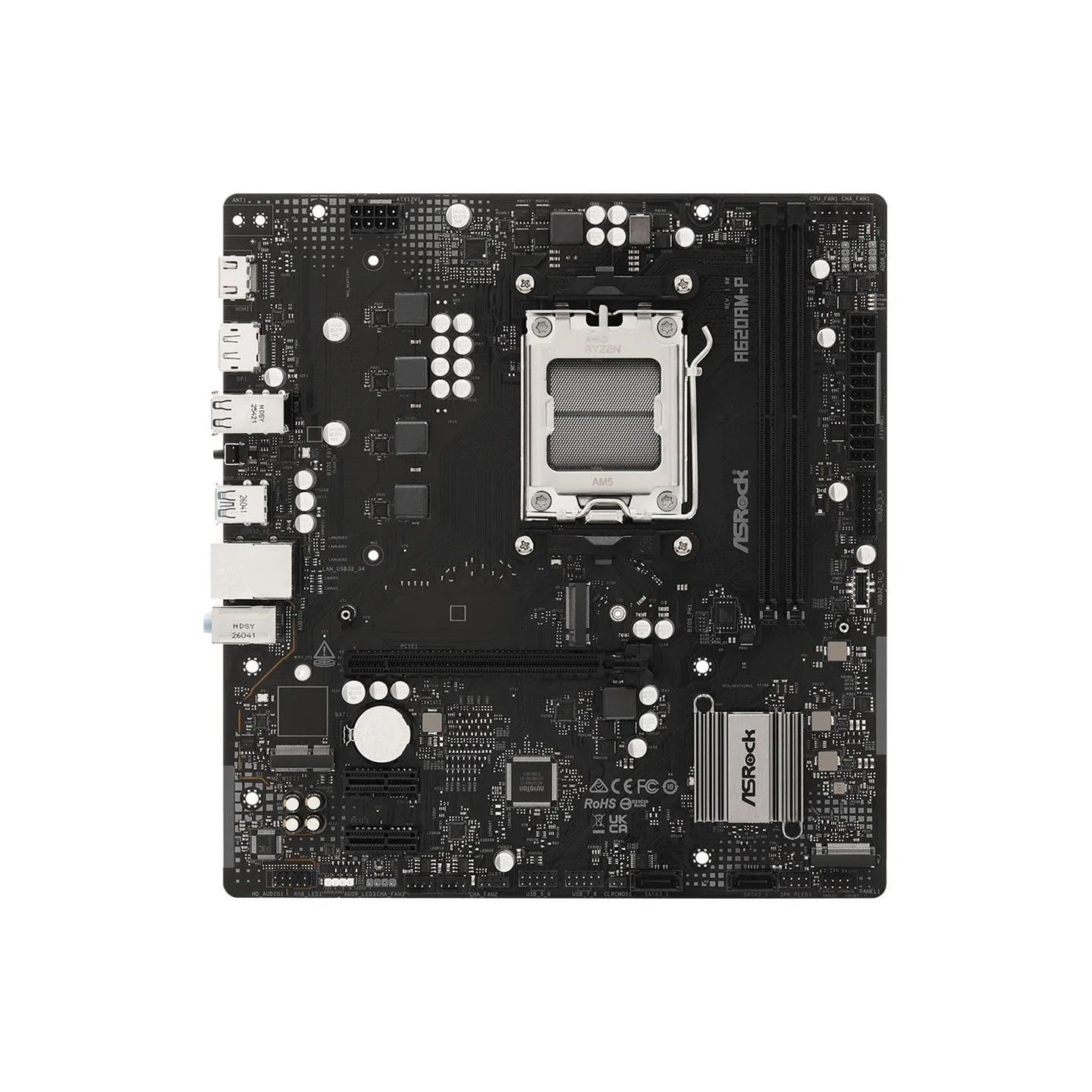

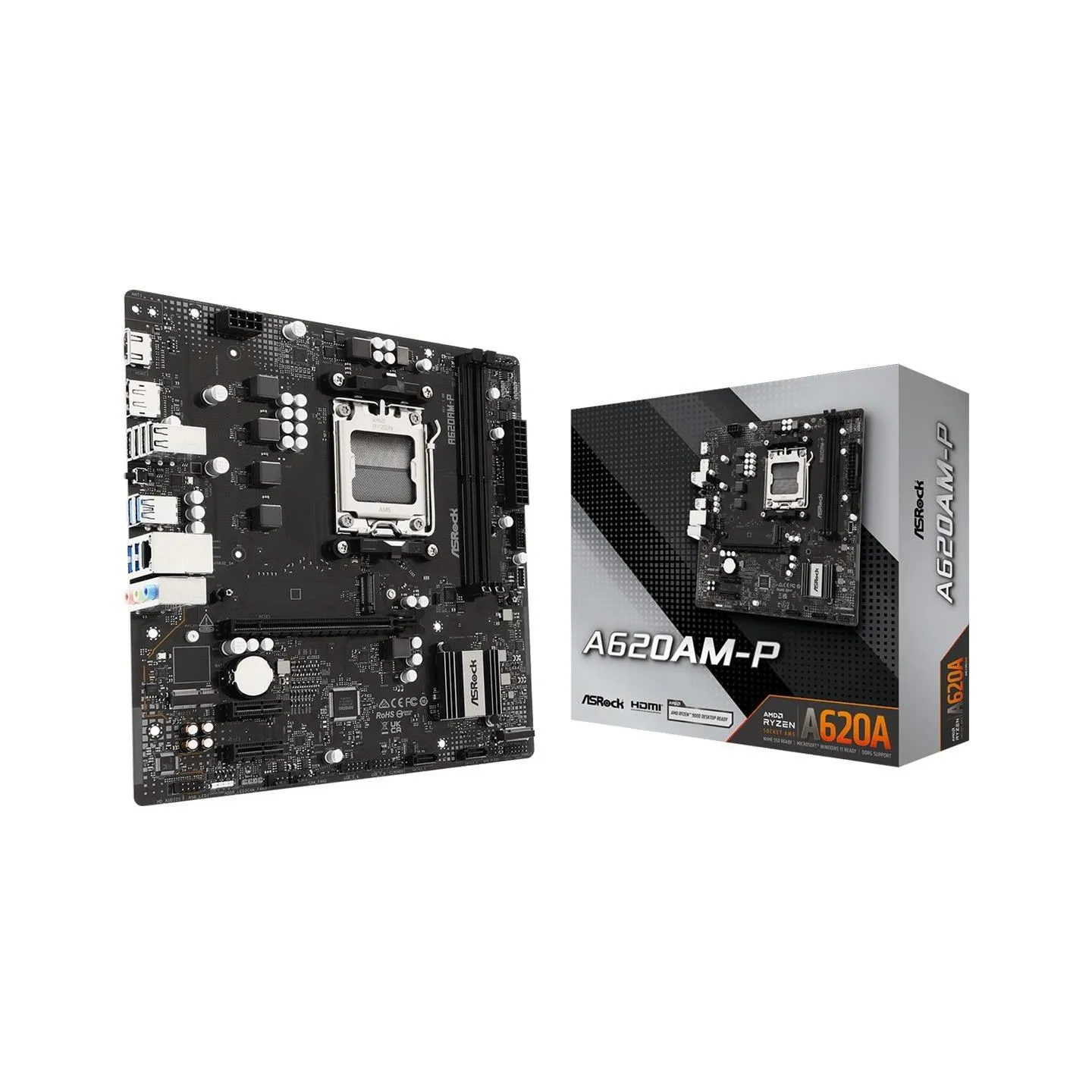

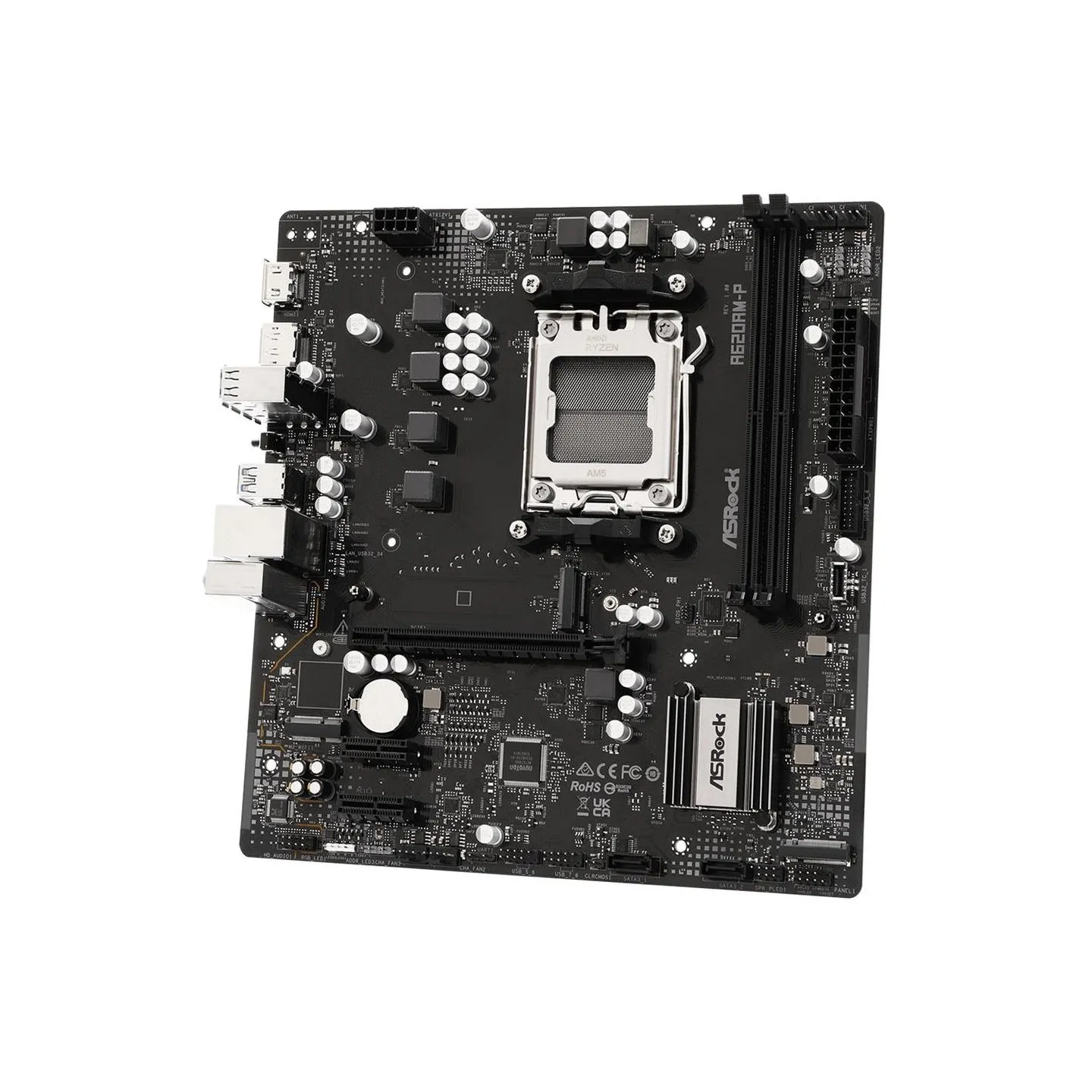

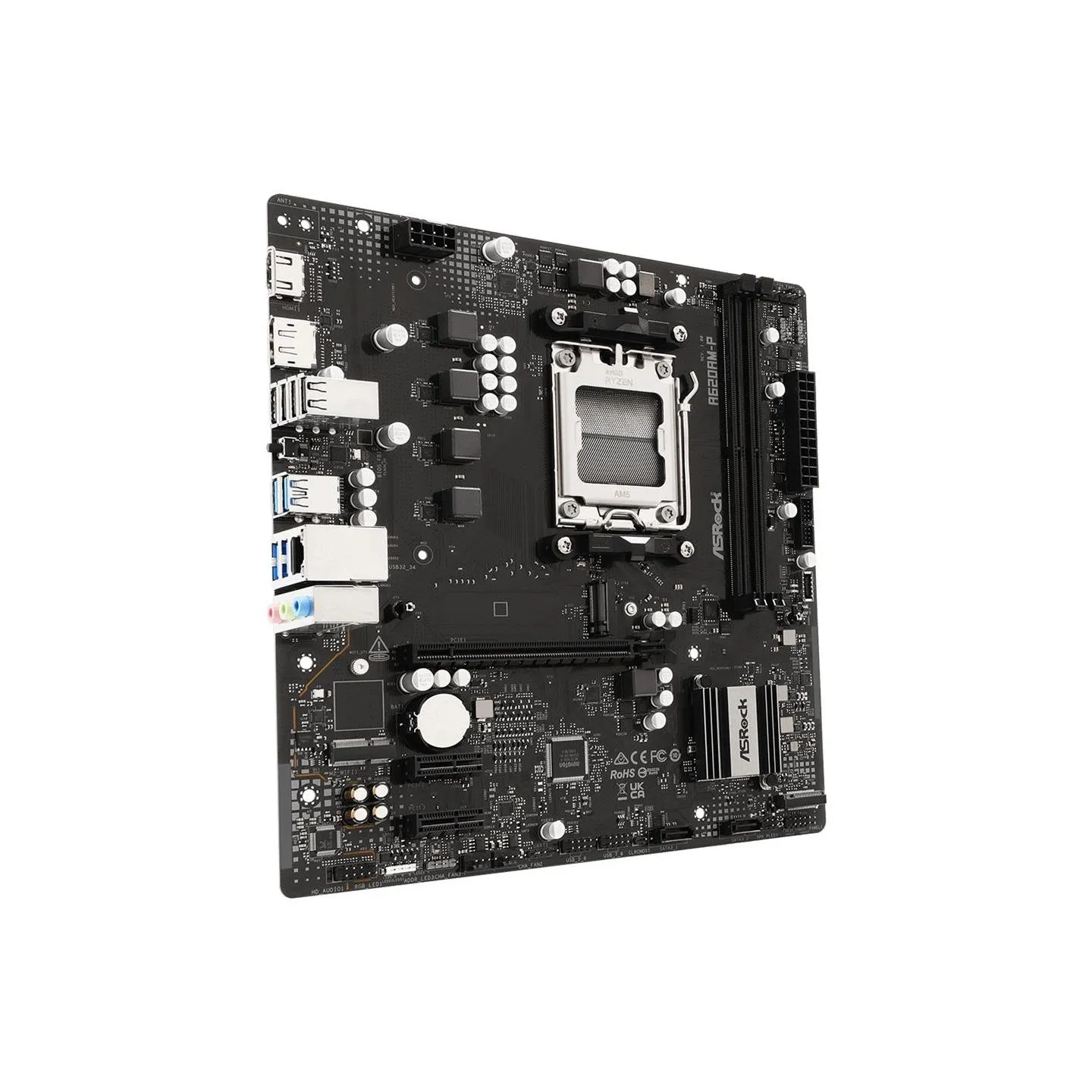

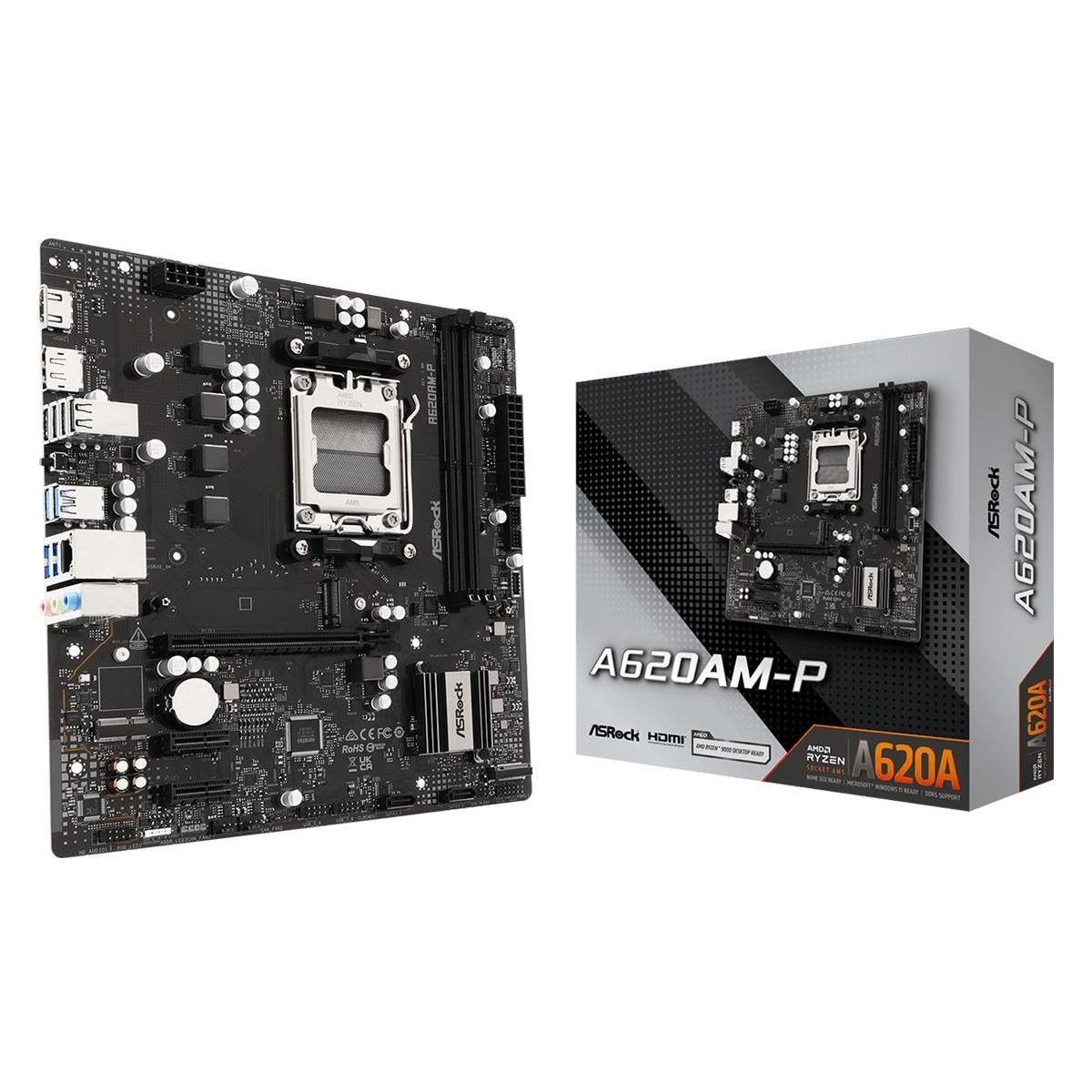

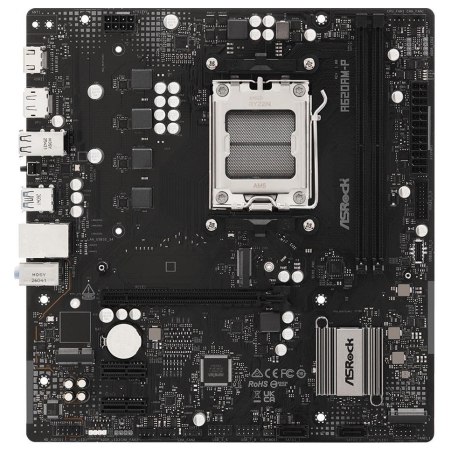

Asrock Mainboard|ASROCK|AMD A620A|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|1xNumber of M.2 (M) slots|A620AM-P

SKU A620AM-P Category Mainboards
New
Price: €79.48
Tax included
Share on

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.



Manufacturer Website:
https://www.asrock.com/MB/AMD/A620AM-P/index.asp#Specification

Category Code
MBA
CnCode
84733020
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset
AMD A620A
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Processor socket
Socket AM5
ECC сompatibility
Non-ECC
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
SATA III,M.2
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
3
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of SATA III connectors
2
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

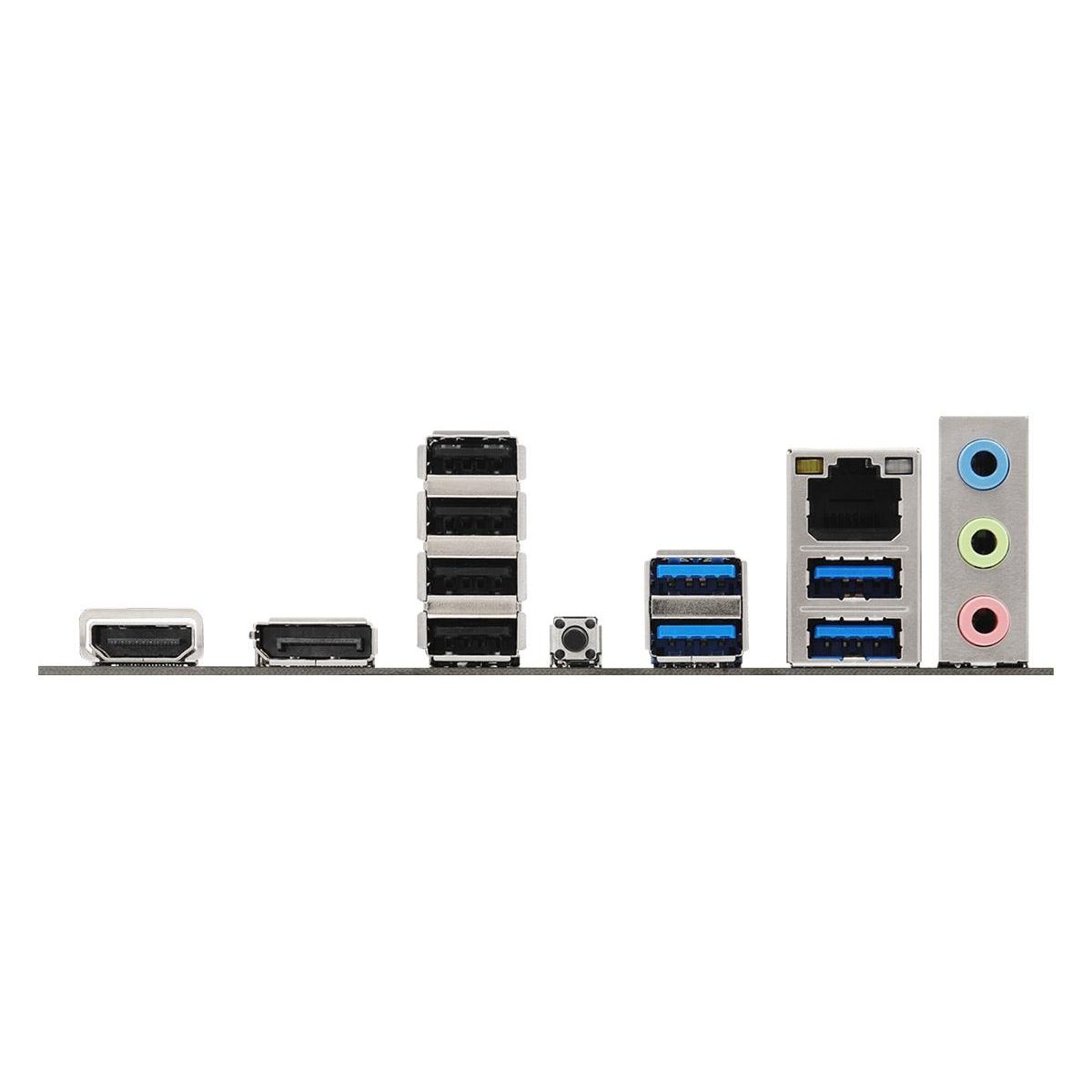

DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8111H
Wi-Fi
No
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Depth
229 mm
Width
244 mm

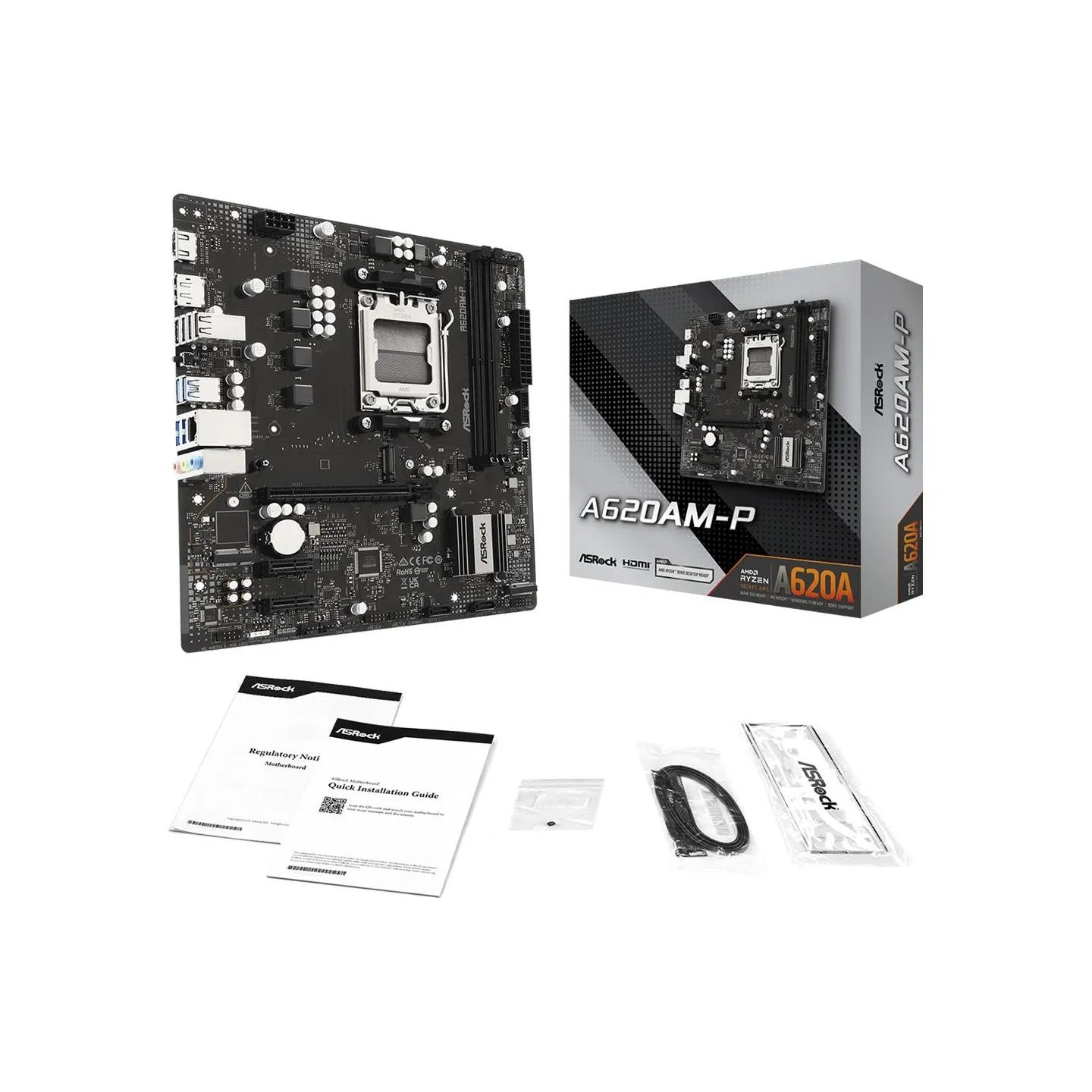

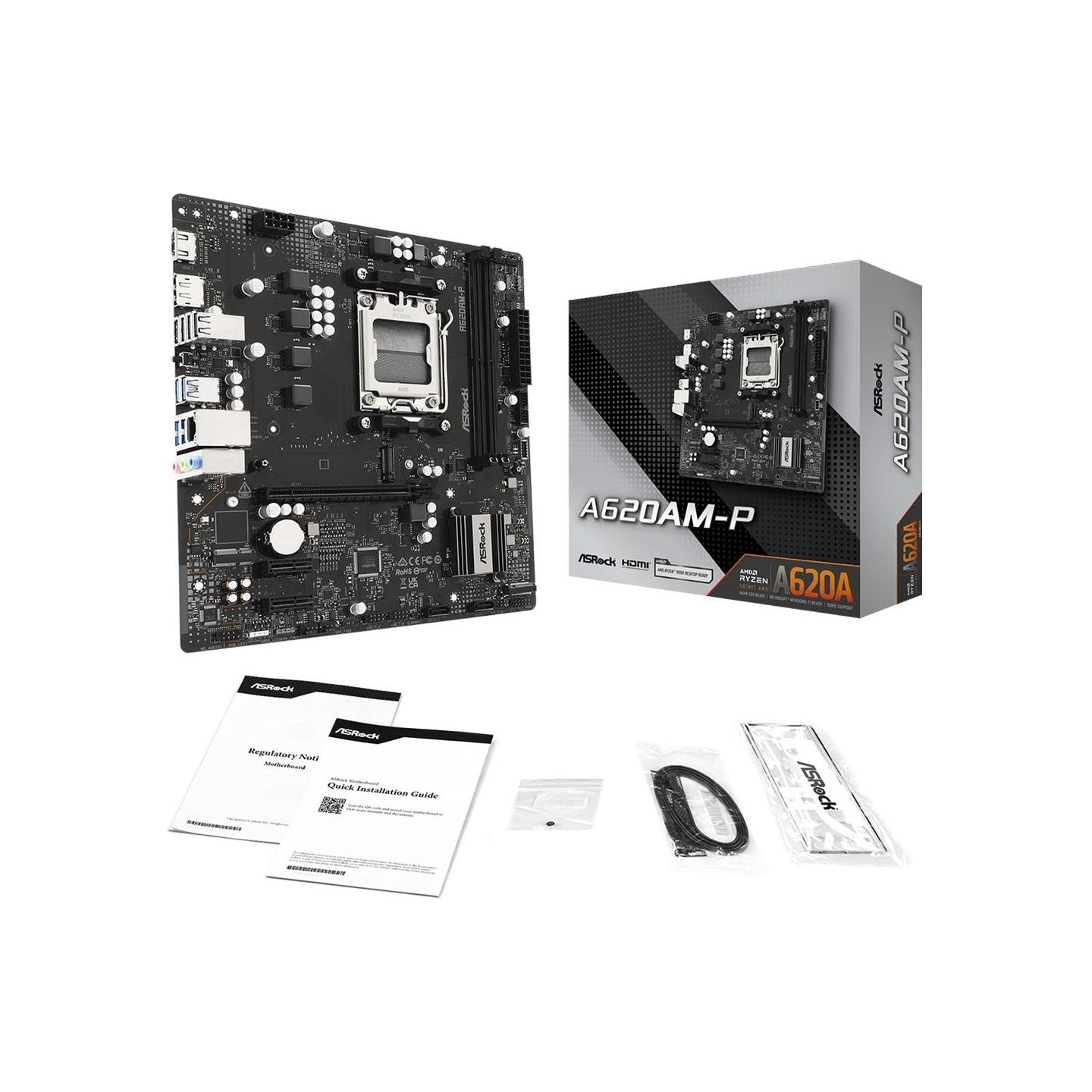

Cables included
SATA
Screws included
Yes
Unit Calculated Volume
0.005579 cubm
Unit Calculated Weight
1.2 kg
Category Mainboards Brand ASROCK In stock 10 Items
