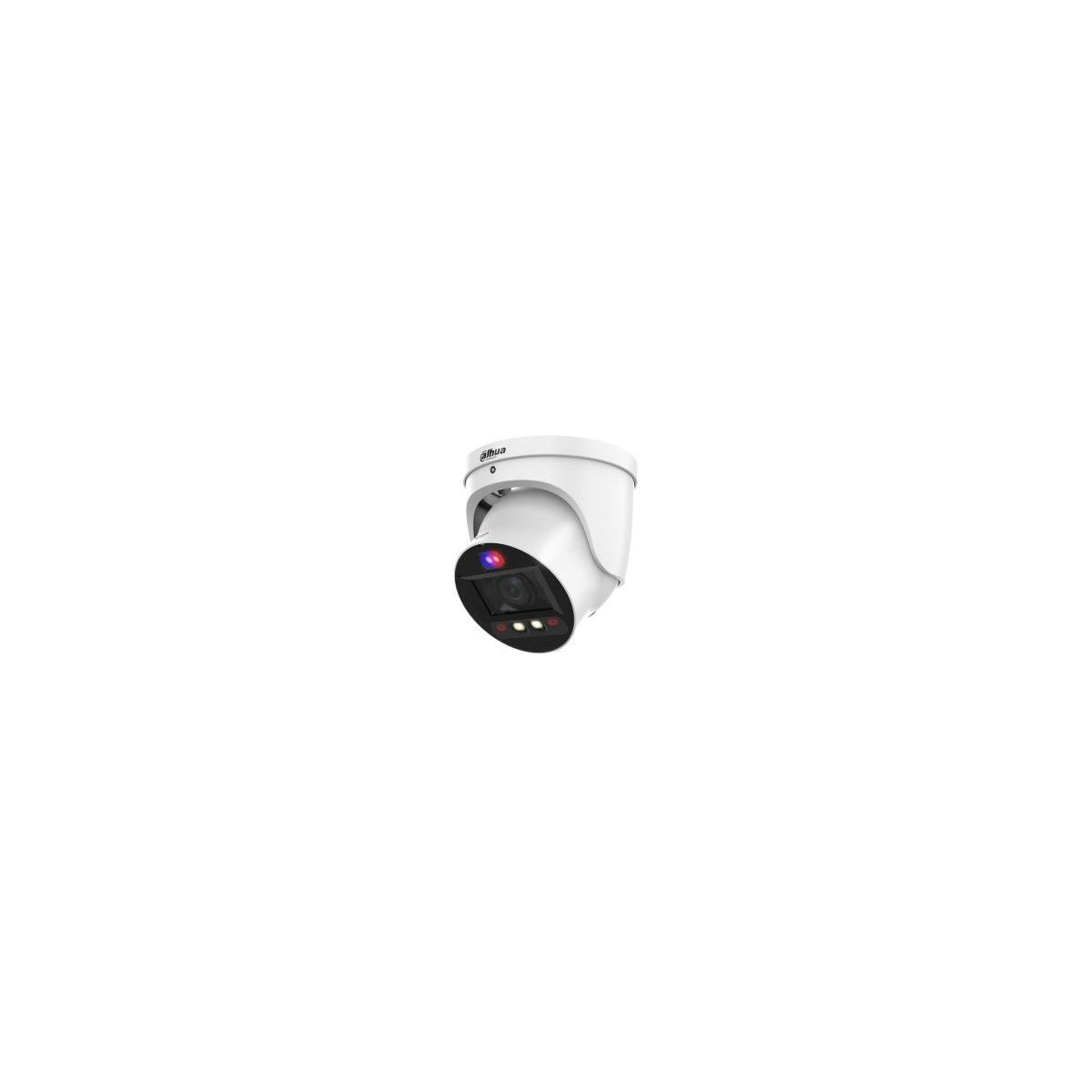

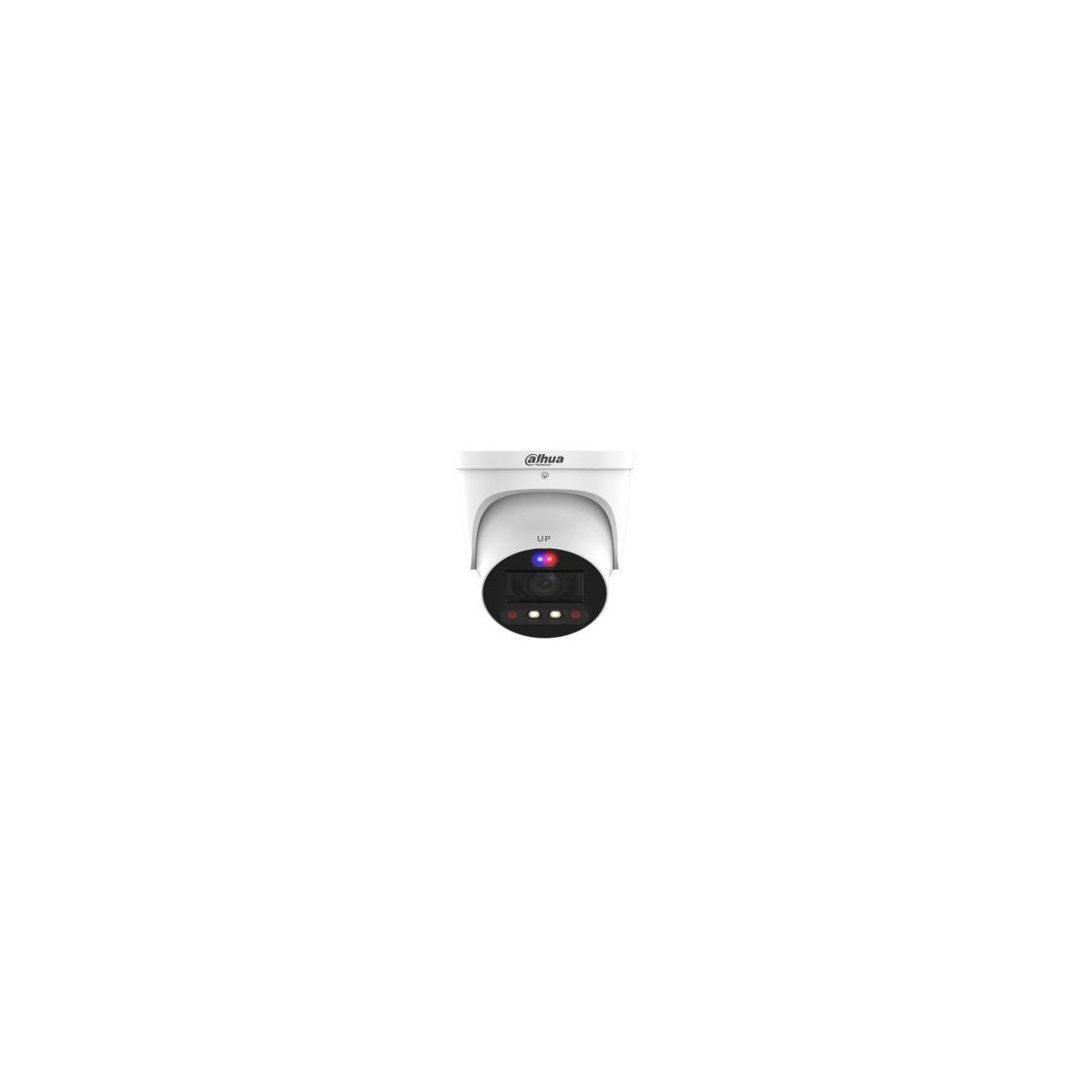

Dahua NET CAMERA 5MP EYEBALL/HDW3549H-ZAS-PV-27135S5 DAHUA
New
Price:
€623.39
Tax included
Last items in stock
Share on
Turret
Ceiling/wall
White
IP code IP67
IP security camera
Wired
Placement Indoor & outdoor
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Alarm input/output Yes
Built-in light Yes
Pan range 0 - 360 °
White balance Auto/Manual/Natural/Outdoor/Street lamp
Camera shutter type Electronic
Optical sensor size 1/2.7 "
Sensor type CMOS
1xNumber of lenses
Night vision Yes
Night vision distance 50 m
Total megapixels 5 MP
Noise reduction Yes
Built-in microphone Yes
Ethernet LAN Yes
Card reader integrated Yes
Power source type DC,PoE
Weight 885 g
1xNumber of cameras
Manufacturer Website:
https://www.dahuasecurity.com/products/discontinued-products/network-cameras/ipc-hdw3549h-zas-pv=s5
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.17
- Unit Box Length
- 0.175
- Unit Box Width
- 0.175
- Fog proof
- Yes
- Form factor
- Turret
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/wall
- Product colour
- White
- Protection features
- Waterproof
- Alarm input/output
- Yes
- Built-in light
- Yes
- Certification
- CE-LVD: EN 62368-1; CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Adjustment shutter speed
- Auto/Manual
- Angle of rotation
- 360 °
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera shutter type
- Electronic
- Lens viewing angle, diagonal
- 137 - 40 °
- Lens viewing angle, horizontal
- 113 - 36 °
- Lens viewing angle, vertical
- 57 - 20 °
- Minimum illumination
- 0 lx
- Number of Privacy masking areas
- 4
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 78 °
- White balance
- Auto/Manual/Natural/Outdoor/Street lamp
- Number of sensors
- 1
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 1.5 m
- Detect distance (tele)
- 186.6 m
- Detect distance (wide)
- 65.2 m
- Focal length range
- 2.7 - 13.5 mm
- Identify distance (tele)
- 18.7 m
- Identify distance (wide)
- 6.5 m
- Maximum aperture number
- 1
- Number of lenses
- 1
- Observe distance (tele)
- 74.6 m
- Observe distance (wide)
- 26.1 m
- Recognize distance (tele)
- 37.3 m
- Recognize distance (wide)
- 13 m
- B/W night vision distance
- 50 m
- LED type
- IR/White
- Night vision
- Yes
- Night vision distance
- 50 m
- Number of illumination LEDs
- 4
- Back Light Compensation (BLC)
- Yes
- Bit rate
- 3 kbps - 16384 kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2960 x 1668 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Yes
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
- Total megapixels
- 5 MP
- Video compression formats
- H.264/H.264+/H.264B/H.265/H.265+
- Video streaming
- Yes
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Built-in microphone
- Yes
- Built-in speaker(s)
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Voice codecs
- G.711a/G.711Mu/G.726/PCM
- Bluetooth
- No
- Client interoperability
- ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.3af
- Number of users
- 20 user(s)
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- RAM capacity
- 1000 MB
- ROM capacity
- 256 MB
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 1
- Alarm output channels
- 1
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Mirror
- Yes
- Network access storage (NAS)
- Yes
- Privacy protection
- Yes
- Video motion detection
- Yes
- Management software
- Smart PSS, DSS, DMSS
- Web browser
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 8.5 W
- Power consumption (Power over Ethernet (PoE))
- 10.6 W
- Power consumption (typical)
- 4 W
- Power source type
- DC,PoE
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Diameter
- 122 mm
- Height
- 127.6 mm
- Weight
- 885 g
- Package weight
- 1060 g
- Number of cameras
- 1
- Browser supported
- IE: IE8, IE9, IE11 Chrome Firefox, Safari
- Lens mount interface
- M12
- Number of video streams
- 2
- Product Net Weight
- 0.885 kg
- Shipping Box Depth
- 17.5 cm
- Shipping Box Height
- 17 cm
- Shipping Box Weight
- 1.10000002384186 kg
- Shipping Box Width
- 17.5 cm
- Unit Calculated Volume
- 0.00294 cubm
- Unit Calculated Weight
- 1.06 kg
- Units per Shipping Box
- 1
- Model
- IPC-HDW3549H-ZAS-PV-27135S5
