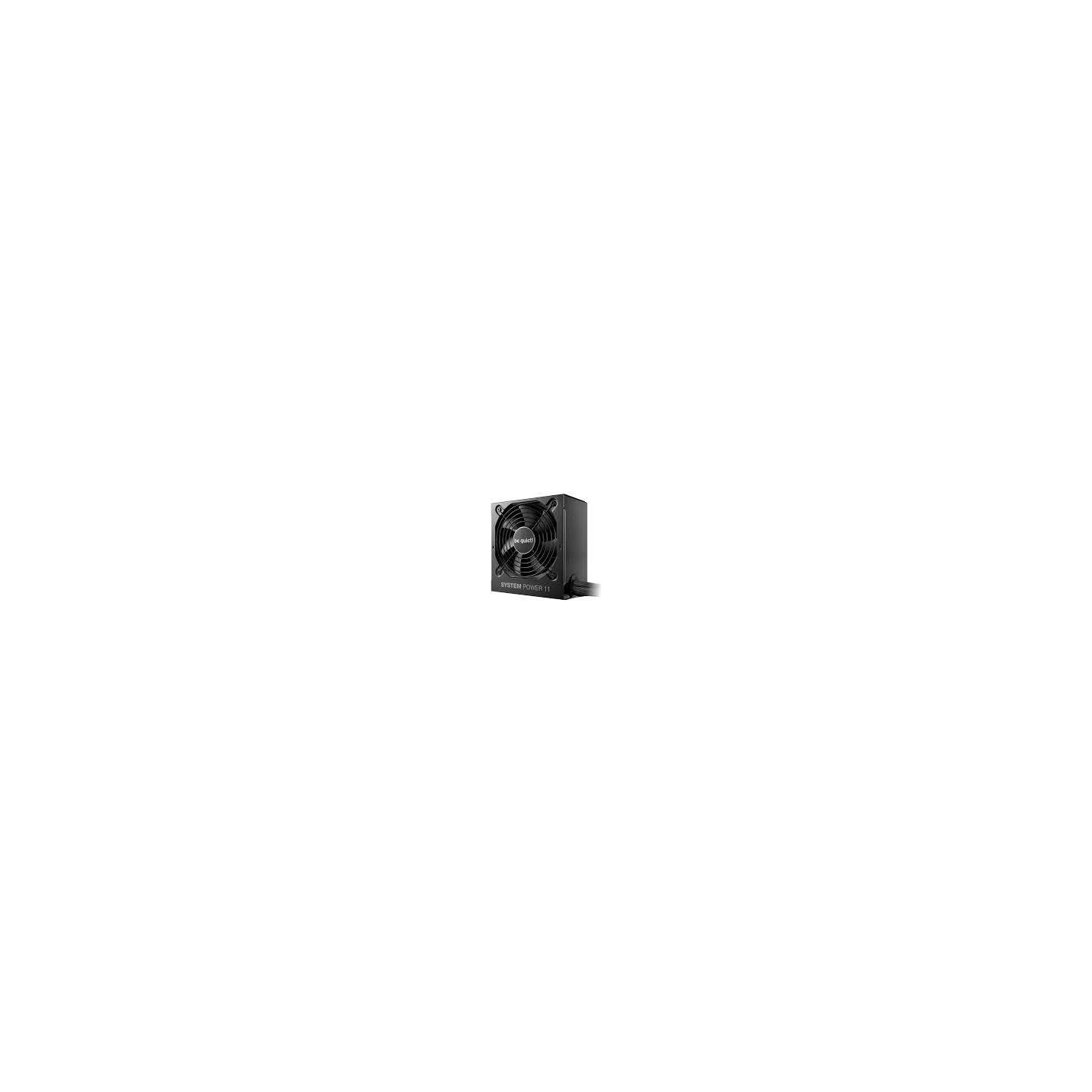

Be Quiet Power Supply|BE QUIET|ATX|PC|200 - 240 V|550 W|BP010EU
Be Quiet Power Supply|BE QUIET|ATX|PC|200 - 240 V|550 W|BP010EU

Be Quiet Power Supply|BE QUIET|ATX|PC|200 - 240 V|550 W|BP010EU

SKU BP010EU Category Power Supplies
New
Price: €67.34
Tax included
Add to Cart
Share on

Proven Reliability, Quiet Operation
System Power 11 550W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 550W offers even at entry-level.

  • ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Temperature-controlled 120mm quality fan reduces system noise
  • Rock-solid stability with a strong 12V-rail
  • Tight voltage regulation using DC-to-DC technology
  • One PCIe 5.1 12V-2x6 300W and 2 PCIe 6-2 connectors
  • Dependable operation to support powerful GPUs
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89.7%)
  • Attractive black flat cables
  • Complete suite of top safety features
  • Product conception, design and quality control in Germany



Manufacturer Website:
https://www.bequiet.com/en/download/products

Category Code
PSU
CnCode
85044095
Unit Box Height
0.196
Unit Box Length
0.28
Unit Box Width
0.099
AC input frequency
50 Hz
AC input voltage
200 - 240 V
Combined power (+12V)
550 W
Combined power (+3.3V)
120 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Efficiency
89.7 %
Hold time
16.86 ms
Input current
4 A
Max output current (+12V1)
45.83 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Number of +12V rail(s)
1
Power factor
0.98
Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Total power
550 W
Cabling type
Non-Modular
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
PCI Express power connectors (12-pin)
1
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
1
80 PLUS certification
80 PLUS Bronze
ATX version
3.1
Bearing technology
Rifle
EPS version
2.92
Mean time between failures (MTBF)
100000 h
Noise level
24.2 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Cooling type
Active
Fan diameter
120 mm
Fan speed
0 - 1800 RPM
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Compliance certificates
CB/CE/RoHS/TÜV mark/UKCA/WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Depth
86 mm
Height
140 mm
Weight
1920 g
Width
150 mm
Package depth
268 mm
Package height
97 mm
Package type
Box
Package weight
2300 g
Package width
195 mm
Sustainability certificates
ENERGY STAR/ErP
Products per shipping (inner) case
6 pc(s)
Shipping (inner) case gross weight
14900 g
Shipping (inner) case height
218 mm
Shipping (inner) case length
556 mm
Shipping (inner) case width
311 mm
Cable ties included
Yes
Screws included
Yes
Product Net Weight
1.92 kg
Shipping Box Depth
57.7000007629395 cm
Shipping Box Height
21.7000007629395 cm
Shipping Box Weight
15 kg
Shipping Box Width
31.7000007629395 cm
Unit Calculated Volume
0.006615 cubm
Unit Calculated Weight
2.5 kg
Units per Shipping Box
6
Category Power Supplies Brand BE QUIET EAN13 4260052191866 In stock 11 Items
