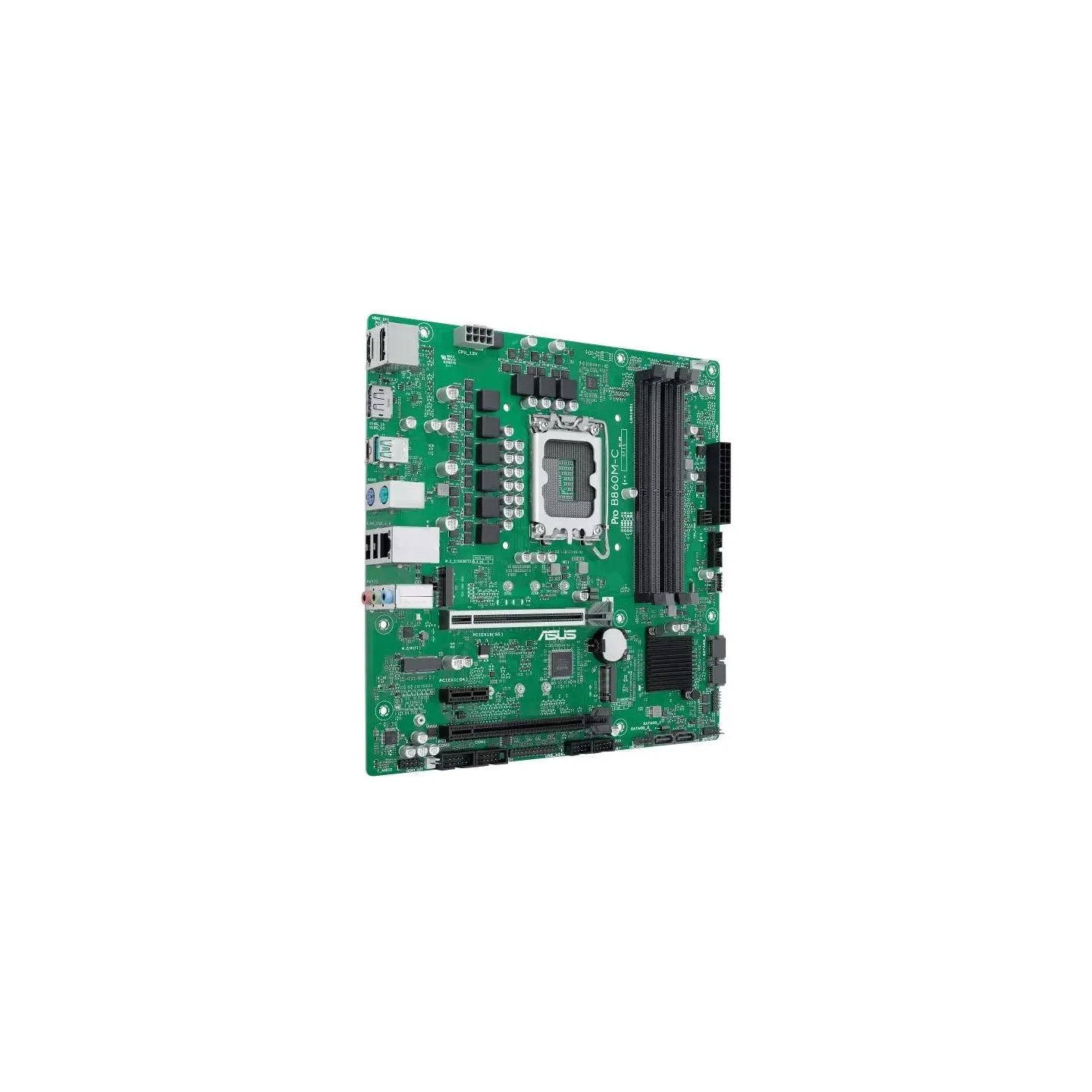

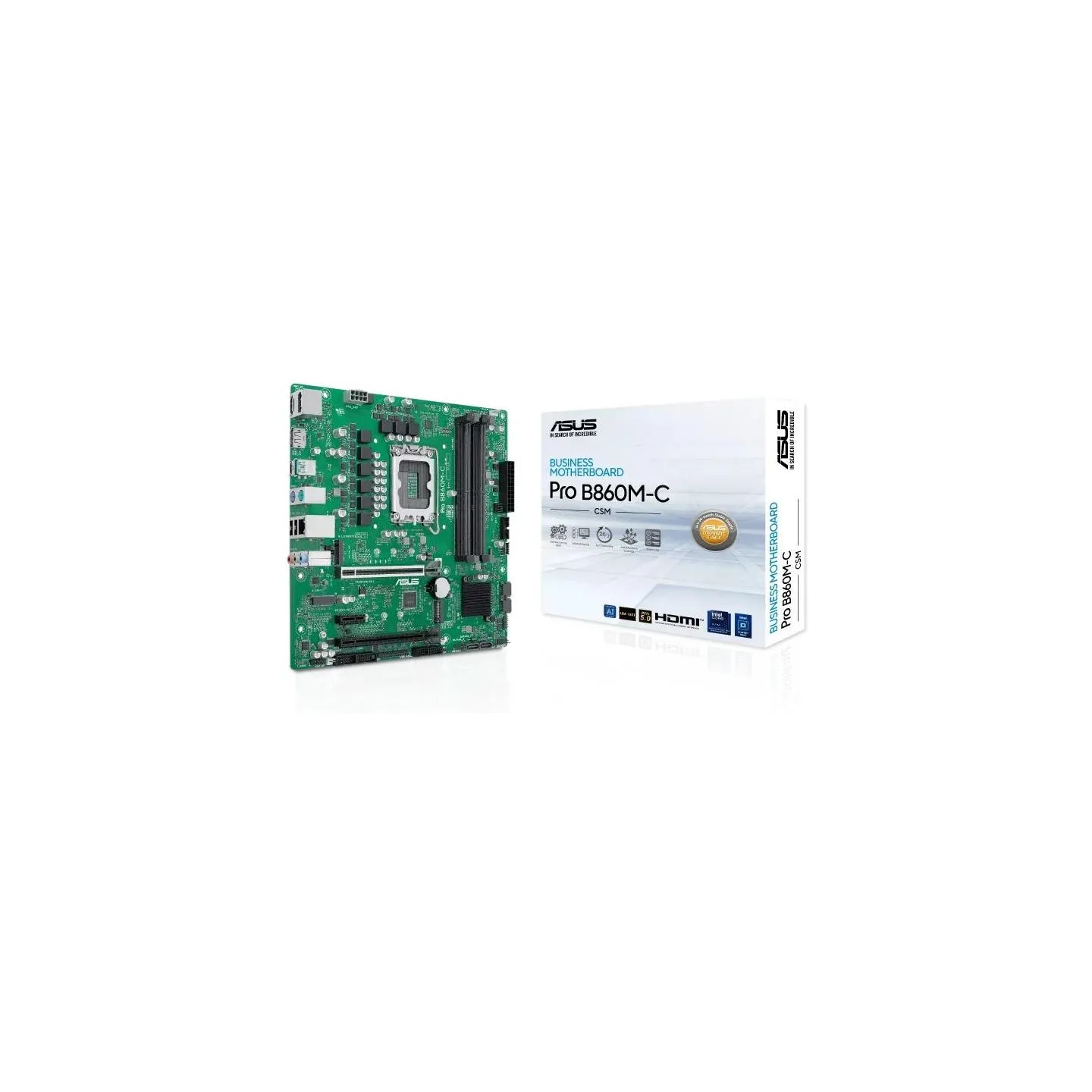

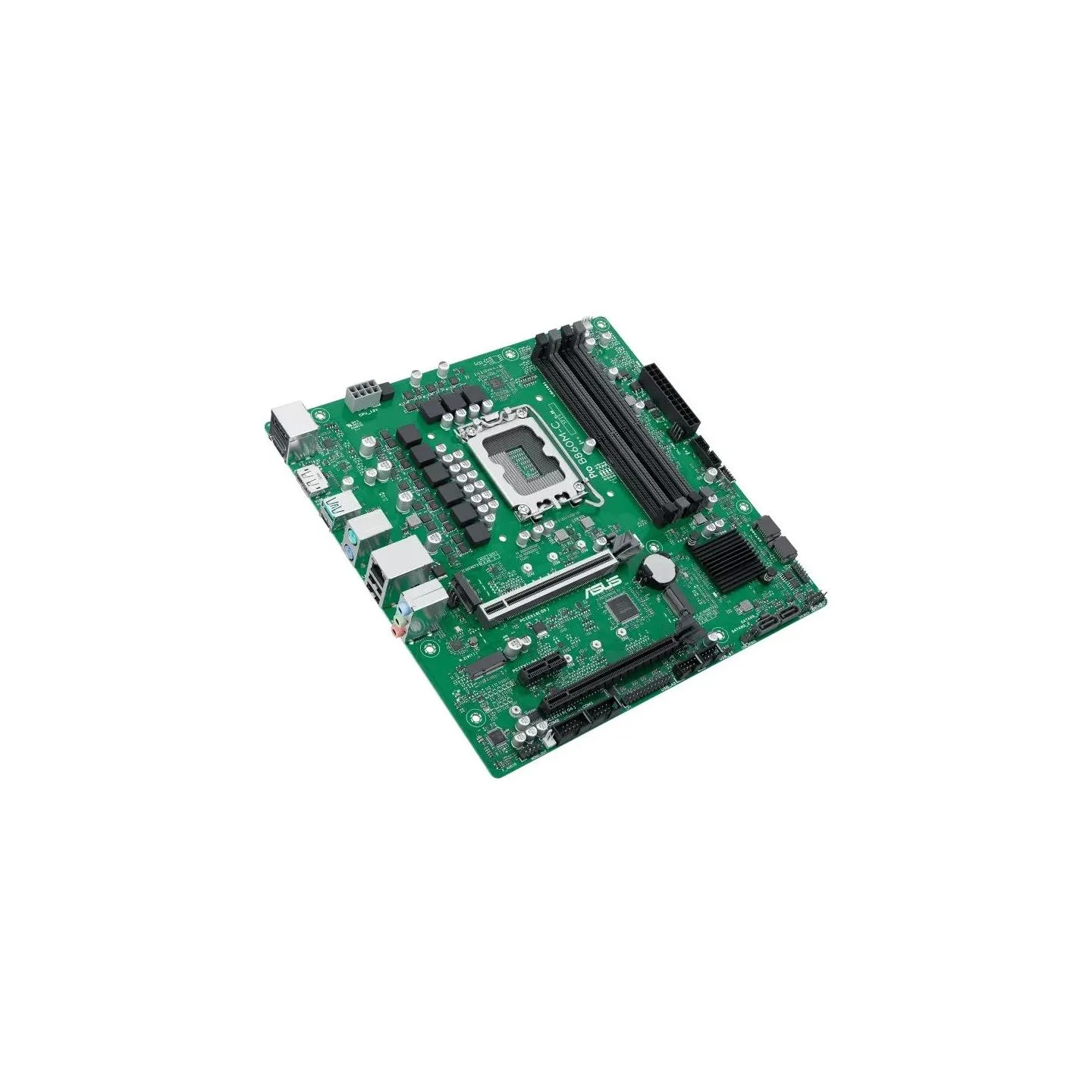

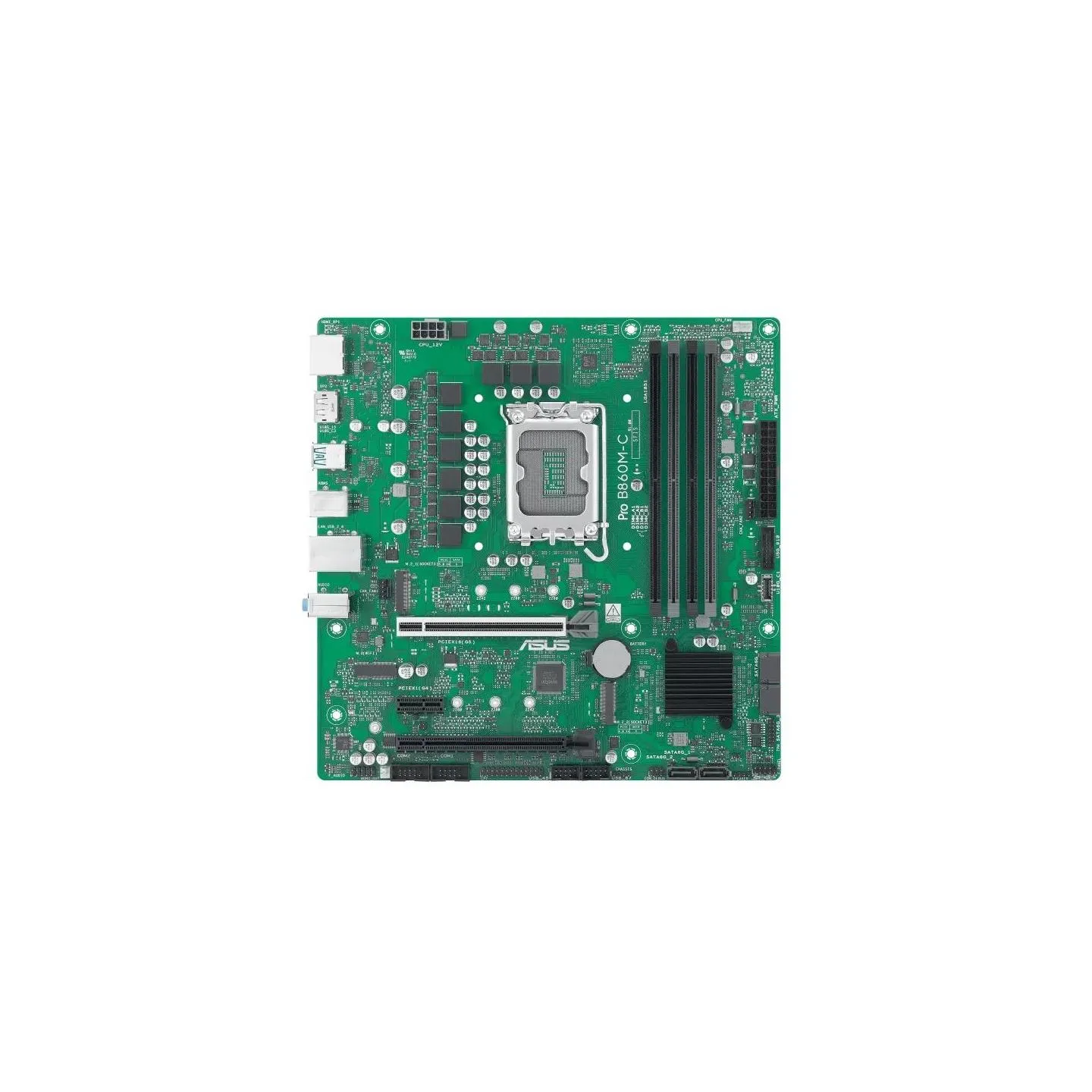

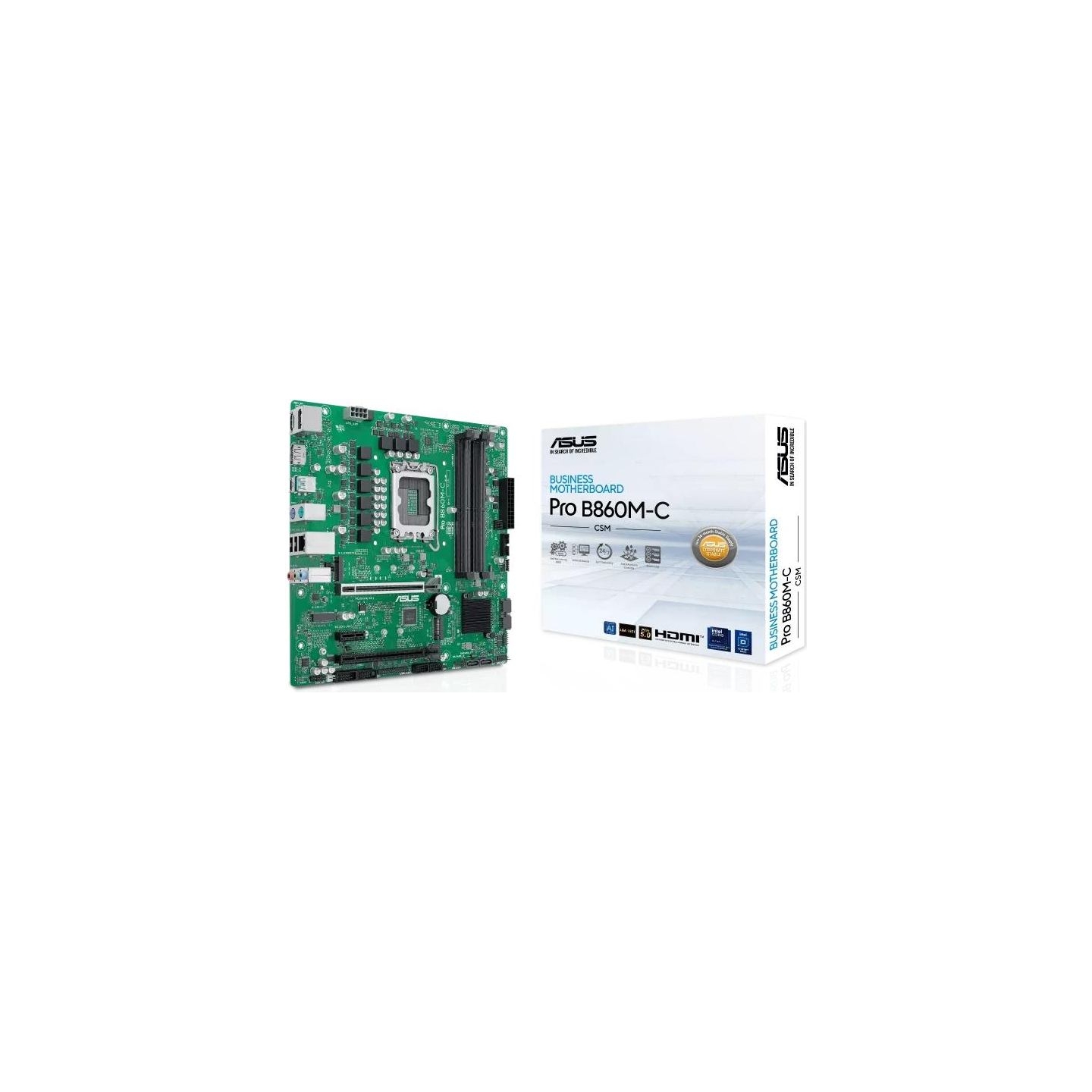

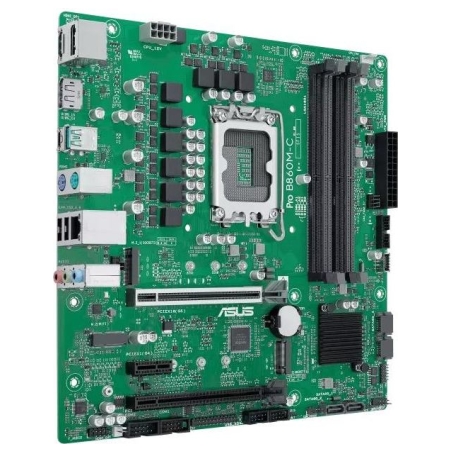

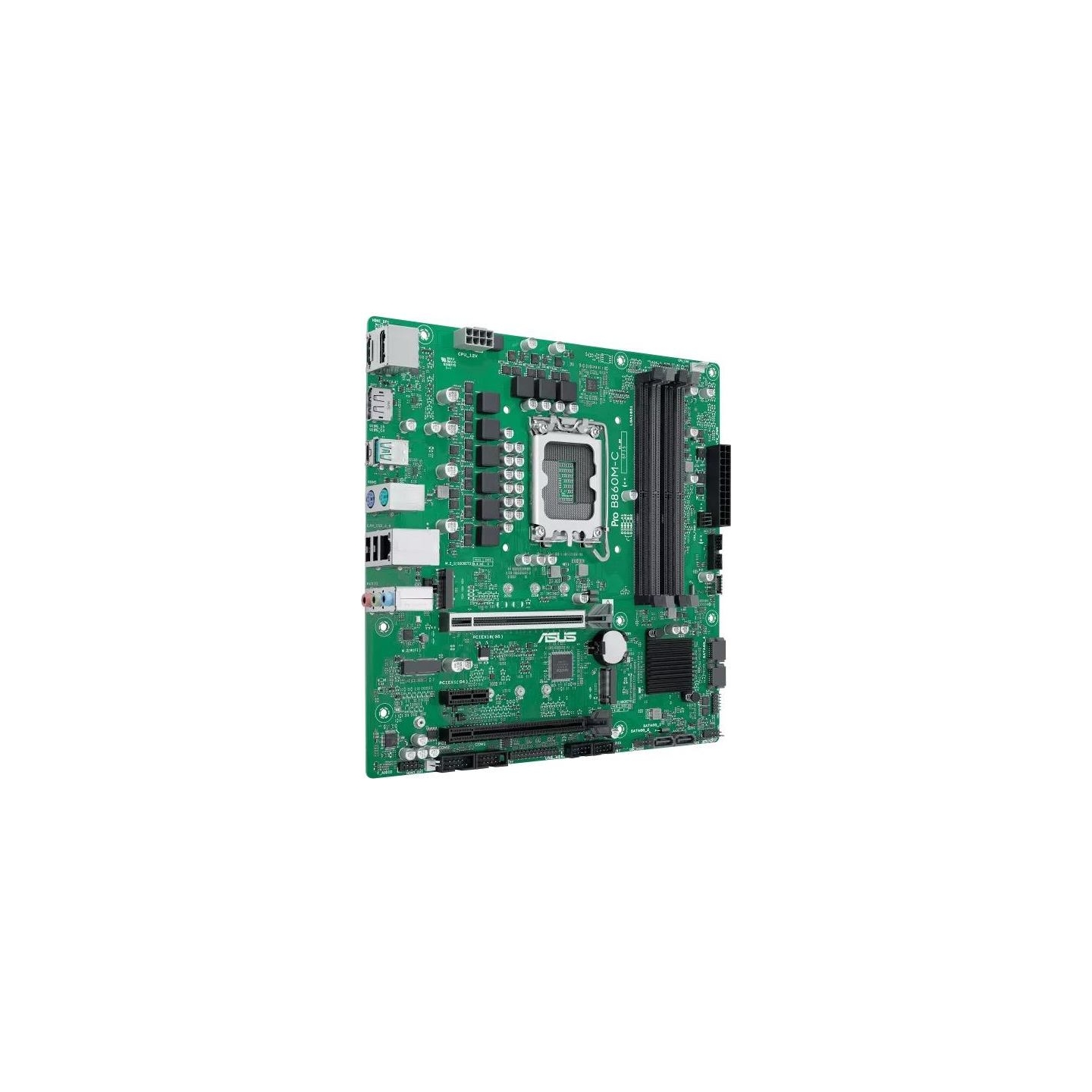

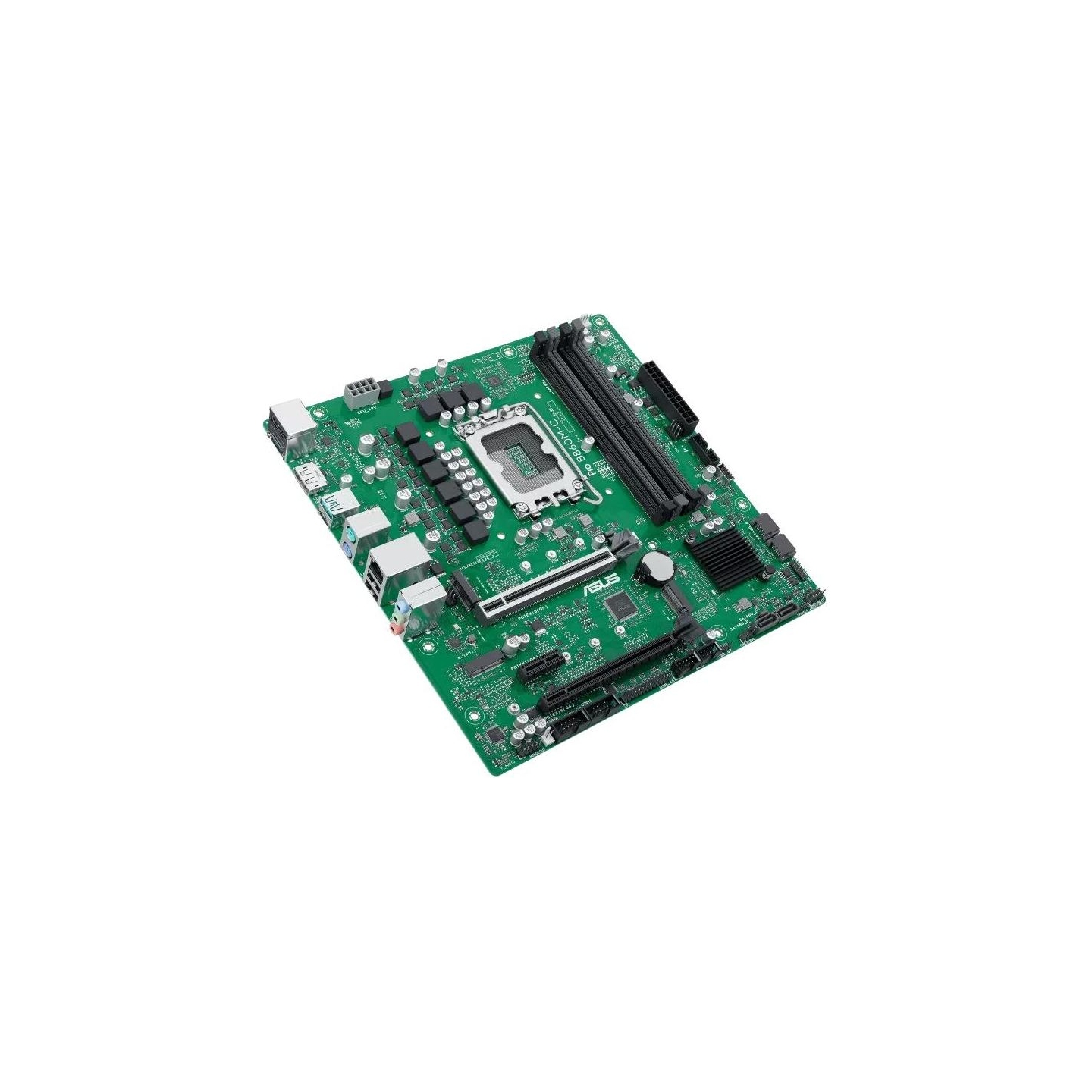

Asus Mainboard|ASUS|Intel B860|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|4xSlots|2xNumber of M.2 (M) slots|PROB860M-C-CSM
New
Price:
€165.47
Tax included
Share on
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Manufacturer Website:
https://www.asus.com/motherboards-components/motherboards/csm/pro-b860m-c-csm/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.265
- Unit Box Width
- 0.275
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- Intel B860
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Power source type
- ATX
- Product colour
- Green
- Windows operating systems supported
- Windows 10 x64/Windows 11
- Compatible processor series
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Supported processor sockets
- LGA 1851
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8666 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- Maximum resolution
- 3840 x 2160 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 2
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of SATA III connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 2
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Depth
- 244 mm
- Width
- 244 mm
- Cables included
- SATA
- Screws included
- Yes
- Product Net Weight
- 1 kg
- Shipping Box Depth
- 56 cm
- Shipping Box Height
- 29.5 cm
- Shipping Box Weight
- 10.3000001907349 kg
- Shipping Box Width
- 29 cm
- Unit Calculated Volume
- 0.004791 cubm
- Unit Calculated Weight
- 1.03 kg
- Units per Shipping Box
- 10
