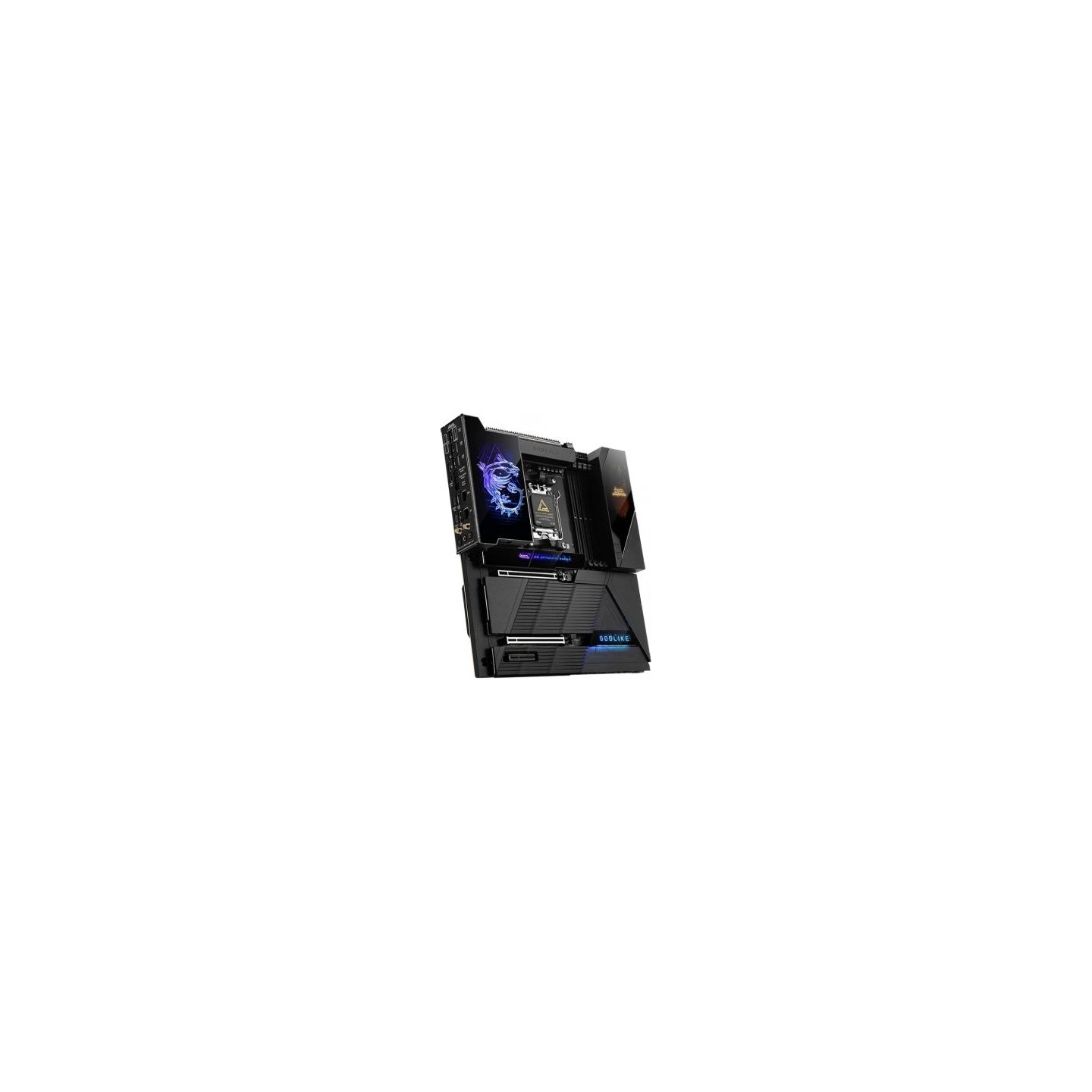

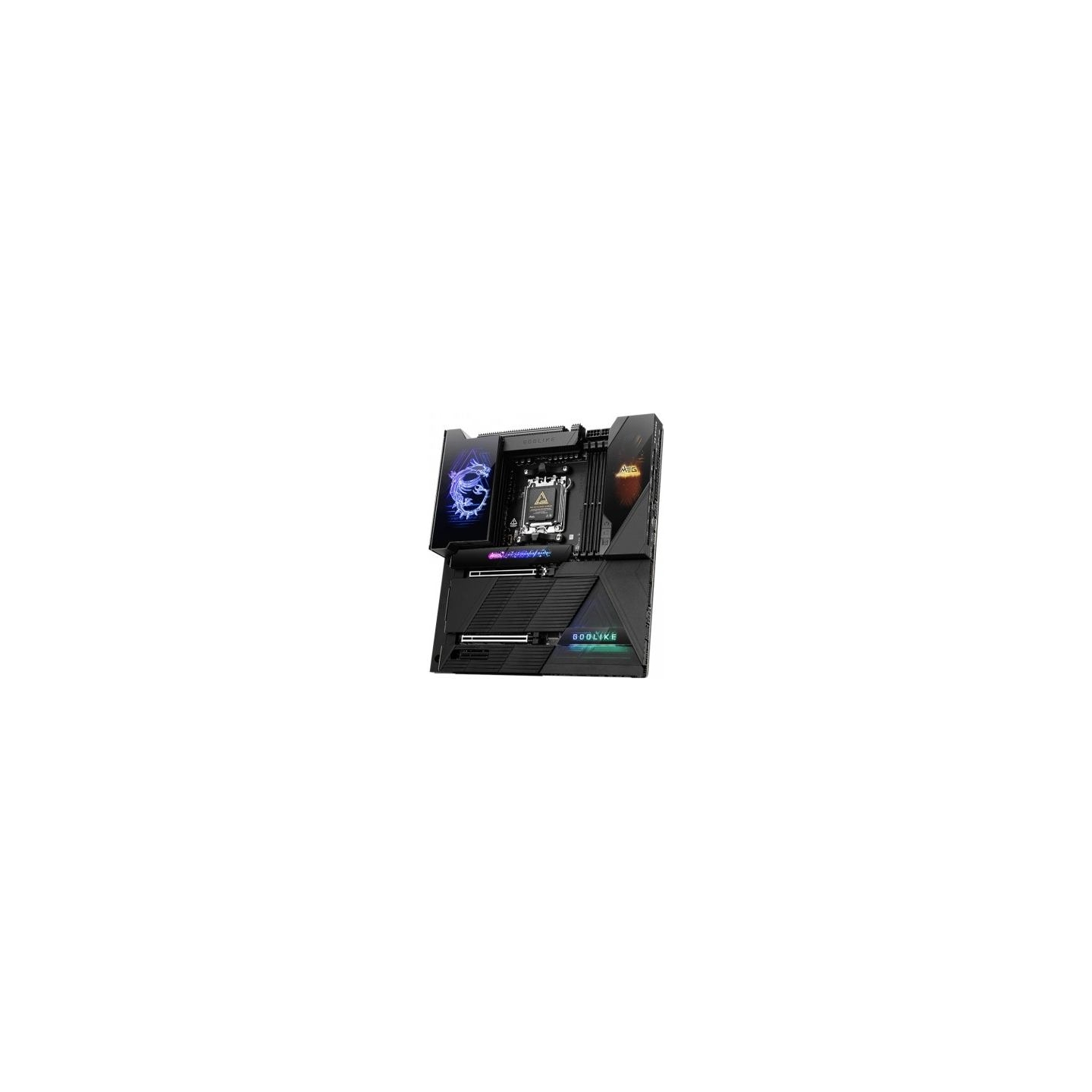

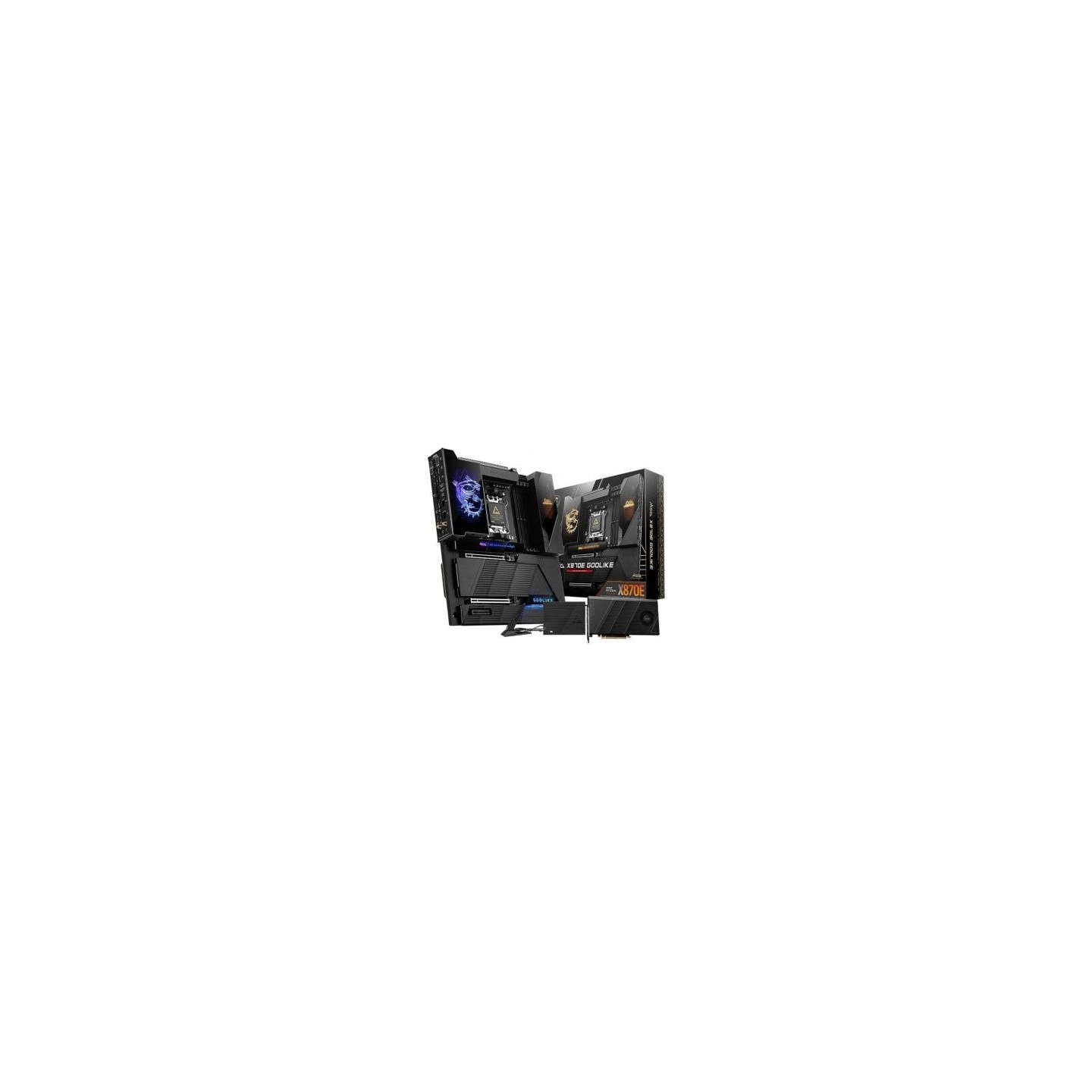

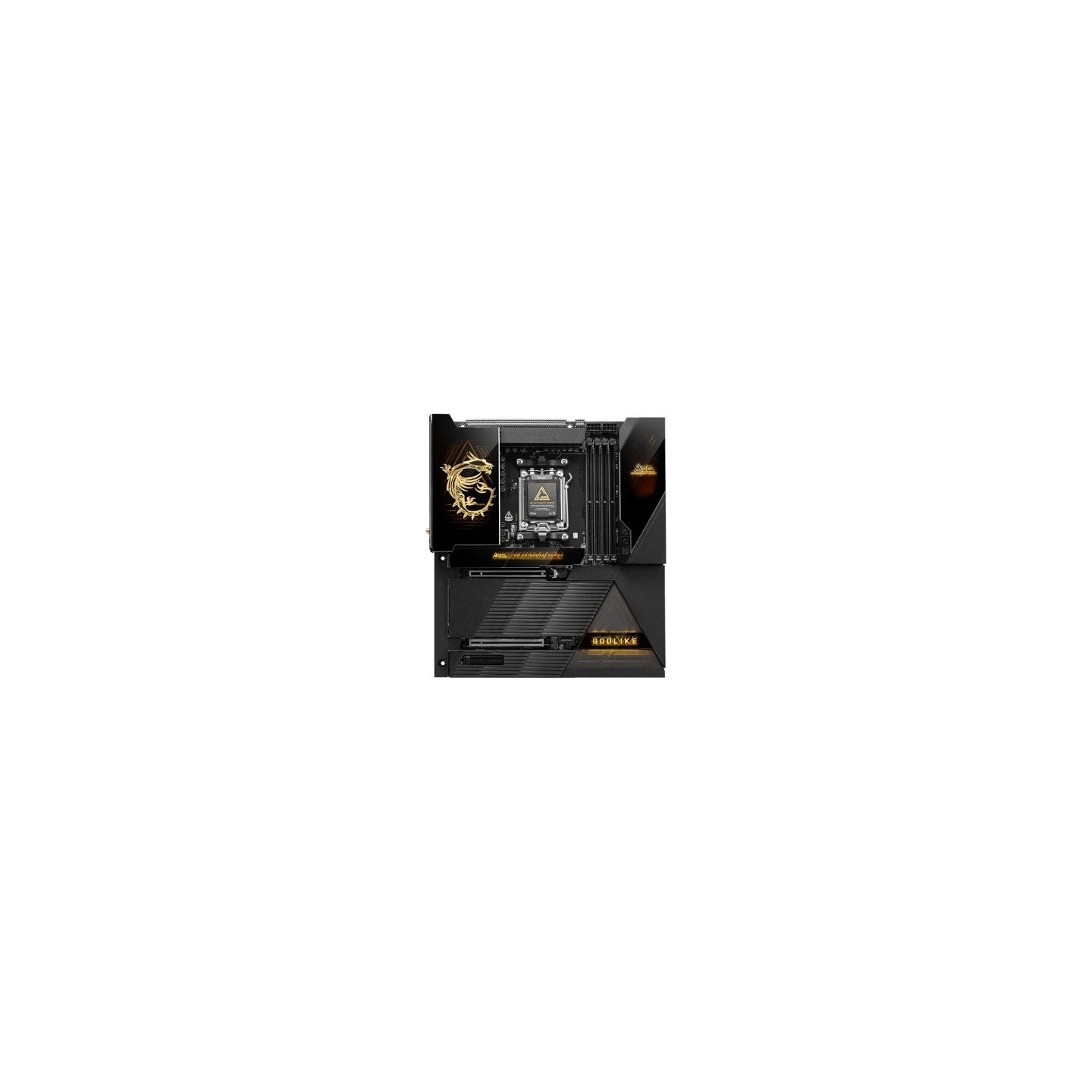

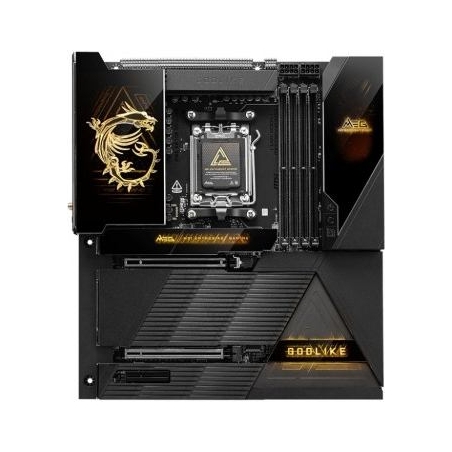

MSI Motherboard MEG X870E GODLIKE AM5 4DDR5 ATX
New
Price:
€1,294.06
Tax included
Share on
- SKU
- KBMSIAA8X870A07
- Barcode
- 4711377276221
- Model
- MEG X870E Godlike
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5600 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 7x M.2 M.2_1 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 slot (from chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_4 slot (from chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_5 slot (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_2 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_1: Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs) Supports up to PCIe 4.0 x4 (for Ryzen 8000 series CPUs) M.2_2: Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs) Supports up to PCIe 4.0 x4 (for Ryzen 8700/8600/8400 series CPUs) The M.2_2 slot will be unavailable when using Ryzen 8500/8300 series CPUs. M.2_4: PCI_E3 slot will operate at x2 speed when an device is installed in M.2_4. You can switch PCI_E3 to x4 in BIOS, but this will disable the M.2_4 slot. Supports 5 built-in M.2 slots and 2 additional M.2 slots via expansion card.
- Graphics
- 2x Type-C DisplayPortUSB4 port supporting DisplayPort 1.4 with HBR3 via USB Type-C, maximum resolution 4K@60Hz
- Sound card
- Realtek ALC4082 codec + ESS9219Q Combo DAC/HPA High-performance 7.1-channel USB audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320 MHz) up to 5.8 Gb/s Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM
- USB ports at back panel
- 15
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 14
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 2 x SMA
- External connectors
- 2 x RJ-45
- External connectors
- 8 x USB 3.1
- External connectors
- 5 x USB 3.2 Gen 1 Type-C
- External connectors
- 1 x Smart Button
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 2 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x MIC (front)
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 2 x USB C
- Onboard connectors
- 4 x USB 3.0
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x System panel header
- Form factor
- E-ATX
- Dimensions
- 304.8 x 277 mm
- Supported operating systems
- None
- Designation
- CE+WEEE
- Data Act
- Link
