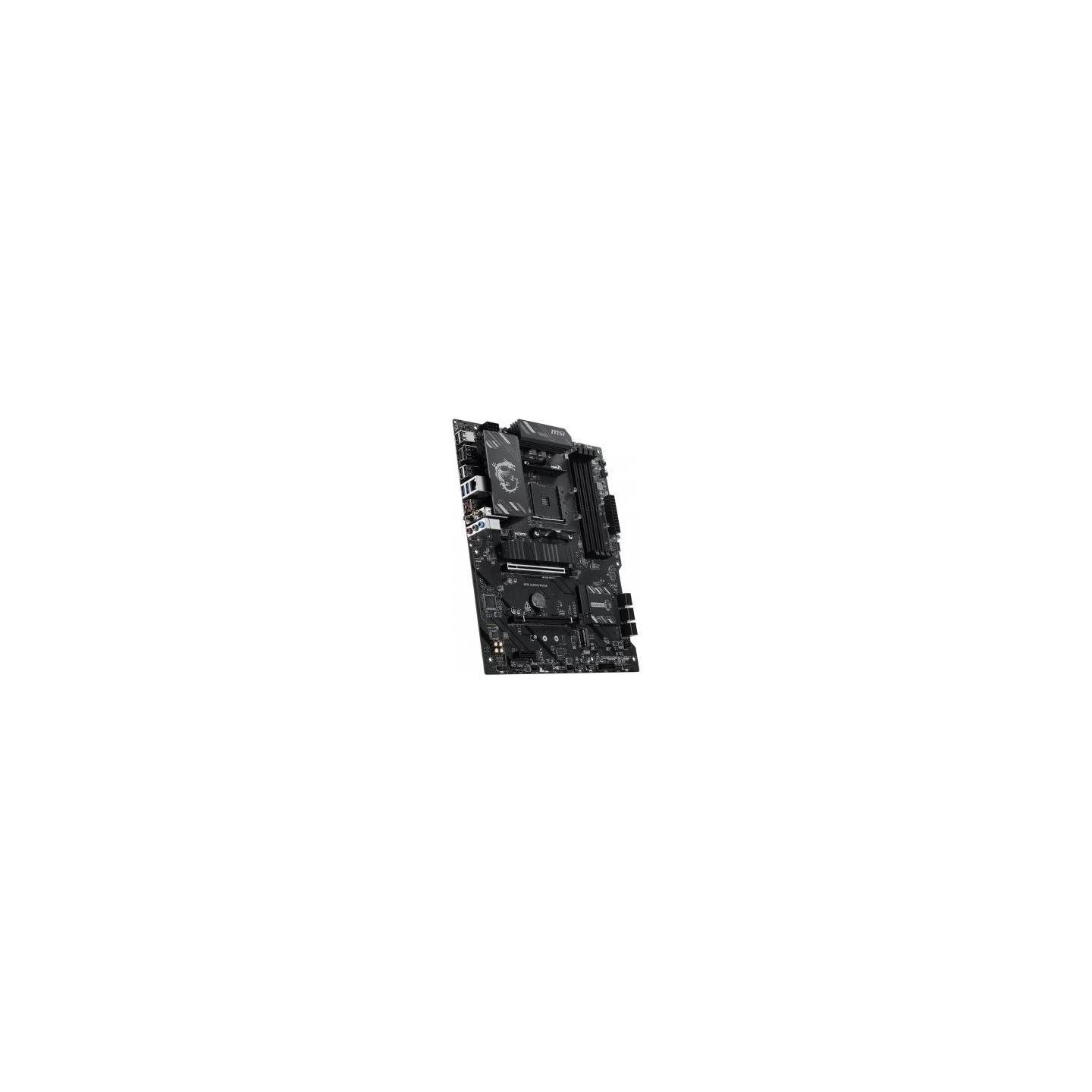

MSI Motherboard B550 GAMING WIFI6E 4DDR4 HDMI/DP ATX
New
Price:
€145.12
Tax included
Share on
- SKU
- KBMSIAA7B550A09
- Barcode
- 4711377459082
- Model
- B550 GAMING WIFI6E
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Number of DDR4 slots
- 4
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 4866 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 2800 MHz
- Memory bus frequency
- 4733 MHz
- Memory bus frequency
- 3066 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 4533 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 3.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 6
- RAID
- No
- Detailed data on disk/drive interfaces
- 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 6 x SATA 6G
- Graphics
- 1 x HDMI - Support HDMI 1.4, maximum resolution of 4K 30Hz 1 x DisplayPort - Support DisplayPort 1.2, maximum resolution of 4K 60Hz
- Sound card
- Realtek ALC897 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- Realtek 8111H 1G LAN WIRELESS LAN & BLUETOOTH: Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

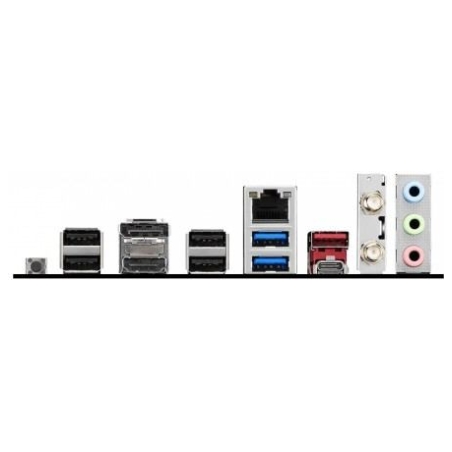

- External connectors
- 1 x MIC
- External connectors
- 1 x Line Out
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x SMA
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- Onboard connectors
- 6 x SATA III 6Gb/s
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 6 x 4pin wentylator obudowy
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Form factor
- ATX
- Dimensions
- 243.84 x 304.8 mm
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
- Data Act
- Link
