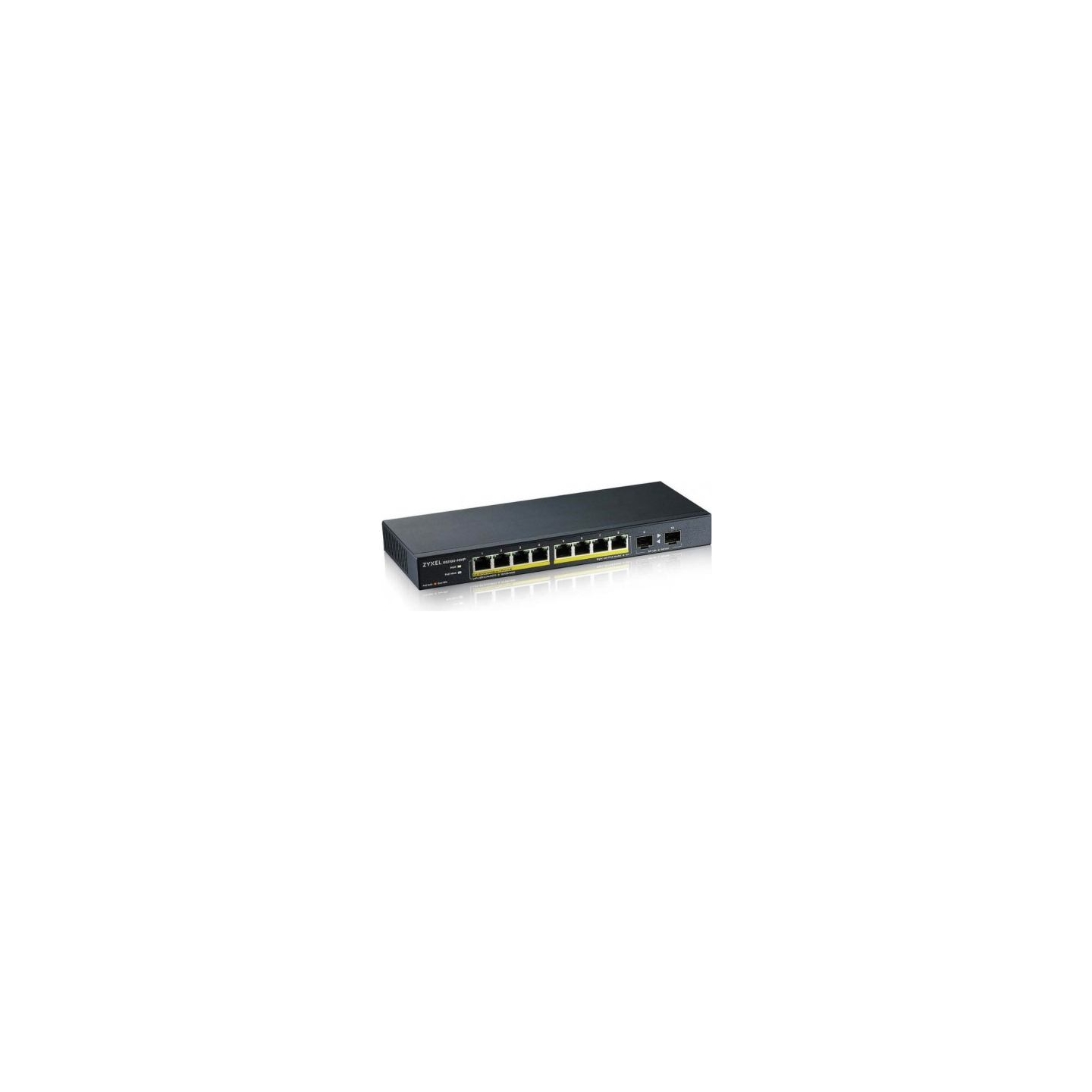

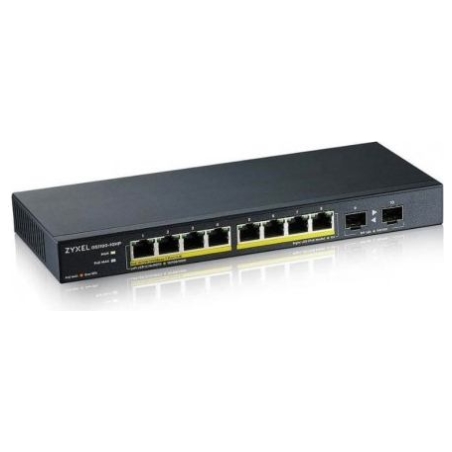

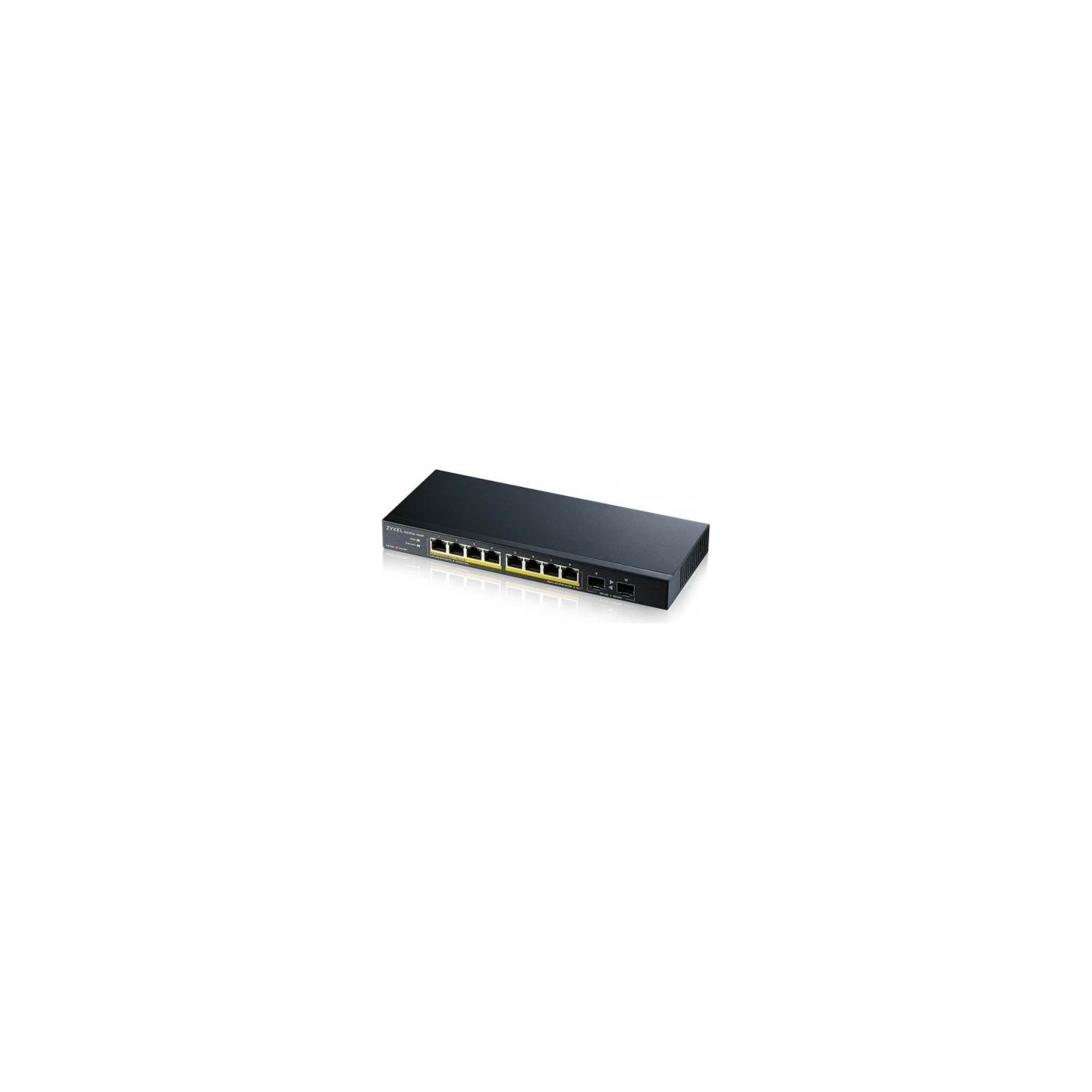

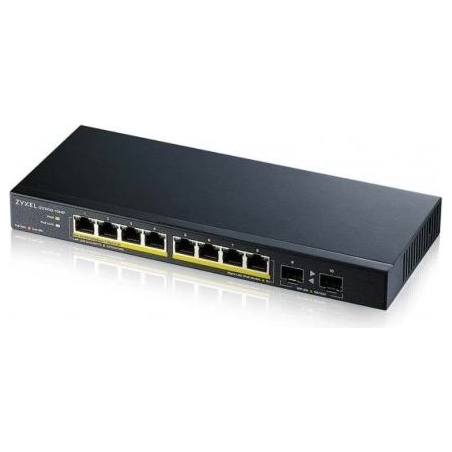

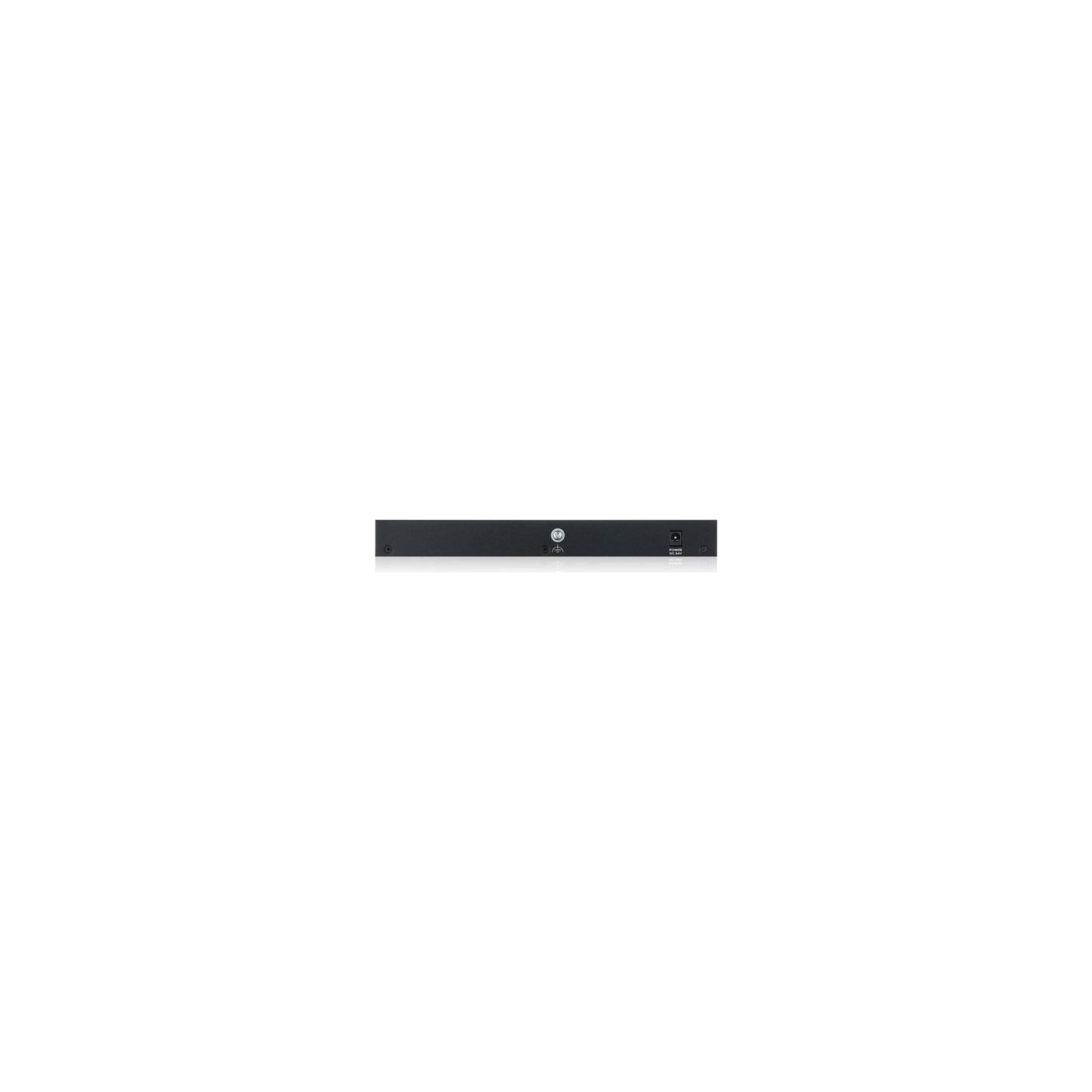

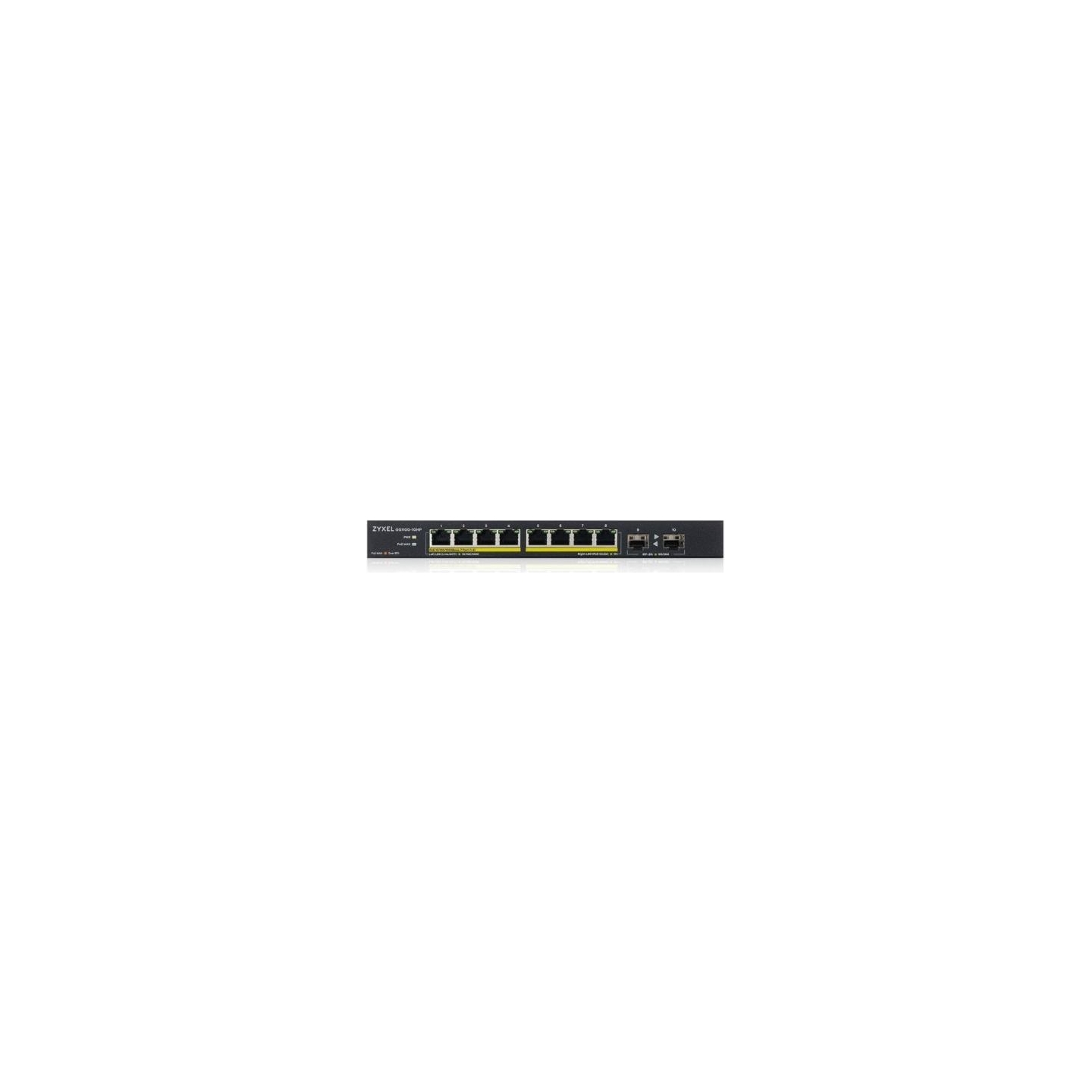

Zyxel GS1100-10HP-EU0102F 120W PoE 8xGigabit 2xFiber Uplilk Switch

Zyxel GS1100-10HP – 10-Port Gigabit PoE+ Switch

• 8 x PoE+ (802.3at) ports providing up to 30 W per port
• Total 130 W PoE power budget for IP cameras, APs, and VoIP phones
• 2 x Gigabit SFP ports for fiber uplinks
• Fanless design – completely silent operation
• Plug & play setup with no configuration needed

Powerful and Silent PoE+ Solution for Small Offices
The Zyxel GS1100-10HP is an unmanaged 10-port Gigabit switch featuring 8 PoE+ ports and 2 SFP uplink ports. It offers a total PoE power budget of 130 watts, allowing multiple devices to be connected and powered via a single cable.

Flexible and Reliable Power Delivery
Supporting the IEEE 802.3at PoE+ standard, it provides up to 30 W per port, making it ideal for powering IP cameras, wireless APs, and VoIP phones, while simplifying deployment.

Silent and Energy-Efficient Operation
The fanless design ensures silent operation, while energy-saving features help reduce power consumption and operating costs.

Technical Specifications

• 8 x 10/100/1000 Mbps RJ-45 PoE+ ports (IEEE 802.3af/at)
• 2 x SFP (100/1000 Mbps) uplink ports
• Total PoE budget: 130 W
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Packet buffer: 192 KB
• MAC address table: 4K
• Jumbo frame support: 9 KB
• Power consumption: max. 150 W
• External power supply (100–240 V AC)
• Fanless, completely silent operation
• Dimensions: 250 x 104 x 27 mm
• Weight: 1.26 kg

Storage temperature range (T-T), °C

-40 - 70

Operating temperature range (T-T), °C

0 - 40

MAC address table, entries

8000

Switch type

Unmanaged

Short summary

<b>Zyxel GS1100-10HP ? 10-Port Gigabit PoE+ Switch</b> <ul> <li>8 x PoE+ (802.3at) ports providing up to 30 W per port</li> <li>Total 130 W PoE power budget for IP cameras, APs, and VoIP phones</li> <li>2 x Gigabit SFP ports for fiber uplinks</li> <li>Fanless design ? completely silent operation</li> <li>Plug & play setup with no configuration needed</li> </ul>

Power consumption (max.), W

151.3

Ports quantity

10

Dimensions W x D x H, mm

250 x 104 x 27

Weight, g

620

Certification

C-Tick Class B

Certification

CE

Certification

FCC

Ethernet LAN (RJ-45) PoE ports quantity

8

Power over Ethernet (PoE) Support

Yes

Switching capacity, Gbit/s

16

Packet transfer speed

11.9 Mpps

Broadcast storm control

Yes

Networking standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.3at, IEEE 802.3af

Jumbo Frames support

Yes

Maximum data transfer rate, Gbit/s

1

Colour of product

Black

Supported data transfer rates

10/100/1000 Mbps

SFP slots quantity

2

Safety

LVD EN60950-1, BSMI CNS14336-1

Drive device, buffer size, MB

0.256

Networking features

Gigabit Ethernet
