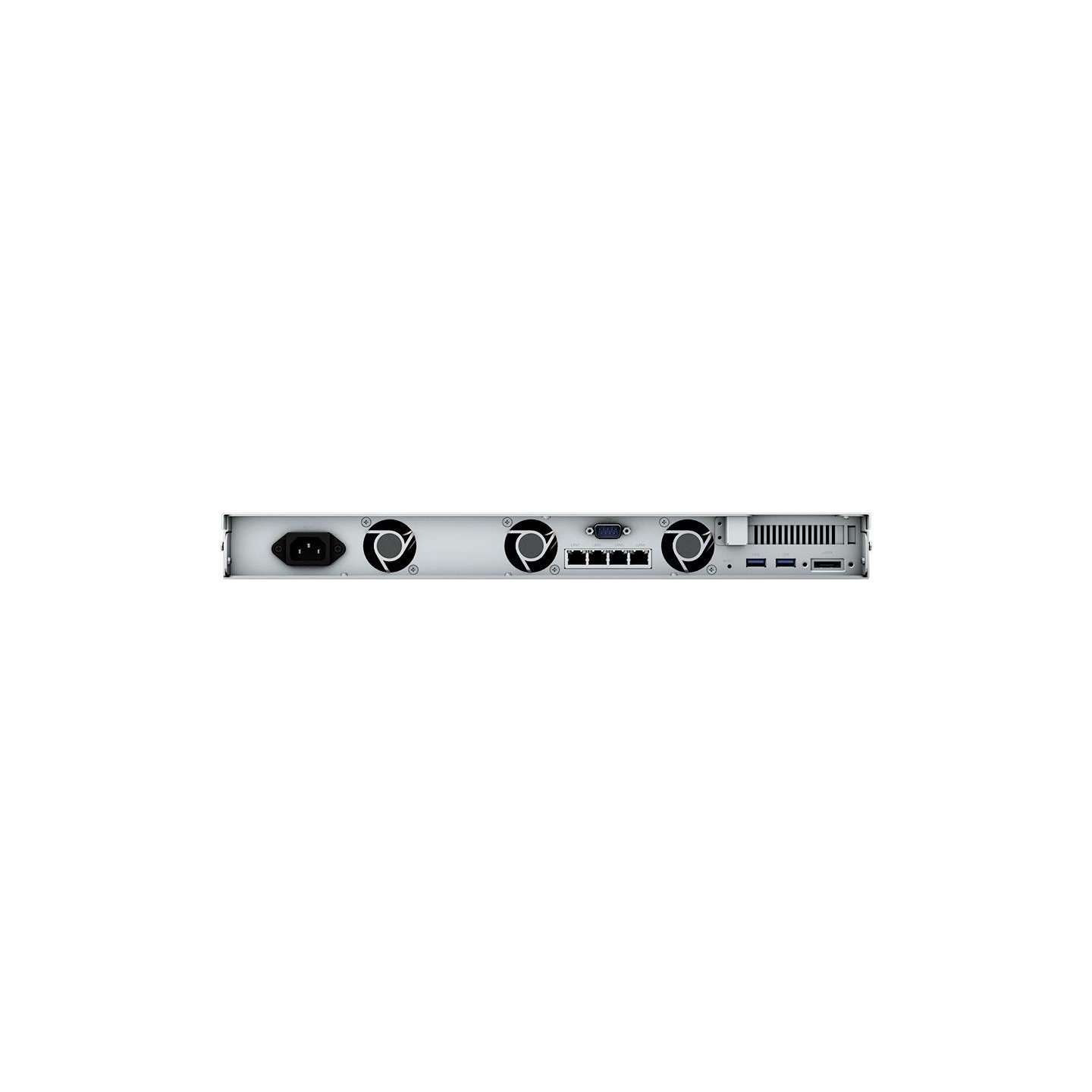

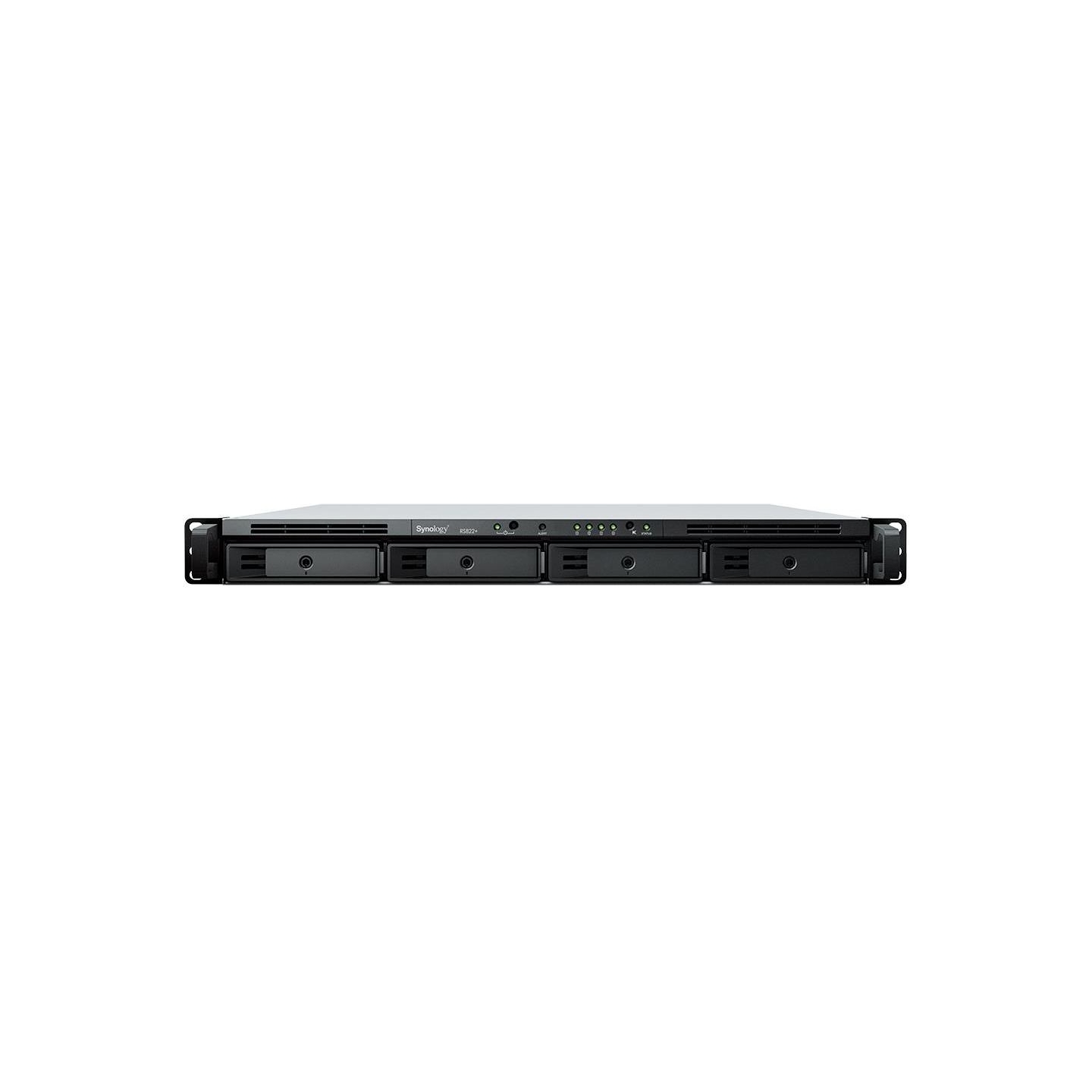

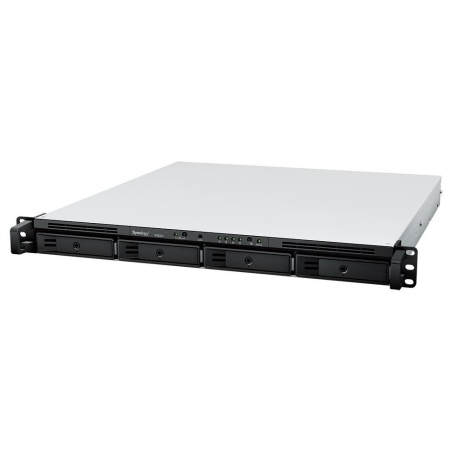

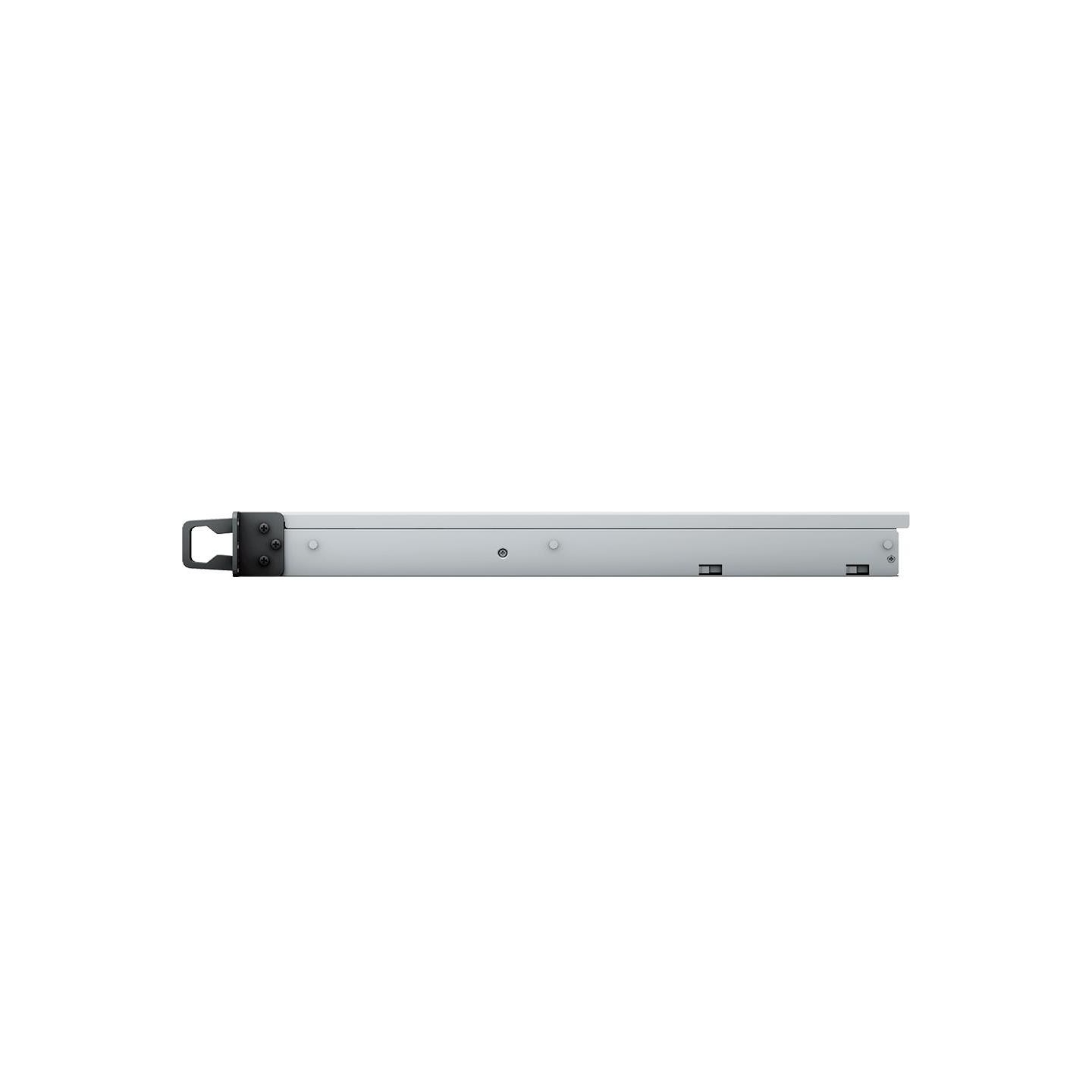

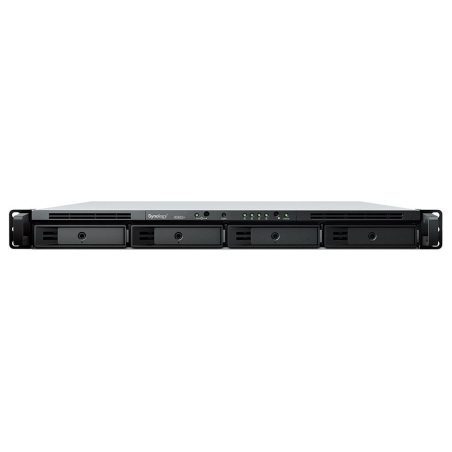

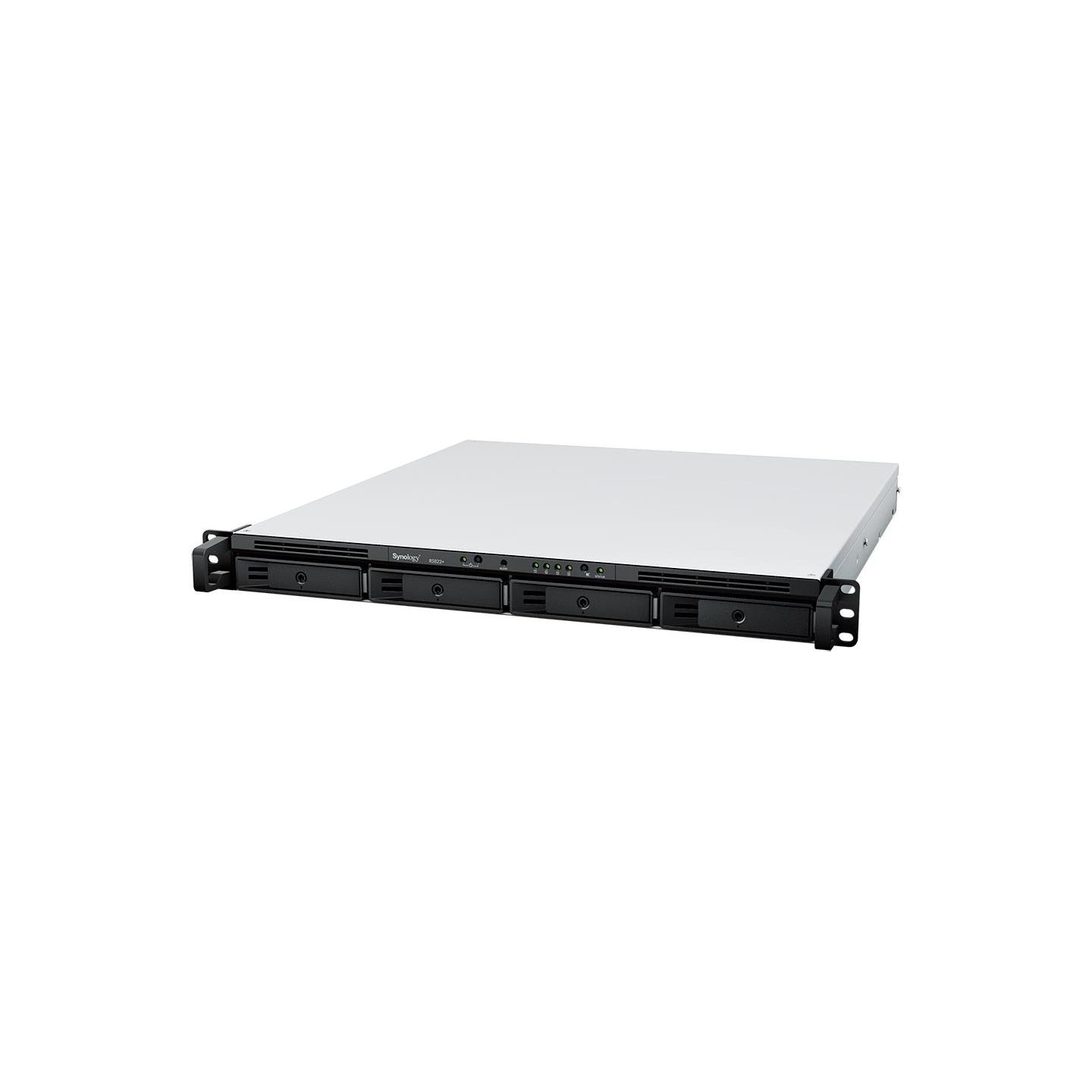

Synology NAS server RS822+ V1500B 4x0HDD 2GB 4x1GbE USB3.2.1 3Y 1xPSU 1U
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
All-in-one data management platform
The RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
Purchase a NAS together with Synology HAT series drives and benefit from the Synology Express Replacement Program, ensuring same-day drive replacement when needed. Contact your Sales Manager for more details.
- 2 GB DDR4 ECC SODIMM (Up to 32 GB DDR4 ECC)
- 4 x 3.5" or 2.5" SATA HDD/SSD
- AMD Ryzen processor
- 3 System fans (40 x 40 x 20 mm)
- AES-NI hardware encryption engine
Manufacturer Website:
https://www.synology.com/en-eu/products/RS822+#features
- Category Code
- STS
- CnCode
- 84717098
- Unit Box Height
- 0.205
- Unit Box Length
- 0.61
- Unit Box Width
- 0.58
- Hot-swap drive bays
- Yes
- Installed storage drive type
- No
- Maximum supported storage capacity
- 108 TB
- Number of storage drives supported
- 4
- RAID levels
- 0/1/10/5/6/JBOD
- RAID support
- Yes
- Storage drives installed
- No
- Supported file systems
- BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS
- Supported storage drive interfaces
- Serial ATA
- Supported storage drive types
- HDD & SSD
- On-board graphics card model
- Not available
- Processor cores
- 4
- Processor family
- Ryzen Embedded
- Processor frequency
- 2.2 GHz
- Processor generation
- AMD Ryzen Embedded V1000 Series
- Processor manufacturer
- AMD
- Processor model
- V1500B
- Processor threads
- 8
- Internal memory
- 2 GB
- Internal memory type
- DDR4
- Maximum RAM supported
- 32 GB
- Memory form factor
- SO-DIMM
- Supported network protocols
- SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPNT, L2TP)
- Wake-on-LAN ready
- Yes
- eSATA ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 4
- PCI Express x8 (Gen 3.x) slots
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB port
- Yes
- LED indicators
- Alarm/Power/Status
- Number of fans
- 3 fan(s)
- Access Control List (ACL)
- Yes
- Backup function
- Yes
- On/off switch
- Yes
- Reset button
- Yes
- Type
- NAS
- Operating system installed
- DSM
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Depth
- 457.6 mm
- Height
- 44 mm
- Weight
- 6400 g
- Width
- 430.5 mm
- Cables included
- AC
- Operating altitude
- 0 - 5000 m
- Operating relative humidity (H-H)
- 8 - 80 %
- Operating temperature (T-T)
- 0 - 35 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -20 - 60 °C
- Certification
- FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
- Model name
- RS822+
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.072529 cubm
- Unit Calculated Weight
- 9.7 kg
