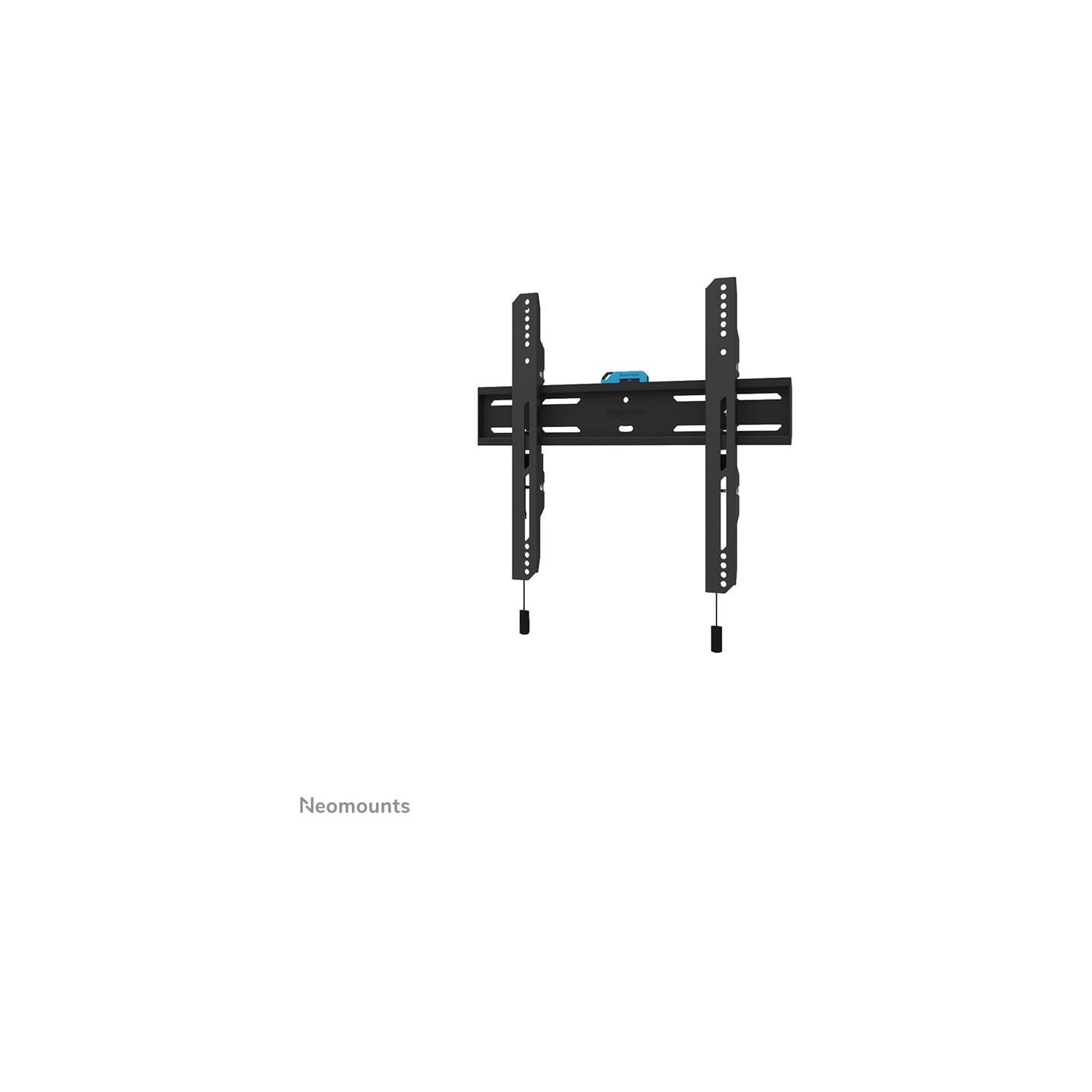

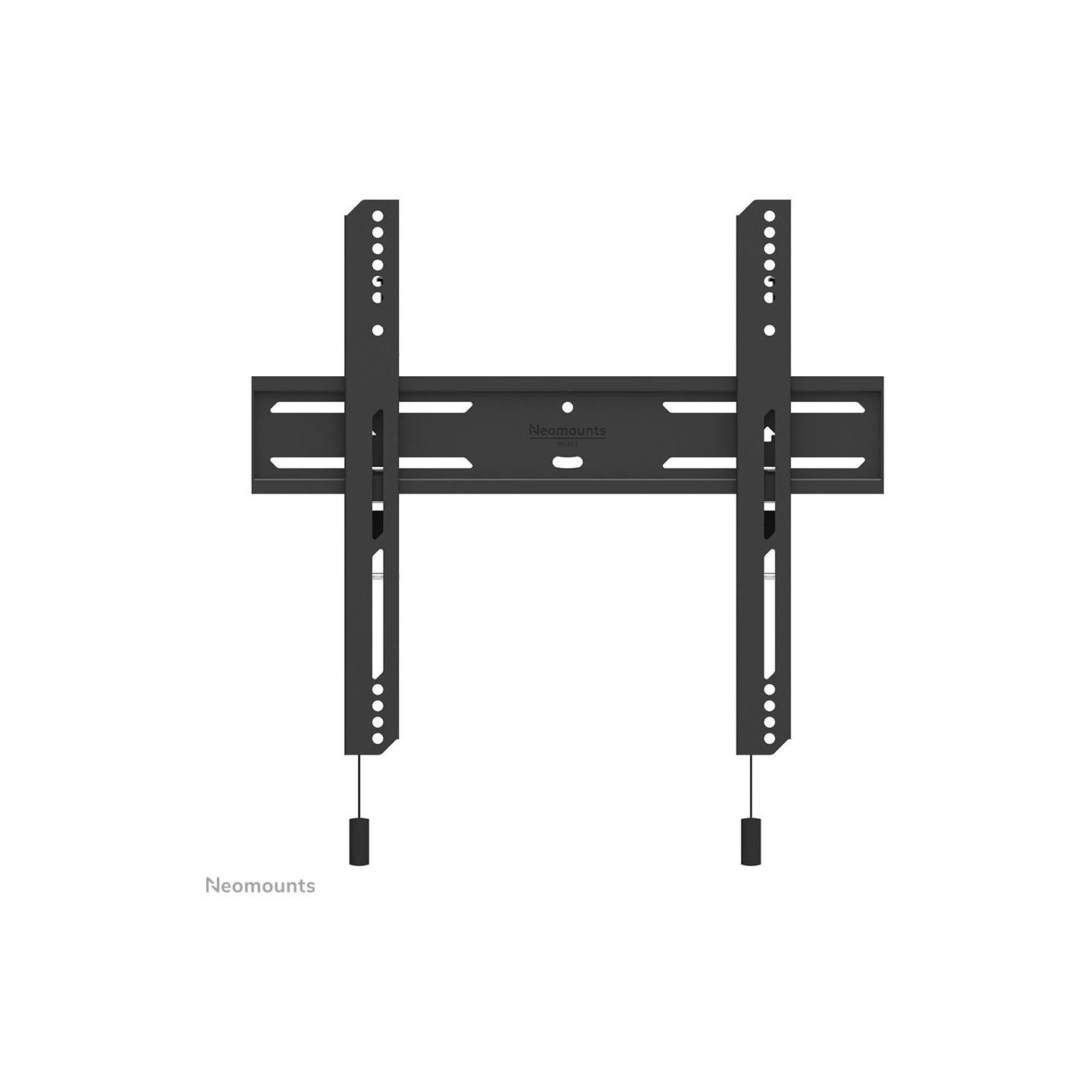

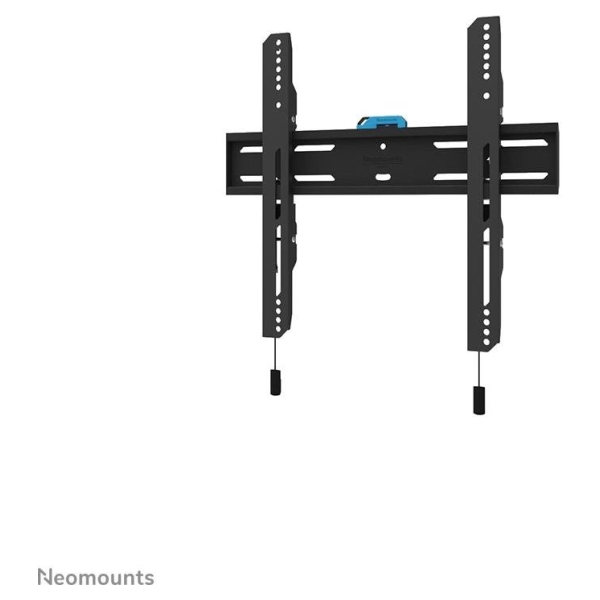

Neomounts SELECT SCREEN WALL MOUNT (FIXED, VESA 400X400)

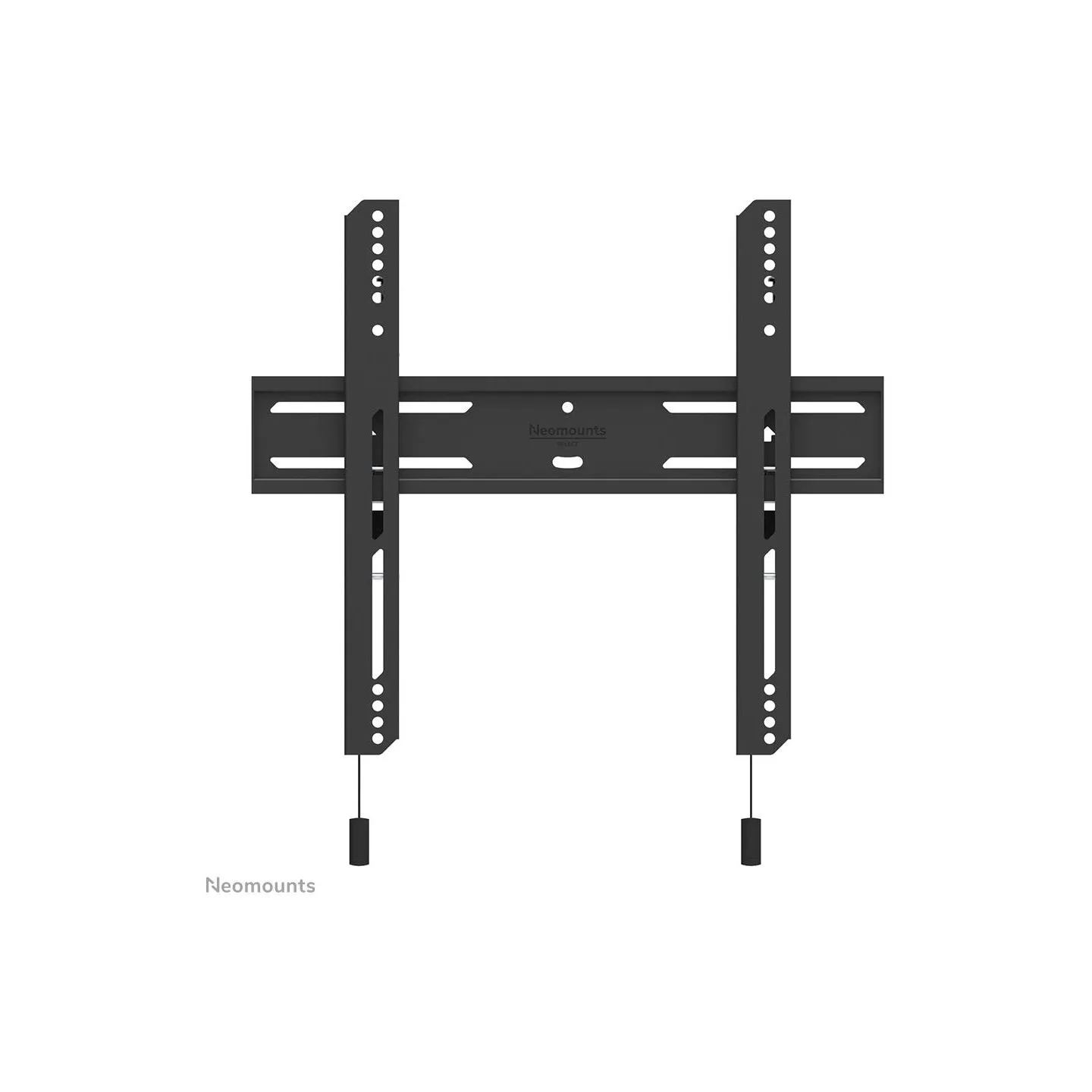

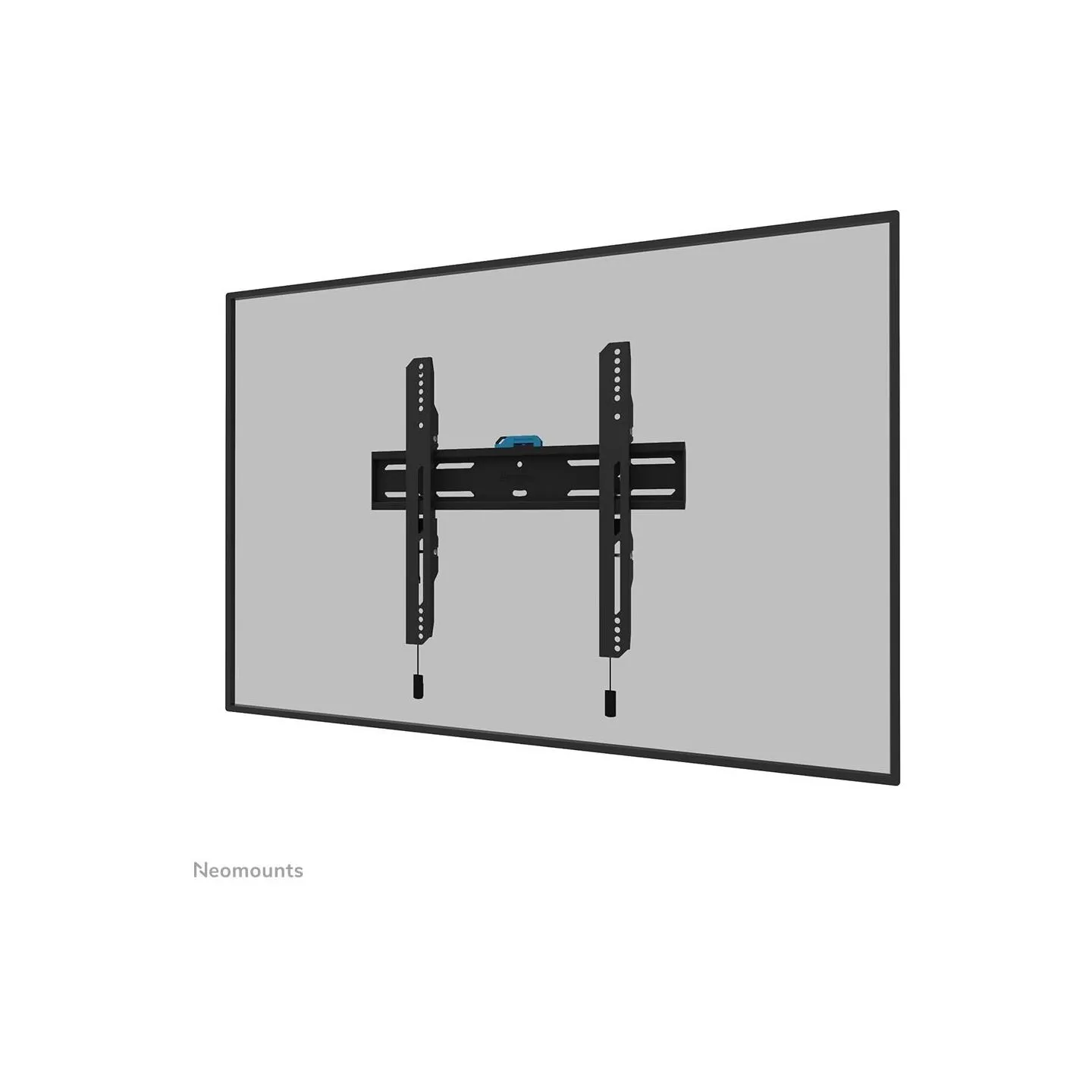

The Neomounts WL30S-850BL14 LEVEL is a fixed wall mount for flat screens up to 75" with a maximum weight capacity of 50 kg. Height and level adjustment is available for the perfect installation.

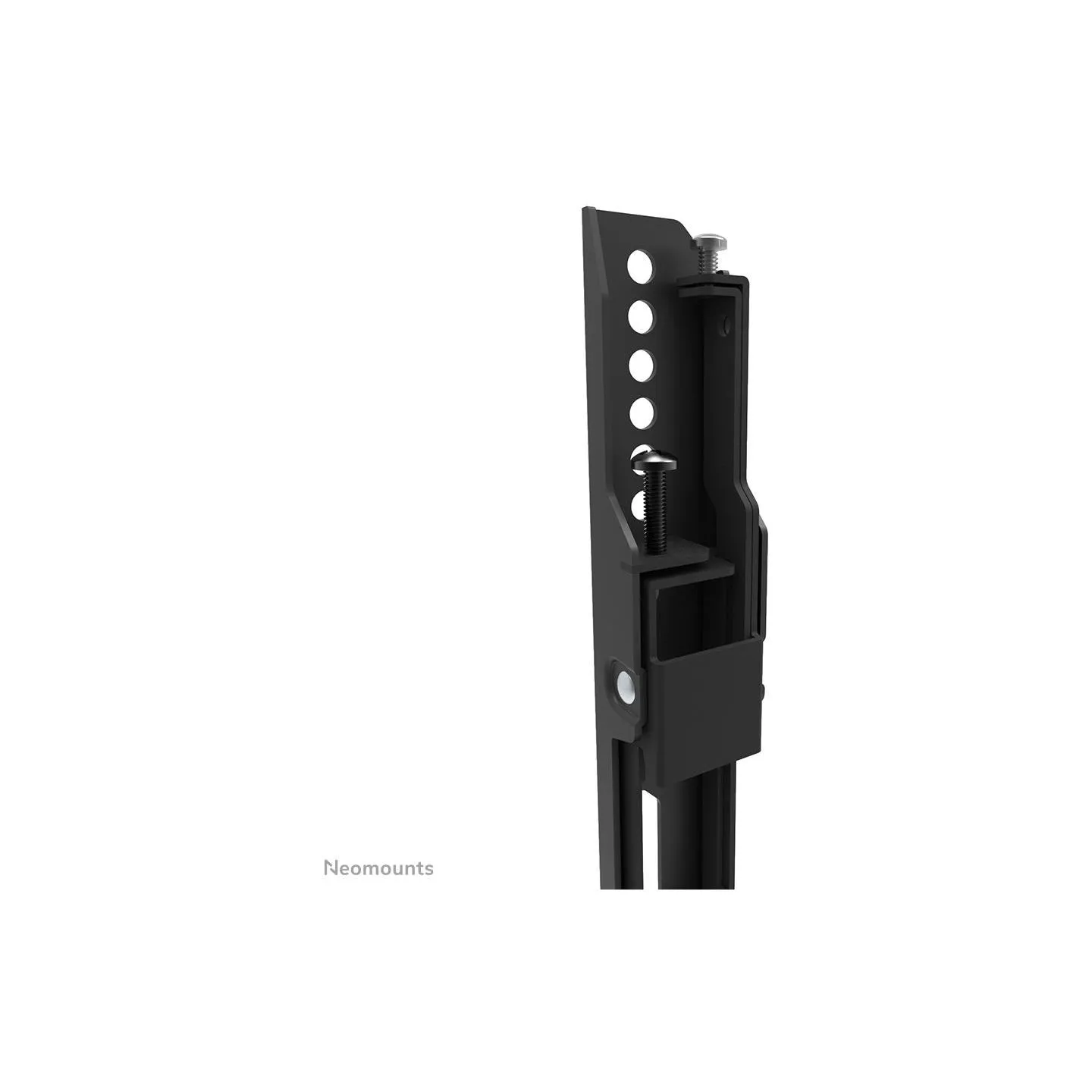

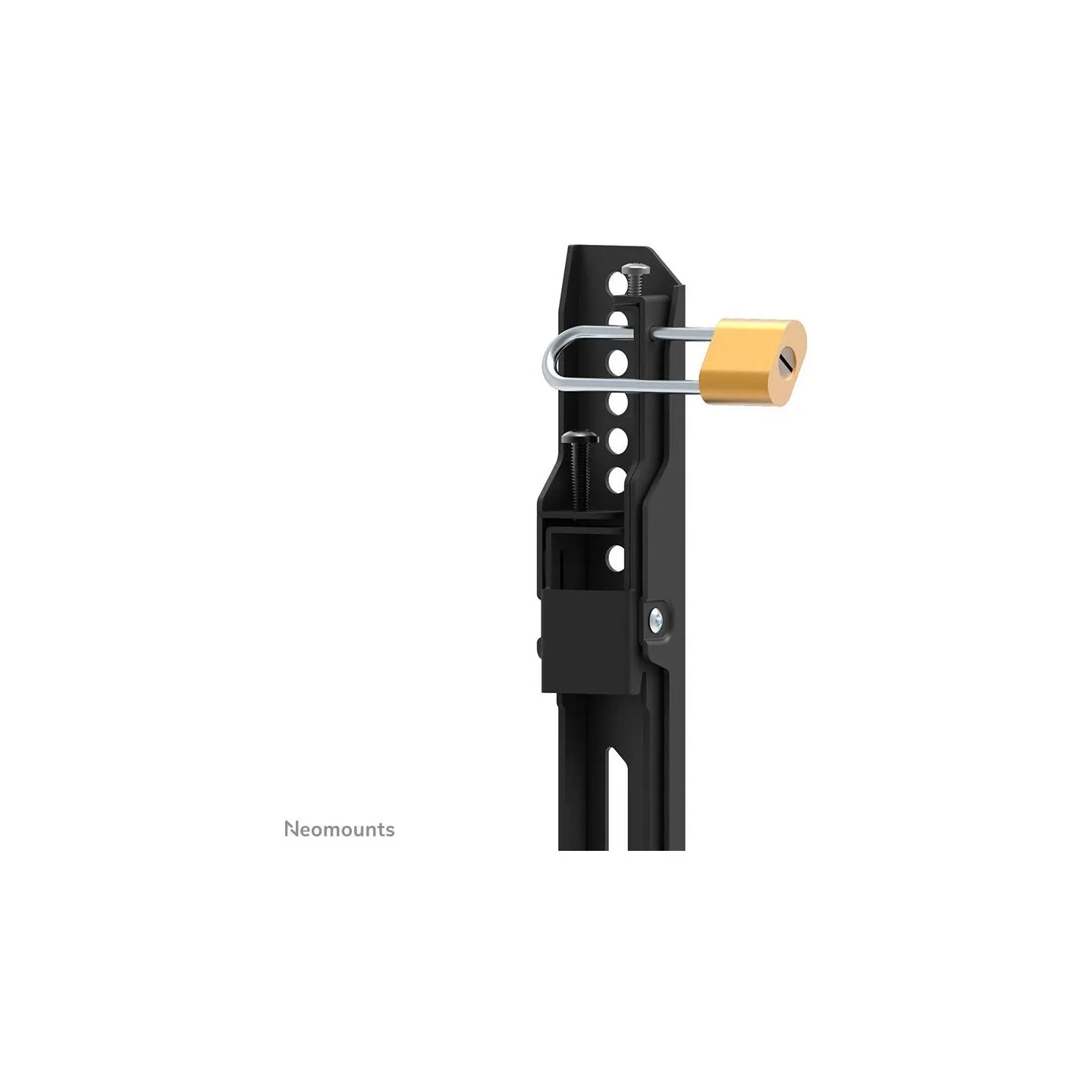

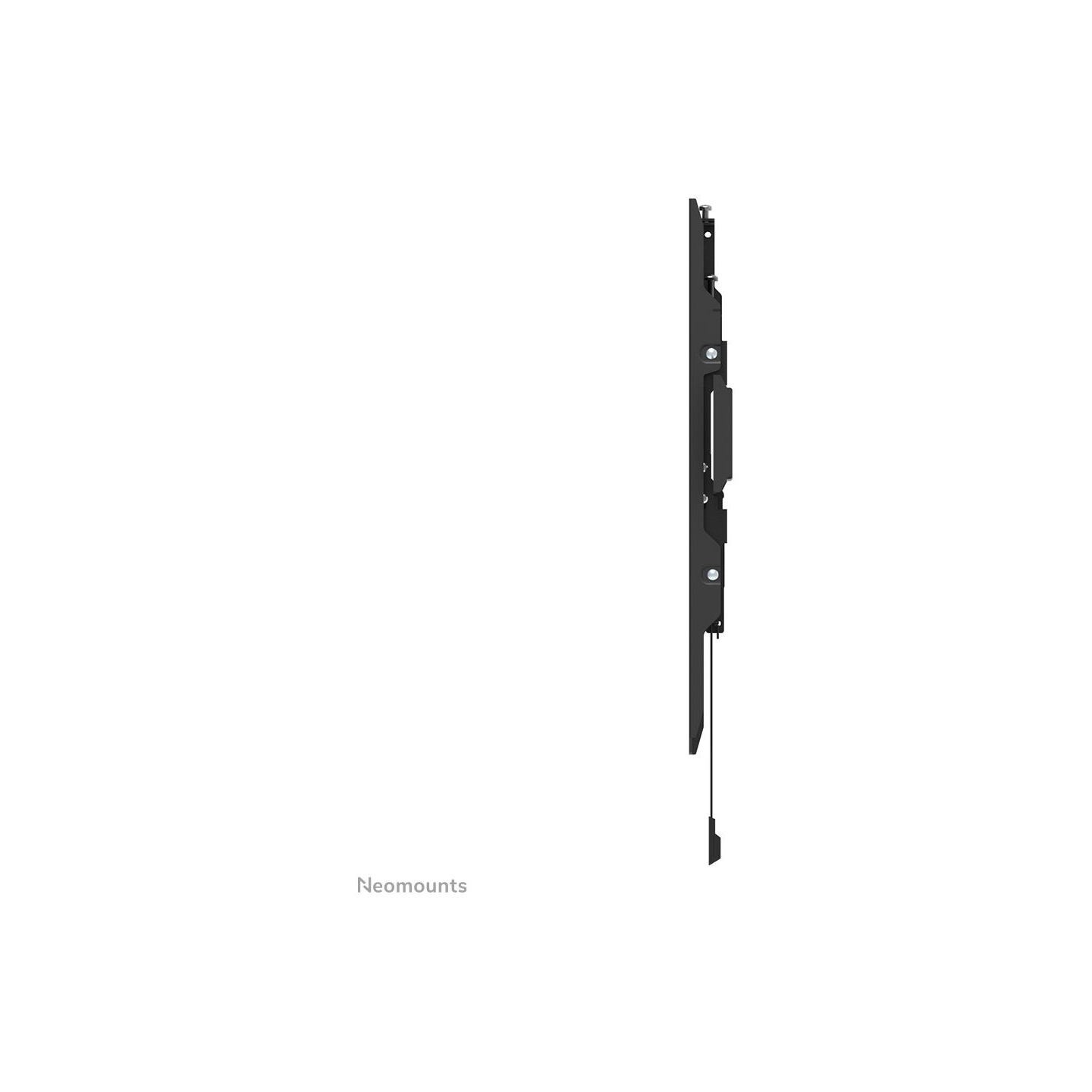

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

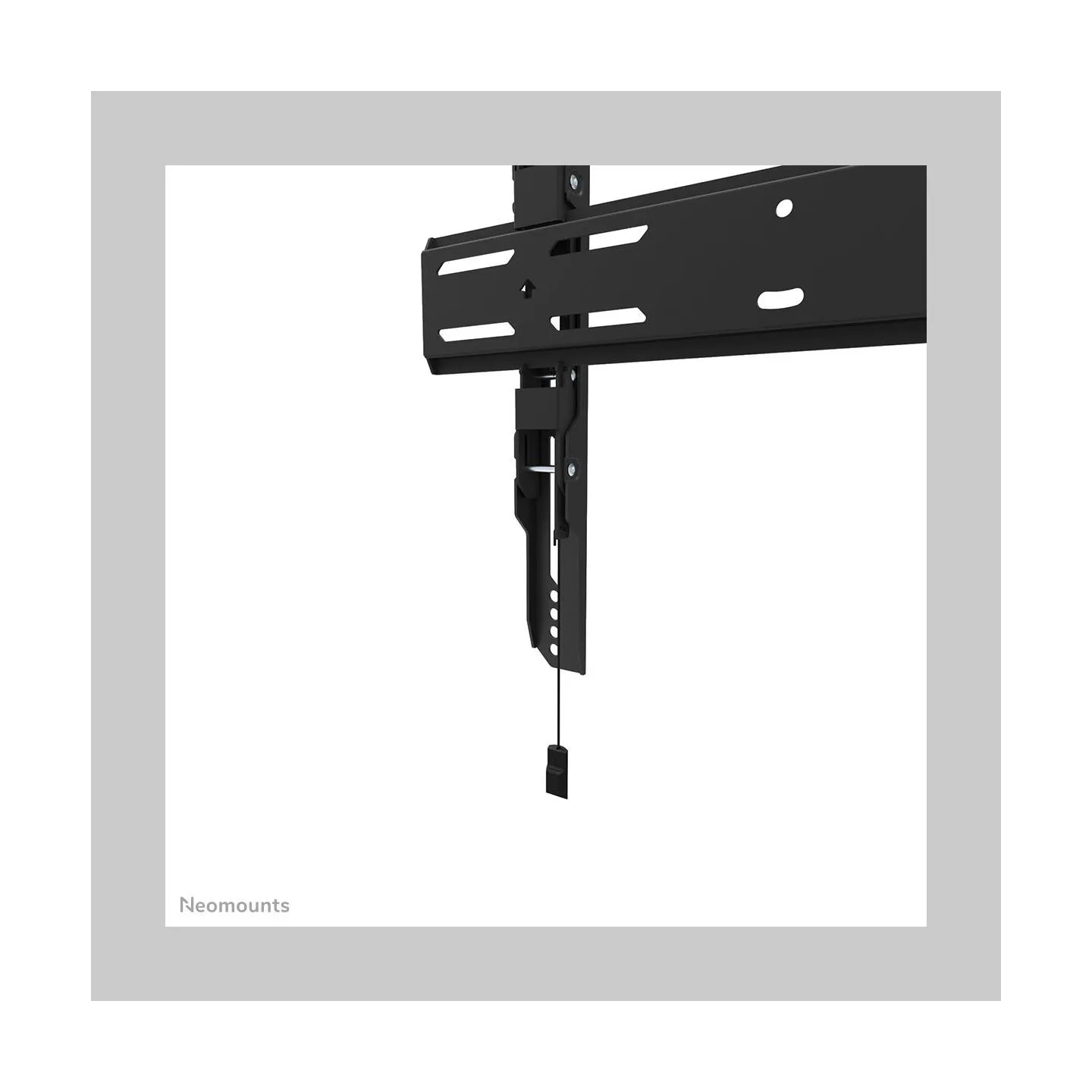

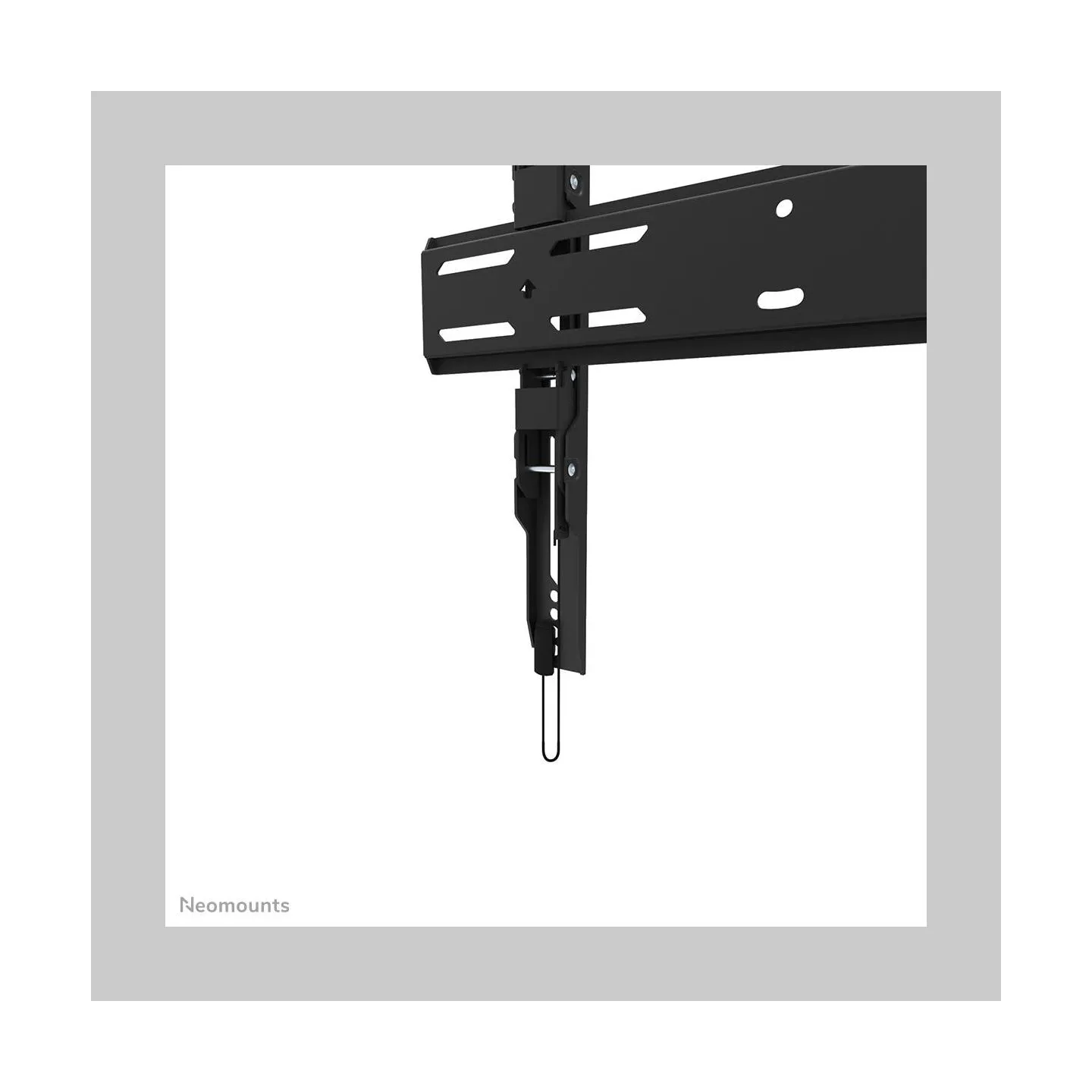

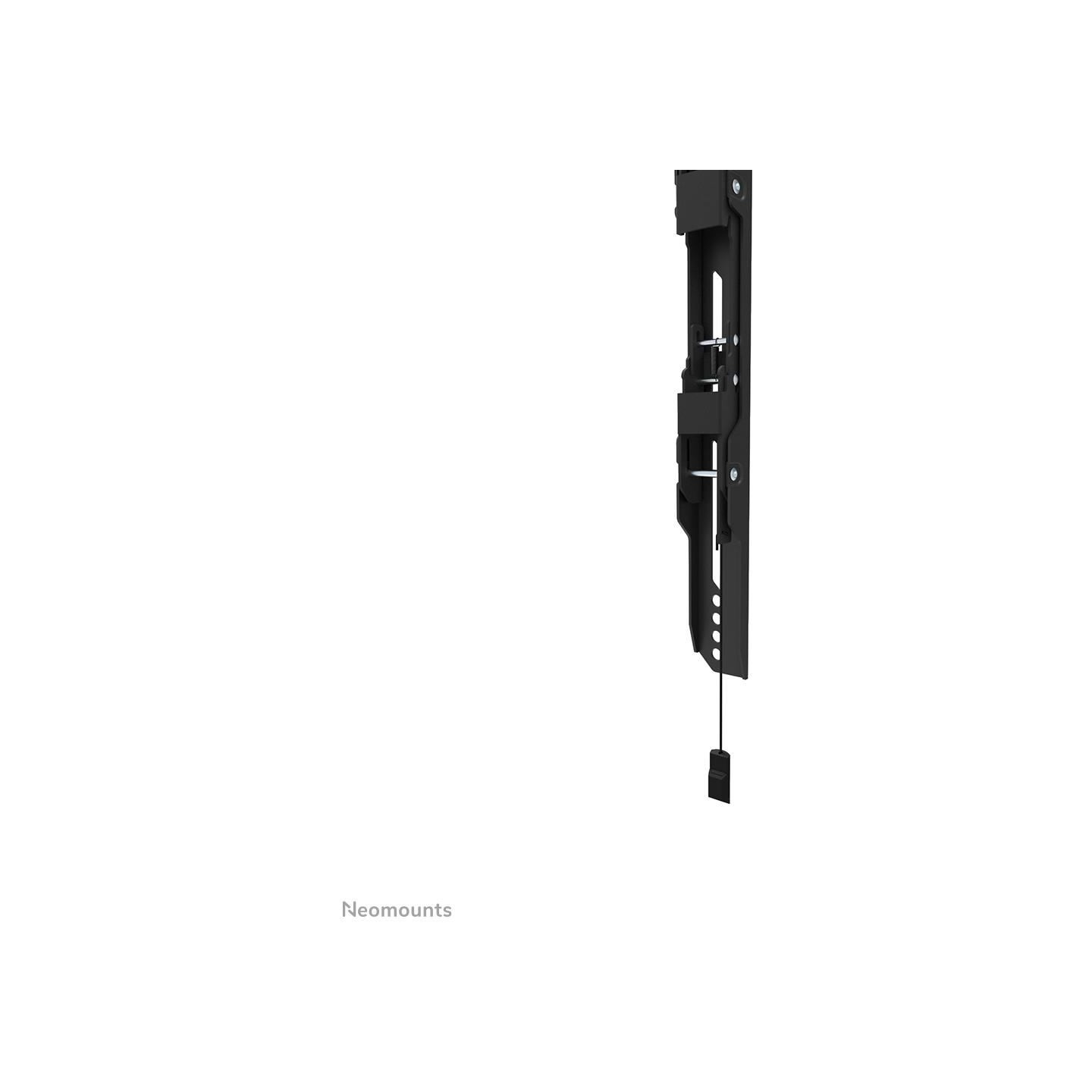

The WL30S-850BL14 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Manufacturer Website:
https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30S-850BL14
- Category Code
- TMS
- CnCode
- 83021000
- Unit Box Height
- 0.16
- Unit Box Length
- 0.71
- Unit Box Width
- 0.08
- Maximum screen size
- 75 "
- Maximum VESA mount
- 400 x 400 mm
- Maximum weight capacity
- 50 kg
- Maximum weight capacity (per display)
- 50 kg
- Minimum screen size
- 40 "
- Minimum VESA mount
- 100 x 100 mm
- Mounting type
- Wall
- Number of displays supported
- 1
- Panel mounting interface
- 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400 mm
- Distance to the wall (max)
- 33 mm
- Height adjustment
- Yes
- Height adjustment range
- 0 - 20 mm
- Type
- Fixed
- Housing material
- Steel
- Product colour
- Black
- Country of origin
- China
- Lockable
- Security screw included
- Package net weight
- 3100 g
- Depth
- 33 mm
- Depth (max)
- 33 mm
- Height
- 425 mm
- Weight
- 2100 g
- Width
- 484 mm
- Package depth
- 158 mm
- Package height
- 74 mm
- Package weight
- 3100 g
- Package width
- 704 mm
- Harmonized System (HS) code
- 7326909890
- Master (outer) case gross weight
- 19100 g
- Master (outer) case height
- 343 mm
- Master (outer) case length
- 240 mm
- Master (outer) case net weight
- 14300 g
- Master (outer) case width
- 724 mm
- Products per master (outer) case
- 6 pc(s)
- Products per pallet (EU)
- 96 pc(s)
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.009088 cubm
- Unit Calculated Weight
- 3.1 kg
