Onkron TV SET ACC WALL MOUNT /32-90"/BLACK SM6L-B ONKRON
Price:
€126.81
Tax included
Last items in stock
Share on
- For TV Screen 32"-90"

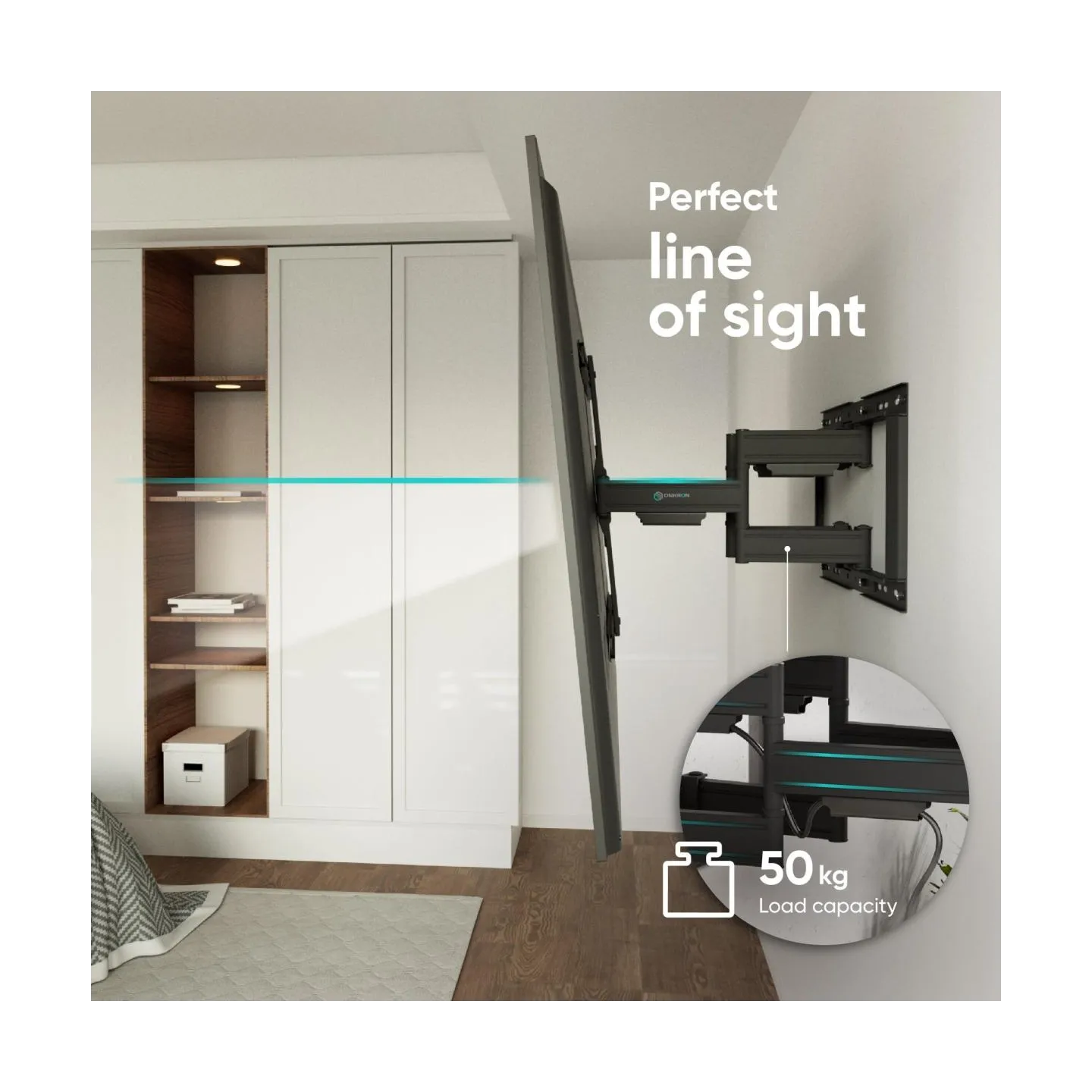

- Max load: 50 kg
- VESA: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm

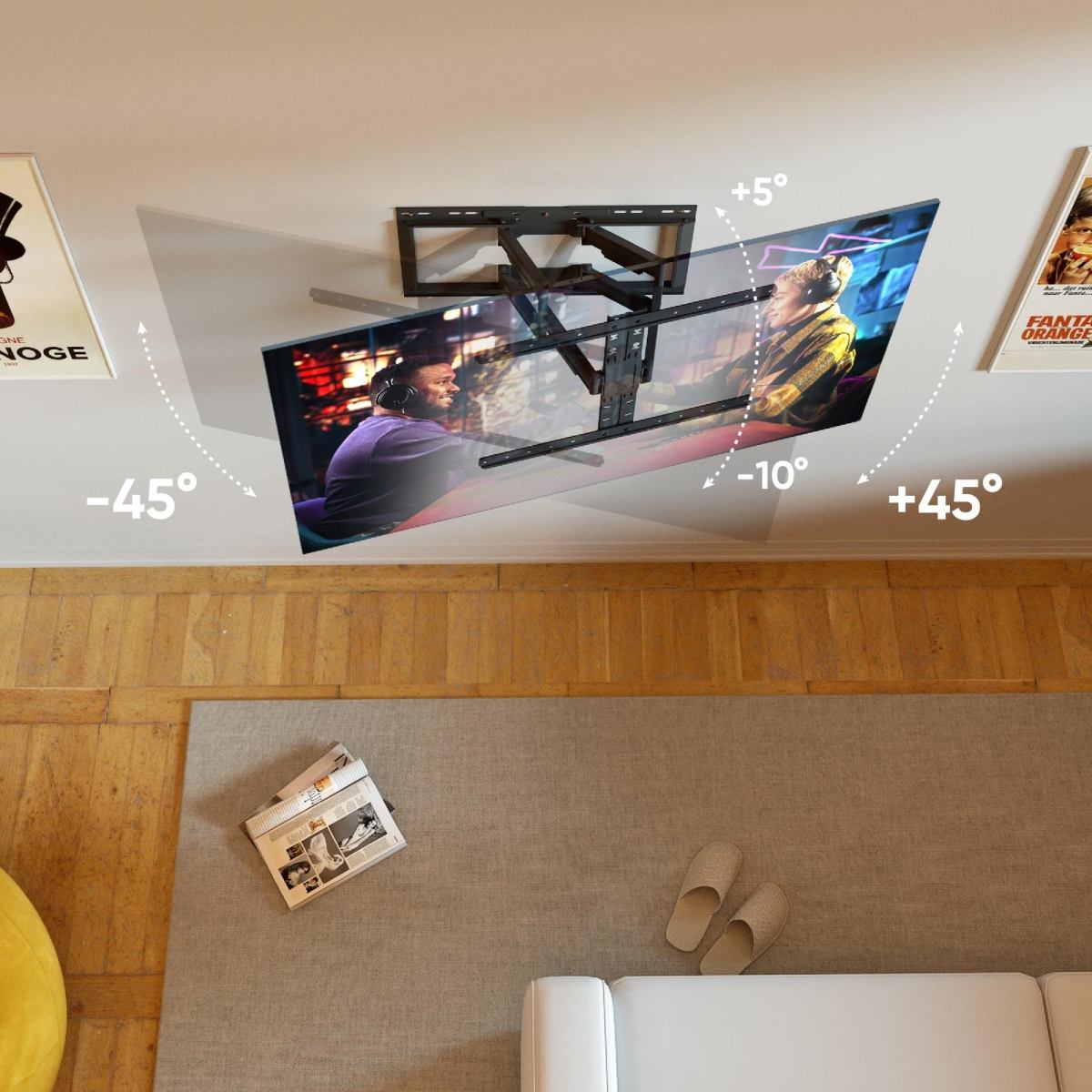

- Tilt angle: +5° ~ -10°

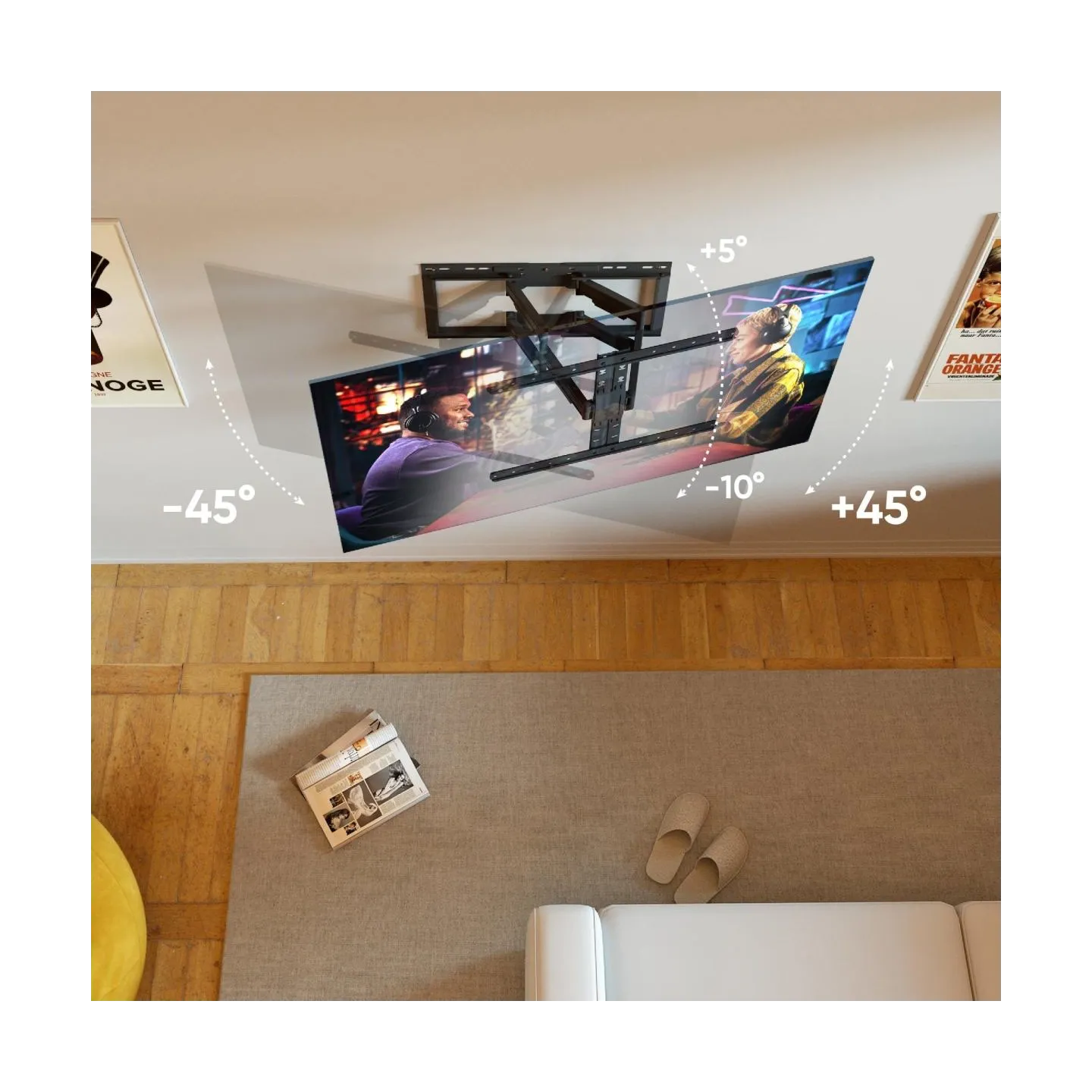

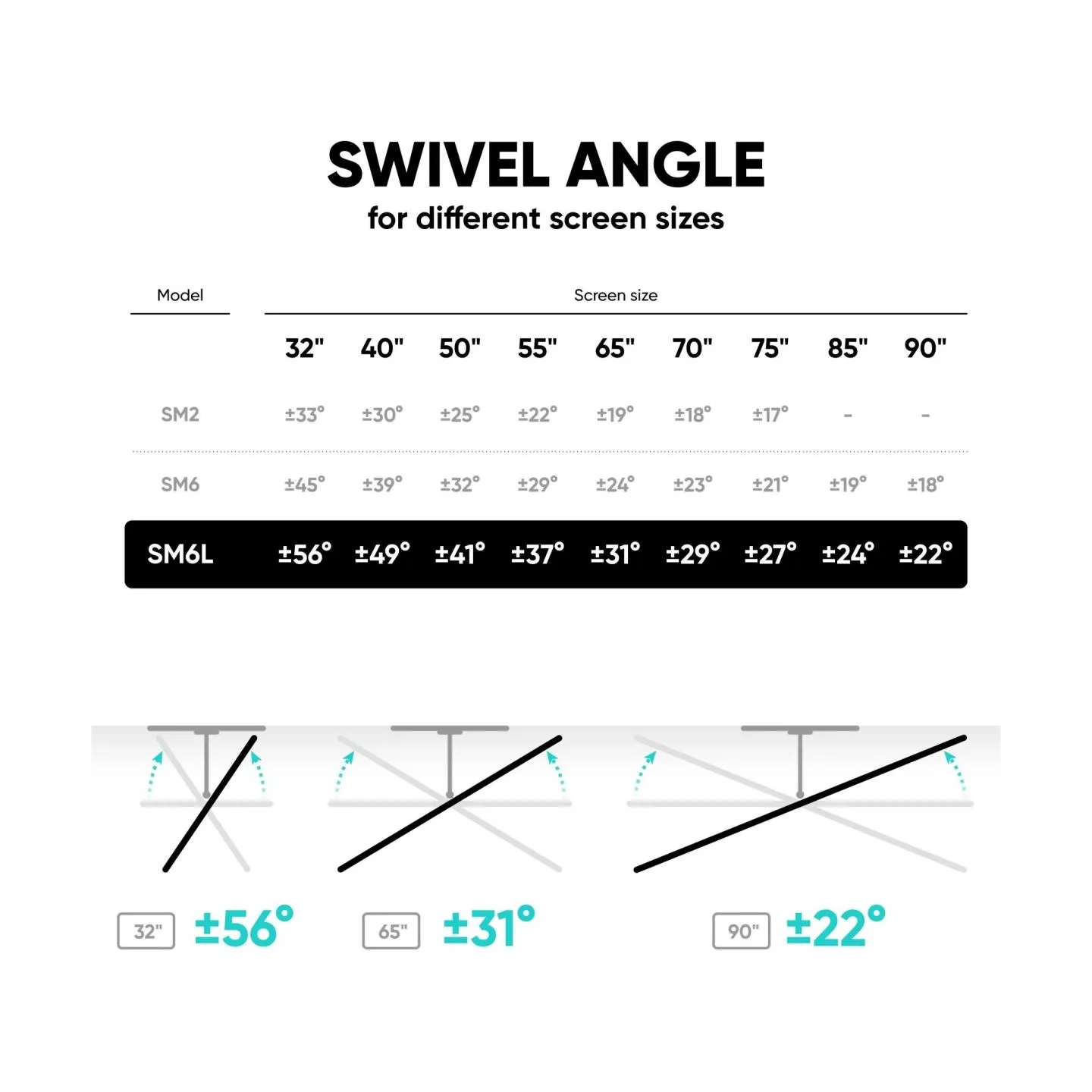

- Rotation angle: -45° ~ +45°

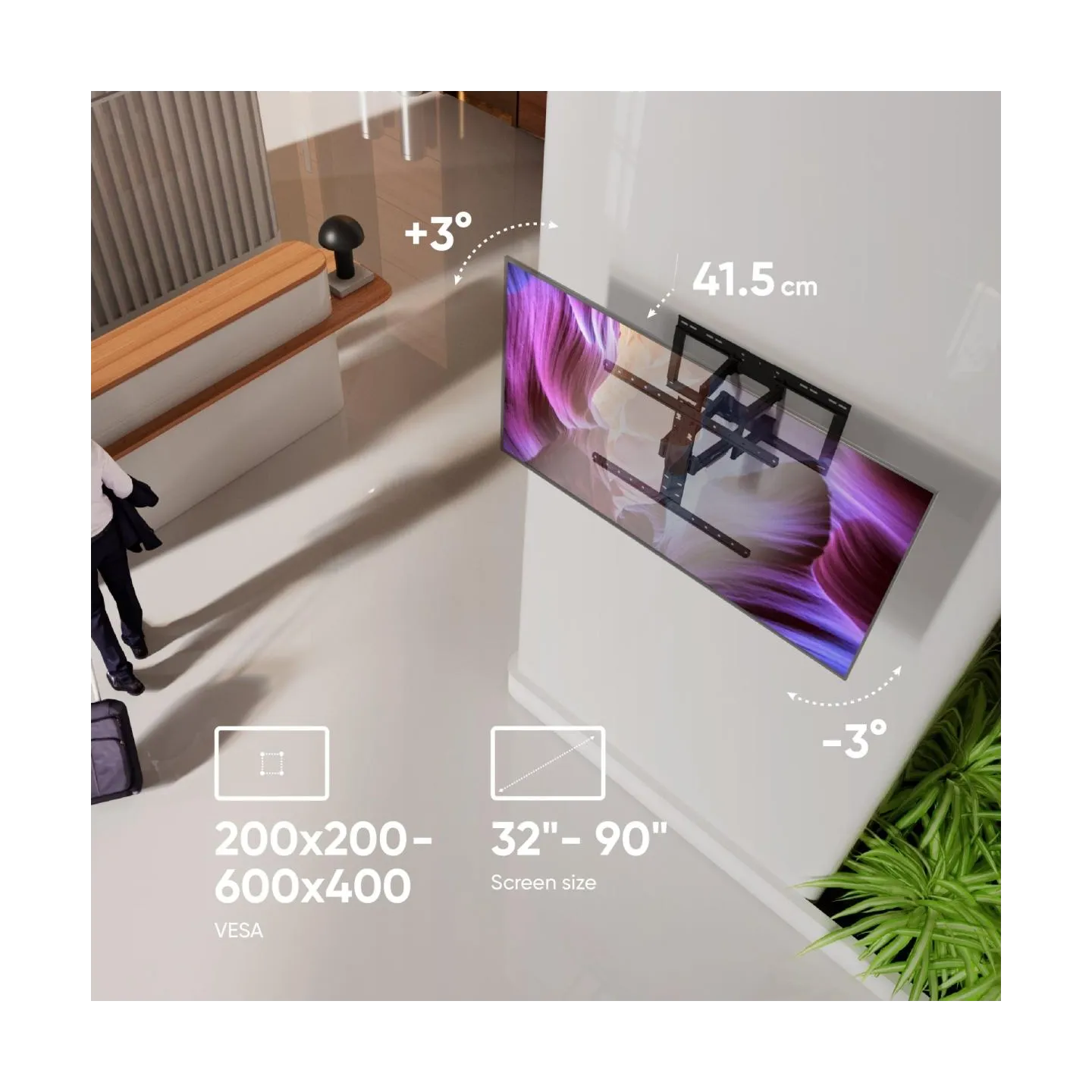

- Horizontal adjustment: -3° ~ +3°

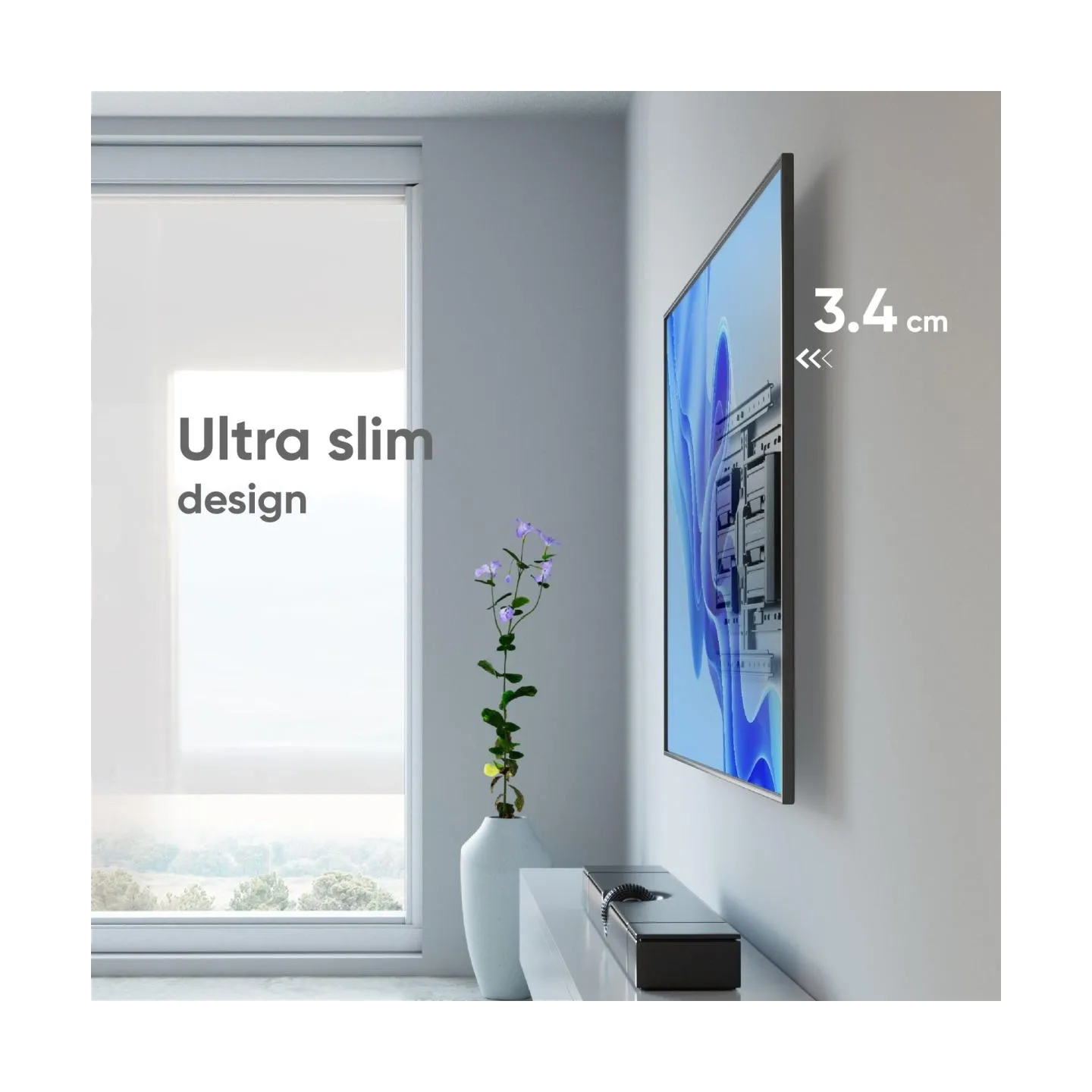

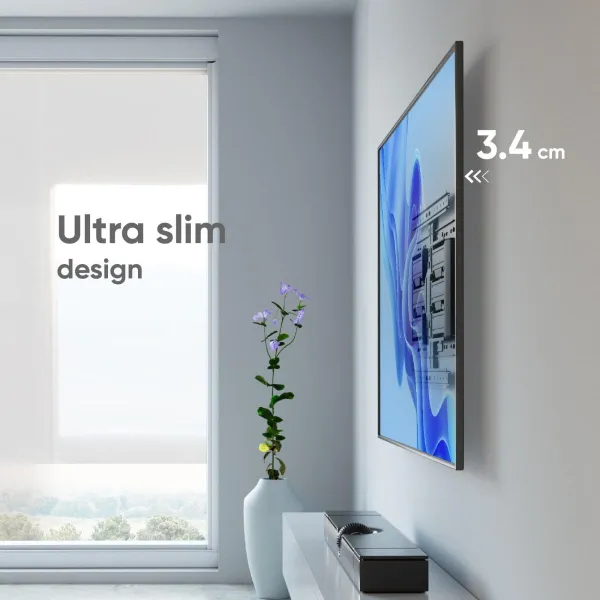

- Extension from the wall: 34 - 415 mm

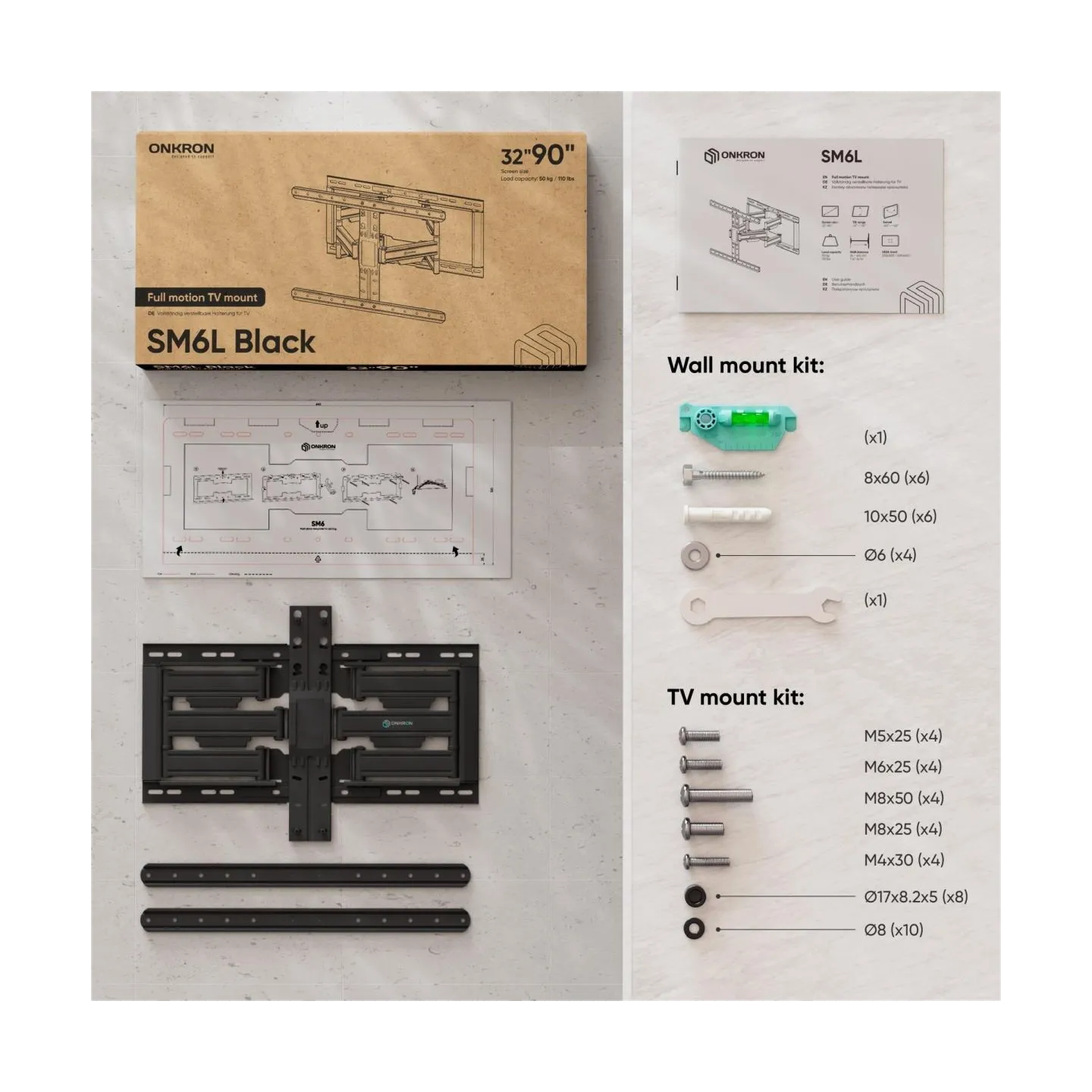

- Removable level, marking template included
- Material: cold-rolled steel
Manufacturer Website:
https://onkron-uk.co.uk/products/sm6l-b?_pos=1&_sid=dd8e9e423&_ss=r
- Category Code
- TMS
- CnCode
- 83021000
- Unit Box Height
- 0.05
- Unit Box Length
- 0.7
- Unit Box Width
- 0.5
- Maximum screen size
- 90 "
- Maximum VESA mount
- 600 x 400 mm
- Maximum weight capacity
- 50 kg
- Maximum weight capacity (per display)
- 50 kg
- Minimum screen size
- 32 "
- Minimum VESA mount
- 200 x 200 mm
- Mounting type
- Wall
- Number of displays supported
- 1
- Panel mounting interface
- 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm
- Angle of rotation
- 45 °
- Distance to the wall (max)
- 415 mm
- Distance to the wall (min)
- 34 mm
- Rotating
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -10 - 5 °
- Housing material
- Steel
- Product colour
- Black
- Package 1 dimensions (WxDxH)
- 710 x 505 x 55 mm
- Package 1 weight
- 7100 g
- Package 2 dimensions (W x D x H)
- 770 x 393 x 77 mm
- Package 2 weight
- 7450 g
- Model
- SM6L
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.0216 cubm
- Unit Calculated Weight
- 8.15 kg
