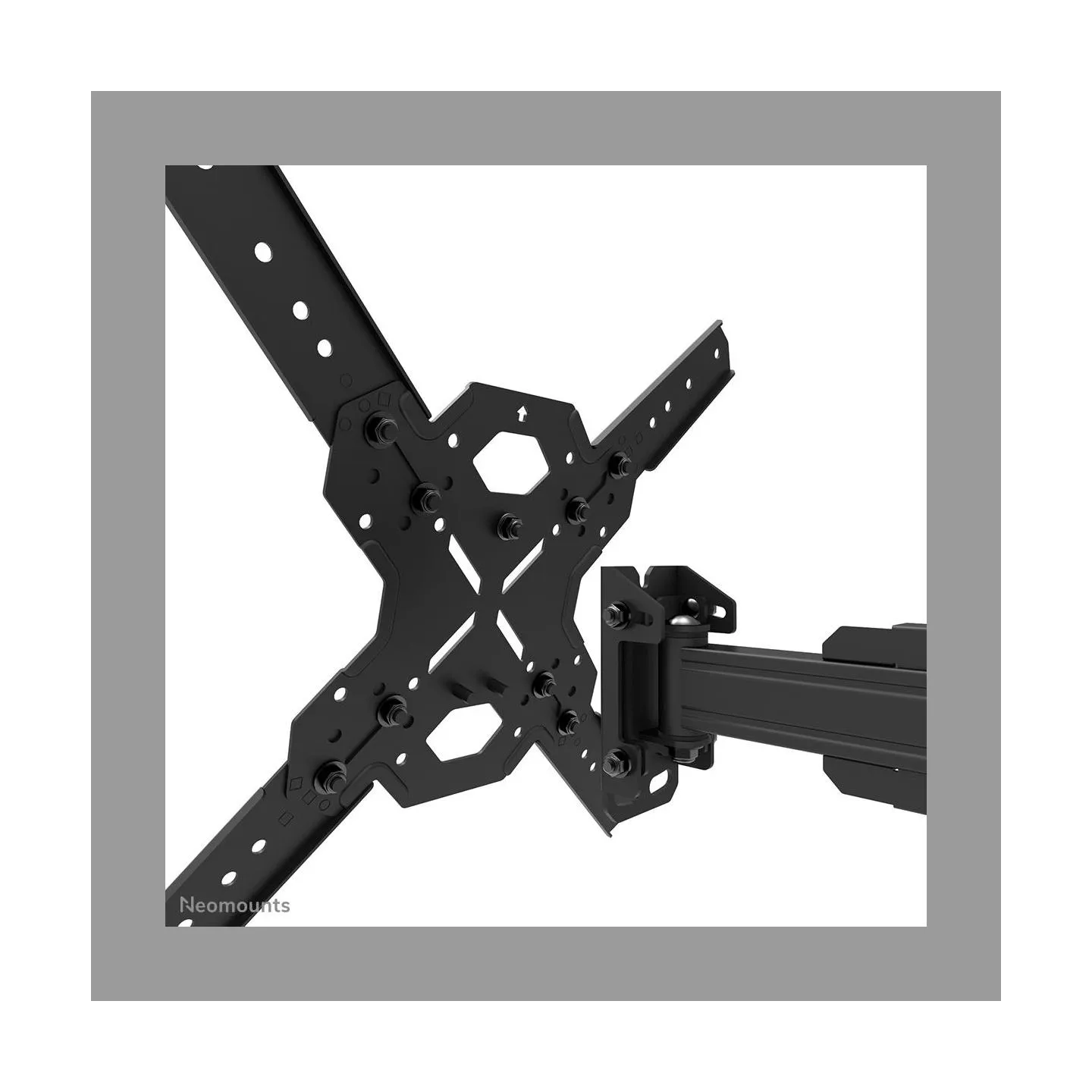

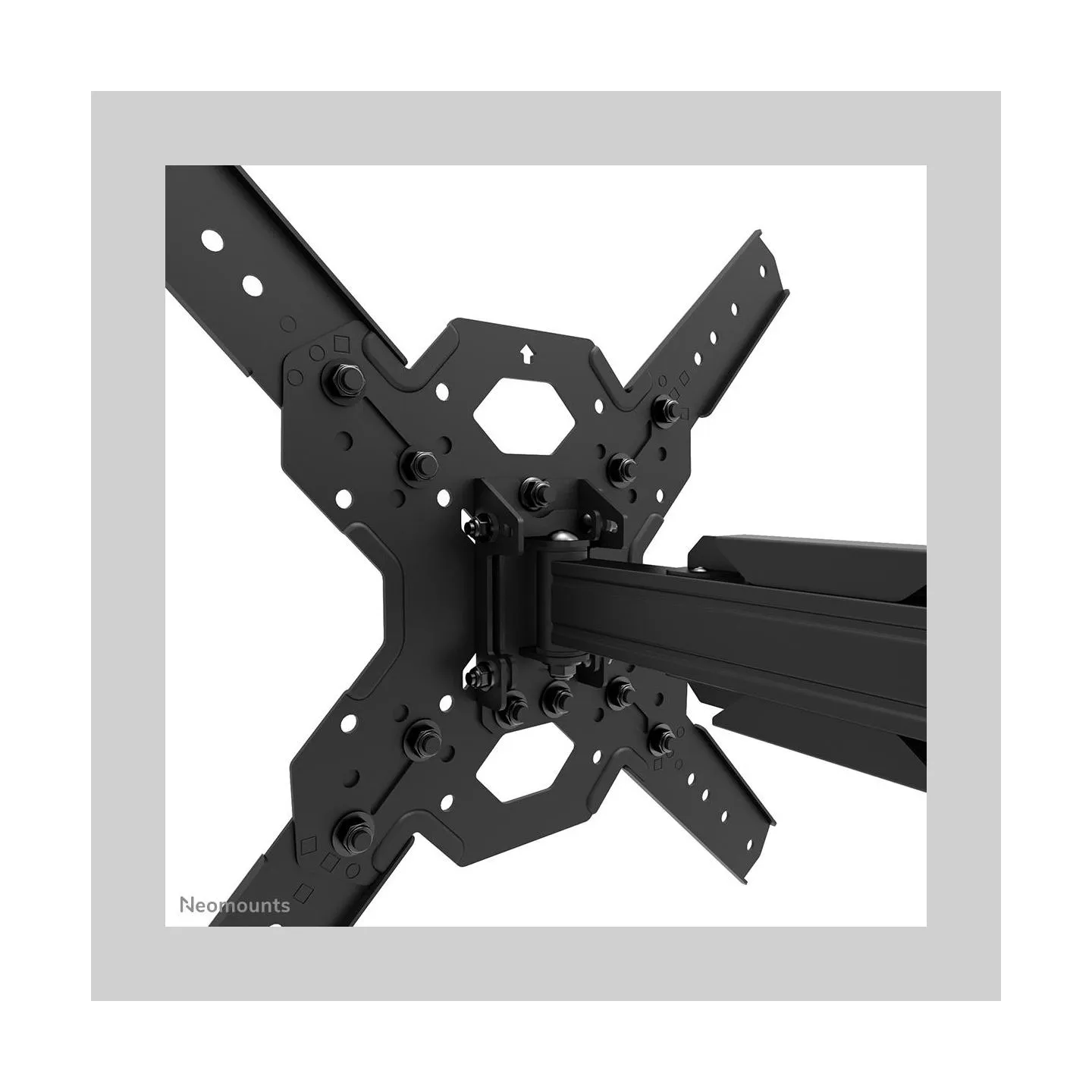

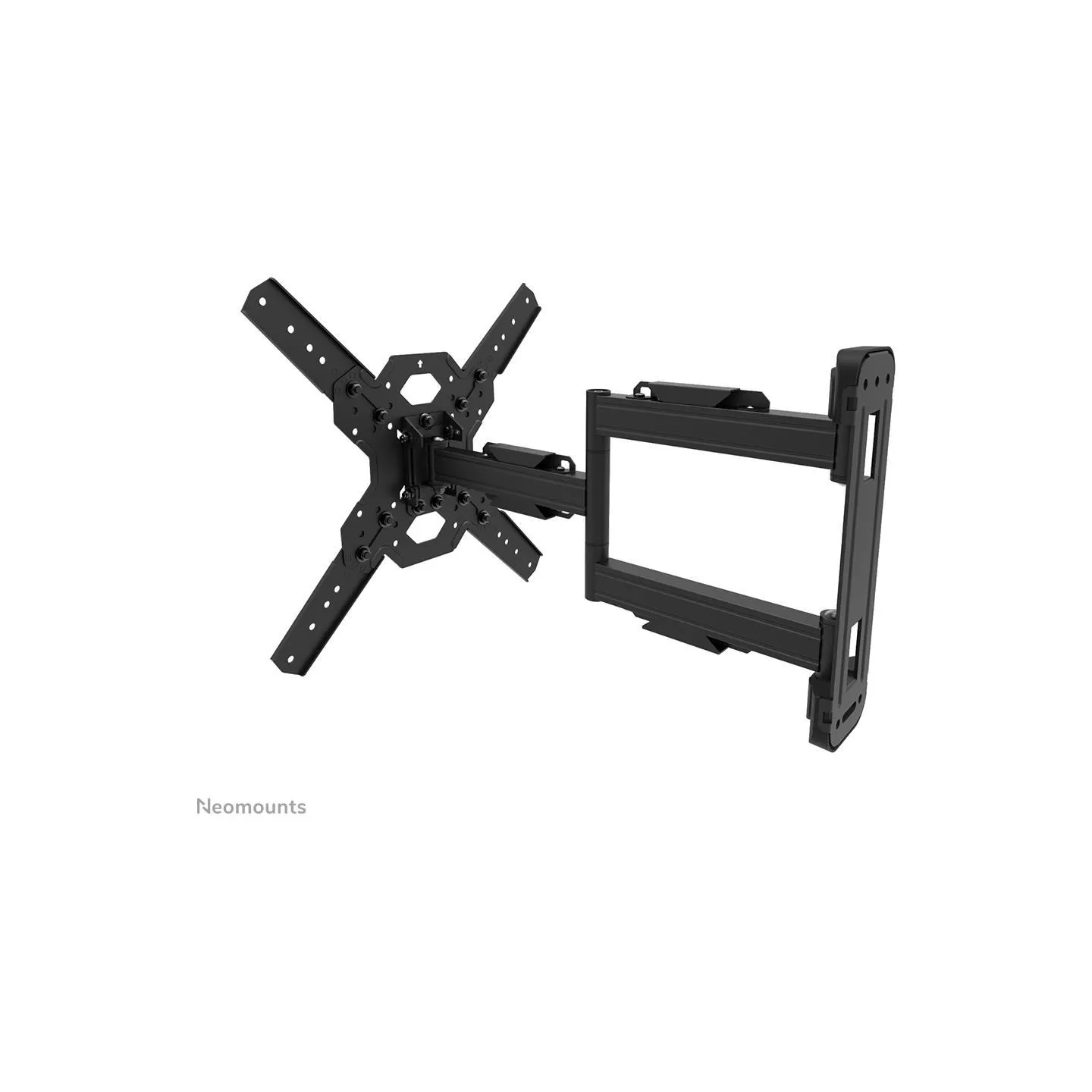

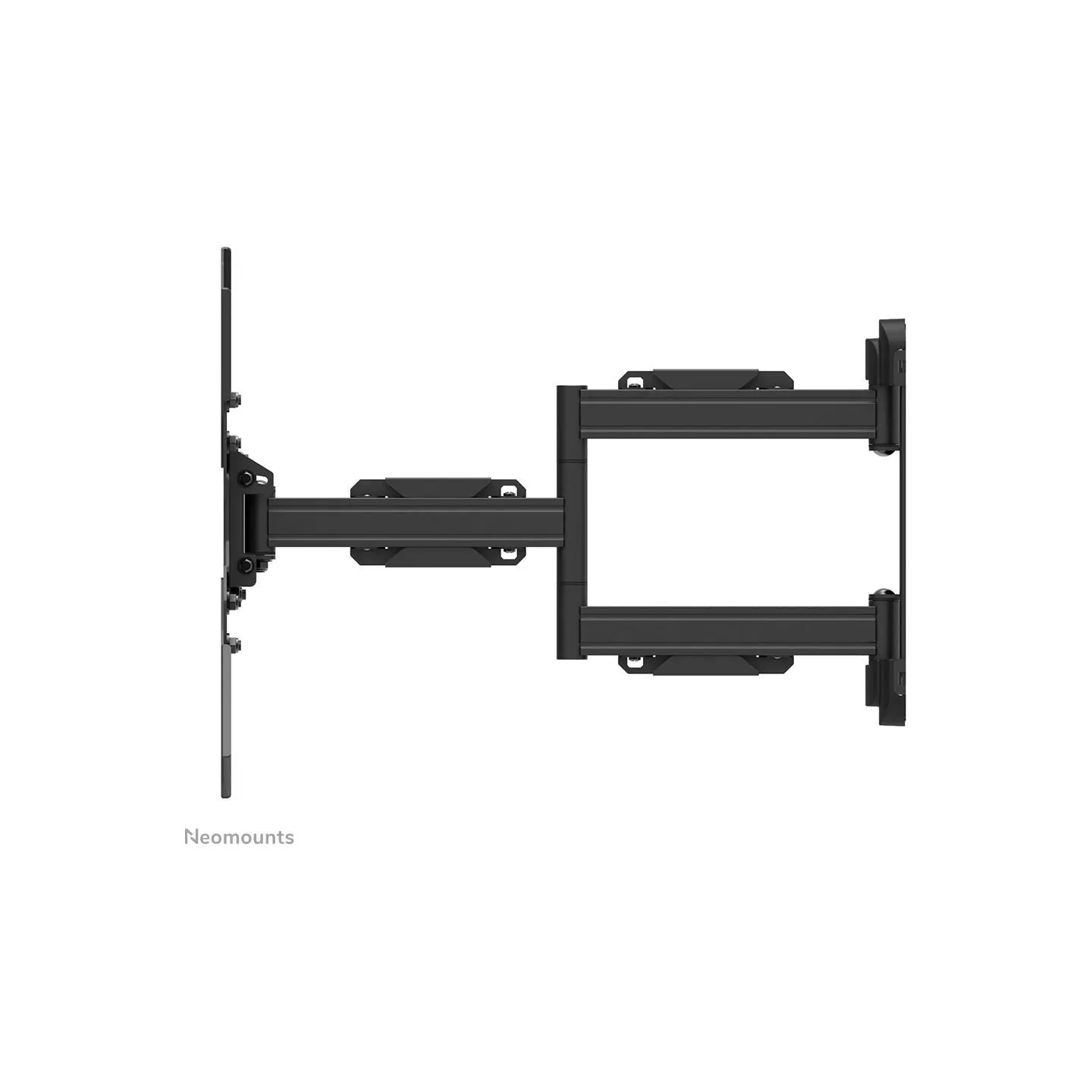

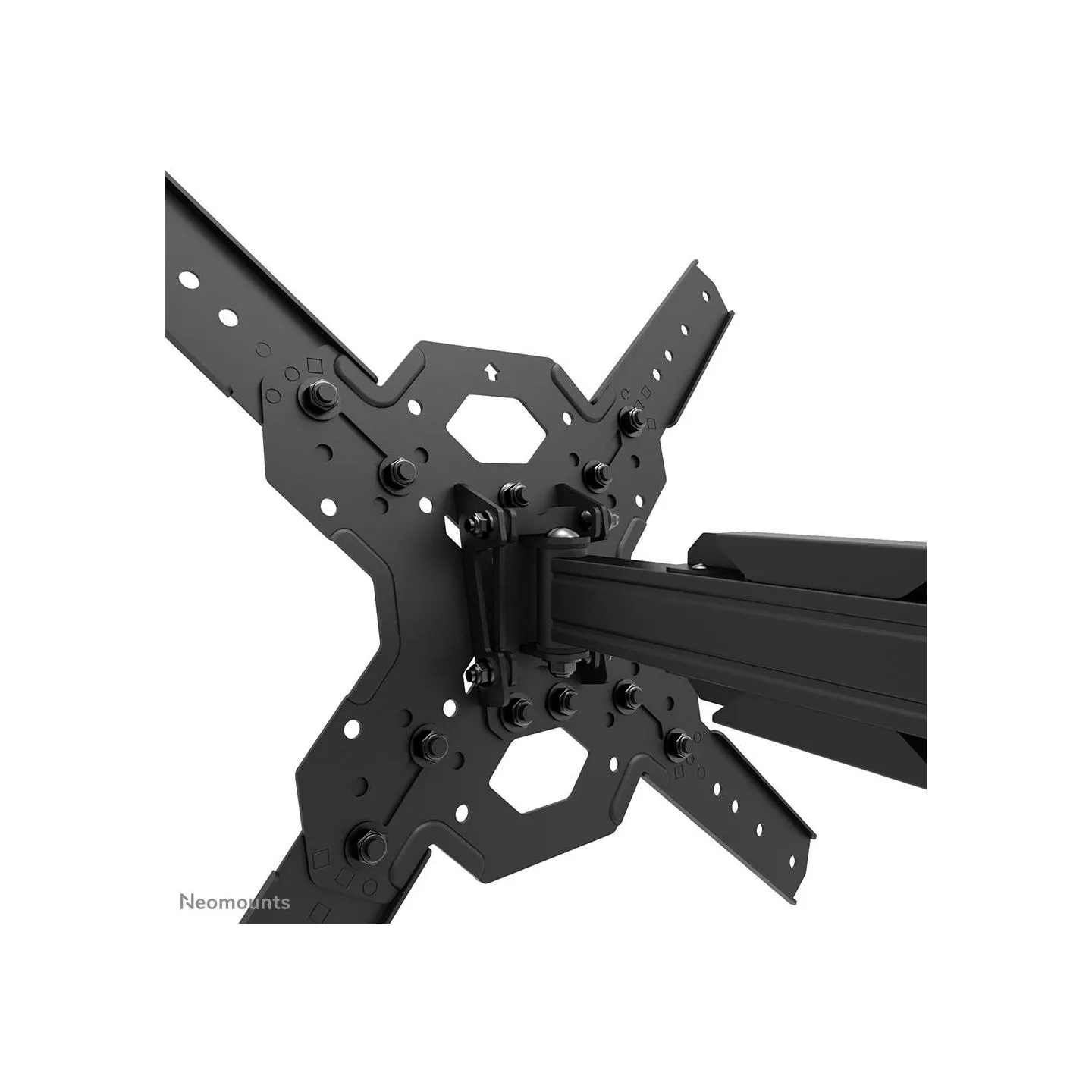

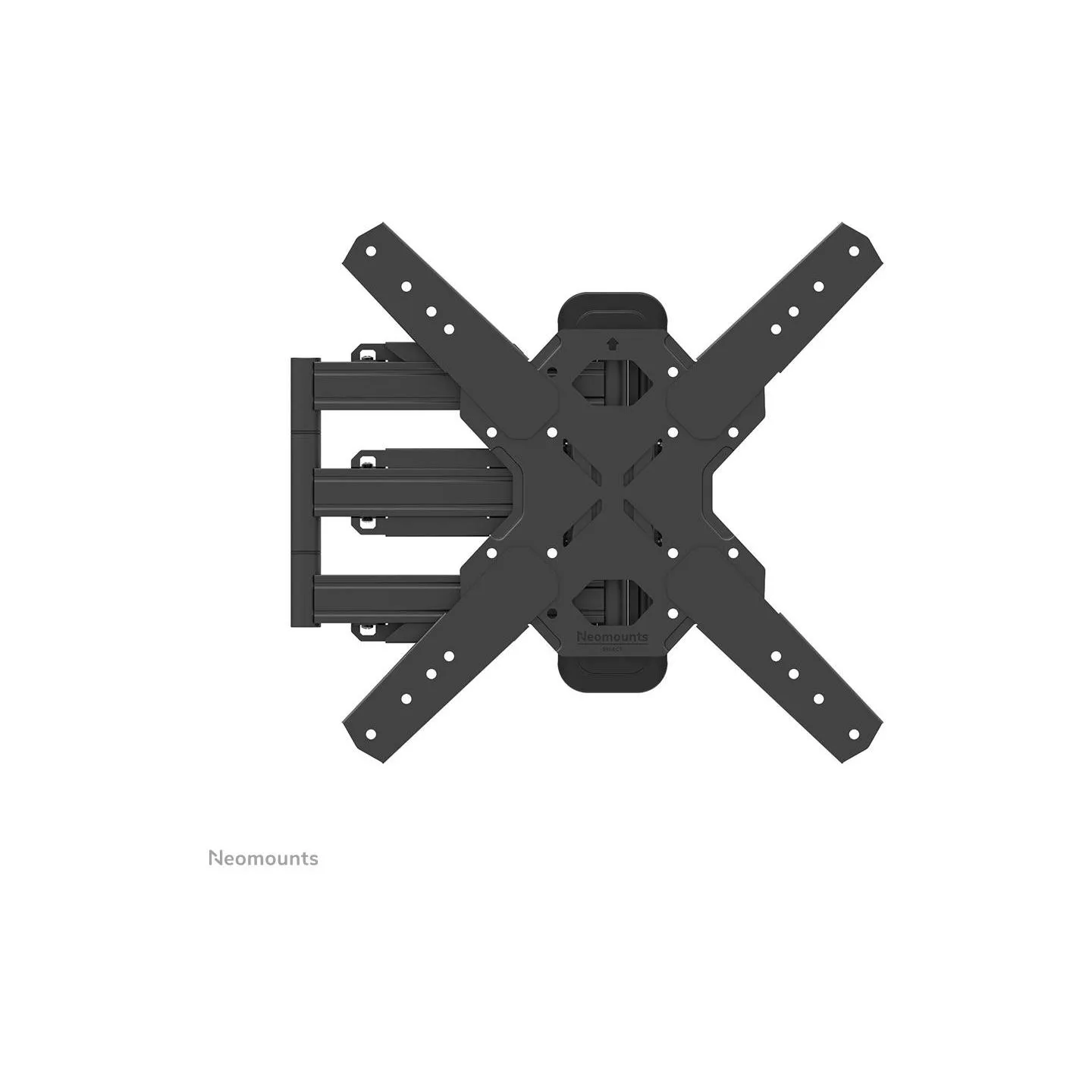

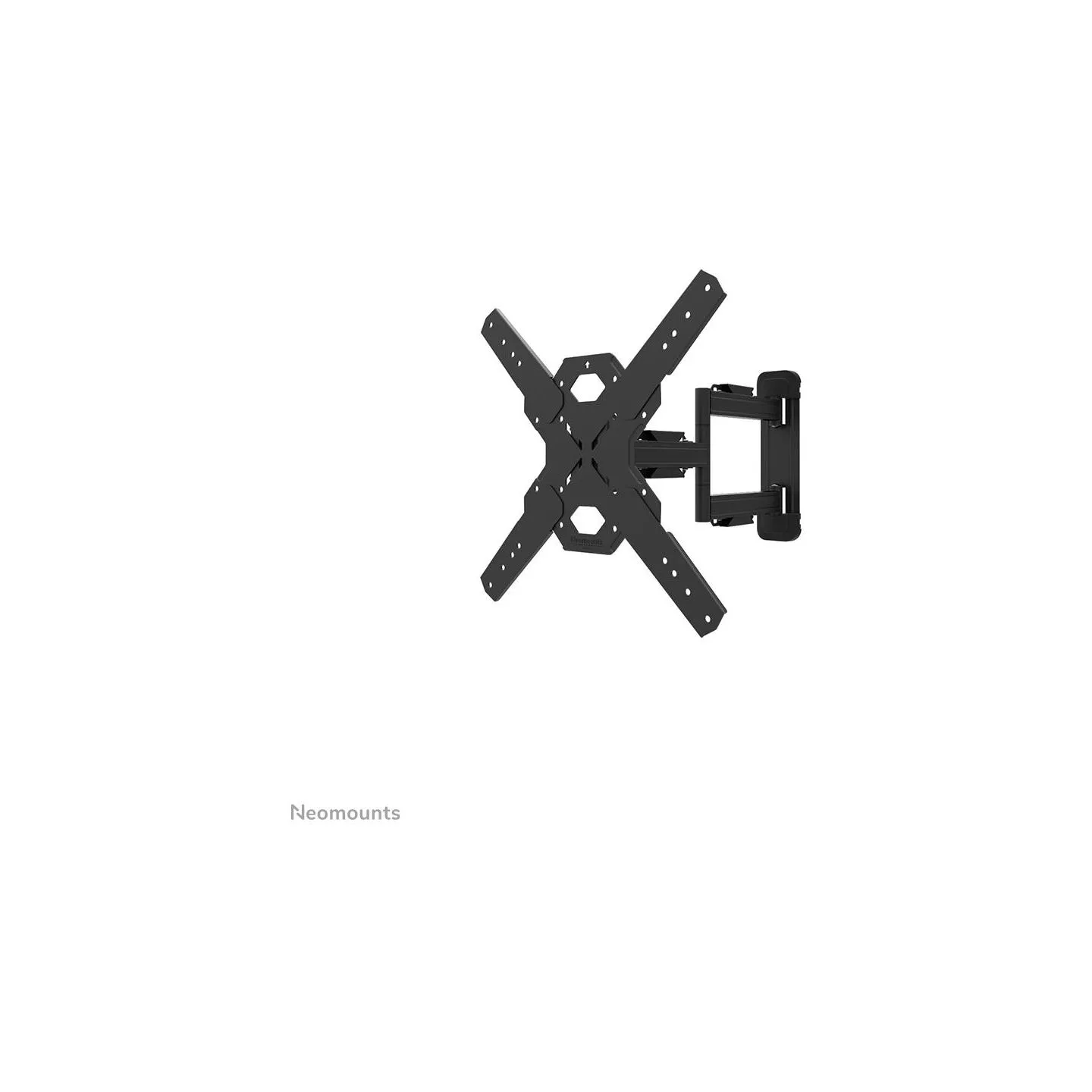

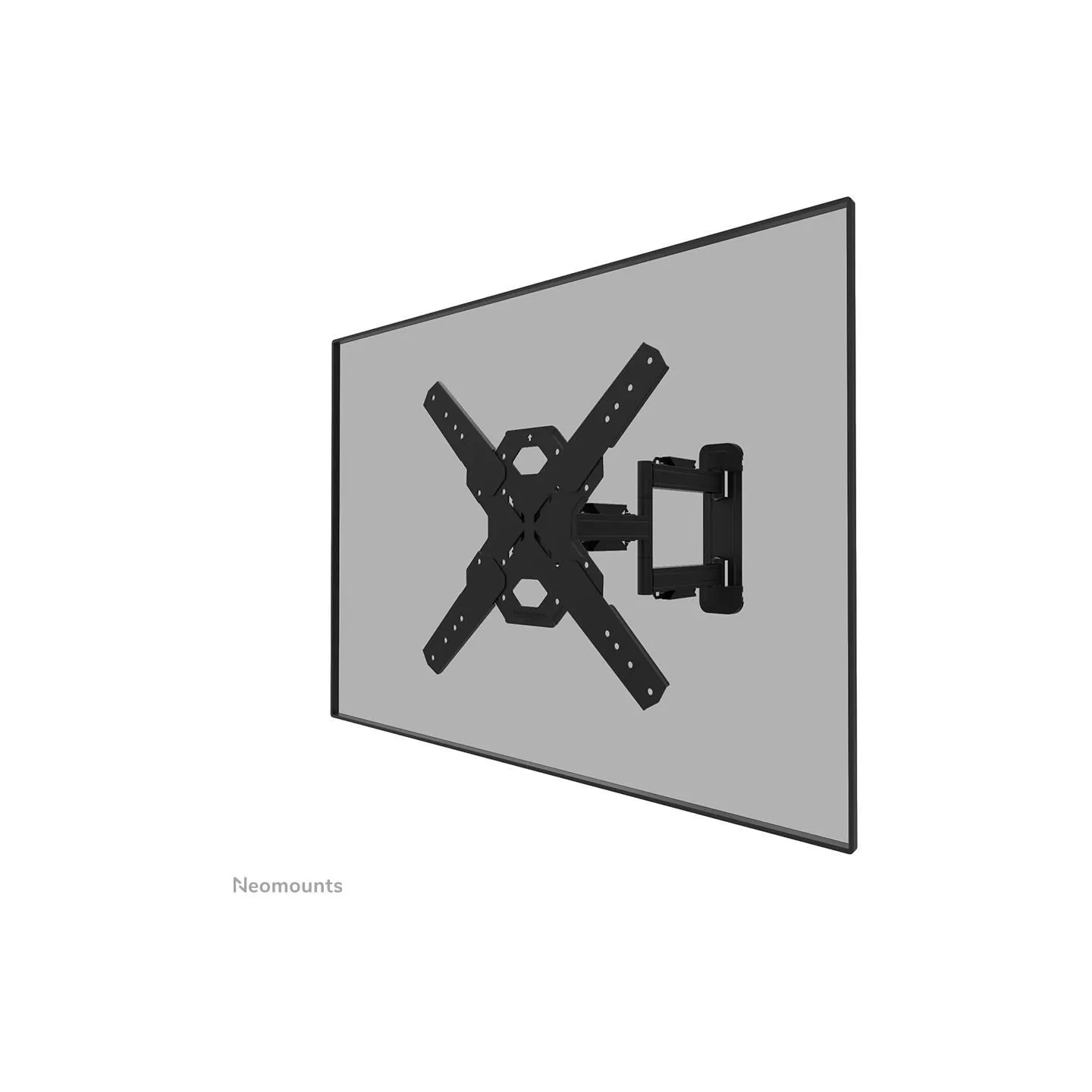

Neomounts SELECT SCREEN WALL MOUNT (FULL MOTION, 3 PIVOTS, VESA 400X400)
The Neomounts WL40S-850BL14 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.
The WL40S-850BL14 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Manufacturer Website:
https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-850BL14
- Category Code
- TMS
- CnCode
- 83021000
- Unit Box Height
- 0.34
- Unit Box Length
- 0.515
- Unit Box Width
- 0.07
- Maximum screen size
- 65 "
- Maximum VESA mount
- 400 x 400 mm
- Maximum weight capacity
- 40 kg
- Maximum weight capacity (per display)
- 40 kg
- Minimum screen size
- 40 "
- Minimum VESA mount
- 100 x 100 mm
- Mounting type
- Wall
- Number of displays supported
- 1
- Panel mounting interface
- 100 x 100/100 x 150/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400 mm
- Angle of rotation
- 6 °
- Cable management
- Yes
- Distance to the wall (max)
- 555 mm
- Distance to the wall (min)
- 47 mm
- Height adjustment
- No
- Pivot angle
- -3 - 3 °
- Rotating
- Yes
- Swivel angle
- 45 °
- Swivel angle range
- 0 - 45 °
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -2 - 12 °
- Type
- Full motion
- Housing material
- Steel
- Product colour
- Black
- Country of origin
- China
- Hex key included
- Yes
- Lockable
- Not lockable
- Mounting kit
- Yes
- Number of wrenches included
- 1
- Package net weight
- 7000 g
- Quantity per pack
- 1 pc(s)
- Depth
- 47 mm
- Depth (max)
- 47 mm
- Height
- 449 mm
- Weight
- 5900 g
- Width
- 449 mm
- Package depth
- 342 mm
- Package height
- 62 mm
- Package weight
- 7000 g
- Package width
- 503 mm
- Harmonized System (HS) code
- 7326909890
- Master (outer) case gross weight
- 21400 g
- Master (outer) case height
- 362 mm
- Master (outer) case length
- 204 mm
- Master (outer) case net weight
- 18300 g
- Master (outer) case width
- 523 mm
- Products per master (outer) case
- 3 pc(s)
- Products per pallet (EU)
- 84 pc(s)
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.01226 cubm
- Unit Calculated Weight
- 7.1 kg
