Neomounts Wall mount 55-110 inches WL35S-950BL19 100x100-1500x900 160kg w:0-9cm

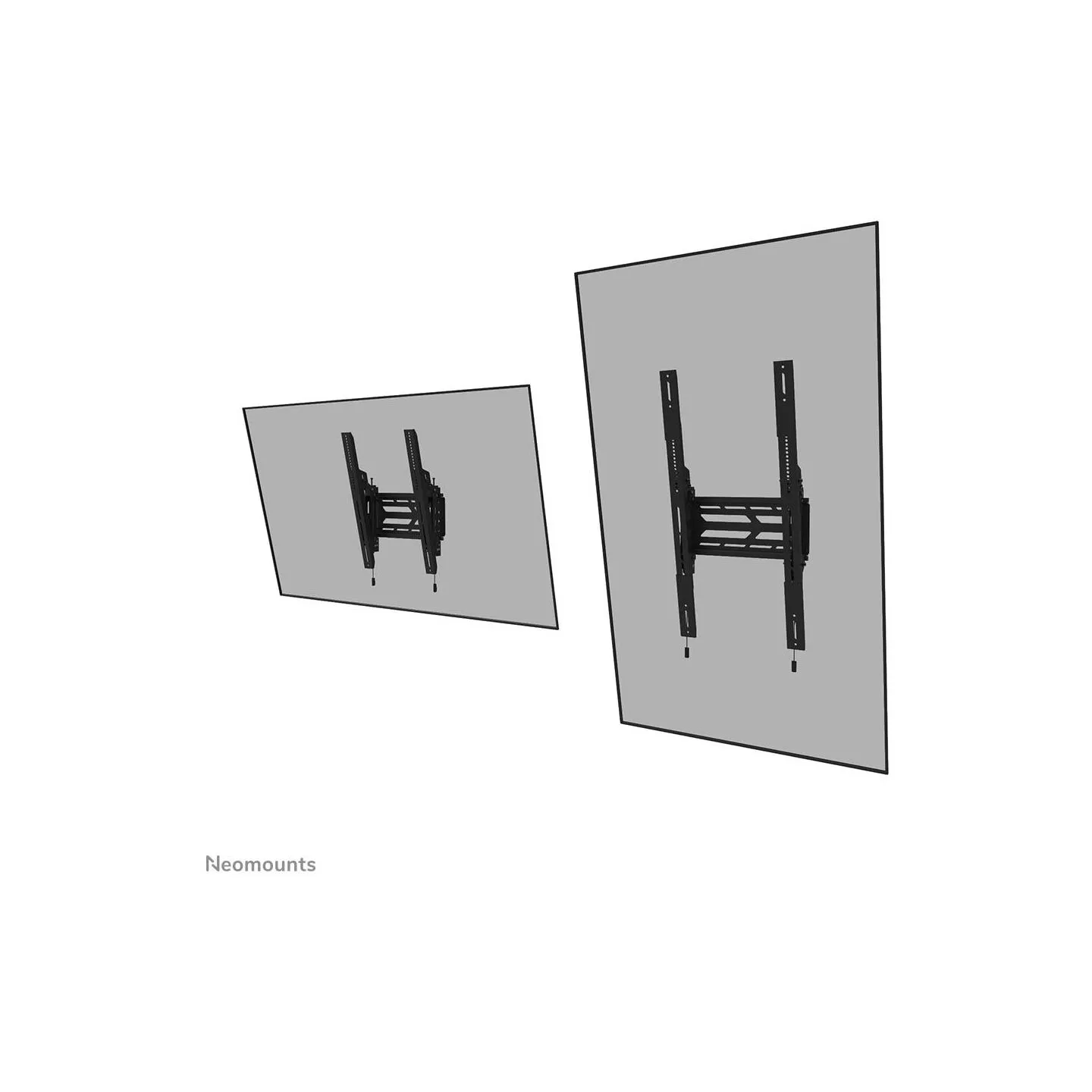

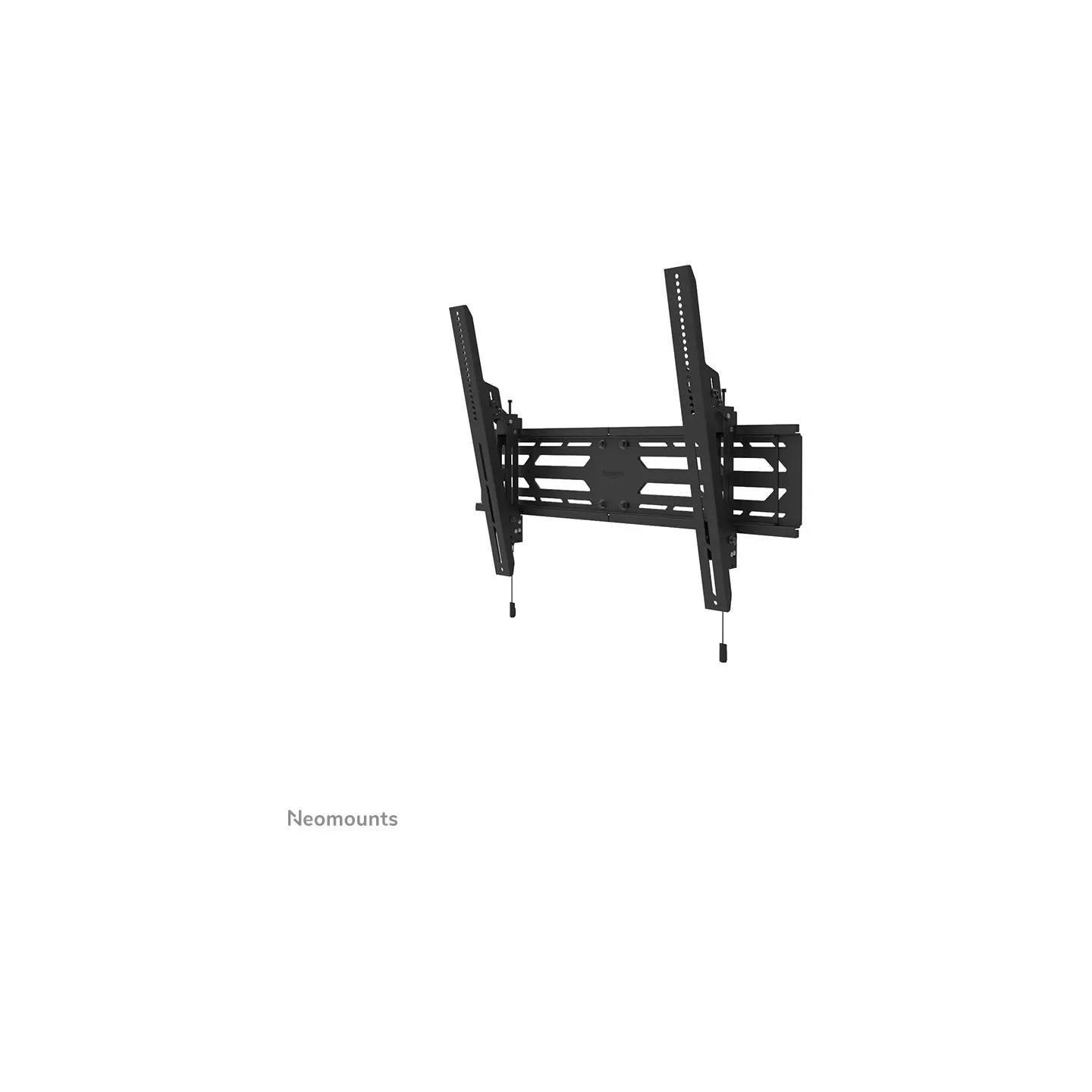

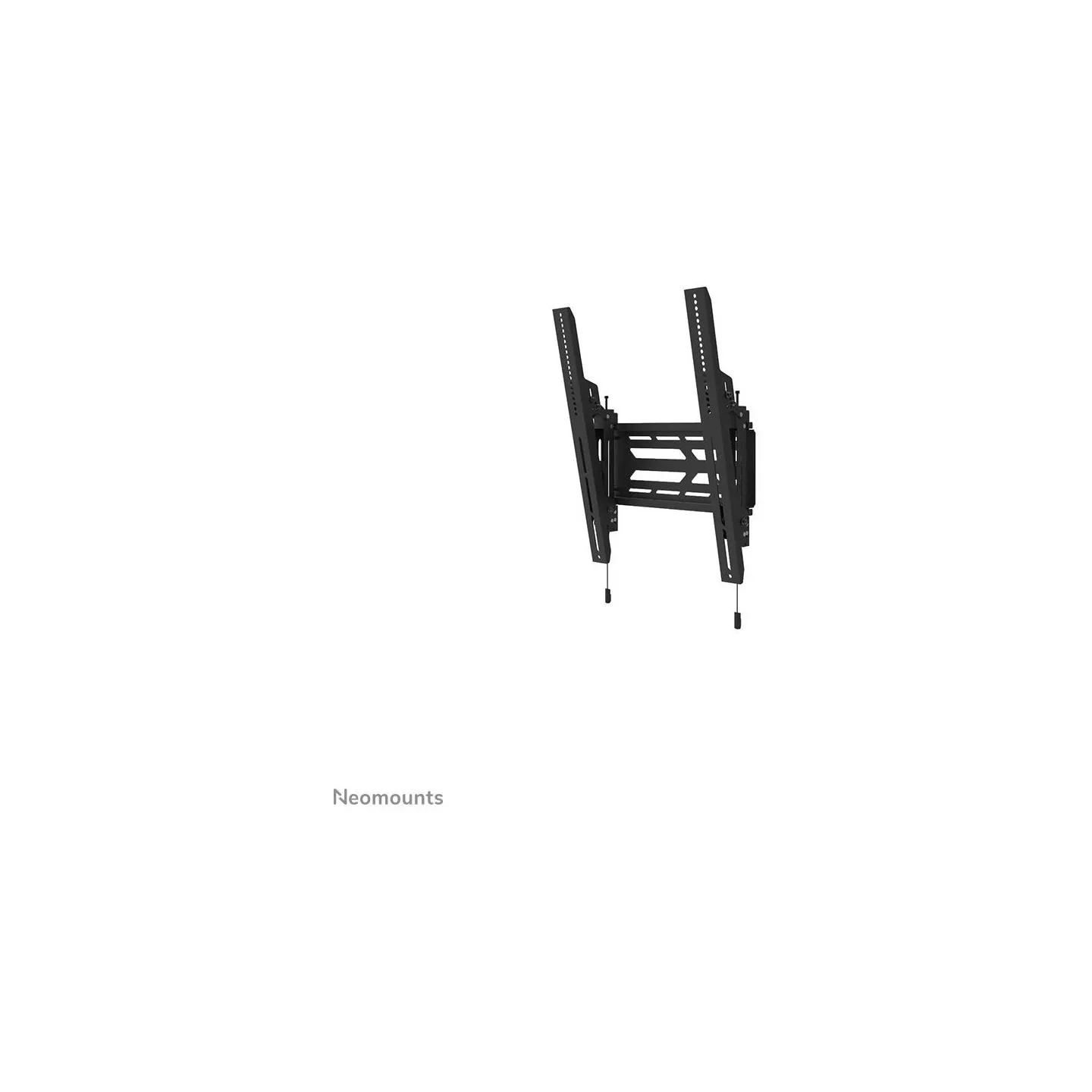

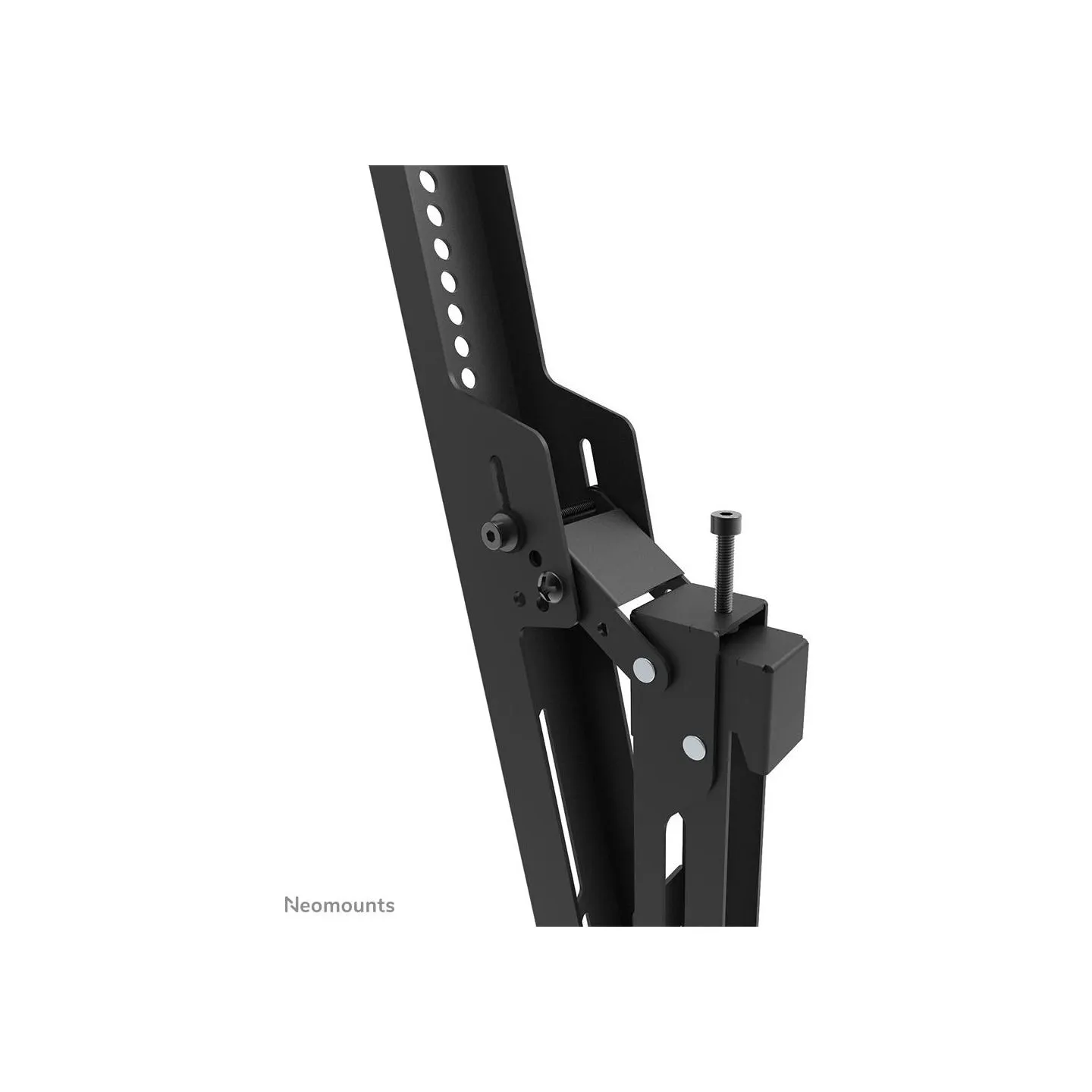

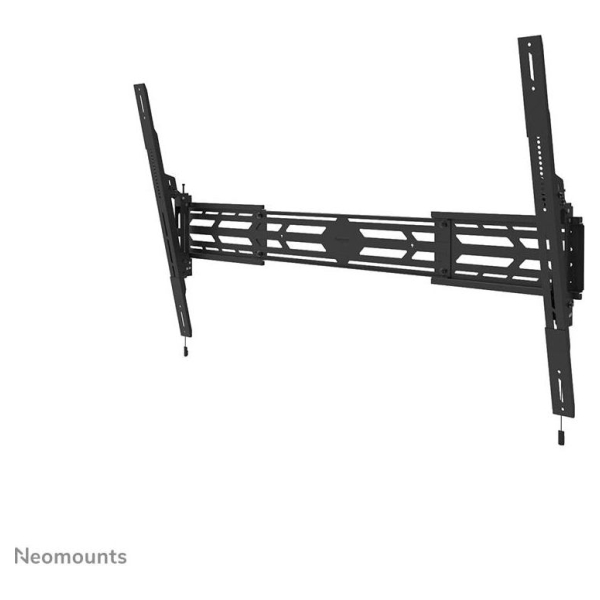

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

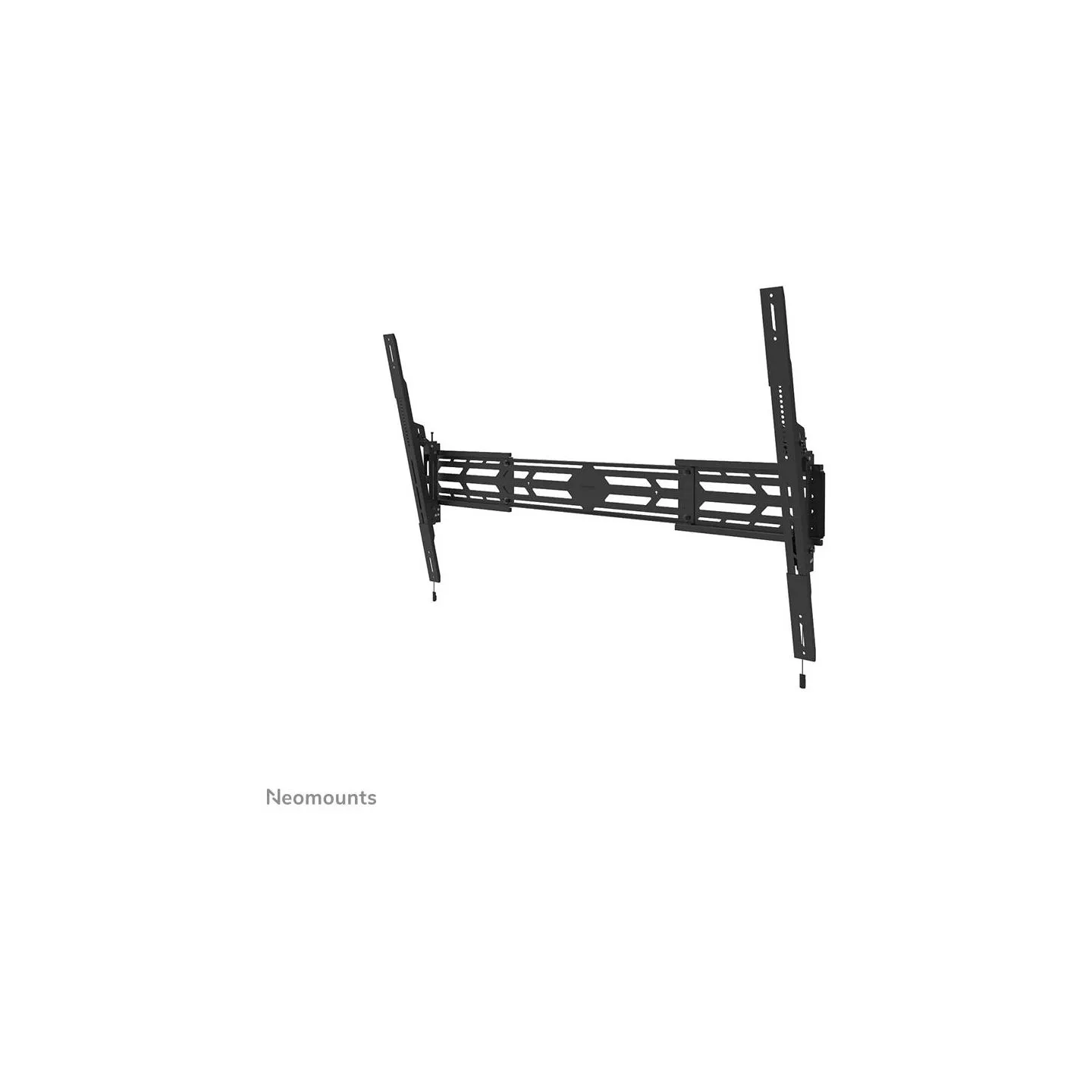

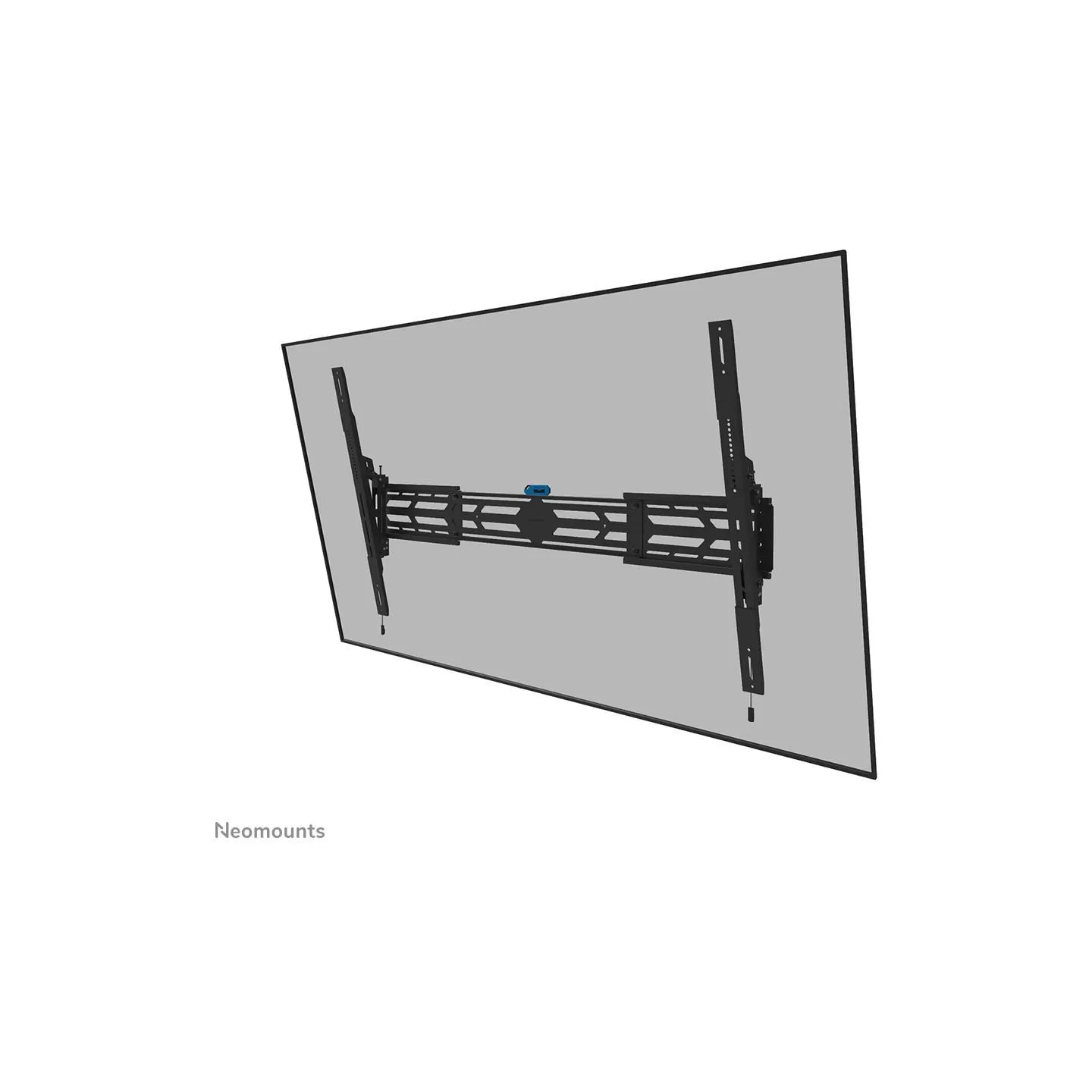

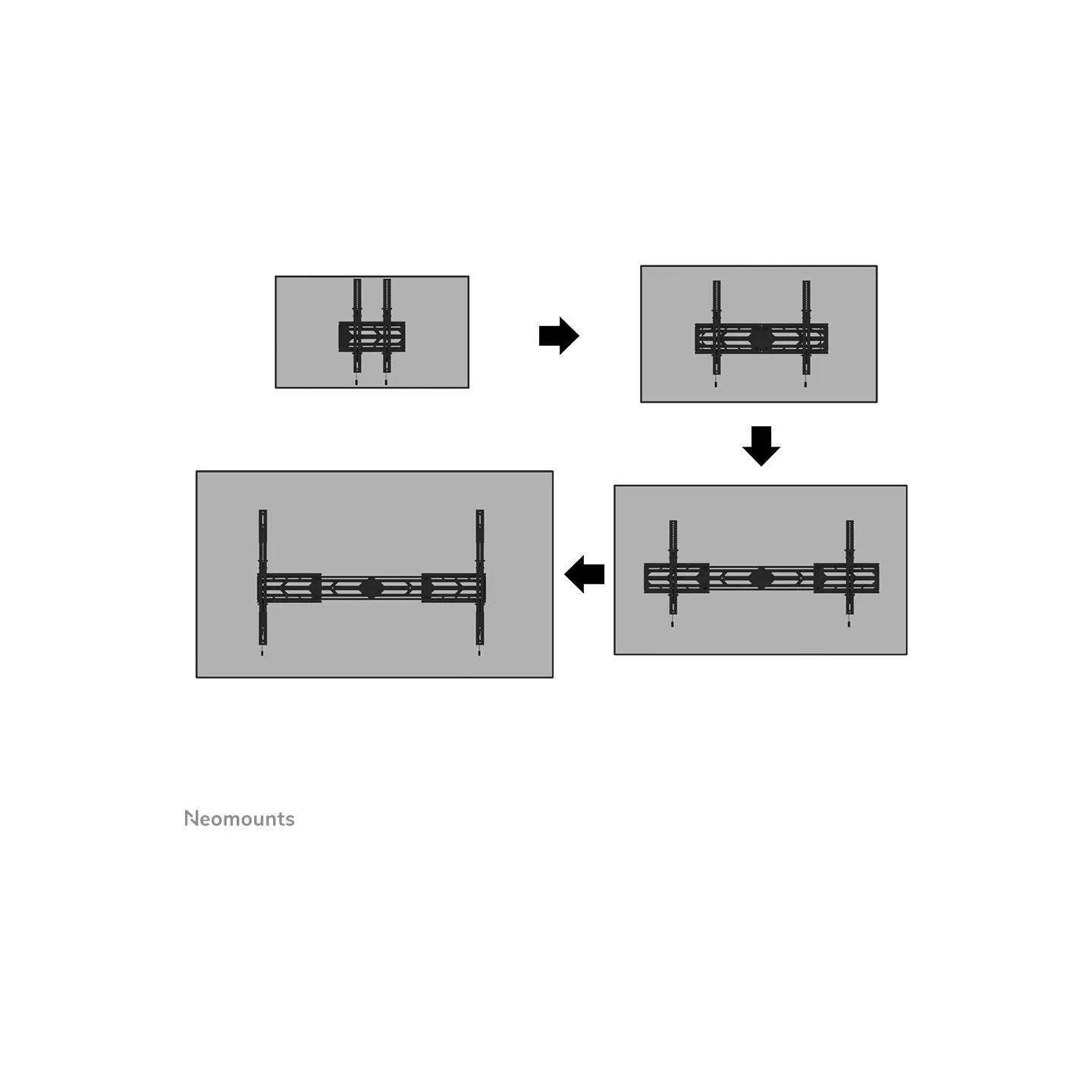

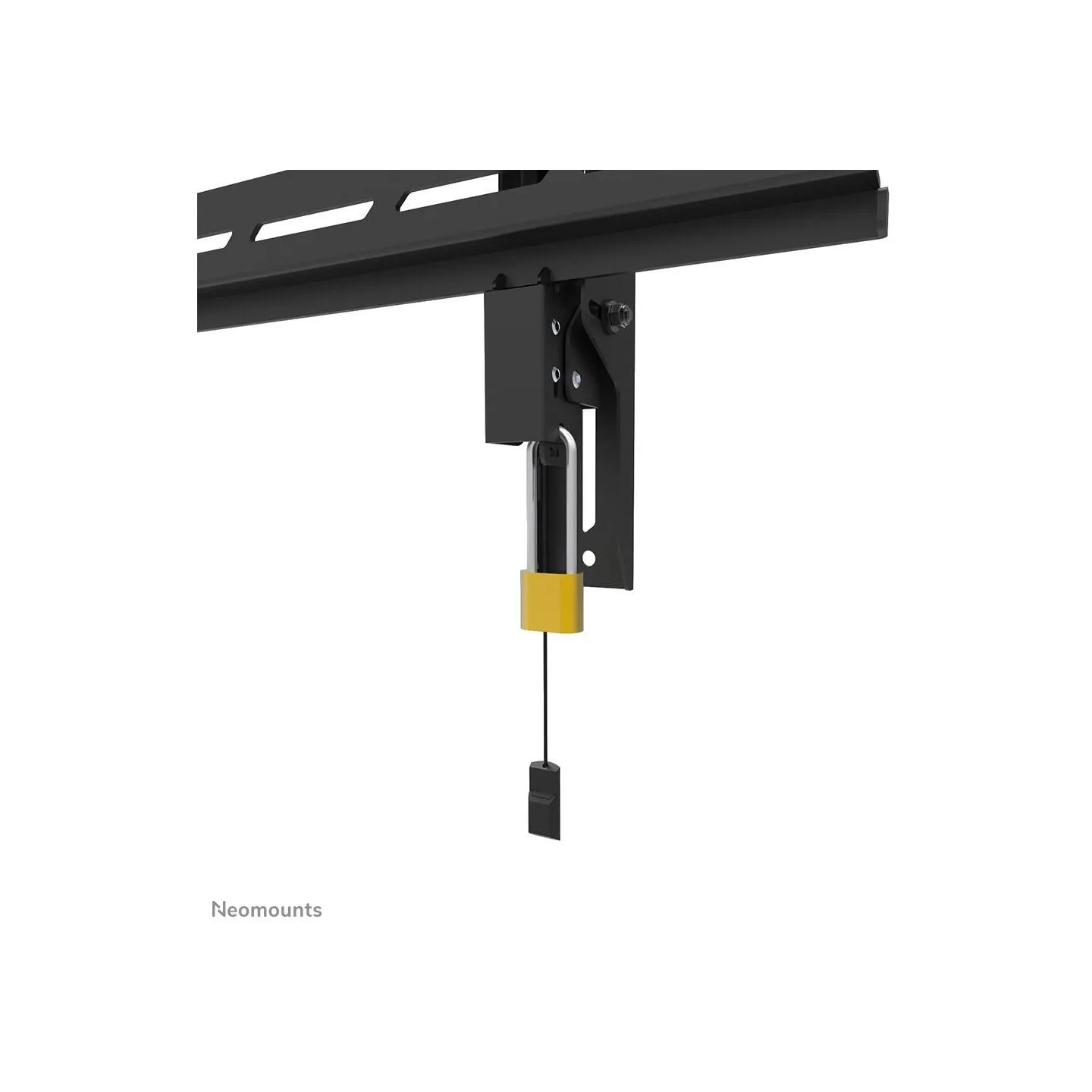

The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).

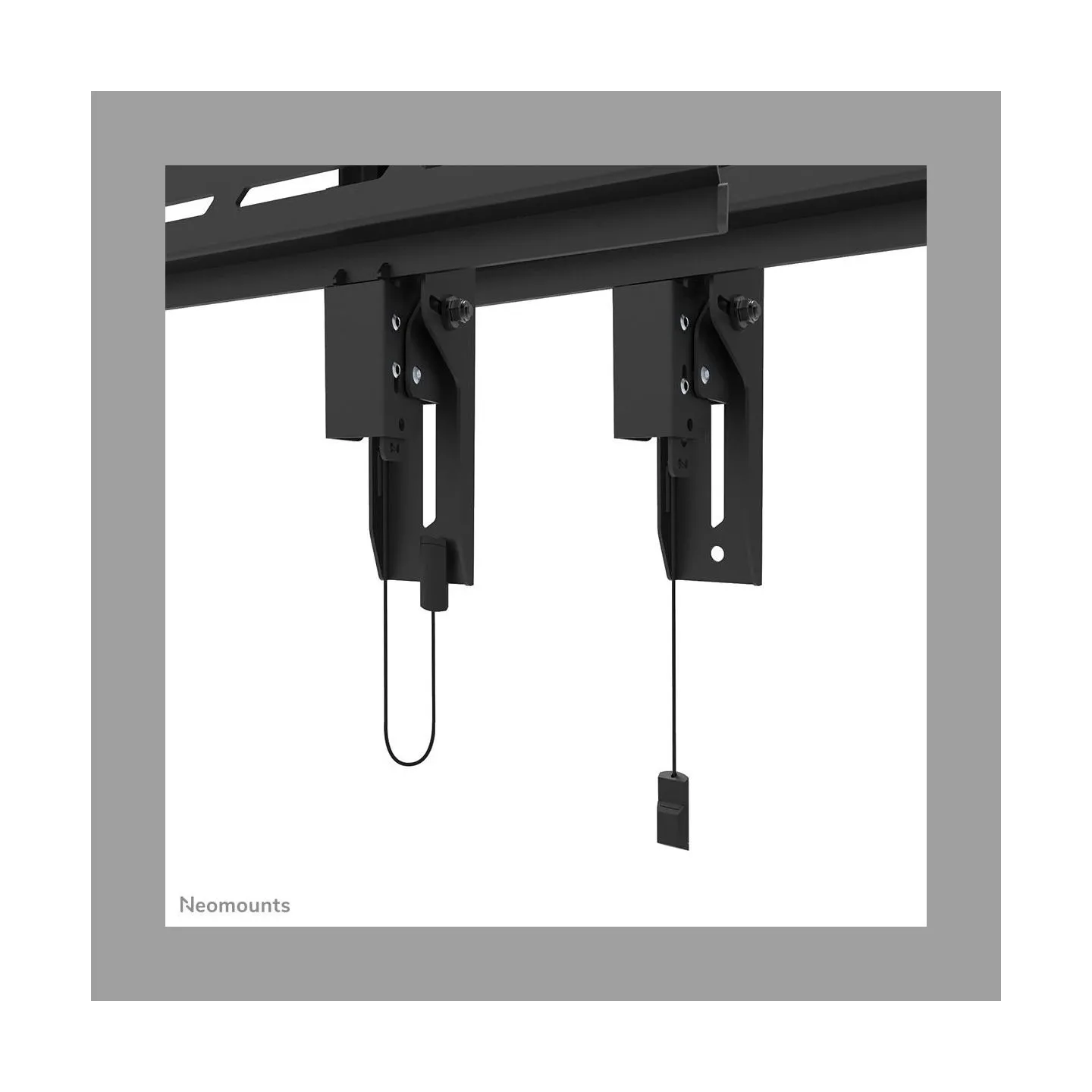

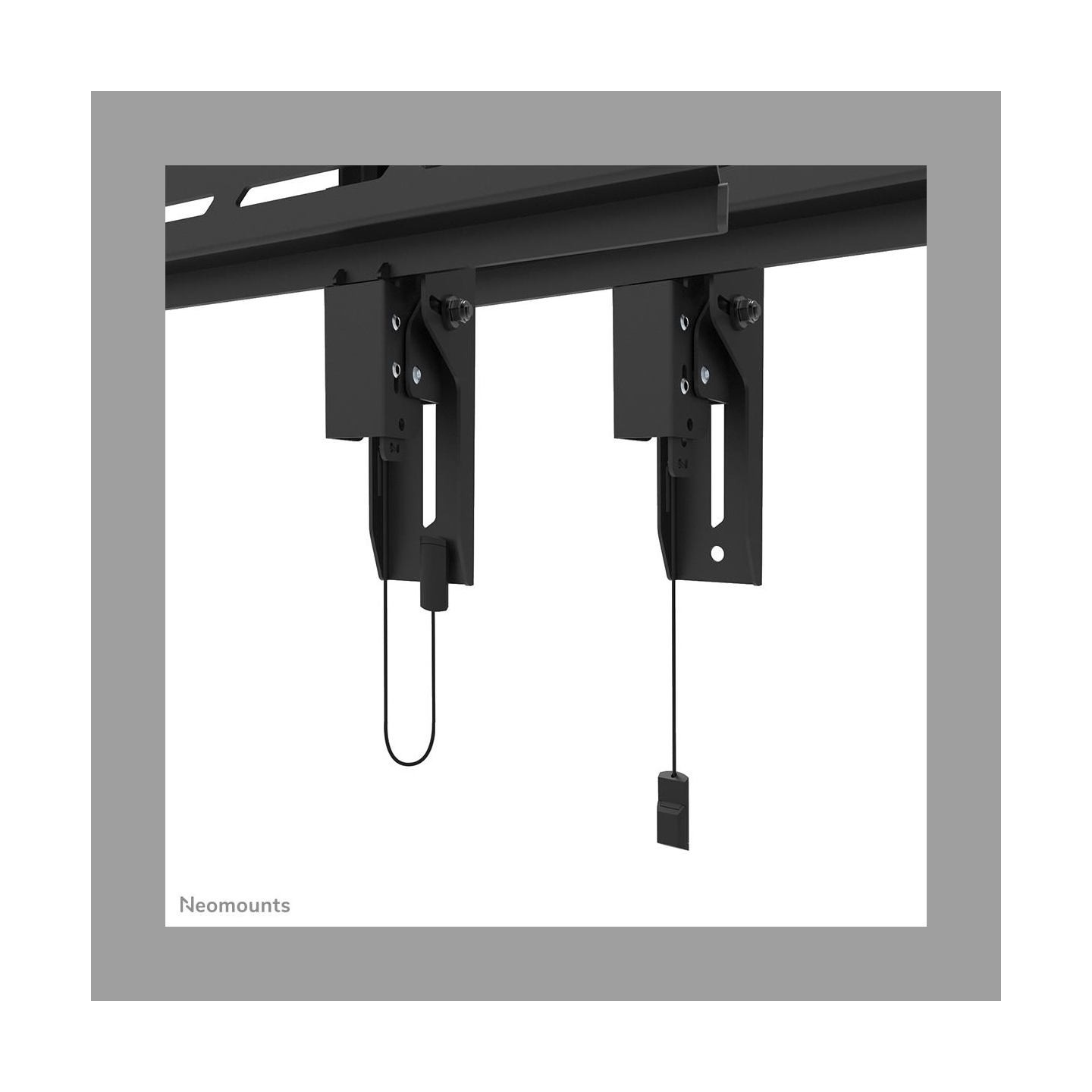

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Manufacturer Website:
https://www.neomounts.com/default.asp?pageid=44&artdetail=WL35S-950BL19
- Category Code
- TMS
- CnCode
- 83021000
- Unit Box Height
- 0.225
- Unit Box Length
- 0.92
- Unit Box Width
- 0.105
- Maximum screen size
- 115 "
- Maximum VESA mount
- 1500 x 900 mm
- Maximum weight capacity
- 160 kg
- Maximum weight capacity (per display)
- 160 kg
- Minimum screen size
- 55 "
- Minimum VESA mount
- 100 x 100 mm
- Mounting type
- Wall
- Number of displays supported
- 1
- Panel mounting interface
- 100 x 100/100 x 150/100 x 200/1000 x 400/1000 x 600/1000 x 700/1000 x 800/1200 x 600/1200 x 800/1200 x 900/1400 x 800/1500 x 600/1500 x 900/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 900/350 x 350/400 x/400 x 200/400 x 300 mm
- Angle of rotation
- 6 °
- Distance to the wall (max)
- 90 mm
- Height adjustment
- Yes
- Height adjustment range
- 0 - 20 mm
- Pivot angle
- -3 - 3 °
- Tilt adjustment
- Yes
- Tilt angle range
- 0 - 12 °
- Accepts padlock
- Yes
- Housing material
- Steel
- Product colour
- Black
- Country of origin
- China
- Lockable
- Security screw included
- Package net weight
- 12500 g
- Warranty period
- 5 year(s)
- Depth
- 90 mm
- Depth (max)
- 90 mm
- Height
- 936 mm
- Weight
- 11050 g
- Width
- 1600 mm
- Package depth
- 98 mm
- Package height
- 918 mm
- Package weight
- 12500 g
- Package width
- 222 mm
- Harmonized System (HS) code
- 7326909890
- Master (outer) case gross weight
- 25700 g
- Master (outer) case height
- 938 mm
- Master (outer) case length
- 242 mm
- Master (outer) case net weight
- 22100 g
- Master (outer) case width
- 211 mm
- Products per master (outer) case
- 2 pc(s)
- Products per pallet (EU)
- 36 pc(s)
- Width adjustment range
- 893 - 1600 mm
- Model
- WL35S-950BL19
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.02174 cubm
- Unit Calculated Weight
- 12.7 kg
