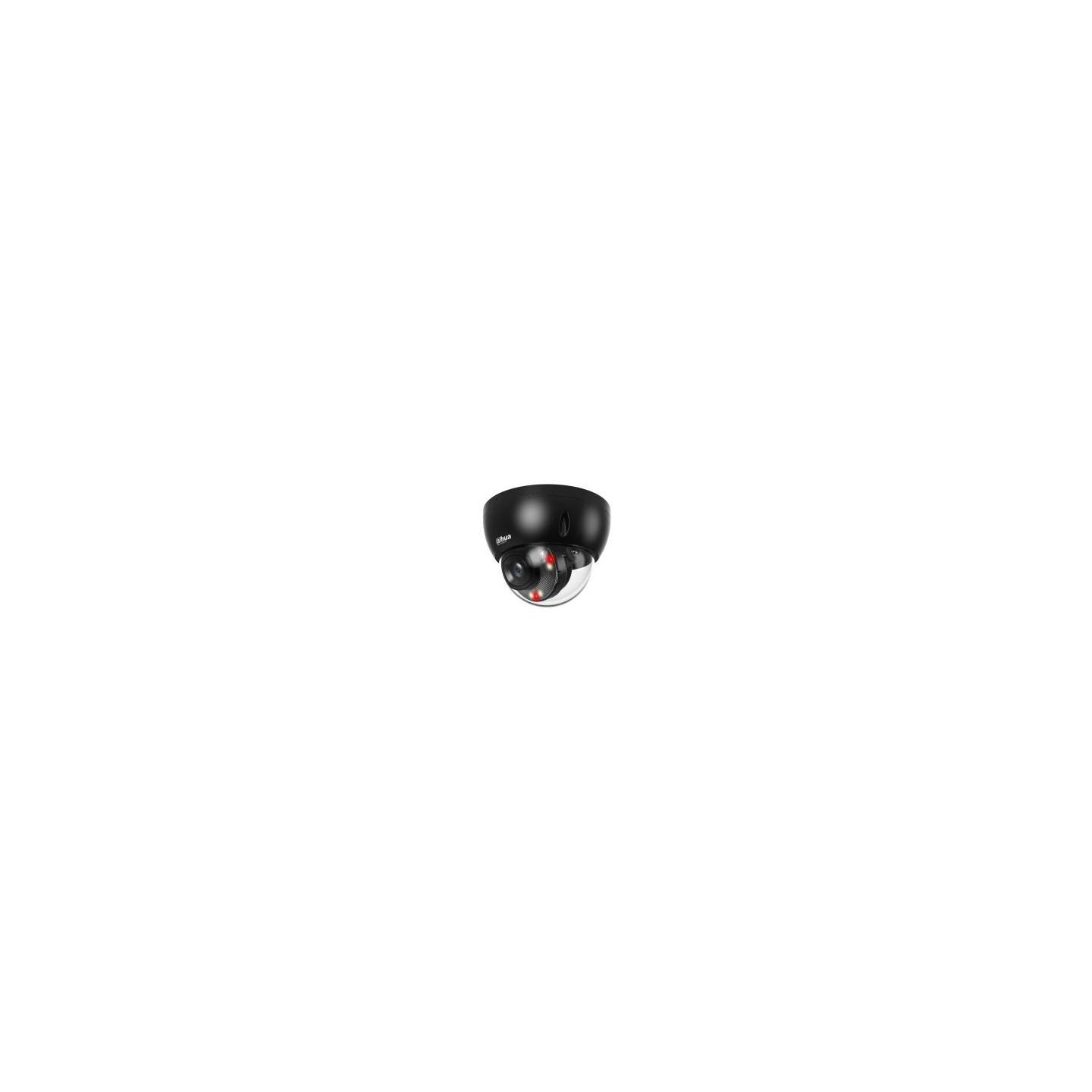

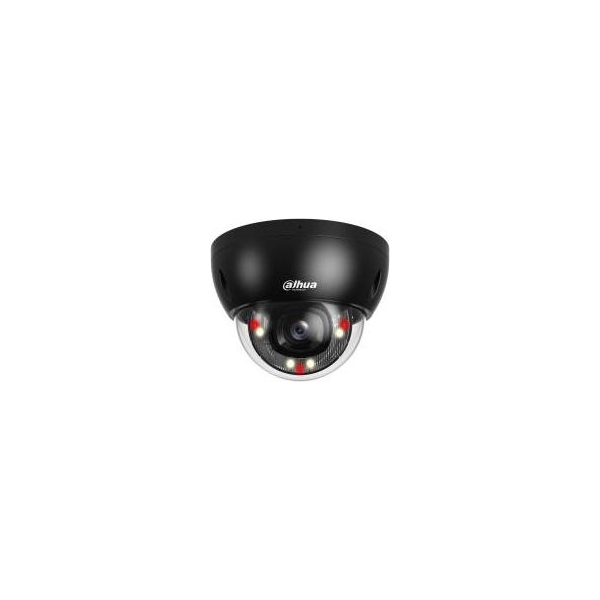

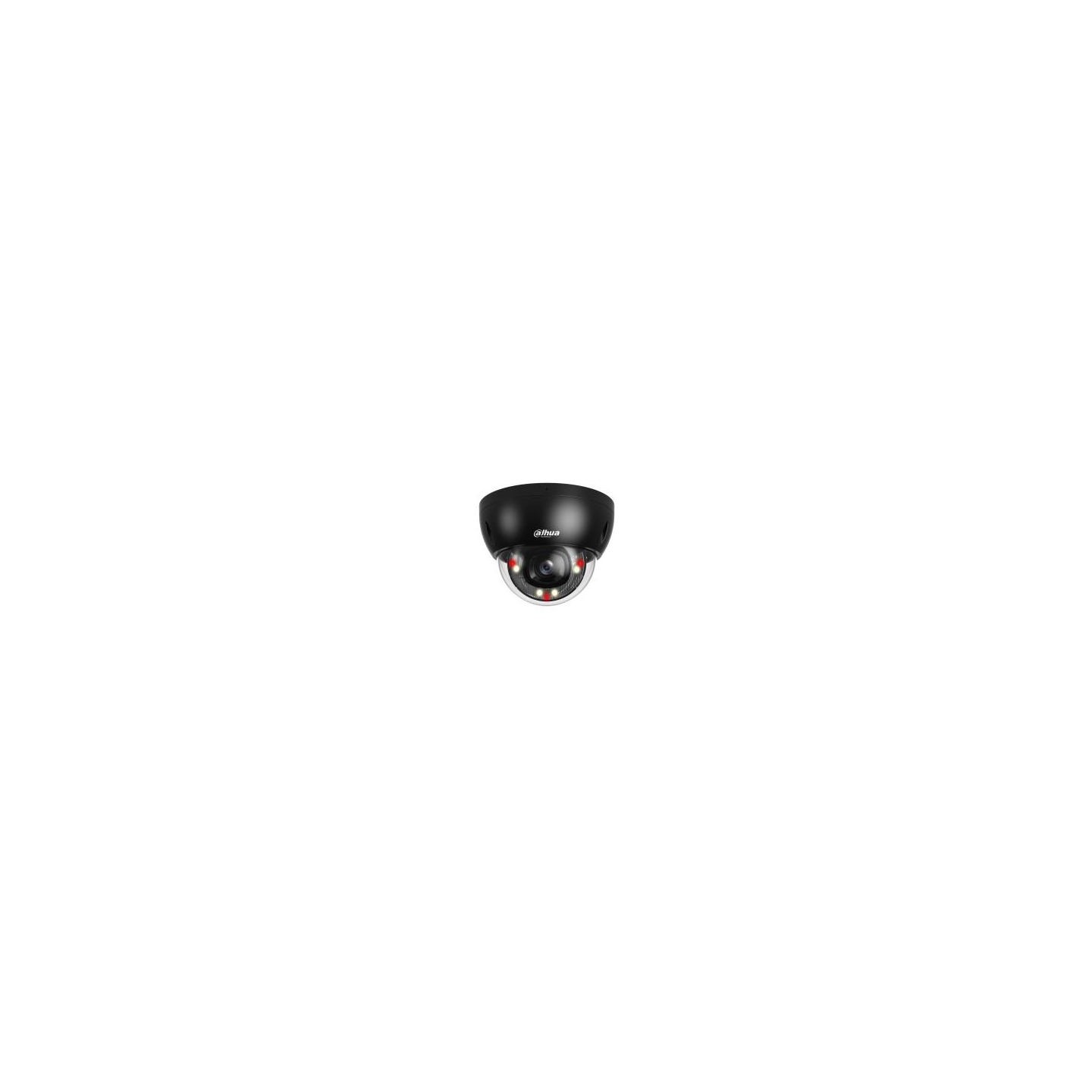

Dahua NET CAMERA 4MP DOME/HDBW2449E-S-IL-0280B-B DAHUA
Price:
€210.82
Tax included
Share on
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-2-Series/Smart-Dual-Light/IPC-HDBW2449E-S-IL
- Category Code
- FNC
- CnCode
- 85258900
- Form factor
- Dome
- Housing material
- Metal
- IK code
- IK10
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/Wall/Pole
- Product colour
- Black
- Protection features
- Dustproof/Waterproof
- Built-in light
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- Placement supported
- Outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Angle of rotation
- 355 °
- Camera pan control
- Yes
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera shutter type
- Electronic
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 120 °
- Lens viewing angle, horizontal
- 101 °
- Lens viewing angle, vertical
- 54 °
- Minimum illumination
- 0.0006 lx
- Number of Privacy masking areas
- 4
- Pan range
- 0 - 355 °
- Tilt angle range
- 0 - 65 °
- White balance
- Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
- Optical sensor size
- 1/2.9 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 1.1 m
- Detect distance
- 63.6 m
- Fixed focal length
- 2.8 mm
- Identify distance
- 6.4 m
- Maximum aperture number
- 1.6
- Observe distance
- 25.4 m
- Recognize distance
- 12.7 m
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 30 m
- Number of illumination LEDs
- 7
- Back Light Compensation (BLC)
- Yes
- Bit rate control
- Constant Bit Rate (CBR),Variable Bit Rate (VBR)
- Frame rate
- 30 fps
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2688 x 1520 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264B/H.264H/H.265/M-JPEG
- Video streaming
- Yes
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.726/PCM
- Built-in microphone
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.1x/IEEE 802.3af
- Number of users
- 6 user(s)
- Streaming method
- Multicast
- Supported network protocols
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, P2P
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 256 GB
- RAM capacity
- 128 MB
- ROM capacity
- 128 MB
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Digital watermark
- Yes
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Mirror
- Yes
- Video motion detection
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 6.6 W
- Power consumption (typical)
- 2.4 W
- Power source type
- DC,PoE
- Operating temperature (T-T)
- -40 - 60 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Diameter
- 109.9 mm
- Height
- 81 mm
- Weight
- 350 g
- Compliance certificates
- CE
- Package weight
- 500 g
- Manual
- Yes
- Number of cameras
- 1
- Model
- IPC-HDBW2449E-S-IL-0280B-B
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00882 cubm
- Unit Calculated Weight
- 0.5 kg
