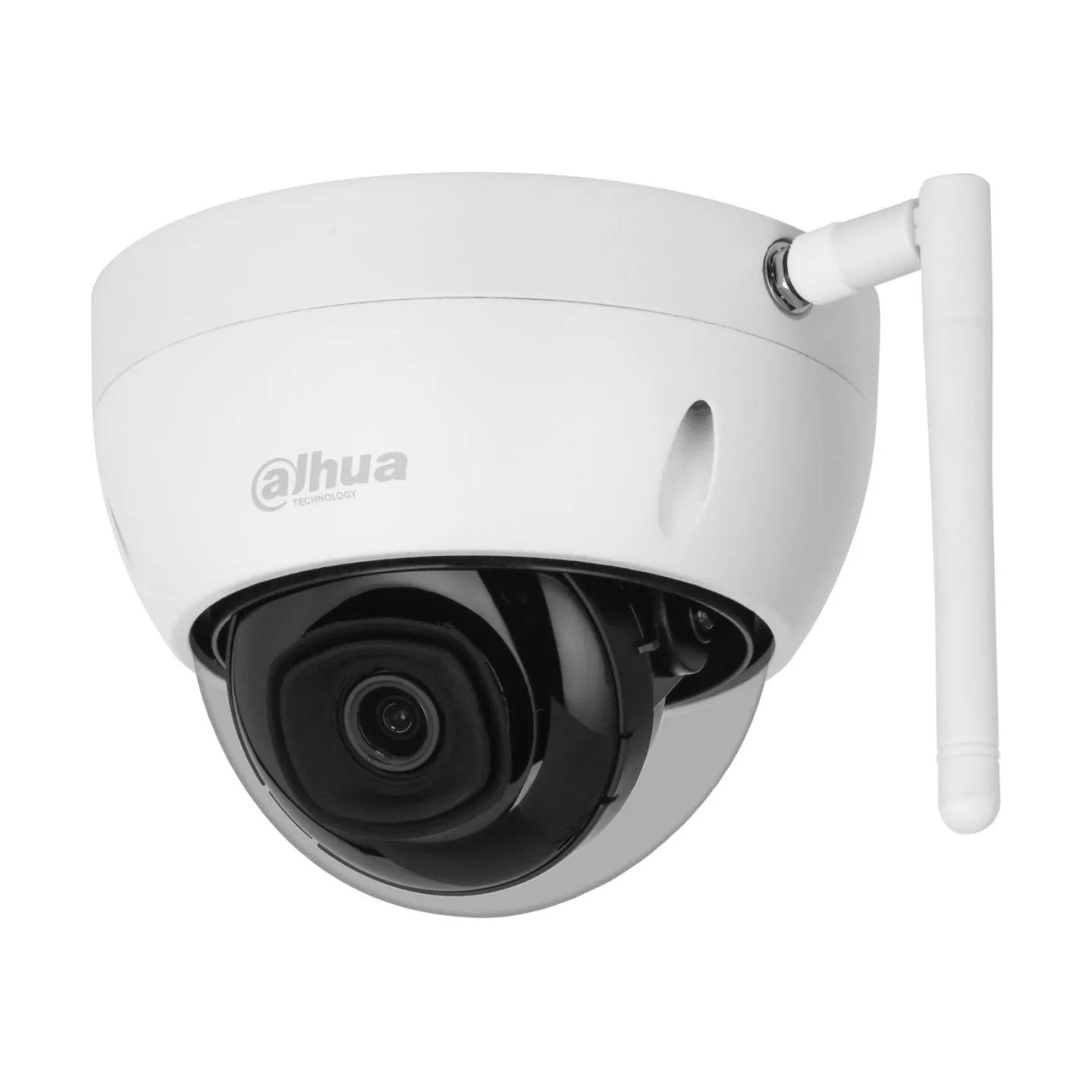

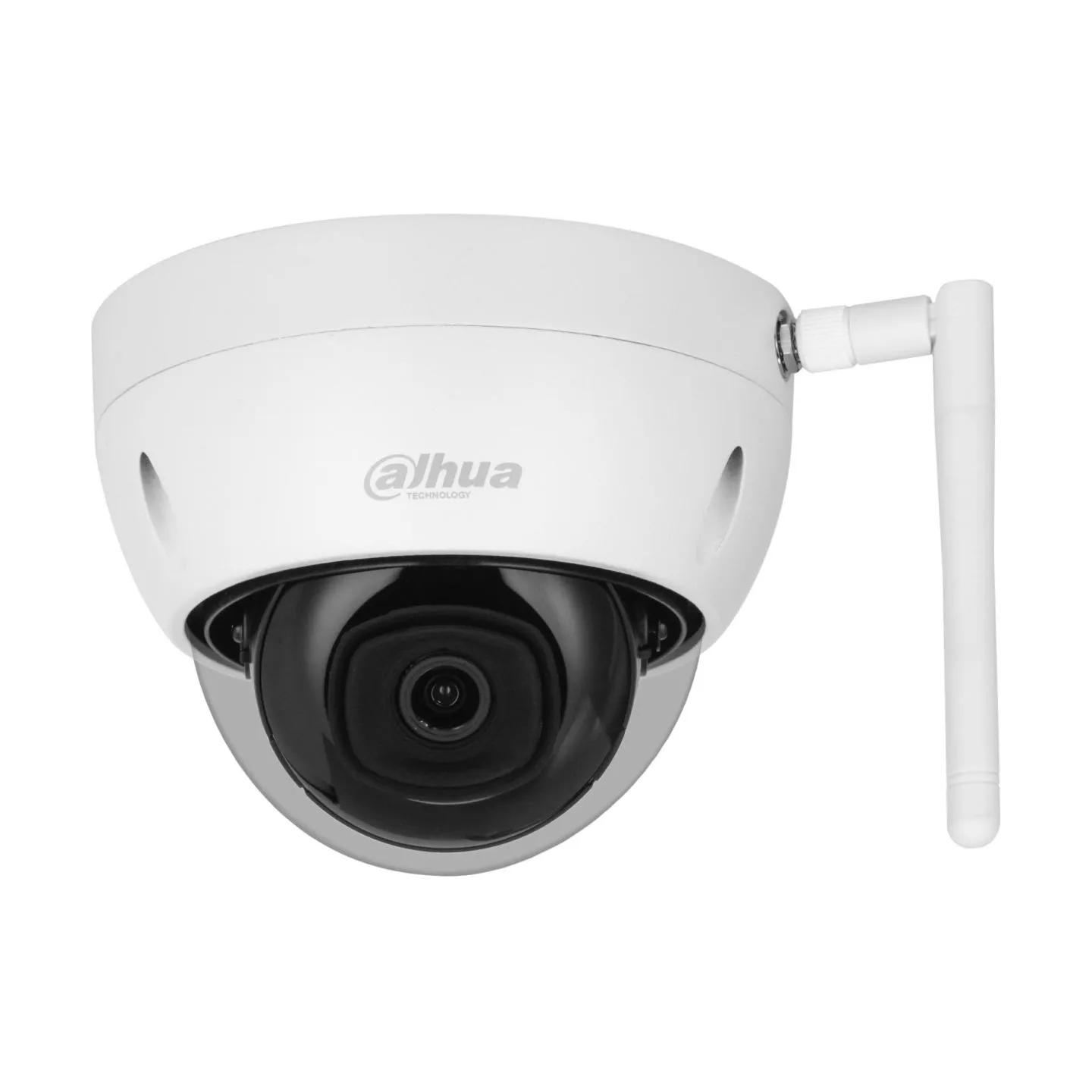

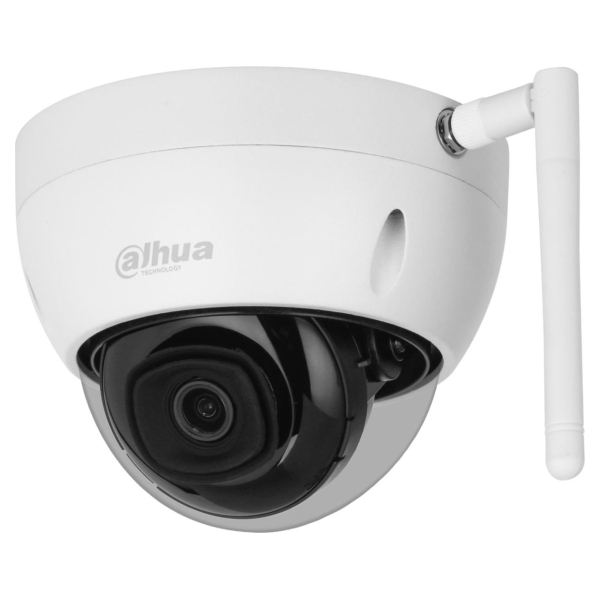

Dahua NET CAMERA 4MP IR DOME WIFI/IPC-HDBW1430DE-SW-0280B DAHUA

Dahua NET CAMERA 4MP IR DOME WIFI/IPC-HDBW1430DE-SW-0280B DAHUA

Name: Dahua NET CAMERA 4MP IR DOME WIFI/IPC-HDBW1430DE-SW-0280B DAHUA
Brand: DAHUA
SKU: IPC-HDBW1430DE-SW-0280B
Price: 153.14 EUR
Availability: InStock

SKU IPC-HDBW1430DE-SW-0280B Category IP Cameras

€153.14

Tax included

Share on

4-MP 1/3" CMOS image sensor, low luminance, and high definition image
Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED
SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
Supports max. 256 G Micro SD card
12 VDC power supply
IP67, IK10 protection

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDBW1430DE-SW

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.145
Unit Box Length: 0.14
Unit Box Width: 0.125
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Antenna type: External
Antennas quantity: 1
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
Connectivity technology: Wired & Wireless
Day/night mode: Yes
Placement supported: Indoor & outdoor
Remote viewing: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, horizontal: 90 °
Pan range: 0 - 355 °
Tilt angle range: 0 - 75 °
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
Number of sensors: 1
Optical sensor size: 1/3 "
Progressive scan: Yes
Sensor type: CMOS
Auto focus: Yes
Detect distance: 68 m
Fixed focal length (thermal module): 2.8 mm
Identify distance: 6.8 m
Maximum aperture number: 2
Number of lenses: 1
Observe distance: 27.2 m
Recognize distance: 13.6 m
LED type: IR
Night vision: Yes
Night vision distance: 30 m
Number of illumination LEDs: 3
Back Light Compensation (BLC): Yes
Bit rate: 3 Kbps - 20480 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Frame rate: 30 fps
Highlight Compensation (HLC): Yes
Maximum resolution: 2560 x 1440 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440
Supported video modes: 1080p/720p
Total megapixels: 4 MP
Video compression formats: H.264+/H.264H/H.265+
Video formats supported: H.264/H.264B/H.265
Video intelligence analytic: Yes
Video recording: Yes
Video streaming: Yes
Audio codecs: G.711a; G.711Mu; PCM; G.726; G.723
Audio system: 1-way
Audio system full duplex: Yes
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 6 user(s)
Wi-Fi: Yes
Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 64 MB
Maximum memory card size: 256 GB
ROM capacity: 16 MB
Ethernet LAN (RJ-45) ports: 1
Detection distance: 80 m
Intelligent Video Surveillance (IVS) system features: Intrusion
Mirror: Yes
Web browser: Yes
DC output voltage: 12
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 110.7 mm
Height: 88.7 mm
Weight: 414 g
Package weight: 592 g
Number of cameras: 1
Units per Shipping Box: 1
Unit Calculated Volume: 0.002537 cubm
Unit Calculated Weight: 0.639 kg
