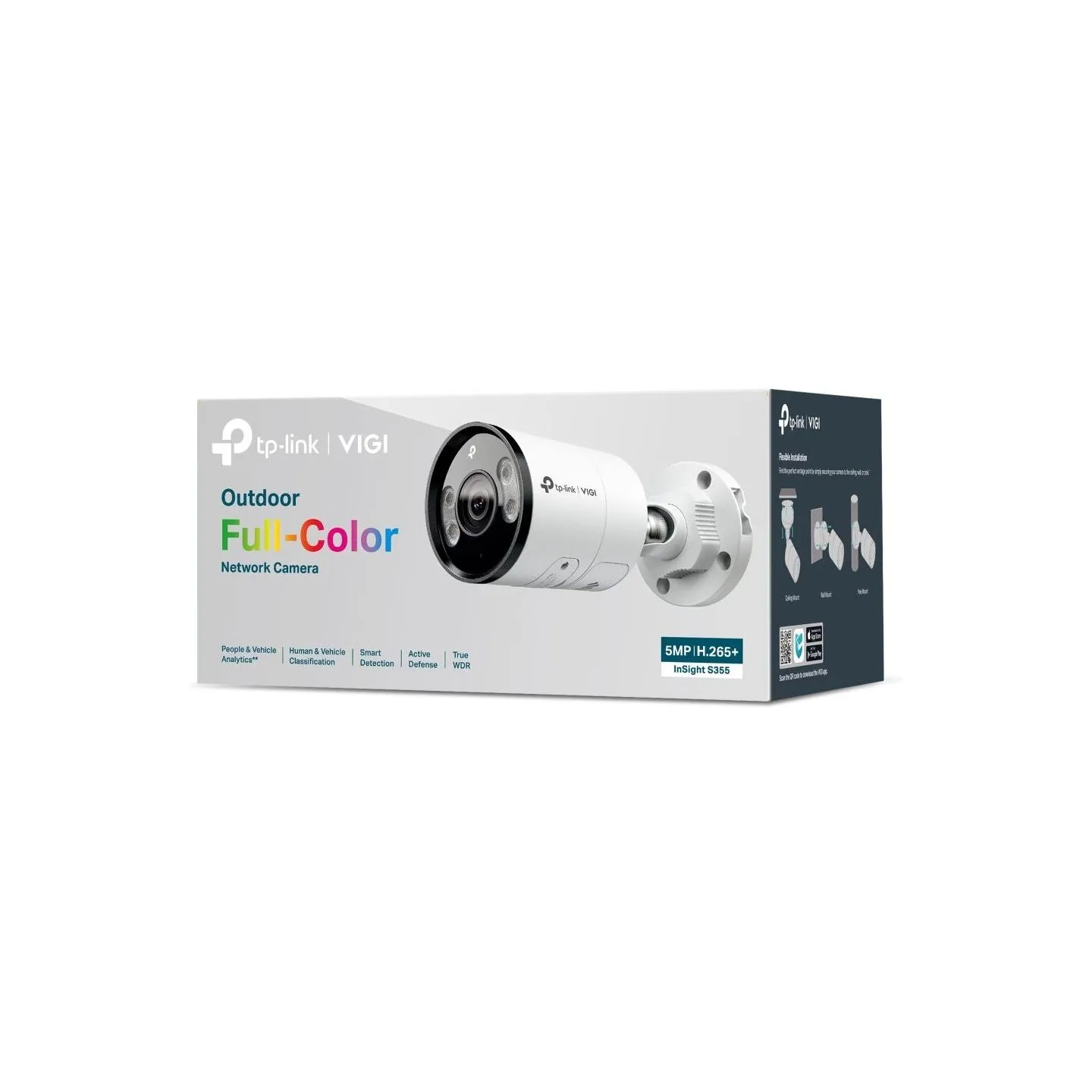

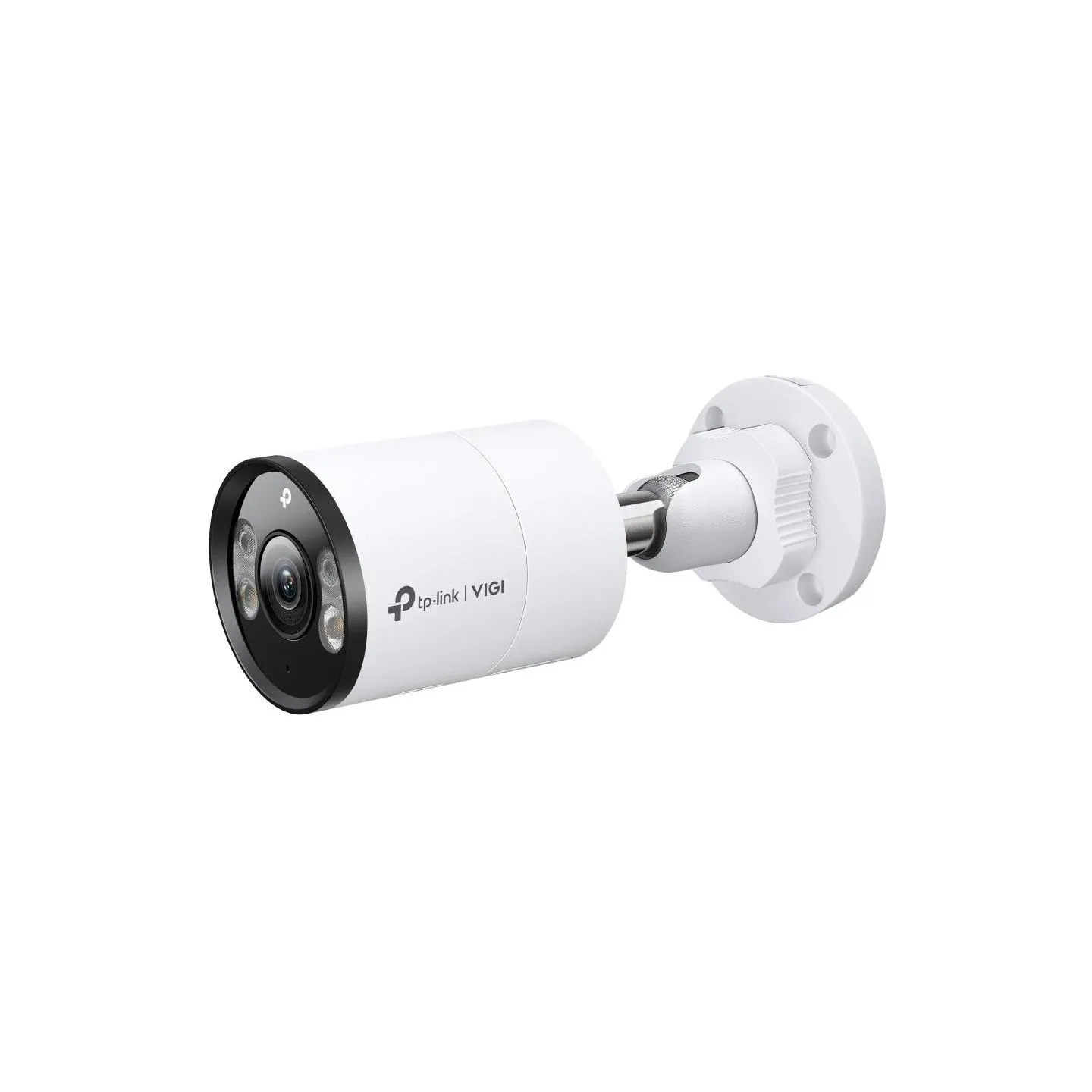

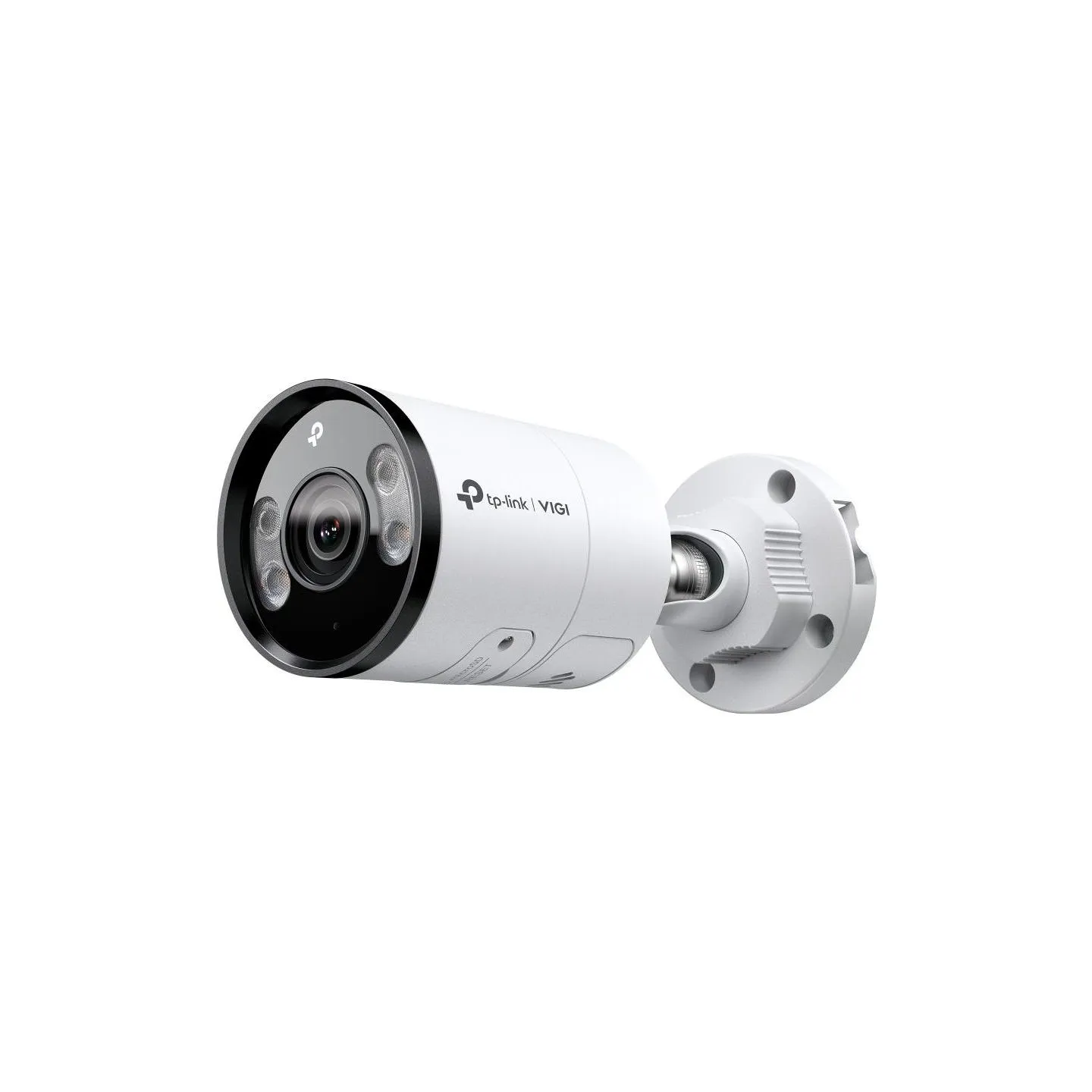

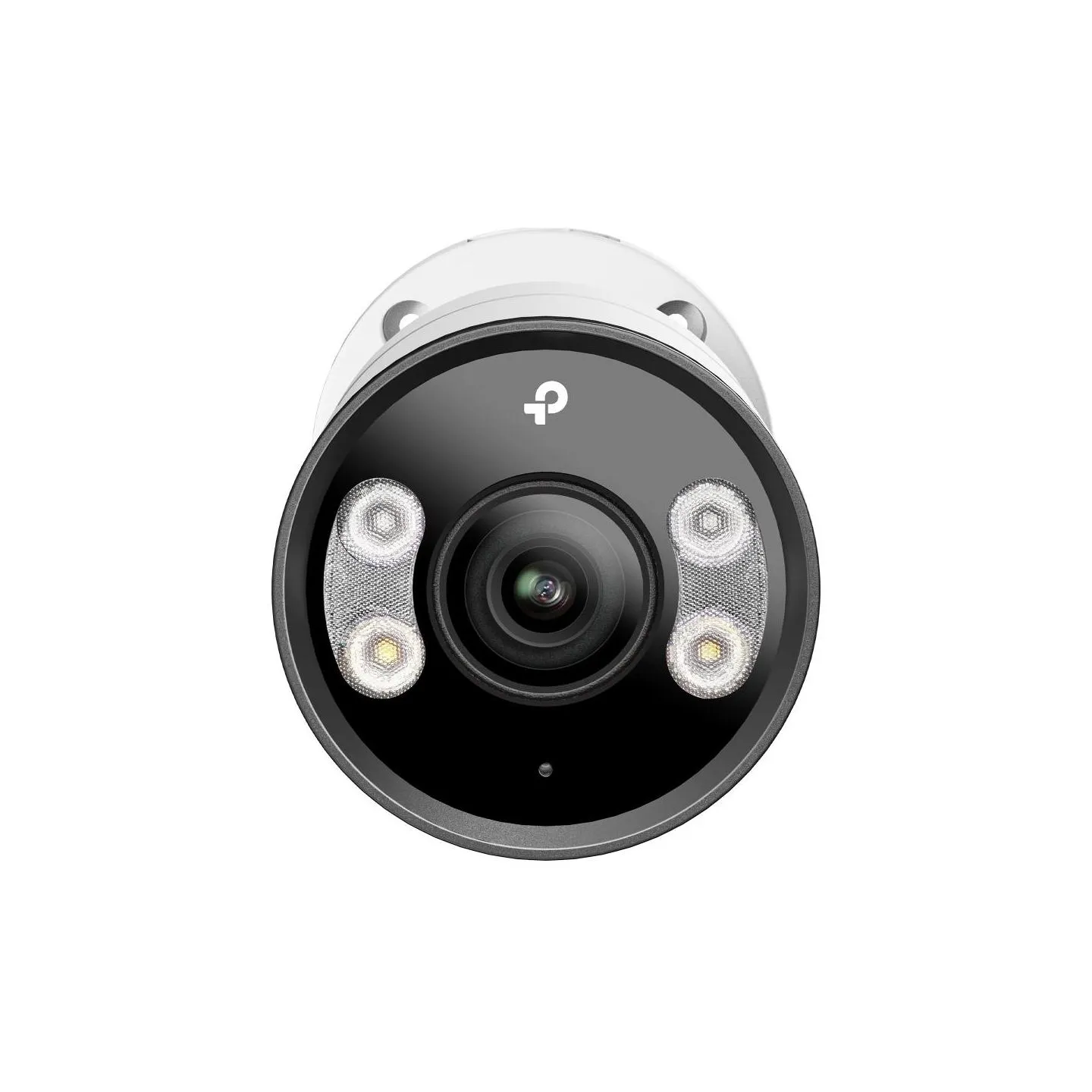

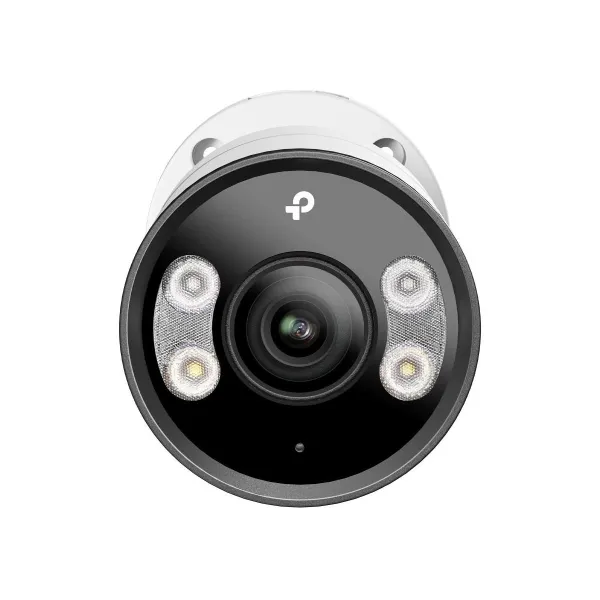

Tp-Link NET CAMERA BULLET H.265+ 5MP/INSIGHT S355(2.8MM) TP-LINK
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
- 5MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Manufacturer Website:
https://www.tp-link.com/uk/business-networking/vigi-network-camera/insight-s355/
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.1
- Unit Box Length
- 0.22
- Unit Box Width
- 0.13
- Form factor
- Bullet
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Wall
- Product colour
- White
- Protection features
- Waterproof
- Weatherproof
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- Infrared (IR) cut-off filter
- Yes
- Maximum operating distance
- 64 m
- Placement supported
- Outdoor
- Remote viewing
- Yes
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Camera shutter speed
- 1/3 to 1/10000 s
- Lens viewing angle, diagonal
- 134 °
- Lens viewing angle, horizontal
- 111.4 °
- Lens viewing angle, vertical
- 58.8 °
- Minimum illumination
- 0 lx
- Tilt angle range
- 0 - 90 °
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Detect distance
- 64 m
- Fixed focal length
- 2.8 mm
- Identify distance
- 6 m
- Maximum aperture number
- 1.6
- Observe distance
- 27 m
- Recognize distance
- 16 m
- LED type
- IR/White
- Night vision
- Yes
- Back Light Compensation (BLC)
- Yes
- Bit rate
- Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Digital Wide Dynamic Range (DWDR)
- Yes
- Highlight Compensation (HLC)
- Yes
- Image quality adjustment
- Brightness/Contrast/Mirror/Saturation/Sharpness
- Maximum resolution
- 2880 x 1620 pixels
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2688 x 1520/2880 x 1620
- Total megapixels
- 5 MP
- Video compression formats
- H.264/H.264+/H.265/H.265+
- Video recording
- Yes
- Audio formats supported
- G.711 A-law
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Audio system
- 2-way
- Bit rate range
- 0 - 64 Kbit/s
- Built-in microphone
- Yes
- Built-in speaker(s)
- Yes
- Number of microphones
- 1
- Sample rate
- 8 kHz
- Bluetooth
- No
- Ethernet LAN
- Yes
- Live view
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- Wi-Fi
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Alert notification type
- Push notification
- Built-in siren
- Yes
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- IP address filtering
- Yes
- Mirror
- Yes
- Motion sensor
- Yes
- Password protection
- Yes
- Video motion detection
- Yes
- Cloud-managed
- Yes
- Reset button
- Yes
- Web browser
- Yes
- Web-based management
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 9.7 W
- Power consumption (Power over Ethernet (PoE))
- 10.7 W
- Power source type
- DC,PoE
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- -40 - 60 °C
- Height
- 74 mm
- Length
- 184 mm
- Weight
- 525 g
- Width
- 74 mm
- Drilling template included
- Yes
- Manual
- Yes
- Mounting kit
- Yes
- Number of cameras
- 1
- Screws included
- Yes
- Model
- InSight S355
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00286 cubm
- Unit Calculated Weight
- 0.8 kg
