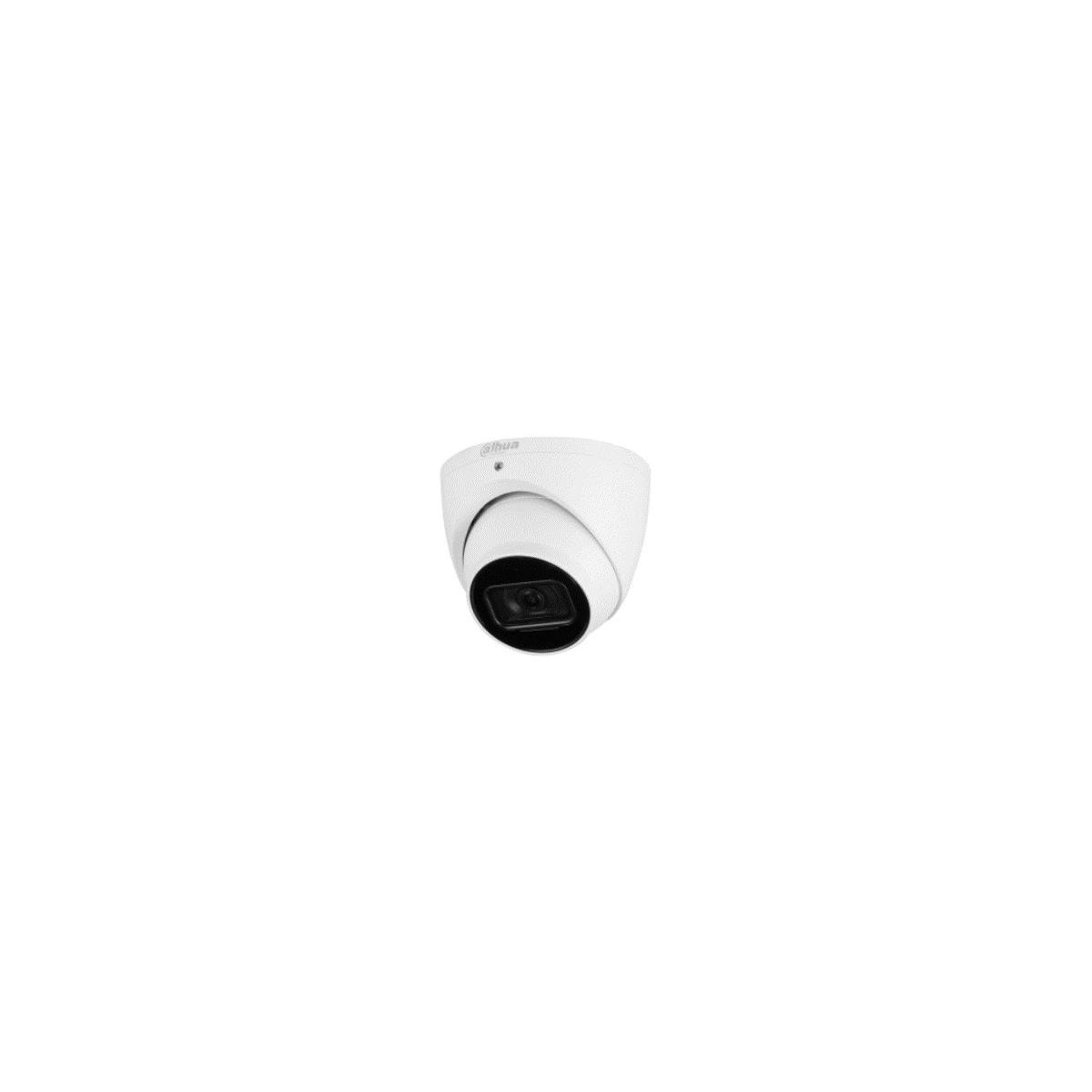

Dahua NET CAMERA 8MP IR EYEBALL/IPC-HDW3842EM-S-0280B DAHUA
"8MP IR Fixed-focal Eyeball WizSense Network Camera
> 8-MP 1/1.8"" CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 × 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 30 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA."
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDW3841EM-S-S2=S2
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.135
- Unit Box Length
- 0.155
- Unit Box Width
- 0.155
- Form factor
- Dome
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Product colour
- White
- Alarm input/output
- Yes
- Adjustment shutter speed
- Auto/Manual
- Camera shutter speed
- Auto/Manual 1/3 s–1/100,000 s s
- Minimum illumination
- 0.0007 lx
- Number of effective pixels (H x V)
- 3840 (H) × 2160 (V) pixels
- Optical sensor size
- 1/2.8" "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Focal length range
- 2.8 mm; 3.6 mm mm
- B/W night vision distance
- 30 m
- LED type
- IR
- Total megapixels
- 8 MP
- Built-in microphone
- Yes
- Voice codecs
- G.711a/G.711Mu/G.723/G.726/PCM
- Ethernet LAN
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 256 GB
- Power consumption (max)
- 7.6 W
- Power consumption (Power over Ethernet (PoE))
- 8.9 W
- Power consumption (typical)
- 4.3 W
- Power source type
- PoE
- Operating temperature (T-T)
- –40 °C to +60 °C °C
- Diameter
- 106 mm
- Weight
- 500 g
- Width
- 93.6 mm
- Iris
- Yes
- Lens mount interface
- M12
- Model
- IPC-HDW3842EM-S-0280B
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004206 cubm
- Unit Calculated Weight
- 0.775 kg
