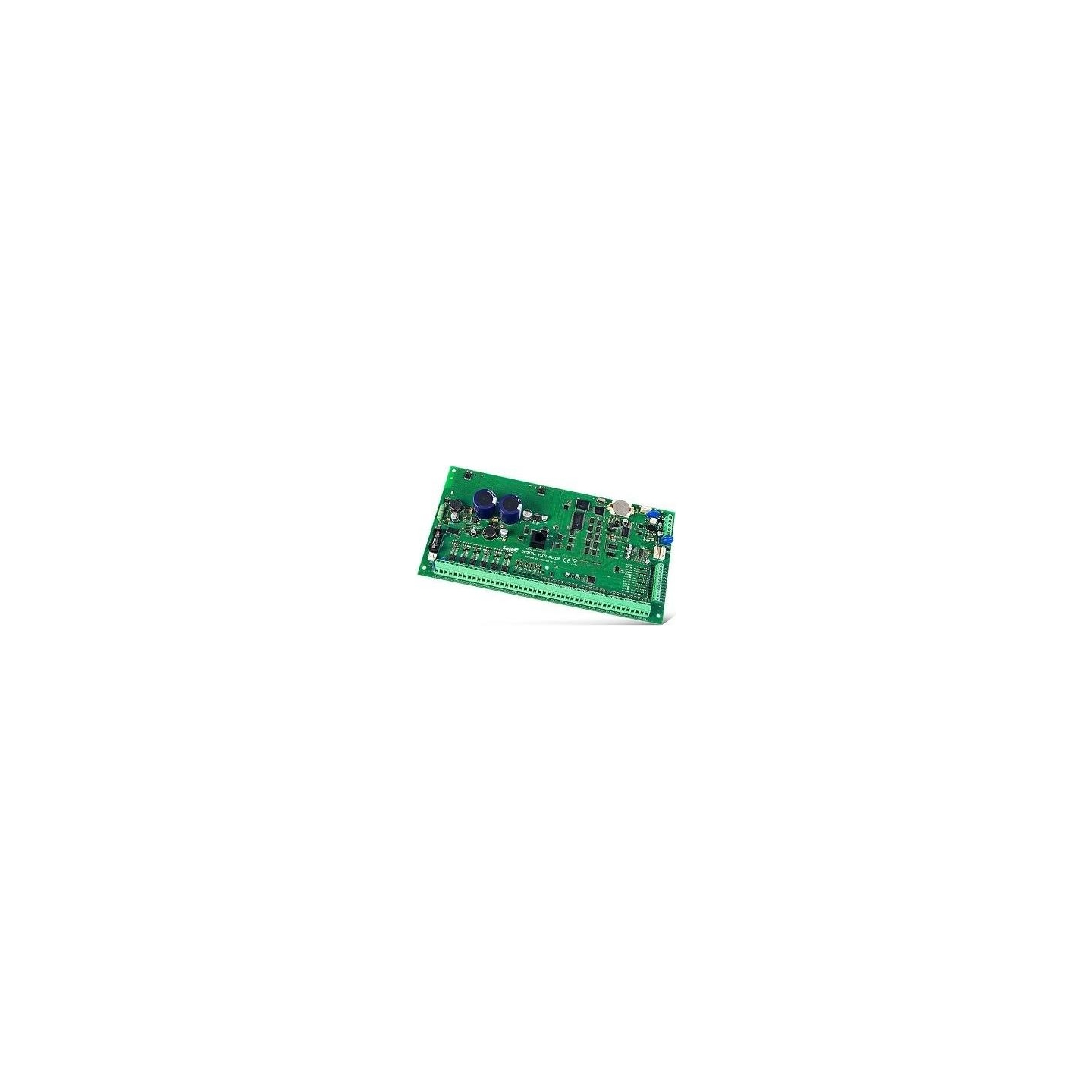

Satel CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs

• full compliance with EN50131 series of standards for Grade 3 equipment


• built-in advanced 2A+2A power supply with extended autodiagnostics


• up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)


• USB port for programming via PC


• up to 32 partitions, 8 tenants


• up to 64fully programmable outputs


• dedicated buses for communication with keypads and expansion modules


• system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards


• remote system operation with PC, smartphone or voice-guided telephone menu


• 64 independent timers for automatic control


• access control and home automation features


• non-volatile event log with 6143entries, with on-line printing support


• support for 192+8+1 user codes


• firmware upgrades via PC
