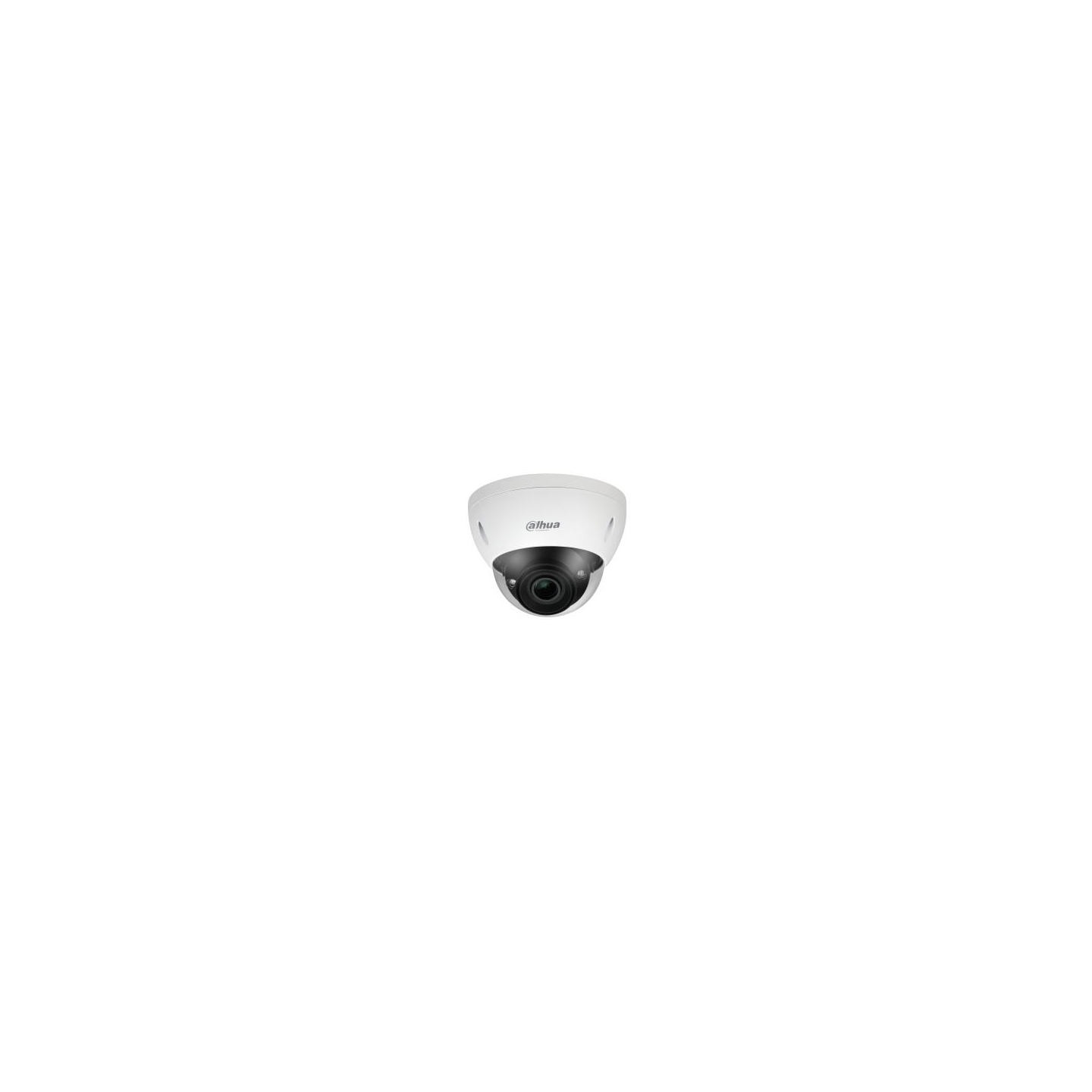

Dahua NET CAMERA 5MP IR DOME/HDBW5541E-ZE-27135-S3 DAHUA

Name: Dahua NET CAMERA 5MP IR DOME/HDBW5541E-ZE-27135-S3 DAHUA
Brand: DAHUA
SKU: IPC-HDBW5541E-ZE-27135-S3
Price: 482.45 EUR
Availability: InStock

SKU IPC-HDBW5541E-ZE-27135-S3 Category IP Cameras

€482.45

Tax included

Last items in stock

Share on

1/2.7” 5Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
2.7 mm–13.5 mm motorized lens
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 40 m
Micro SD memory, IP67, IK10

Manufacturer Website:
https://www.dahuasecurity.com/products/productDetail/33047

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.15
Unit Box Length: 0.19
Unit Box Width: 0.185
Fog proof: Yes
Form factor: Cube
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: White
Alarm input/output: Yes
Connectivity technology: Wired
People counting function: Yes
Placement supported: Indoor & outdoor
Plug and Play: Yes
Type: IP security camera
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Auto flip: Yes
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, horizontal: 43 °
Lens viewing angle, vertical: 23 °
Minimum illumination: 0.002 lx
Pan range: 0 - 355 °
Tilt angle range: 0 - 65 °
White balance: Auto/Lamp/Manual/Natural/Outdoor
Number of effective pixels (H x V): 2688 x 1520 pixels
Number of sensors: 1
Optical sensor size: 1/1.8 "
Progressive scan: Yes
Sensor type: CMOS
Auto focus: Yes
Fixed focus: Yes
Focal length range: 8 - 32 mm
Maximum aperture number: 1.6
Normal focusing range: 2.5 - 6 m
Number of lenses: 1
LED type: IR
Night vision: Yes
Night vision distance: 80 m
Number of illumination LEDs: 3
Back Light Compensation (BLC): Yes
Bit rate: H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps- 8192 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Flip & mirror: Yes
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Supported video modes: 1080p/720p
Total megapixels: 4 MP
Video compression formats: H.264/H.264+/H.265/H.265 Pro/H.265 Pro+/H.265+
Video intelligence analytic: Yes
Video streaming: Yes
Audio formats supported: AAC
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Voice codecs: G.711a/G.711alaw/G.723/G.723.1/G.726/G.726-32
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Active tampering alarm: Yes
Mirror: Yes
Motion sensor: Yes
Privacy protection: Yes
Video motion detection: Yes
Management software: Smart PSS, DSS, DMSS
Web browser: Yes
Web-based management: Yes
AC input voltage: 24 V
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 12.4 W
Power source type: AC,DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Mobile operating systems supported: Android/iOS
Windows operating systems supported: Yes
Depth: 159 mm
Height: 117.9 mm
Weight: 950 g
Manual: Yes
Number of cameras: 1
Model: IPC-HDBW5541E-ZE-27135-S3
Units per Shipping Box: 4
Unit Calculated Volume: 0.006367 cubm
Unit Calculated Weight: 1.35 kg
