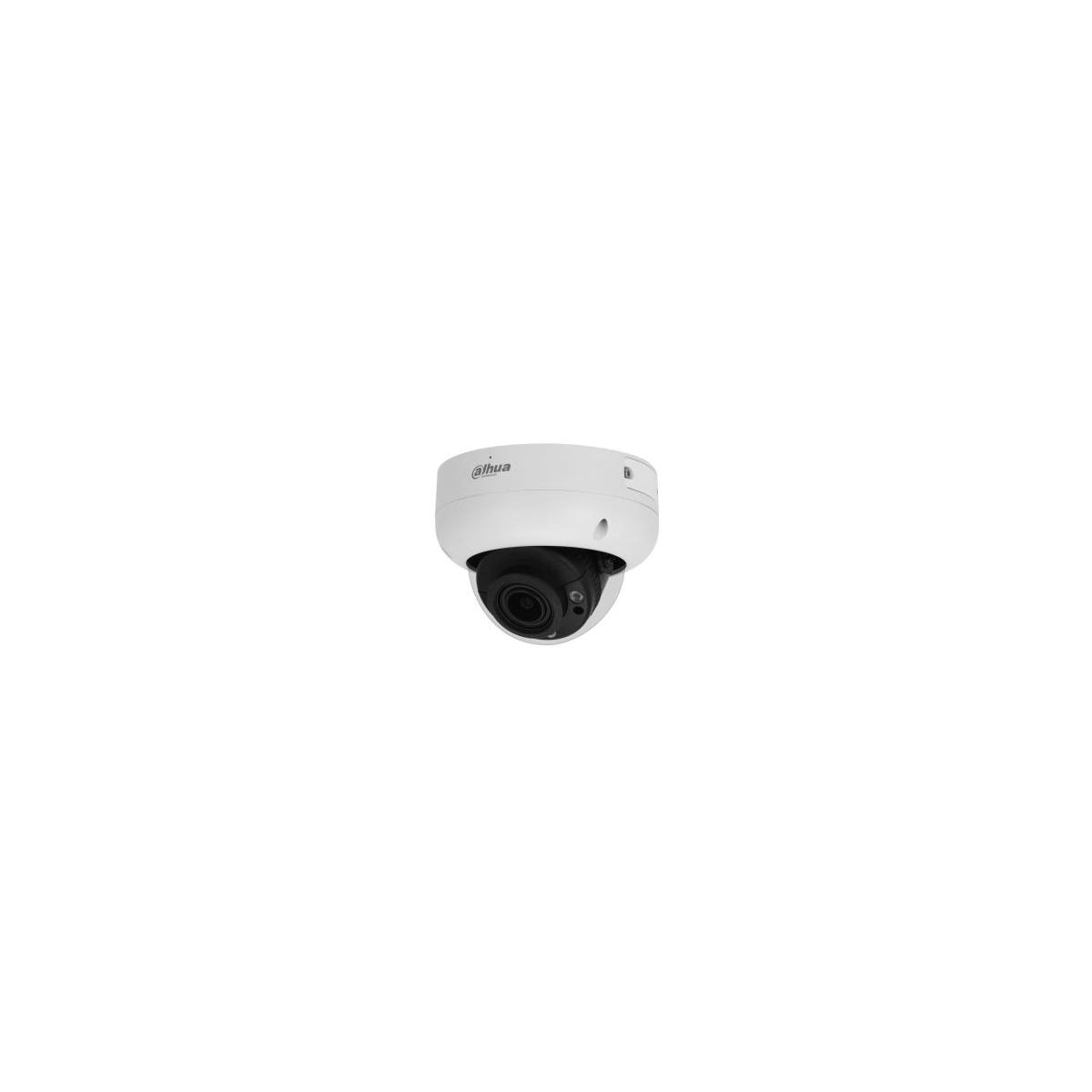

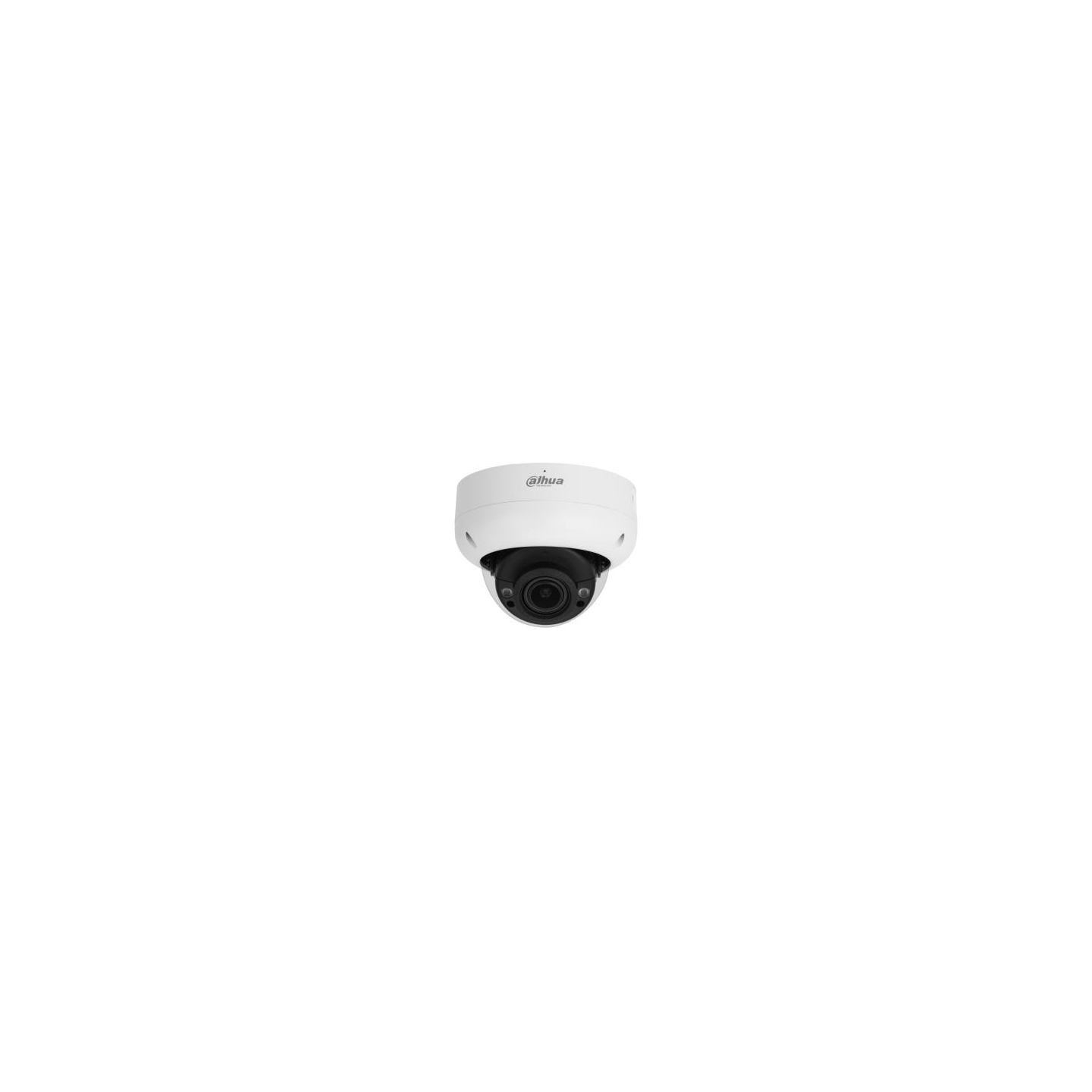

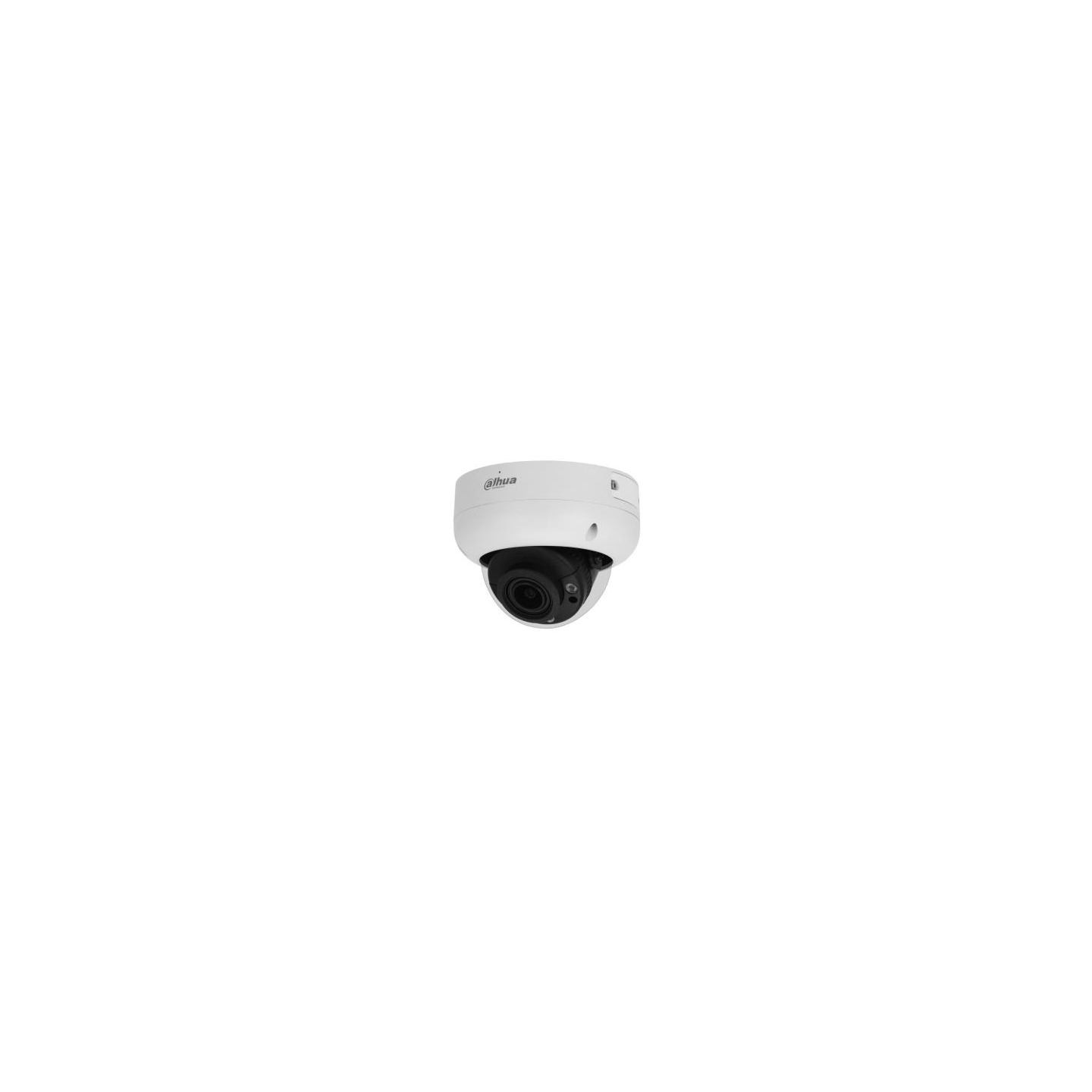

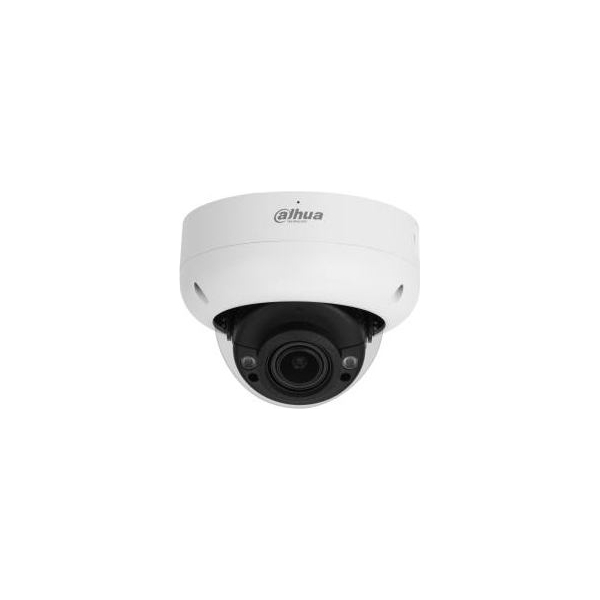

Dahua NET CAMERA 8MP IR DOME/IPC-HDBW3841R-ZAS27135S2 DAHUA

Dahua NET CAMERA 8MP IR DOME/IPC-HDBW3841R-ZAS27135S2 DAHUA

Name: Dahua NET CAMERA 8MP IR DOME/IPC-HDBW3841R-ZAS27135S2 DAHUA
Brand: DAHUA
SKU: IPC-HDBW3841R-ZAS27135S2
Price: 528.53 EUR
Availability: InStock

SKU IPC-HDBW3841R-ZAS27135S2 Category IP Cameras

€528.53

Tax included

Share on

8MP IR Vari-focal Dome WizSense Network Camera

8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images
Outputs max. 8MP (3840 × 2160) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 40 m
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic
12 VDC/PoE power supply facilitates installation
IP67, IK10 protection
SMD 4.0, AI SSA

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDBW3841R-ZAS-S2=S2

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.16
Unit Box Length: 0.19
Unit Box Width: 0.19
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Type: CCTV security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/100000 s
Camera shutter type: Electronic
Pan range: 0 - 355 °
Tilt angle range: 0 - 75 °
White balance: Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Number of sensors: 1
Optical sensor size: 1/2.8 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.8 m
Detect distance (tele): 280 m
Detect distance (wide): 85.3 m
Fixed focus: Yes
Focal length range: 2.7 - 13.5 mm
Identify distance (tele): 28 m
Identify distance (wide): 8.5 m
Maximum aperture number: 1.5
Number of lenses: 1
Observe distance (tele): 112 m
Observe distance (wide): 34.1 m
Recognize distance (tele): 56 m
Recognize distance (wide): 17 m
LED type: IR
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 2
Analog signal format system: NTSC
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8 MP
Video compression formats: H.264/H.265
Audio formats supported: G.711 µ-law/G.711 A-law/G.726
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Bit rate range: 3 - 8192 Kbit/s
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Alarm input channels: 1
Alarm output channels: 1
Mirror: Yes
Password protection: Yes
Privacy protection: Yes
Video motion detection: No
Management software: Smart PSS; DSS; DMSS
Web-based management: Yes
DC output voltage: 12
Power consumption (typical): 2.7 W
Power source type: DC,PoE
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 88.9 mm
Weight: 492 g
Package weight: 663 g
Number of cameras: 1
Model: IPC-HDBW3841R-ZAS27135S2
Units per Shipping Box: 1
Unit Calculated Volume: 0.005776 cubm
Unit Calculated Weight: 0.81 kg
