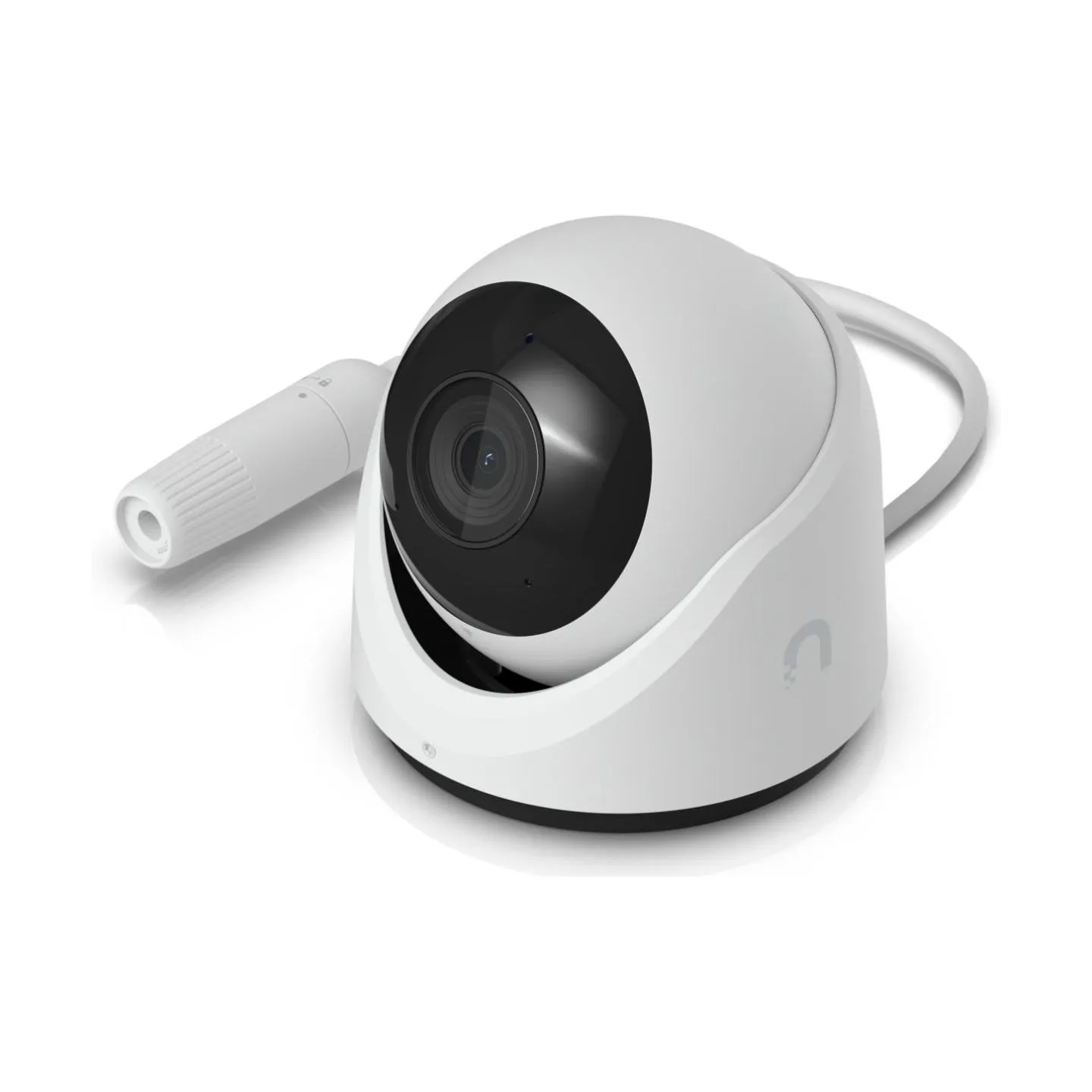

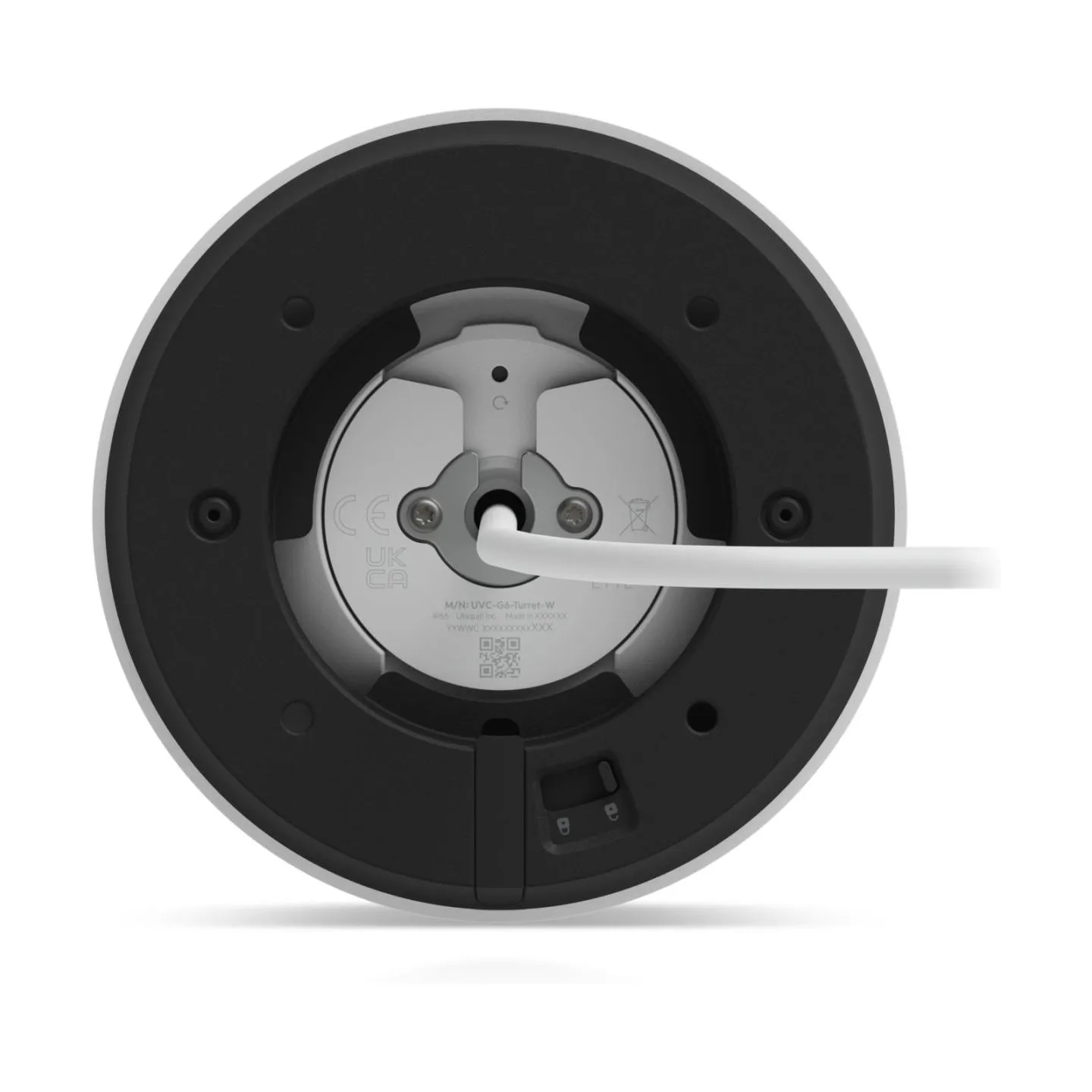

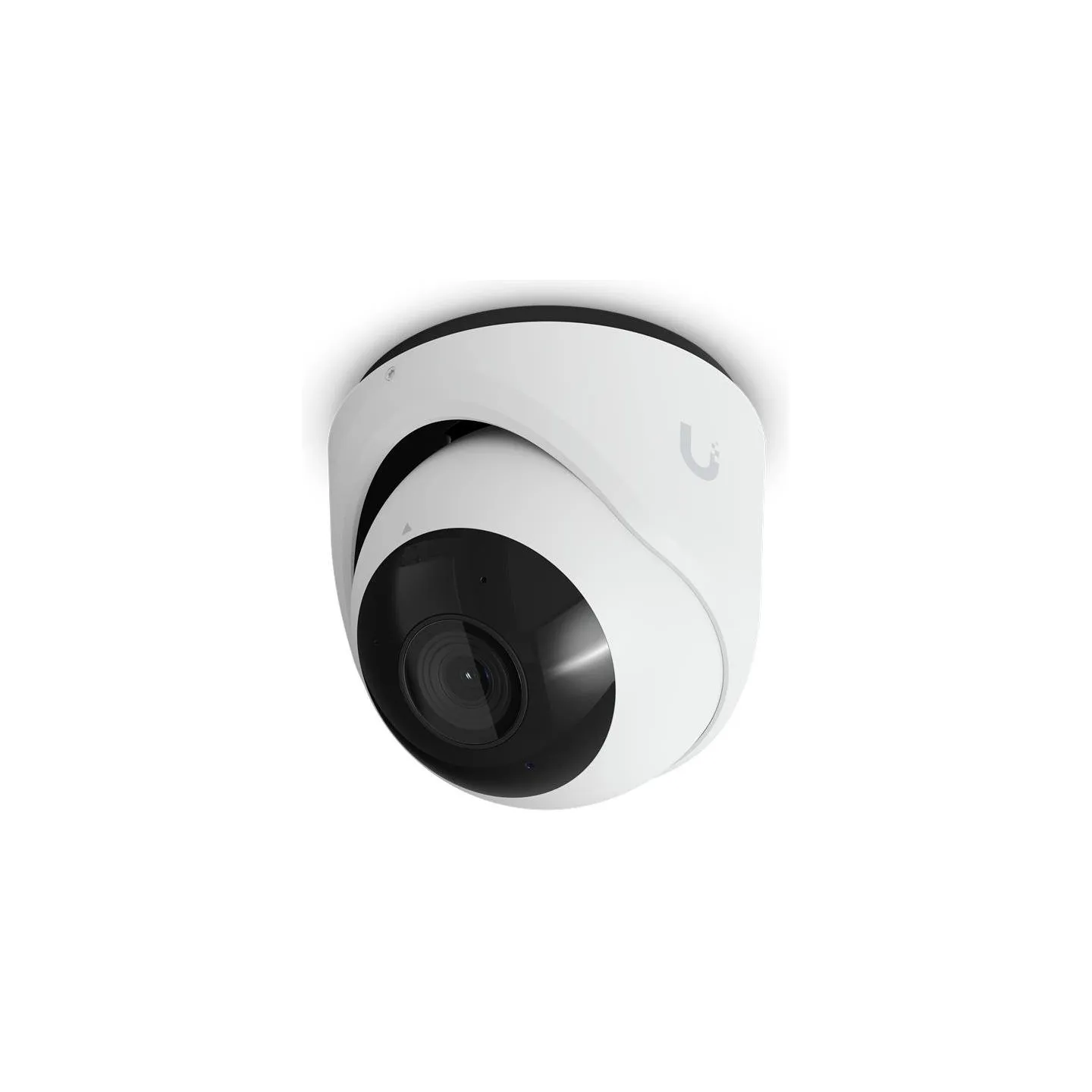

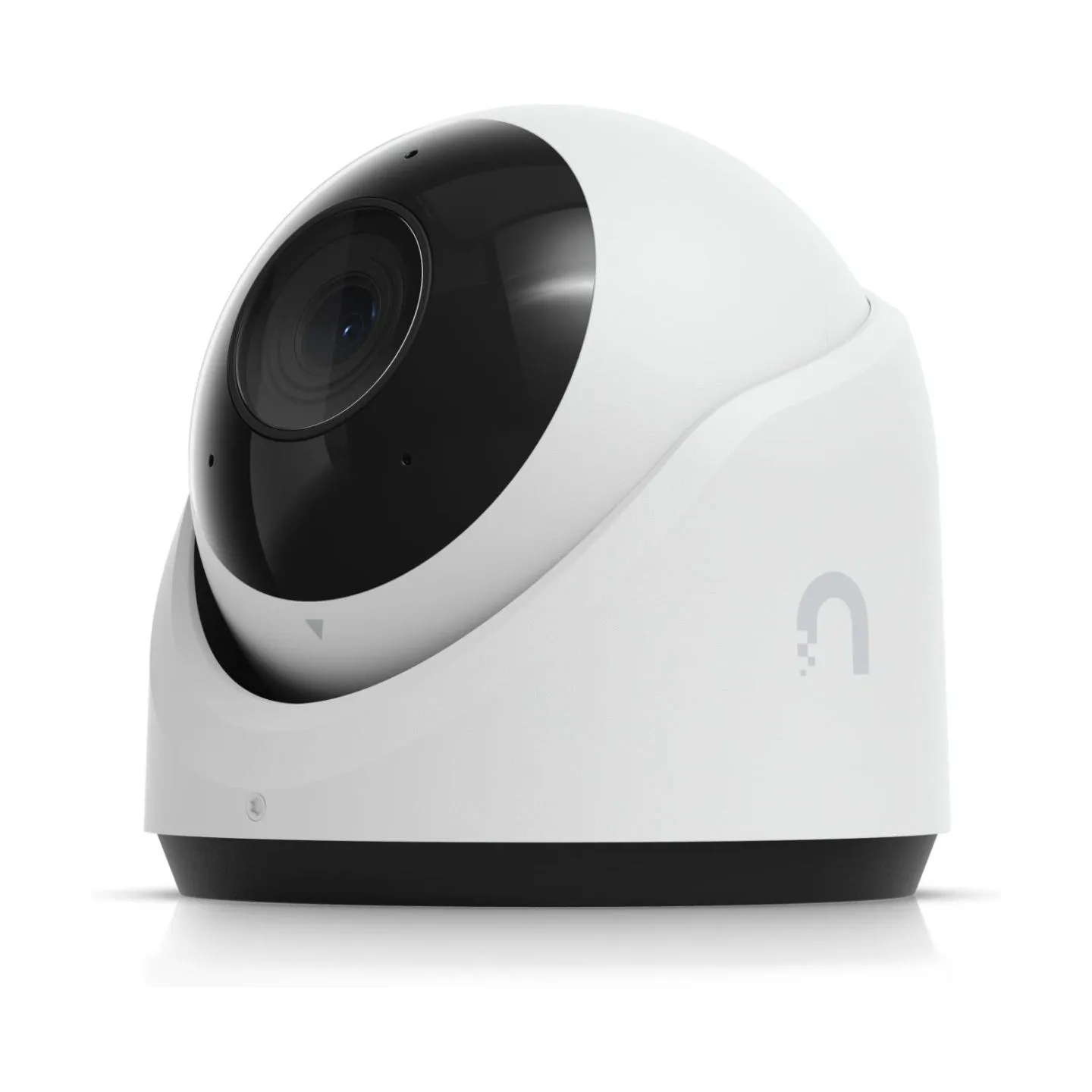

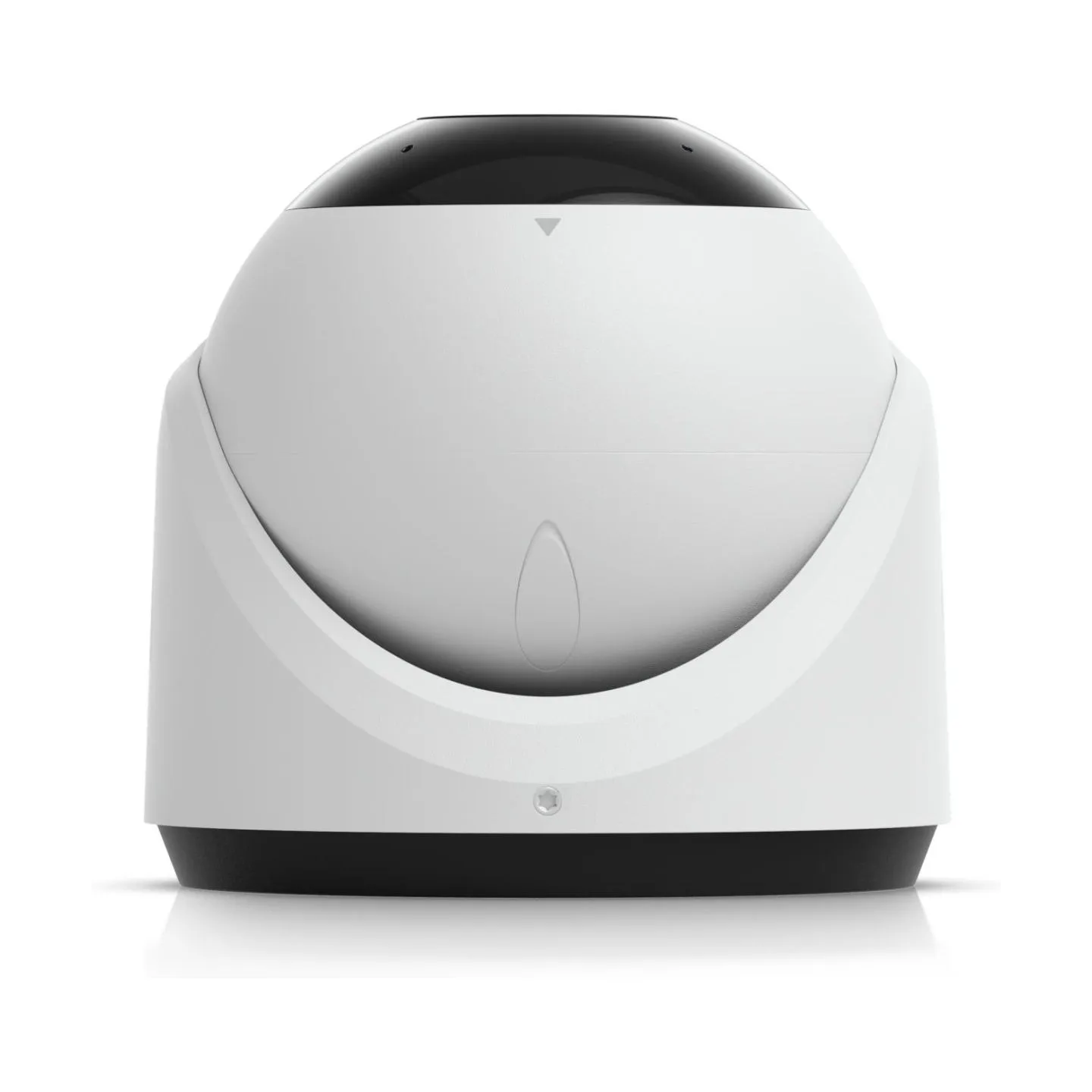

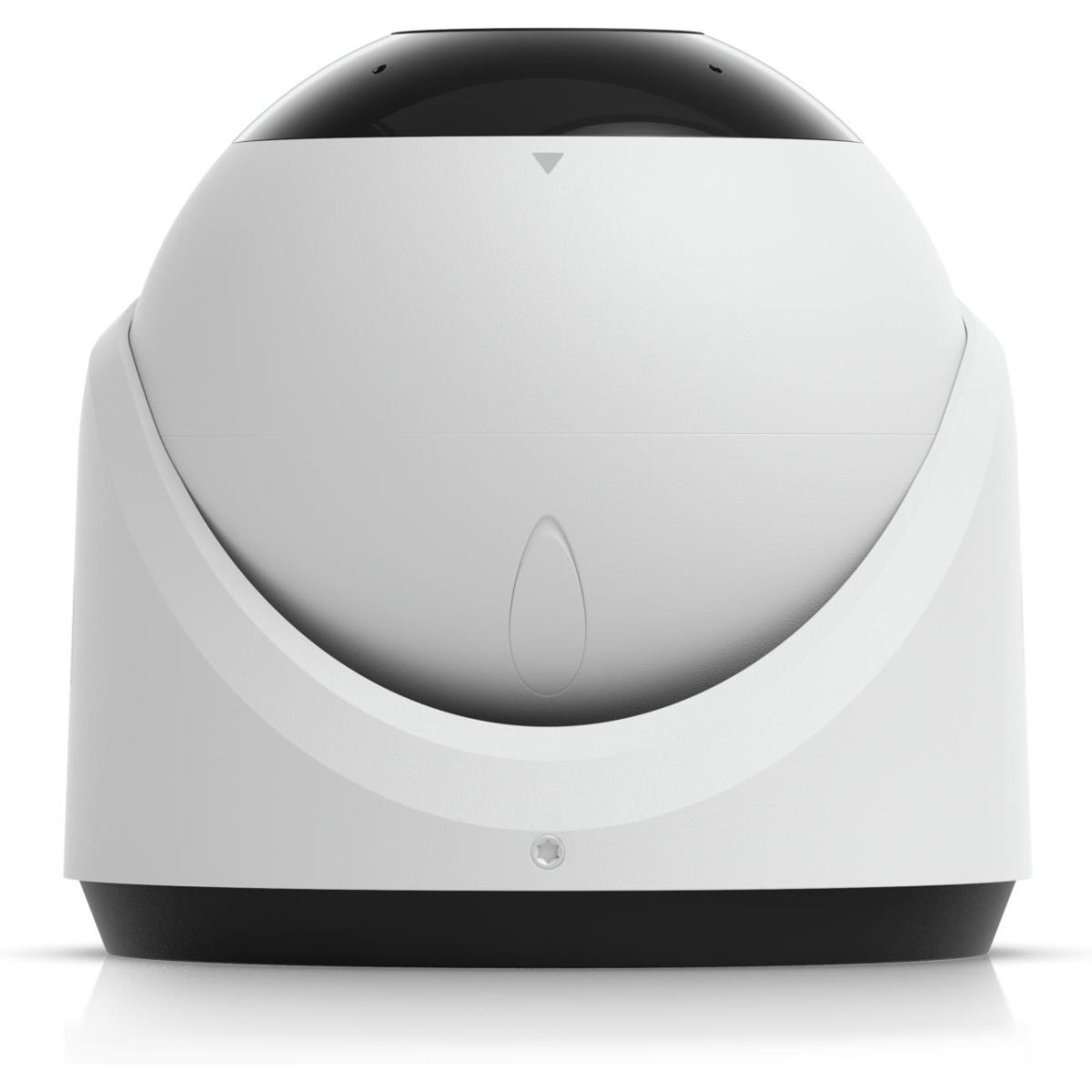

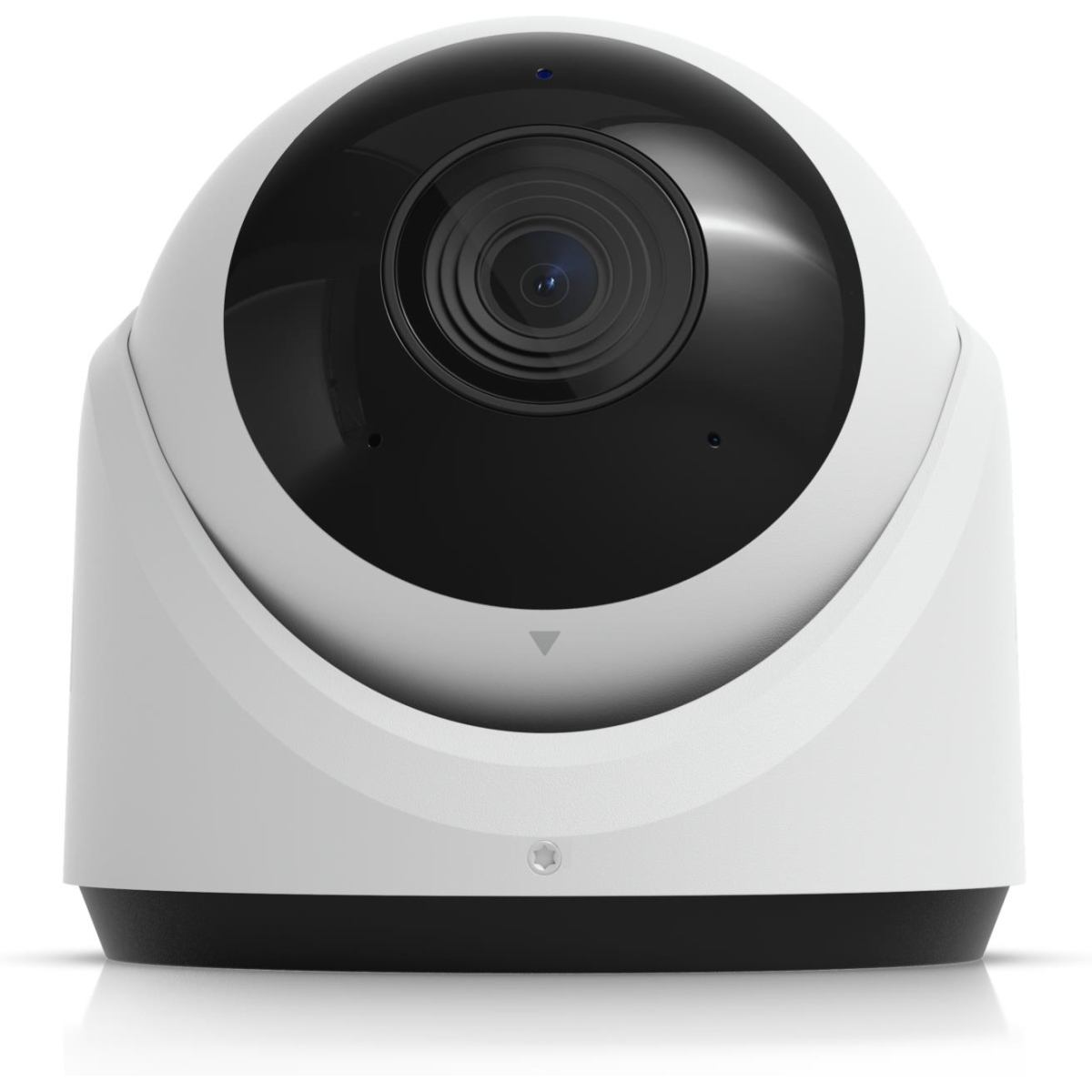

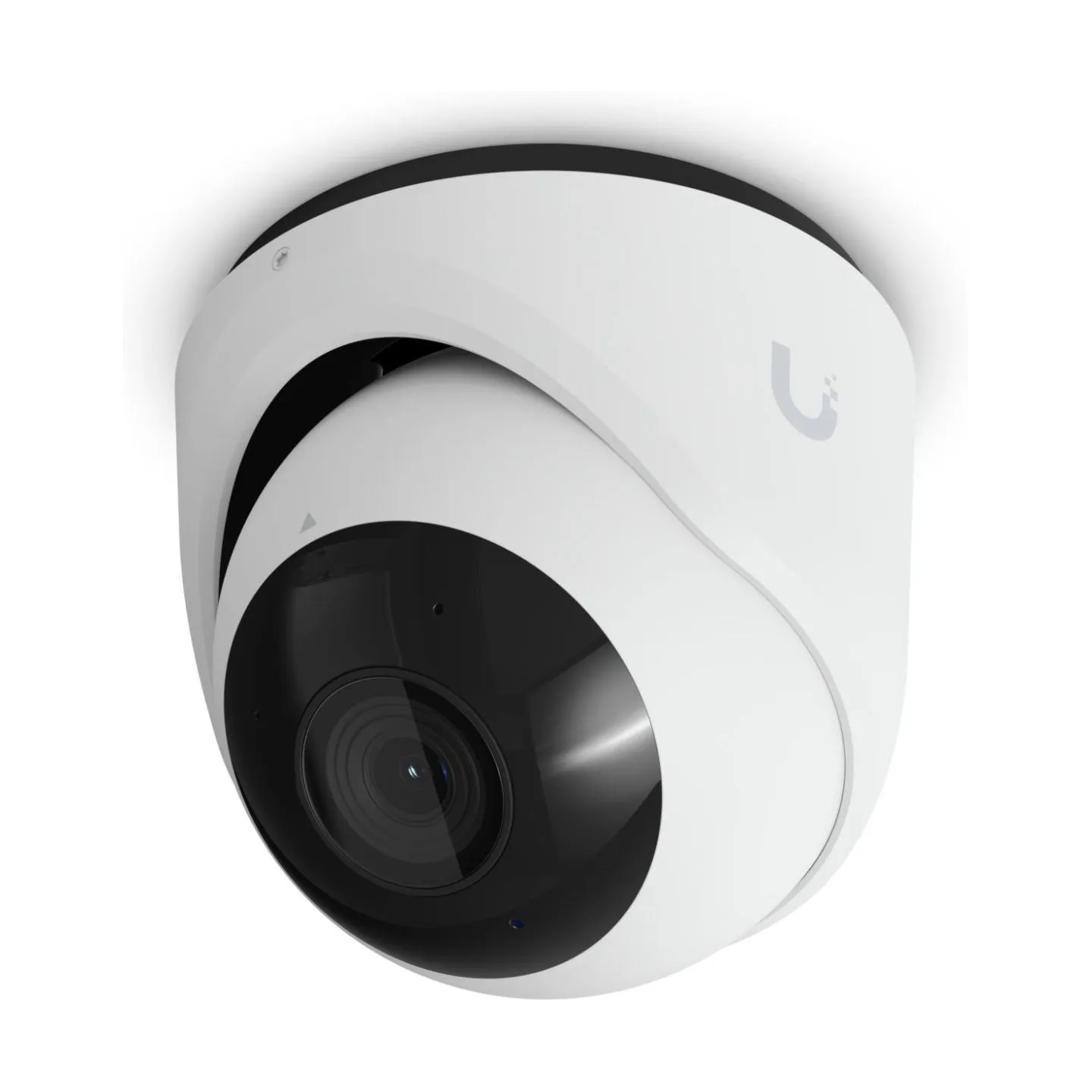

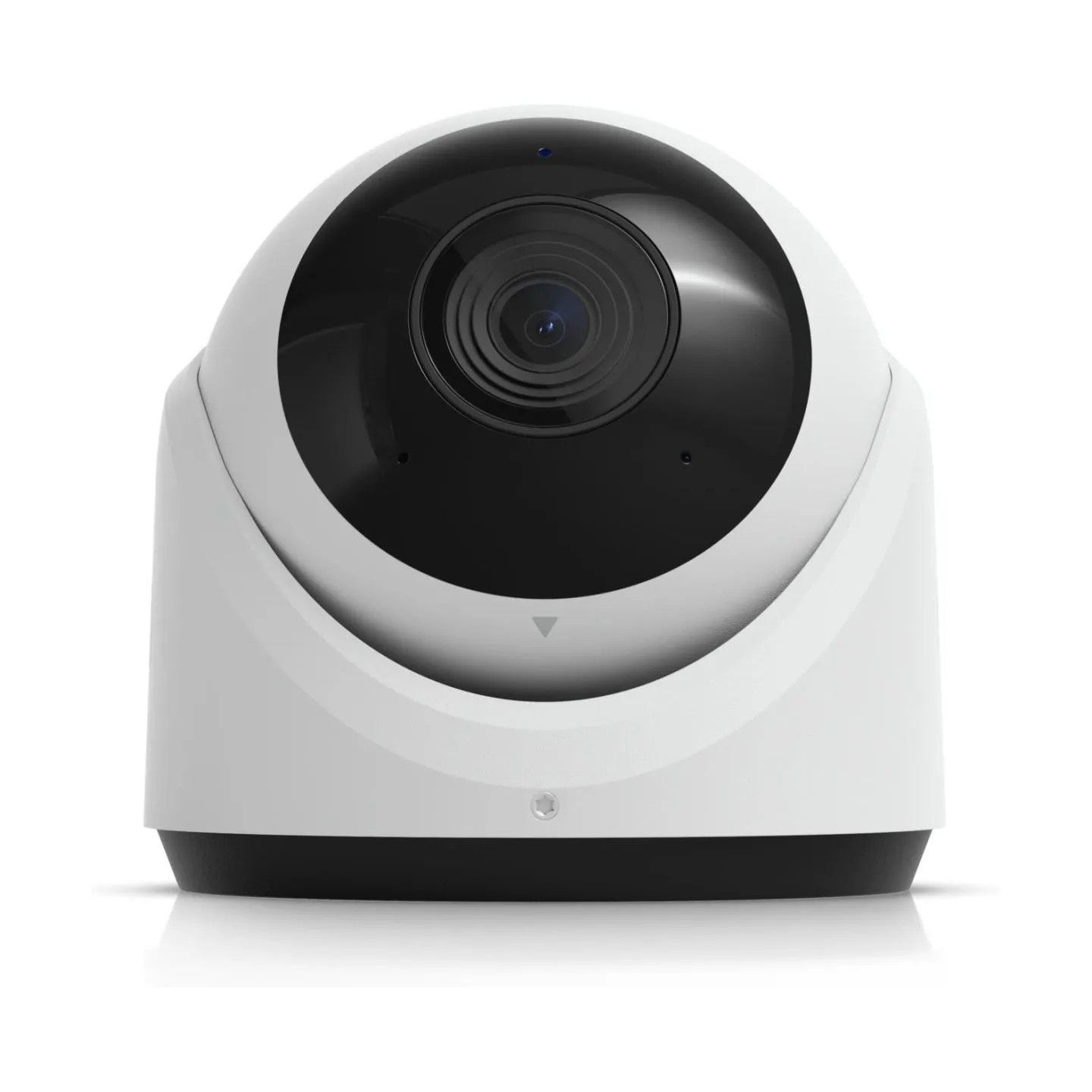

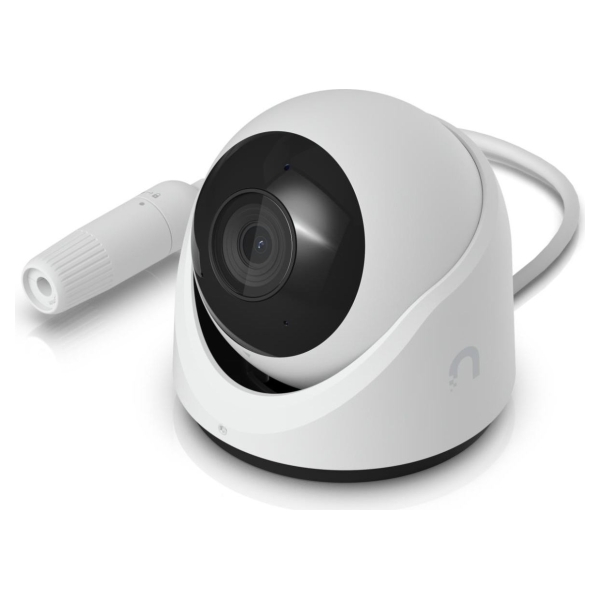

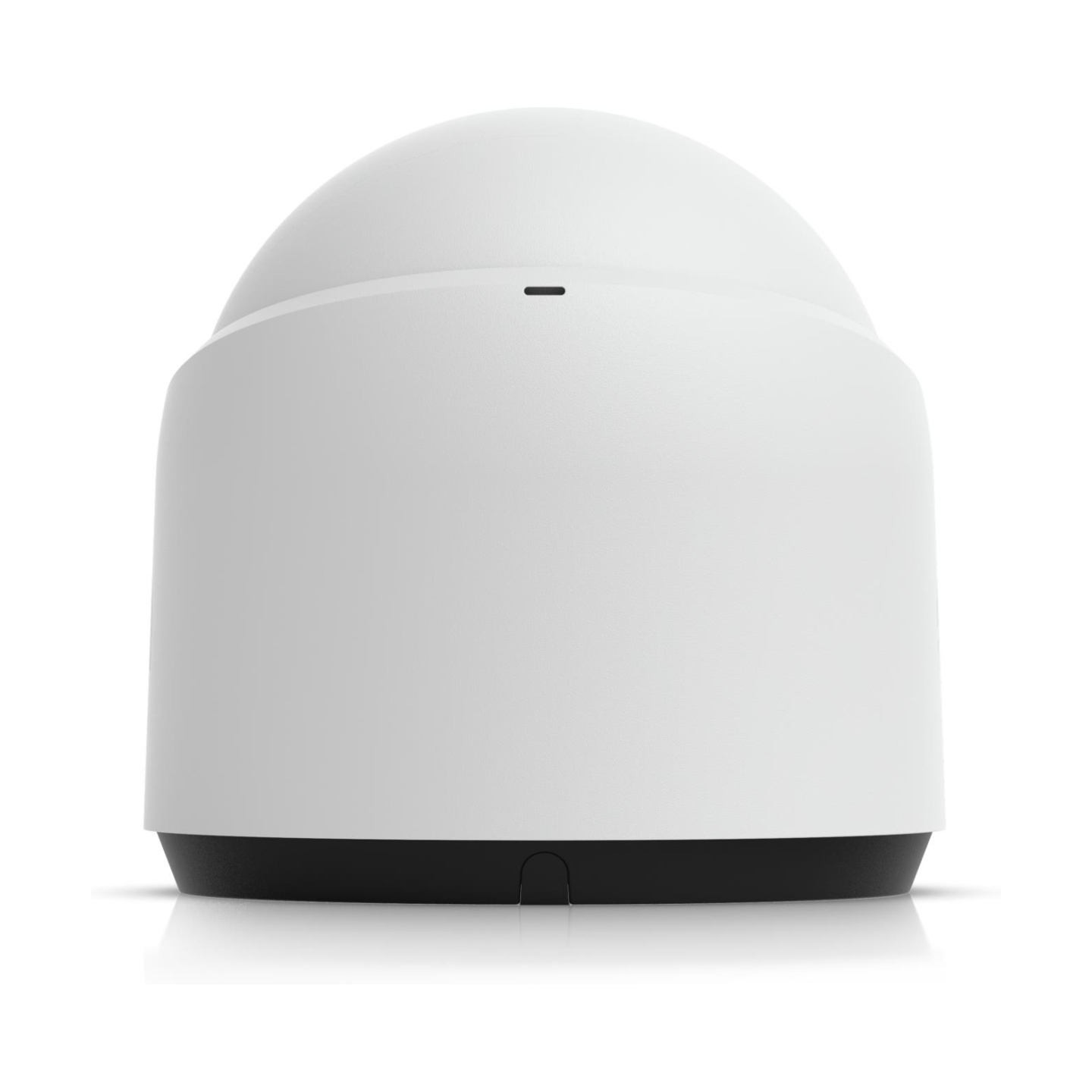

All-weather, tamper-resistant 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPs AI Engine, and 3-axis manual adjustment for flexible installation.
Manufacturer Website:
https://store.ui.com/us/en/products/uvc-g6-turret
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.15
- Unit Box Length
- 0.13
- Unit Box Width
- 0.13
- Form factor
- Turret
- Housing material
- Aluminium/Polycarbonate (PC)
- IK code
- IK04
- International Protection (IP) code
- IP66
- LED indicators
- Yes
- Mounting type
- Ceiling/wall
- Product colour
- White
- Weatherproof
- Yes
- Built-in processor
- Yes
- Connectivity technology
- Wired
- Infrared (IR) cut-off filter
- Yes
- Placement supported
- Indoor & outdoor
- Processor model
- ARM Cortex-A53
- Type
- IP security camera
- Angle of rotation
- 360 °
- Camera pan control
- Yes
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 134.1 °
- Lens viewing angle, horizontal
- 109.9 °
- Lens viewing angle, vertical
- 56.7 °
- Optical sensor size
- 1/1.8 "
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 30 m
- Frame rate
- 30 fps
- Image quality adjustment
- Brightness/Contrast/HDR/Sharpness
- Maximum resolution
- 3864 x 2160 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Text caption overlay
- Yes
- Total megapixels
- 8 MP
- Built-in microphone
- Yes
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Built-in HDD
- No
- Ethernet LAN (RJ-45) ports
- 1
- Human and vehicle targets classification
- Yes
- Reset button
- Yes
- DC output voltage
- 37,42.5,48,54,57
- Power consumption (max)
- 12.5 W
- Power source type
- PoE
- Operating relative humidity (H-H)
- 0 - 90 %
- Operating temperature (T-T)
- -30 - 50 °C
- Diameter
- 100 mm
- Height
- 95 mm
- Weight
- 550 g
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Manual
- Yes

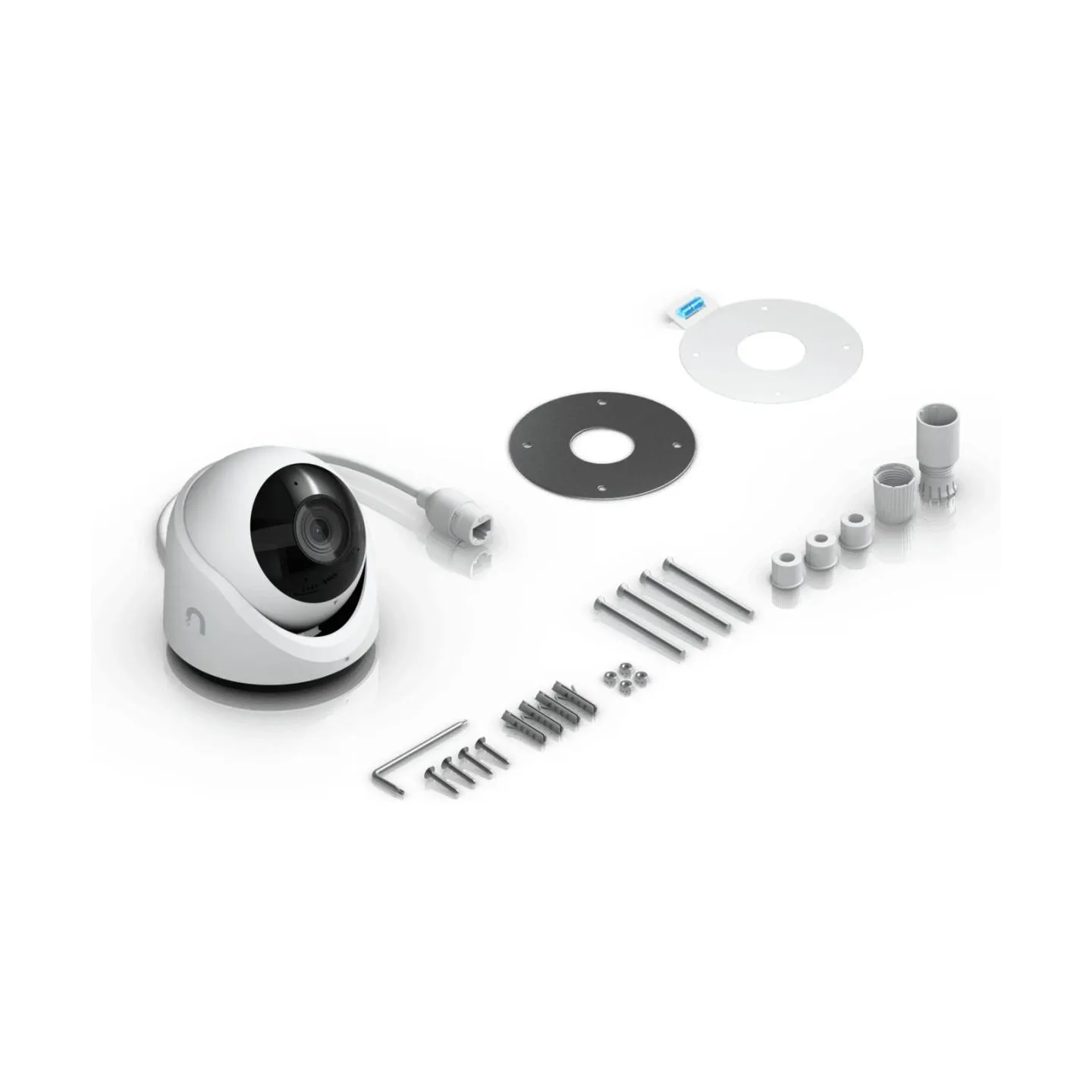

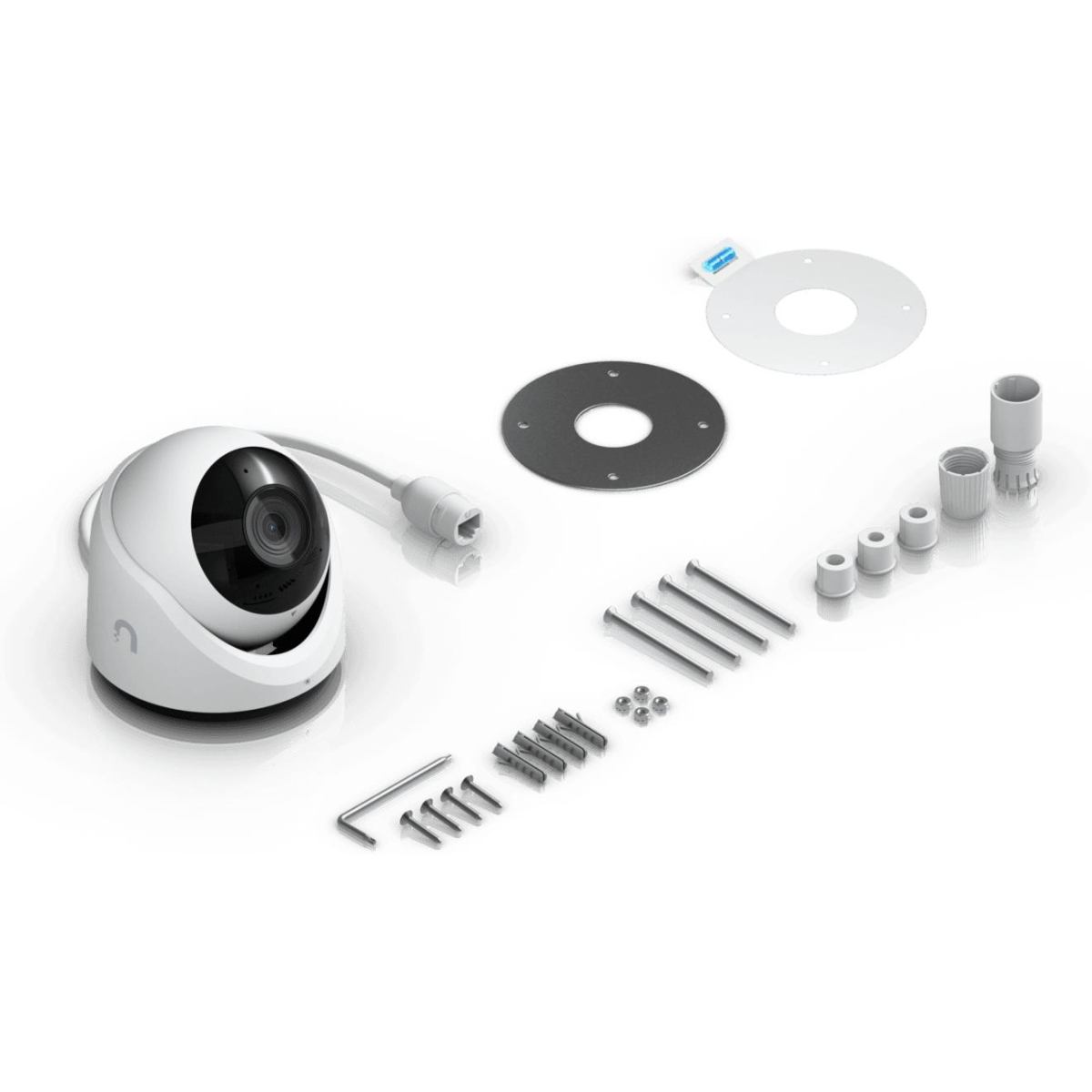

- Mounting kit
- Yes
- Number of cameras
- 1
- Screws included
- Yes
- Model
- UVC-G6-TURRET-W
- Units per Shipping Box
- 12
- Unit Calculated Volume
- 0.004524 cubm
- Unit Calculated Weight
- 1.03 kg
