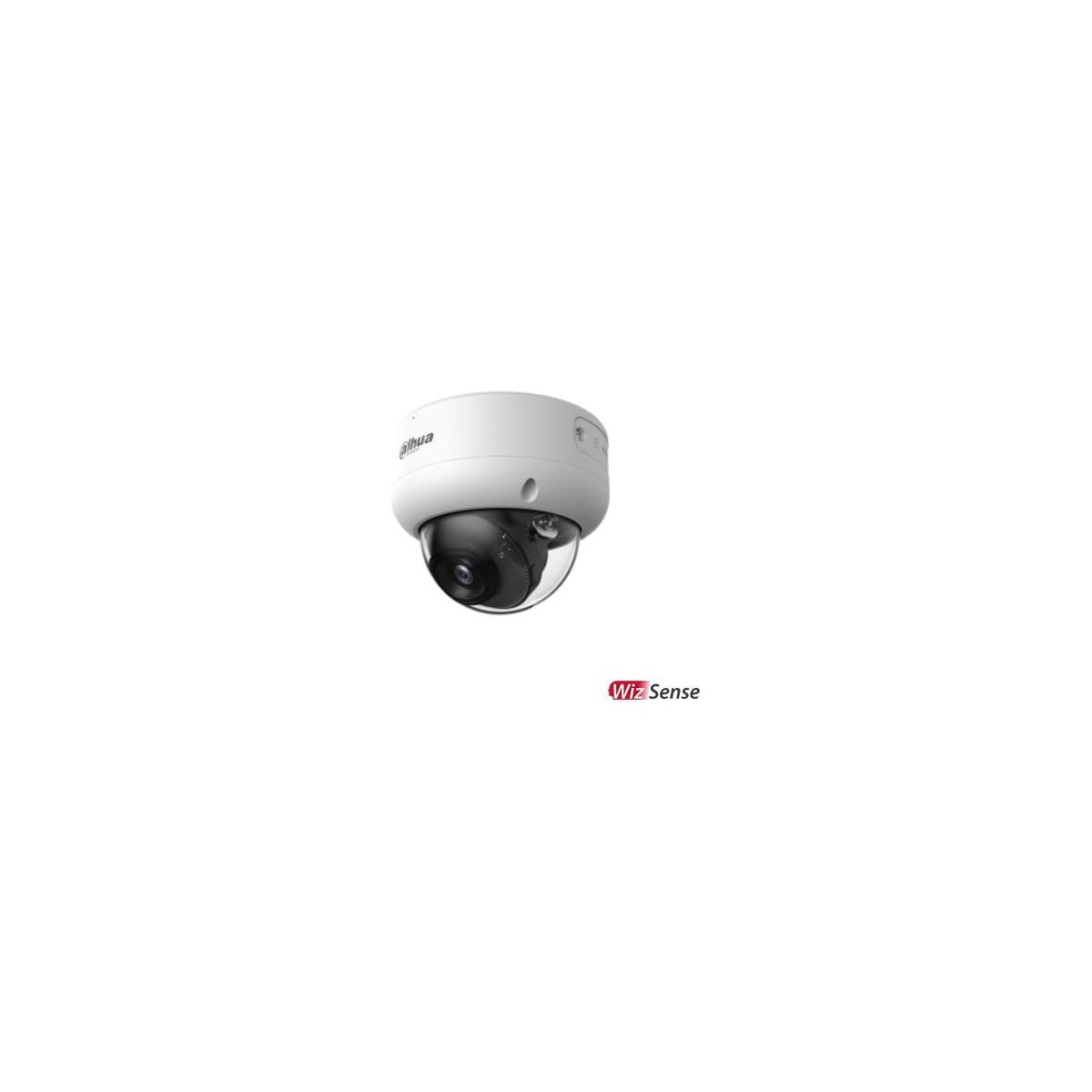

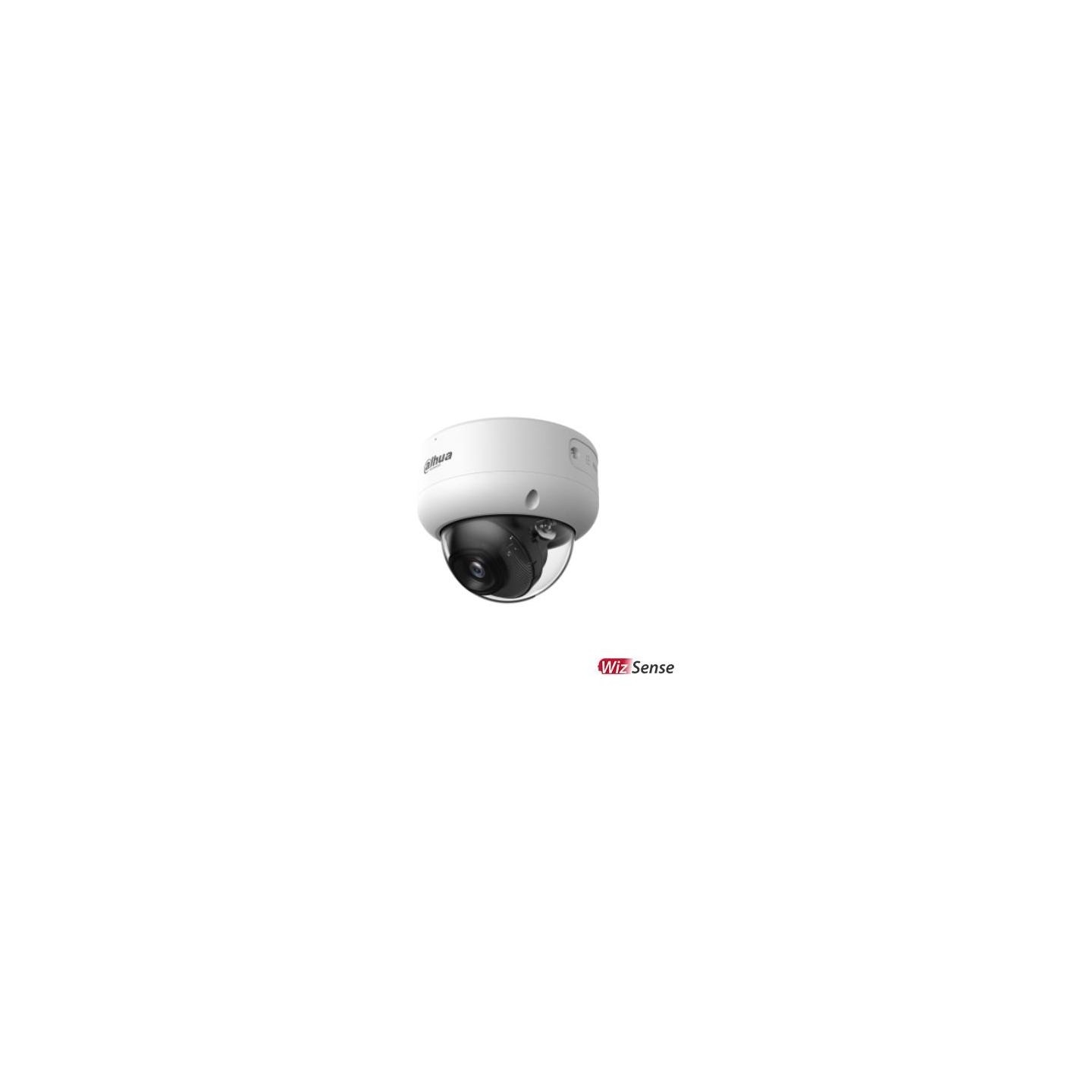

Dahua NET CAMERA 6MP DOME/HDBW3649E-AS-IL-0280B DAHUA
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm, Field of View 110°
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649E-AS-IL
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.125
- Unit Box Length
- 0.14
- Unit Box Width
- 0.14
- Form factor
- Dome
- Connectivity technology
- Wired
- Adjustment shutter speed
- Auto/Manual
- Camera shutter speed
- 1/3 s1/100,000 s s
- Effective sensor resolution
- 6 pixels
- Optical sensor size
- 1/2.7" "
- Sensor type
- CMOS
- Fixed focal length
- 2.8 mm
- B/W night vision distance
- 30 m
- Night vision
- Yes
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Built-in microphone
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 1
- Alarm output channels
- 1
- DC output voltage
- 12
- Power consumption (max)
- 7.5 W
- Power over Ethernet (PoE)
- Yes
- Operating temperature (T-T)
- -40 C to +60 C °C
- Lens mount interface
- M12
- Units per Shipping Box
- 24
- Unit Calculated Volume
- 0.00286 cubm
- Unit Calculated Weight
- 0.79 kg
