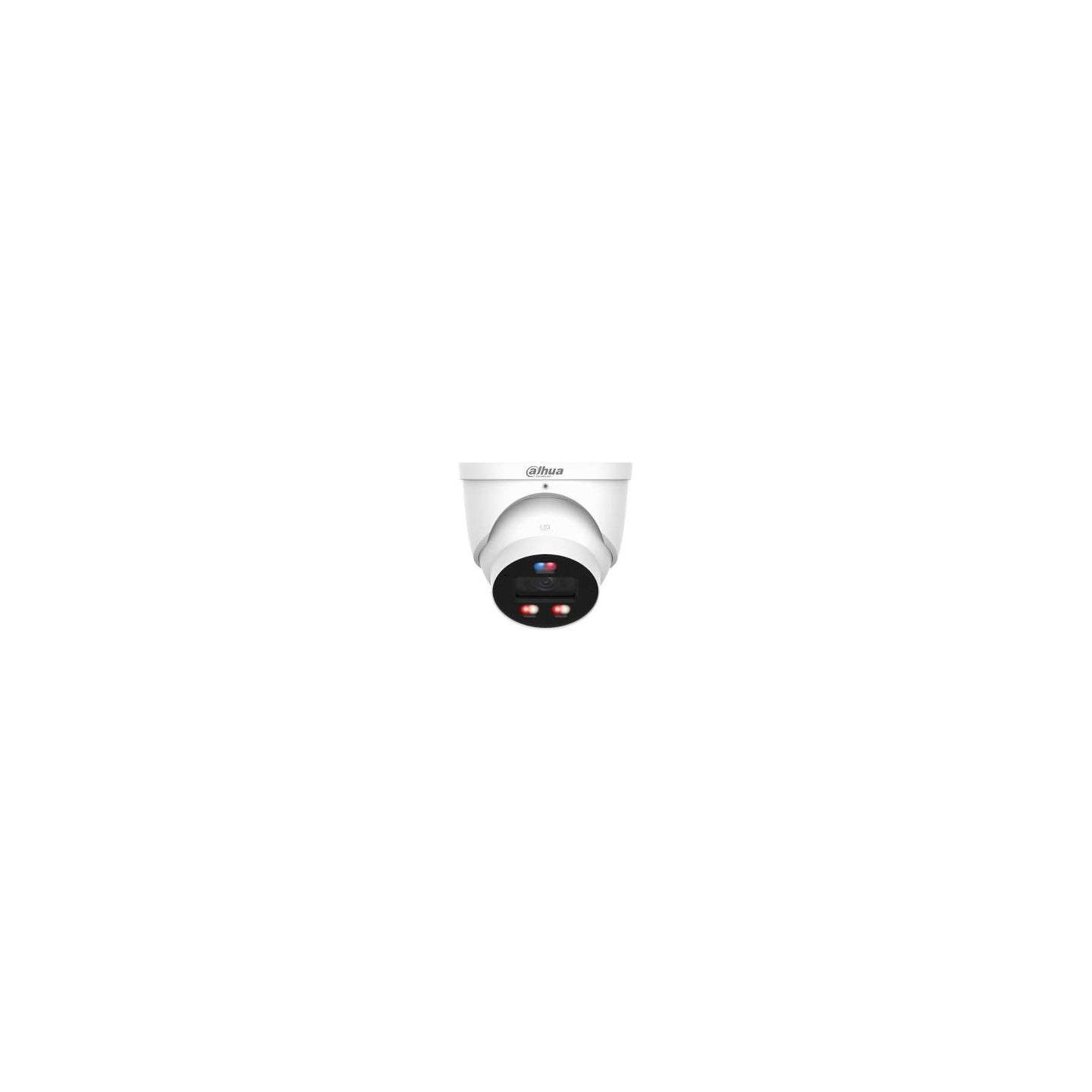

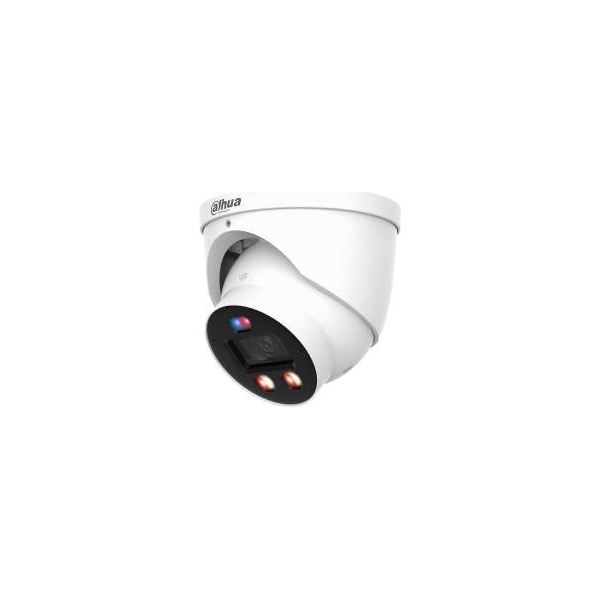

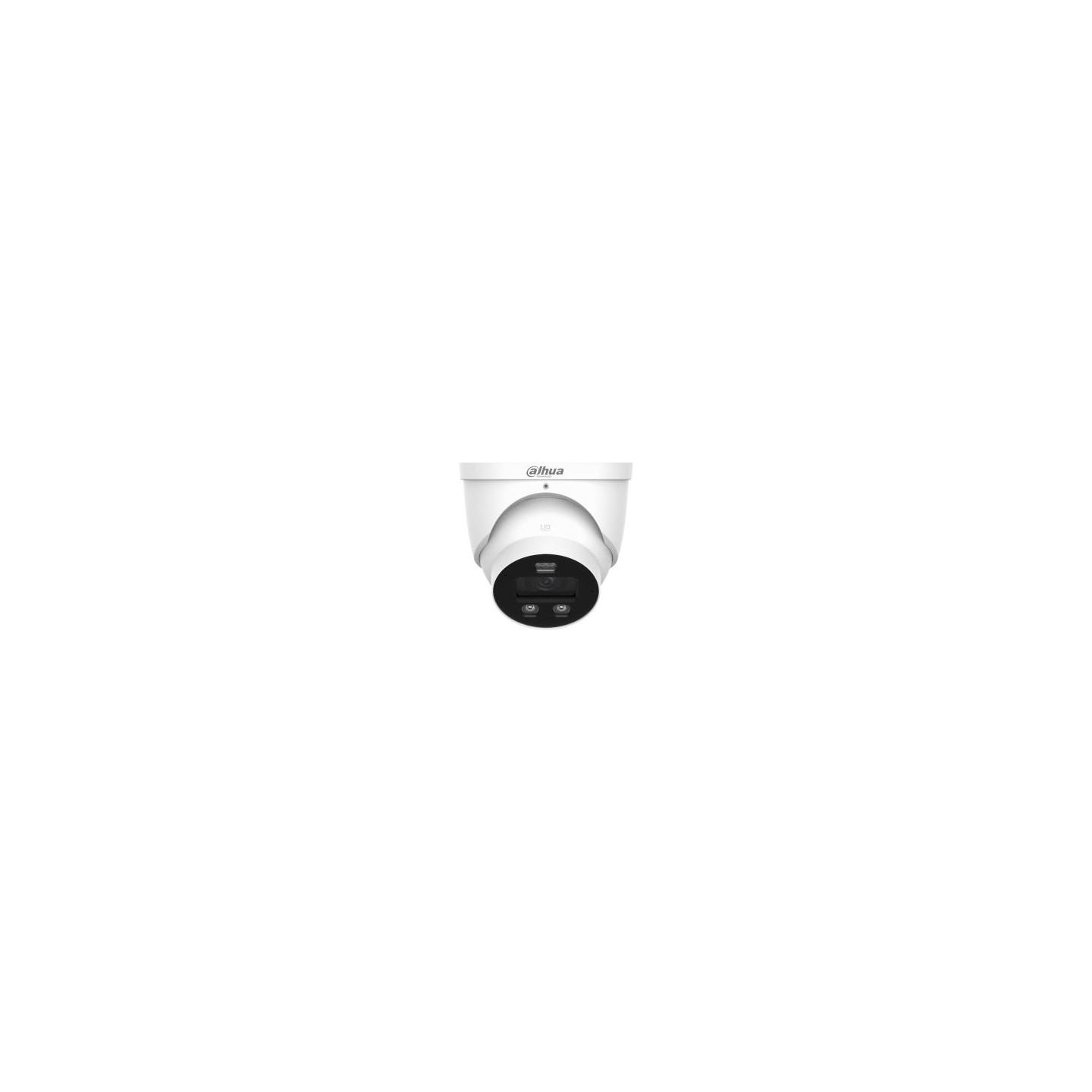

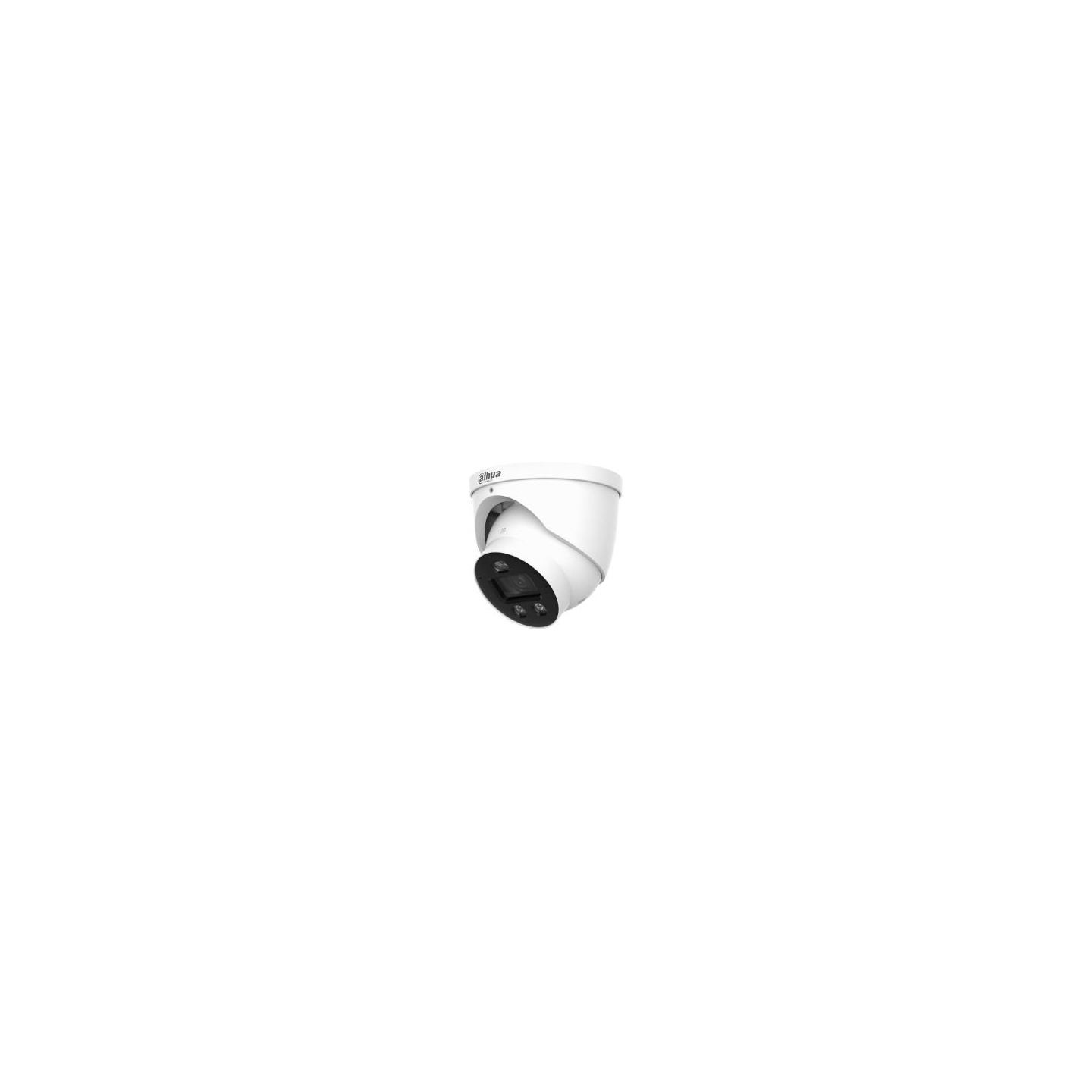

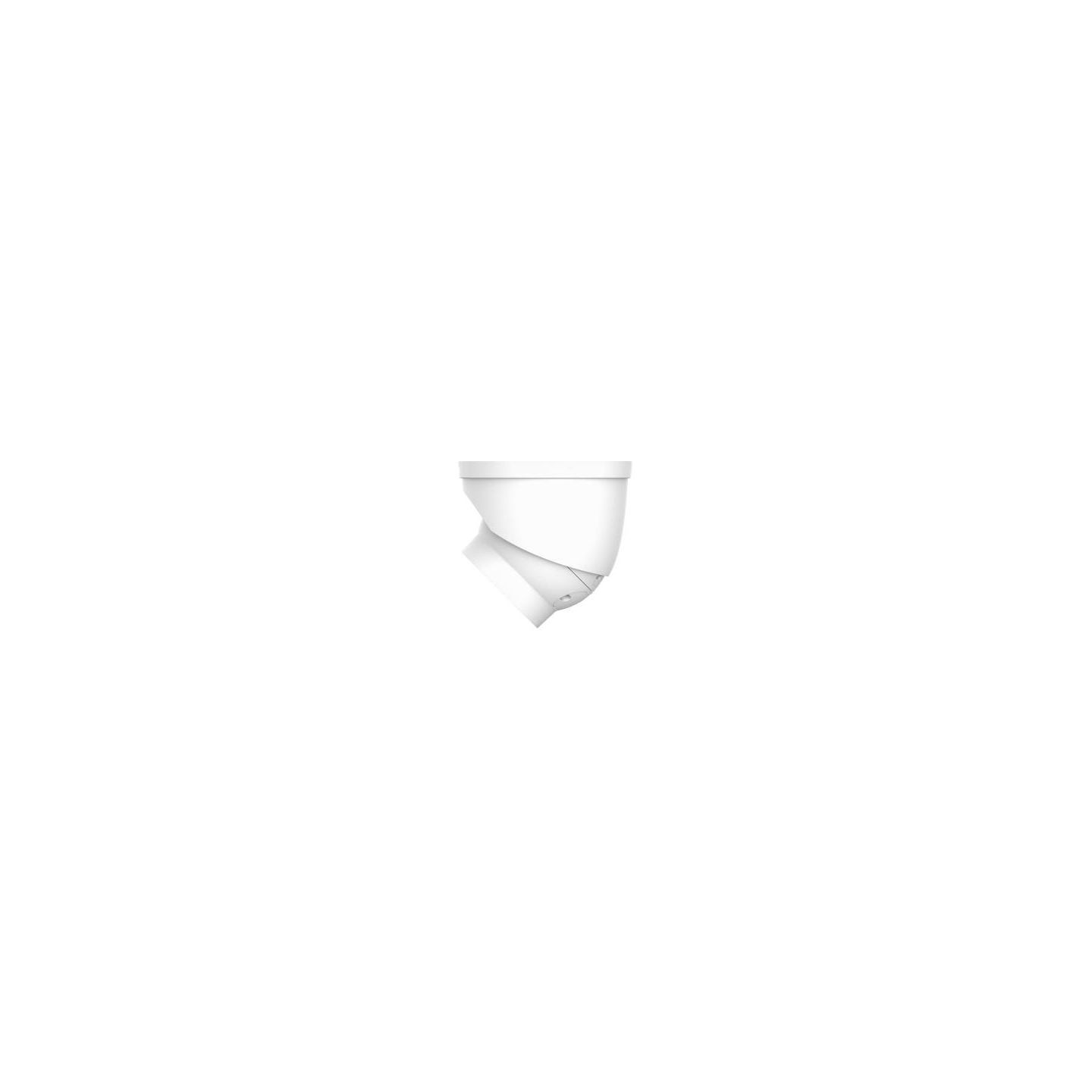

Dahua NET CAMERA 6MP IR EYEBALL/HDW3649H-ASPV0280B-PRO DAHUA
SKU HDW3649H-ASPV0280B-PRO Category IP Cameras
Price:
€358.87
Tax included
Share on
6MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera
- 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288 × 1850)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- Supports AI SSA and one-tap arming and disarming
- SMD area can be set in warm light areas that support triggering alarms
Manufacturer Website:
https://www.dahuasecurity.com/la/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3649H-AS-PV-PRO
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.14
- Unit Box Length
- 0.16
- Unit Box Width
- 0.16
- Form factor
- Turret
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/wall
- Product colour
- White
- Alarm input/output
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Angle of rotation
- 360 °
- Camera shutter speed
- 1/100000 s
- Camera shutter type
- Electronic
- Minimum illumination
- 0.0003 lx
- Number of Privacy masking areas
- 8
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 78 °
- White balance
- Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
- Number of sensors
- 1
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Fixed focus
- Yes
- Number of lenses
- 1
- LED type
- IR/White
- Night vision
- Yes
- Night vision distance
- 30 m
- Number of illumination LEDs
- 2
- Back Light Compensation (BLC)
- Yes
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate
- 30 fps
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 3200 x 1800 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1280 x 960/1536 x 2048/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/3200 x 1800/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
- Total megapixels
- 6 MP
- Video compression formats
- H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
- Video streaming
- Yes
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.723/G.726/PCM
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Built-in microphone
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Number of users
- 20 user(s)
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 256 GB
- RAM capacity
- 512 MB
- ROM capacity
- 128 MB
- Alarm input channels
- 1
- Alarm output channels
- 1
- Digital watermark
- Yes
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Mirror
- Yes
- Security algorithms
- HTTPS
- Video motion detection
- Yes
- Management software
- Smart PSS; DSS; DMSS
- Web-based management
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 8.3 W
- Power consumption (Power over Ethernet (PoE))
- 4.8 W
- Power consumption (typical)
- 3.7 W
- Power source type
- DC,PoE
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -40 - 60 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Diameter
- 122 mm
- Height
- 110.9 mm
- Weight
- 745 g
- Package weight
- 915 g
- Number of cameras
- 1
- Model
- HDW3649H-ASPV0280B-PRO
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004092 cubm
- Unit Calculated Weight
- 1.06 kg
