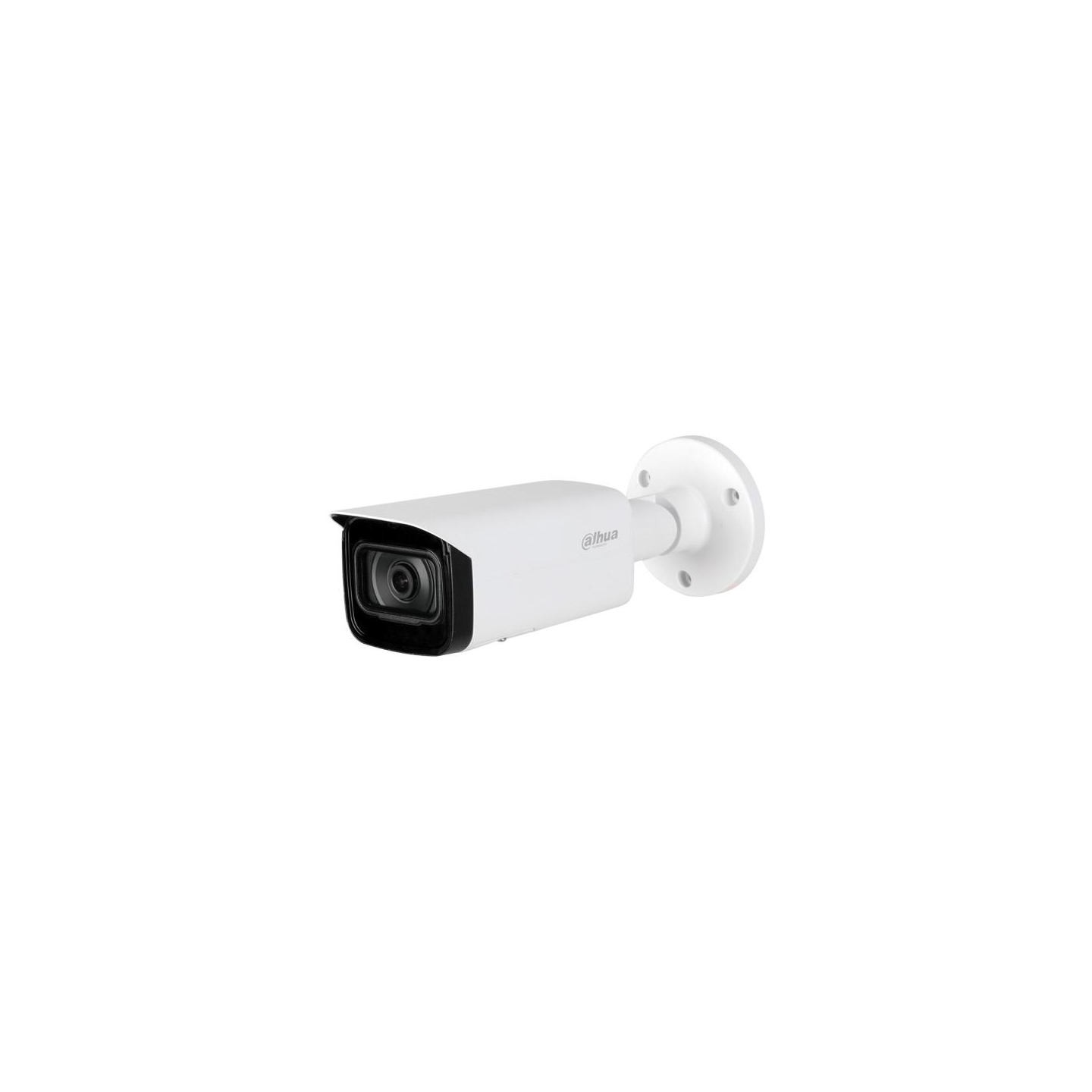

Dahua NET CAMERA 5MP IR BULLET AI/HFW5541T-ASE-0360B-S3 DAHUA

Name: Dahua NET CAMERA 5MP IR BULLET AI/HFW5541T-ASE-0360B-S3 DAHUA
Brand: DAHUA
SKU: HFW5541T-ASE-0360B-S3
Price: 311.7 EUR
Availability: InStock

SKU HFW5541T-ASE-0360B-S3 Category IP Cameras

€311.70

Tax included

Last items in stock

Share on

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way

1/2.7” 5Megapixel progressive scan CMOS
H.265&H.264 triple-stream encoding
20fps@2592×1944
WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8mm fixed lens (3.6mm, 6mm, 8mm, 12mm optional)
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 78m
Micro SD memory, IP67

Manufacturer Website:
https://www.dahuasecurity.com/

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.11
Unit Box Length: 0.3
Unit Box Width: 0.12
Form factor: Bullet
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: White
Alarm input/output: Yes
Certification: CE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic/Mechanical
Camera tilt control: Yes
Lens viewing angle, horizontal: 84 °
Lens viewing angle, vertical: 58 °
Minimum illumination: 0 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 90 °
White balance: Auto/Manual/Natural/Outdoor
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.6 m
Detect distance: 80 m
Fixed focal length: 3.6 mm
Identify distance: 8 m
Maximum aperture number: 1.6
Number of lenses: 1
Observe distance: 32 m
Recognize distance: 16 m
LED type: IR
Night vision: Yes
Night vision distance: 78 m
Number of illumination LEDs: 4
Back Light Compensation (BLC): Yes
Bit rate: 32- 8192Kbps, 19- 8192Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror: Yes
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2592 x 1944 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2592 x 1944/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes: 1080p/720p
Total megapixels: 5 MP
Video compression formats: H.264/H.264+/H.265/H.265+/M-JPEG
Video streaming: Yes
Audio formats supported: AAC
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Voice codecs: G.711a/G.711Mu/G.723/G.726
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Intrusion/People counting/Scene change/Tripwire
Mirror: Yes
Video motion detection: Yes
Web-based management: Yes
DC output voltage: 12
Power consumption (max): 7.1 W
Power consumption (Power over Ethernet (PoE)): 8.4 W
Power source type: DC,PoE
Operating relative humidity (H-H): 10 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 10 - 95 %
Storage temperature (T-T): 5 - 40 °C
Mobile operating systems supported: Android/iOS
Depth: 75.9 mm
Length: 244.1 mm
Weight: 815 g
Width: 79 mm
Package weight: 1080 g
Number of cameras: 1
Model: IPC-HFW5541T-ASE-0360B-S3
Units per Shipping Box: 10
Unit Calculated Volume: 0.004675 cubm
Unit Calculated Weight: 1.32 kg
