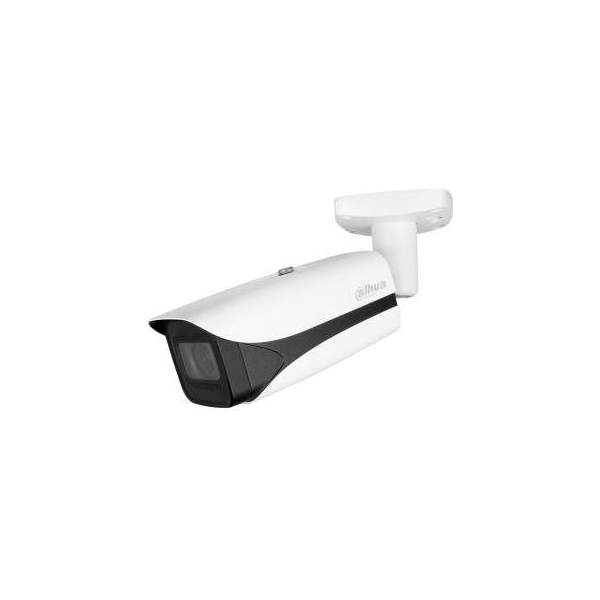

Dahua NET CAMERA 4MP IR BULLET/IPC-HFW5442E-ZE-2712-S3 DAHUA
Price:
€682.34
Tax included
Share on
- Outputs max. 4MP (2688×1520) @25/30 fps
- Built-in IR LED, and the max. illumination distance is 60 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection
- SMD 3.0
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HFW5442E-ZE=S3
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.14
- Unit Box Length
- 0.37
- Unit Box Width
- 0.15
- Form factor
- Bullet
- Housing material
- Metal/Plastic
- IK code
- IK10
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/wall
- Product colour
- White
- Alarm input/output
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 140 dB
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Adjustment shutter speed
- Auto/Manual
- Angle of rotation
- 360 °
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera shutter type
- Electronic
- Lens viewing angle, diagonal
- 137 - 54 °
- Lens viewing angle, horizontal
- 115 - 47 °
- Lens viewing angle, vertical
- 62 - 27 °
- Minimum illumination
- 0 lx
- Number of Privacy masking areas
- 8
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 90 °
- White balance
- Auto/Manual/Natural/Outdoor
- Number of effective pixels (H x V)
- 2688 x 1520 pixels
- Number of sensors
- 1
- Optical sensor size
- 1/1.8 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 1.5 m
- Detect distance (tele)
- 130.8 m
- Detect distance (wide)
- 57.5 m
- Focal length range
- 2.7 - 12 mm
- Identify distance (tele)
- 13.1 m
- Identify distance (wide)
- 5.8 m
- Maximum aperture number
- 1.8
- Observe distance (tele)
- 52.3 m
- Observe distance (wide)
- 23 m
- Recognize distance (tele)
- 26.2 m
- Recognize distance (wide)
- 52.3 m
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 60 m
- Number of illumination LEDs
- 4
- Back Light Compensation (BLC)
- Yes
- Bit rate
- 32- 8192Kbps, 19- 8192Kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate
- 30 fps
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Image stabilizer
- Yes
- Maximum resolution
- 2688 x 1520 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Yes
- Region of Interest (ROI) encoding
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264+/H.265/H.265+/M-JPEG
- Video streaming
- Yes
- Audio formats supported
- AAC
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Built-in microphone
- Yes
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.3af
- Number of users
- 20 user(s)
- Quality of Service (QoS) support
- Yes
- Streaming method
- Multicast/Unicast
- Supported network protocols
- HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Internal memory
- 1024 MB
- Maximum memory card size
- 256 GB
- ROM capacity
- 4000 MB
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 2
- Alarm output channels
- 1
- Mirror
- Yes
- Video motion detection
- Yes
- Web-based management
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 9.9 W
- Power consumption (Power over Ethernet (PoE))
- 10.9 W
- Power source type
- DC,PoE
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Storage relative humidity (H-H)
- 10 - 95 %
- Storage temperature (T-T)
- 5 - 40 °C
- Mobile operating systems supported
- Android/iOS
- Depth
- 95 mm
- Length
- 273.2 mm
- Weight
- 1120 g
- Width
- 95 mm
- Package weight
- 1660 g
- Number of cameras
- 1
- Model
- IPC-HFW5442E-ZE-2712-S3
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00777 cubm
- Unit Calculated Weight
- 1.59 kg
