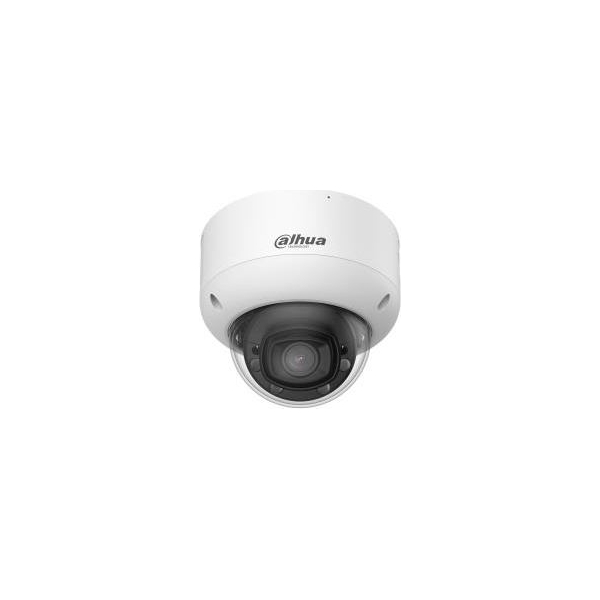

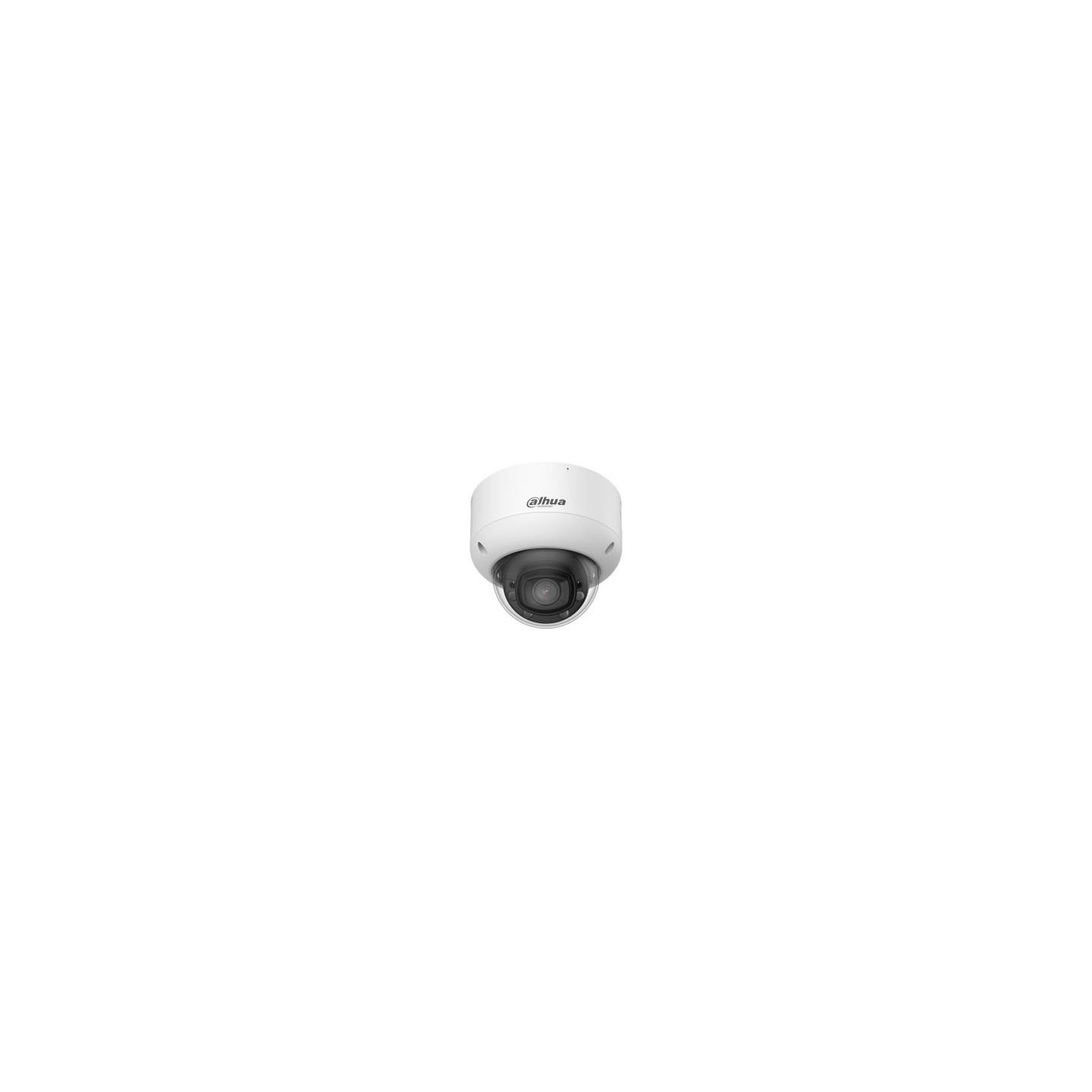

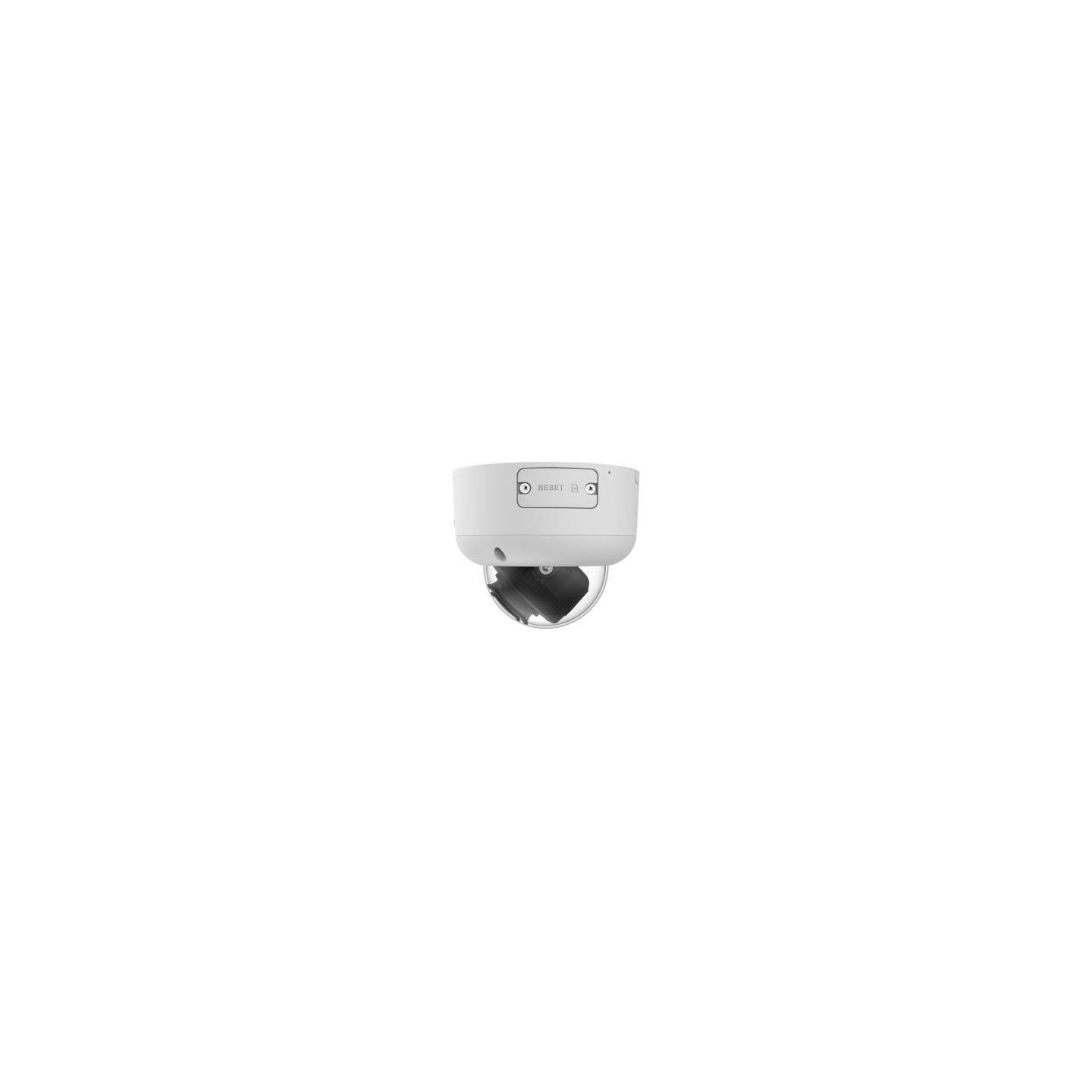

Dahua NET CAMERA 8MP DOME/HDBW5859R1ASEPV0280BPRO DAHUA
8MP WizColor Fixed-focal Dome WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.14
- Unit Box Length
- 0.16
- Unit Box Width
- 0.16
- Form factor
- Dome
- Product colour
- White
- Adjustment shutter speed
- Auto/Manual
- Camera shutter speed
- 1/3 s–1/100,000 s s
- Number of effective pixels (H x V)
- 3840 (H) × 2160 (V) pixels
- Optical sensor size
- 1/1.8" "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Fixed focus
- Yes
- Focal length range
- 2.8 mm; 3.6 mm mm
- Maximum aperture number
- 1
- B/W night vision distance
- 60 m
- LED type
- IR/White
- 3D NR (Noise Reduction)
- Yes
- Flip & mirror
- Yes
- Gain control type
- Auto/Manual
- Noise reduction
- Yes
- Privacy masking
- Yes
- Region of Interest (ROI) encoding
- Yes
- Total megapixels
- 8 MP
- Built-in microphone
- Yes
- Built-in speaker(s)
- Yes
- Compatible memory cards
- MicroSDXC
- Maximum memory card size
- 1000 GB
- Ethernet LAN (RJ-45) ports
- 1
- RS-485 ports
- 1
- Alarm input channels
- 1
- Alarm output channels
- 1
- Built-in siren
- Yes
- Video motion detection
- Yes
- Power consumption (max)
- 23.9 W
- Power consumption (typical)
- 4.1 W
- Operating temperature (T-T)
- –40 °C to +60 °C °C
- Diameter
- 126 mm
- Weight
- 730 g
- Width
- 105 mm
- Audio input
- 1
- Audio output
- 1
- Lens mount interface
- M16
- Power requirements
- 12 VDC (±30%); PoE+ (802.3at); ePoE
- Model
- IPC-HDBW5859R1-ASE-PV-PRO
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.003584 cubm
- Unit Calculated Weight
- 0.98 kg
