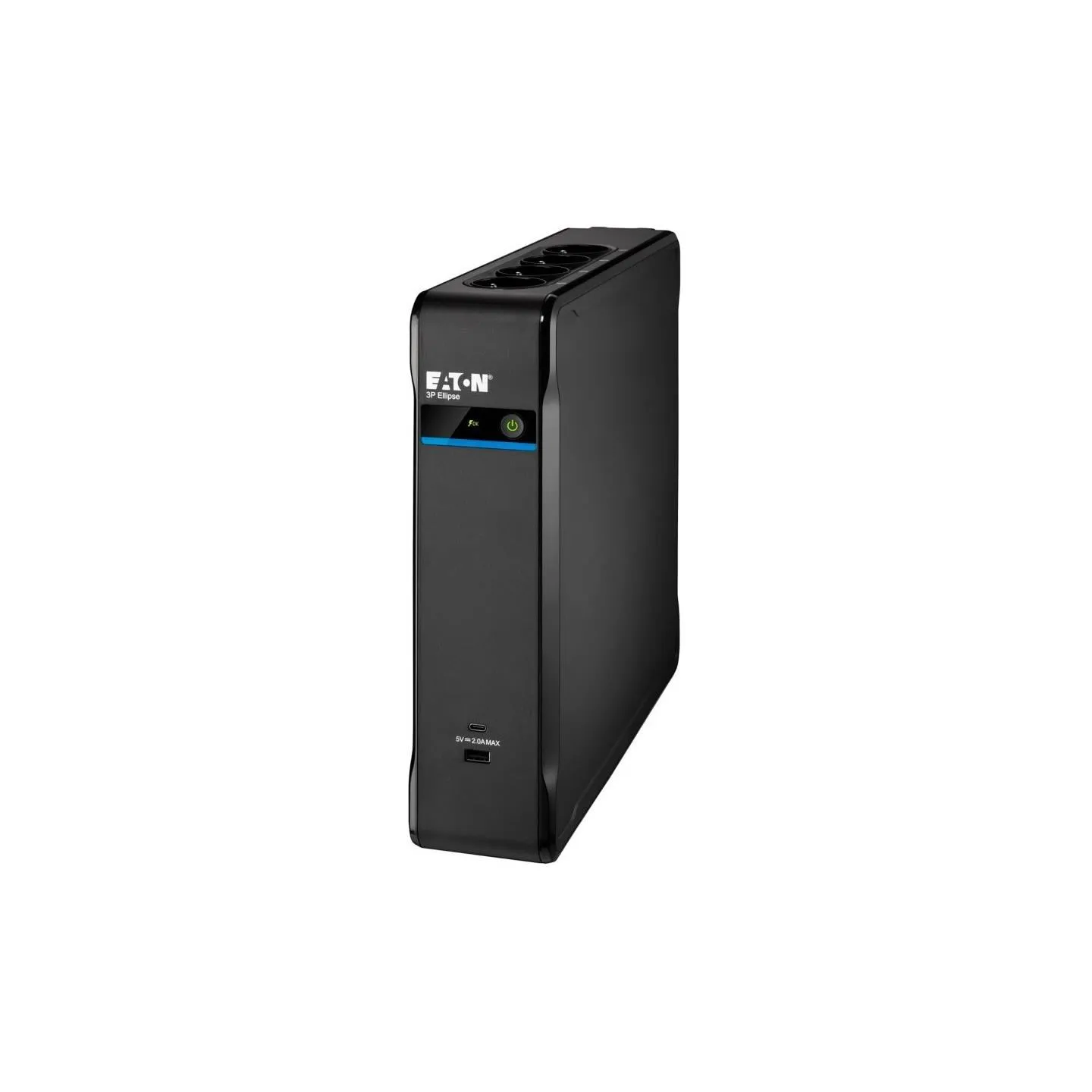

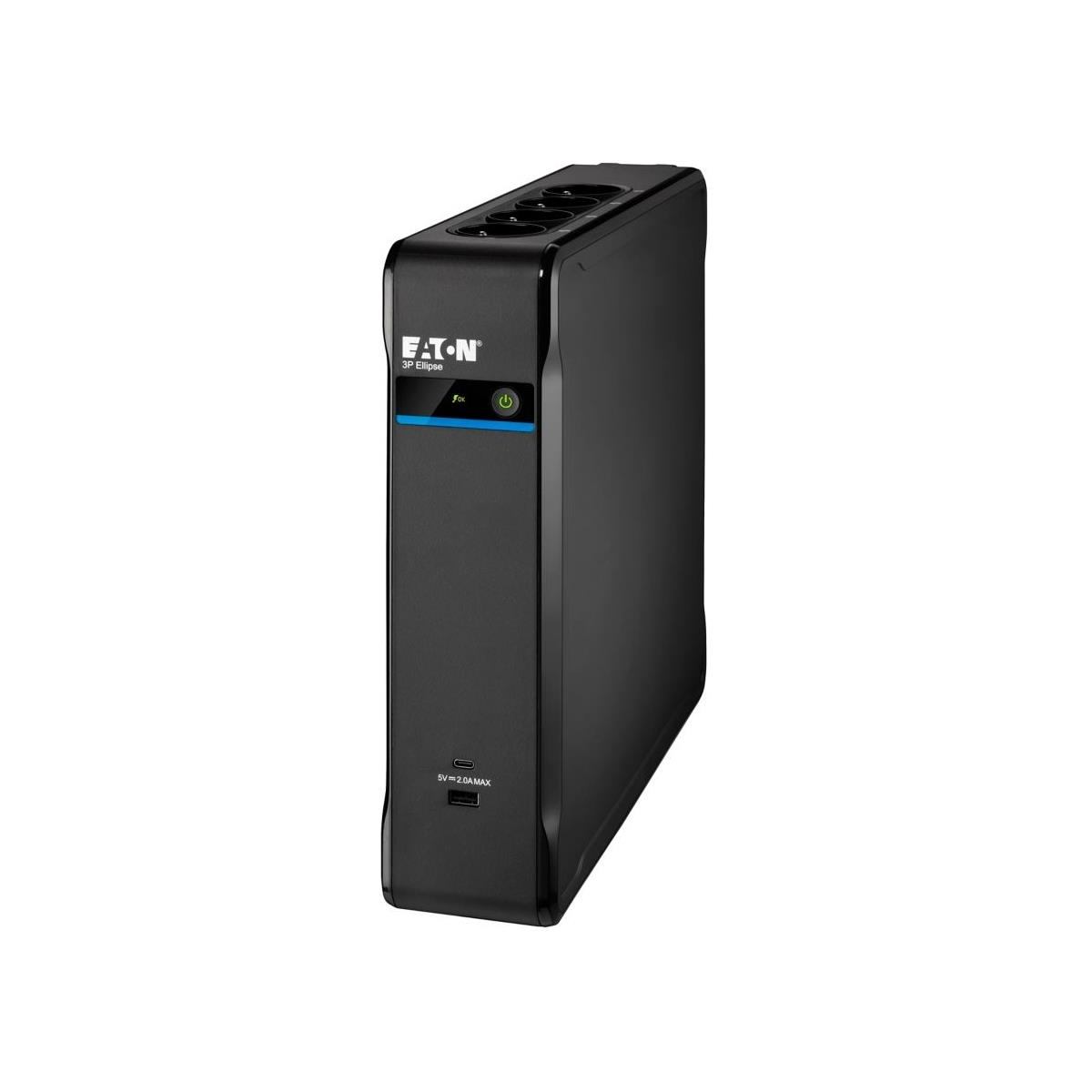

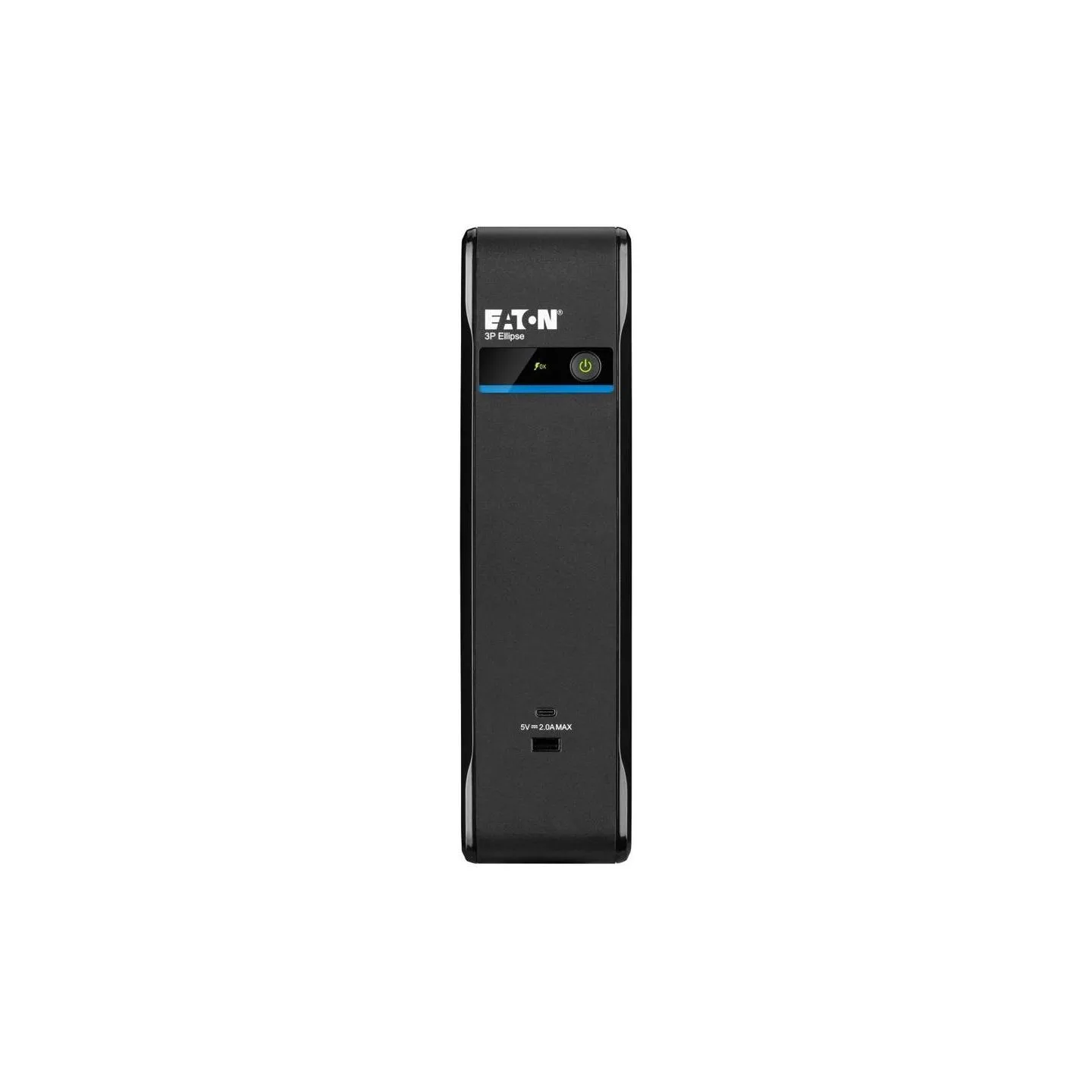

Eaton UPS 3P Ellipse 1300 USB DIN
Price:
€305.33
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on

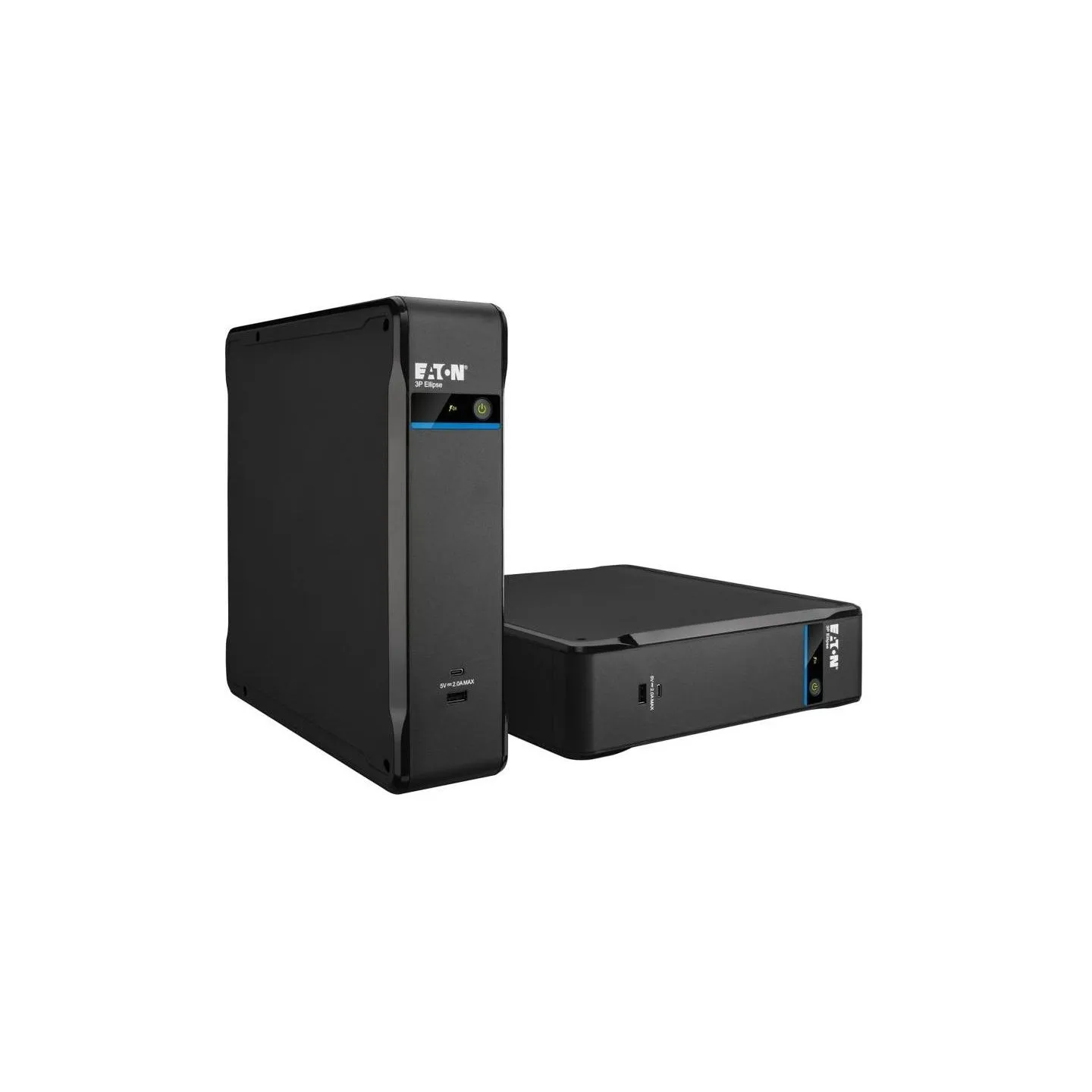

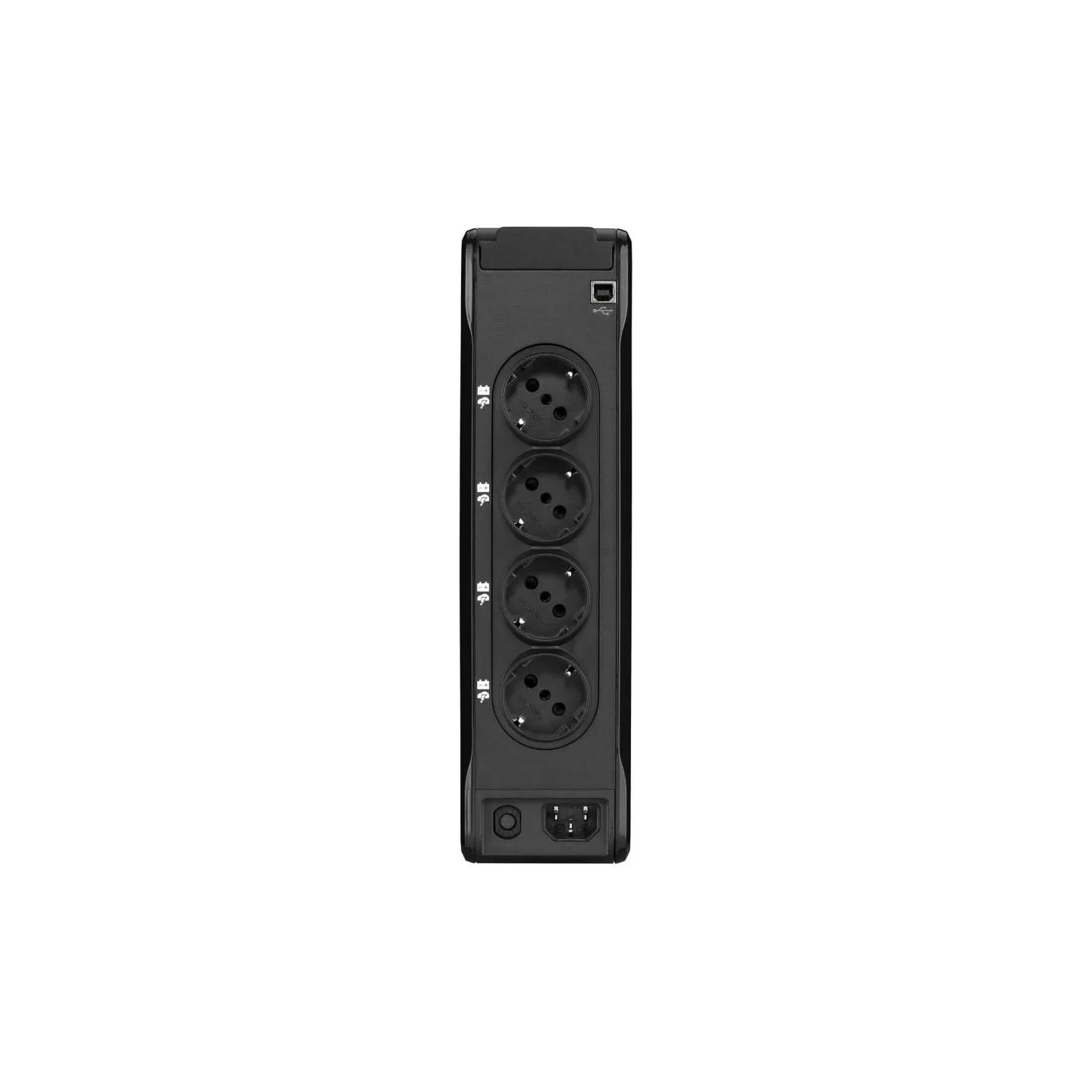

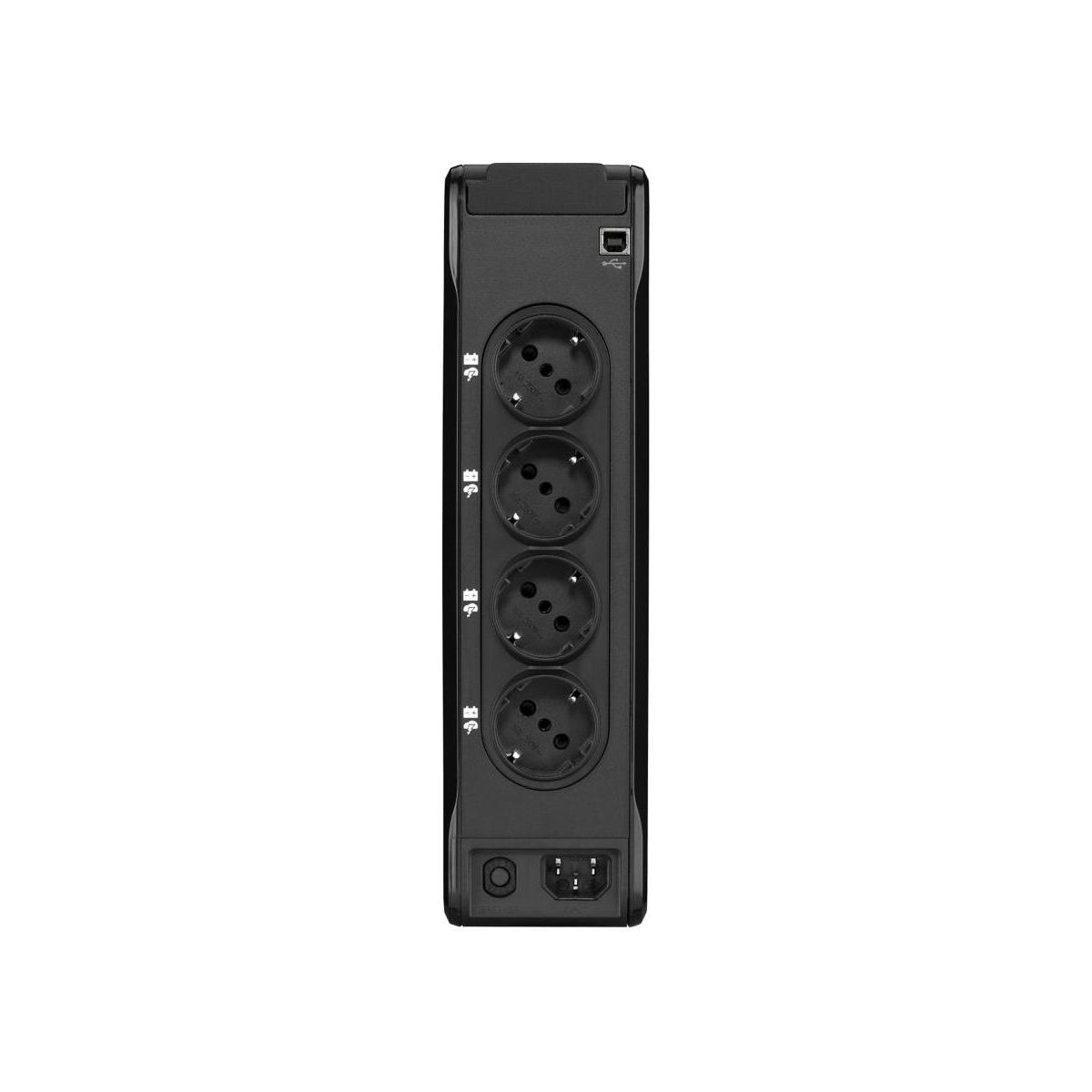

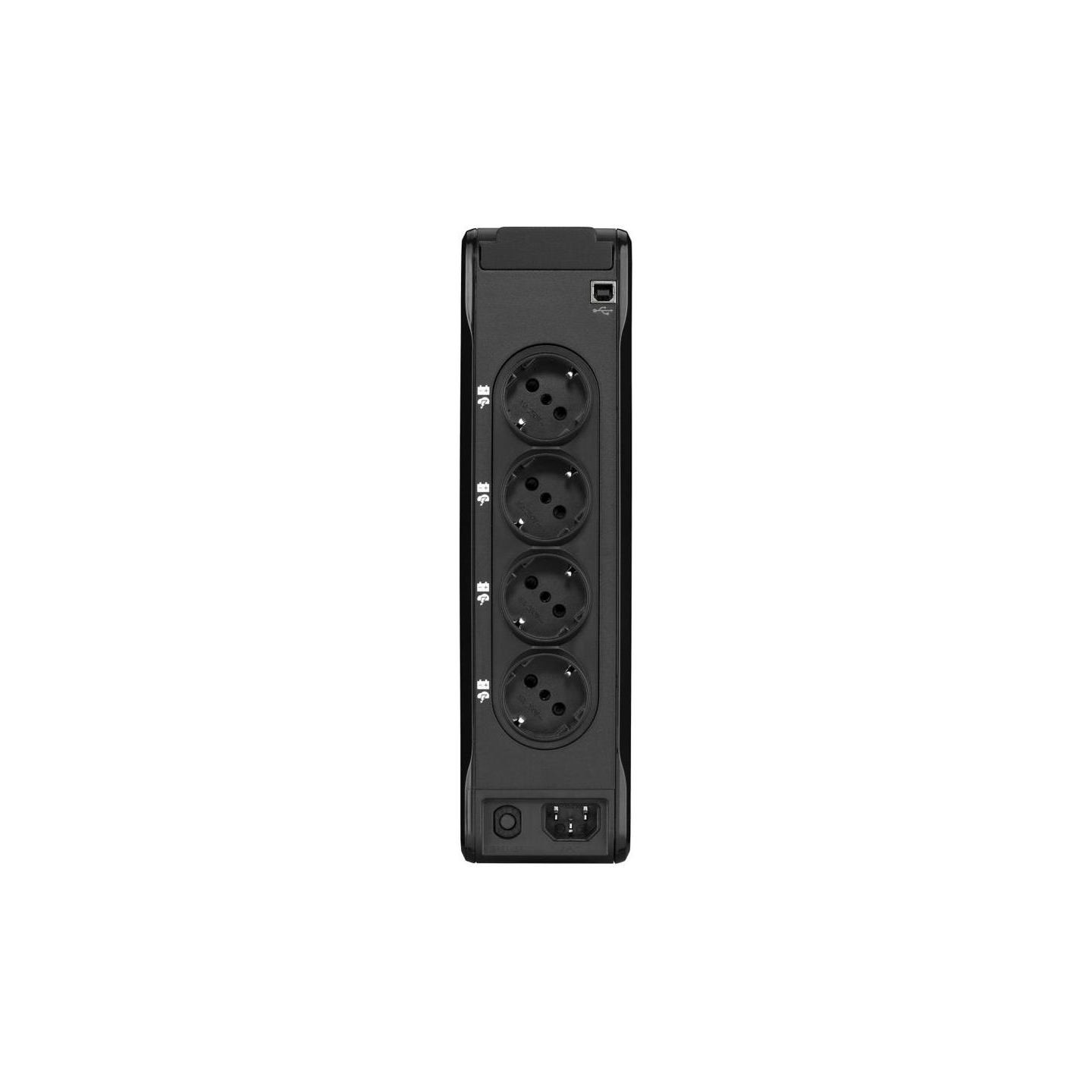

Eaton 3P Ellipse UPS USB DIN, 1300 VA, 840 W, Input: C14, Outputs: (4) Schuko, (4) Schuko surge only, USB charge, Tower

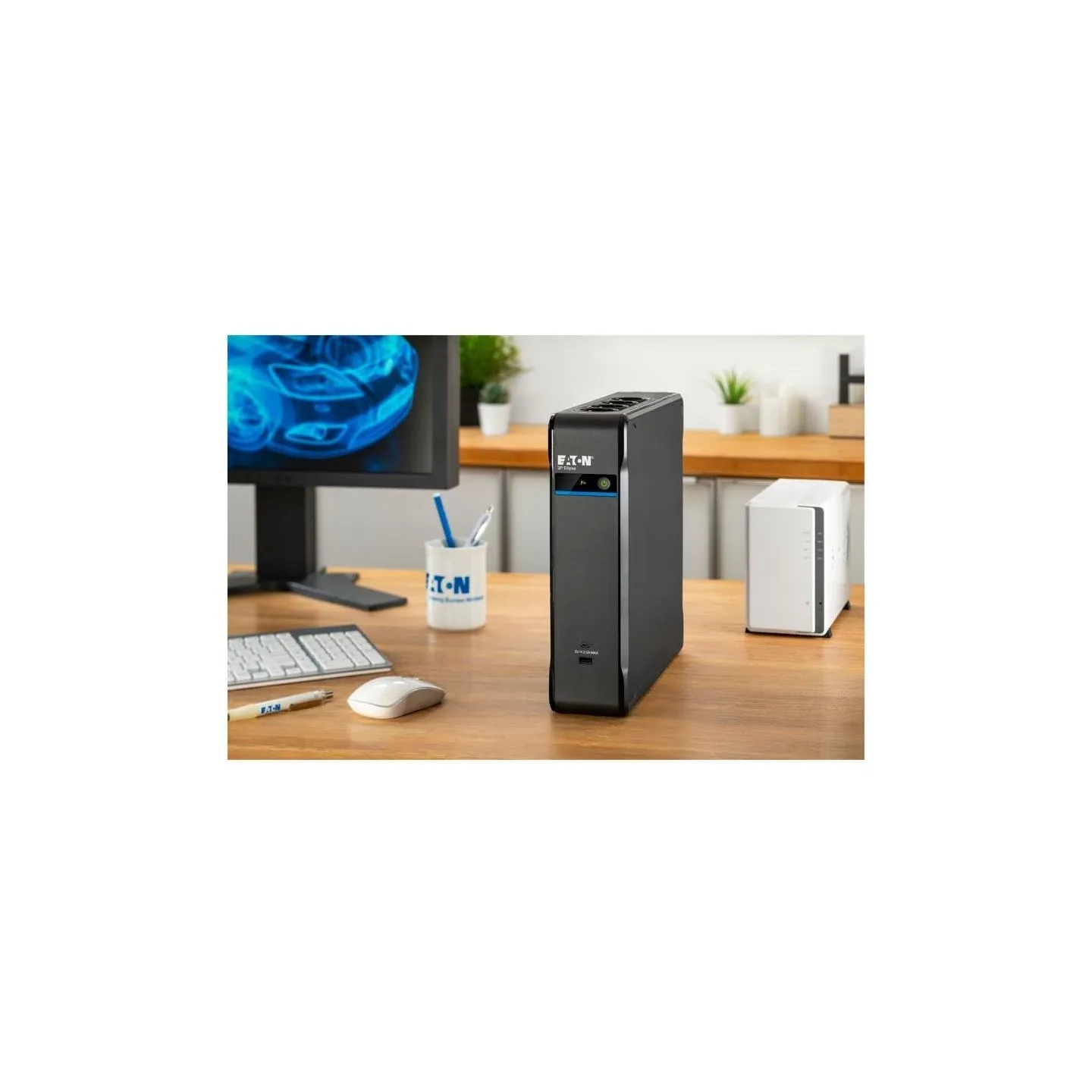

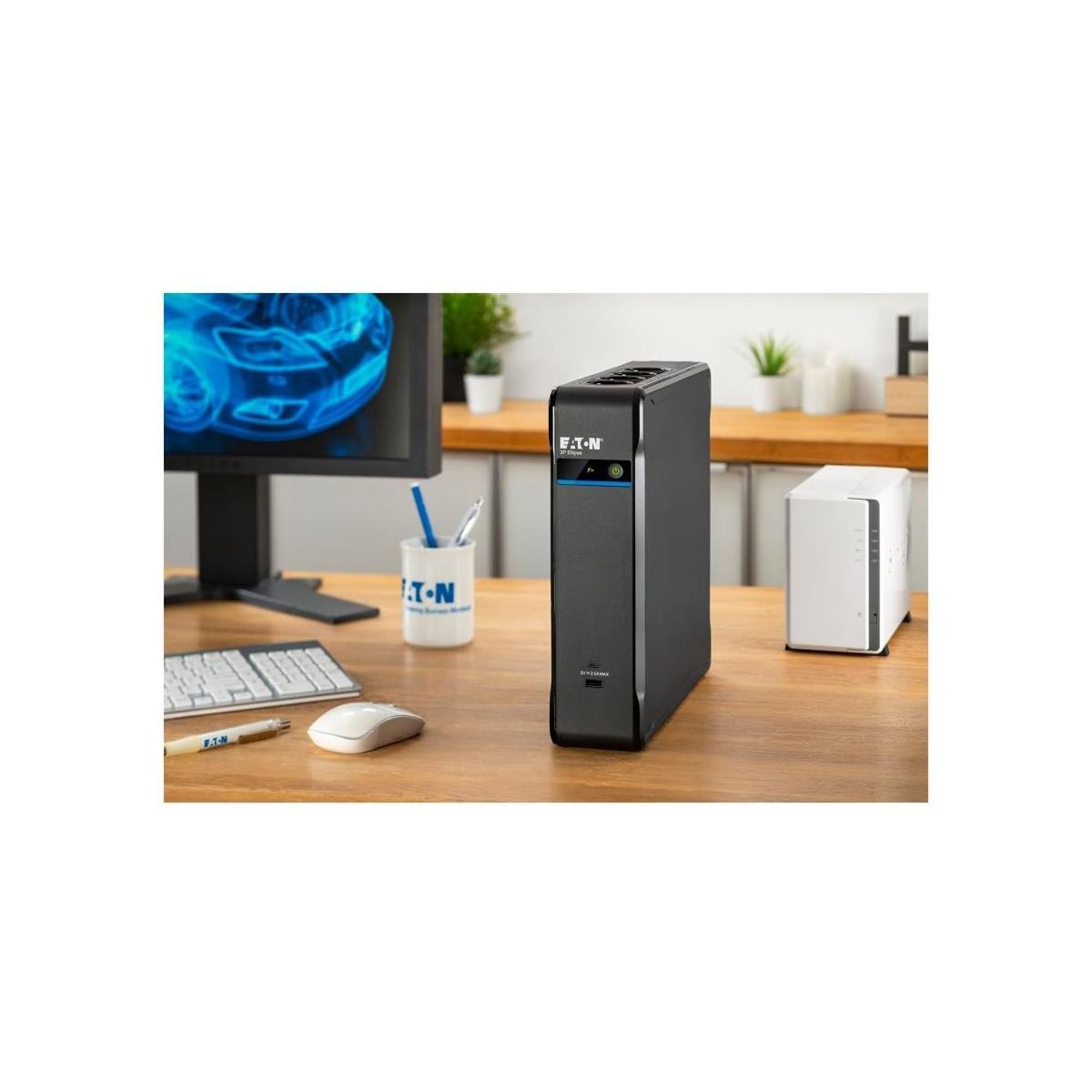

- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 8 outlets to connect your PC + peripherals

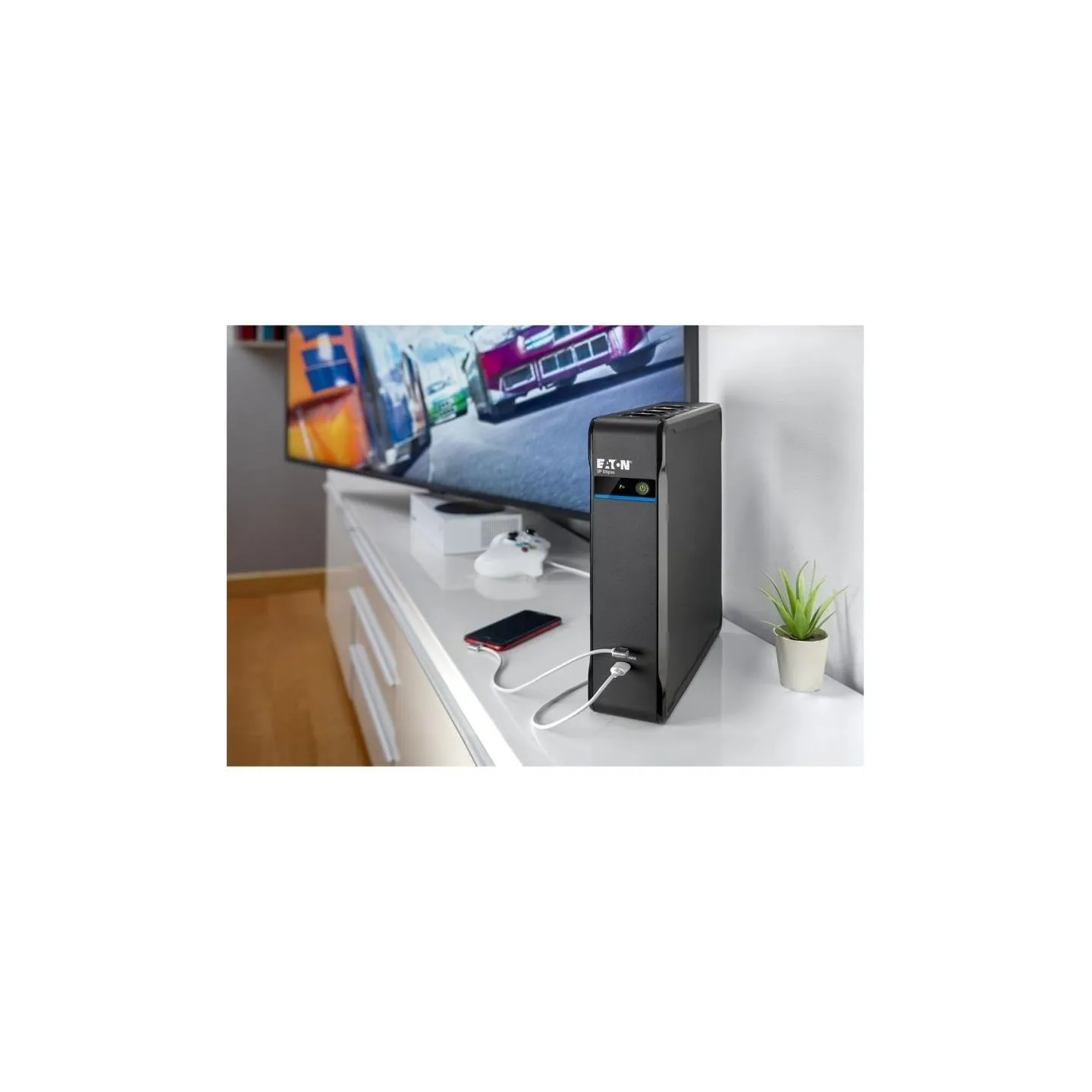

- 2 USB charging ports
- Card slot for optional Cloud connection
- HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
- Easy to replace battery helps to extend UPS service life
Manufacturer Website:
https://www.eaton.com/il/en-gb/skuPage.3P1300UD.html
- Category Code
- UPW
- CnCode
- 85044095
- Unit Box Height
- 0.38
- Unit Box Length
- 0.36
- Unit Box Width
- 0.14
- Auto shut-off
- Yes
- Efficiency
- 97 %
- Efficiency (ECO mode)
- 97 %
- Input frequency
- 46/70 Hz
- Input operation voltage (max)
- 284 V
- Input operation voltage (min)
- 161 V
- Noise level
- 25 dB
- Number of input phases
- 1
- Number of output phases
- 1
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 284 V
- Output operation voltage (min)
- 161 V
- Output power
- 840 W
- Output power capacity
- 1.3 kVA
- Output power factor
- 0.6
- Power consumption (average operating)
- 26 W
- Surge protection
- Yes
- UPS topology
- Standby (Offline)
- Waveform
- Stepwise
- AC outlet types
- C13 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 2
- USB port
- Yes
- Battery capacity
- 7 Ah
- Battery voltage
- 12 V
- Control type
- Buttons
- Display type
- LED

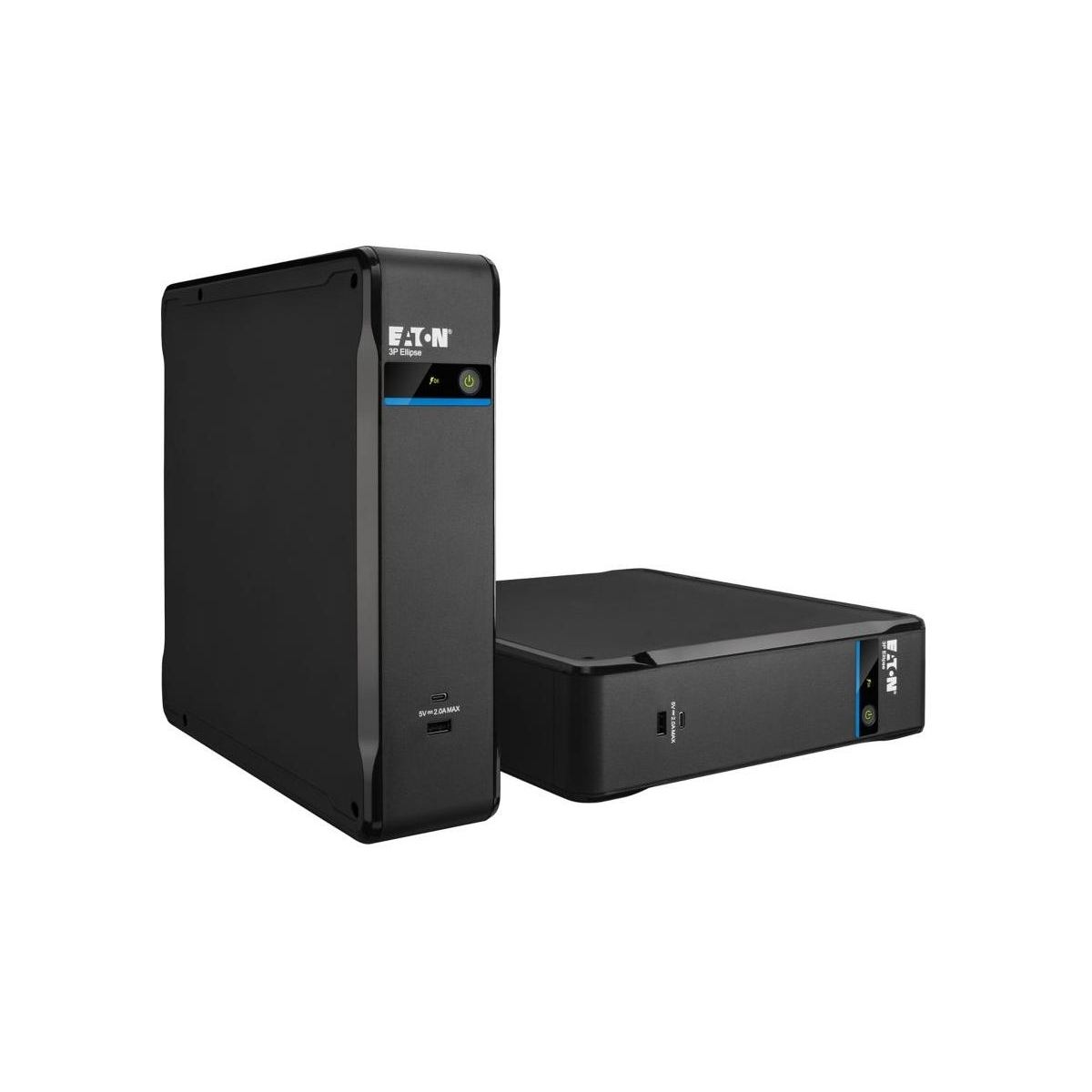

- Form factor
- Tower
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 40 °C
- Cables included
- USB cable
- Certification
- IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
- Compliance certificates
- CB/CE/RoHS/WEEE
- Quick installation guide
- Yes
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Depth
- 312 mm
- Height
- 305 mm
- Weight
- 7000 g
- Width
- 81 mm
- Package type
- Box
- Input connection type
- C14
- Nominal input voltage
- 220-240 V
- Relative humidity
- 0 - 95 %
- Model
- 3P1300UD
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.01915 cubm
- Unit Calculated Weight
- 8.05 kg
