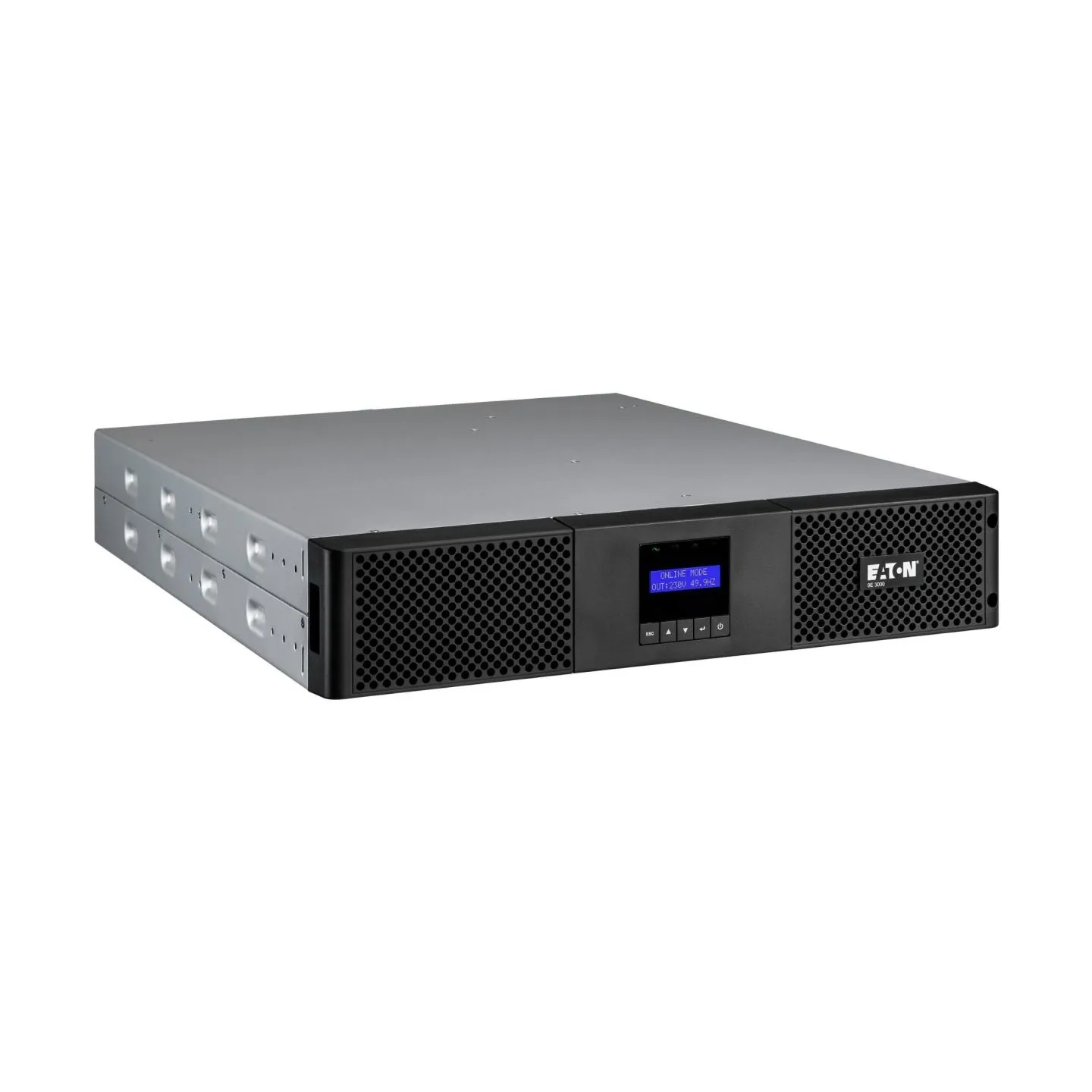

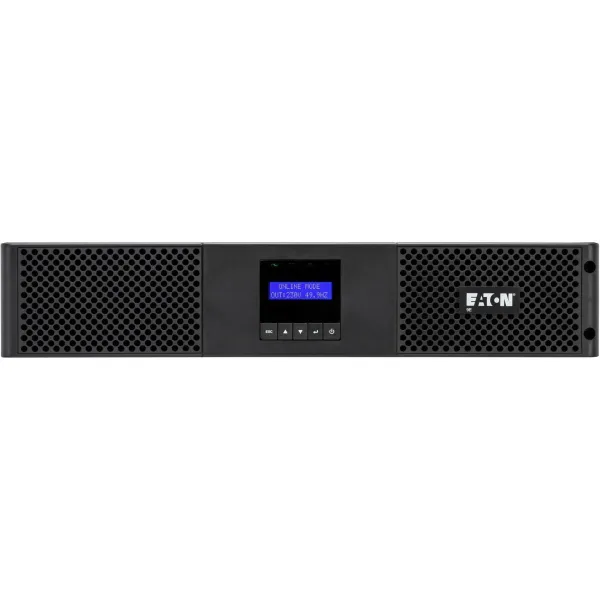

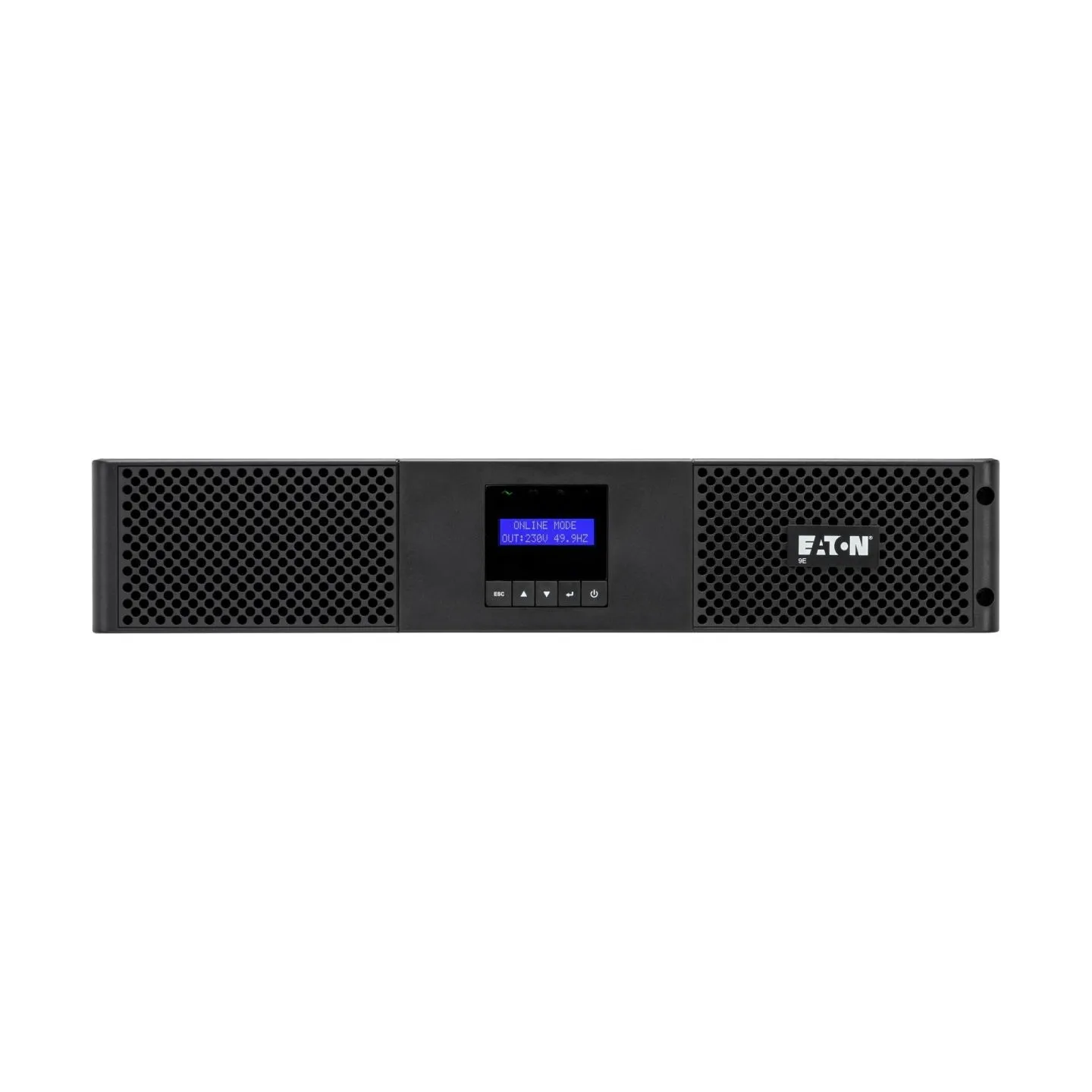

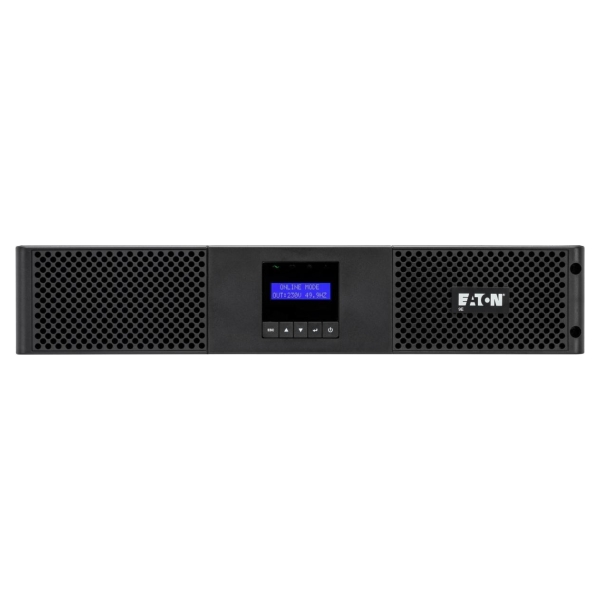

Eaton 9E 2000i Rack 2U 2KVA
Price:
€1,170.14
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
- Double conversion topology
- Constantly monitors power conditions and regulates voltage and frequency
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Internal bypass allows service continuity in case of UPS fault
- LCD display

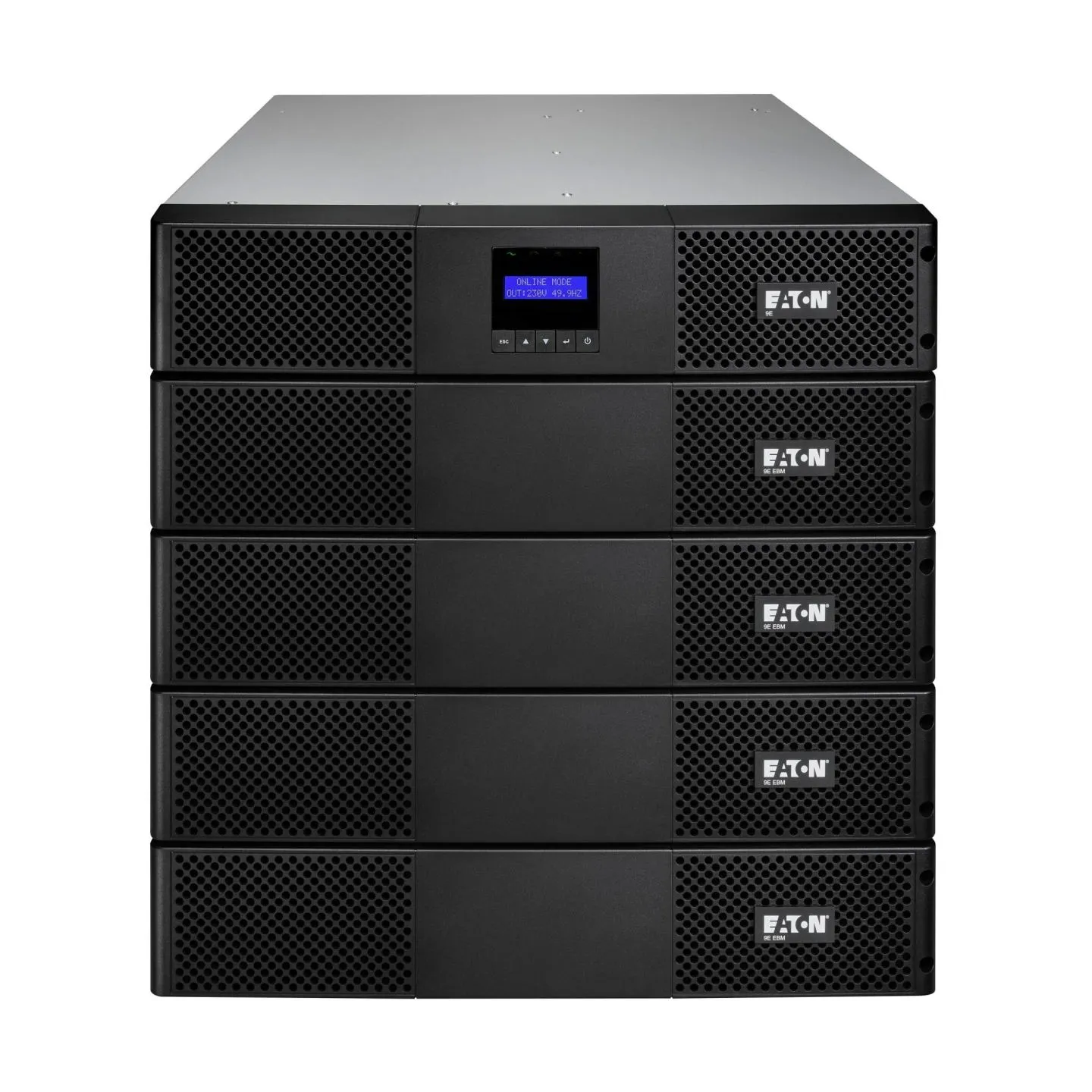

- Long backup time with up to 4 optional EBM
Manufacturer Website:
https://www.eaton.com/gb/en-gb/skuPage.9E2000IR.html
- Category Code
- UPW
- CnCode
- 85044095
- Unit Box Height
- 0.23
- Unit Box Length
- 0.78
- Unit Box Width
- 0.58
- Audible alarm(s)
- Yes
- Efficiency
- 91 %
- Efficiency (ECO mode)
- 96.5 %
- Heat dissipation
- 546 BTU/h
- Input frequency
- 40/70 Hz
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 140 V
- Input power factor
- 99
- Noise level
- 45 dB
- Number of input phases
- 1
- Number of output phases
- 1
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 220 V
- Output power
- 1800 W
- Output power capacity
- 2 kVA
- Output power factor
- 0.9
- Power source type
- AC
- UPS topology
- Double-conversion (Online)
- Waveform
- Sine

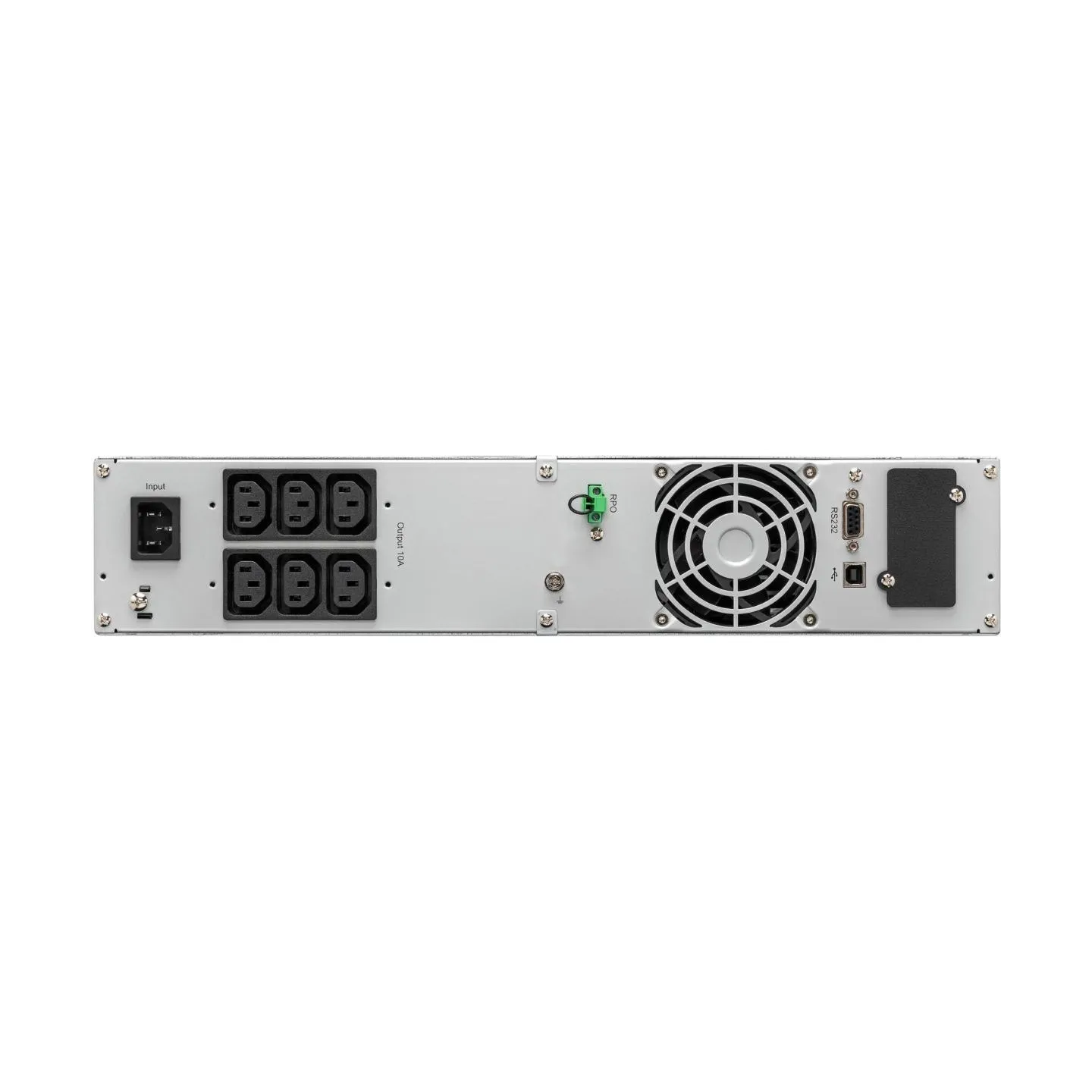

- AC outlet types
- C13 coupler/C14 coupler
- AC outlets quantity
- 6 AC outlet(s)
- Power plug
- C13 coupler

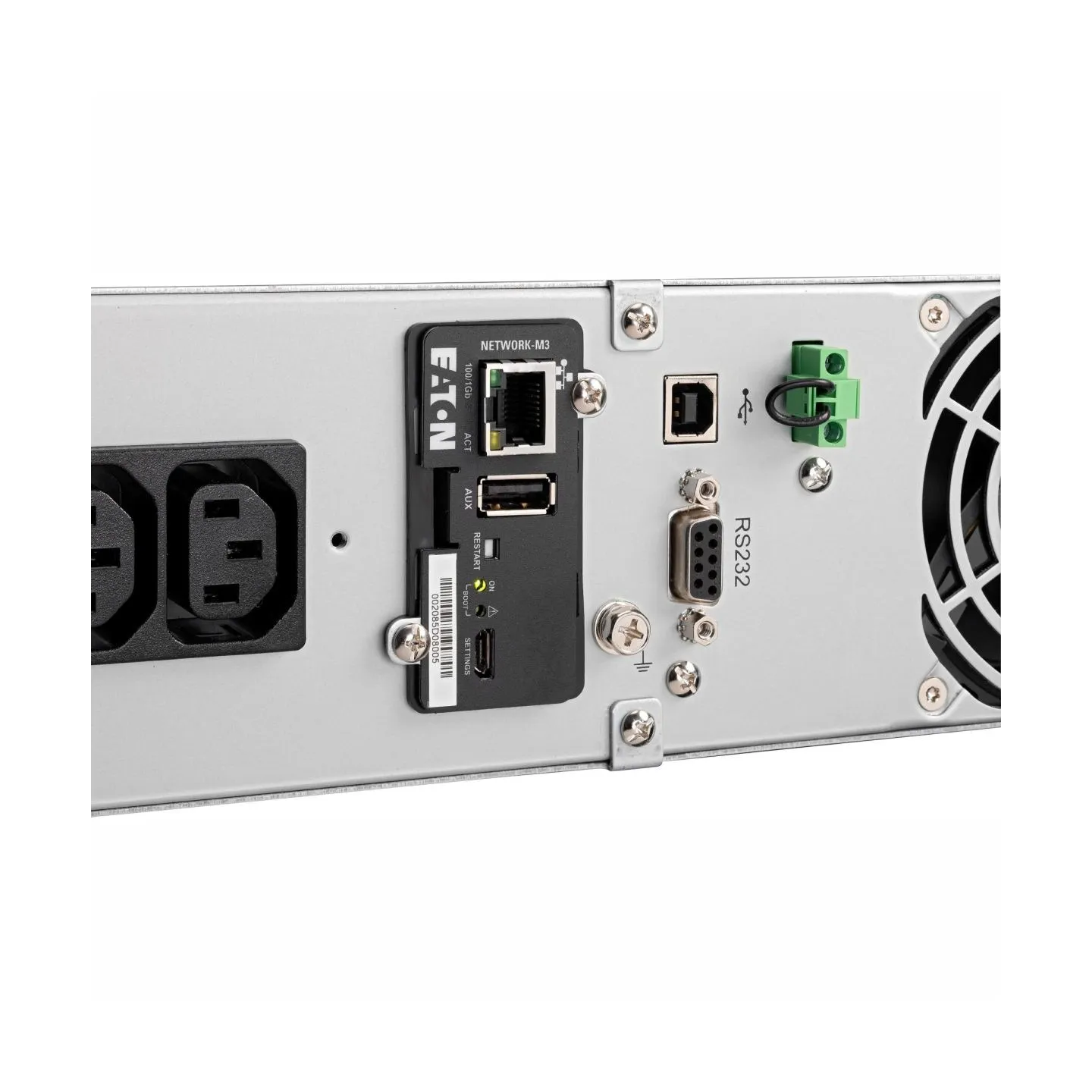

- RS-232 ports
- 1
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- USB port
- Yes
- Battery capacity
- 7 Ah
- Battery technology
- Lead-Acid
- Battery voltage
- 12 V
- Number of batteries supported
- 6
- Typical backup time at full load
- 4.5 min
- Typical backup time at half load
- 12 min
- Control type
- Buttons

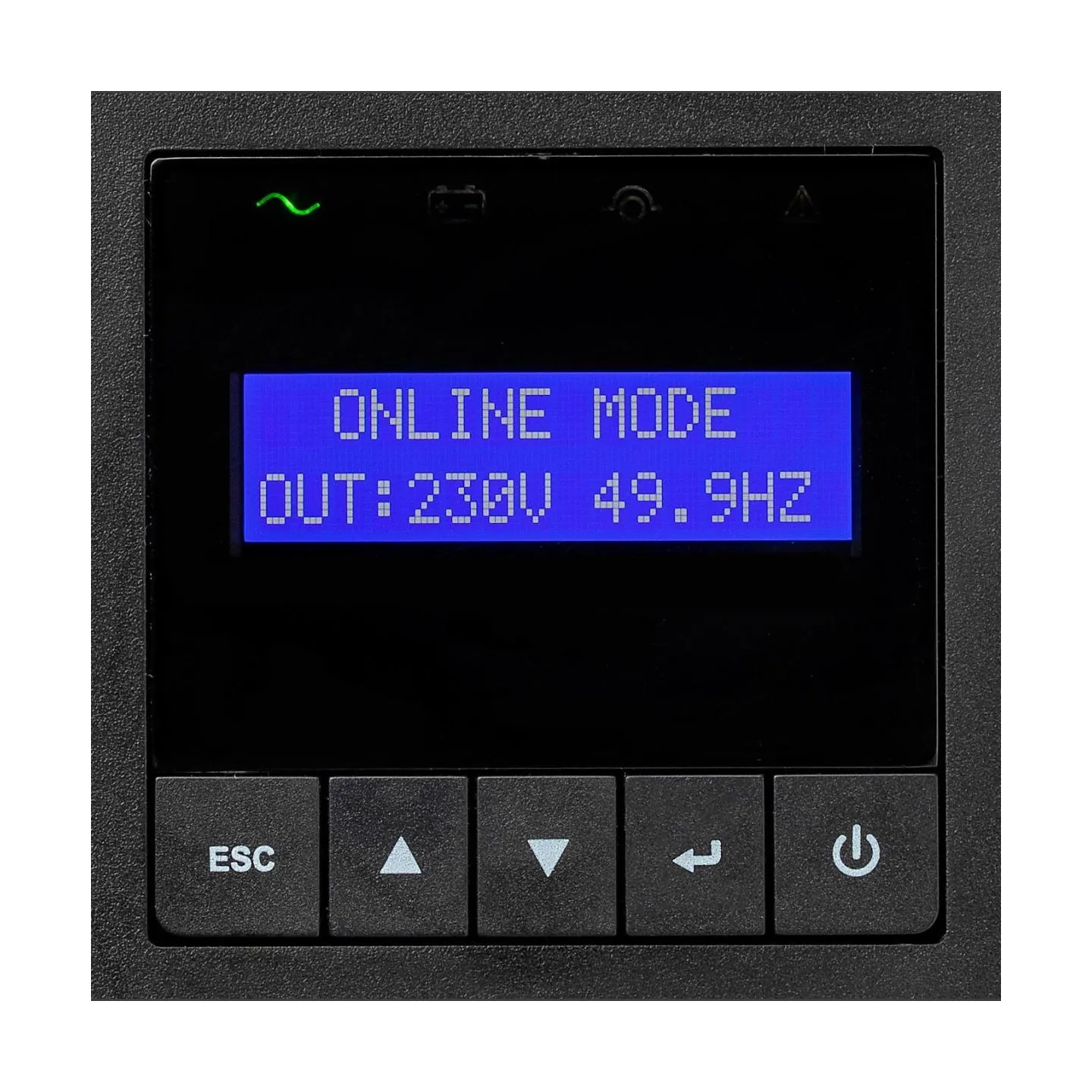

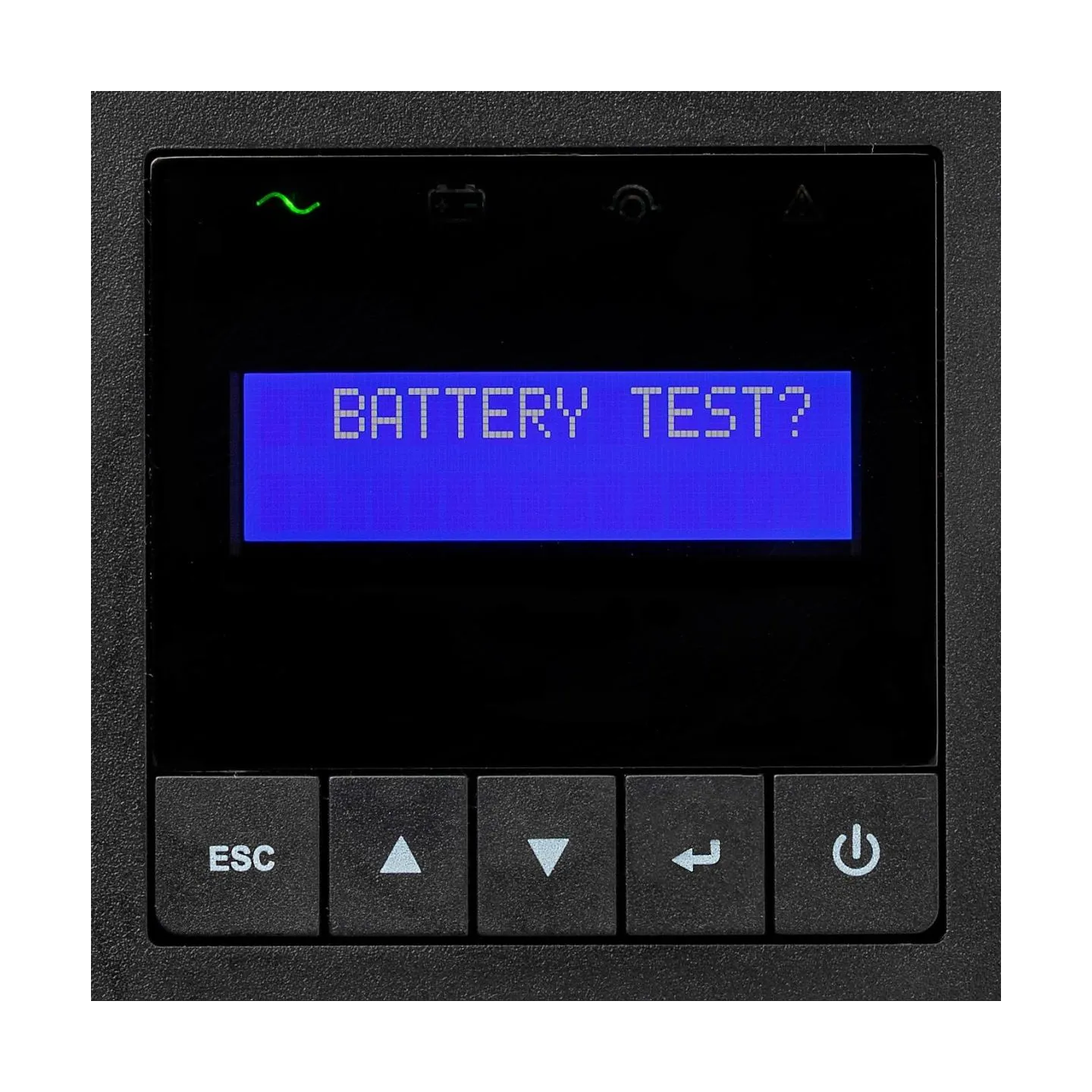

- Display type
- LCD
- Form factor
- Tower
- LED indicators
- Yes
- Product colour
- Black
- Rack capacity
- 2U
- Operating relative humidity (H-H)
- 0 - 96 %
- Operating temperature (T-T)
- 0 - 40 °C
- Cables included
- Output power cable,USB cable
- Certification
- IEC/EN 62040-1 IEC/EN 62040-2 CE
- Compliance certificates
- CE
- Quick installation guide
- Yes
- Rack mount kit
- Yes
- Sustainability compliance
- Yes
- Depth
- 608 mm
- Height
- 86.5 mm
- Weight
- 29900 g
- Width
- 438 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.1041 cubm
- Unit Calculated Weight
- 32.4 kg
